ATF Replacement

NOTE: Keep all foreign particles out of the transmission.
  1. Bring the transmission up to normal operating temperature (the radiator fan comes on).
  2. Park the vehicle on level ground, and turn the engine off.
  3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

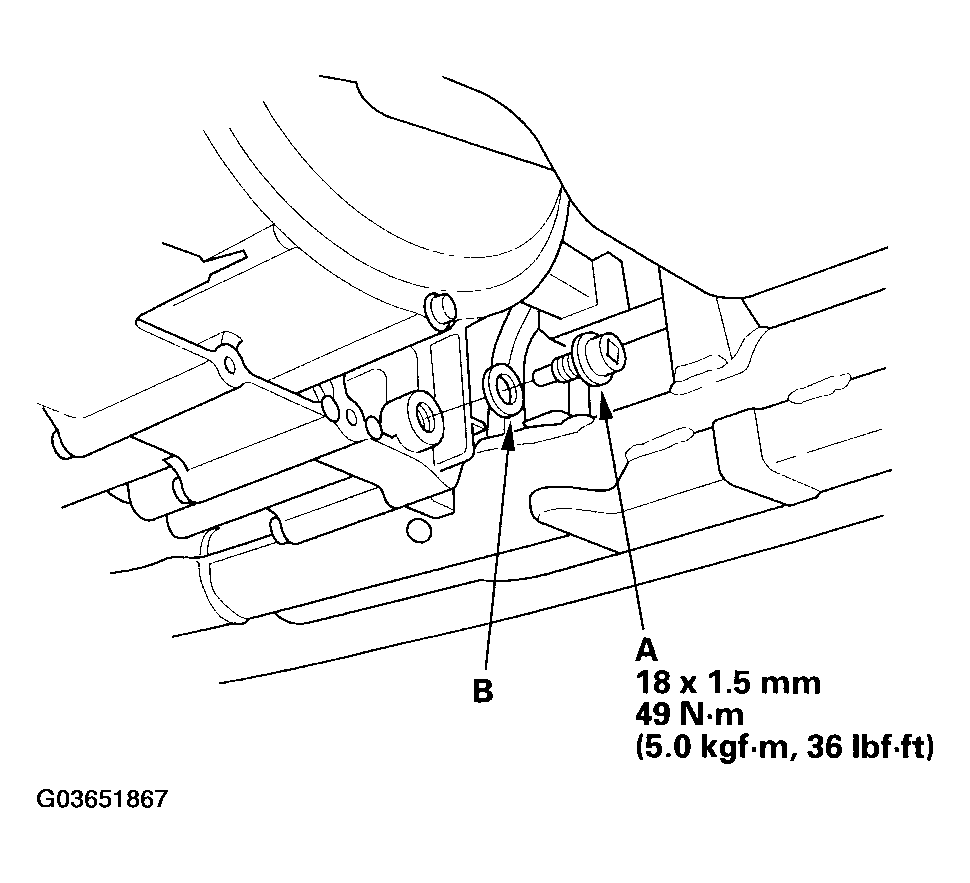

    Fig 1: Removing Drain Plug And Drain Automatic Transmission Fluid With Specified Torques
    G03651867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Reinstall the drain plug with a new sealing washer (B).
  5. Remove the dipstick, and refill transmission with the recommended fluid amount through the dipstick hole until the level reaches the upper mark on the dipstick. Always use ACURA ATF-Z1 Automatic Transmission Fluid (ATF). Using a non-Acura ATF can affect shift quality.

    Automatic Transmission Fluid Capacity:

    2.9 L (3.1 US qt) at change

    6.5 L (6.9 US qt) at overhaul

  6. Insert the dipstick (A) back into the transmission in the direction (B) shown.

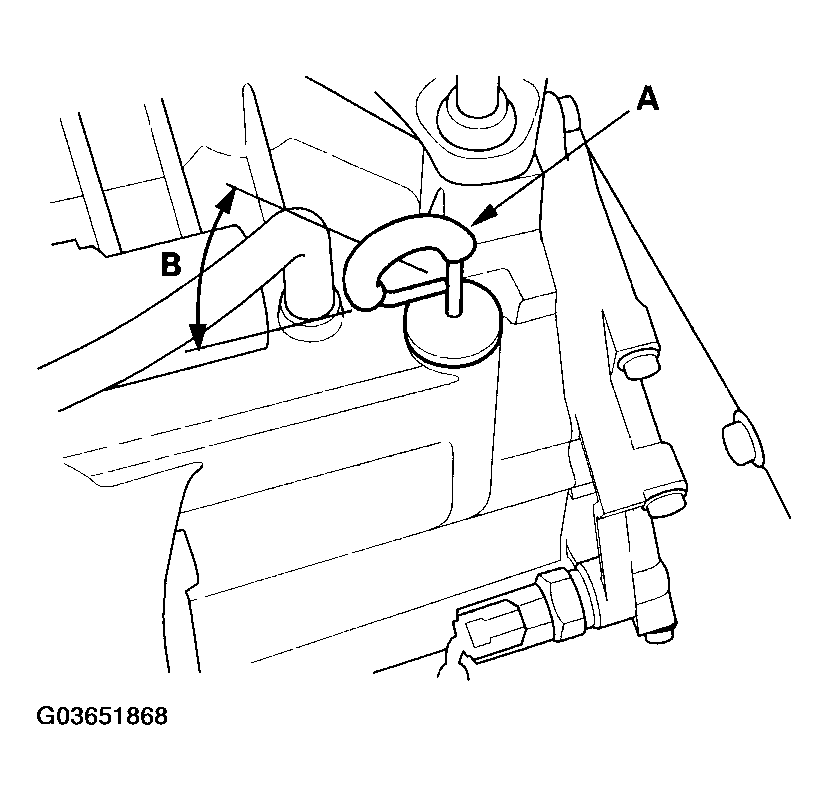

    Fig 2: Inserting Dipstick Back Into Transmission In Direction
    G03651868Courtesy of AMERICAN HONDA MOTOR CO., INC.
