ATF Temperature Sensor Test/Replacement

  1. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

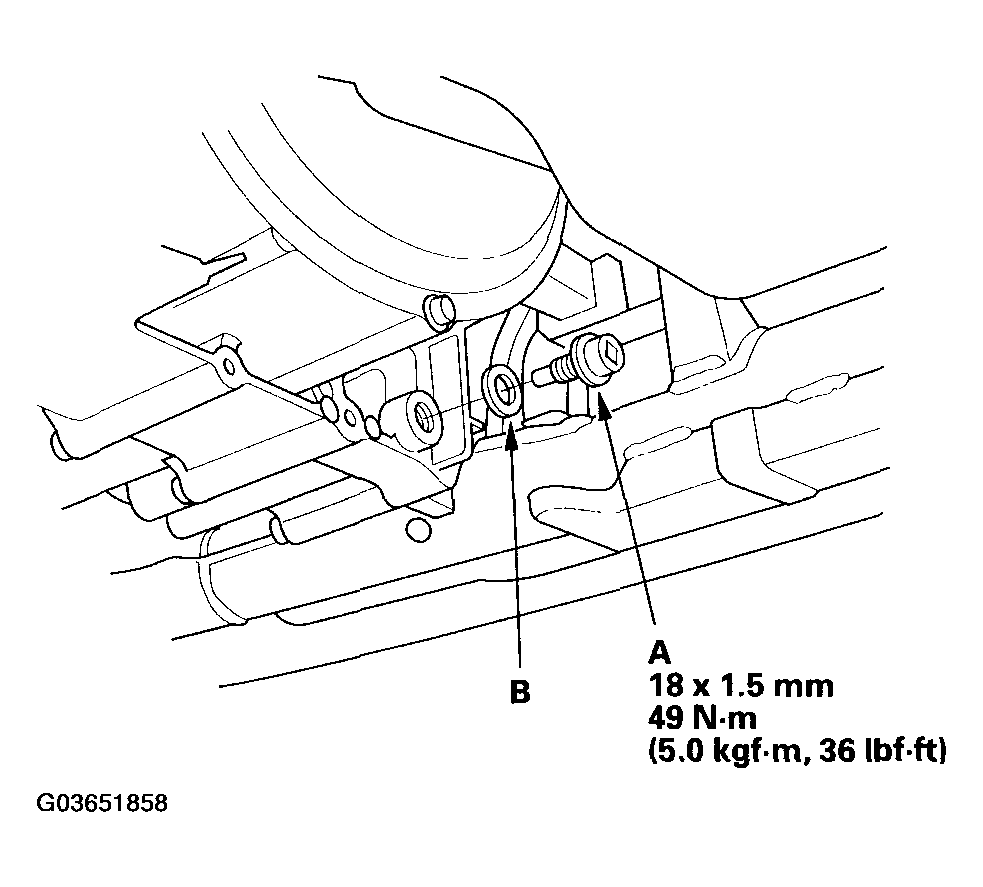

    Fig 1: Removing Drain Plug And Drain Automatic Transmission Fluid With Specified Torques
    G03651858Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Reinstall the drain plug with a new sealing washer (B).
  3. Place the transmission jack under the transmission, and lift it up to create clearance between the transmission and front subframe.
  4. Disconnect the shift solenoid harness connector.
  5. Remove the bolt (A) securing the bracket (B) of the ATF cooler inlet line (C) on the shift solenoid valve cover (D), and remove the line bolt (E) with sealing washers (F).

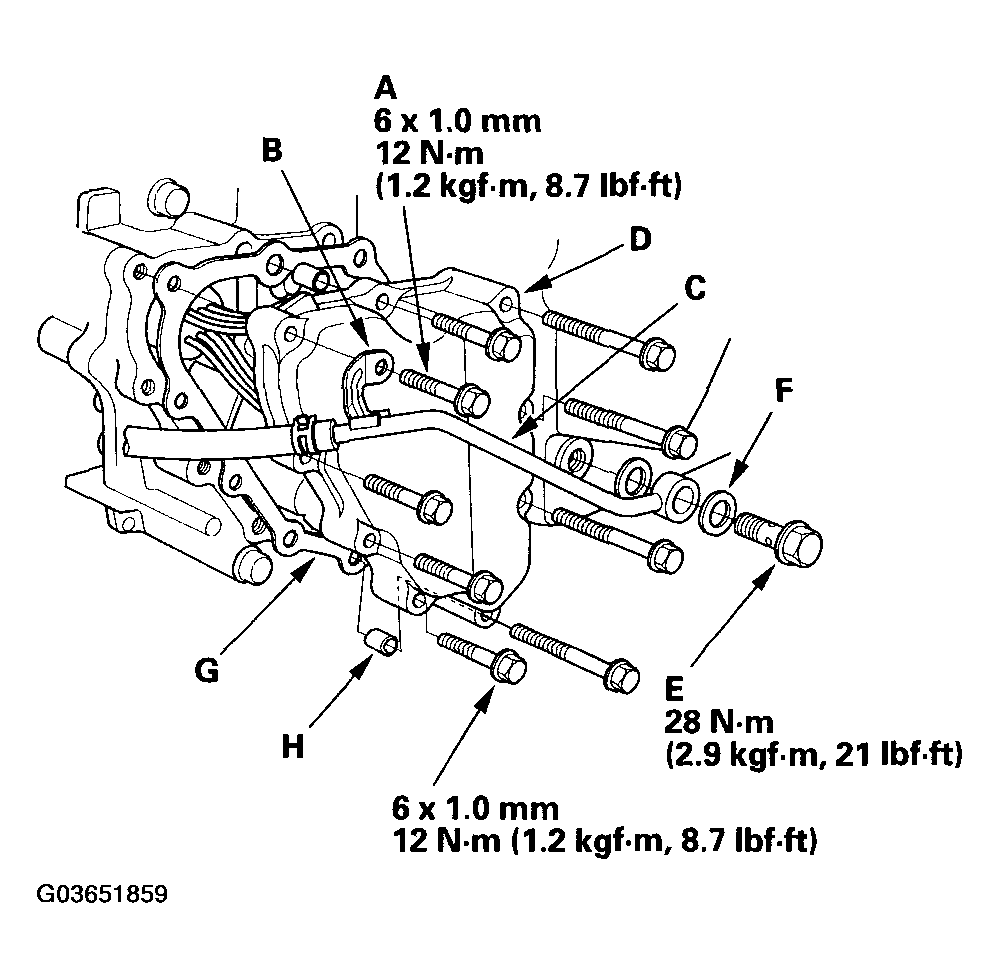

    Fig 2: Removing Bolt Securing Bracket Of ATF Cooler Inlet Line On Shift Solenoid Valve Cover And Torque Specifications
    G03651859Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the shift solenoid valve cover, gasket (G), and dowel pins (H).
  7. Remove the bolt (A), and remove the shift solenoid harness connector (B).

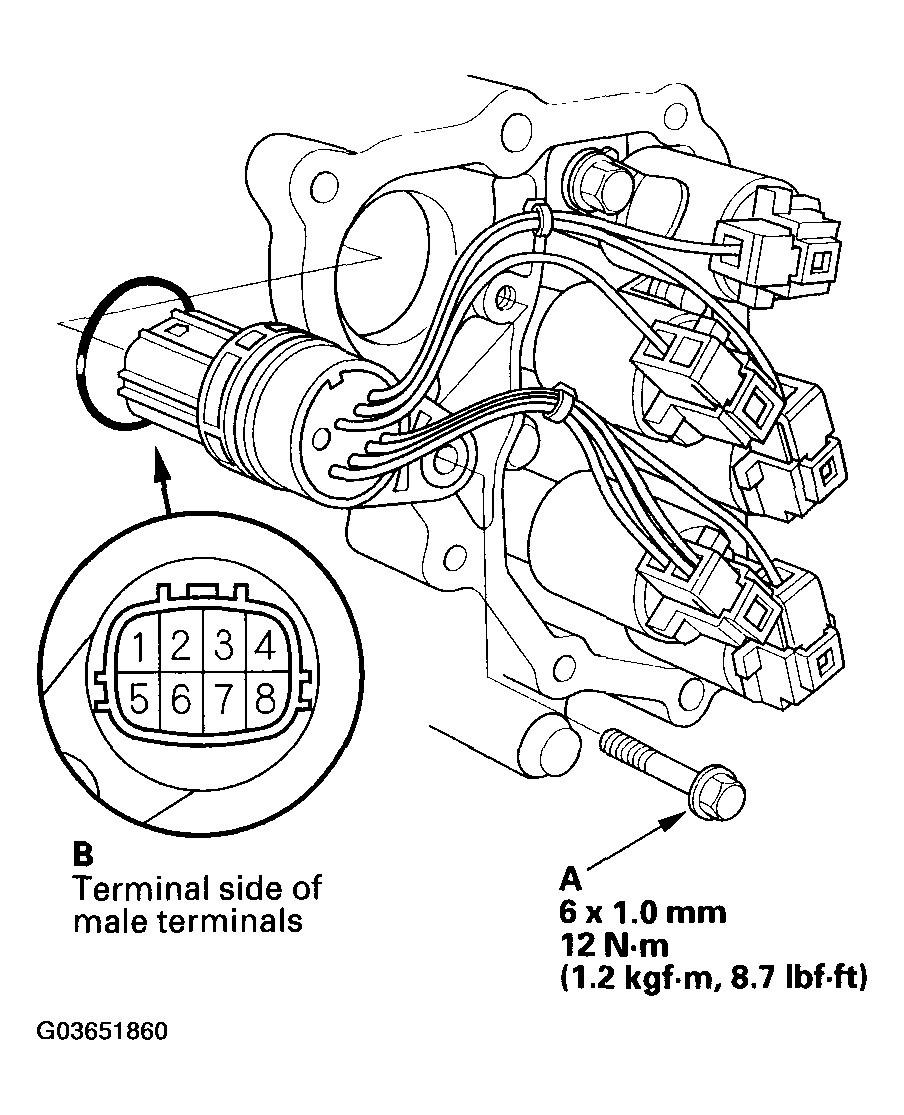

    Fig 3: Removing Bolt And Shift Solenoid Harness Connector With Specified Torques
    G03651860Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Measure ATF temperature sensor resistance between shift solenoid harness connector terminals No. 6 and No. 7.

    Standard: 50 Ω -25 k  Ω

  9. If the resistance is out of standard, replace the ATF temperature sensor with the solenoid harness. The ATF temperature sensor is not available separately.
  10. Disconnect the connectors from the shift solenoid valves.
  11. Connect the shift solenoid valve D connector with the ATF temperature sensor (F) on the new solenoid harness.

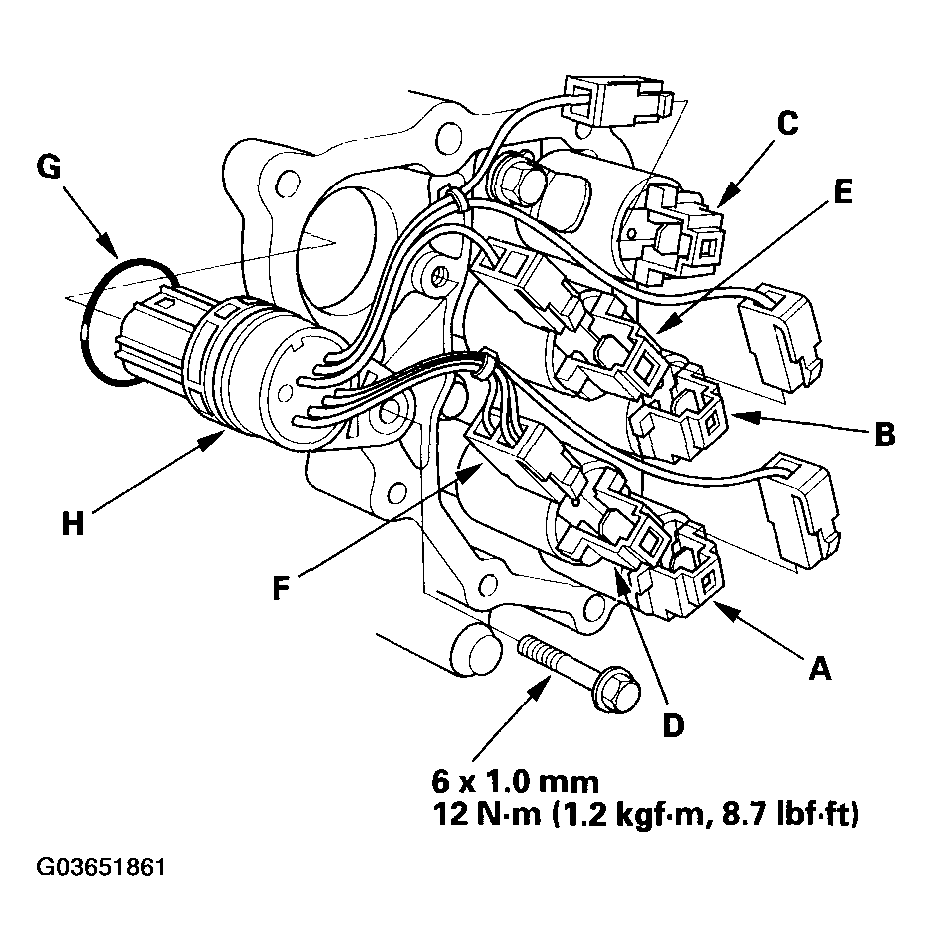

    Fig 4: Connecting Shift Solenoid Valve D Connector With ATF Temperature Sensor On New Solenoid Harness And Torque Specifications
    G03651861Courtesy of AMERICAN HONDA MOTOR CO., INC.
  12. Connect the solenoid valve A connector (BLU wire), solenoid valve B connector (ORN wire), solenoid valve C connector (GRN wire), and solenoid valve E connector (RED wire).
  13. Install the new O-ring (G) on the shift solenoid harness connector (H), and install the connector in the transmission housing.
  14. Install the shift solenoid valve cover with the new gasket and dowel pins.
  15. Install the ATF cooler inlet line with the line bolt and the new sealing washers. Create clearance with the jack between the transmission and the front subframe to tighten the line bolt with the torque wrench.
  16. Install the bracket of the ATF cooler inlet line on the shift solenoid valve cover with the bolt.
  17. Check the connector for rust, dirt, or oil, then connect the connector securely.
  18. Remove the transmission jack.
  19. Refill the transmission with ATF (see step  5 ).
