Master Switch Input Test

NOTE: The power window control unit is built into the power window master switch, and it only controls the driver's window operations.

Remove the door grip cover (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 20P connector (A) from the master switch (B).

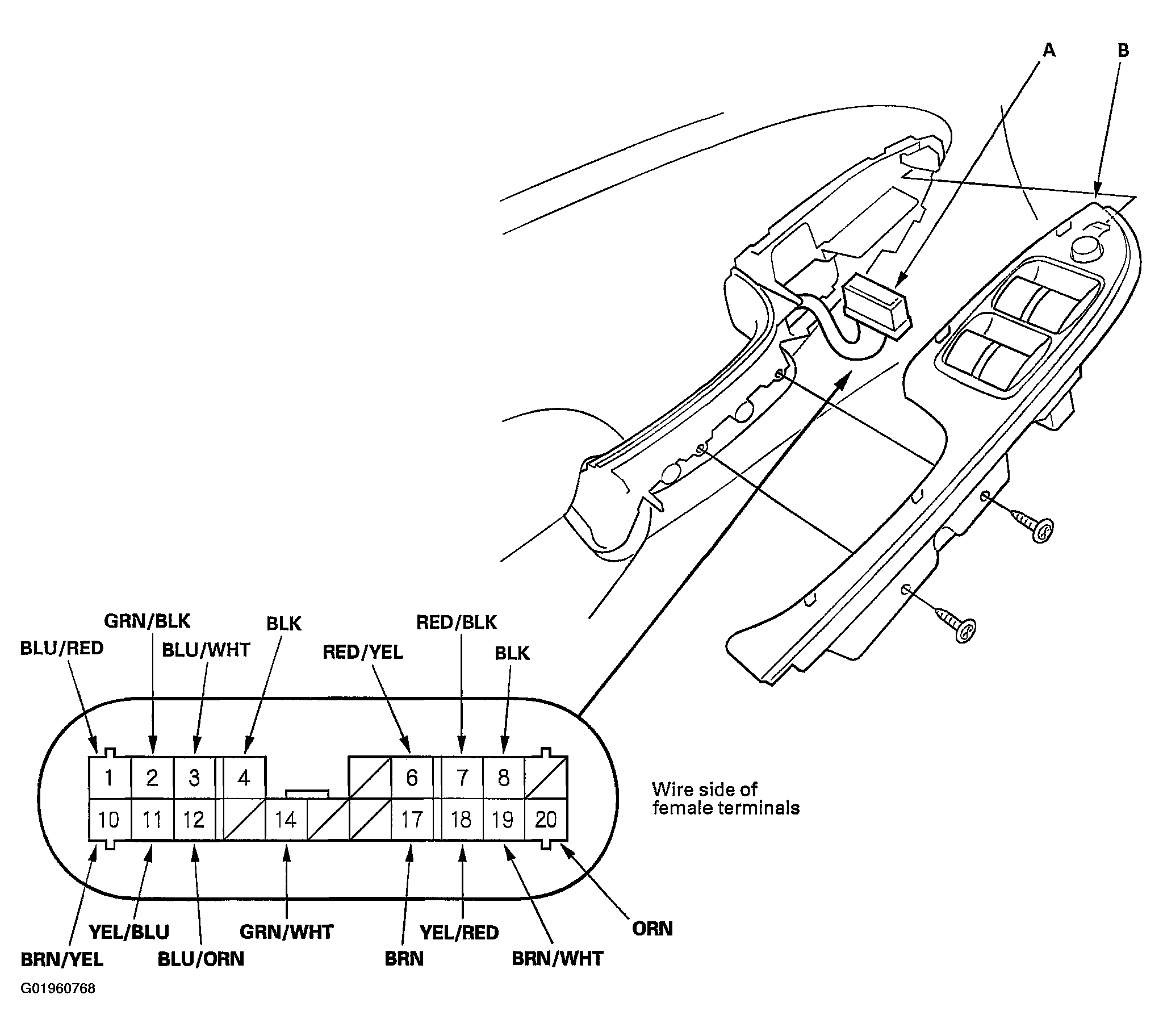

Fig 1: Disconnecting Connector From Master Switch
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, make the following input tests at the connector.
  - If a test indicates a problem, find and correct the cause, then recheck the system.
  - If all the input tests prove OK, the power window master switch must be faulty; replace it.

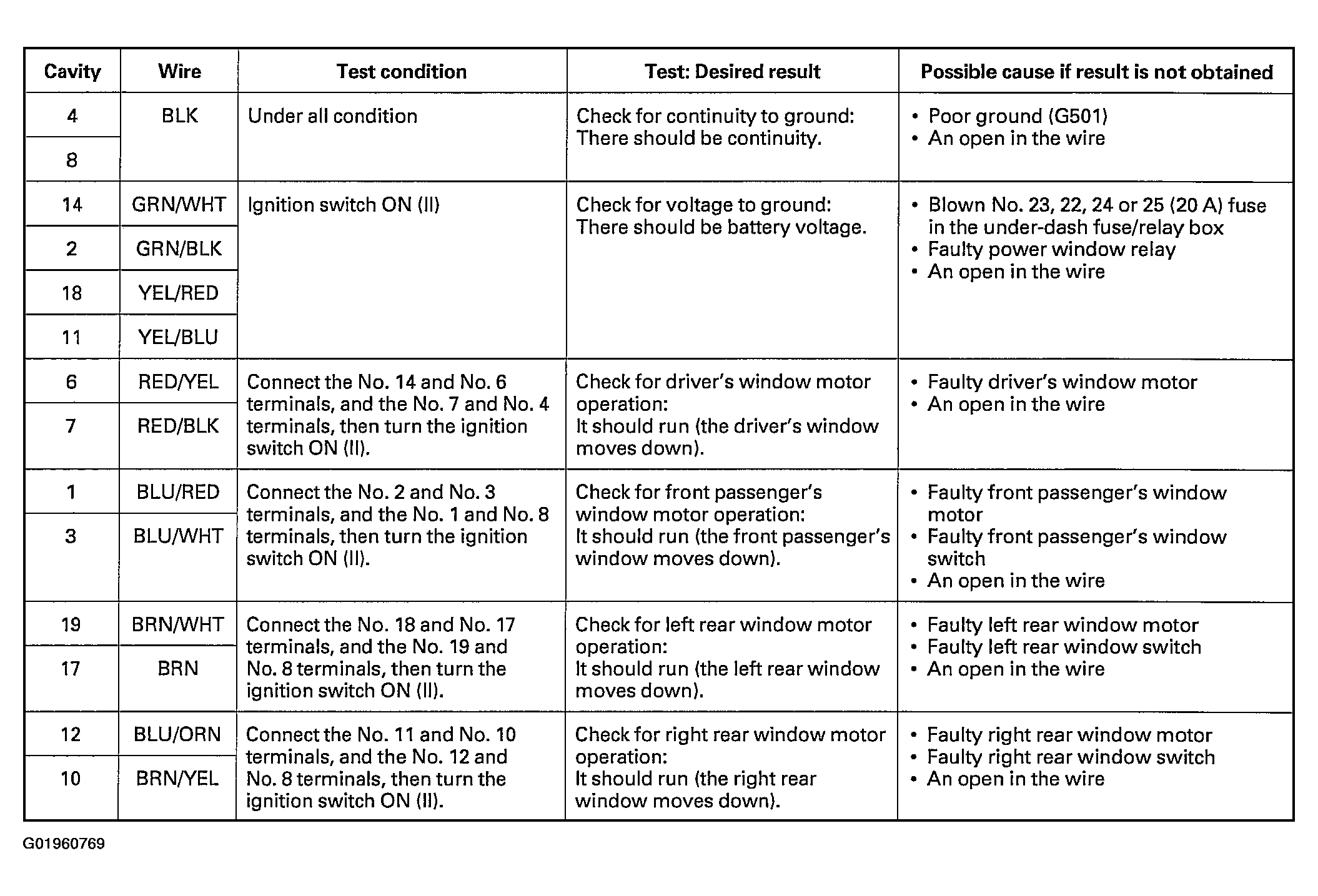

Fig 2: Master Switch Specifications Table (1 Of 2)
Reconnect the connector to the power window master switch.

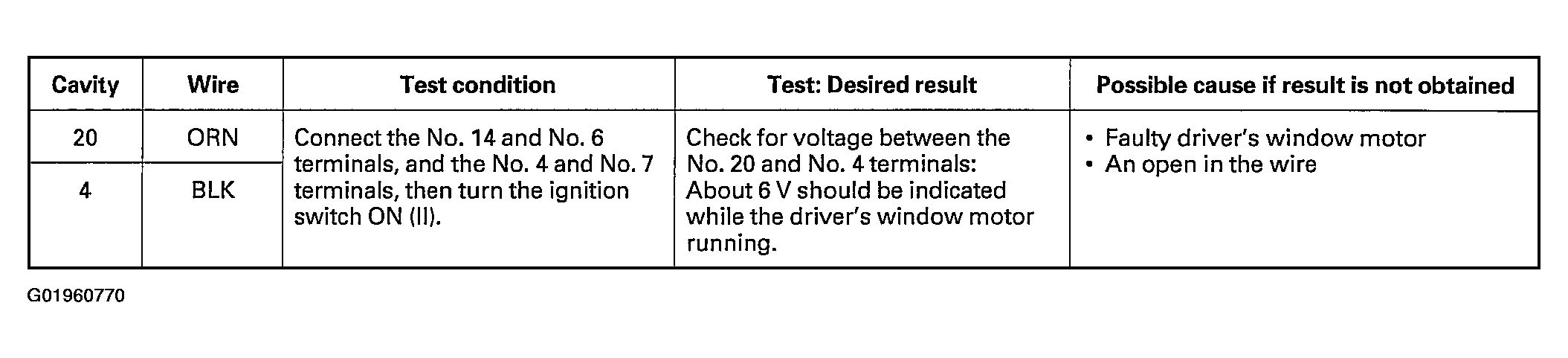

Fig 3: Master Switch Specifications Table (2 Of 2)
