Home >> Acura >> 2003 >> 3.2CL Base >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Master Switch Replacement

Master Switch Replacement

  1. Remove the driver's door panel .
  2. Remove the power mirror switch.
  3. Remove the screws and master switch assembly.

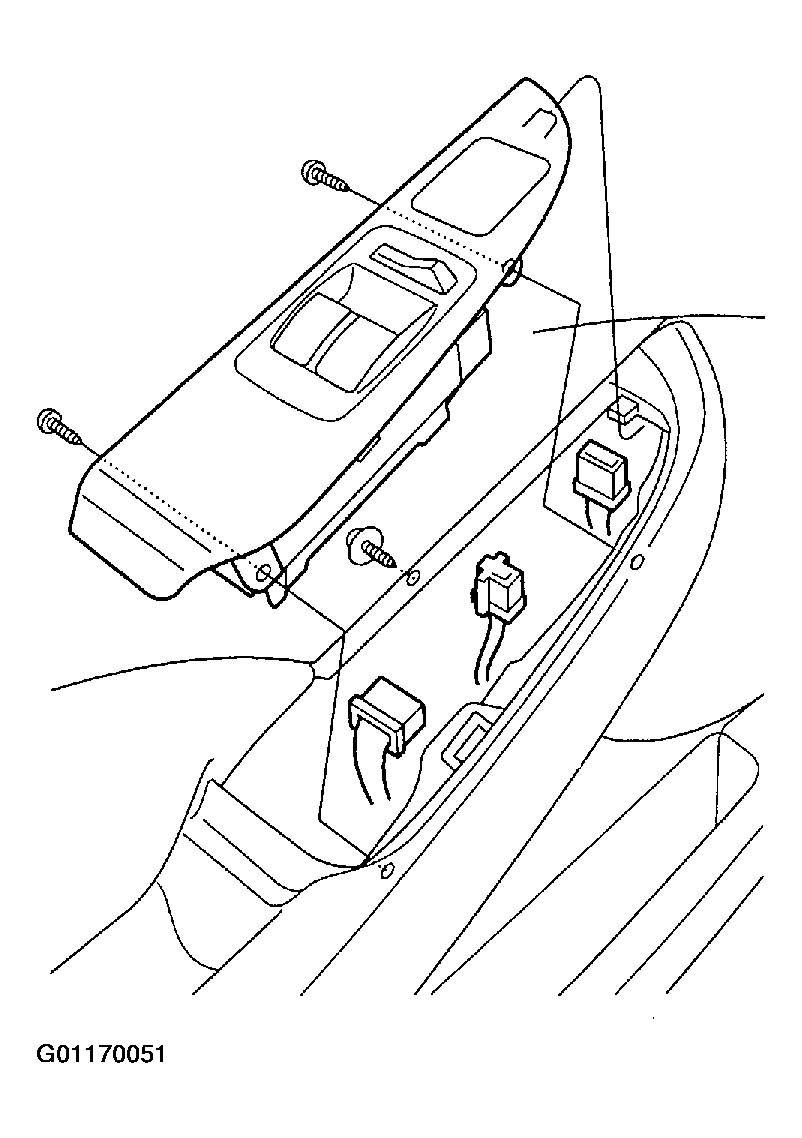

    Fig 1: Removing The Master Switch Assembly
    G01170051Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the four mounting screws, then remove the master switch (A) from the panel (B).

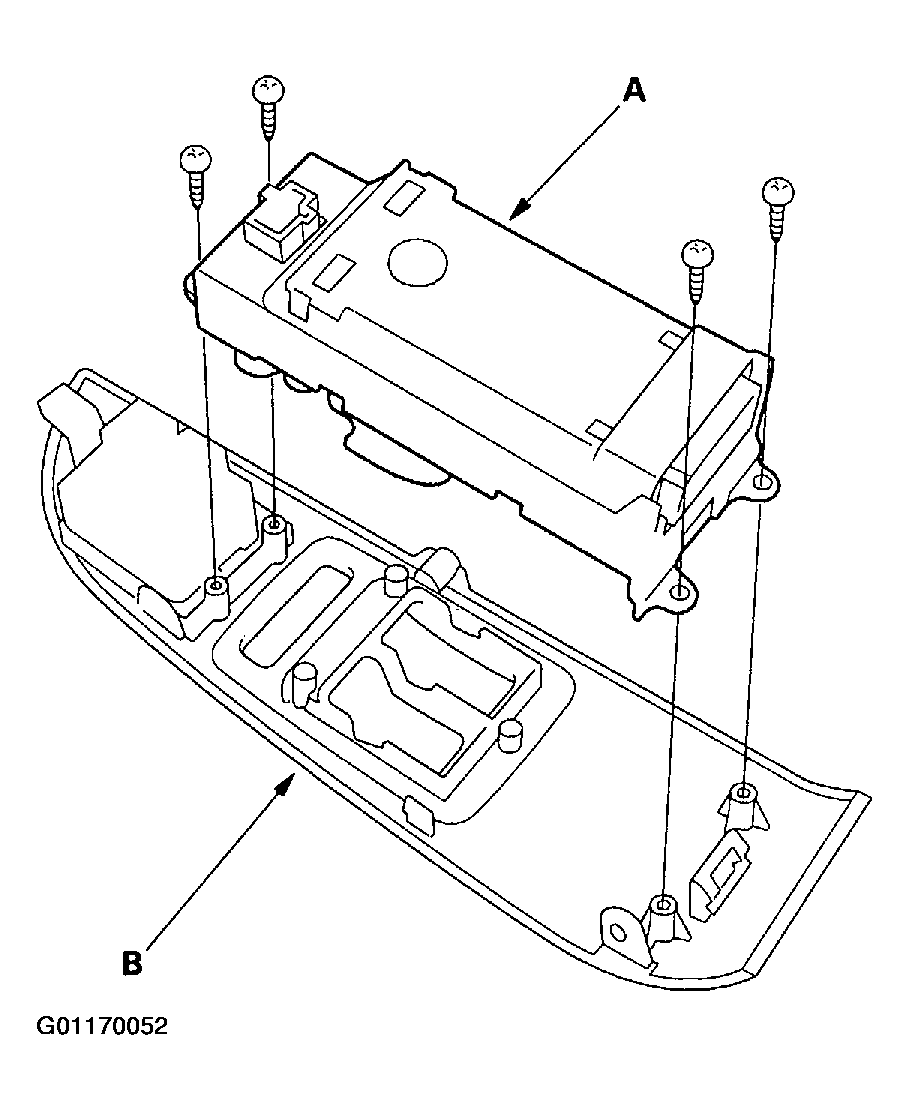

    Fig 2: Removing The Master Switch From The Panel
    G01170052Courtesy of AMERICAN HONDA MOTOR CO., INC.
