Passenger's Window Motor Test

  1. Remove the passenger's door panel .
  2. Disconnect the 2P connector from the window motor.

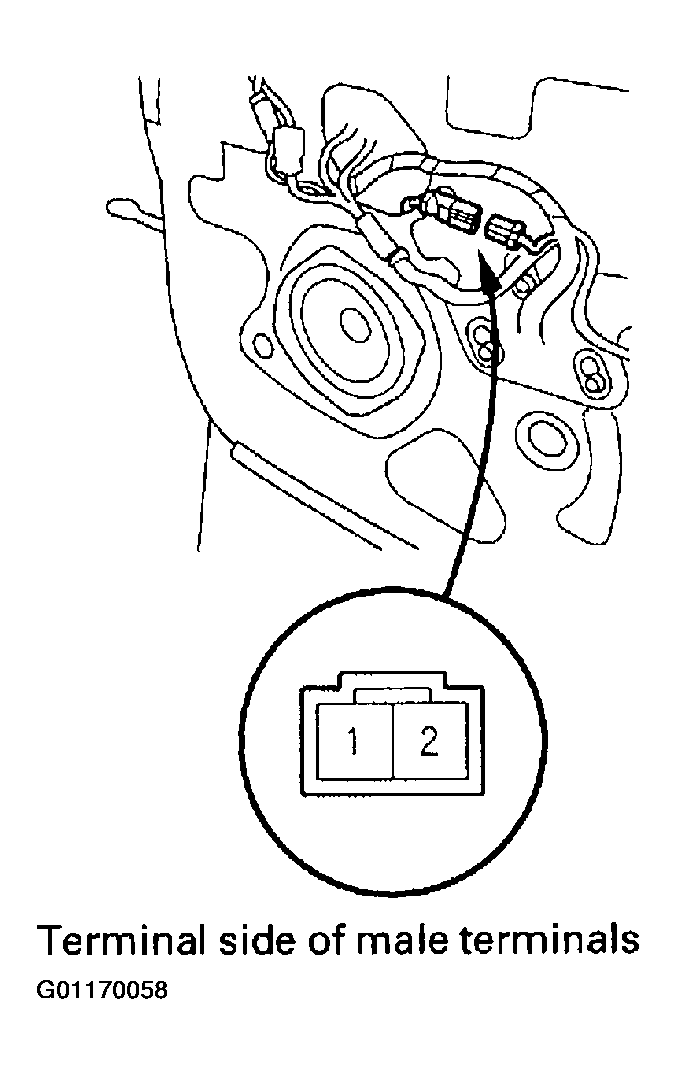

    Fig 1: Disconnecting The Connector From The Window Motor
    G01170058Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

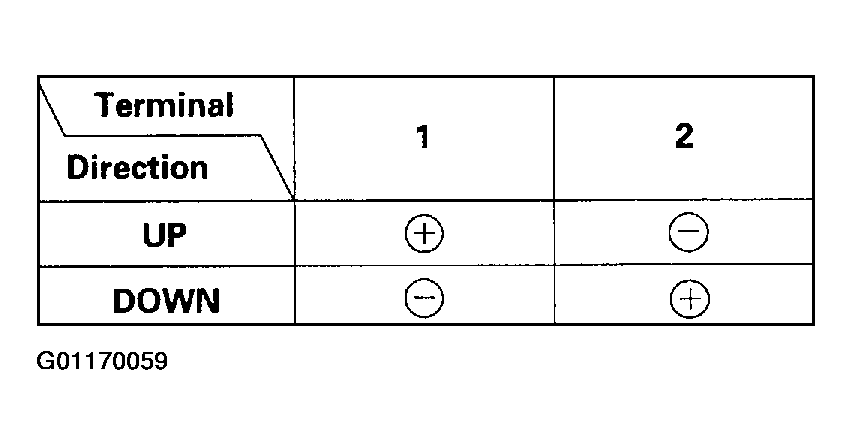

    Fig 2: Passenger's Window Motor Test
    G01170059Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace it.
