Keyless Buzzer Test/Replacement

  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Disconnect the 2P connector (A) from the keyless buzzer (B).

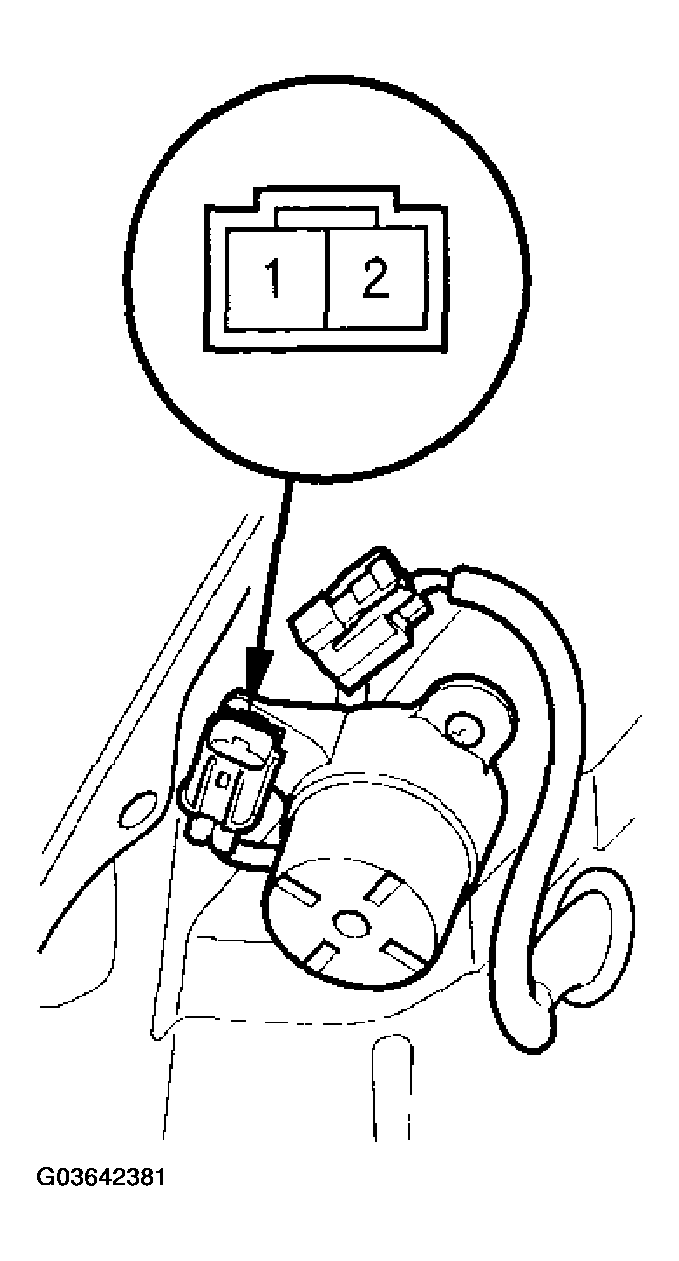

    Fig 1: Disconnecting 2P Connector From Keyless Buzzer
    G03642381Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the buzzer by connecting battery power to the No. 2 terminal and grounding the No. 1 terminal. You should hear a slight chirp.
  4. If the buzzer fails to sound, remove the two mounting screws, and replace the buzzer.

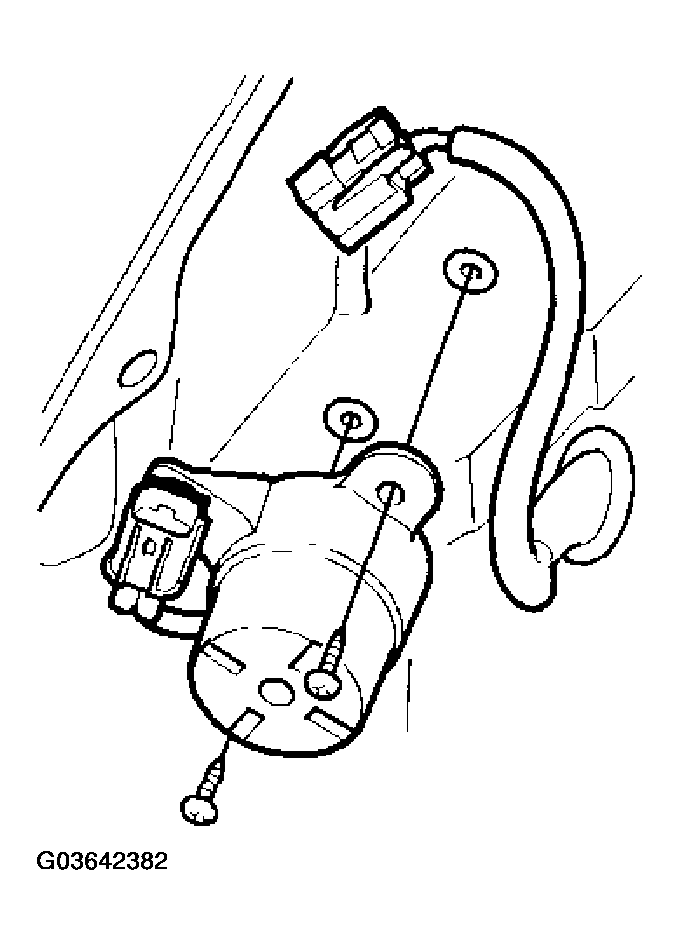

    Fig 2: Removing Buzzer Mounting Screws
    G03642382Courtesy of AMERICAN HONDA MOTOR CO., INC.
