Security Indicator Test/Replacement

  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector from the security indicator.

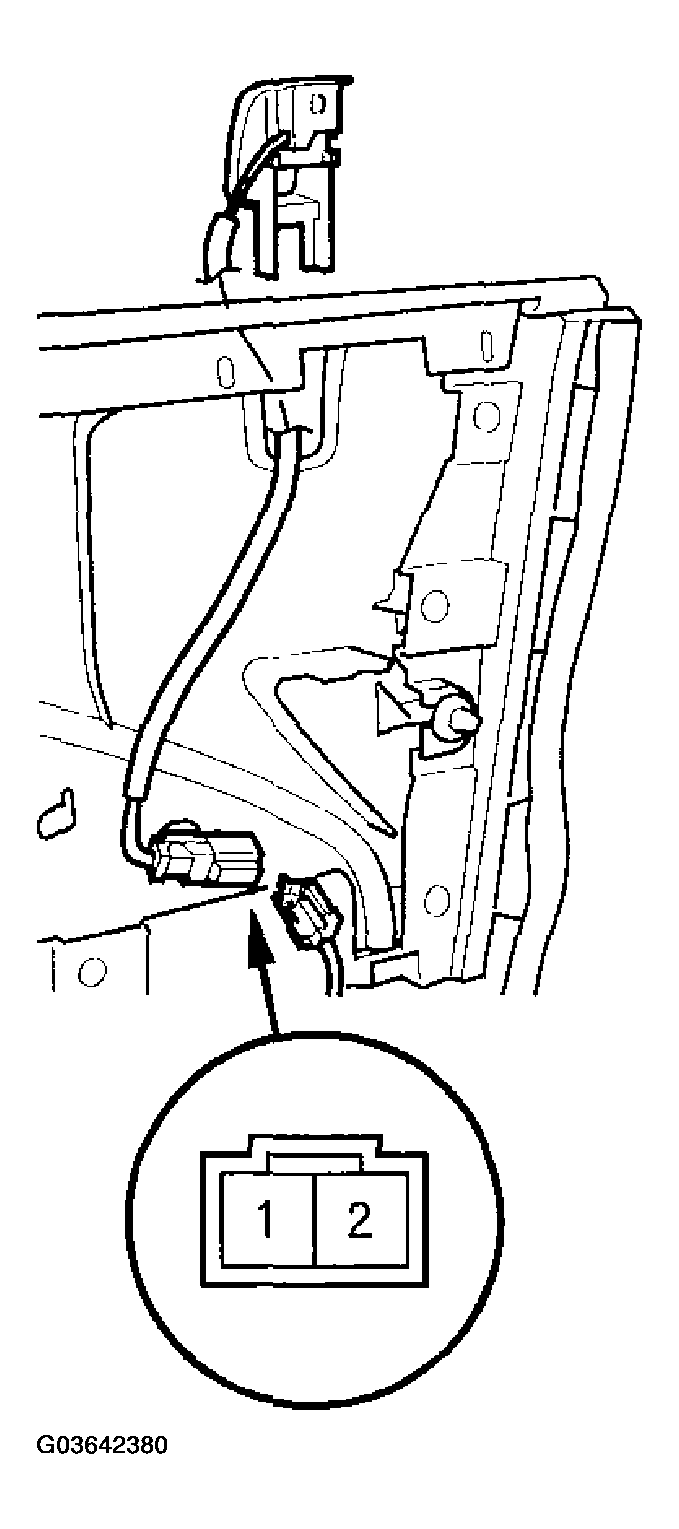

    Fig 1: Disconnecting 2P Connector From Security Indicator
    G03642380Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test the indicator by connecting battery power to the No. 2 terminal and grounding the No. 1 terminal. The LED should come on.
  4. If the LED does not come on, replace the security indicator.
