Passenger's Unit

  1. Before testing the power window control functions, troubleshoot the multiplex control system (see TROUBLESHOOTING ).
  2. Remove the passenger's multiplex control unit from the passenger's under-dash fuse/relay box, and disconnect its connector.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.

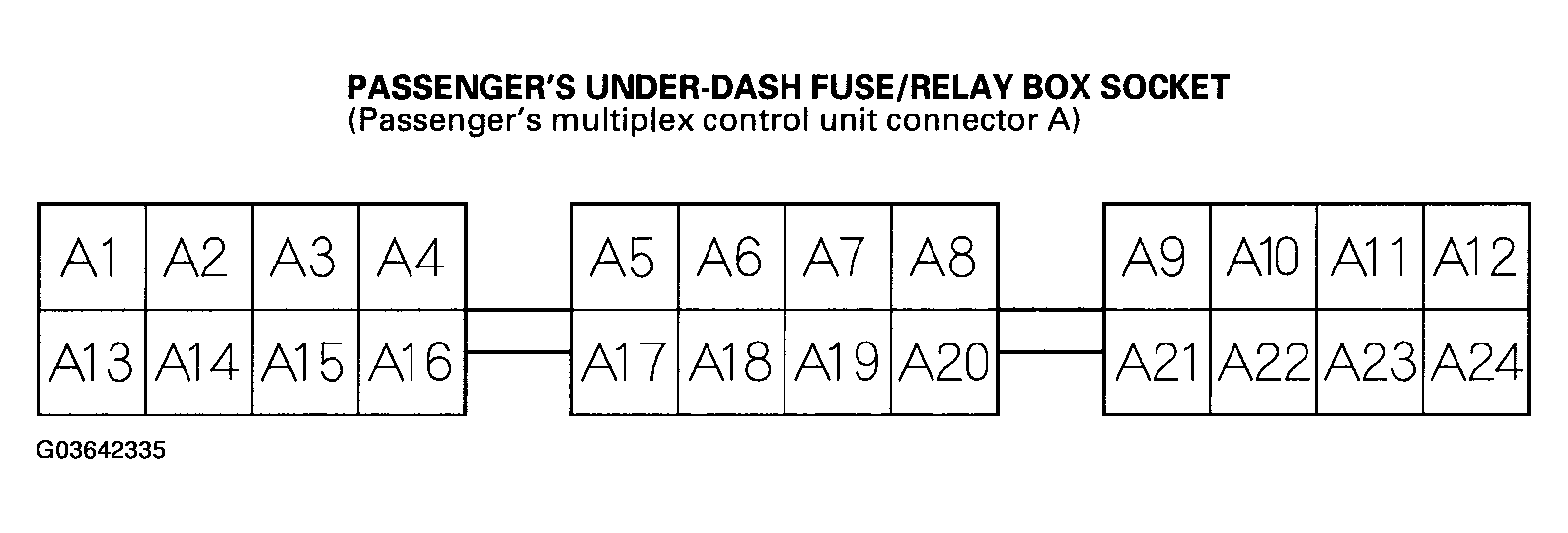

      Fig 1: Identifying Passenger's Under-Dash Fuse/Relay Socket
      G03642335Courtesy of AMERICAN HONDA MOTOR CO., INC.

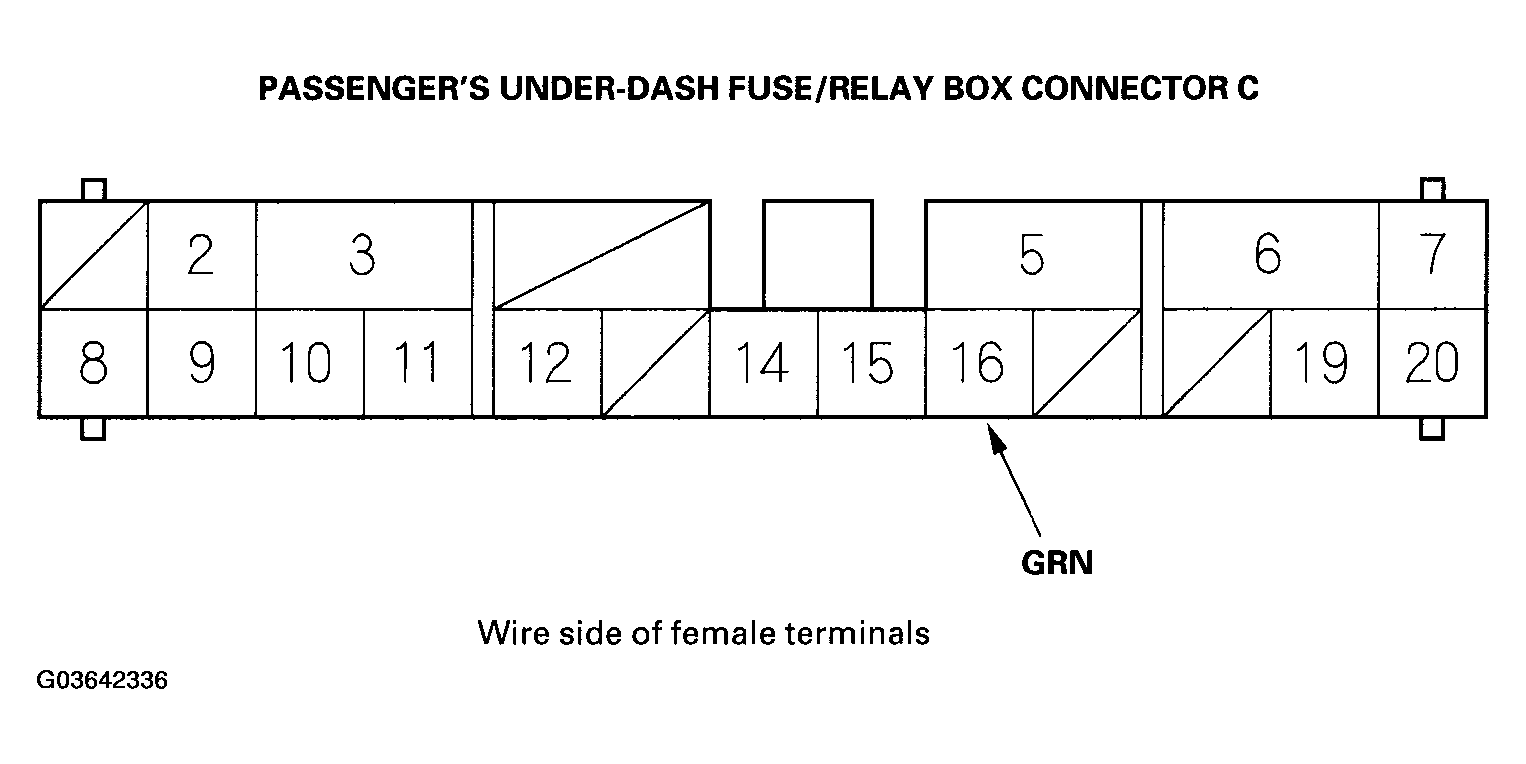

      Fig 2: Identifying Passenger's Under-Dash Fuse/Relay Box Connector C
      G03642336Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. With the passenger's multiplex control unit still disconnected, make these input tests at the passenger's under-dash fuse/relay box socket.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 1 in DRIVER'S UNIT  .
      CONTROL UNIT INPUT TEST (PASSENGER'S UNIT)

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      A24 Fuse/relay box socket Under all conditions Check for voltage to ground: There should be battery voltage.
      • Blown No. 13 (7.5 A) fuse in the passenger's under-dash fuse/relay box
      • Faulty passenger's under-dash fuse/relay box
      A12 Fuse/relay box socket Jump A12 to battery voltage The power window relay should make a click sound and there should be 12 V to ground at fuses 7, 8 and 16.
      • Faulty power window relay
      • Poor ground (G651)
      • Blown No. 51 (40 A) fuse in the under-hood fuse/relay box
      • An open in the wire
      A8 Fuse/relay box socket Under all conditions Check for continuity to ground: There should be continuity.
      • Poor ground (G651)
      • An open in the wire
      A19 Fuse/relay box socket With power window main switch ON, jump A12 to battery voltage Check the front passenger's window motor operation: The window should go down.
      • Poor ground (G601, G651)
      • Blown No. 8 (20 A) fuse in the passenger's under-dash fuse/relay box
      • Faulty power window master switch
      • Faulty front passenger's window switch
      • Faulty window motor
      • An open in the wire
      A18
      A12      		 Fuse/relay box socket With power window main switch ON, jump A18 and A12 to battery voltage Check the front passenger's window motor operation: The window should go up.
      A7
      A12      		 YEL/GRN With power window main switch ON, jump A7 and A12 to battery voltage Check the right rear window motor operation: The window should go down.
      • Poor ground (G601, G651)
      • Blown No. 16 (20 A) fuse in the passenger's under-dash fuse/relay box
      • Faulty power window master switch
      • Faulty right rear window switch
      • Faulty window motor
      • An open in the wire
      A6 YEL With power window main switch ON, jump A6 and A12 to battery voltage Check the right rear window motor operation: The window should go up.
      C16(1) GRN Front passenger's door open Check for voltage to ground: There should be 1 V or less.
      • Faulty passenger's door switch
      • An open in the wire
      • A short to ground
      Front passenger's door closed Check for voltage to ground: There should be 5 V or more.
      (1) Reconnect the passenger's multiplex control unit to the passenger's under-dash fuse/relay box.
