Master Switch Replacement

  1. Carefully pry off the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the power mirror and power window switch connectors (A).

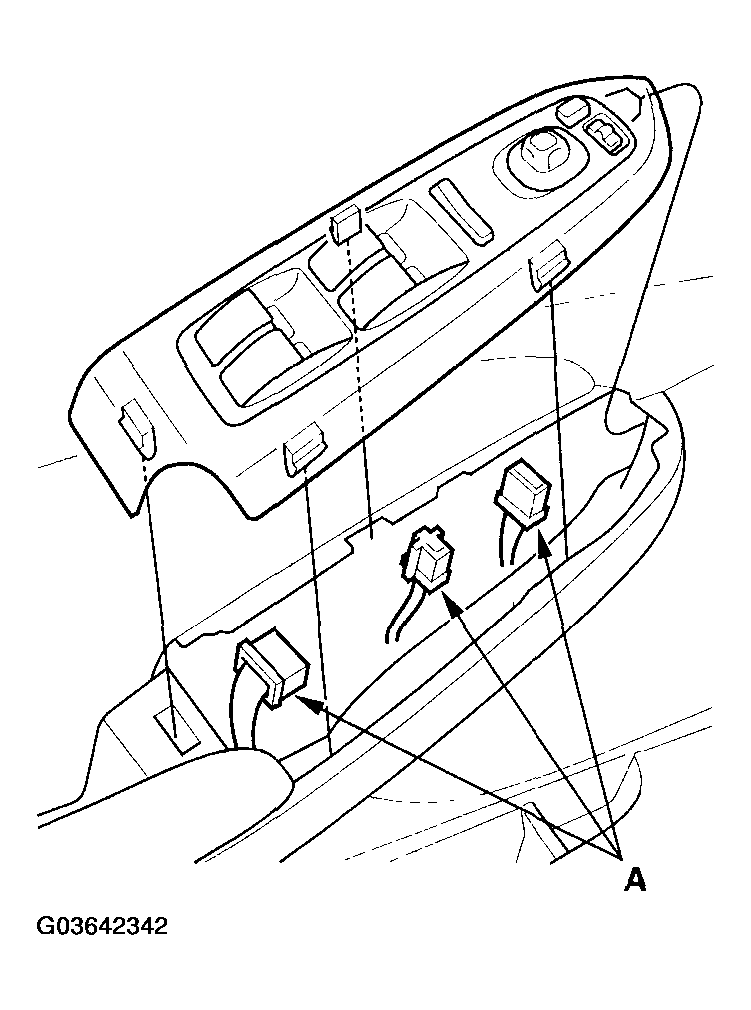

    Fig 1: Disconnecting Power Mirror And Power Window Switch Connectors
    G03642342Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the four mounting screws, then remove the master switch (A) from the panel (B).

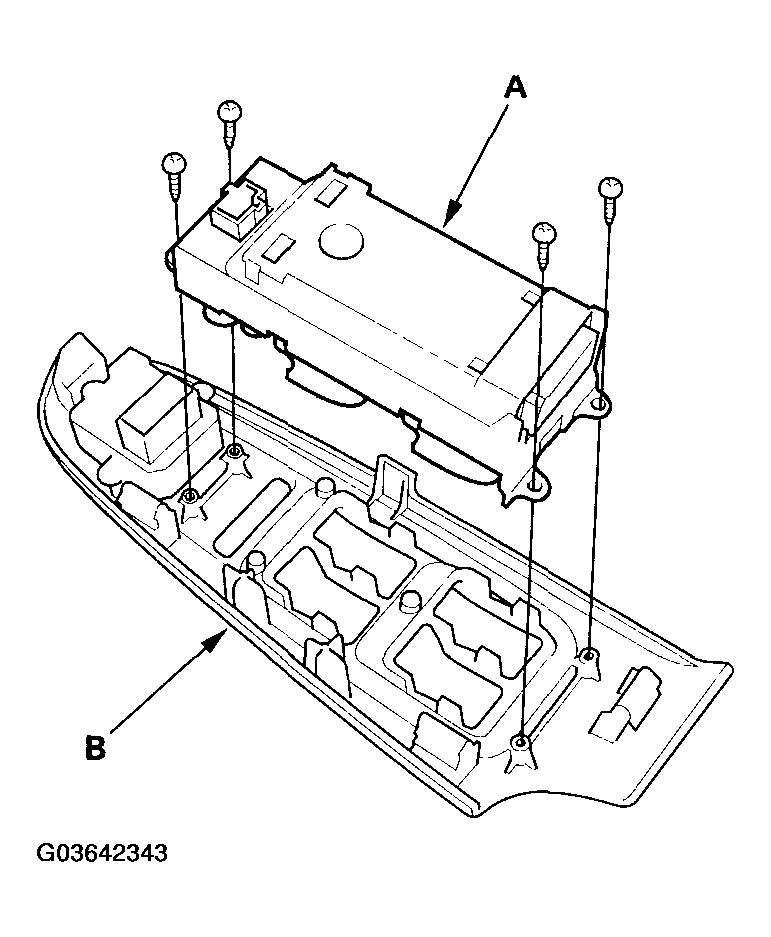

    Fig 2: Removing Master Switch
    G03642343Courtesy of AMERICAN HONDA MOTOR CO., INC.
