Home >> Acura >> 2003 >> MDX Base >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> EVAP System >> FTP Sensor Replacement >> 2003-2004 models

2003-2004 models

  1. Remove the FTP sensor 3P connector (A) from the FTP sensor (B).

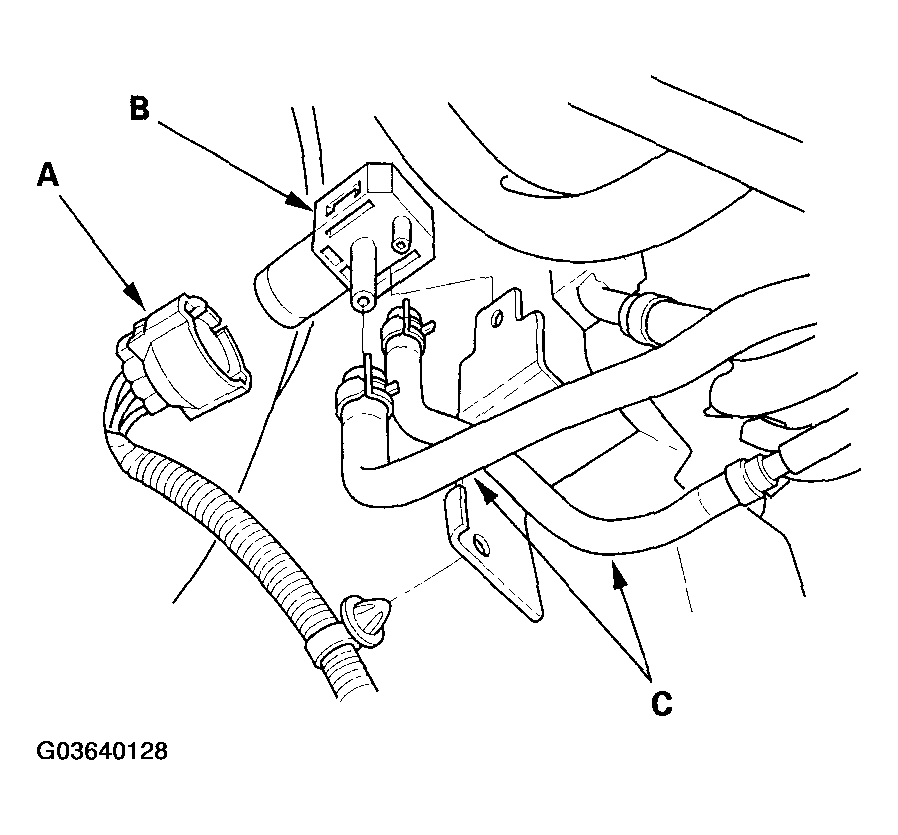

    Fig 1: Removing FTP Sensor 3P Connector From FTP Sensor
    G03640128Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the hoses (C) from the FTP sensor.
  3. Remove the FTP sensor.
  4. Install the sensor in the reverse order of removal.
