IAT Sensor/IAT Sensor 2 Replacement

  1. Disconnect IAT sensor/IAT sensor 2 2P connector (A).

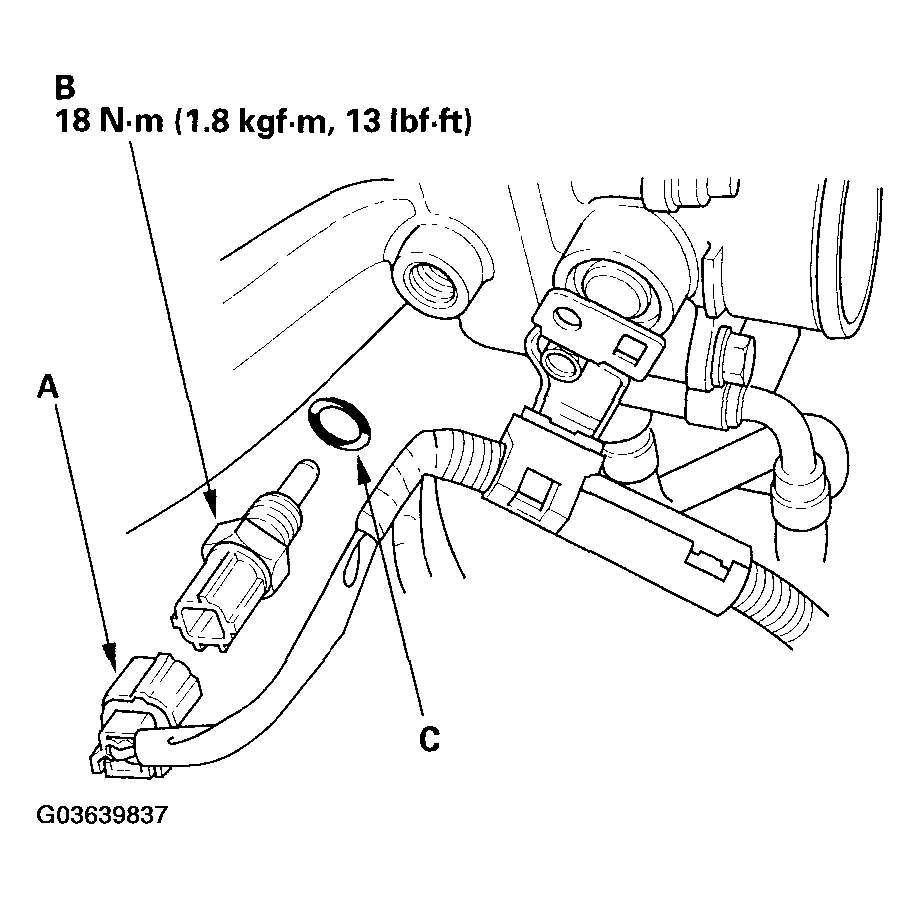

    Fig 1: Disconnecting IAT Sensor/IAT Sensor 2 2P Connector
    G03639837Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove IAT sensor/IAT sensor 2 (B).
  3. Install the sensor in the reverse order of removal with a new O-ring (C).
