Exploded View: Inspection

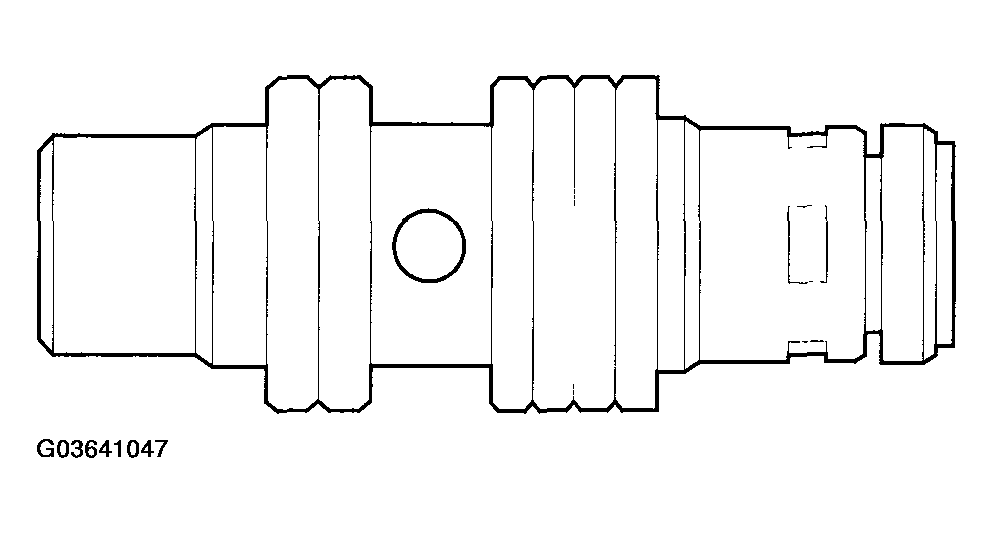

- 10. Check the flow control valve for wear, burrs, and other damage to the edges of the grooves in the valve.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- 11. Inspect the bore of the flow control valve on the pump housing for scratches and wear.

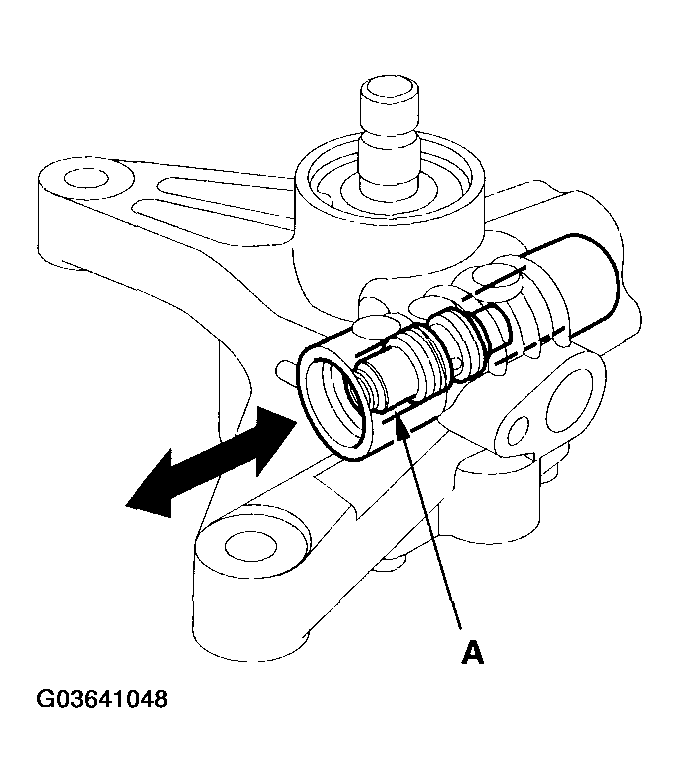

- 12. Slip the flow control valve into the pump housing, and check that it moves in and out smoothly. If OK, go to step 13; if not, replace the pump as an assembly. The flow control valve (A) is not available separately.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

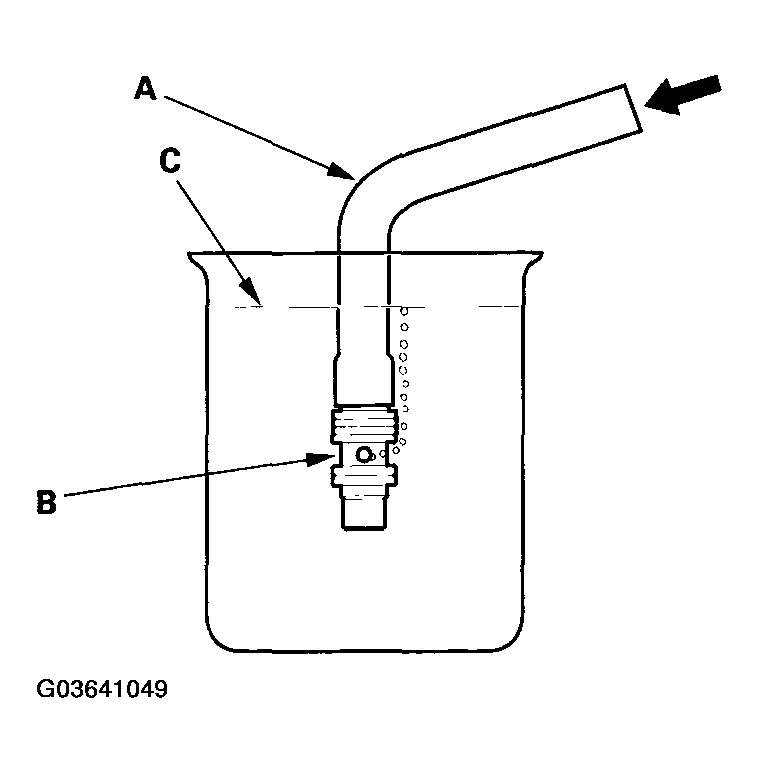

- 13. Attach a hose (A) to the end of the flow control valve (B) as shown. Then submerge the flow control valve in a container of power steering fluid or solvent (C), and blow in the hose.
- If air bubbles leak through the valve at less than 98 kPa (1.0 kgf/cm2
, 14.2 psi), replace the pump as an assembly. The flow control valve is not available separately.
- If the flow control valve tests OK, set it aside for reassembly later.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

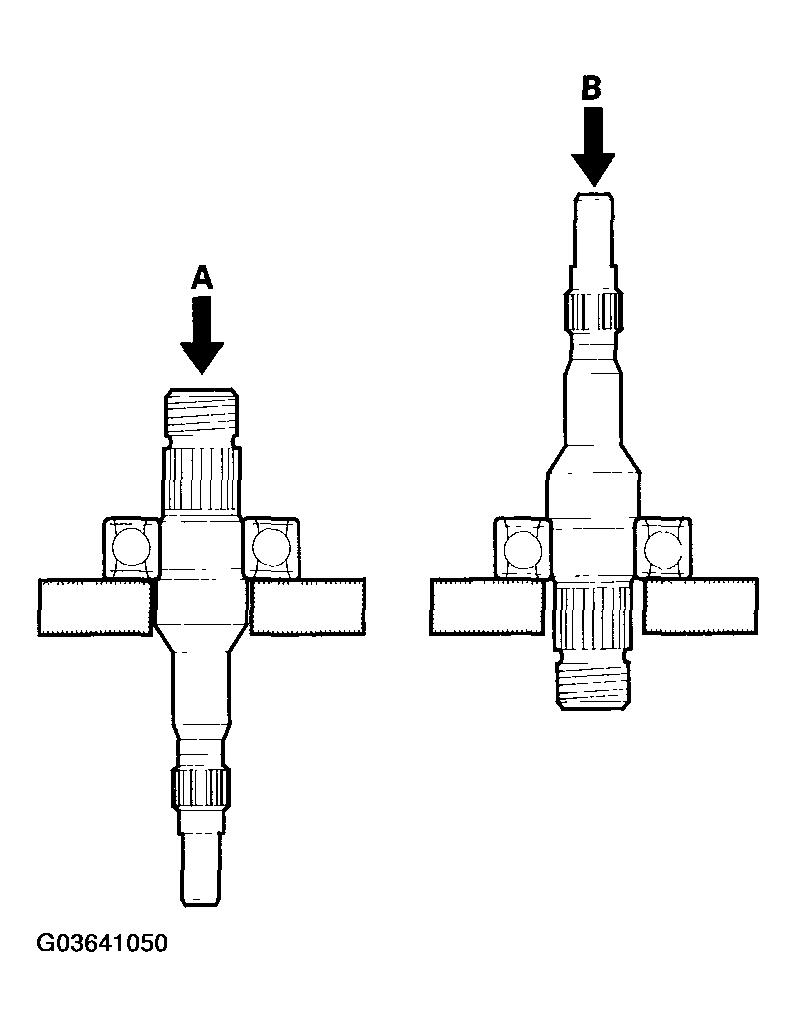

- 14. Inspect the ball bearing by rotating the outer race slowly. If you feel any play (axial or radial) or roughness, remove the faulty ball bearing (A), and install a new one (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- 15. Inspect each part shown with an asterisk in the Exploded View; if any of them are worn or damaged, replace the pump as an assembly.
