Without Navigation

NOTE: Vehicles with navigation; refer to audio-HVAC sub display unit removal/installation (see AUDIO UNIT REMOVAL/INSTALLATION ).
  1. Remove the upper panel (see DRIVER'S DASHBOARD UNDER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the 5P connector (A) from the clock.

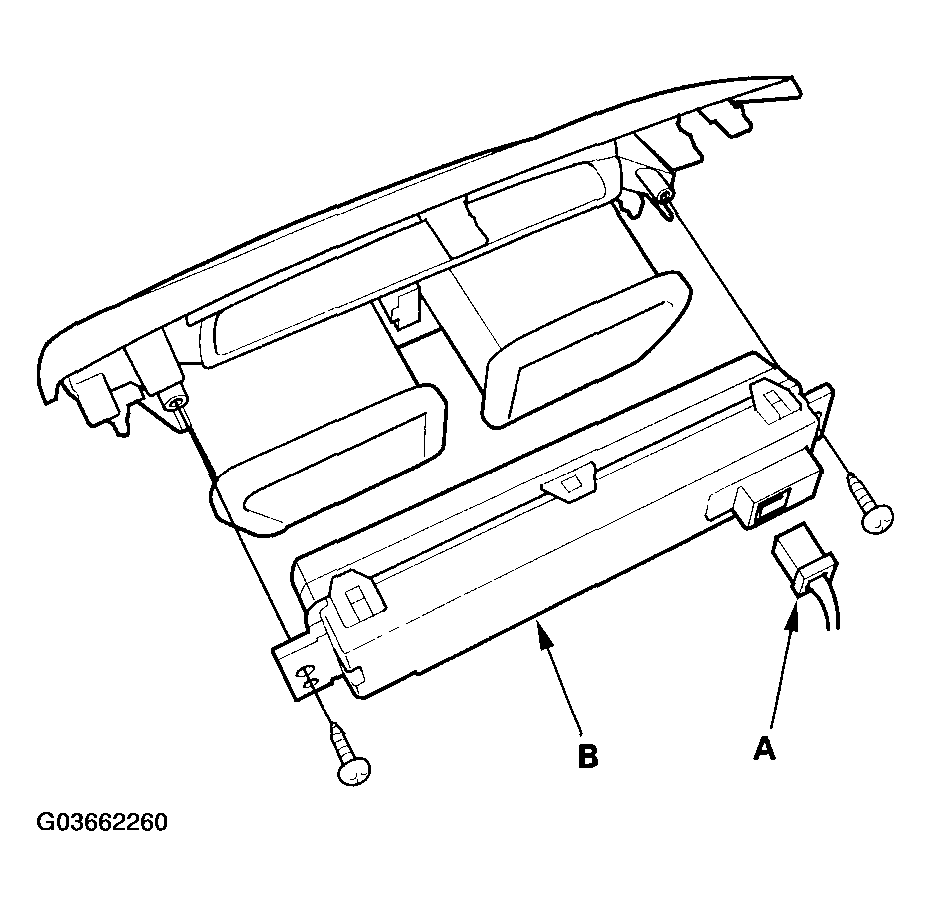

    Fig 1: Disconnecting 5P Connector (A) From Clock
    G03662260Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two mounting screws, and remove the clock (B).
    TERMINALS

    Cavity Wire Connect to
    1 WHT/RED Constant power
    2 YEL IG1 (Main clock power supply)
    3 - Not used
    4 BLK Ground (G503, G601)
    5 RED/BLU Lights-on signal (-)
  4. Install in the reverse order of removal.
