Engine Oil Replacement

  1. Warm up the engine.
  2. Remove the drain bolt (A), and drain the engine oil.

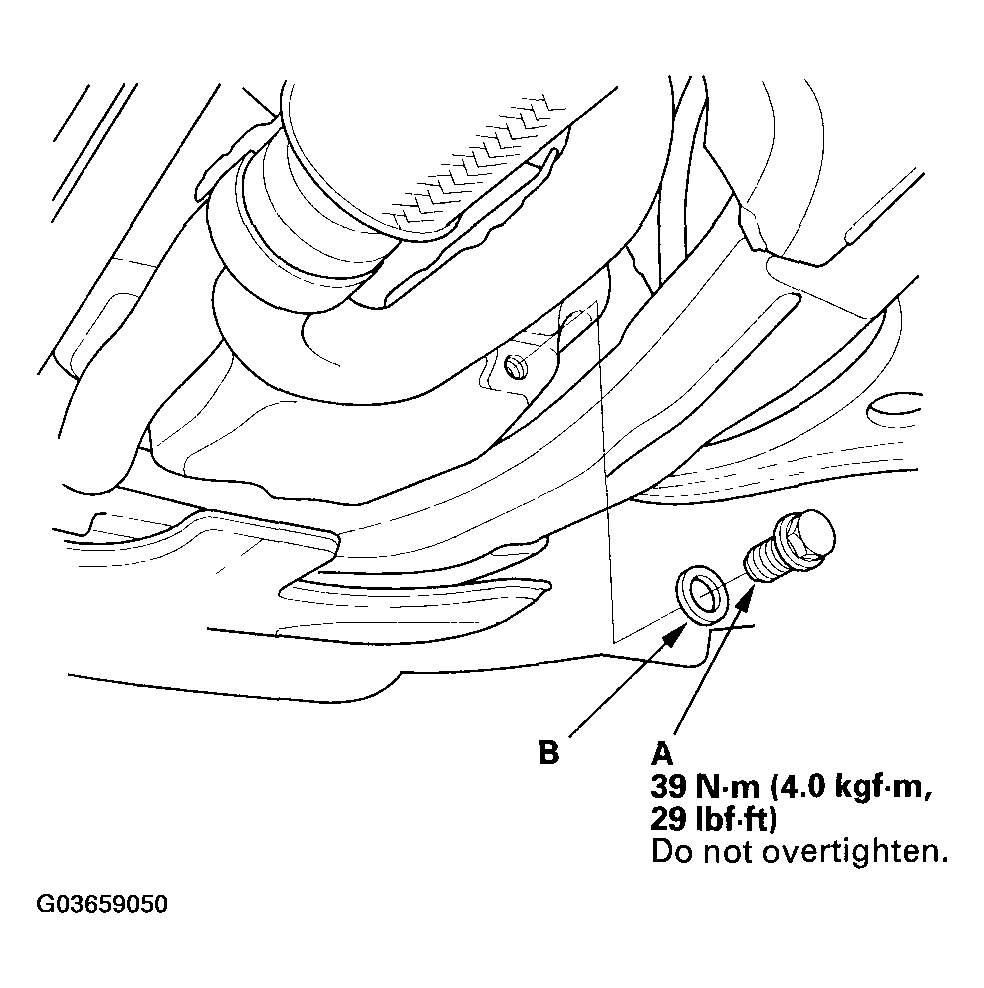

    Fig 1: Removing Drain Bolt
    G03659050Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the drain bolt with a new washer (B).
  4. Refill with the recommended oil. (see LUBRICANTS AND FLUIDS )

    Capacity

    At Oil Change:

    • 4.0 L (4.2 US qt)

    At Oil Change including Filter:

    • 4.3 L (4.5 US qt)

    After Engine Overhaul:

    • 5.0 L (5.3 US qt)
  5. Run the engine for more than 3 minutes, then check for oil leakage.
  6. Reset the multi-information display. (see MAINTENANCE INFORMATION )
