Exploded View

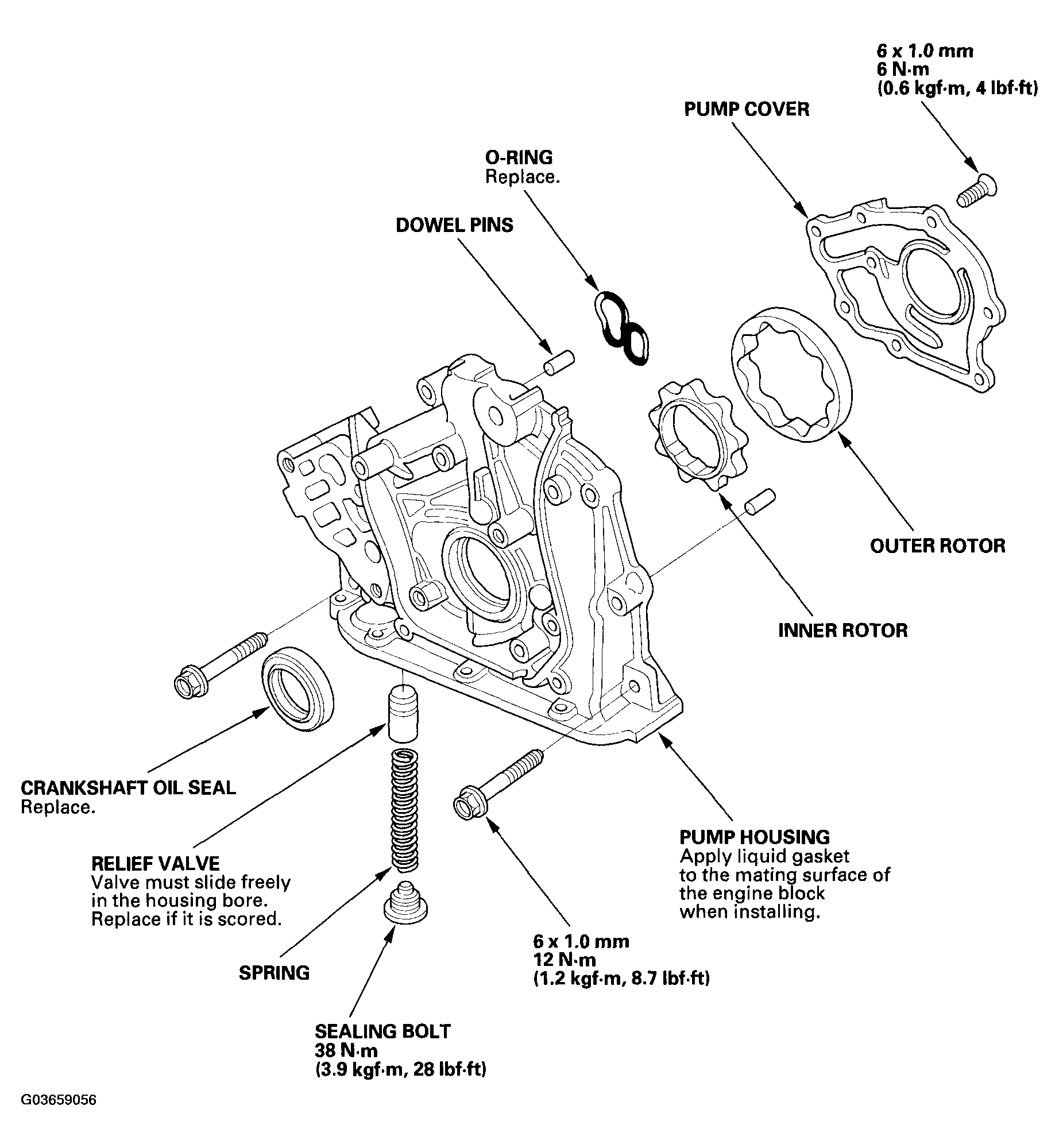

Fig 1: Exploded View Of Oil Pump

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Oil seal driver, 64 mm 070AD-RCAA100
• Engine support hanger, A and Reds AAR-T-12566
• Engine hanger balance bar VSB02C000019 These special tools are available through Acura Tool and Equipment Program, 1-888-424-6857.
