Exploded View: Disassembly

NOTE: Refer to the EXPLODED VIEW  as needed during the following procedure.
  1. Drain the fluid from the pump.
  2. Remove the power steering pump (see PUMP REPLACEMENT ).

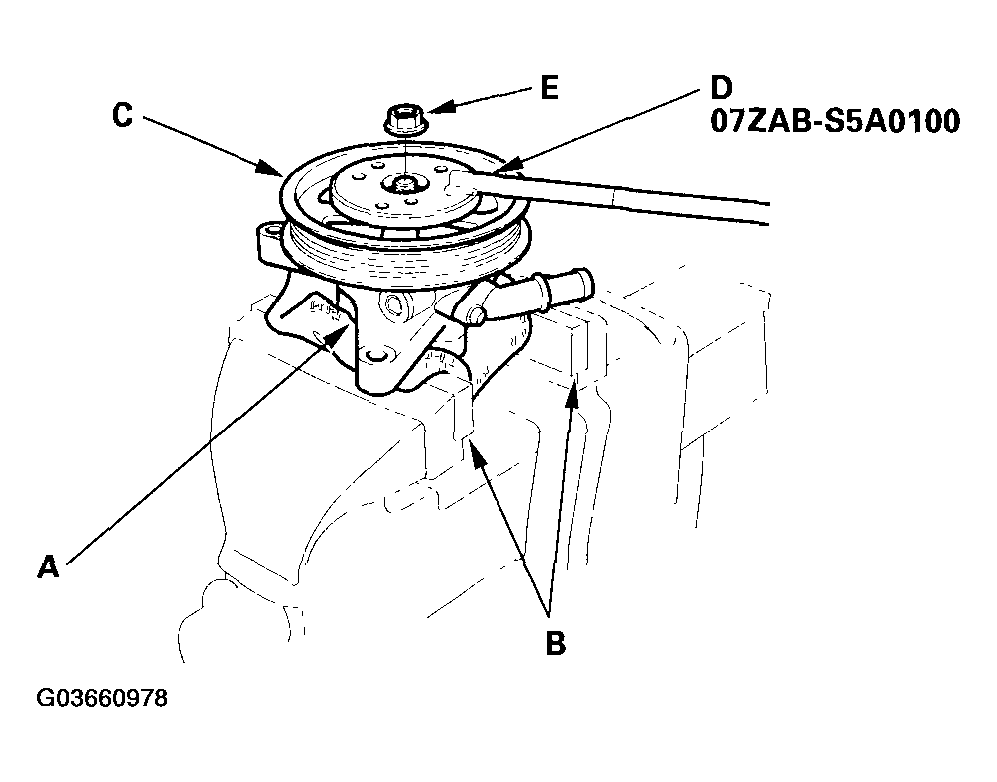

  3. Hold the power steering pump (A) in a vise with soft jaws (B), then hold the pulley (C) with the special tool (D), and remove the pulley nut (E) and pulley. Be careful not to damage the pump housing with the jaws of the vise.
    Fig 1: Holding Power Steering Pump In Vise With Soft Jaws
    G03660978Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the inlet joint and O-ring.
  5. Loosen the flow control valve cap with a hex wrench, and remove it and the O-ring, the flow control valve and spring.
  6. Remove the pump cover and pump cover seal.
  7. Remove the outer side plate, cam ring, rotor, vanes, side plate and O-rings.
  8. Remove the snap ring, then remove the subvalve from the pump housing.
  9. Remove the snap ring, then remove the pump driveshaft by tapping the shaft end with the plastic hammer.
  10. Remove the seal from the pump housing.
