Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

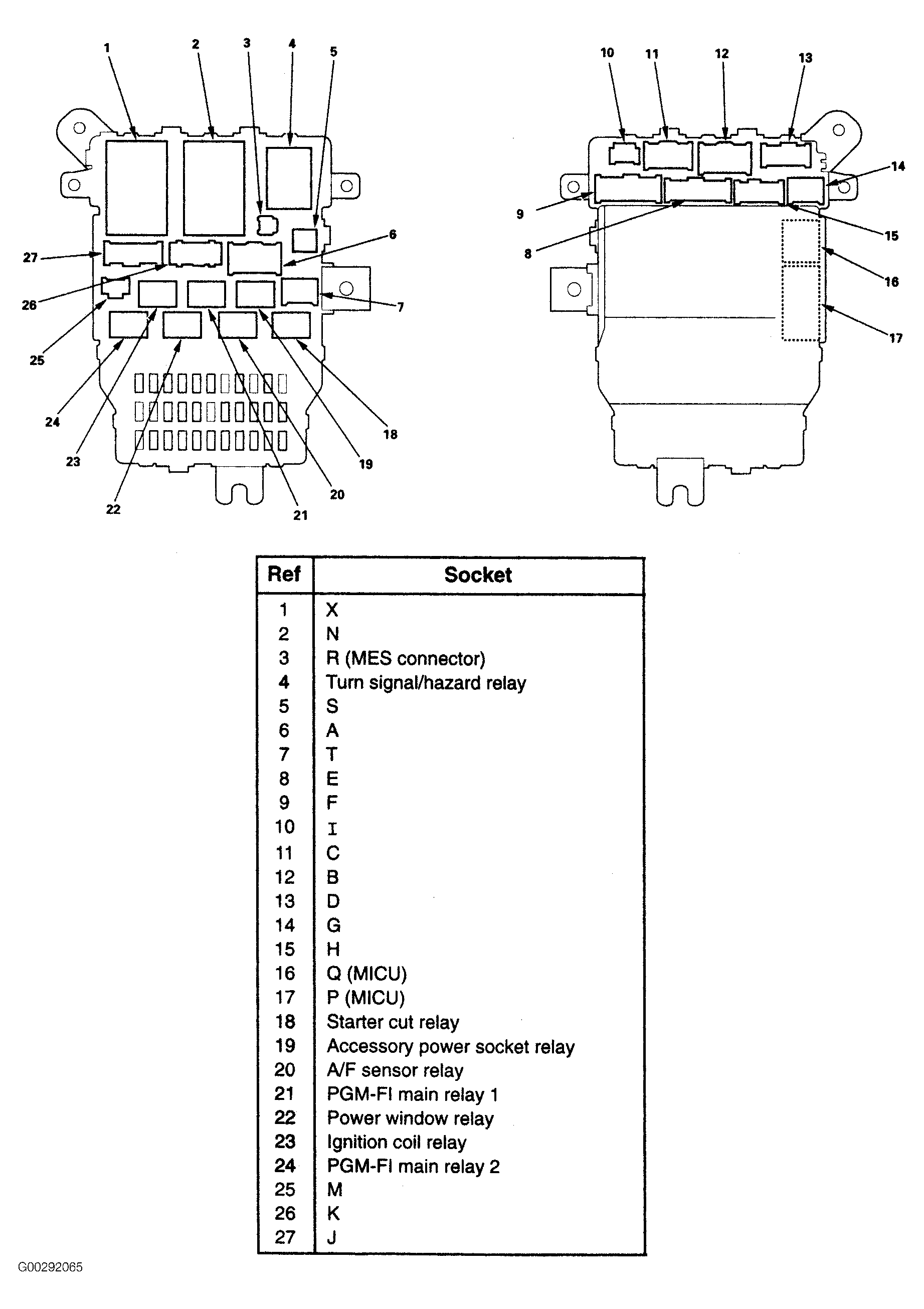

Fig 1: Under-Dash Fuse/Relay Box

G00292065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

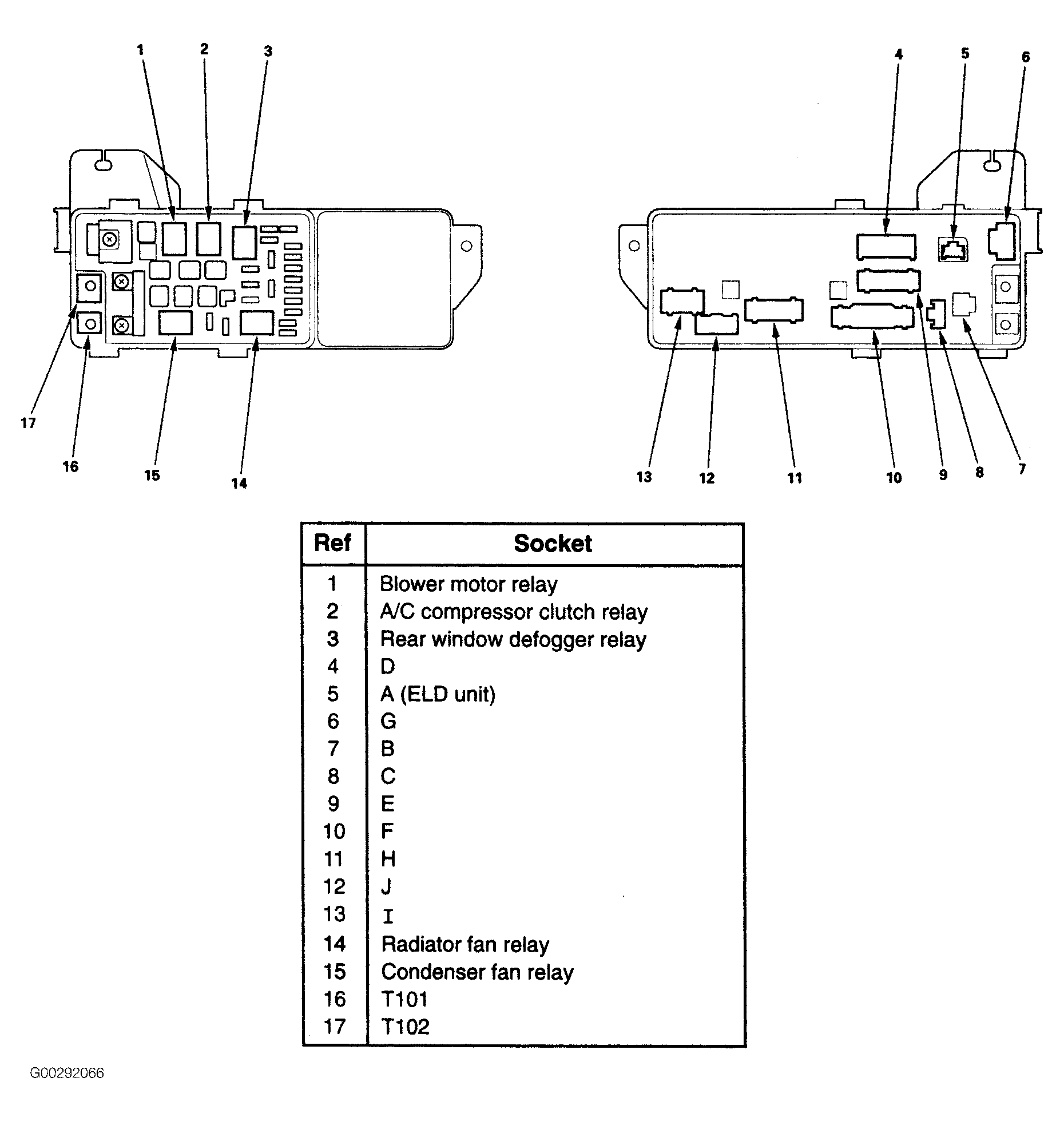

Fig 2: Under-Hood Fuse/Relay Box

G00292066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

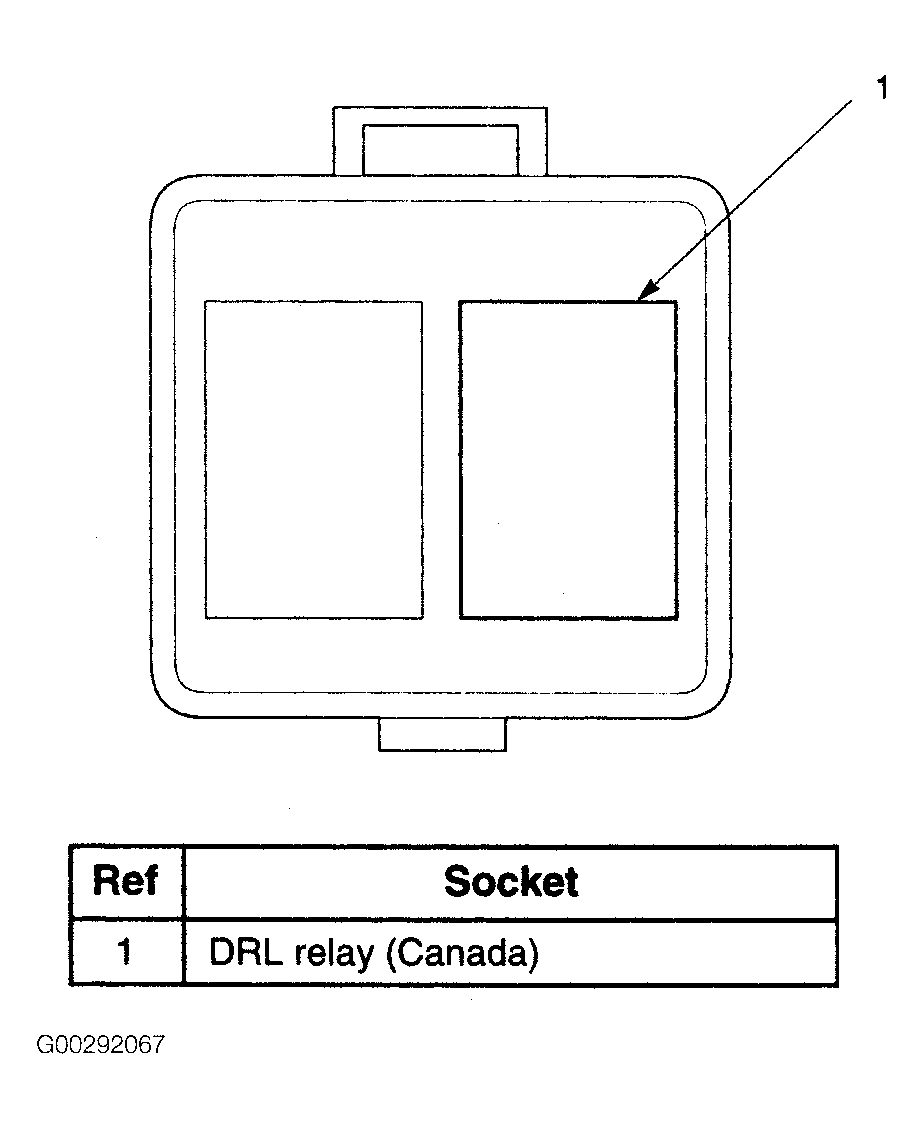

Fig 3: Under-Hood Multi-Relay Box

G00292067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

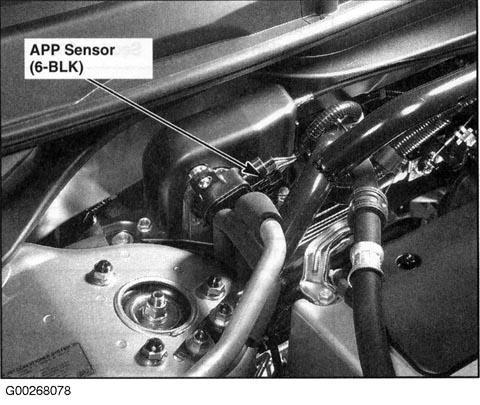

Fig 4: Right Side Of Engine Compartment

G00268078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

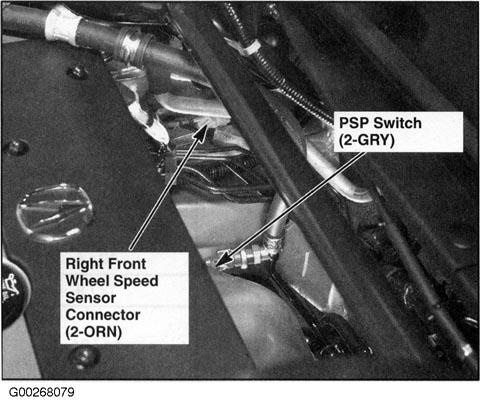

Fig 5: Right Side Of Engine Compartment

G00268079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Side Of Engine Compartment

G00268080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

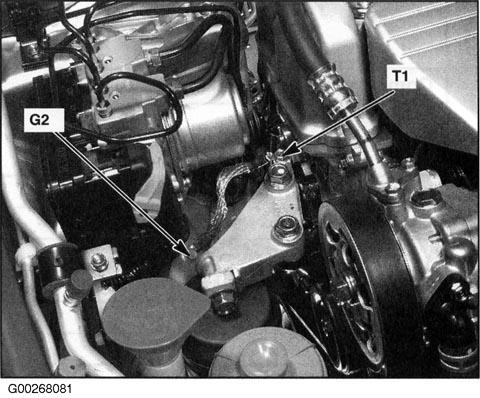

Fig 7: Right Side Of Engine Compartment

G00268081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

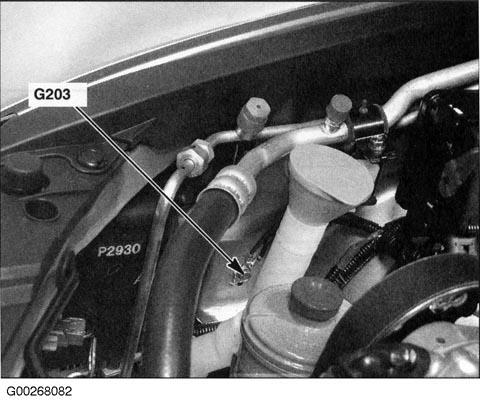

Fig 8: Right Side Of Engine Compartment

G00268082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

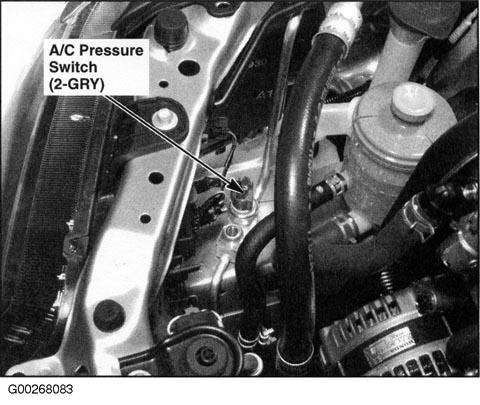

Fig 9: Right Side Of Engine Compartment

G00268083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

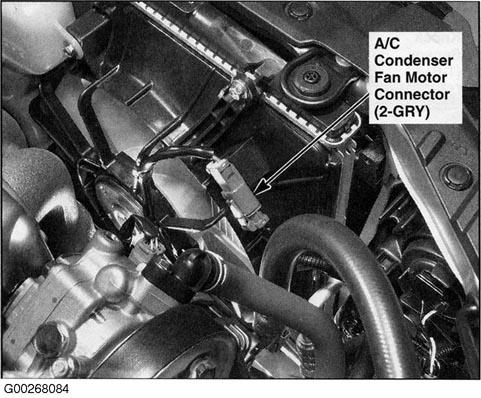

Fig 10: Right Side Of Engine Compartment

G00268084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

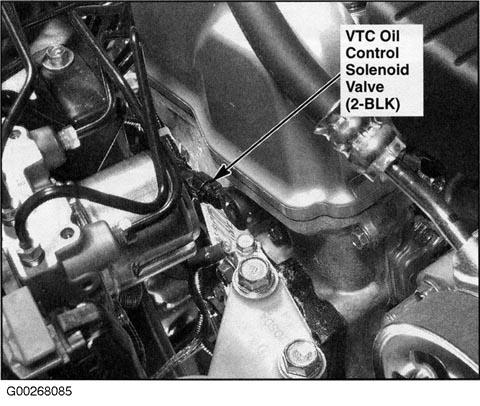

Fig 11: Right Side Of Engine

G00268085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

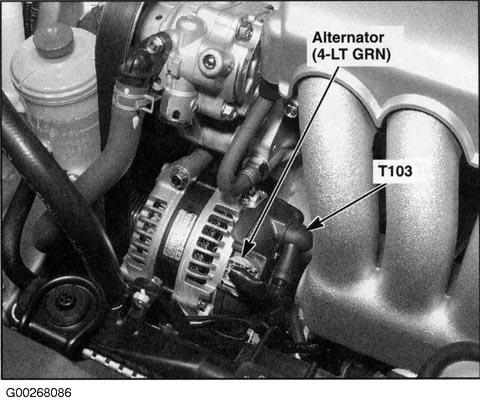

Fig 12: Left Front Of Engine

G00268086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

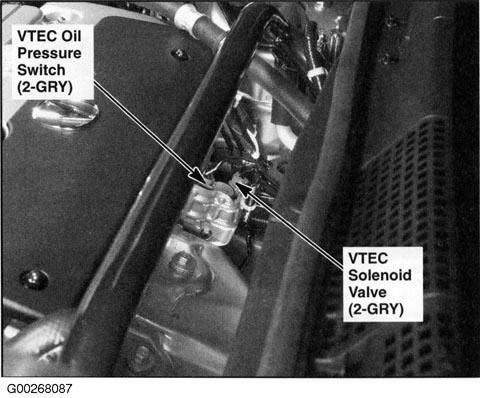

Fig 13: Rear Of Engine Compartment

G00268087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

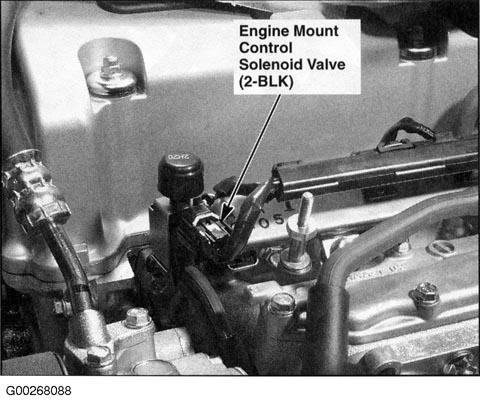

Fig 14: Left Front Of Engine

G00268088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

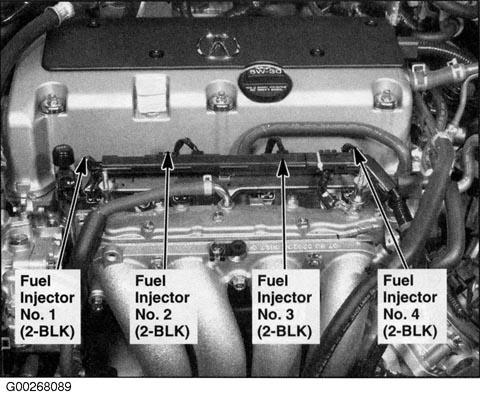

Fig 15: Middle Of Engine

G00268089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

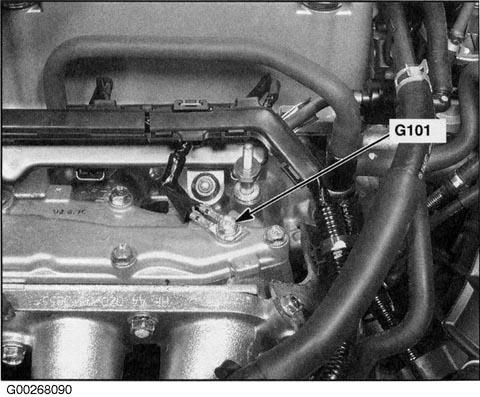

Fig 16: Left Rear Of Engine

G00268090

Courtesy of AMERICAN HONDA MOTOR CO., INC.

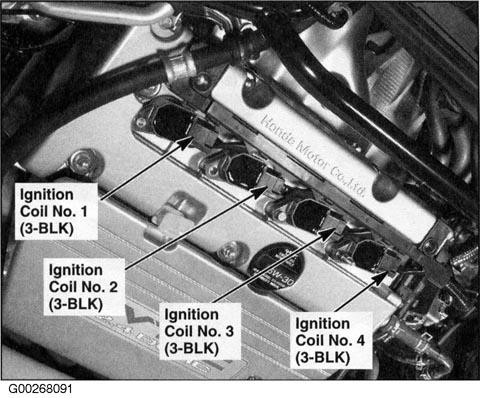

Fig 17: Middle Of Engine

G00268091

Courtesy of AMERICAN HONDA MOTOR CO., INC.

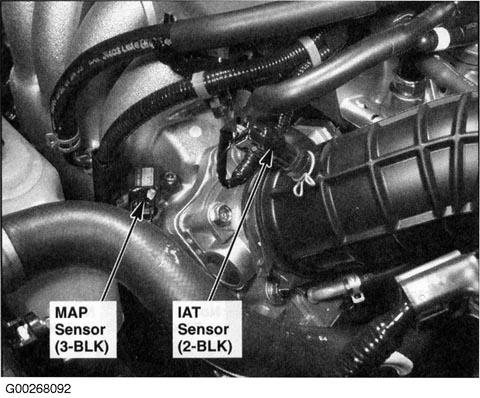

Fig 18: Left Rear Of Engine

G00268092

Courtesy of AMERICAN HONDA MOTOR CO., INC.

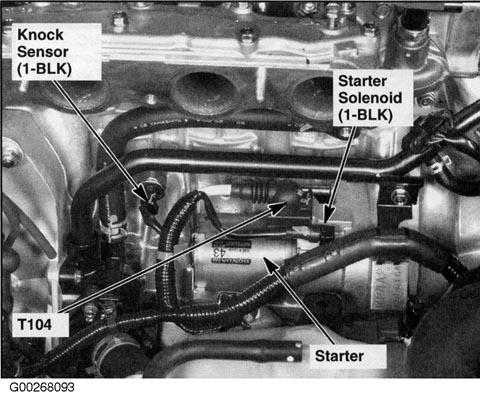

Fig 19: Left Side Of Engine

G00268093

Courtesy of AMERICAN HONDA MOTOR CO., INC.

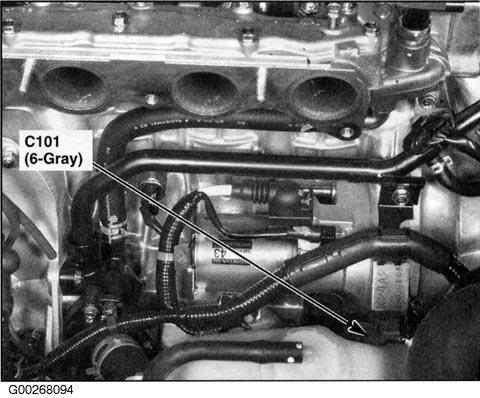

Fig 20: Left Rear Of Engine

G00268094

Courtesy of AMERICAN HONDA MOTOR CO., INC.

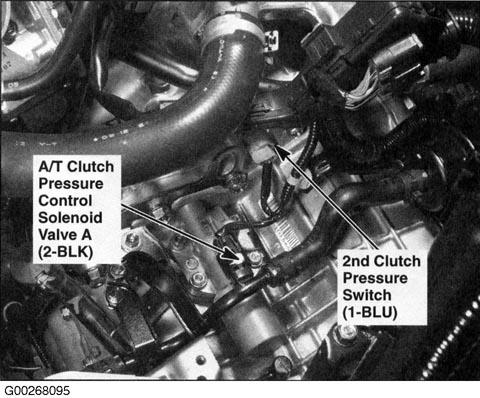

Fig 21: Automatic Transmission Housing

G00268095

Courtesy of AMERICAN HONDA MOTOR CO., INC.

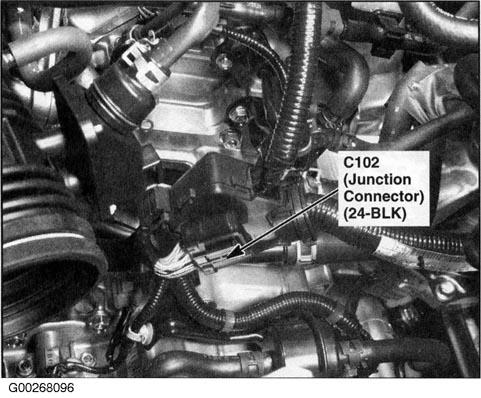

Fig 22: Left Side Of Engine Compartment

G00268096

Courtesy of AMERICAN HONDA MOTOR CO., INC.

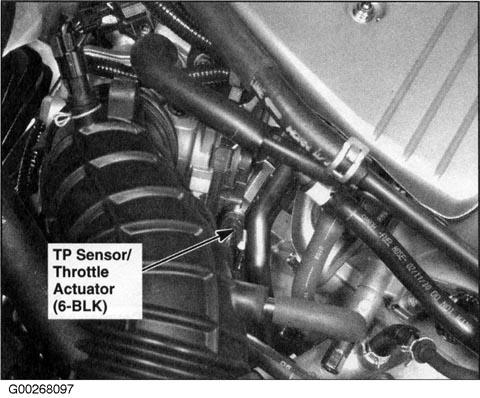

Fig 23: Left Side Of Engine

G00268097

Courtesy of AMERICAN HONDA MOTOR CO., INC.

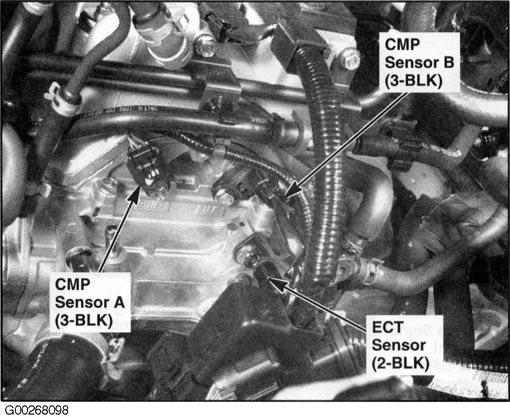

Fig 24: Rear Of Engine

G00268098

Courtesy of AMERICAN HONDA MOTOR CO., INC.

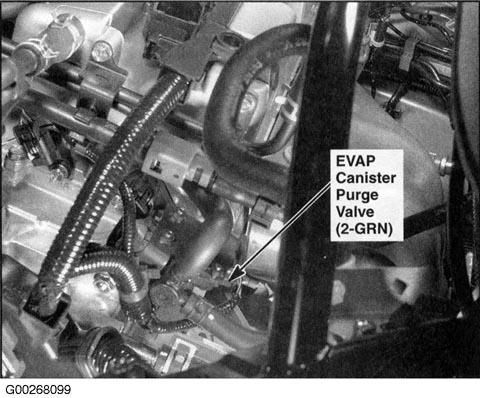

Fig 25: Left Side Of Engine

G00268099

Courtesy of AMERICAN HONDA MOTOR CO., INC.

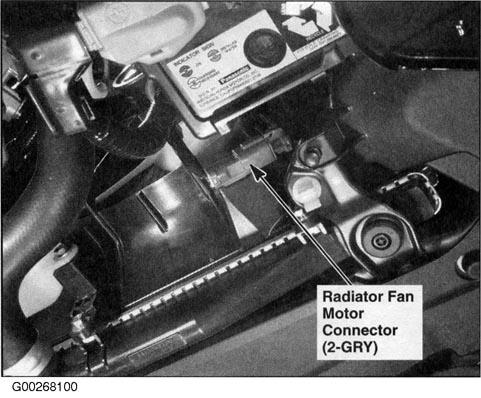

Fig 26: Left Front Of Engine Compartment

G00268100

Courtesy of AMERICAN HONDA MOTOR CO., INC.

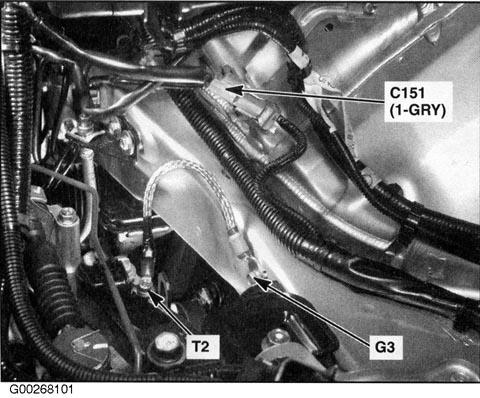

Fig 27: Left Side Of Engine Compartment

G00268101

Courtesy of AMERICAN HONDA MOTOR CO., INC.

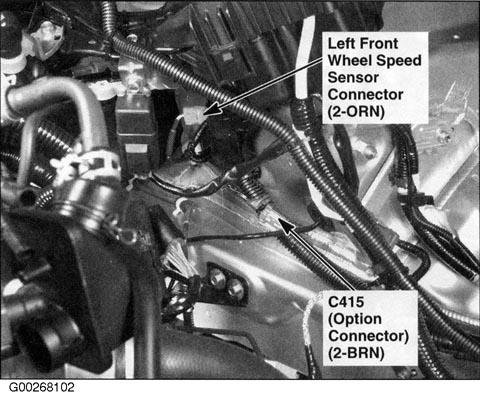

Fig 28: Left Side Of Engine Compartment

G00268102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

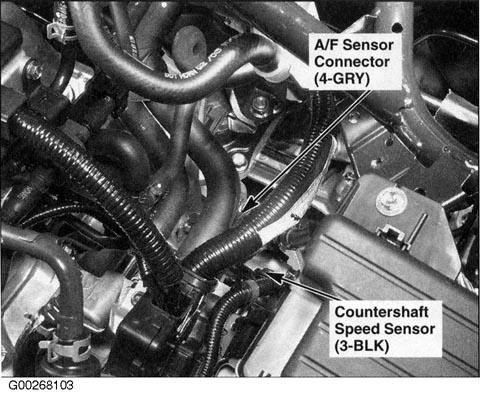

Fig 29: Automatic Transmission Housing

G00268103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

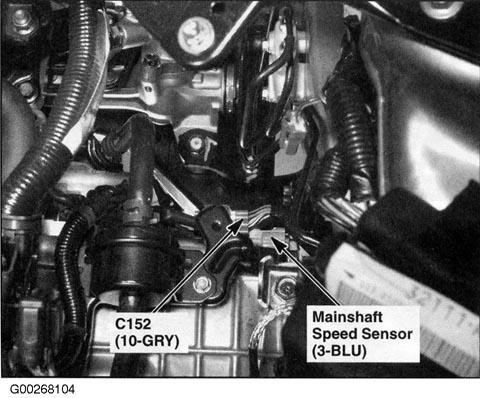

Fig 30: Automatic Transmission Housing

G00268104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

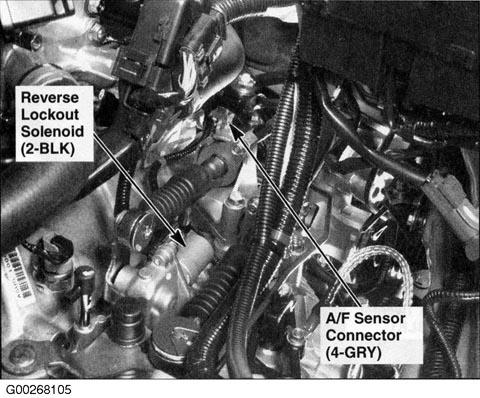

Fig 31: Manual Transmission Housing

G00268105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

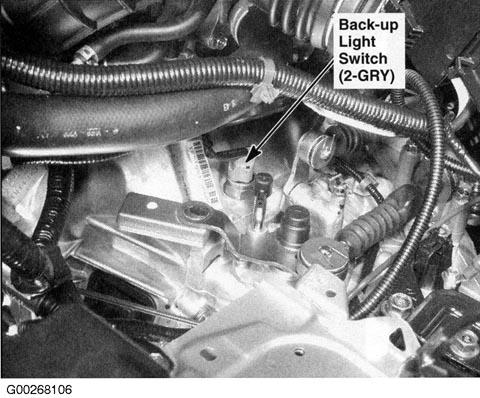

Fig 32: Manual Transmission Housing

G00268106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

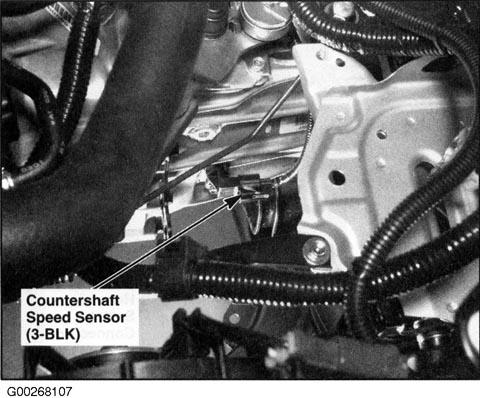

Fig 33: Manual Transmission Housing

G00268107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

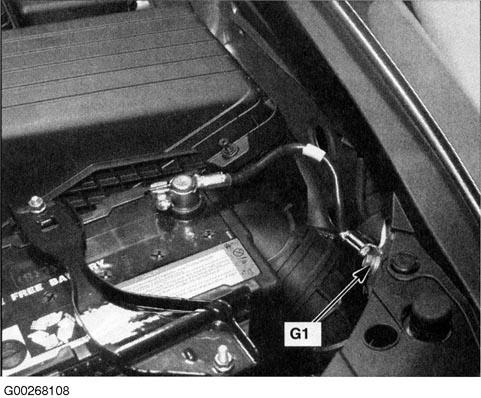

Fig 34: Left Side Of Engine Compartment

G00268108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

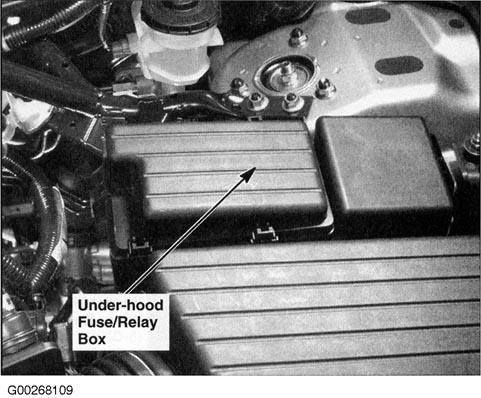

Fig 35: Left Side Of Engine Compartment

G00268109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

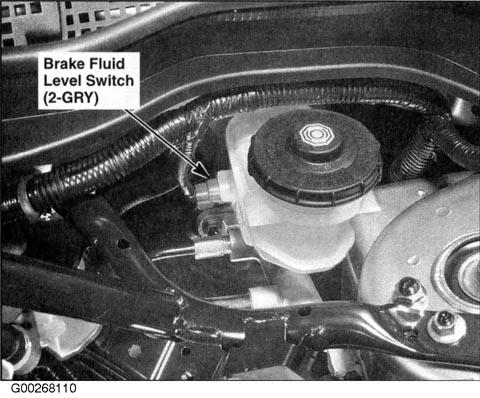

Fig 36: Left Rear Of Engine Compartment

G00268110

Courtesy of AMERICAN HONDA MOTOR CO., INC.

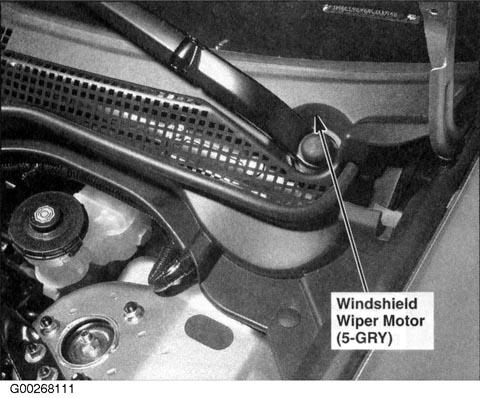

Fig 37: Under Left Side Of Cowl

G00268111

Courtesy of AMERICAN HONDA MOTOR CO., INC.

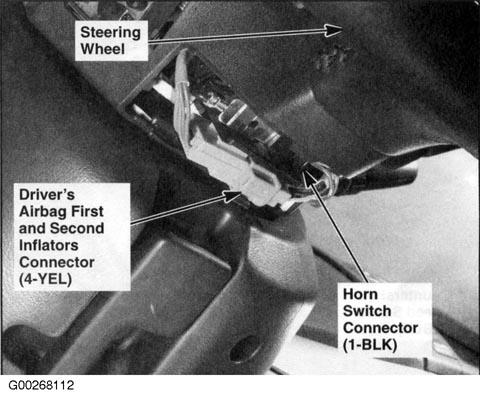

Fig 38: Steering Column

G00268112

Courtesy of AMERICAN HONDA MOTOR CO., INC.

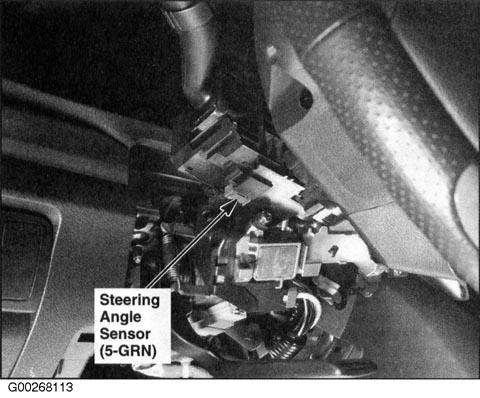

Fig 39: Steering Column

G00268113

Courtesy of AMERICAN HONDA MOTOR CO., INC.

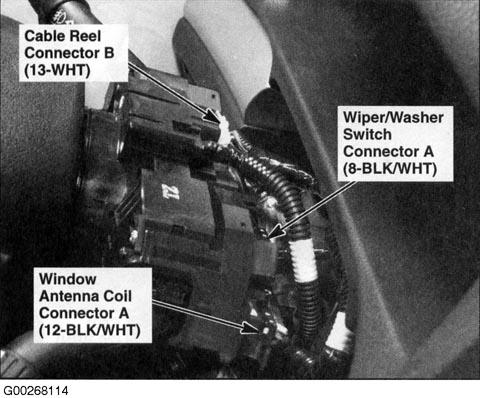

Fig 40: Steering Column

G00268114

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Steering Column

G00268115

Courtesy of AMERICAN HONDA MOTOR CO., INC.

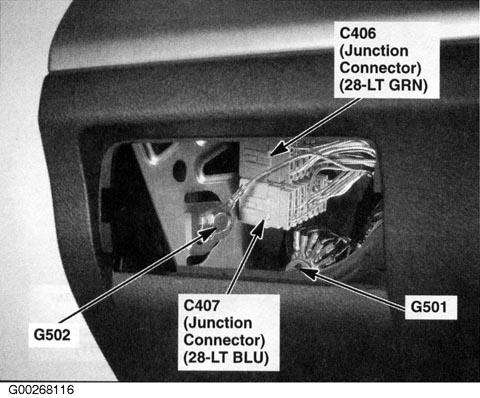

Fig 42: Behind Left Side Of Dash

G00268116

Courtesy of AMERICAN HONDA MOTOR CO., INC.

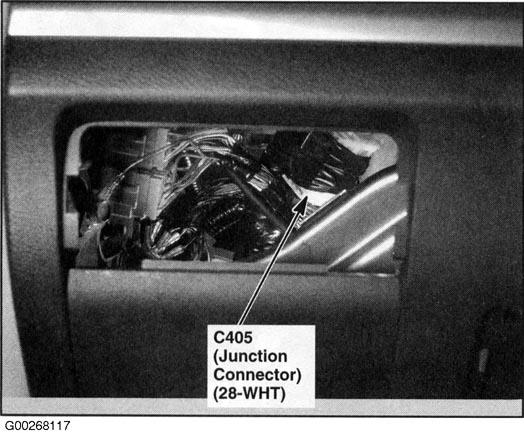

Fig 43: Behind Left Side Of Dash

G00268117

Courtesy of AMERICAN HONDA MOTOR CO., INC.

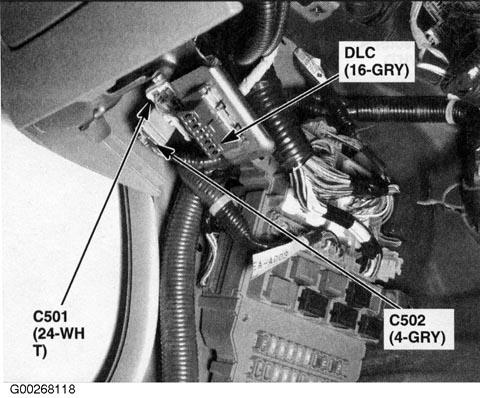

Fig 44: Behind Left Side Of Dash

G00268118

Courtesy of AMERICAN HONDA MOTOR CO., INC.

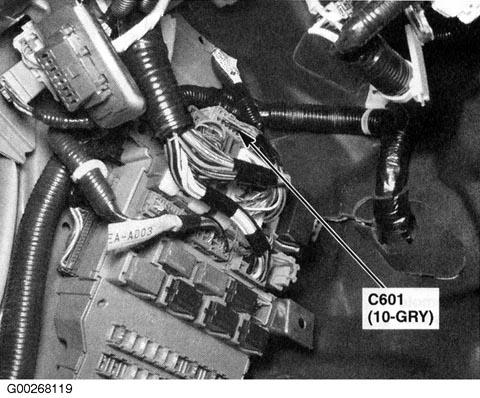

Fig 45: Behind Left Side Of Dash

G00268119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

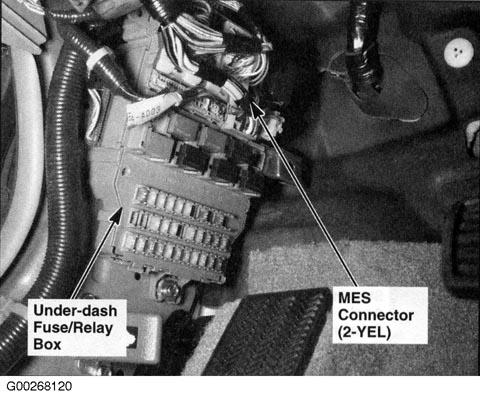

Fig 46: Behind Left Kick Panel

G00268120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

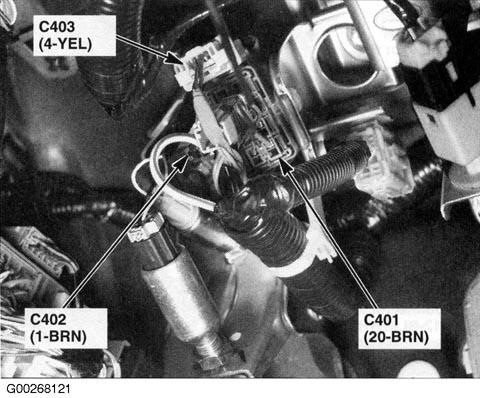

Fig 47: Behind Left Side Of Dash

G00268121

Courtesy of AMERICAN HONDA MOTOR CO., INC.

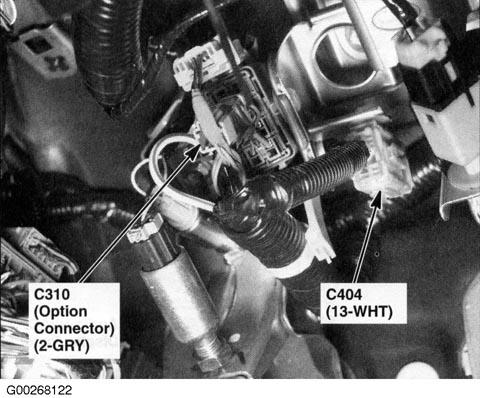

Fig 48: Behind Left Side Of Dash

G00268122

Courtesy of AMERICAN HONDA MOTOR CO., INC.

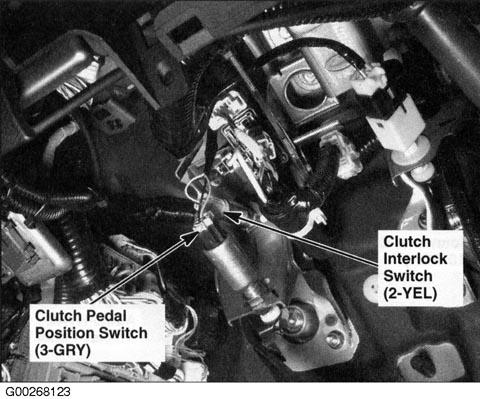

Fig 49: Behind Left Side Of Dash (M/T)

G00268123

Courtesy of AMERICAN HONDA MOTOR CO., INC.

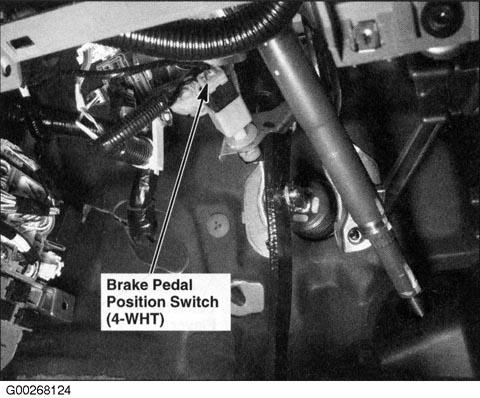

Fig 50: Behind Left Side Of Dash

G00268124

Courtesy of AMERICAN HONDA MOTOR CO., INC.

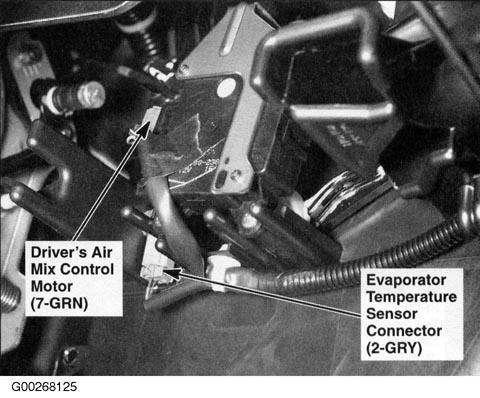

Fig 51: Behind Left Side Of Dash

G00268125

Courtesy of AMERICAN HONDA MOTOR CO., INC.

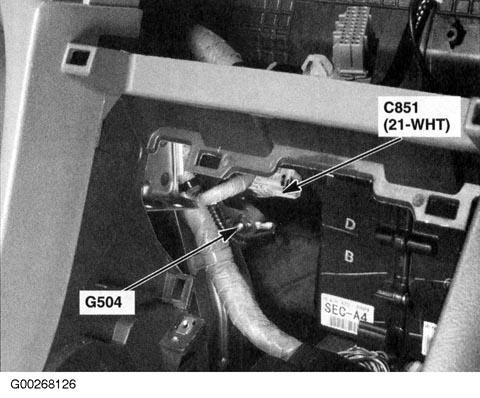

Fig 52: Behind Middle Of Dash

G00268126

Courtesy of AMERICAN HONDA MOTOR CO., INC.

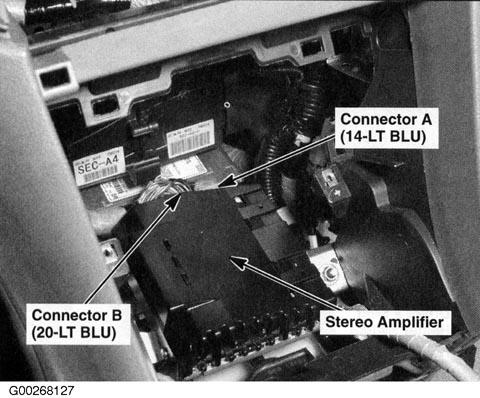

Fig 53: Behind Middle Of Dash

G00268127

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Behind Middle Of Dash

G00268128

Courtesy of AMERICAN HONDA MOTOR CO., INC.

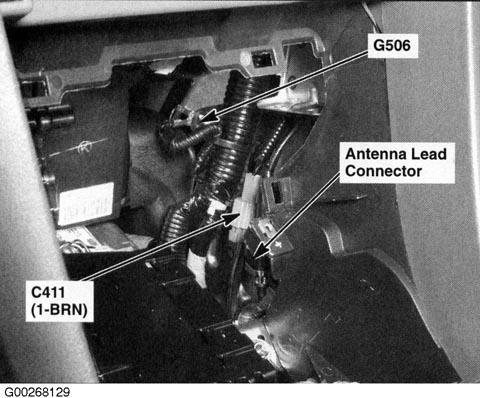

Fig 55: Behind Middle Of Dash

G00268129

Courtesy of AMERICAN HONDA MOTOR CO., INC.

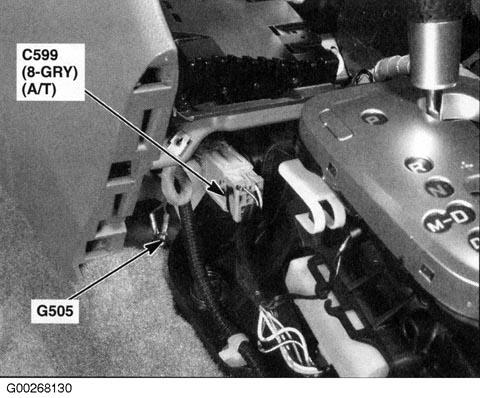

Fig 56: Under Center Console (A/T)

G00268130

Courtesy of AMERICAN HONDA MOTOR CO., INC.

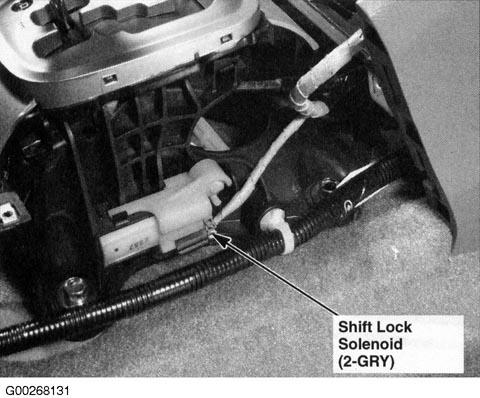

Fig 57: Under Center Console

G00268131

Courtesy of AMERICAN HONDA MOTOR CO., INC.

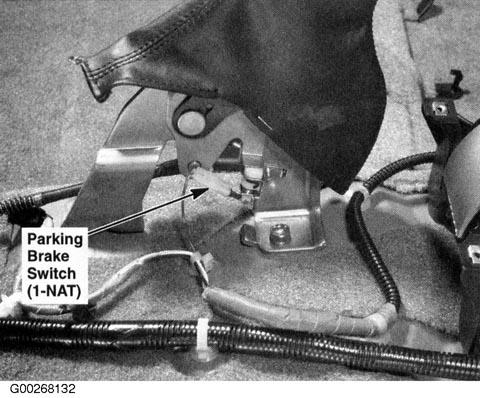

Fig 58: Under Center Floor Console

G00268132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

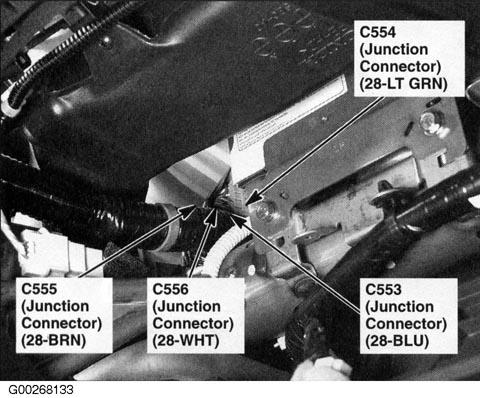

Fig 59: Behind Glove Box

G00268133

Courtesy of AMERICAN HONDA MOTOR CO., INC.

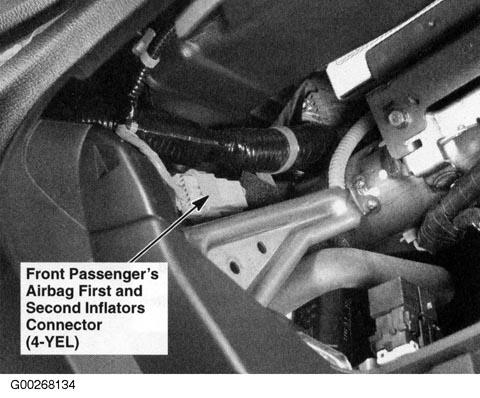

Fig 60: Behind Glove Box

G00268134

Courtesy of AMERICAN HONDA MOTOR CO., INC.

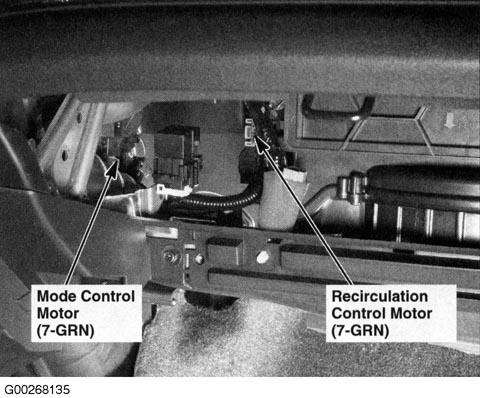

Fig 61: Behind Glove Box

G00268135

Courtesy of AMERICAN HONDA MOTOR CO., INC.

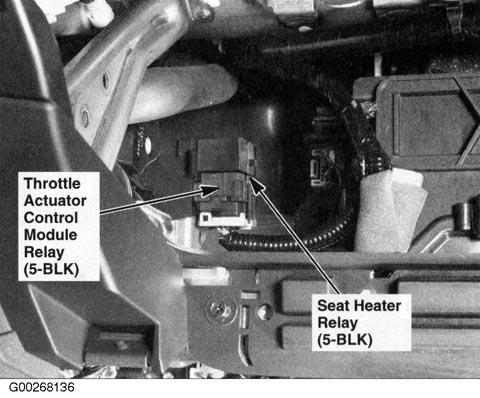

Fig 62: Behind Glove Box

G00268136

Courtesy of AMERICAN HONDA MOTOR CO., INC.

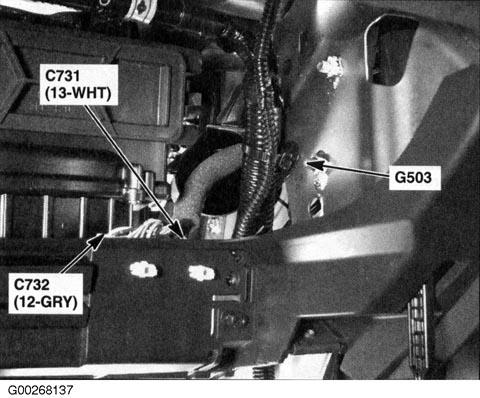

Fig 63: Behind Glove Box

G00268137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

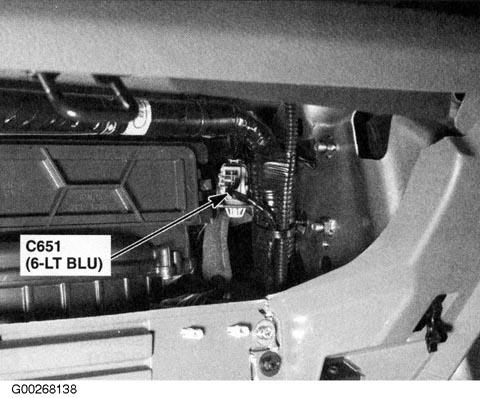

Fig 64: Behind Glove Box (W/Navigation)

G00268138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Under Middle Of Dash

G00268139

Courtesy of AMERICAN HONDA MOTOR CO., INC.

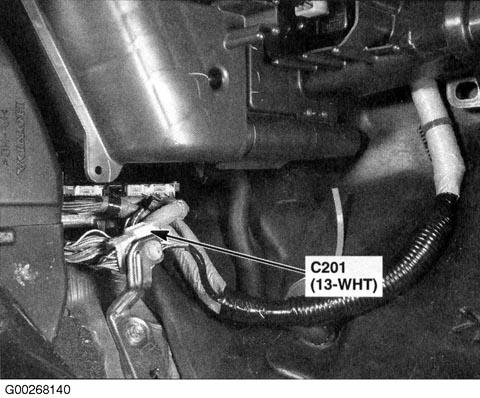

Fig 66: Under Middle Of Dash

G00268140

Courtesy of AMERICAN HONDA MOTOR CO., INC.

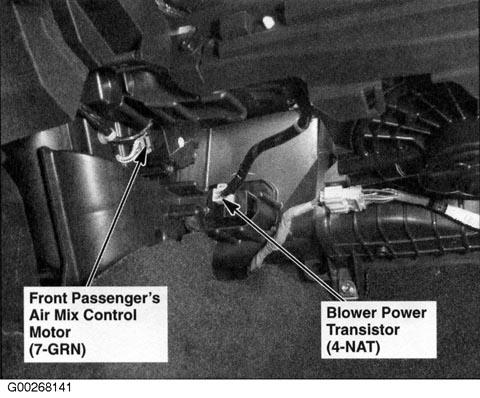

Fig 67: Under Right Side Of Dash

G00268141

Courtesy of AMERICAN HONDA MOTOR CO., INC.

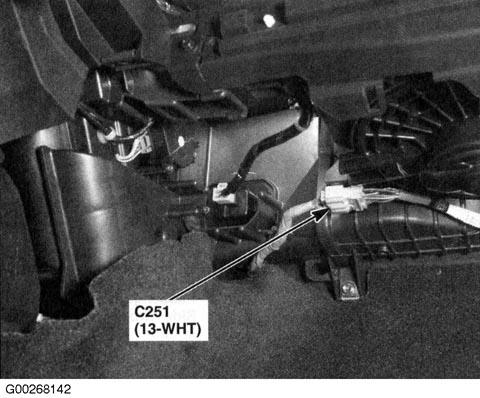

Fig 68: Under Right Side Of Dash

G00268142

Courtesy of AMERICAN HONDA MOTOR CO., INC.

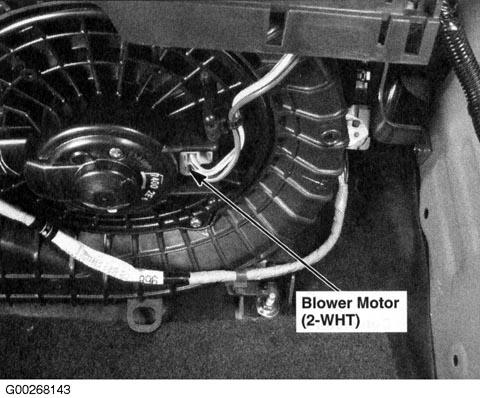

Fig 69: Under Right Side Of Dash

G00268143

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Under Right Side Of Dash

G00268144

Courtesy of AMERICAN HONDA MOTOR CO., INC.

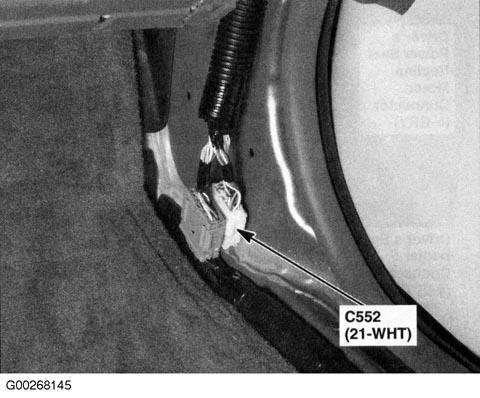

Fig 71: Behind Right Kick Panel (W/Navigation)

G00268145

Courtesy of AMERICAN HONDA MOTOR CO., INC.

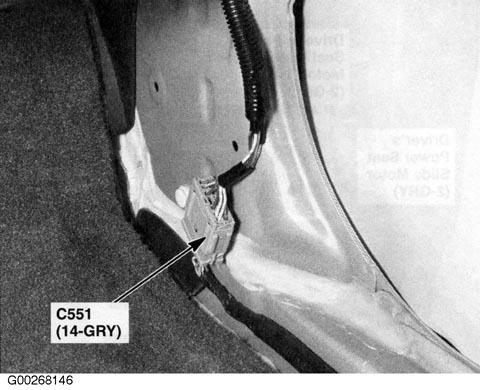

Fig 72: Behind Right Kick Panel

G00268146

Courtesy of AMERICAN HONDA MOTOR CO., INC.

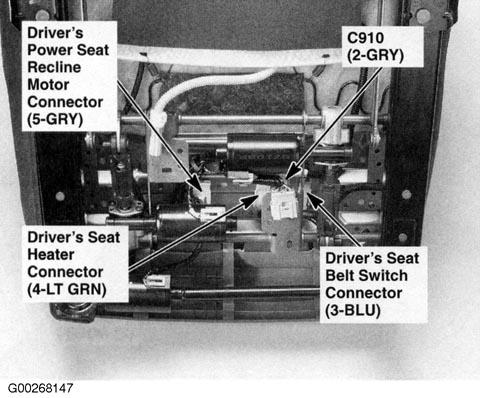

Fig 73: Under Driver's Seat

G00268147

Courtesy of AMERICAN HONDA MOTOR CO., INC.

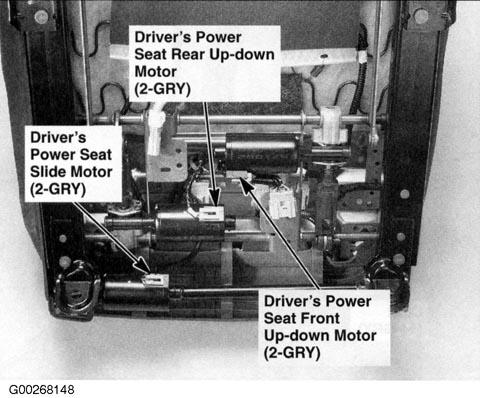

Fig 74: Under Driver's Seat

G00268148

Courtesy of AMERICAN HONDA MOTOR CO., INC.

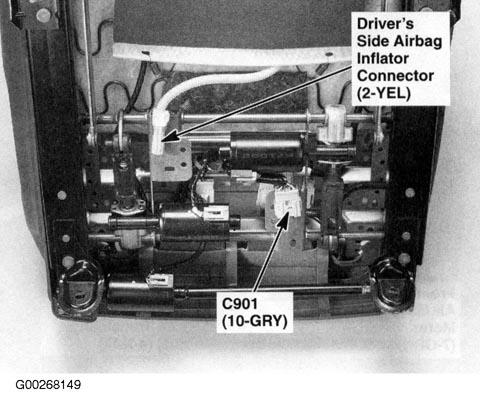

Fig 75: Under Driver's Seat

G00268149

Courtesy of AMERICAN HONDA MOTOR CO., INC.

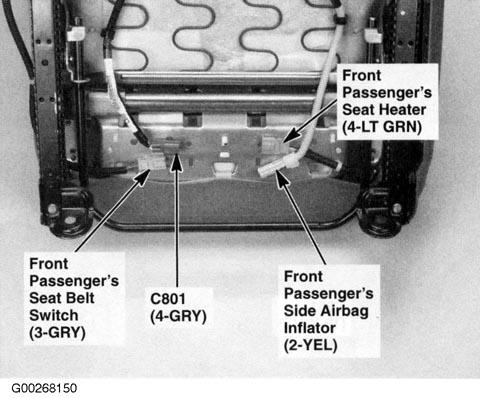

Fig 76: Under Front Passenger's Seat

G00268150

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Front Passenger's Seat

G00268151

Courtesy of AMERICAN HONDA MOTOR CO., INC.

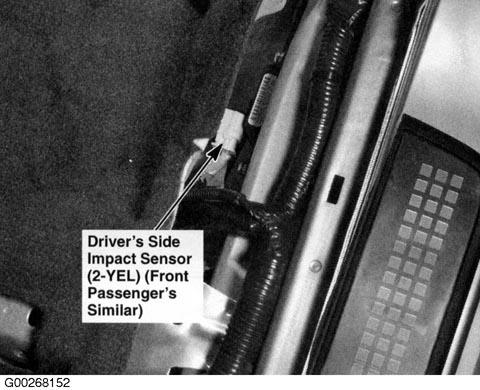

Fig 78: Left & Right Side Of Floor

G00268152

Courtesy of AMERICAN HONDA MOTOR CO., INC.

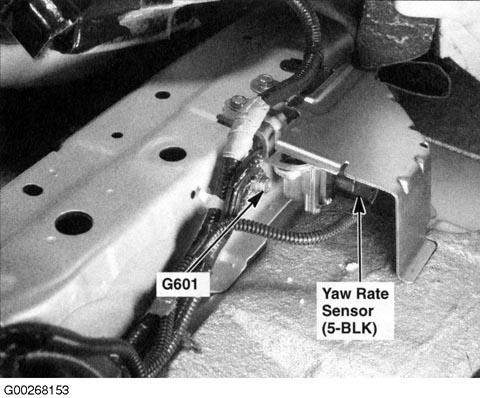

Fig 79: Left Side Of Floor

G00268153

Courtesy of AMERICAN HONDA MOTOR CO., INC.

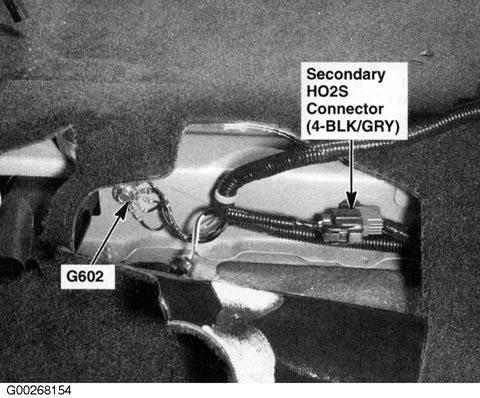

Fig 80: Right Side Of Floor

G00268154

Courtesy of AMERICAN HONDA MOTOR CO., INC.

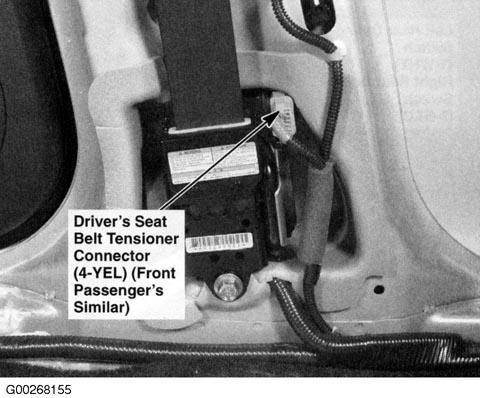

Fig 81: Left & Right "B" Pillars

G00268155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

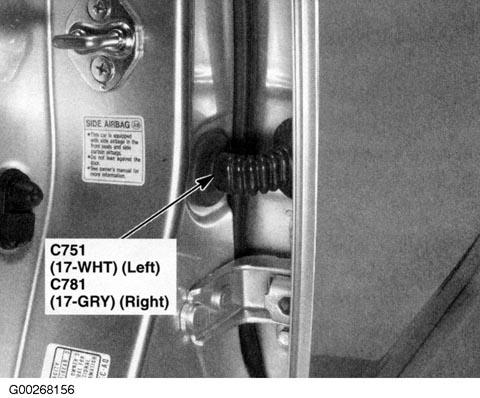

Fig 82: Left & Right "B" Pillars

G00268156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

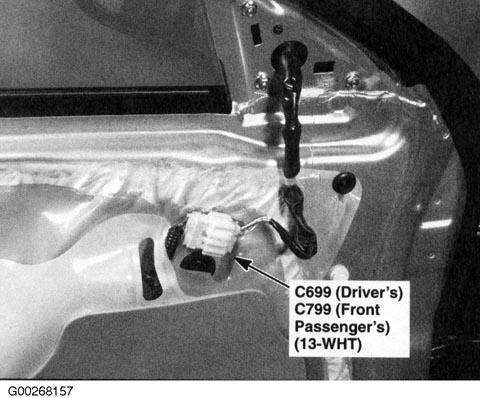

Fig 83: Left & Right Front Doors

G00268157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

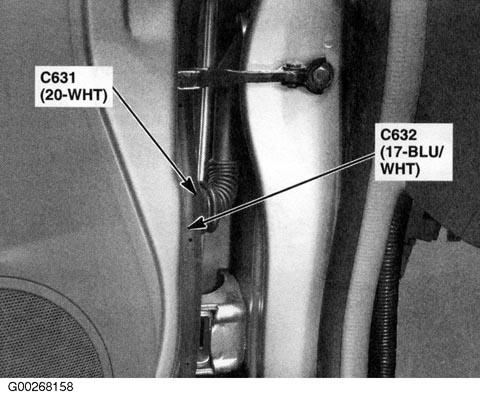

Fig 84: Driver's Door

G00268158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

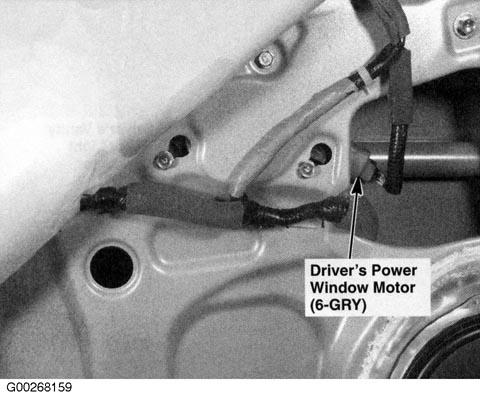

Fig 85: Left & Right Front Doors

G00268159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

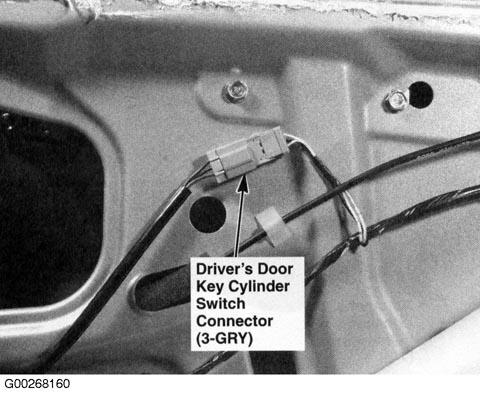

Fig 86: Driver's Door

G00268160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

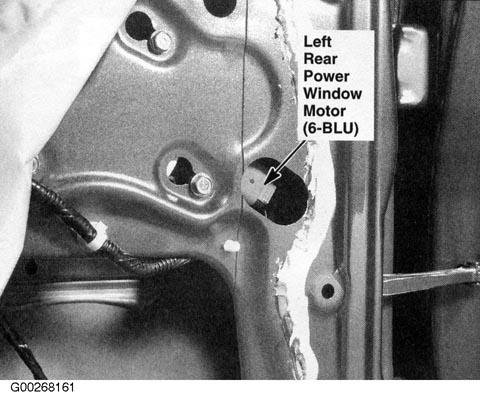

Fig 87: Left & Right Rear Doors

G00268161

Courtesy of AMERICAN HONDA MOTOR CO., INC.

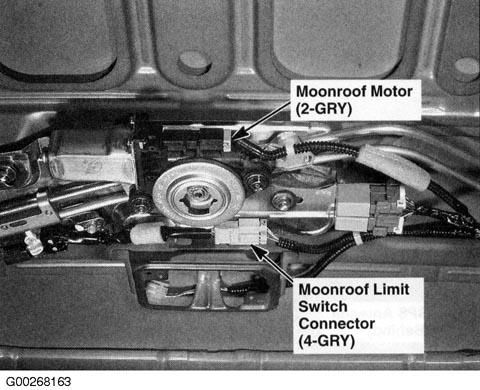

Fig 88: Rear Of Roof

G00268163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

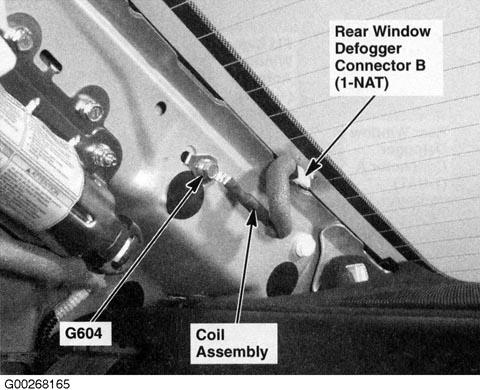

Fig 89: Right "C" Pillar

G00268165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

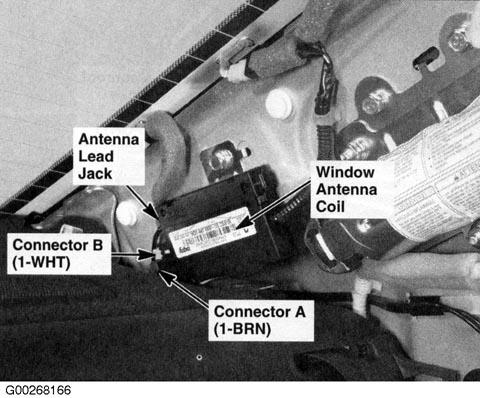

Fig 90: Left "C" Pillar

G00268166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

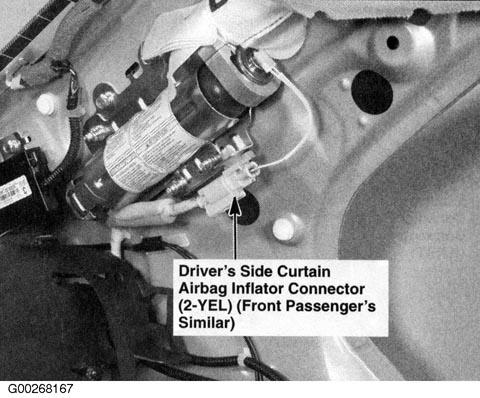

Fig 91: Left & Right "C" Pillar

G00268167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

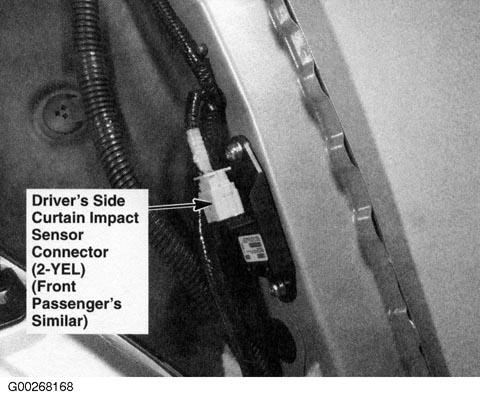

Fig 92: Left & Right "C" Pillar

G00268168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Left "C" Pillar

G00268169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

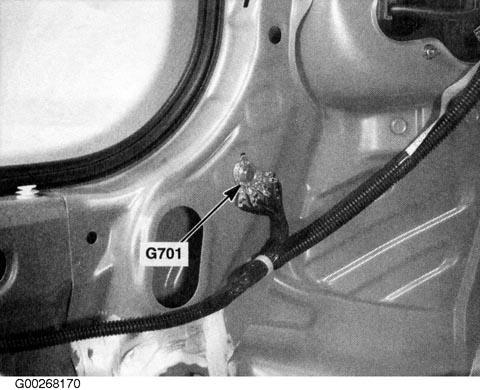

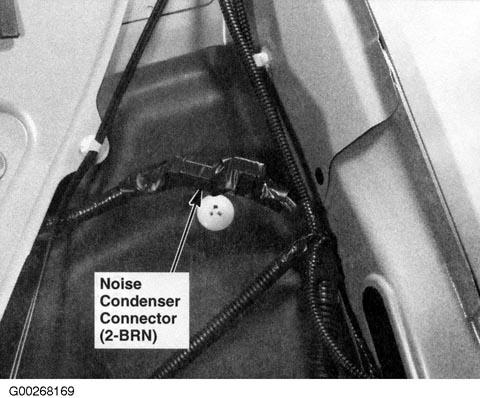

Fig 94: Left Side Of Trunk

G00268170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

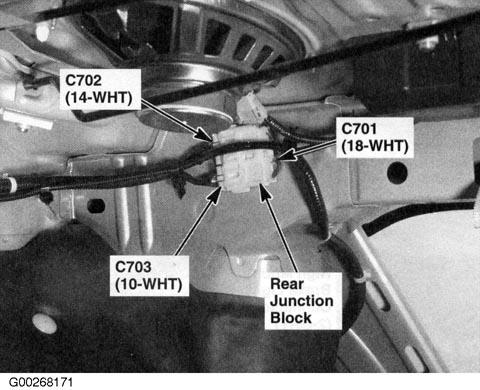

Fig 95: Left Front Of Trunk

G00268171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Right Side Of Rear Shelf (W/Navigation)

G00268172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

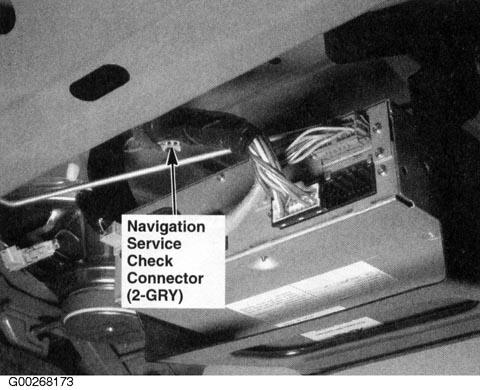

Fig 97: Right Side Of Rear Shelf (W/Navigation)

G00268173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

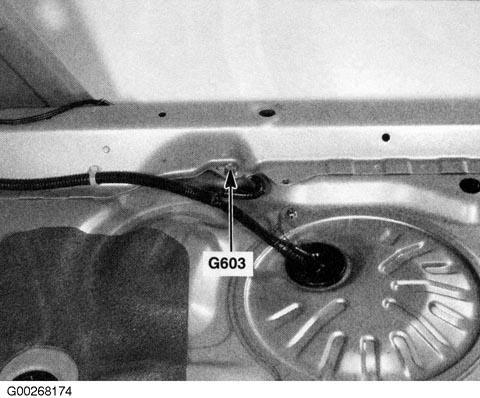

Fig 98: Middle Front Of Trunk

G00268174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

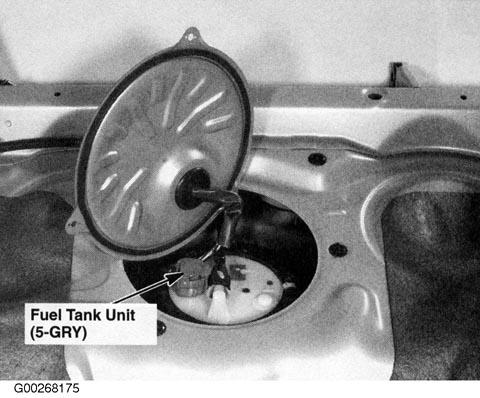

Fig 99: Middle Front Of Trunk

G00268175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

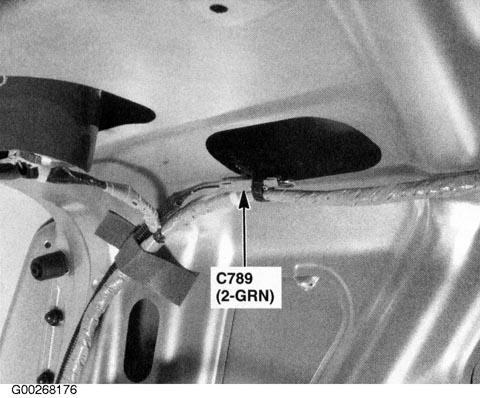

Fig 100: Left Side Of Trunk Lid (Acura Accessory)

G00268176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

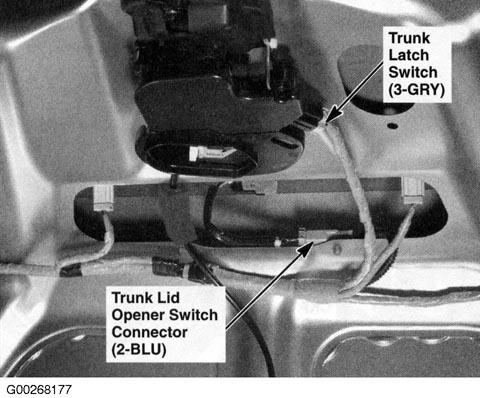

Fig 101: Middle Of Trunk Lid

G00268177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

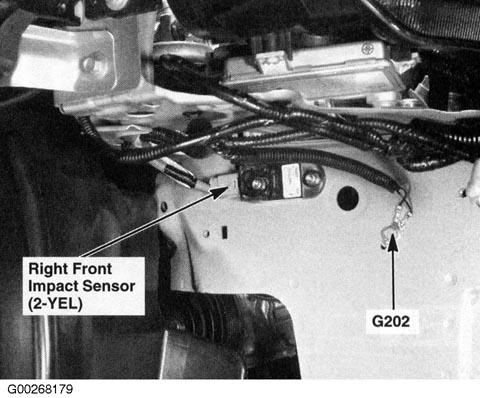

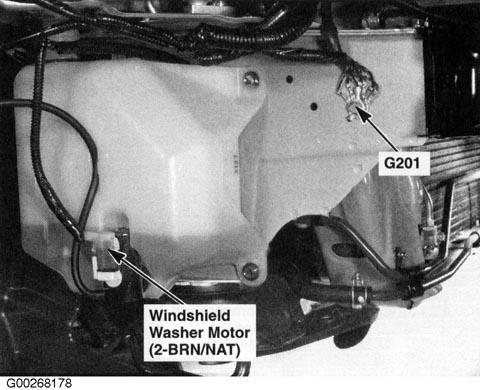

Fig 102: Behind Right Side Of Front Bumper

G00268178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Behind Right Side Of Front Bumper

G00268179

Courtesy of AMERICAN HONDA MOTOR CO., INC.

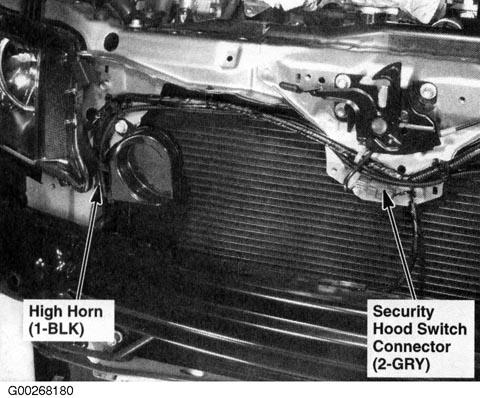

Fig 104: Behind Middle Of Front Bumper

G00268180

Courtesy of AMERICAN HONDA MOTOR CO., INC.

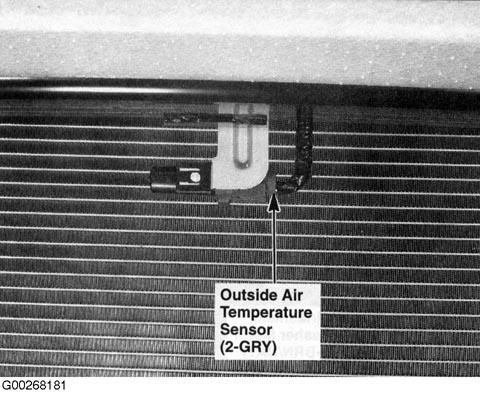

Fig 105: Behind Middle Of Front Bumper

G00268181

Courtesy of AMERICAN HONDA MOTOR CO., INC.

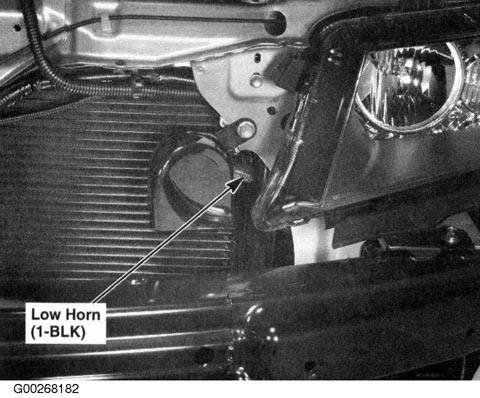

Fig 106: Behind Middle Of Front Bumper

G00268182

Courtesy of AMERICAN HONDA MOTOR CO., INC.

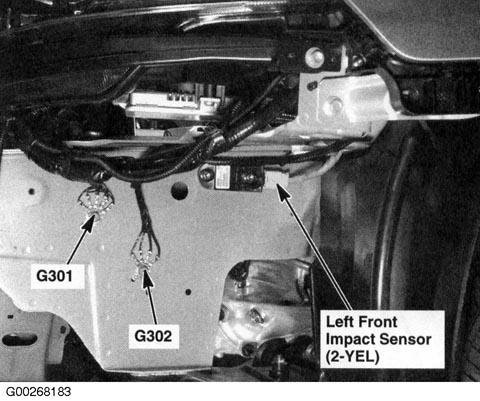

Fig 107: Behind Left Side Of Front Bumper

G00268183

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Under Right Side Of Engine

G00268184

Courtesy of AMERICAN HONDA MOTOR CO., INC.

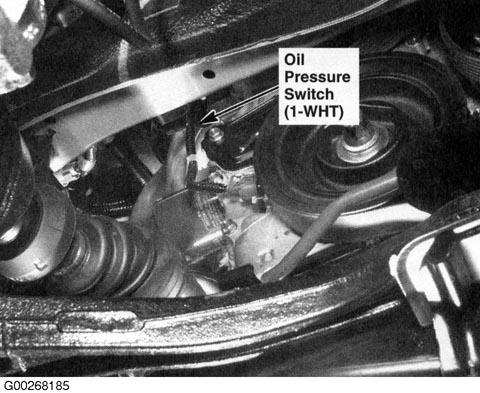

Fig 109: Under Right Side Of Engine

G00268185

Courtesy of AMERICAN HONDA MOTOR CO., INC.

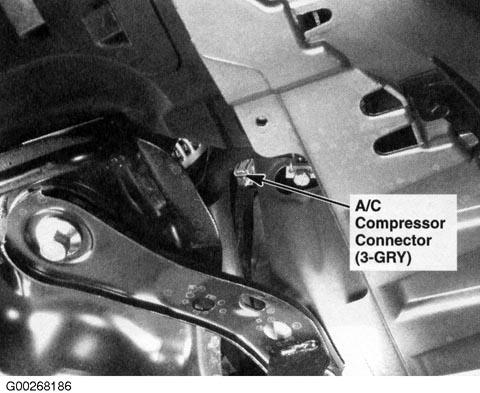

Fig 110: Under Right Side Of Engine Compartment

G00268186

Courtesy of AMERICAN HONDA MOTOR CO., INC.

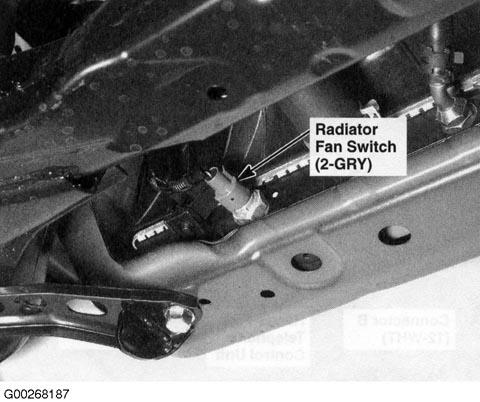

Fig 111: Under Left Side Of Engine Compartment

G00268187

Courtesy of AMERICAN HONDA MOTOR CO., INC.

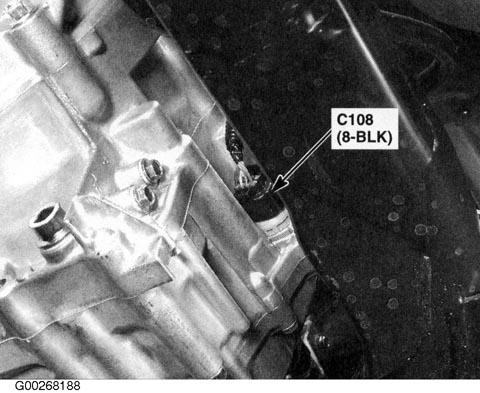

Fig 112: Automatic Transmission Housing

G00268188

Courtesy of AMERICAN HONDA MOTOR CO., INC.

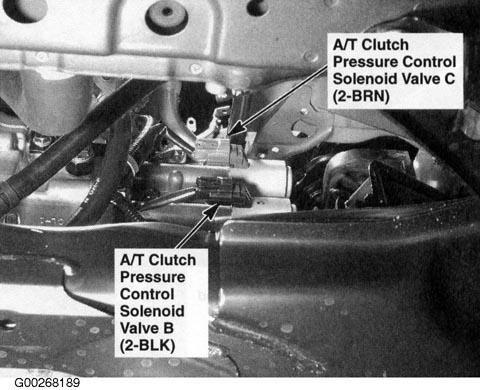

Fig 113: Automatic Transmission Housing

G00268189

Courtesy of AMERICAN HONDA MOTOR CO., INC.

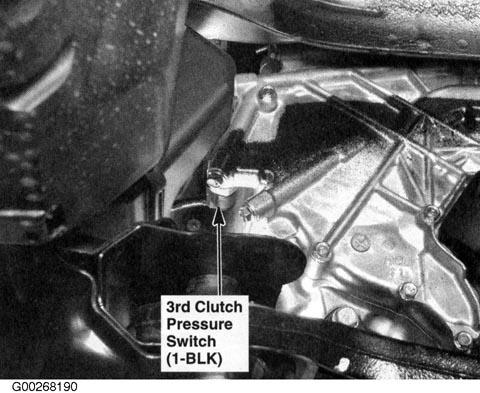

Fig 114: Automatic Transmission Housing

G00268190

Courtesy of AMERICAN HONDA MOTOR CO., INC.

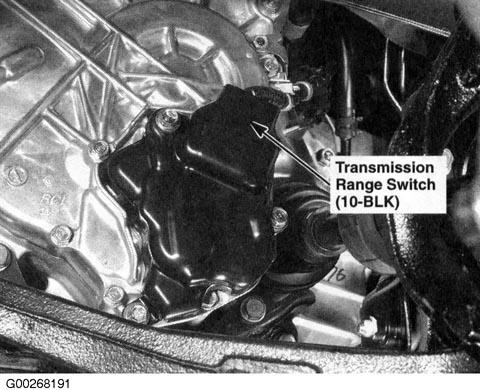

Fig 115: Automatic Transmission Housing

G00268191

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Under Left & Right Rear Of Vehicle

G00268192

Courtesy of AMERICAN HONDA MOTOR CO., INC.

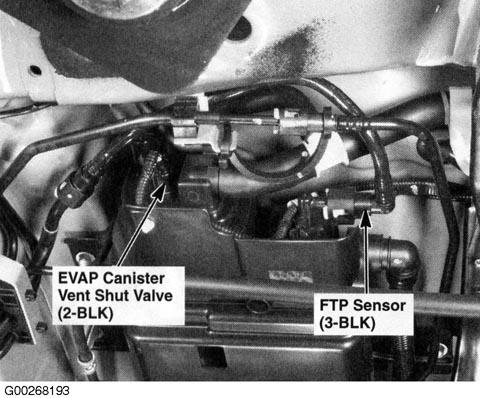

Fig 117: Under Left Rear Of Vehicle

G00268193

Courtesy of AMERICAN HONDA MOTOR CO., INC.

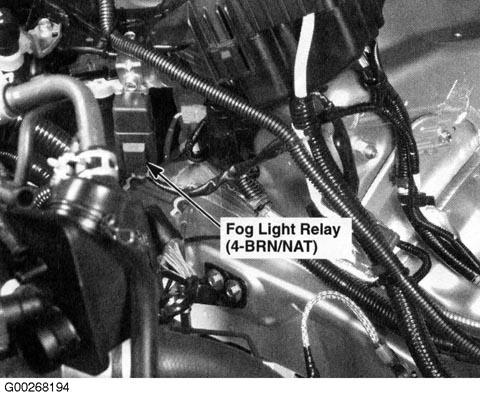

Fig 118: Left Side Of Engine Compartment

G00268194

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Under Center Console (Acura Accessory)

G00268195

Courtesy of AMERICAN HONDA MOTOR CO., INC.

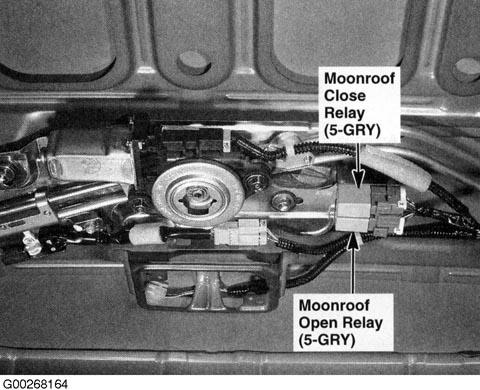

Fig 120: Rear Of Roof

G00268164

Courtesy of AMERICAN HONDA MOTOR CO., INC.
