Home >> Acura >> 2004 >> TSX Automatic >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Block >> Component Location Index

Component Location Index

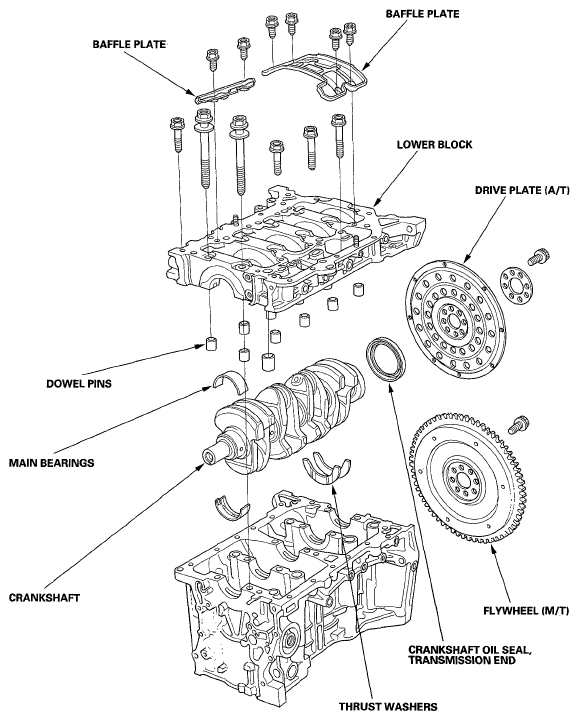

Fig 1: Identifying Engine Block Component Location (1 Of 2)
G05490173Courtesy of AMERICAN HONDA MOTOR CO., INC.

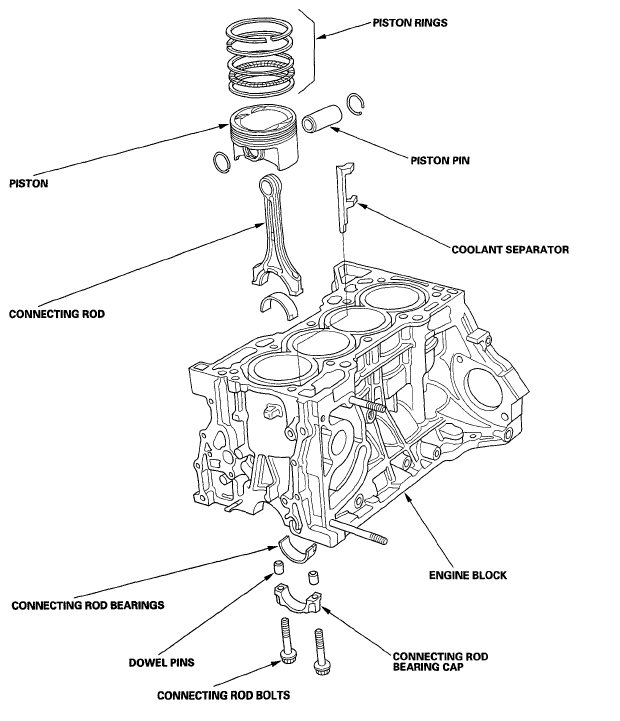

Fig 2: Identifying Engine Block Component Location (2 Of 2)
G05490174Courtesy of AMERICAN HONDA MOTOR CO., INC.
