Seat Belts: Inspection: Retractor

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. Do not attempt to disassemble the retractor.
Front

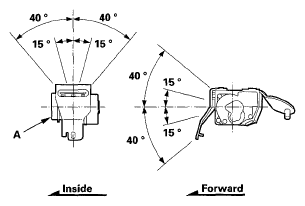

Fig 1: Identifying Retractor Mounted Position - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

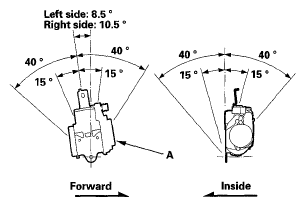

Fig 2: Identifying Retractor Mounted Position - Rear
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear center

Fig 3: Identifying Retractor Mounted Position - Rear Center
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Front/Rear
Make sure that the seat belt locks when the retractor is leaned over 40° from the mounted position.
Rear Center
Lean the retractor over 40°, and make sure that the seat belt does not lock when pulled out over about 1,200 mm (47.24 in.). Do not attempt to disassemble the retractor.
Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.
