DTC Troubleshooting Index
DTC Troubleshooting Index
NOTE:
Before you troubleshoot, record all freeze data and any on-board snapshot, and review General Troubleshooting Information (see
GENERAL TROUBLESHOOTING INFORMATION
).

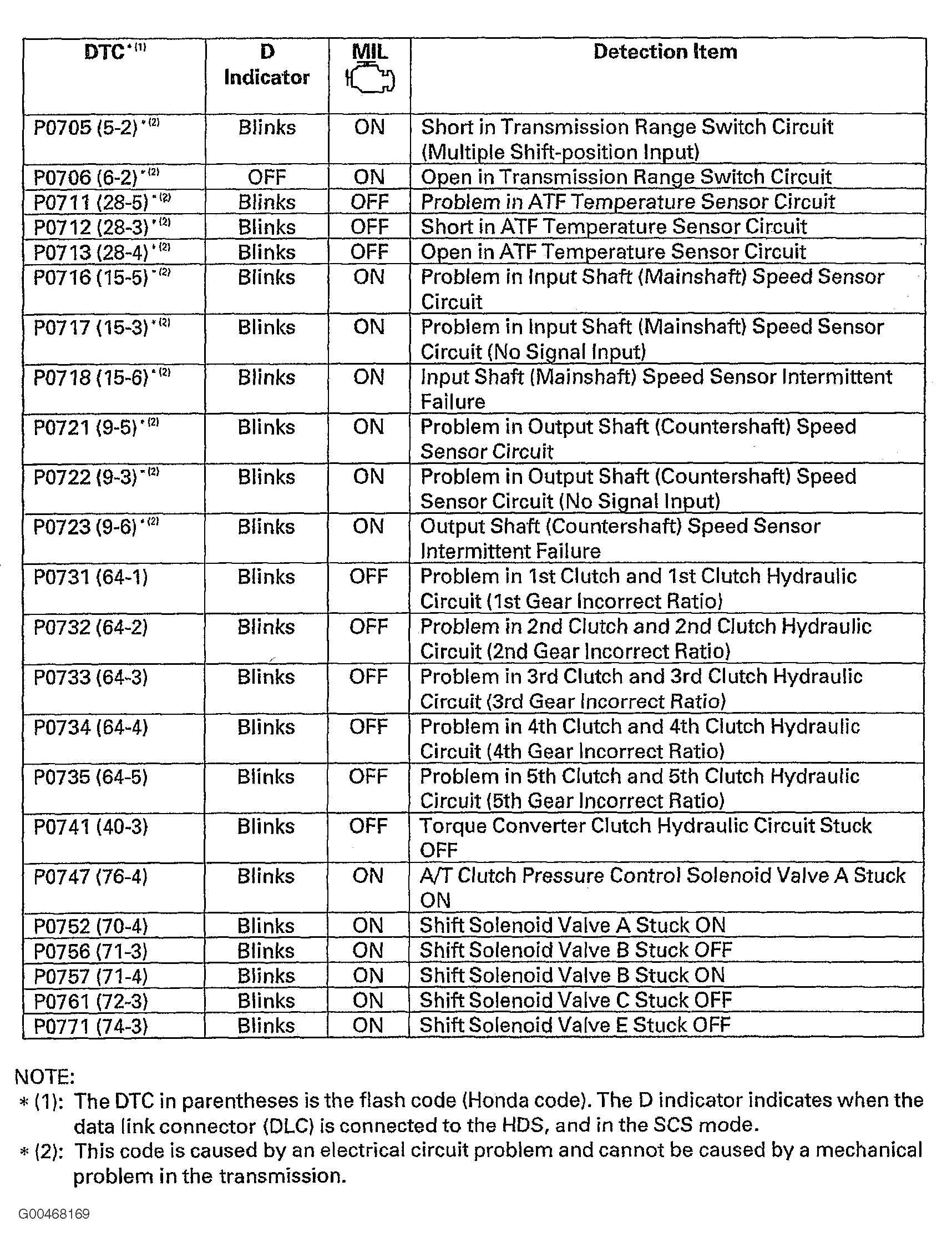

Fig 1: DTC Troubleshooting Chart (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

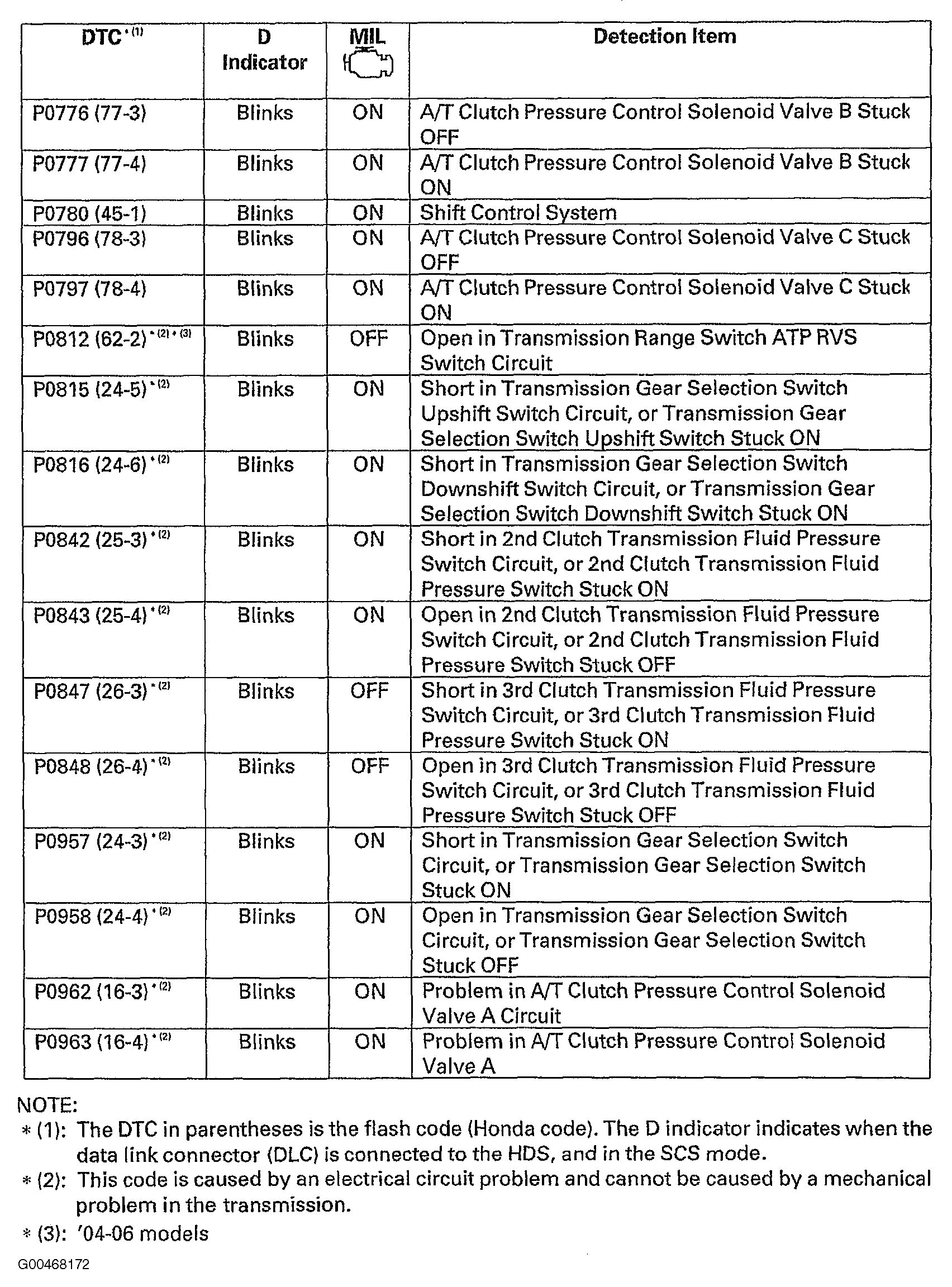

Fig 2: DTC Troubleshooting Chart (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

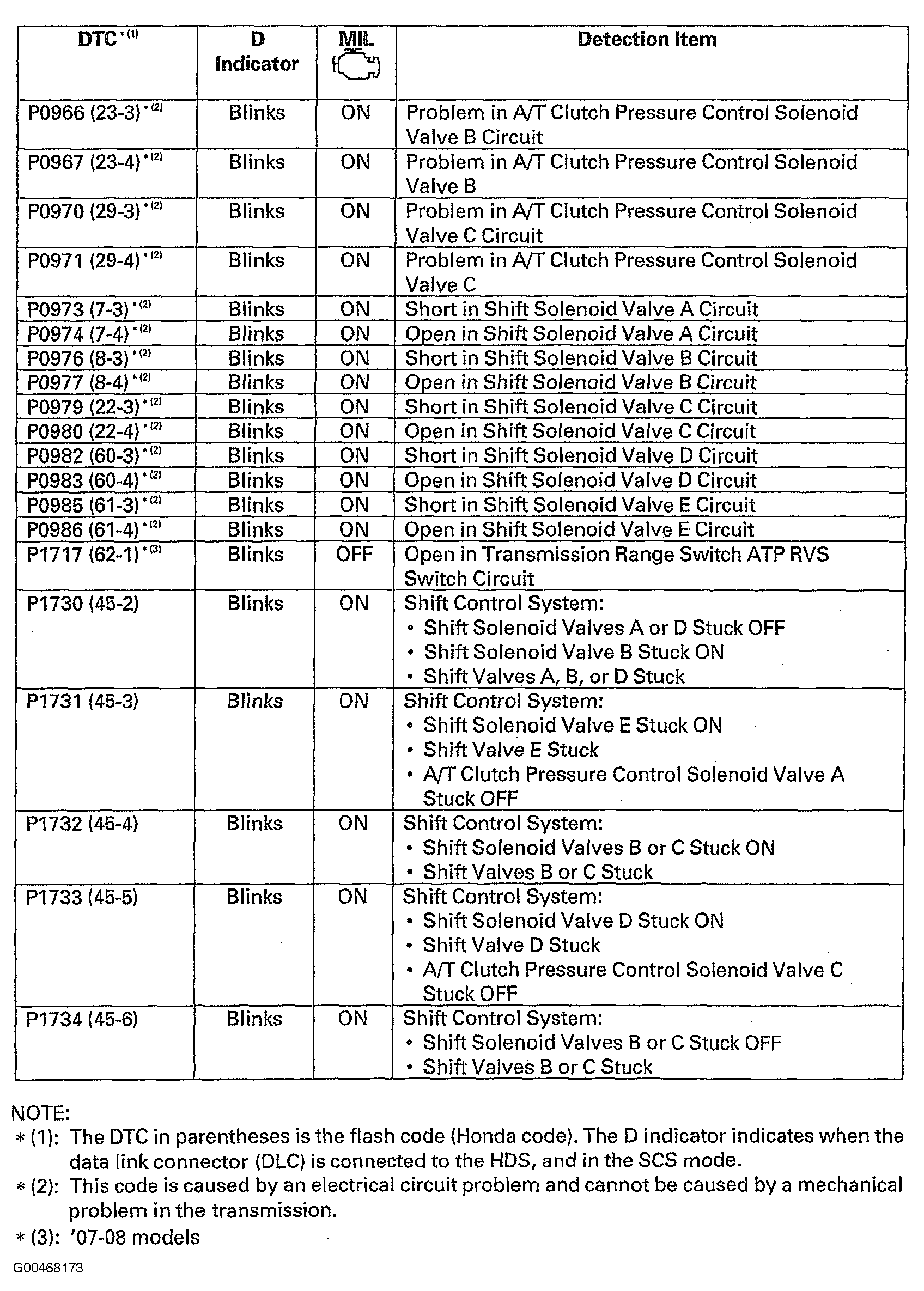

Fig 3: DTC Troubleshooting Chart (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
