Shift Lever Installation

Install the shift lever assembly.
Connect the shift lock solenoid connector (A) and the transmission gear selection switch/park pin switch connector (B), and install the harness clamps (C) on the shift lever bracket base.

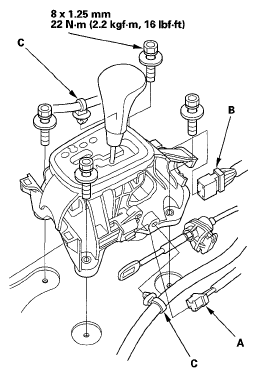

Fig 1: Shift Lock Solenoid Connector, Transmission Gear Selection Switch Connector And Harness Clamps W/Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II), and check that R indicator comes on.

Fig 2: Identifying R Indicator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, push the shift cable until it stops, then release it. Pull the shift cable back one step so that the shift position is in R. Do not hold the shift cable guide (A) to adjust the shift cable (B).

Fig 3: Identifying Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to LOCK (0).
Insert a 6.0 mm (0.24 in.) pin (A) through the positioning hole (B) on the shift lever bracket base and into the positioning hole (C) on the shift lever. The shift lever is secured in R.

Fig 4: Inserting Pin Into Positioning Hole On Shift Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the socket holder (A) on the shift cable (B) with the slot in the bracket base (C), then slide the holder into the base. Install the shift cable end (D) over the mounting stud (E) by aligning its square hole (F) with the square fitting (G) at the bottom of the stud. Push the holder until it snaps securely in place. Do not install the shift cable by holding the shift cable guide (H).

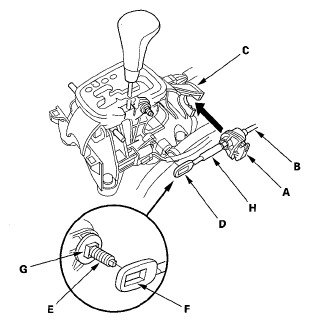

Fig 5: Aligning Socket Holder With Slot In Bracket Base
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check that the shift cable end (A) is properly installed on the mounting stud (B).

Fig 6: Identifying Proper Installation Position Of Shift Cable End
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If improperly installed, remove the shift cable from the bracket base, and reinstall the shift cable. Do not install the shift cable end on the mounting stud while the shift cable is on the bracket base.
Install and tighten the nut.

Fig 7: Shift Cable End Nut W/Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the 6.0 mm (0.24 in.) pin that was installed to hold the shift lever.
Move the shift lever to each position, and check that the A/T gear position indicator follows the transmission range switch.
Push the shift lock release, and check that the shift lever releases.
Reinstall the center console cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).
