Fuel Pump Control Module Replacement

  1. Remove the seat-back (see REAR SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the fuel pump control module connector (A).

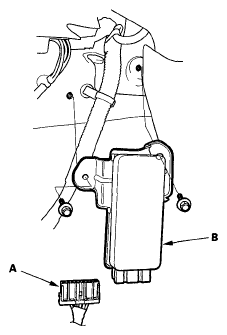

    Fig 1: Identifying Fuel Pump Control Module And Connector
    G05495275Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pump control module (B).
  4. Install the parts in the reverse order of removal.
