Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Cowl (Except Canada Base)

G00270519

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine

G00270520

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Right Side Of Engine Compartment (Except Canada Base)

G00270521

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine

G00270522

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Right Side Of Engine

G00270523

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Right Side Of Intake Manifold (Except Type S)

G00270524

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Front Of Engine Compartment

G00270525

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Left Side Of Intake Manifold (Type S)

G00270526

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Left Side Of Intake Manifold

G00270527

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Intake Air Duct

G00270528

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Middle Of Engine

G00270529

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Middle Of Engine

G00270530

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Right Side Of Engine Compartment

G00270531

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Left Side Of Engine

G00270532

Courtesy of AMERICAN HONDA MOTOR CO., INC.

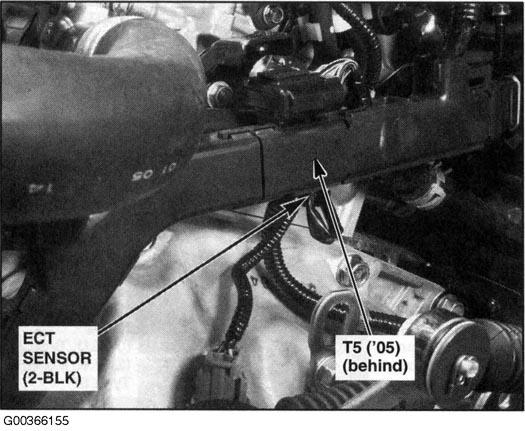

Fig 15: Left Side Of Engine

G00366155

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Transmission Housing (A/T)

G00270534

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Transmission Housing (M/T)

G00270535

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Transmission Housing (A/T)

G00270537

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Left Side Of Engine Compartment

G00270538

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Under Left Side Of Cowl Cover

G00270539

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Side Of Engine Compartment

G00270540

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Left Side Of Engine Compartment

G00270541

Courtesy of AMERICAN HONDA MOTOR CO., INC.

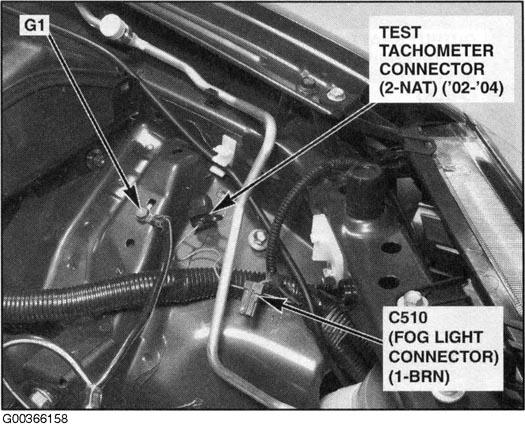

Fig 23: Left Side Of Engine Compartment

G00366158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Front Of Engine Compartment

G00270543

Courtesy of AMERICAN HONDA MOTOR CO., INC.

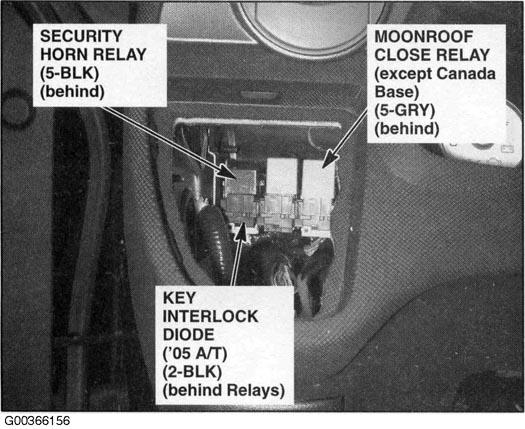

Fig 25: Left Side Of Dash

G00366156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

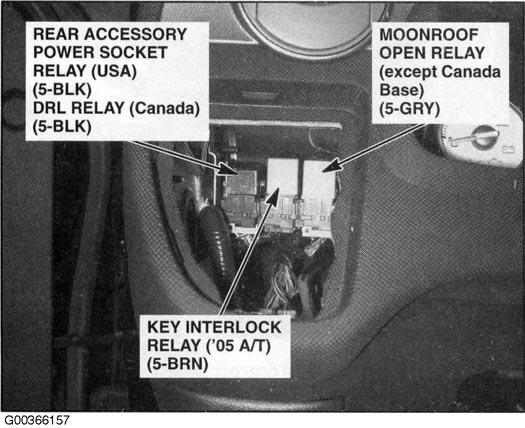

Fig 26: Left Side Of Dash

G00366157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Side Of Dash

G00270546

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Steering Wheel

G00270547

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Inside Steering Wheel

G00270548

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: In Steering Column

G00270549

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Under Center Of Dash

G00270550

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: In Steering Column Cover

G00270551

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: In Steering Column Cover

G00270552

Courtesy of AMERICAN HONDA MOTOR CO., INC.

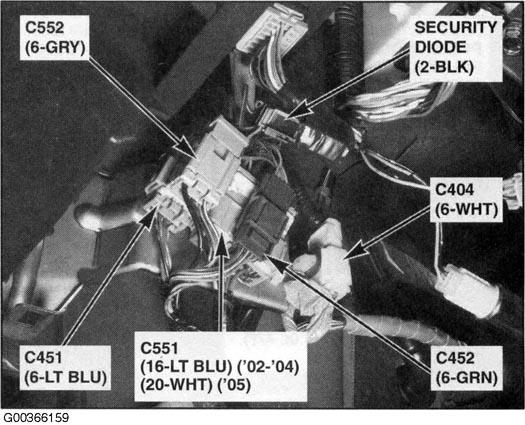

Fig 34: Under Left Side Of Dash

G00366159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

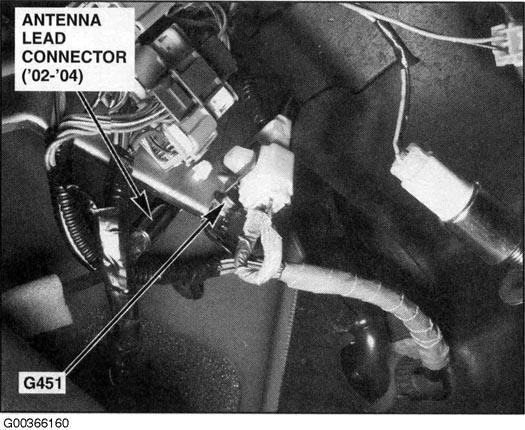

Fig 35: Under Left Side Of Dash

G00366160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 36: Under Left Side Of Dash

G00270555

Courtesy of AMERICAN HONDA MOTOR CO., INC.

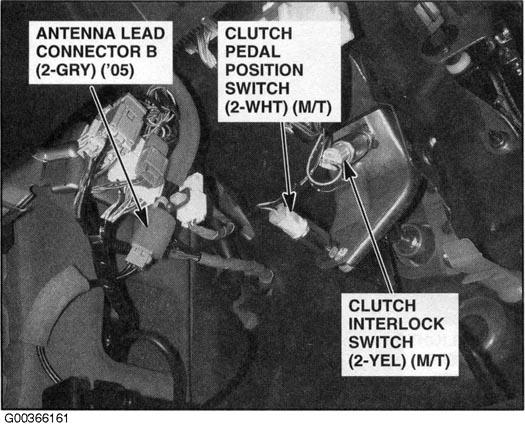

Fig 37: Under Left Side Of Dash (M/T)

G00366161

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Left Side Of Dash

G00270557

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Left Side Of Dash

G00270558

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Under Left Side Of Dash

G00270559

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Under Left Side Of Dash

G00270560

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Under Left Side Of Dash

G00270561

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Center Of Dash

G00270562

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Center Of Dash

G00270563

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Center Of Dash

G00270564

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Center Of Dash

G00270565

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Under Center Of Dash

G00270566

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Behind Audio Unit

G00270567

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Under Center Of Dash

G00270568

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Right Side Of Dash

G00270569

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Behind Glove Box

G00292332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Behind Glove Box (A/T)

G00292333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Behind Glove Box

G00292334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Behind Glove Box

G00292335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 55: Under Right Side Of Dash

G00292336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Right Side Of Dash

G00292337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Right Side Of Dash

G00292338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

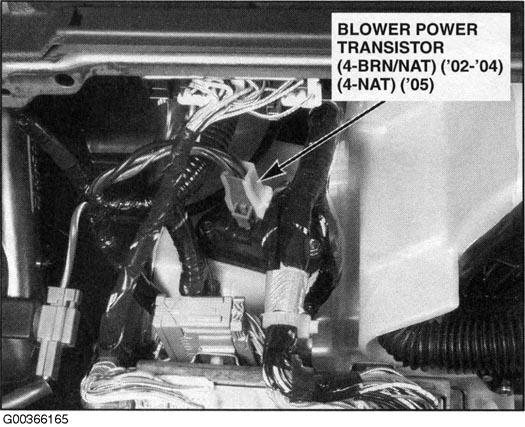

Fig 58: Under Right Side Of Dash

G00366165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

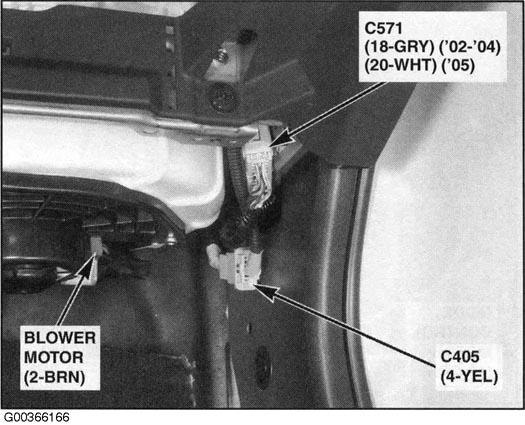

Fig 59: Under Right Side Of Dash

G00366166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 60: Under Driver's Seat

G00292341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Passenger's Seat (W/ Bose)

G00292342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 62: Under Passenger's Seat (W/ Bose)

G00292343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: In Passenger's Seat

G00292344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Left "B" Pillar (Right Similar)

G00292345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 65: Under Shift Lever Console Panel

G00292346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Under Shift Lever Console Panel (A/T)

G00292347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Center Of Floor

G00292348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Under Passenger's Seat

G00292349

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Behind Left Rear Seat Back (W/ Bose)

G00292350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 70: Fuel Tank

G00292351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

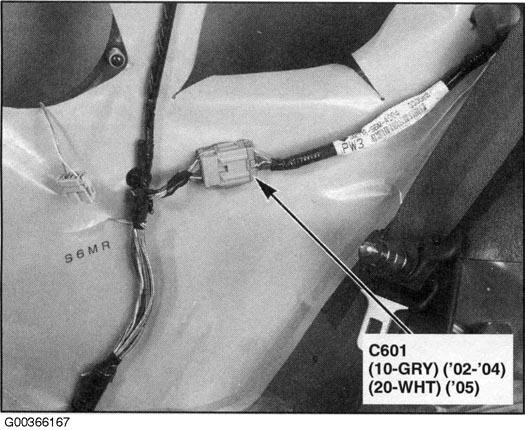

Fig 71: Right Quarter Panel

G00366167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Right Quarter Panel

G00292353

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Right "C" Pillar

G00292354

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 74: Driver's Door (Passenger's Similar)

G00292355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

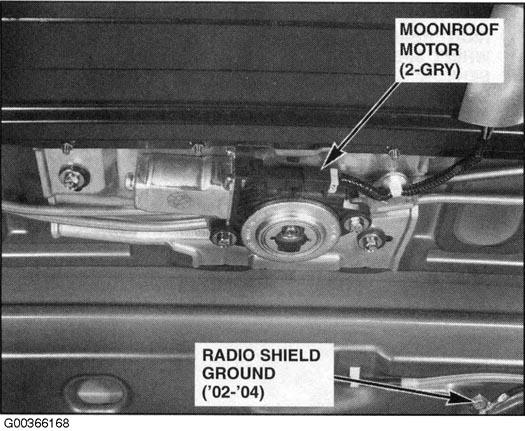

Fig 75: Center Of Roof (Except Canada)

G00366168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

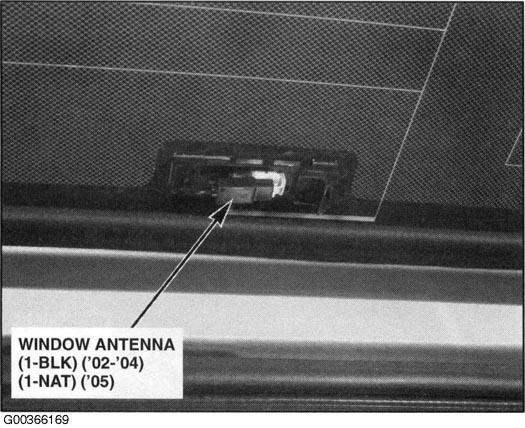

Fig 76: On Rear Window

G00366169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Right Side Of Hatch

G00292359

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Center Of Hatch

G00292360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

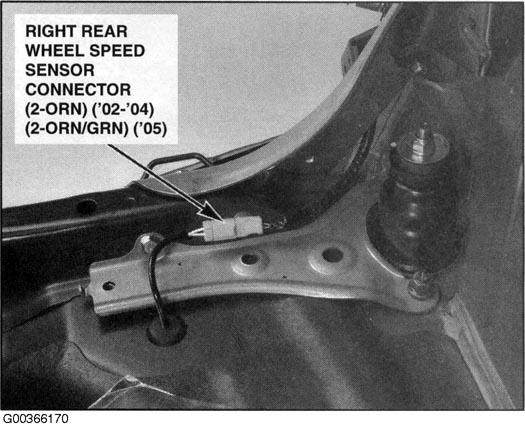

Fig 79: Front Right Of Cargo Area (Except Canada Base)

G00366170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 80: Spare Tire

G00292362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 81: Center Of Cargo Area

G00292363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Center Of Cargo Area

G00292364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Behind Front Bumper

G00292365

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 84: Behind Left Side Of Front Bumper

G00292366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 85: Behind Left Side Of Front Bumper

G00292367

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Behind Front Bumper

G00292368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 87: Transmission Housing

G00292369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 88: Behind Right Side Of Front Bumper

G00292370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 89: Behind Right Side Of Front Bumper

G00292371

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 90: Right Side Of Engine

G00292372

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 91: Right Side Of Engine

G00292373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 92: Transmission Housing (A/T)

G00292374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 93: Transmission Housing (A/T)

G00292375

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 94: Transmission Housing (A/T)

G00292376

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 95: Front Of Engine

G00292377

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 96: Front Of Engine Compartment (Type S)

G00292378

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Front Of Engine Compartment (Except Type S)

G00292379

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Under Radiator

G00292380

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Front Of Engine Compartment

G00292381

Courtesy of AMERICAN HONDA MOTOR CO., INC.

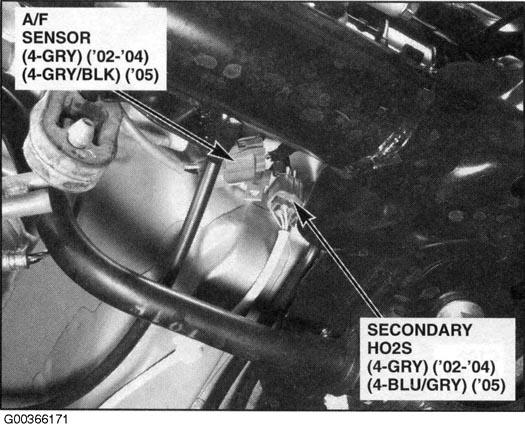

Fig 100: Below Back Side Of Engine

G00366171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Left Underside Of Vehicle (Except Canada Base)

G00292383

Courtesy of AMERICAN HONDA MOTOR CO., INC.

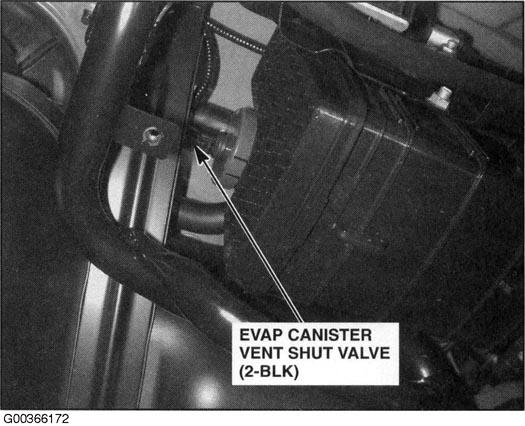

Fig 102: Fuel Tank

G00366172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

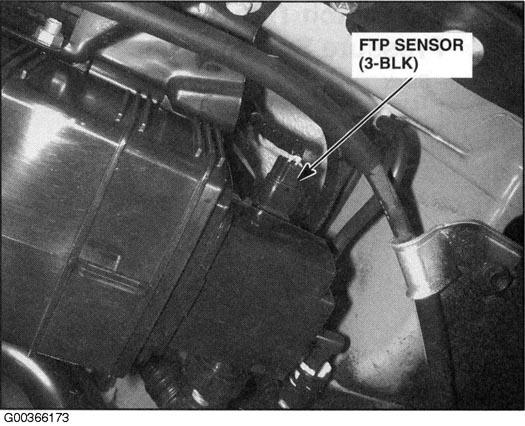

Fig 103: Fuel Tank

G00366173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 104: Under Intake Manifold (Type S)

G00292386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 105: Under Center Of Dash

G00292389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

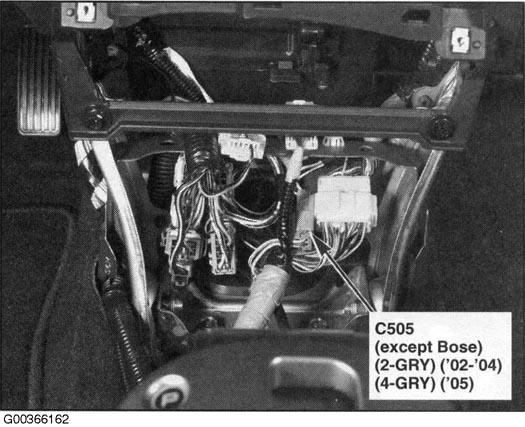

Fig 106: Under Center Of Dash

G00366162

Courtesy of AMERICAN HONDA MOTOR CO., INC.

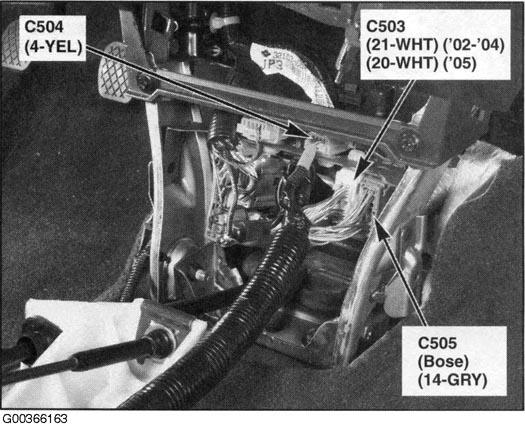

Fig 107: Under Center Of Dash

G00366163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Under-Dash Fuse/Relay Box

G00292387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 109: Under-Hood Fuse/Relay Box

G00292388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 110: Behind Glove Box

G00366164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

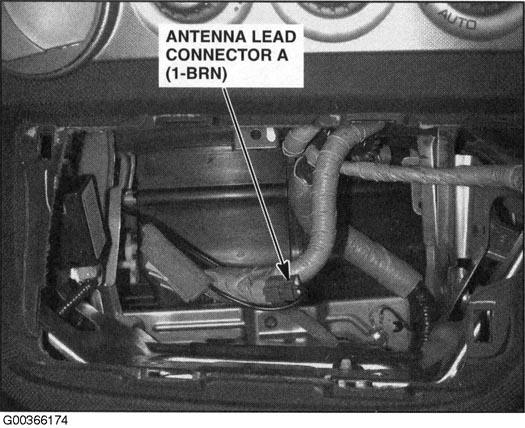

Fig 111: Behind Audio Unit

G00366174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

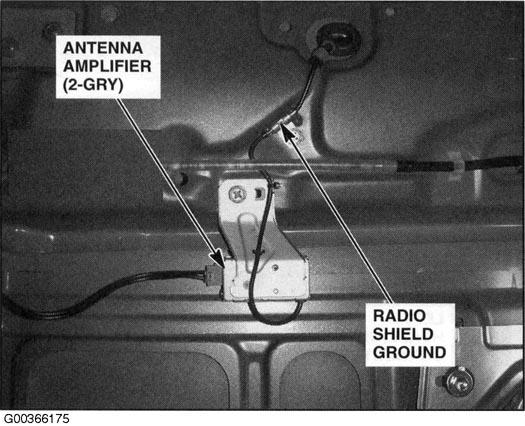

Fig 112: Left Rear Side Of Roof

G00366175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

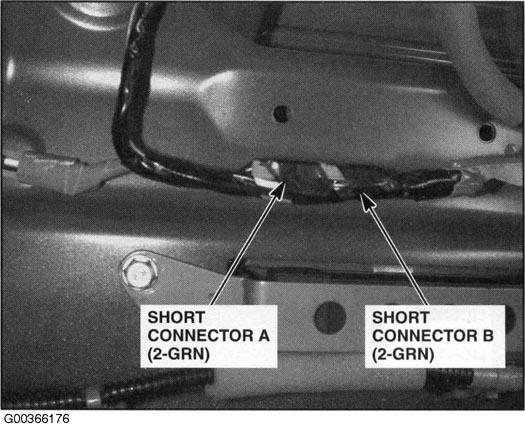

Fig 113: Middle Of Hatch

G00366176

Courtesy of AMERICAN HONDA MOTOR CO., INC.

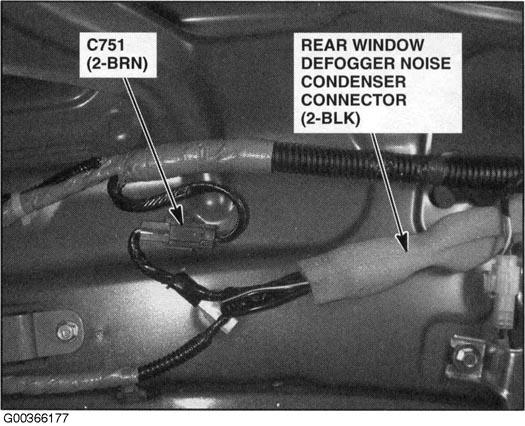

Fig 114: Right Side Of Hatch

G00366177

Courtesy of AMERICAN HONDA MOTOR CO., INC.

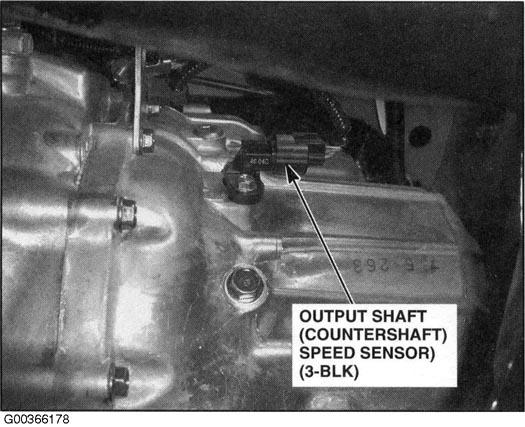

Fig 115: Transmission Housing (M/T)

G00366178

Courtesy of AMERICAN HONDA MOTOR CO., INC.

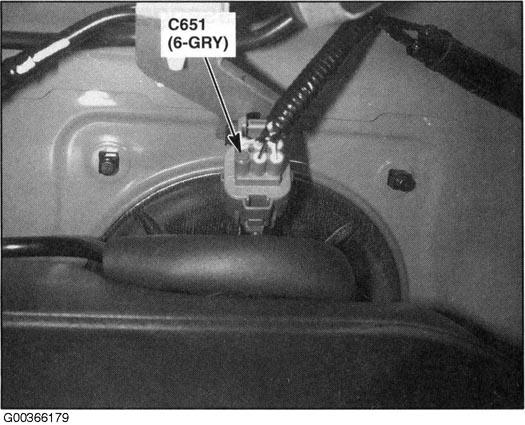

Fig 116: Under Middle Of Floor

G00366179

Courtesy of AMERICAN HONDA MOTOR CO., INC.
