Electronic Control

The electronic control system consists of the powertrain control module (PCM), sensors, and solenoid valves. Shifting and lock-up are electronically controlled for comfortable driving under all conditions.

The PCM receives input signals from the sensors, switches, and other control units, processes data, and outputs signals for the engine control system and A/T control system. The A/T control system includes shift control, grade logic control, clutch pressure control, and lock-up control. The PCM switches the shift solenoid valves and the A/T clutch pressure control solenoid valves to control shifting transmission gears and lock-up torque converter clutch.

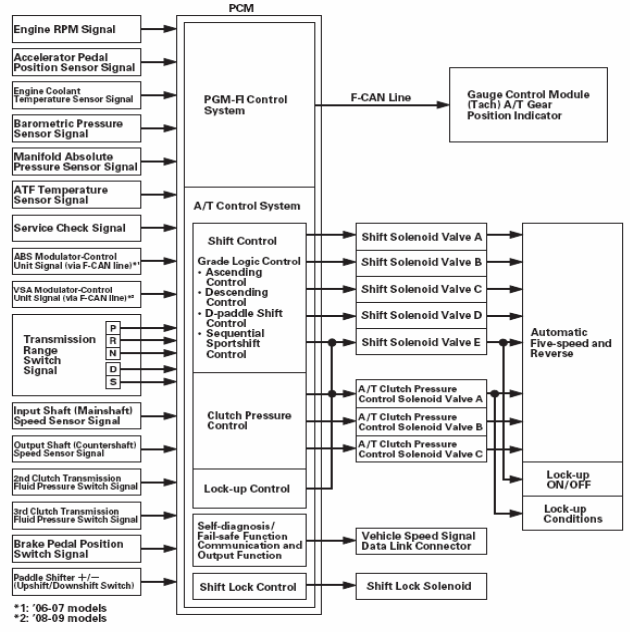

Fig 1: Electronic Control System Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.

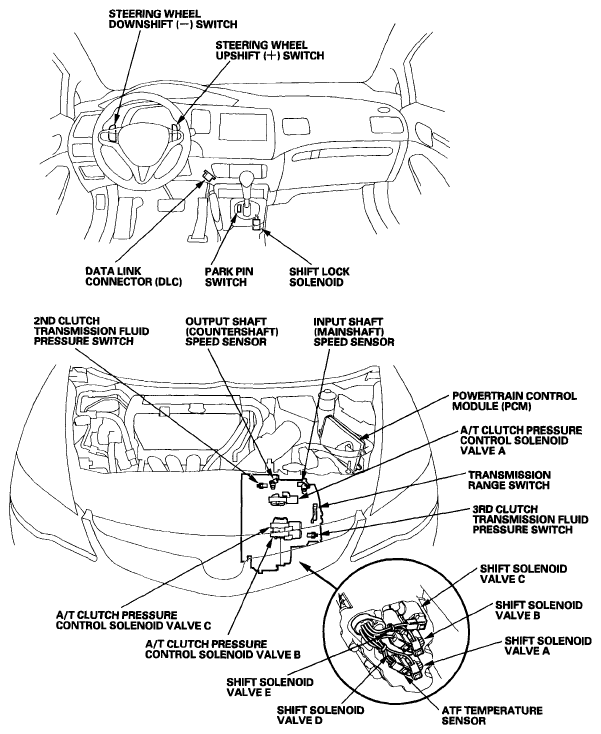

Fig 2: Identifying Electronic Control System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
