Component Location Index

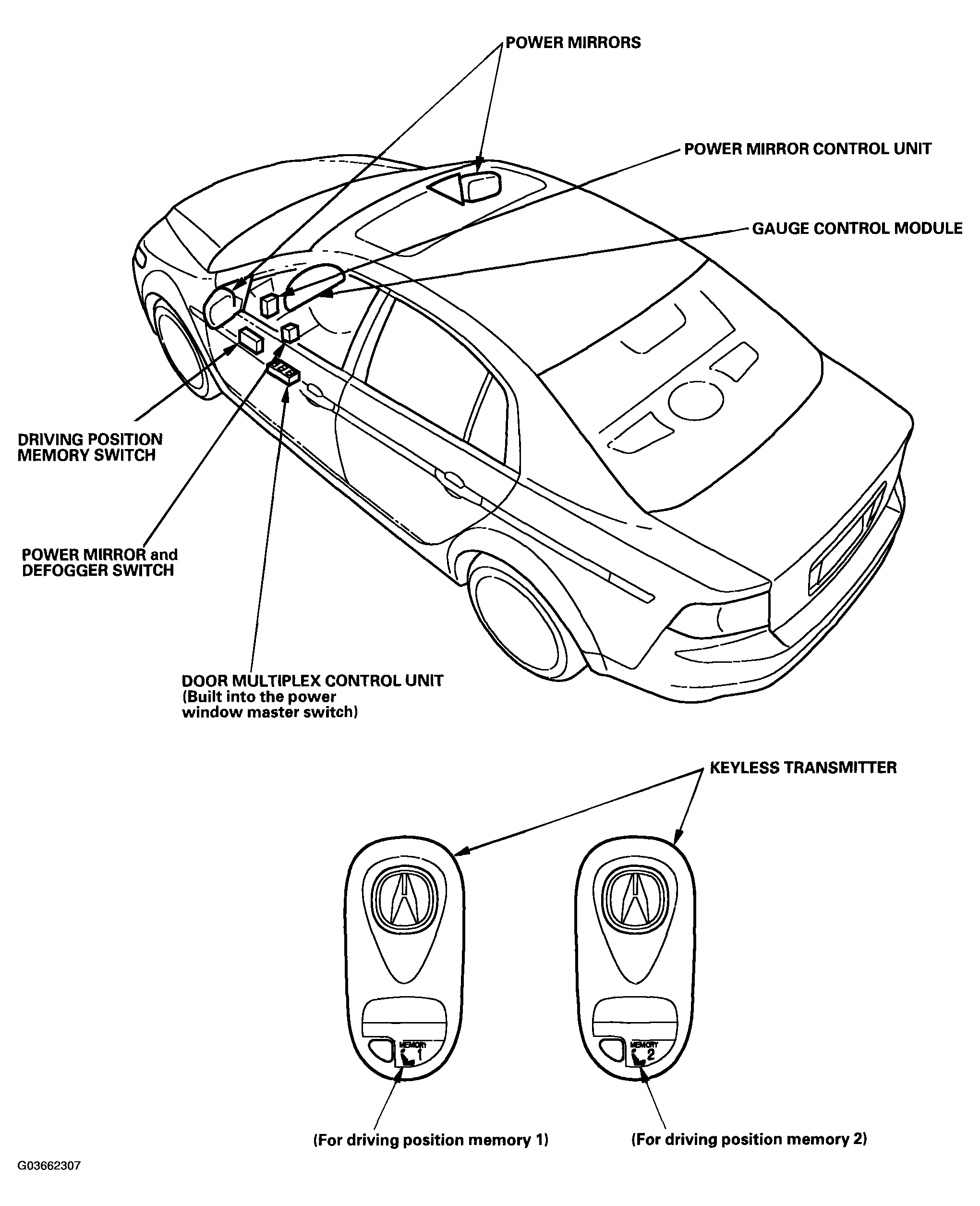

Fig 1: Identifying Component Location Driving Position Memory System (DPMS) (1 Of 2)
G03662307Courtesy of AMERICAN HONDA MOTOR CO., INC.

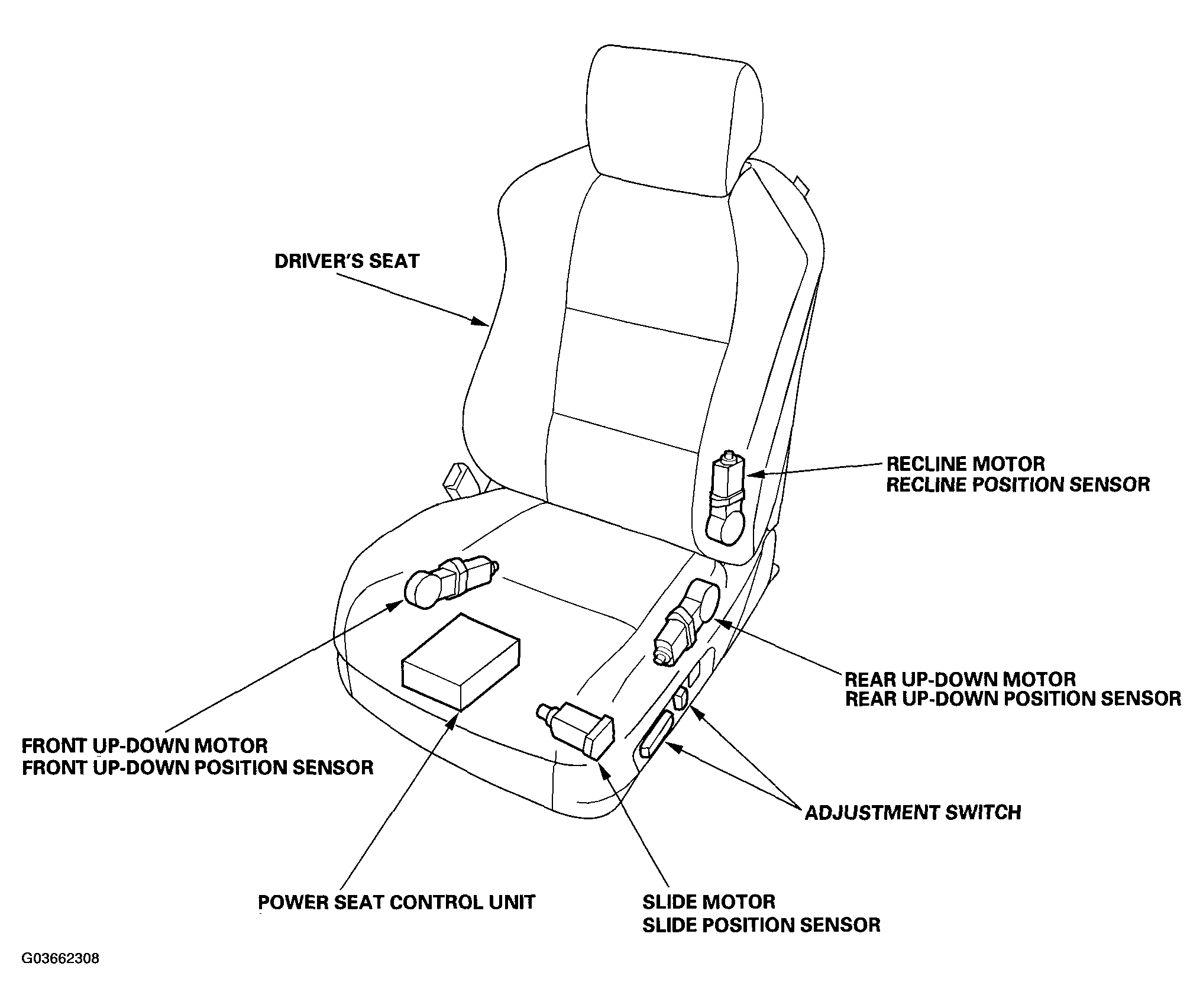

Fig 2: Identifying Component Location Driving Position Memory System (DPMS) (2 Of 2)
G03662308Courtesy of AMERICAN HONDA MOTOR CO., INC.
