DTC P0705: Transmission Range Switch Circuit (Multiple Shift-position Input)
>>
Notes
DTC P0705: Transmission Range Switch Circuit (Multiple Shift-position Input): Notes

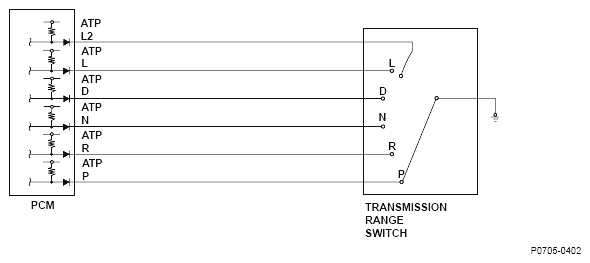

Fig 1: Transmission Range Switch Circuit Diagram (Multiple Shift-position Input)
