Home >> Acura >> 2006 >> TL Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P2118: Throttle Actuator Current Circuit Range/Performance Problem >> Notes

DTC P2118: Throttle Actuator Current Circuit Range/Performance Problem: Notes

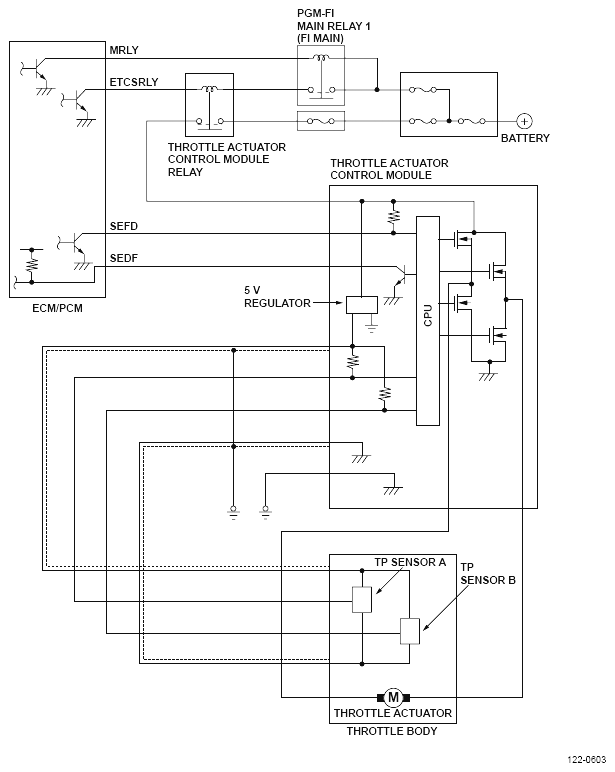

Fig 1: Throttle Actuator Control Module Circuit Diagram

G04817164
