Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

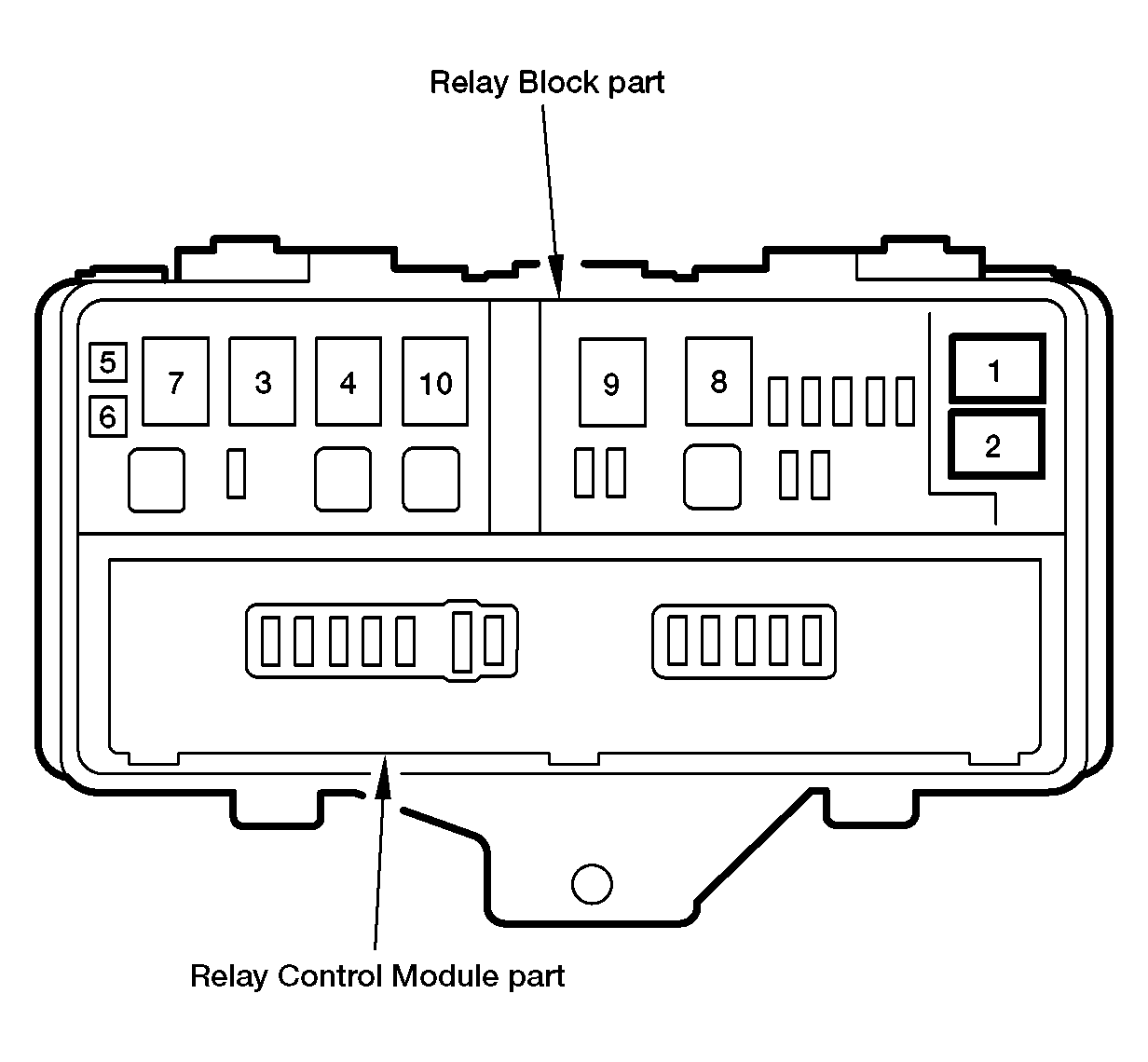

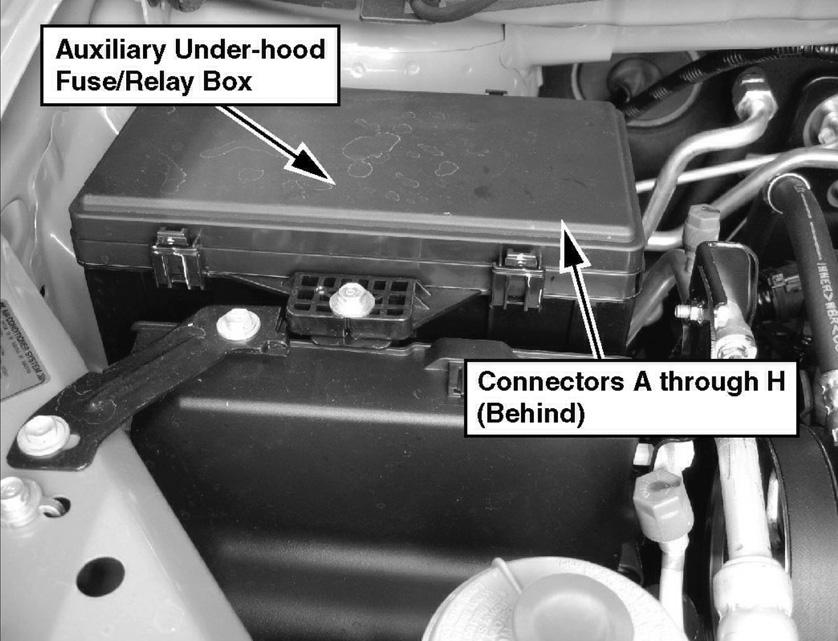

Fig 1: Auxiliary Underhood Fuse/Relay Box

G00453927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

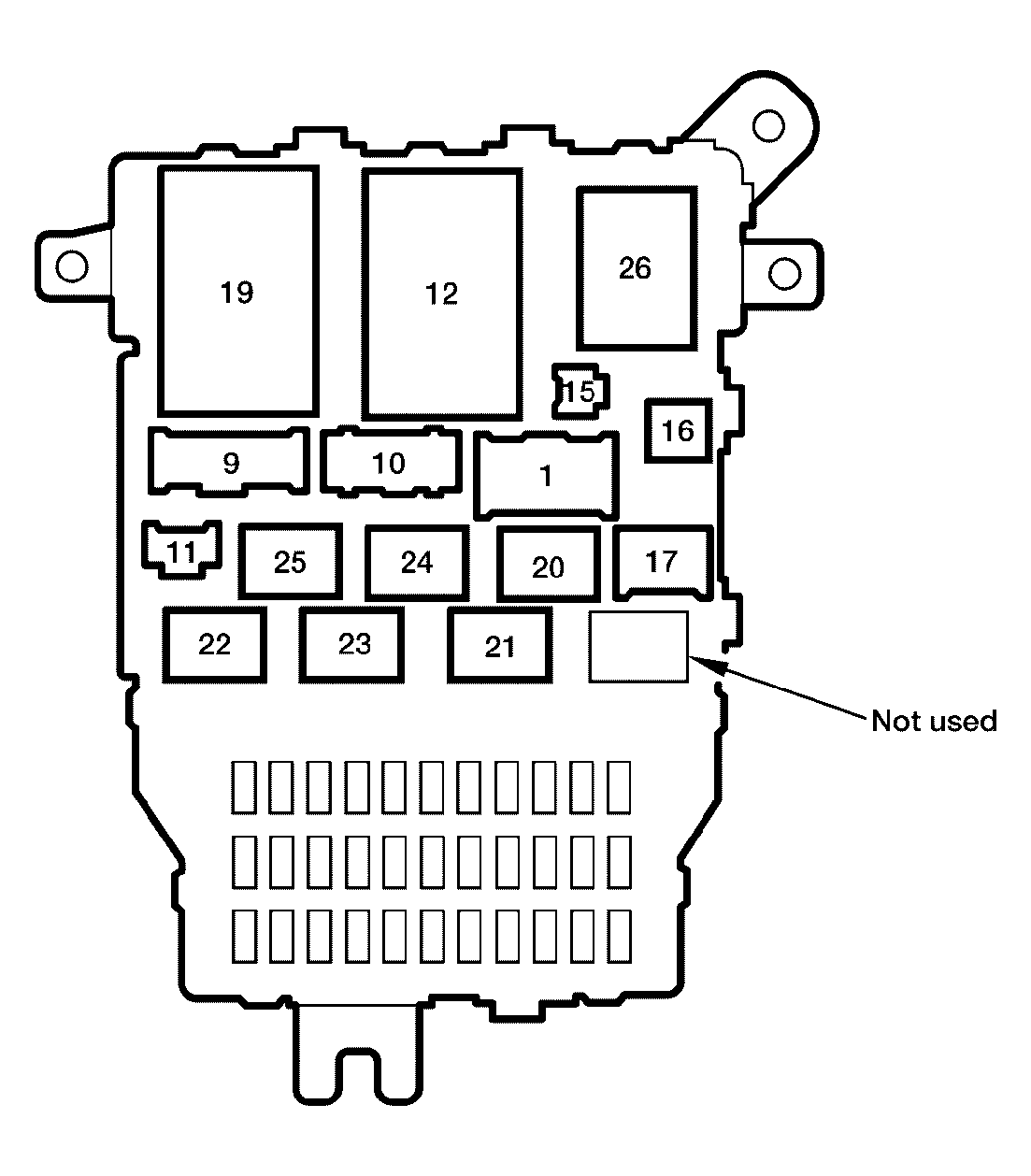

Fig 2: Underdash Fuse/Relay Box

G00453928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

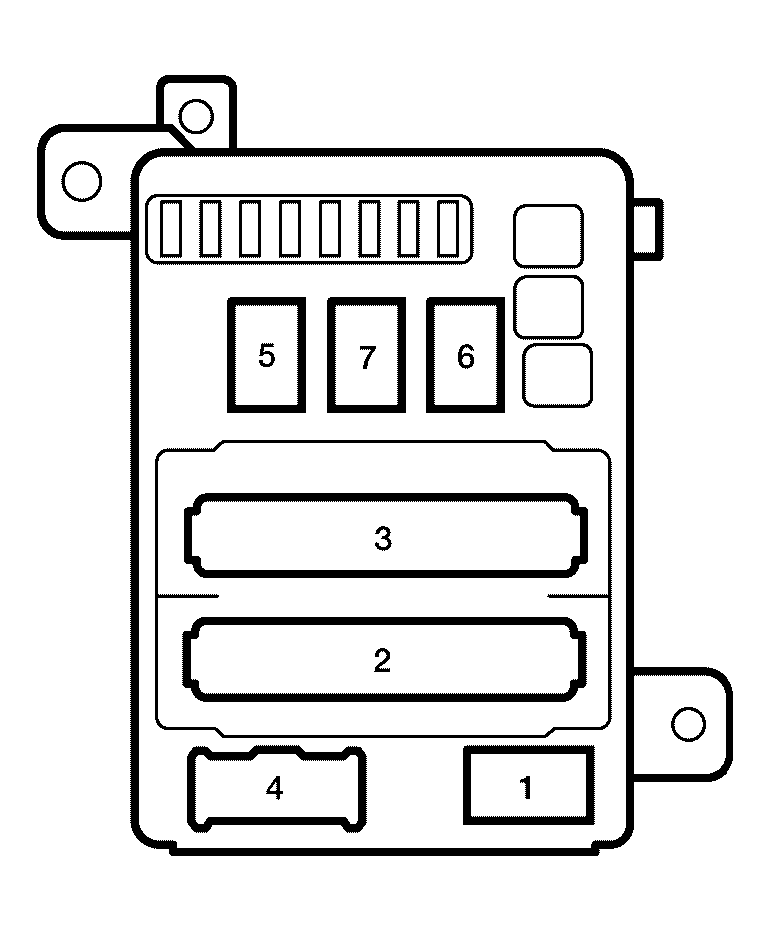

Fig 3: Rear Fuse/Relay Box

G00453929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

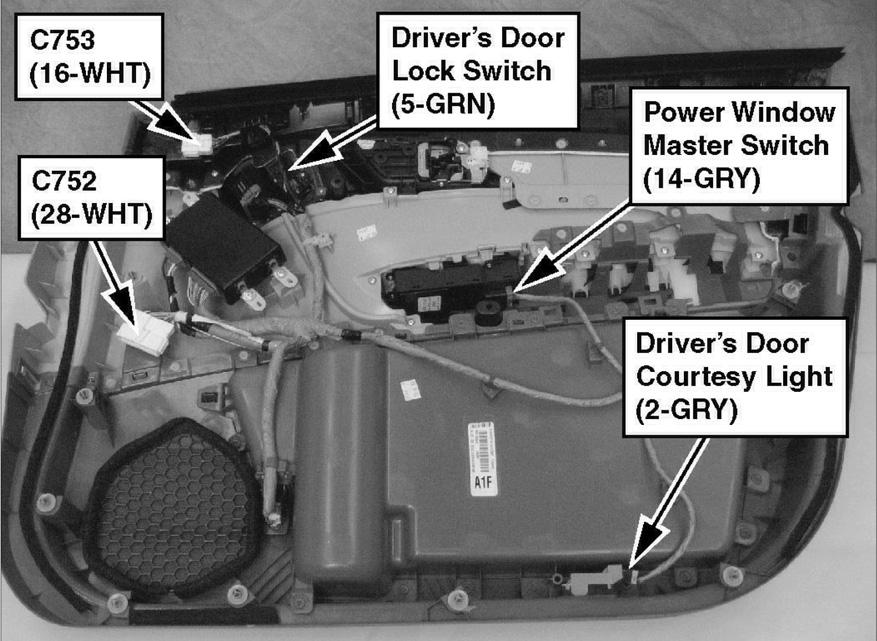

Fig 4: Driver's Door

G00453930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Driver's Door

G00453931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

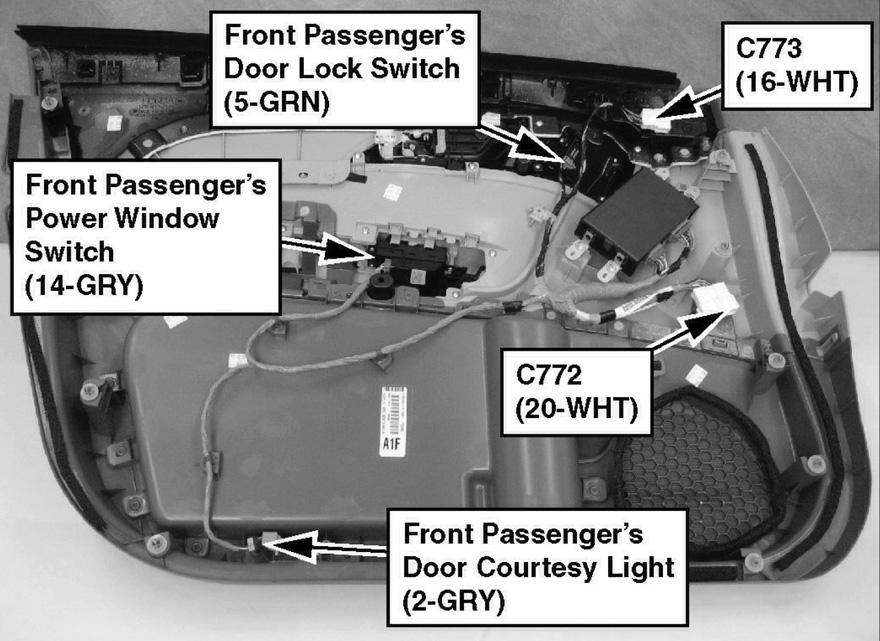

Fig 6: Front Passenger's Door

G00453932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Front Passenger's Door

G00453933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

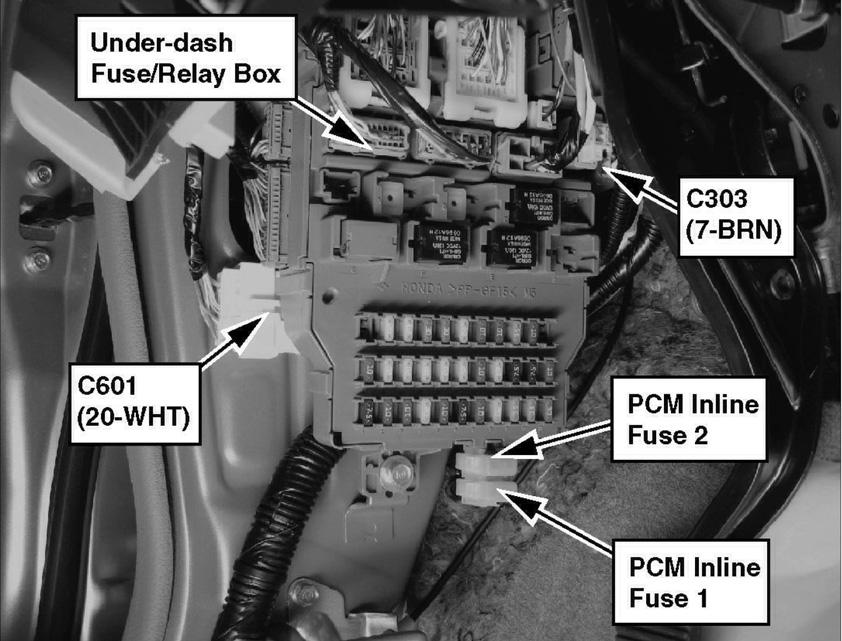

Fig 8: Left Kick Panel

G00453934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

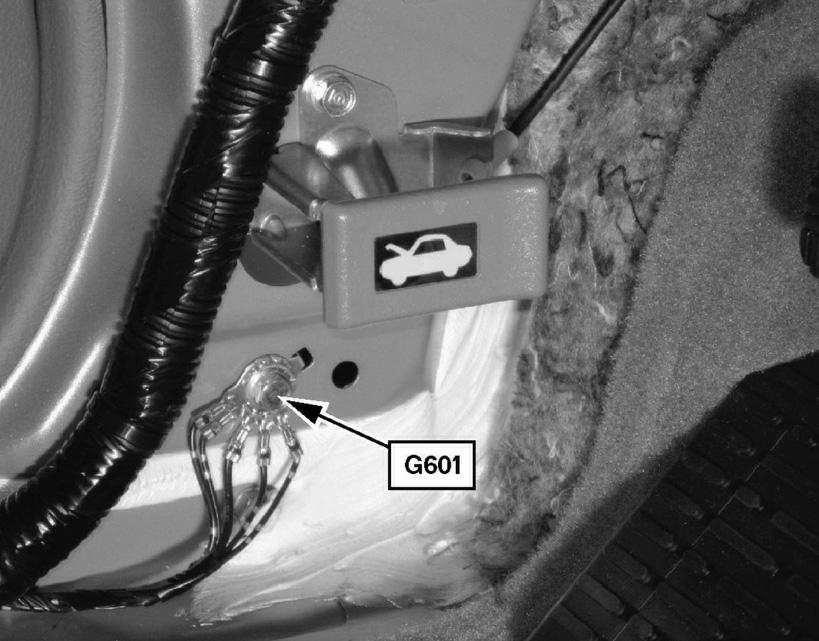

Fig 9: Left Kick Panel

G00453935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

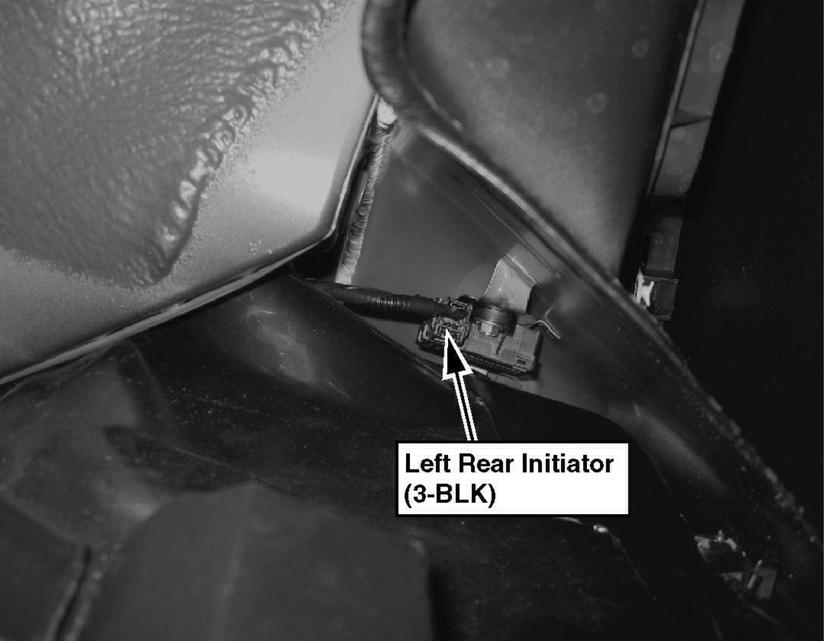

Fig 10: Left Rear Wheelwell

G00453936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

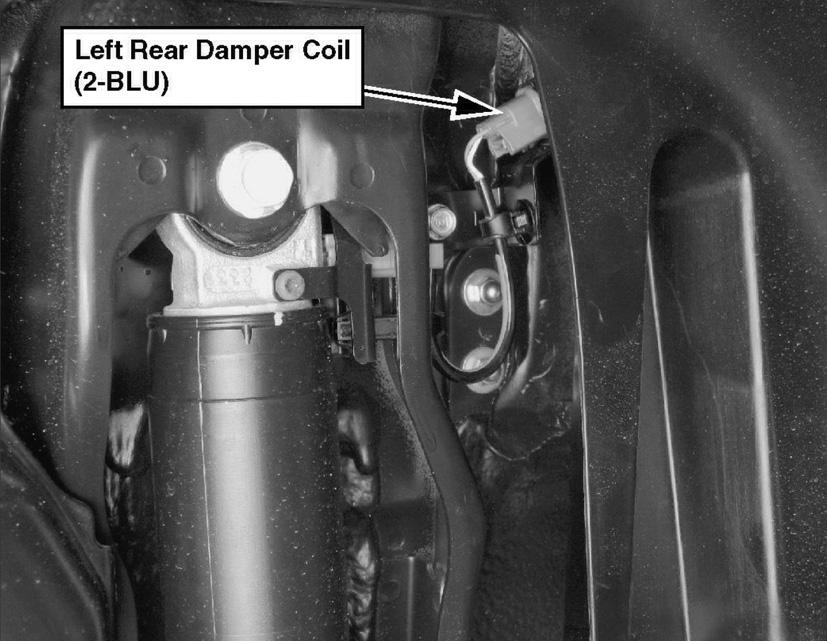

Fig 11: Left Rear Wheelwell (Sport)

G00453937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

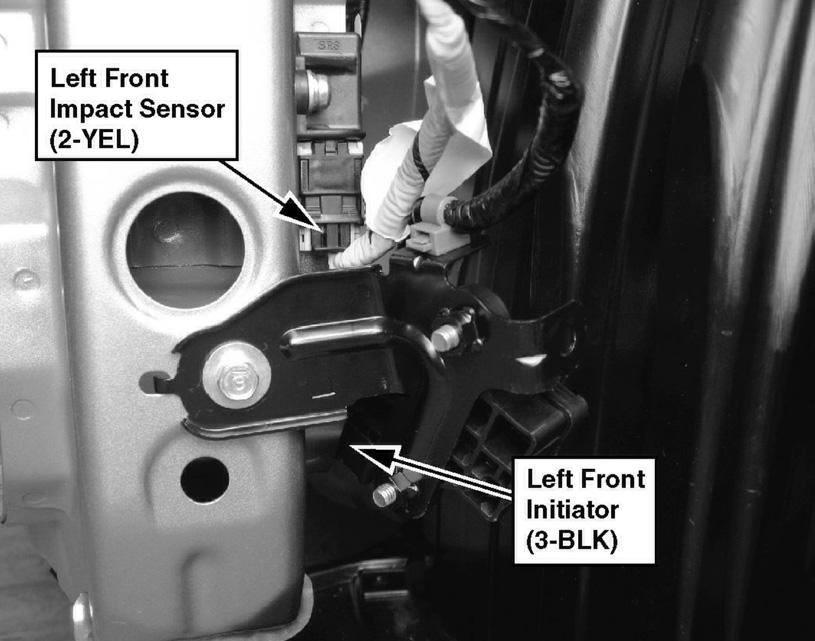

Fig 12: Left Side Of Front Bumper

G00453938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Front Passenger's Seat

G00453939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

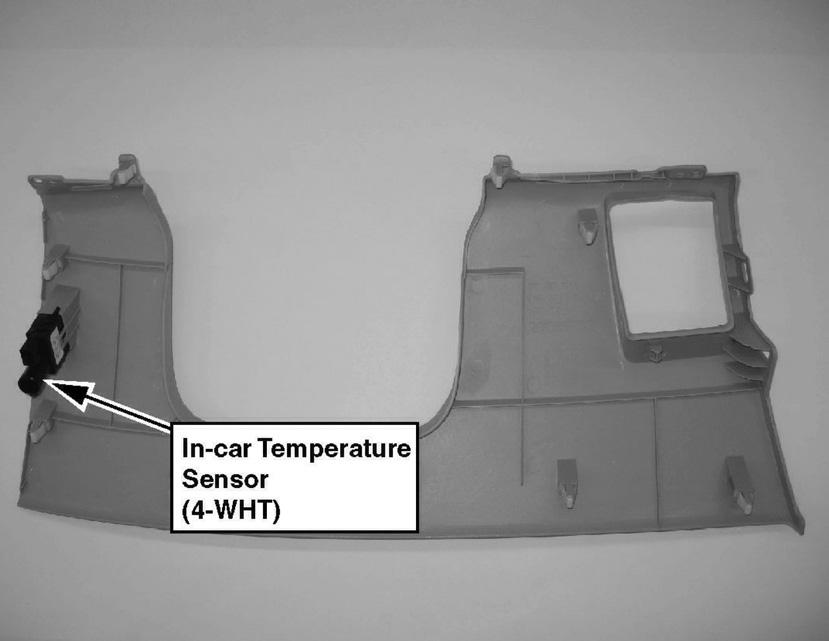

Fig 14: Left Side Of Dash

G00453940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

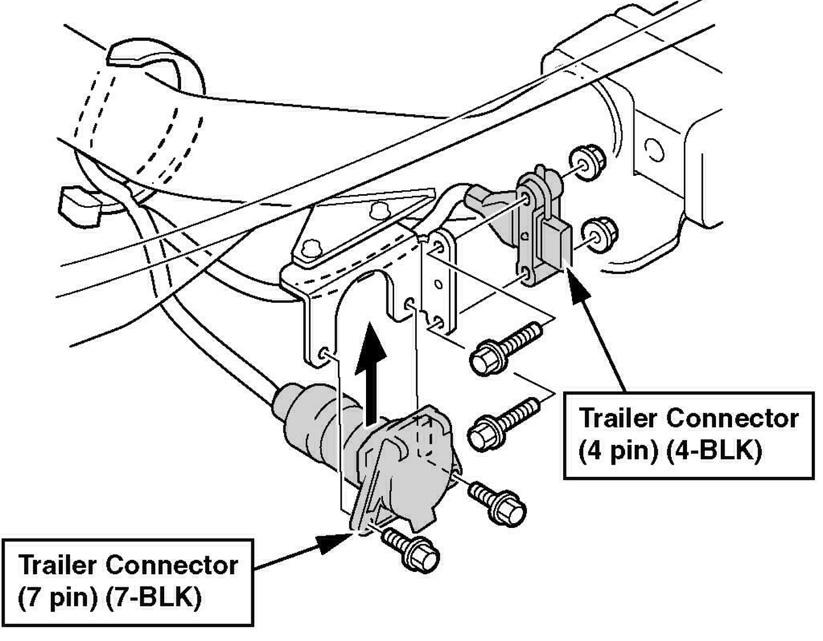

Fig 15: Middle Of Rear Bumper

G00453941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

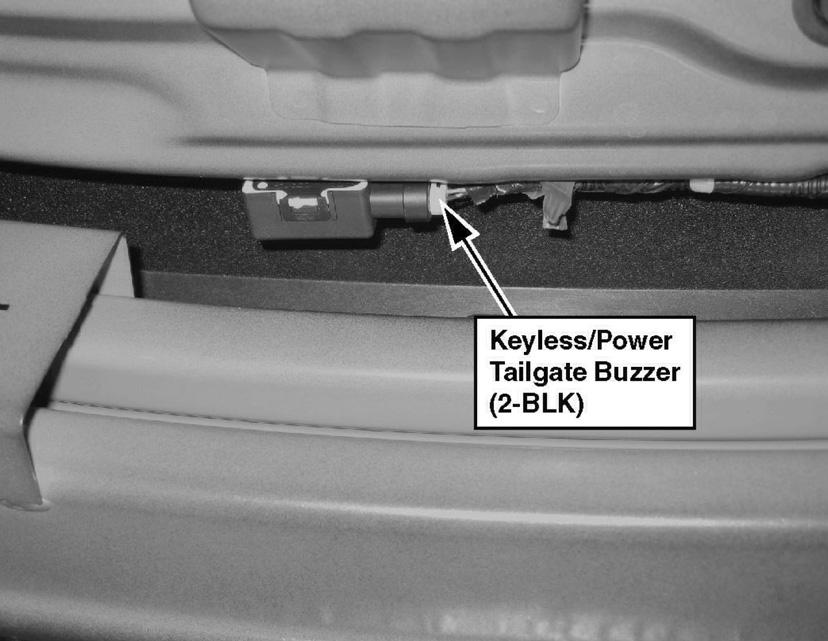

Fig 16: Rear Bumper

G00453942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

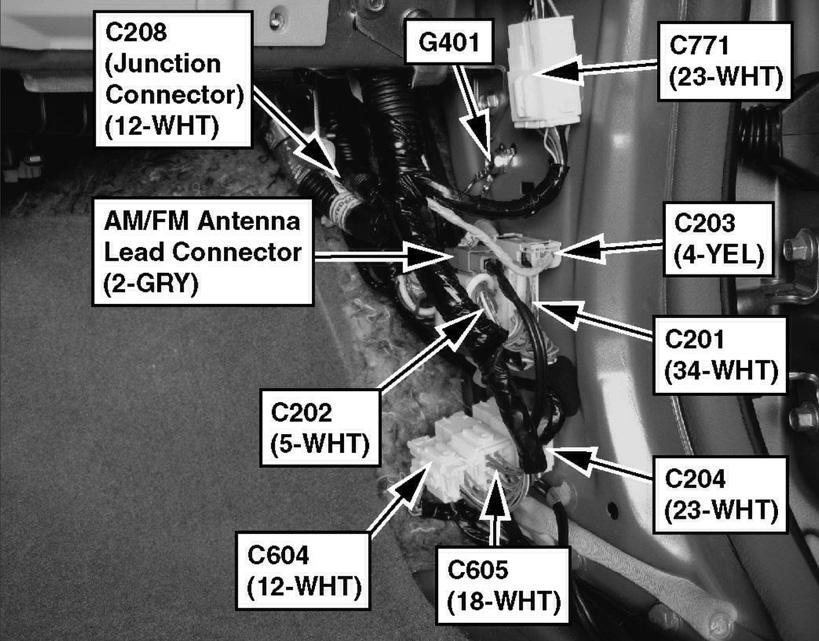

Fig 17: Right Kick Panel

G00453943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

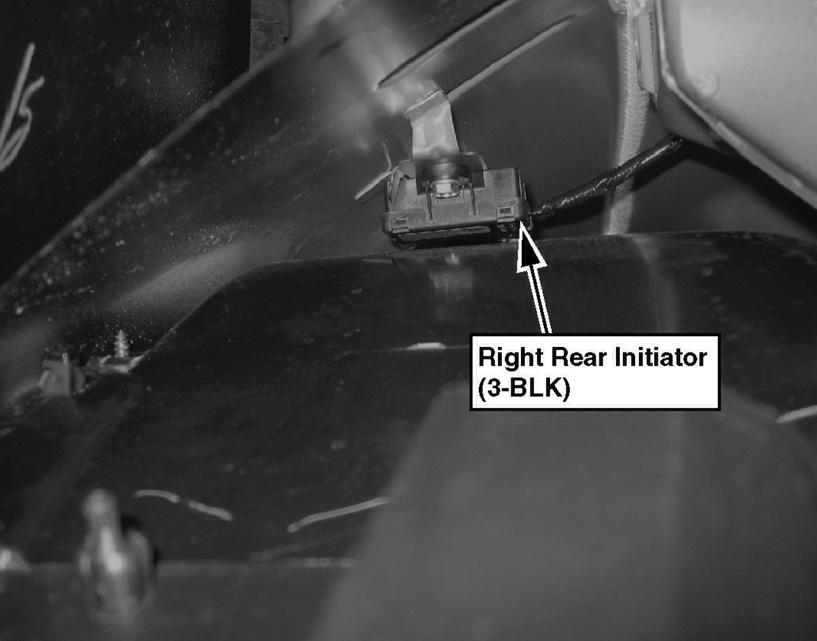

Fig 18: Right Rear Wheelwell

G00453944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

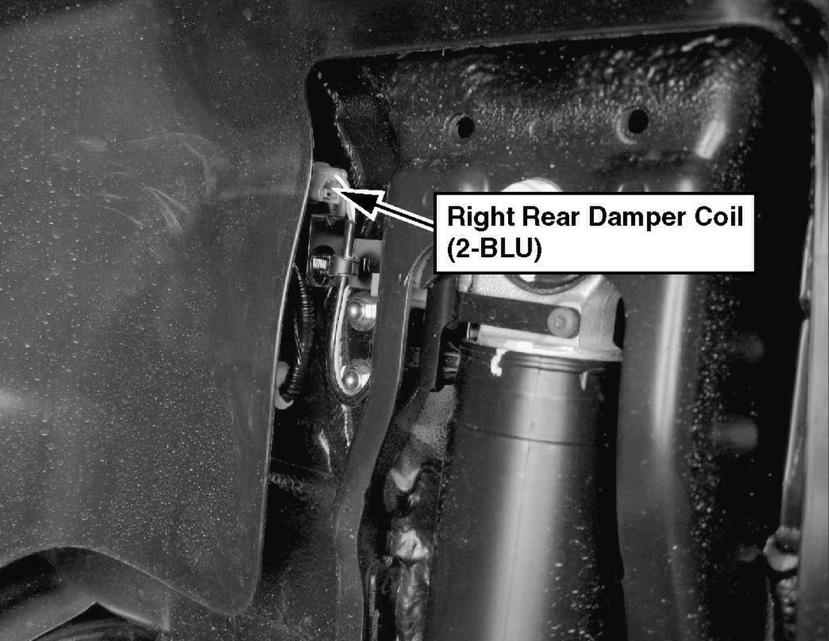

Fig 19: Right Rear Wheelwell (Sport)

G00453945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Right Side Of Dash

G00453946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

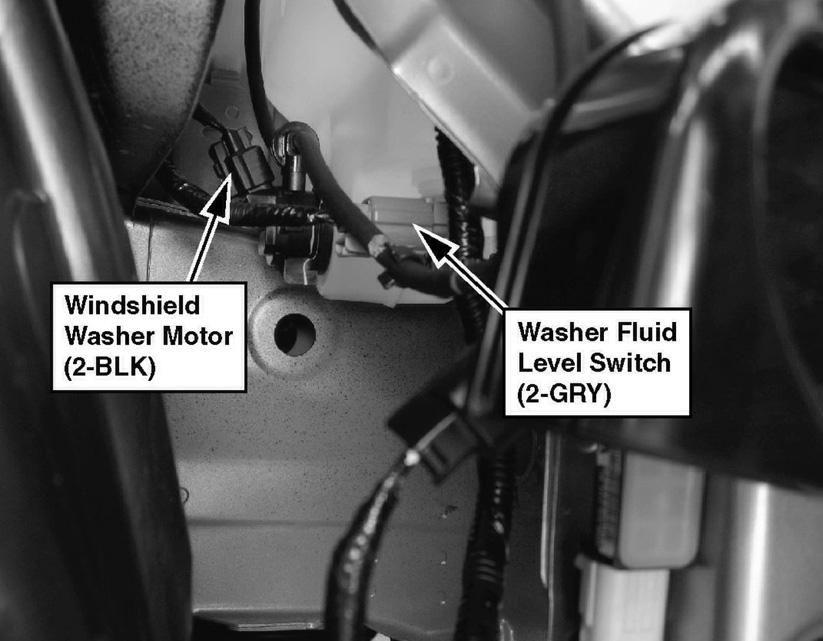

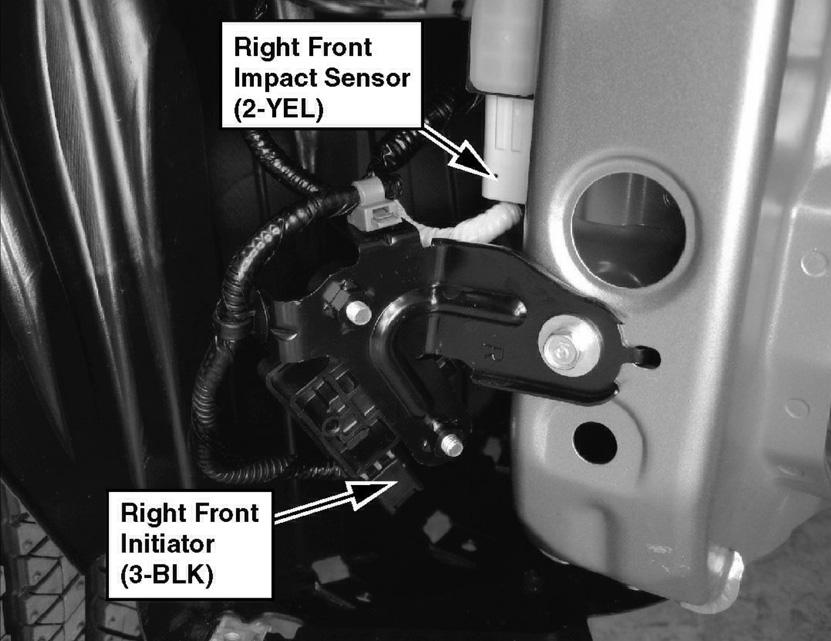

Fig 21: Right Side Of Front Bumper

G00453947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

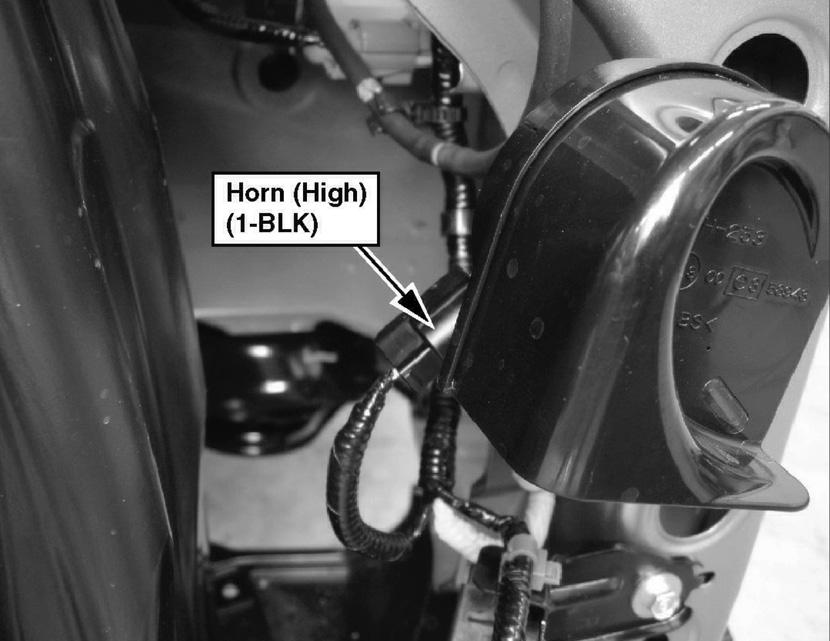

Fig 22: Right Side Of Front Bumper

G00453948

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Right Side Of Front Bumper

G00453949

Courtesy of AMERICAN HONDA MOTOR CO., INC.

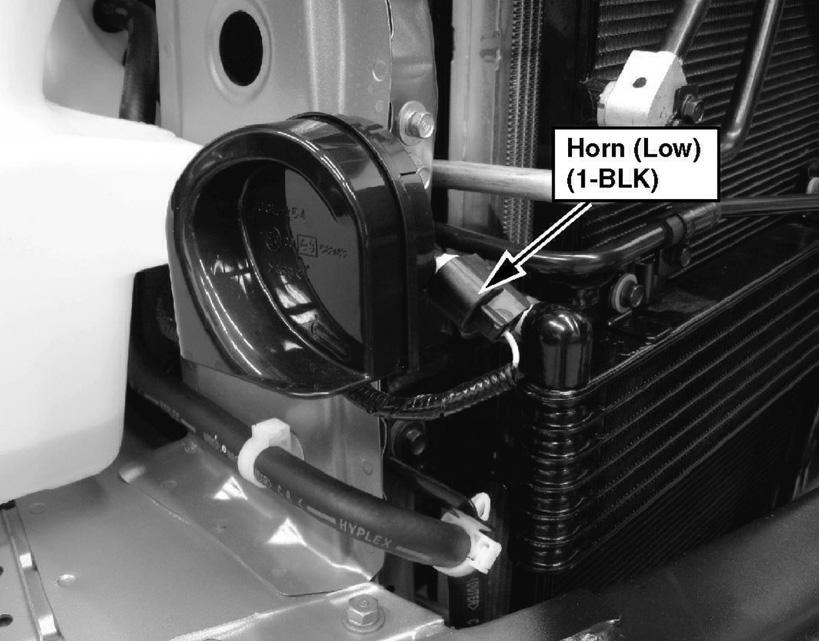

Fig 24: Right Side Of Front Bumper

G00453950

Courtesy of AMERICAN HONDA MOTOR CO., INC.

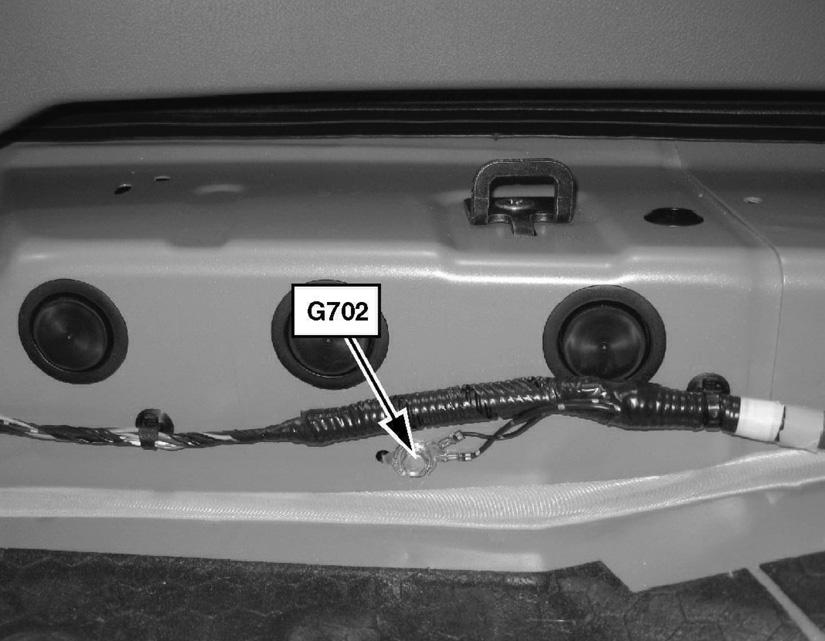

Fig 25: Cargo Area Floor

G00453951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

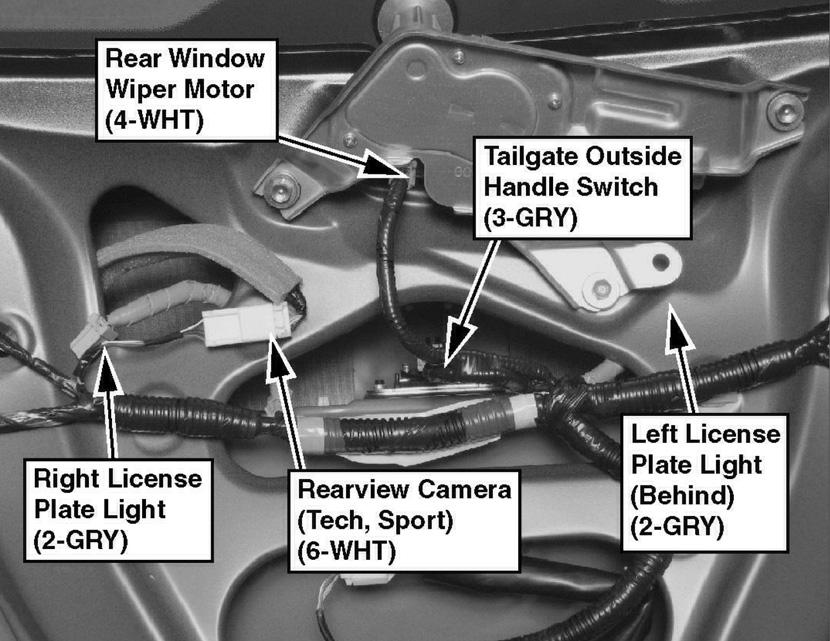

Fig 26: Center Of Tailgate

G00453952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Center Of Tailgate (USA: Entertainment Package; Canada: Sport)

G00453953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

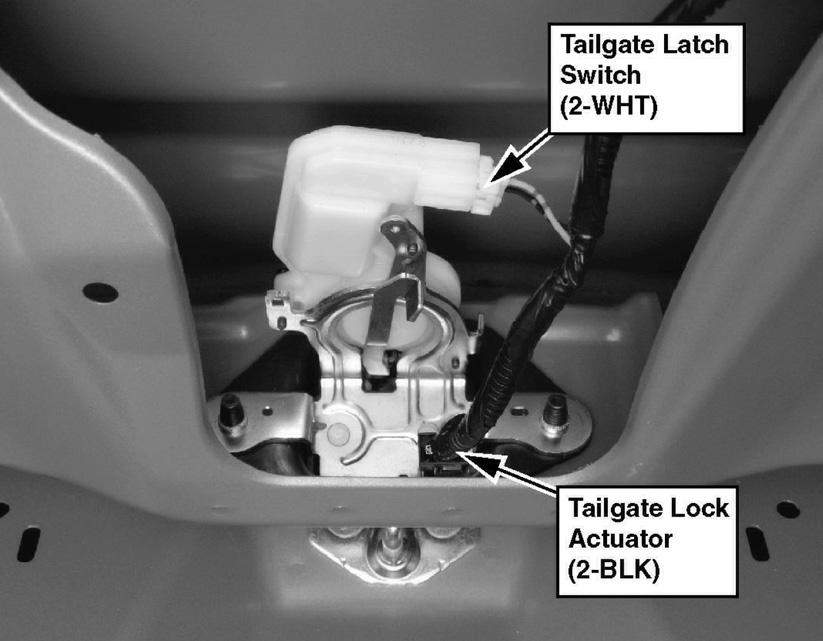

Fig 28: Center Of Tailgate (USA: Except Entertainment Package; Canada: Base, Tech)

G00453954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

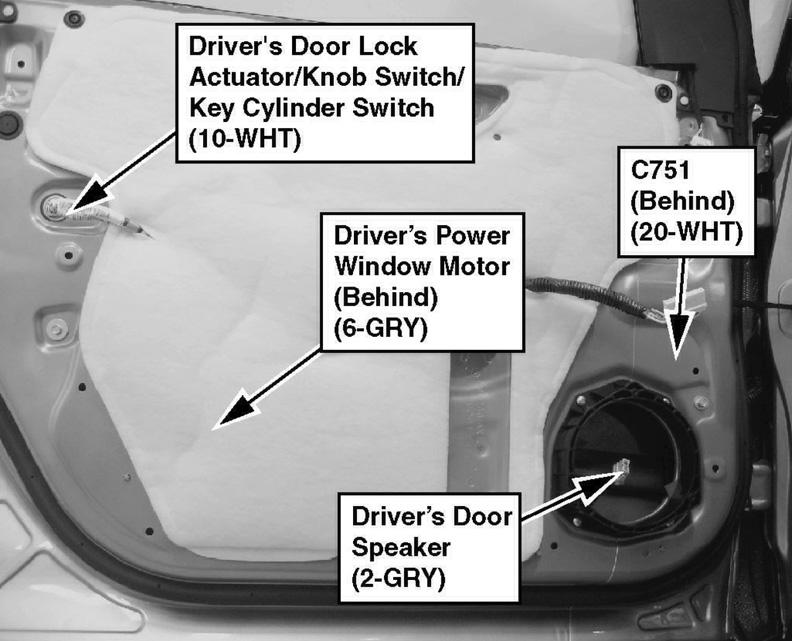

Fig 29: Driver's Door

G00453955

Courtesy of AMERICAN HONDA MOTOR CO., INC.

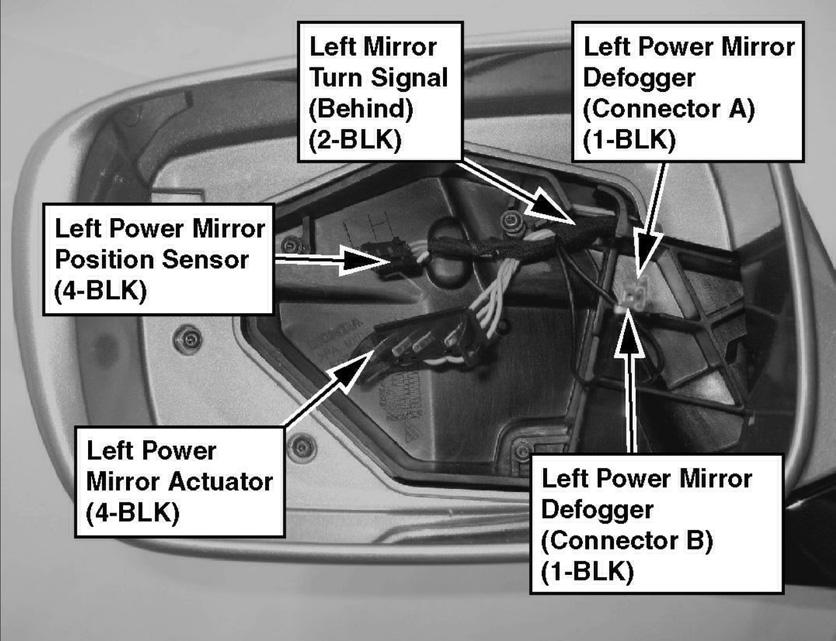

Fig 30: Driver's Door Mirror

G00453956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

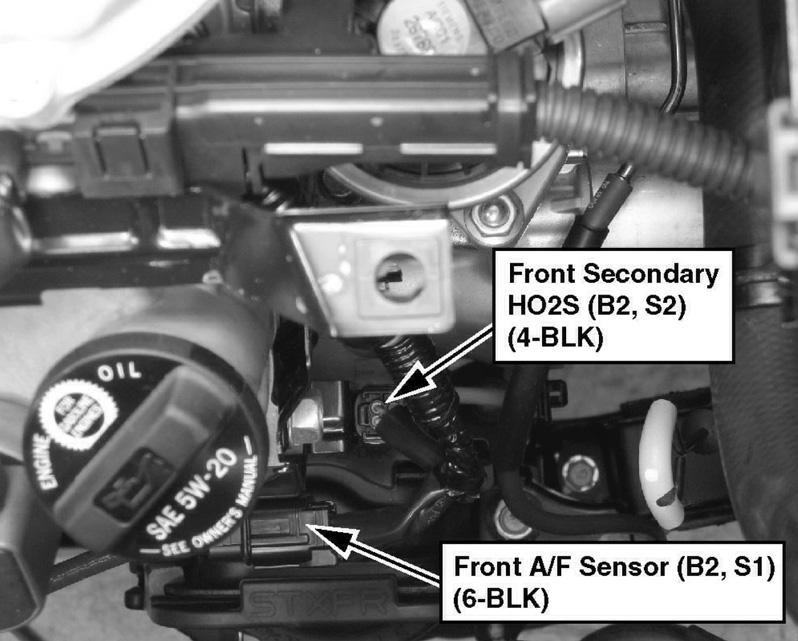

Fig 31: Left Rear Of Engine

G00453957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

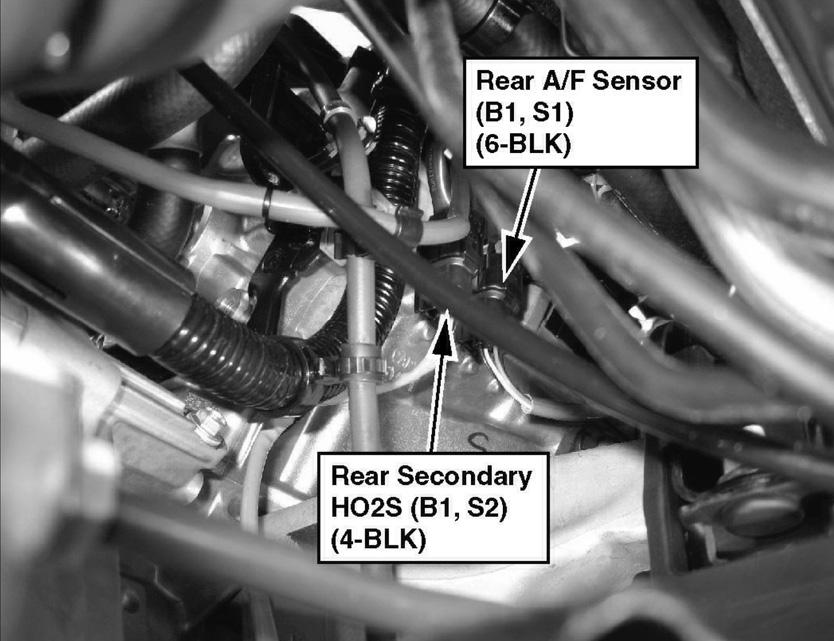

Fig 32: Right Rear Of Engine

G00453958

Courtesy of AMERICAN HONDA MOTOR CO., INC.

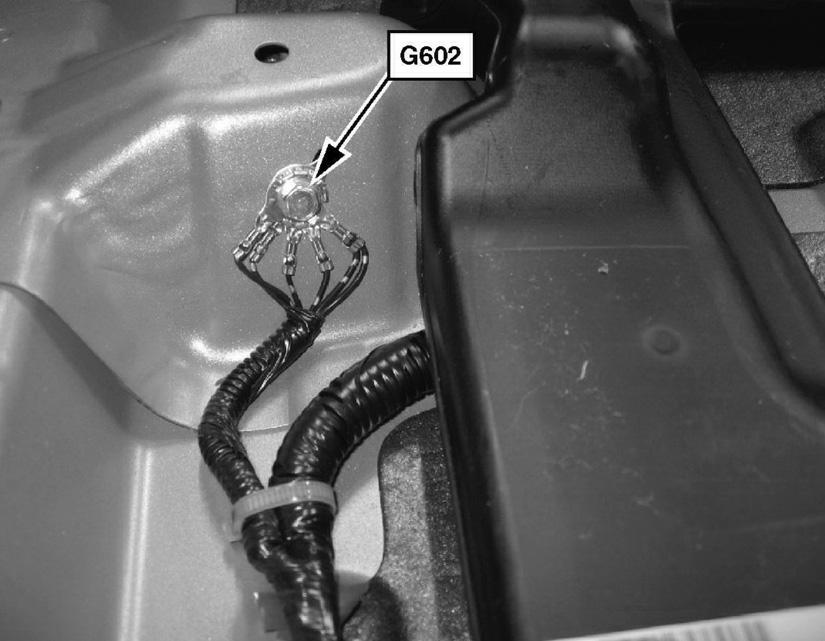

Fig 33: Under Driver's Seat

G00453959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

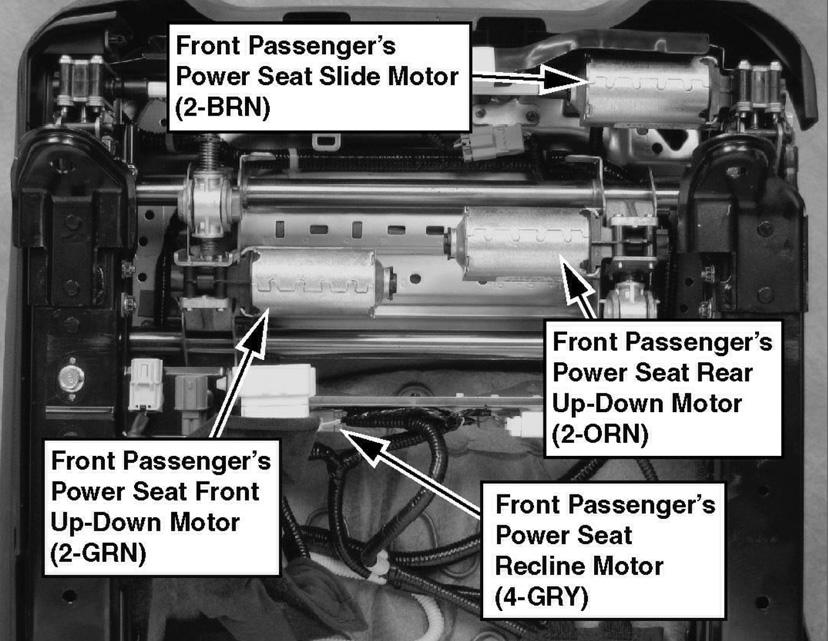

Fig 34: Under Front Passenger's Seat

G00453960

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 35: Center Front Of Roof

G00453961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

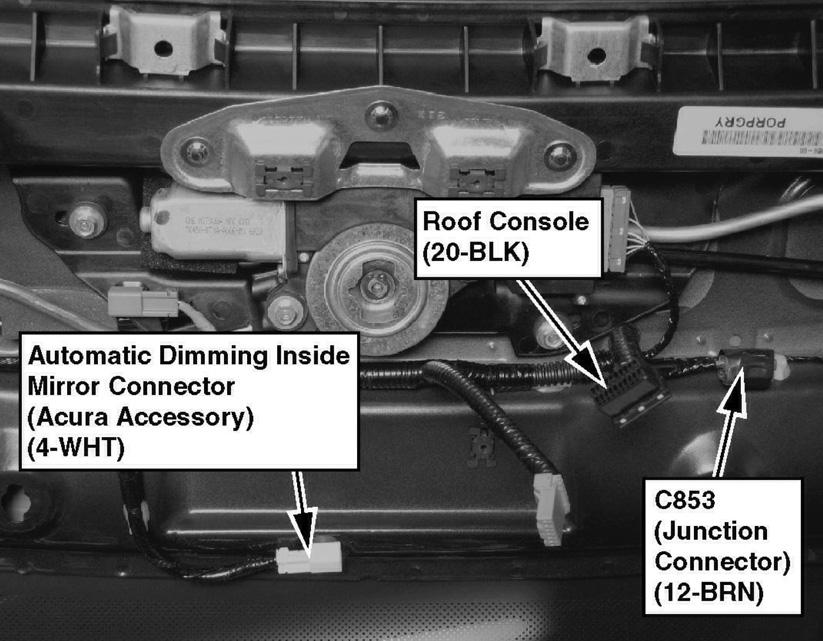

Fig 36: Center Front Of Roof

G00453962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

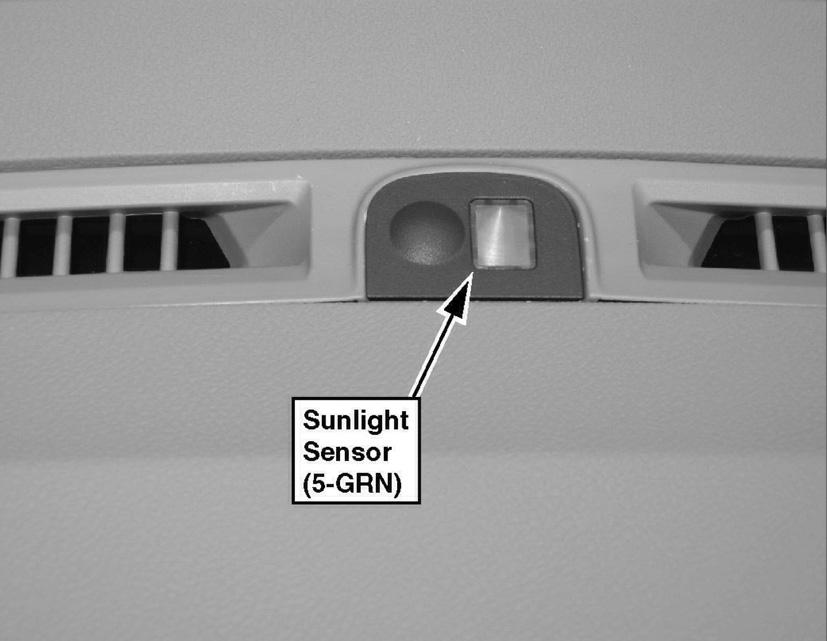

Fig 37: Middle Of Dash

G00453963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

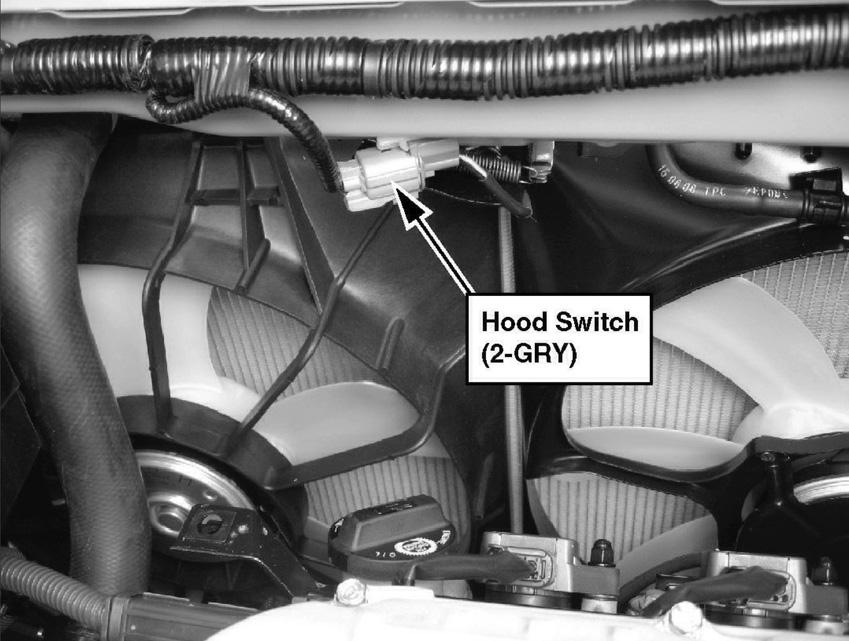

Fig 38: Front Of Engine Compartment

G00453964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

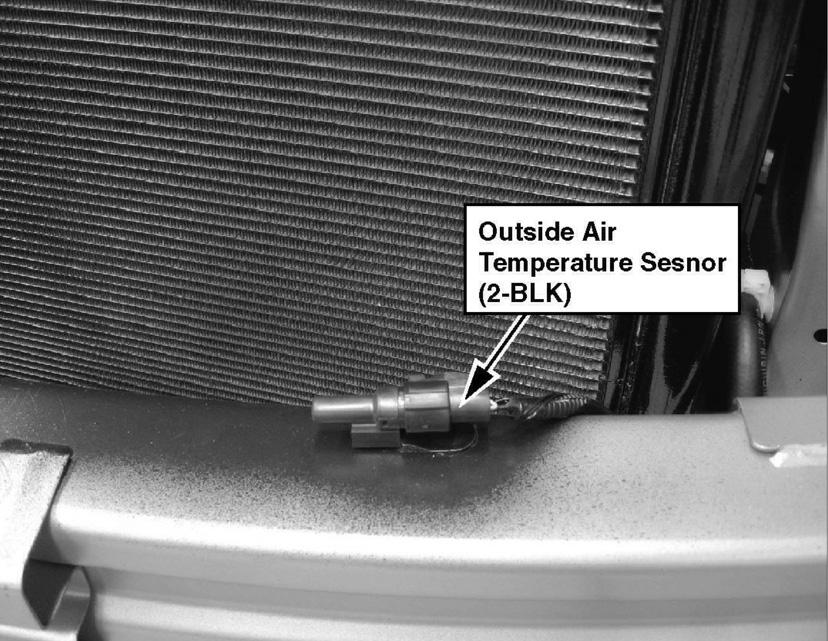

Fig 39: Front Of Engine Compartment

G00453965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

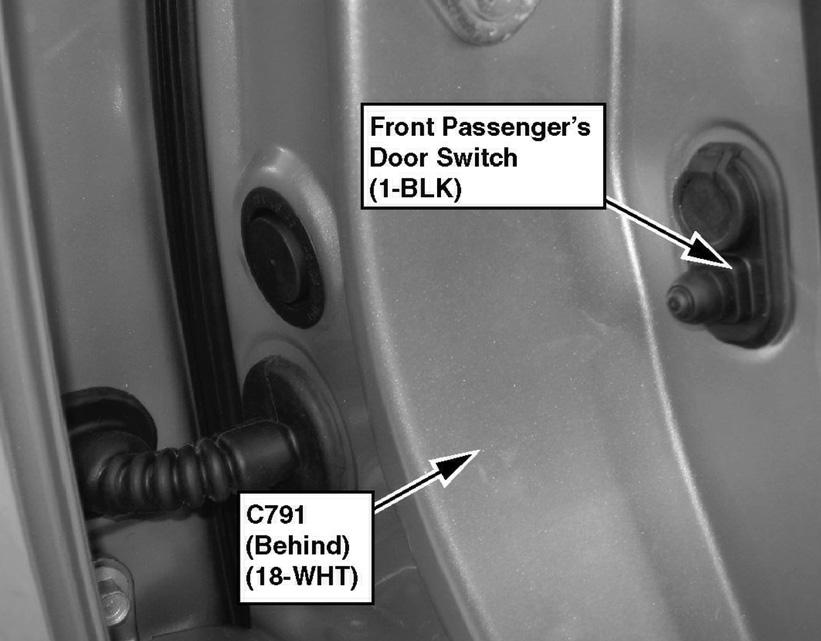

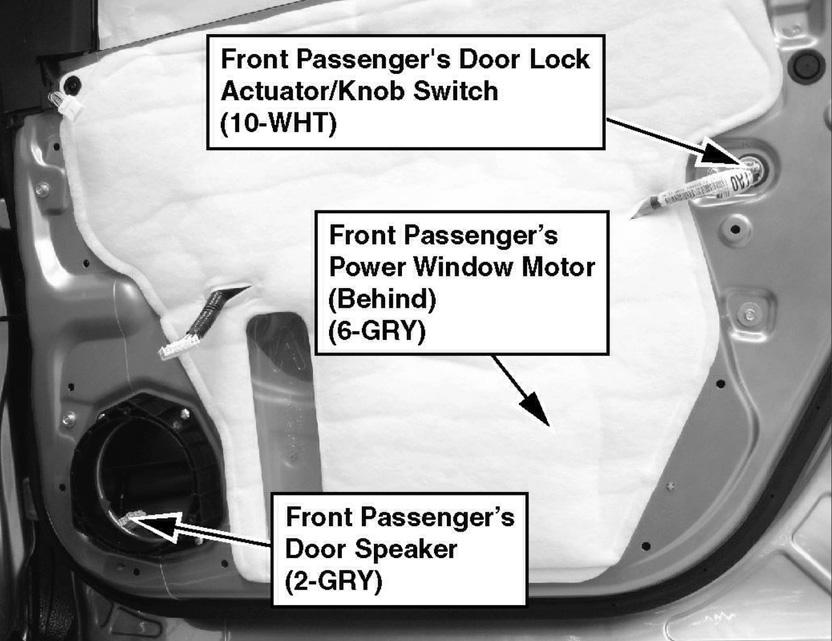

Fig 40: Front Passenger's Door

G00453966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

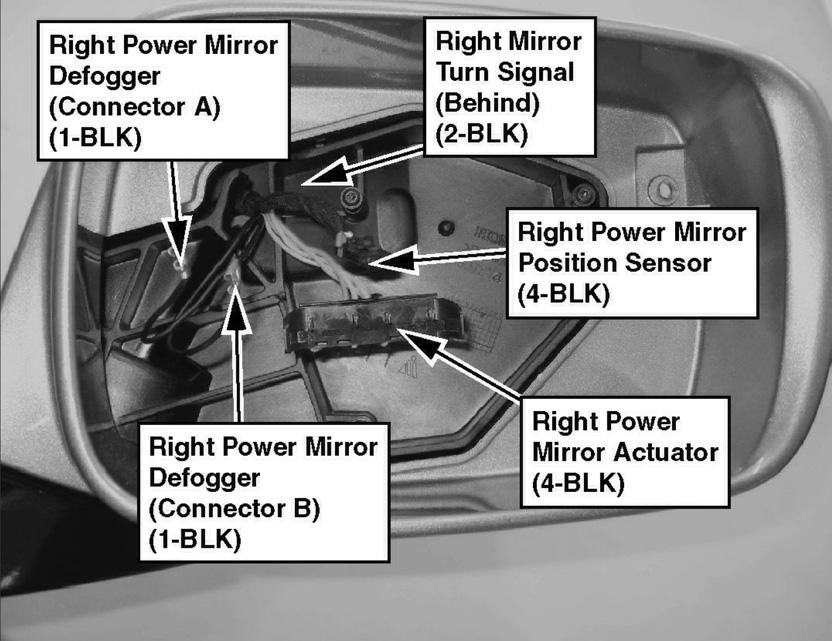

Fig 41: Front Passenger's Door Mirror

G00453967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

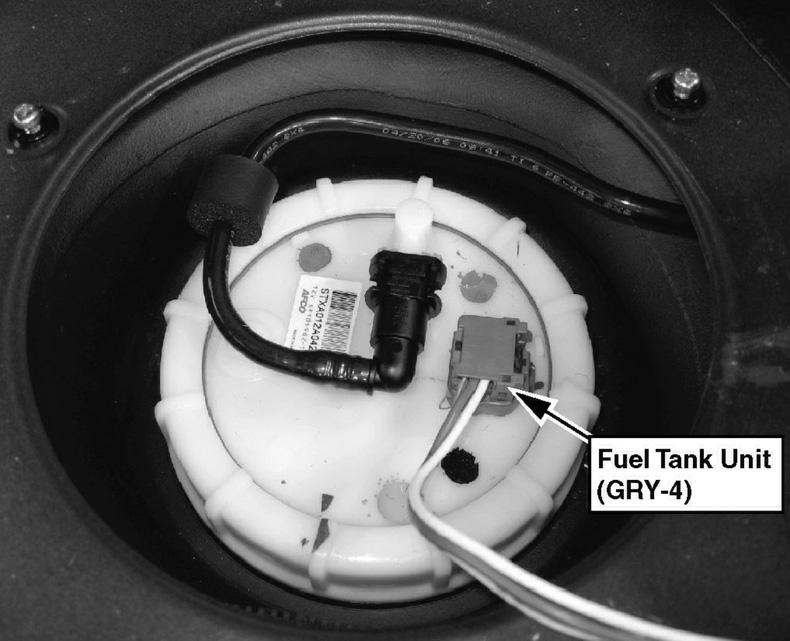

Fig 42: Top Of Fuel Tank

G00453968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

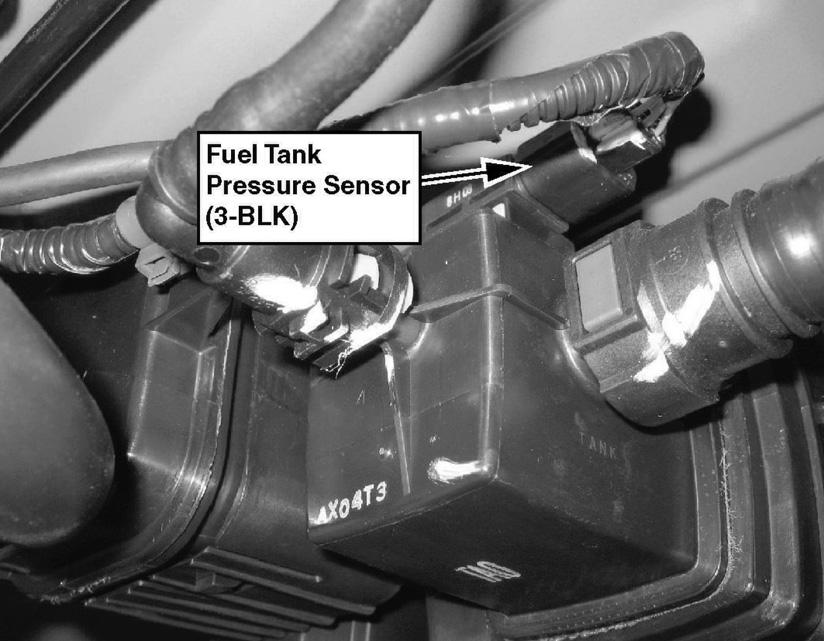

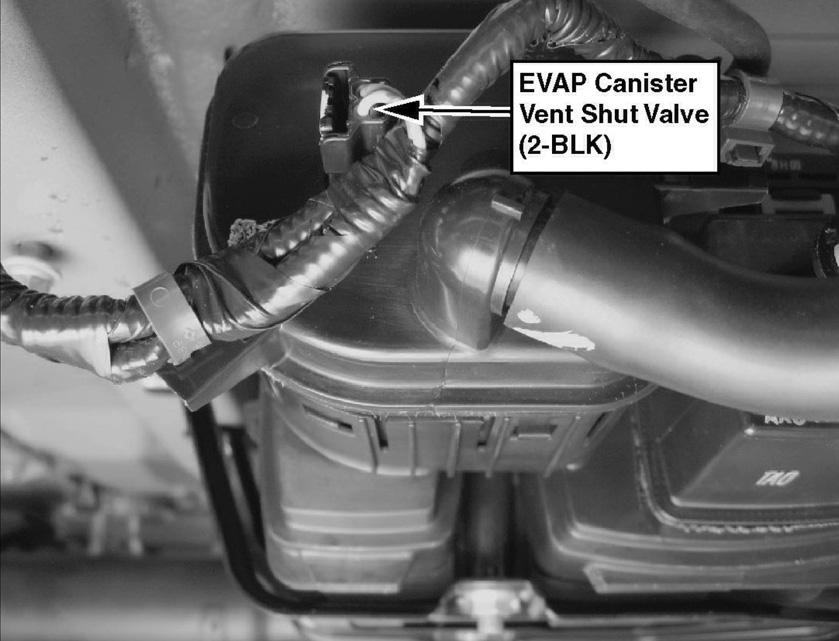

Fig 43: Under Rear Of Vehicle

G00453969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 44: Under Rear Of Vehicle

G00453970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

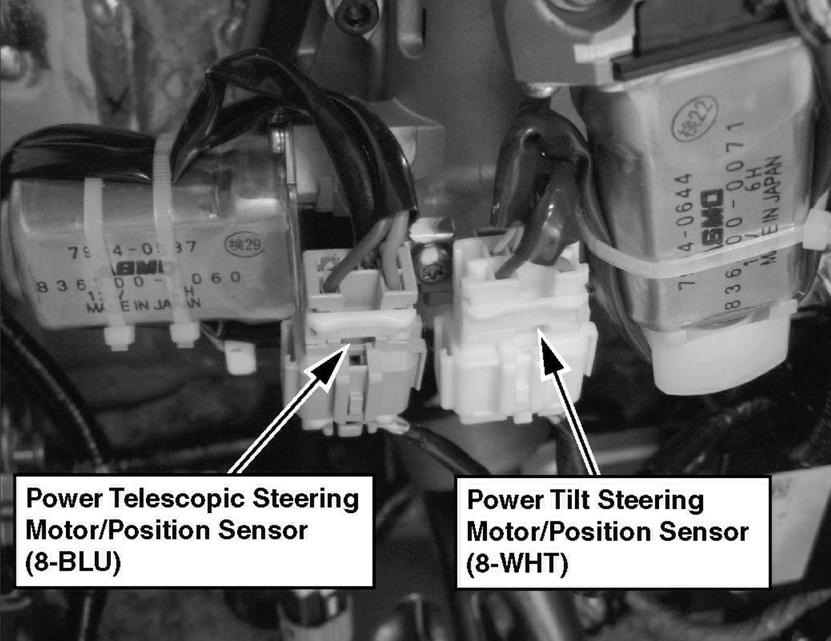

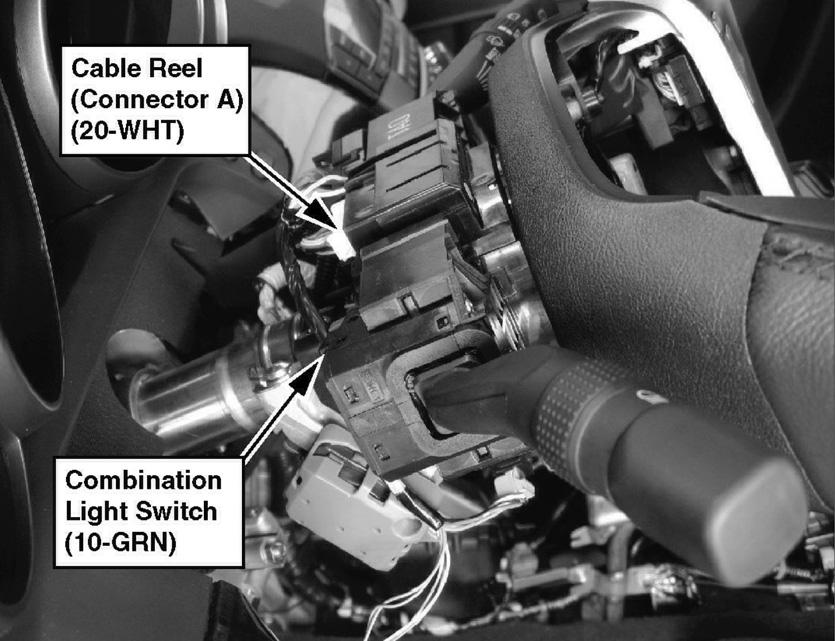

Fig 45: Steering Column

G00453971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

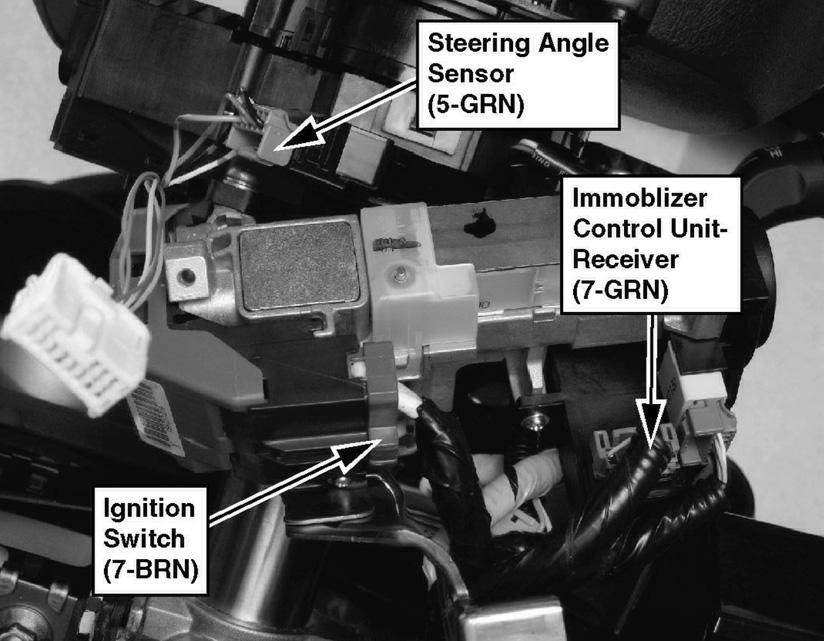

Fig 46: Steering Column

G00453972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Steering Column

G00453973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

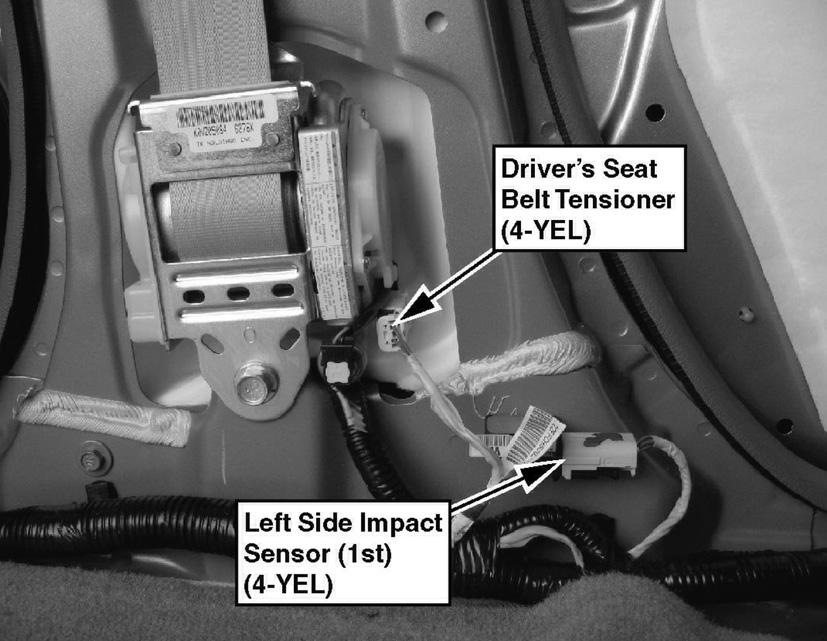

Fig 48: Left "B" Pillar

G00453974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

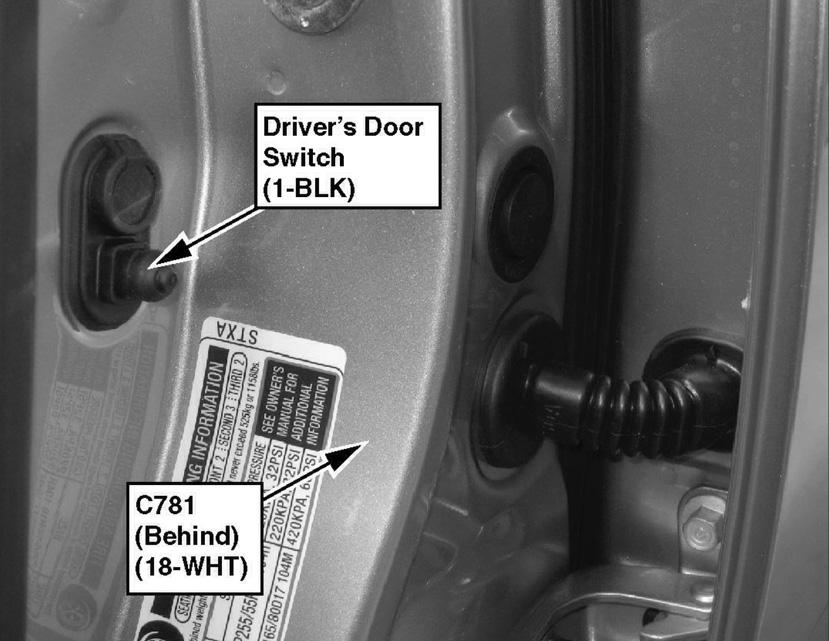

Fig 49: Left "B" Pillar

G00453975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

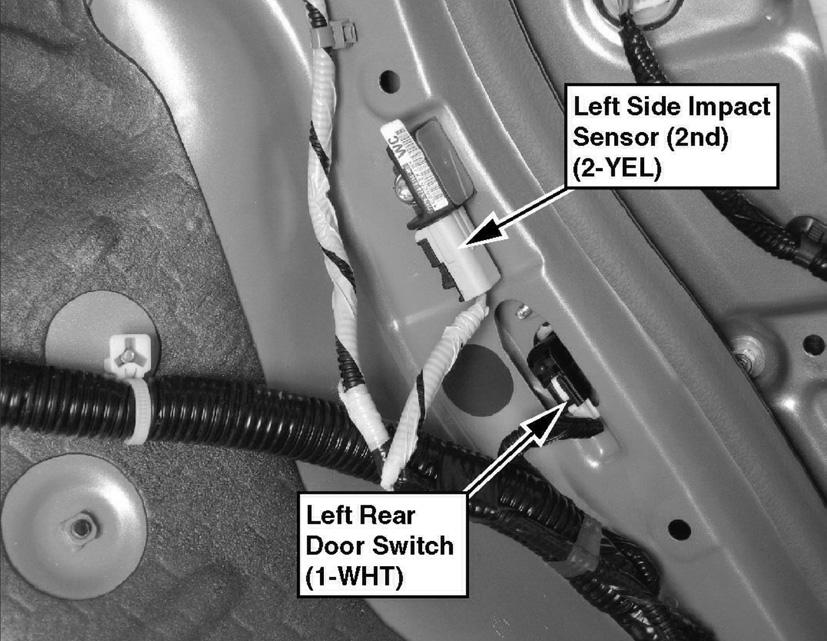

Fig 50: Left "C" Pillar

G00453976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

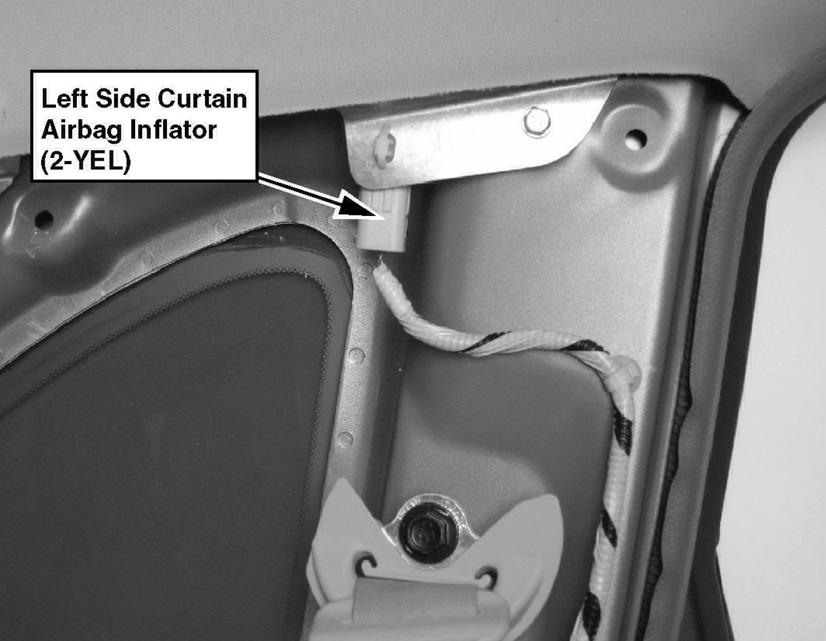

Fig 51: Left "C" Pillar

G00453977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

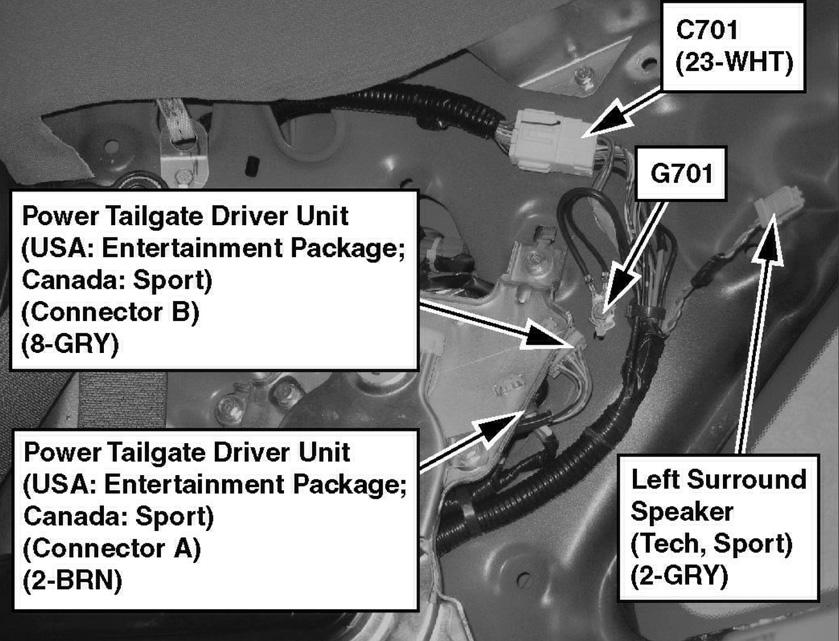

Fig 52: Left "D" Pillar

G00453978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

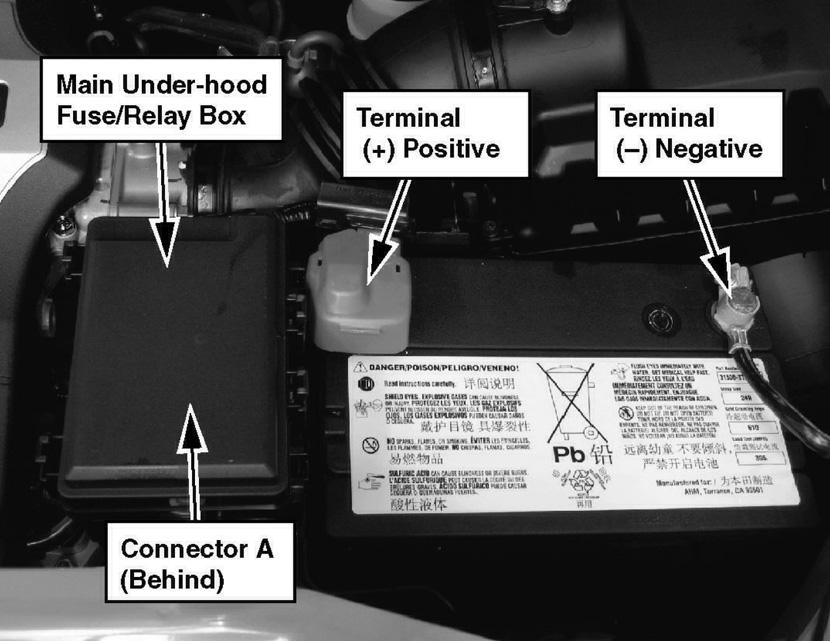

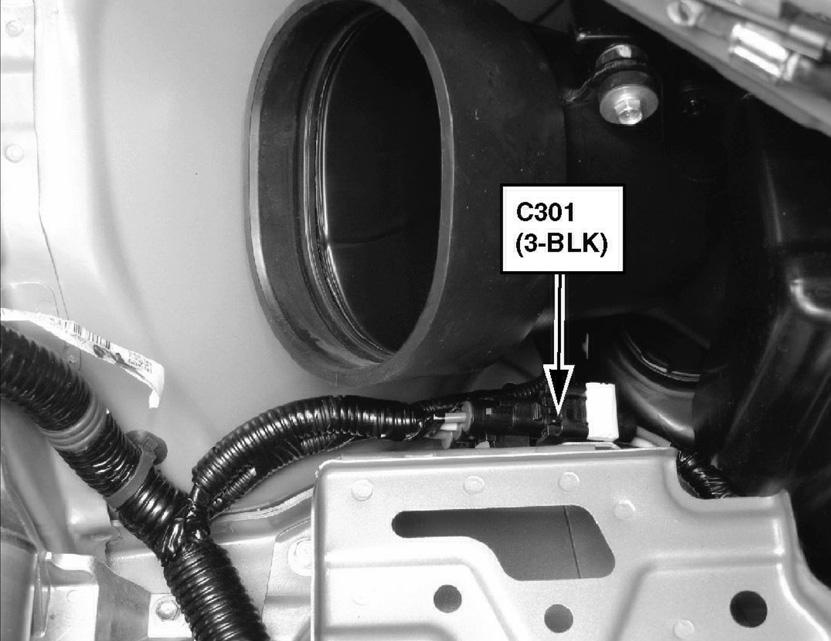

Fig 53: Left Front Of Engine Compartment

G00453979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Left Front Of Engine Compartment

G00453980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

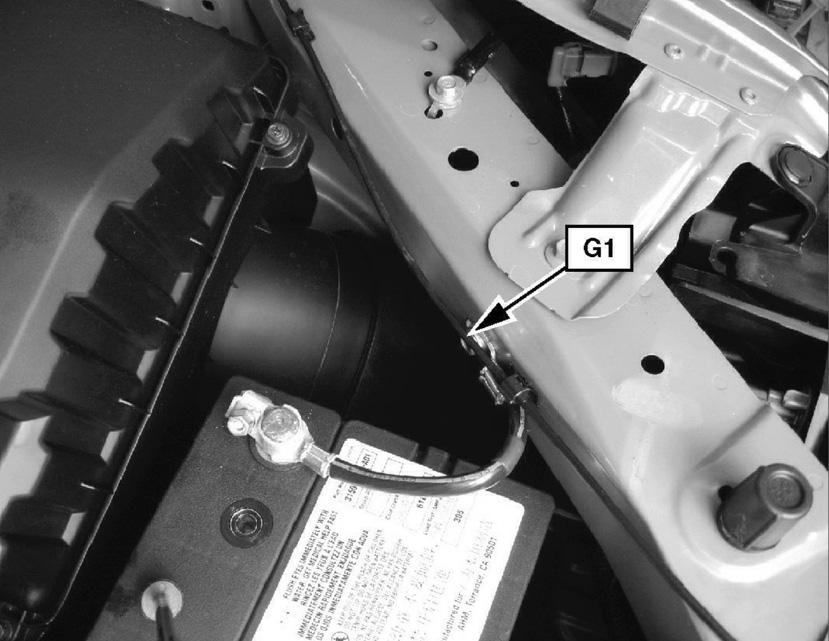

Fig 55: Left Front Of Engine Compartment

G00453981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

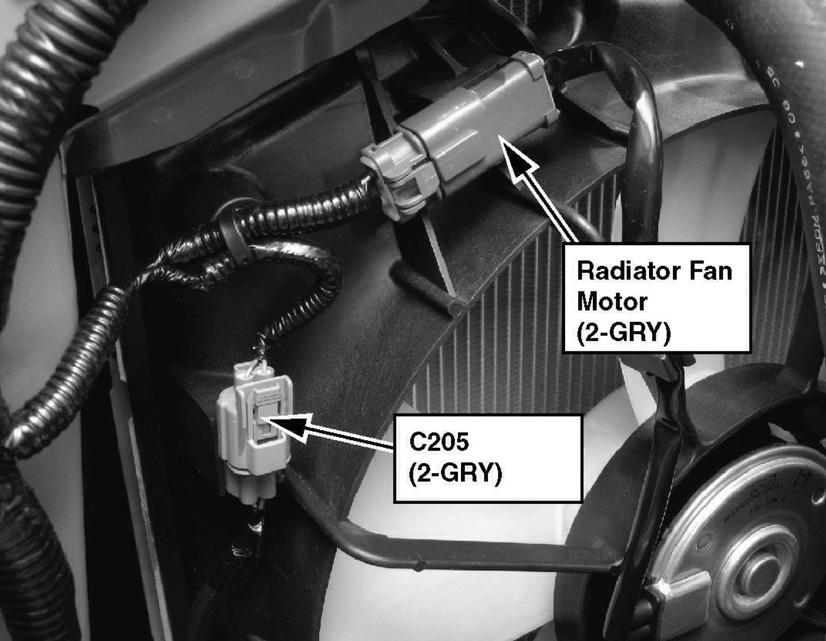

Fig 56: Left Front Of Engine Compartment

G00453982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

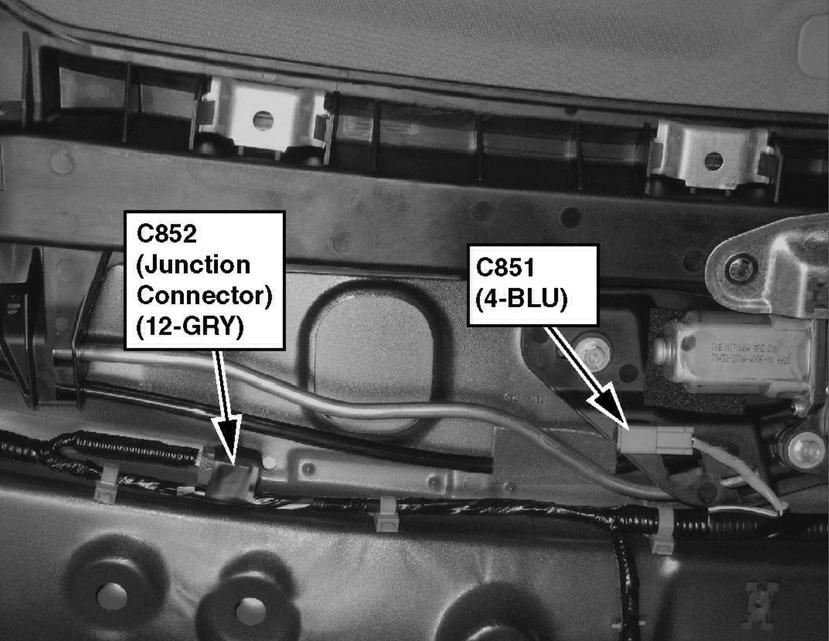

Fig 57: Left Front Of Roof

G00453983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

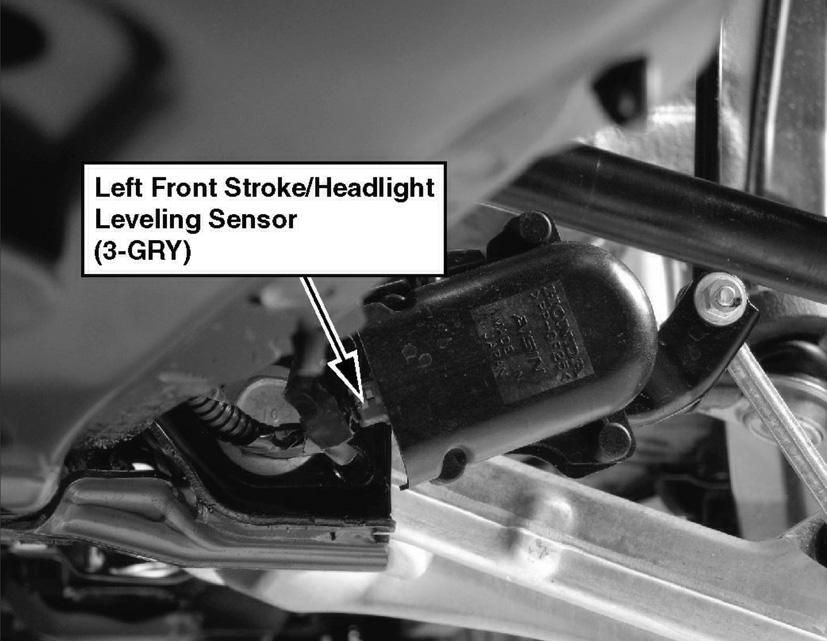

Fig 58: Left Front Suspension (Sport)

G00453984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

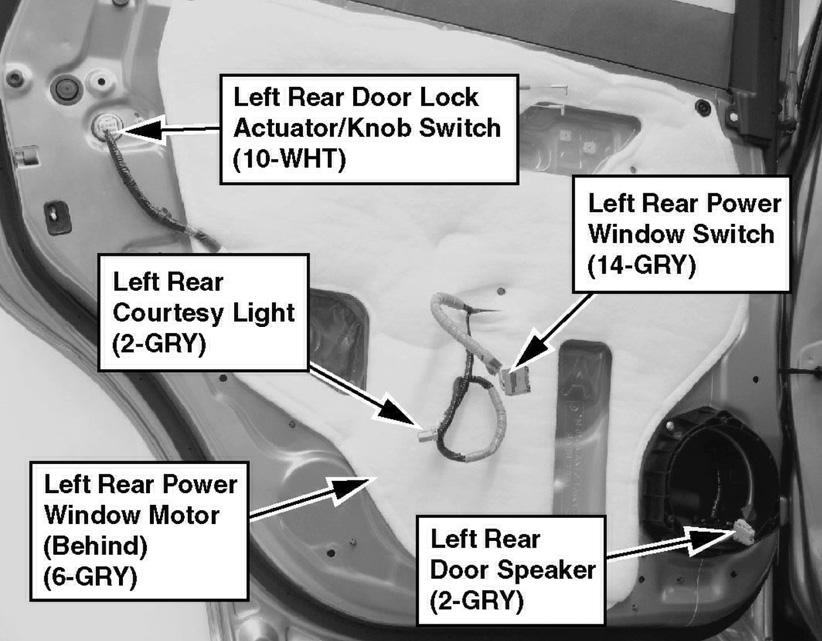

Fig 59: Left Rear Door

G00453985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

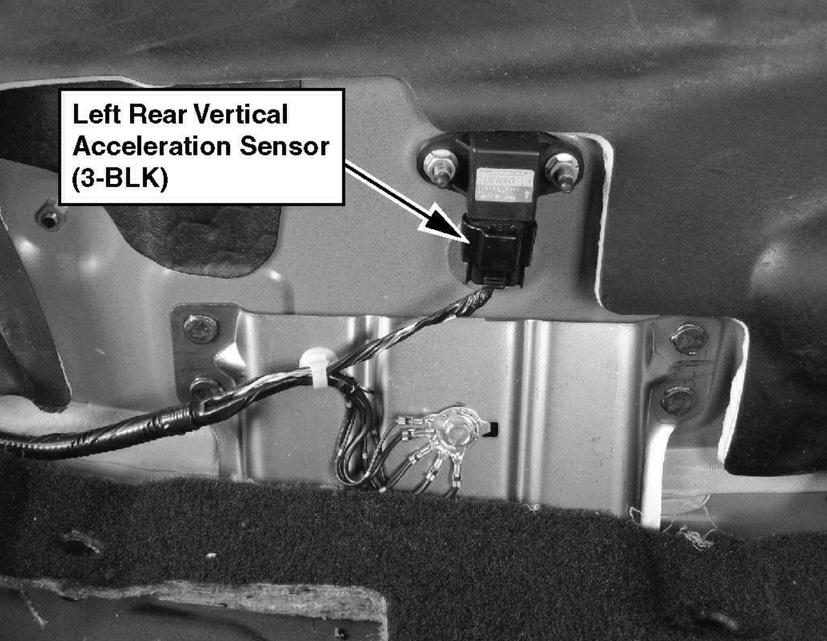

Fig 60: Left Side Of Cargo Area

G00453986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Left Side Of Cargo Area

G00453987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

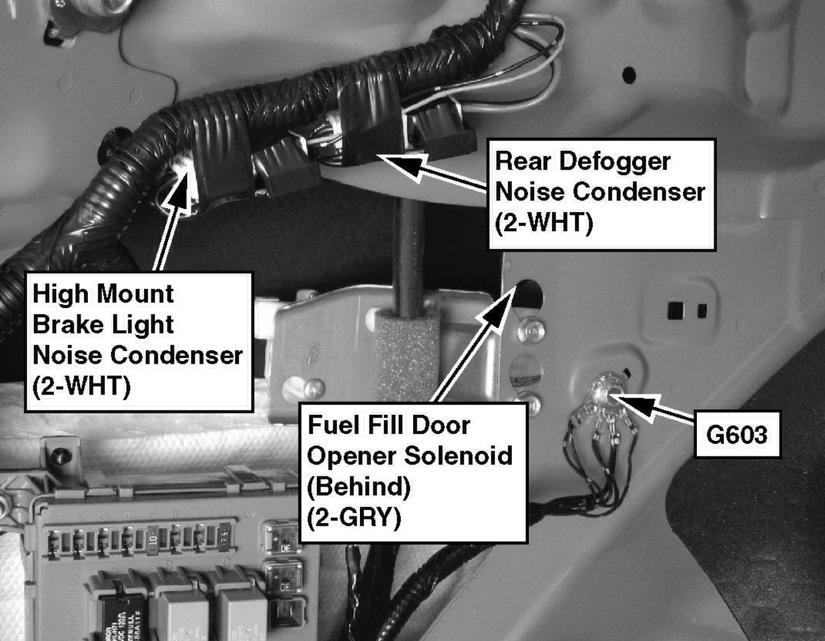

Fig 62: Left Side Of Cargo Area

G00453988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

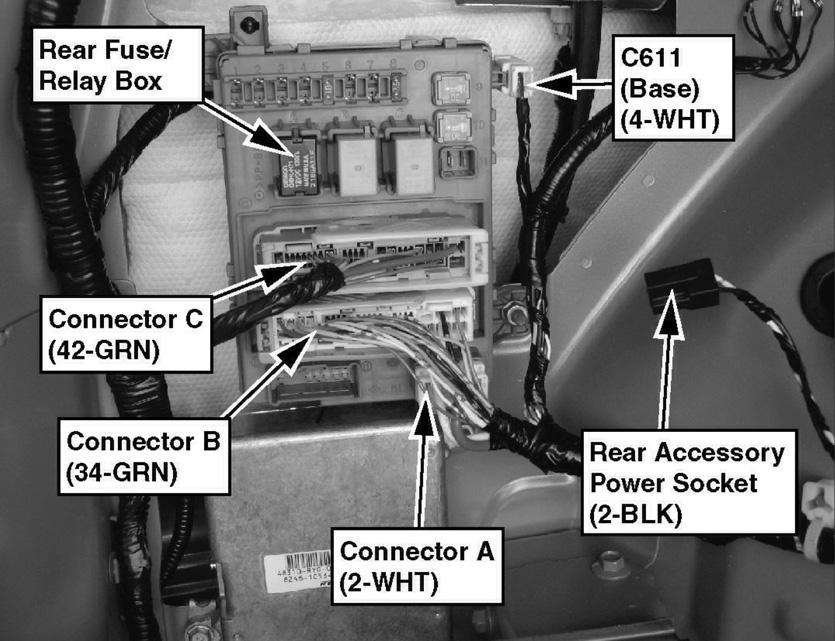

Fig 63: Left Side Of Cargo Area

G00453989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Left Side Of Cargo Area

G00453990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

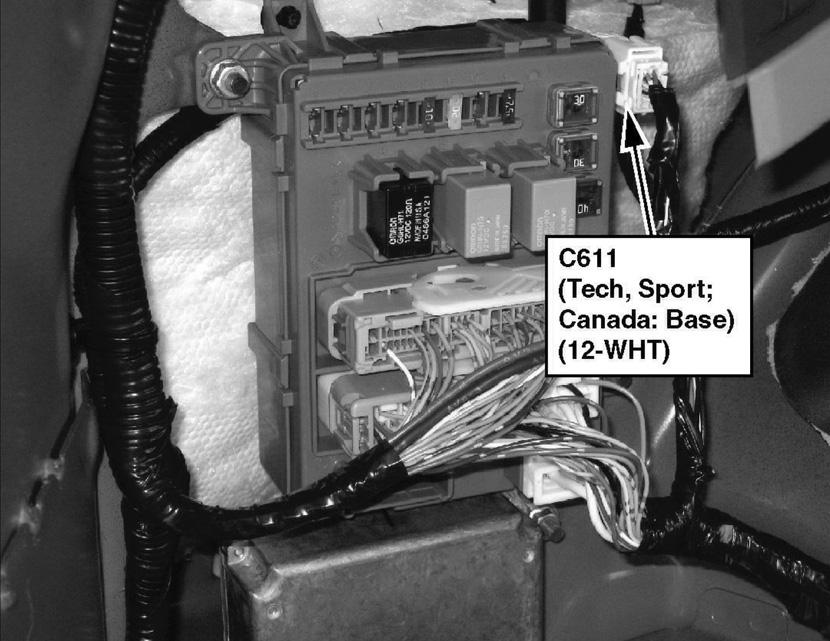

Fig 65: Left Side Of Cargo Area (Acura Accessory)

G00453991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 66: Left Side Of Cargo Area (Acura Accessory)

G00453992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Left Side Of Cargo Area (Sport)

G00453993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 68: Left Side Of Cargo Area (Sport)

G00453994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 69: Left Side Of Cargo Area (USA: Entertainment Package; Canada: Sport)

G00453995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

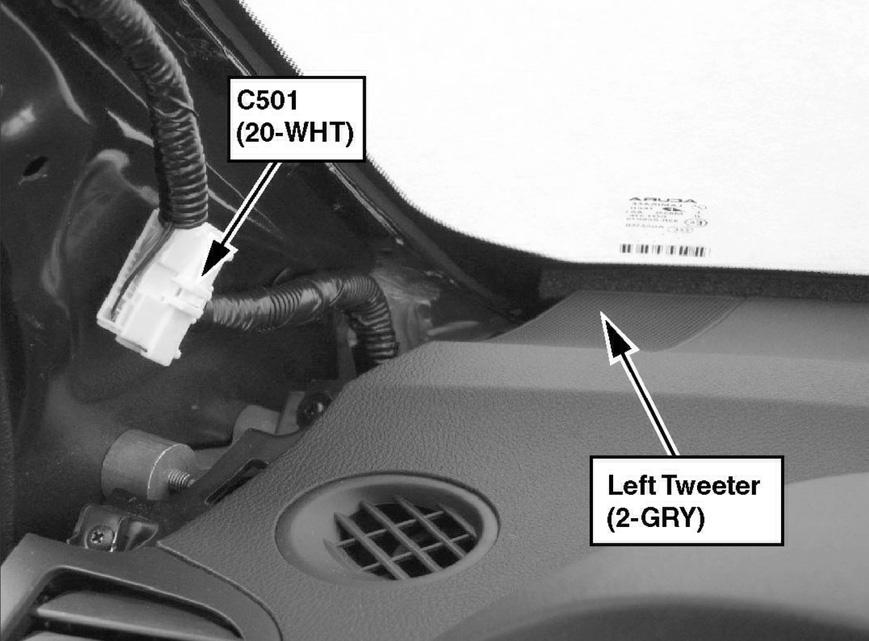

Fig 70: Left "A" Pillar

G00453996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

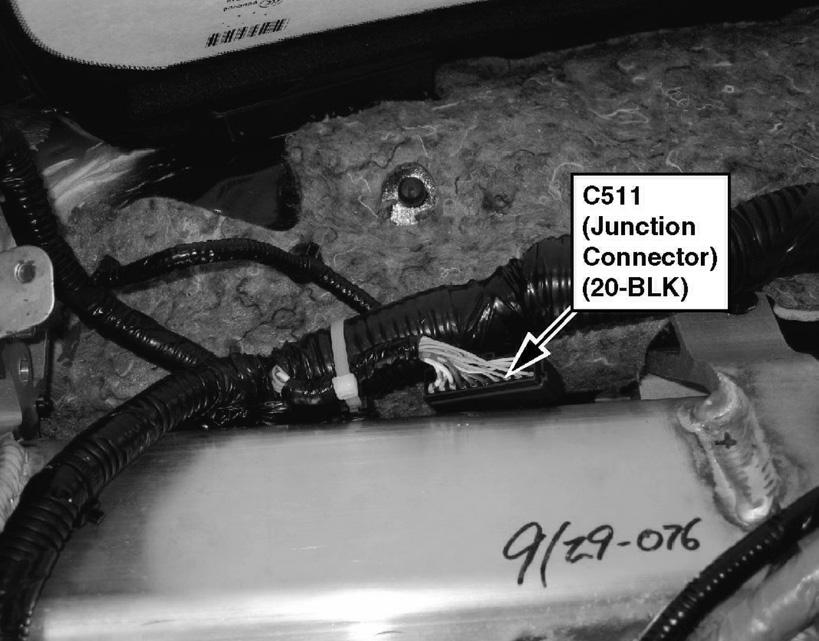

Fig 71: Left Side Of Dash

G00453997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

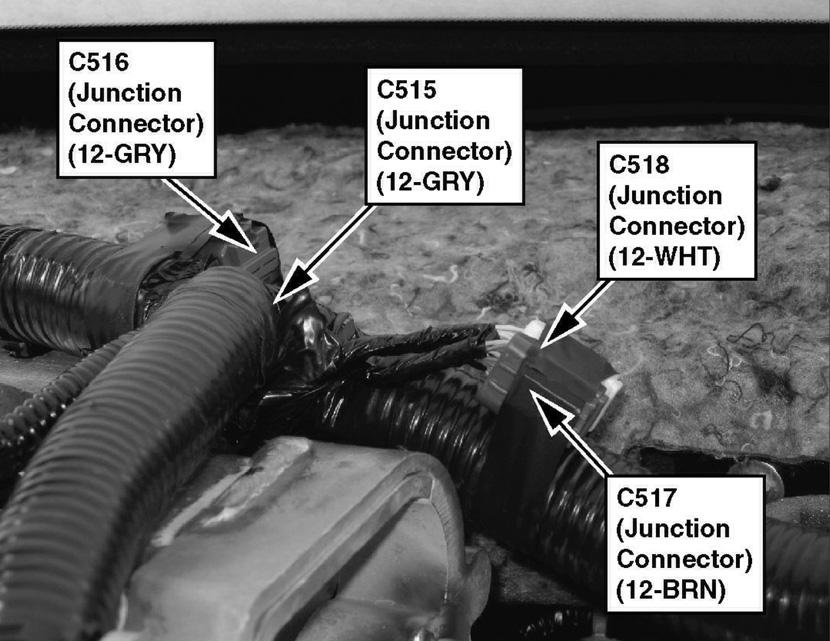

Fig 72: Left Side Of Dash

G00453998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

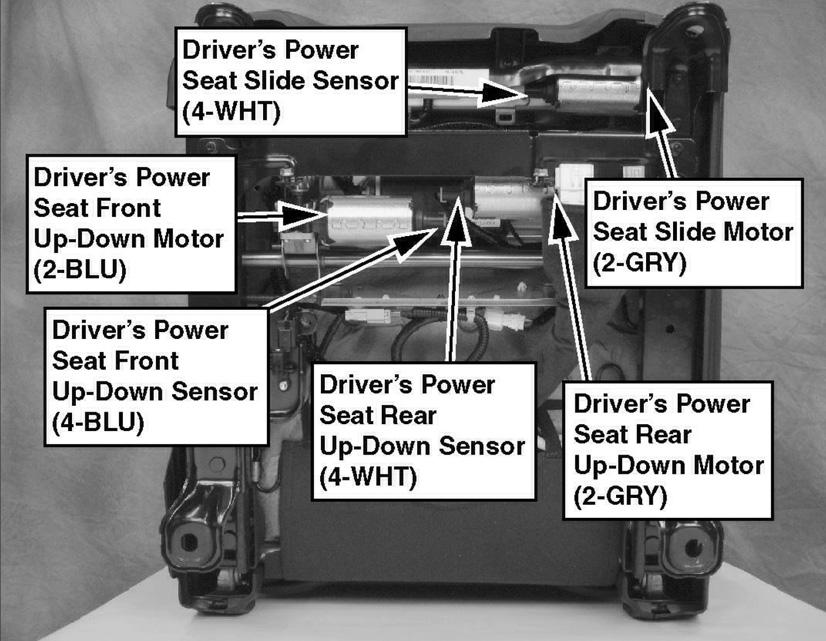

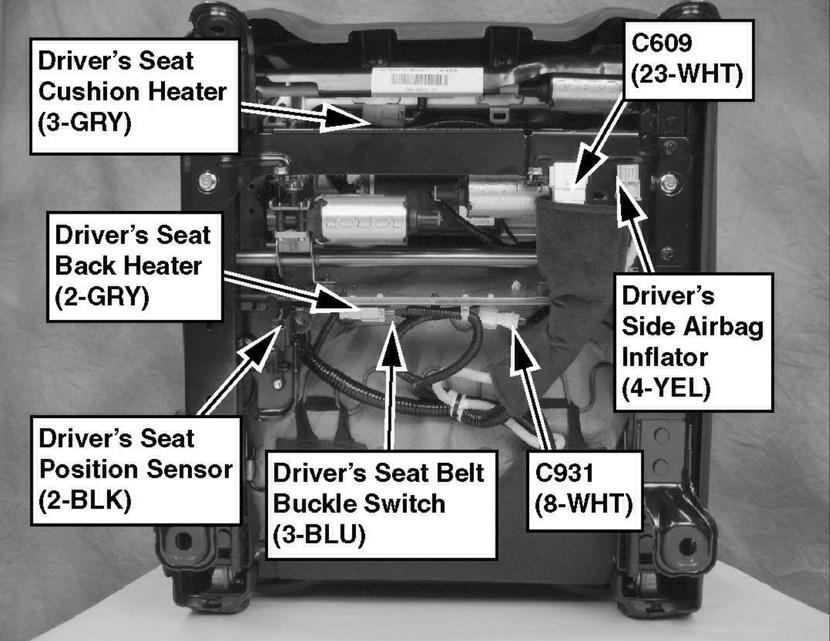

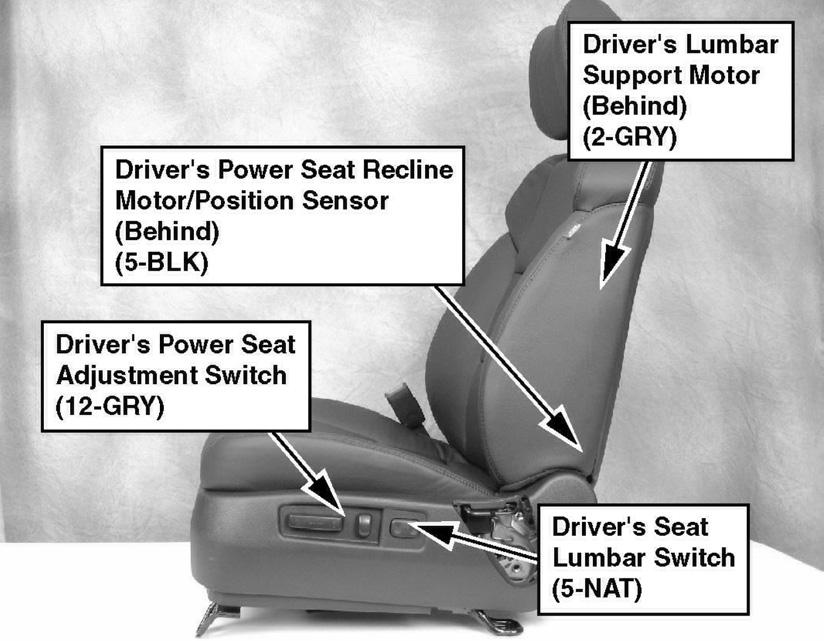

Fig 73: Driver's Seat

G00453999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

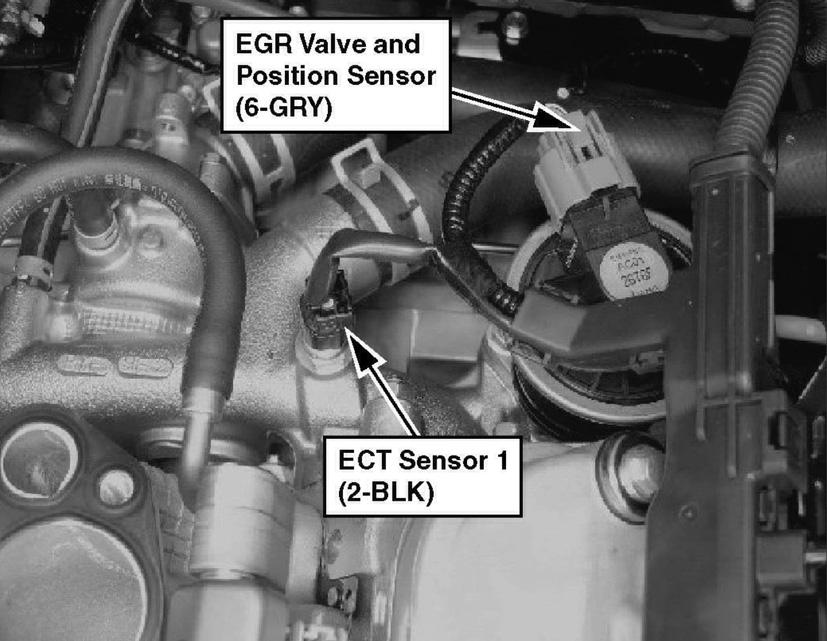

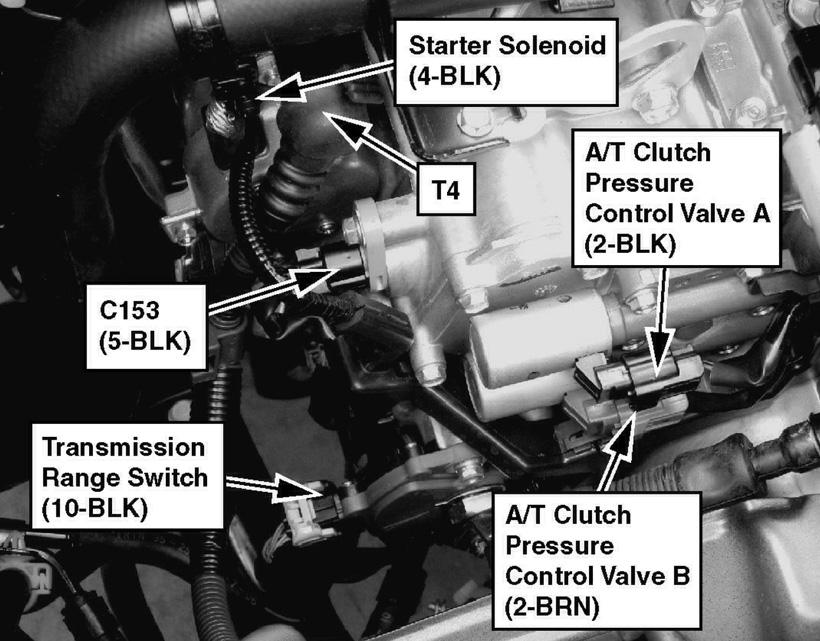

Fig 74: Rear Of Engine

G00454000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

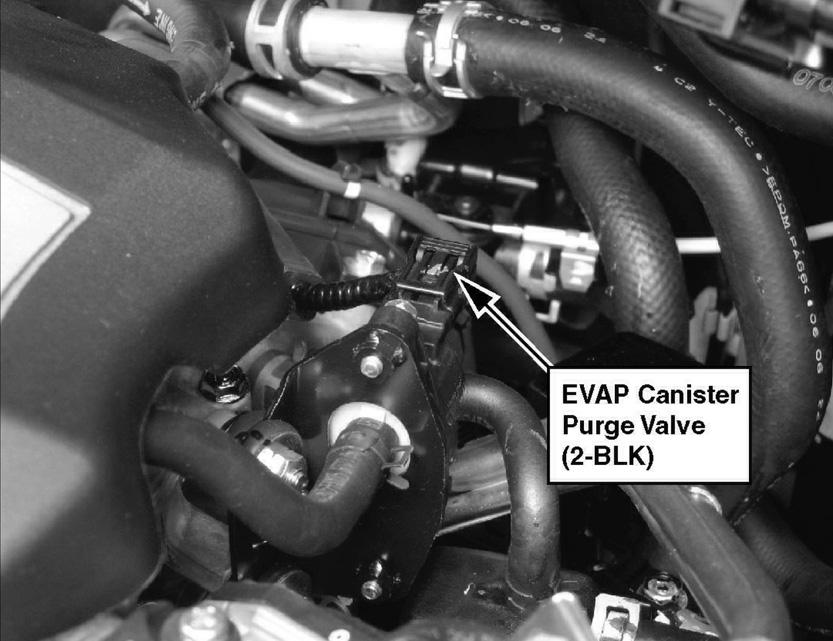

Fig 75: Rear Of Engine

G00454001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 76: Rear Of Engine

G00454002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

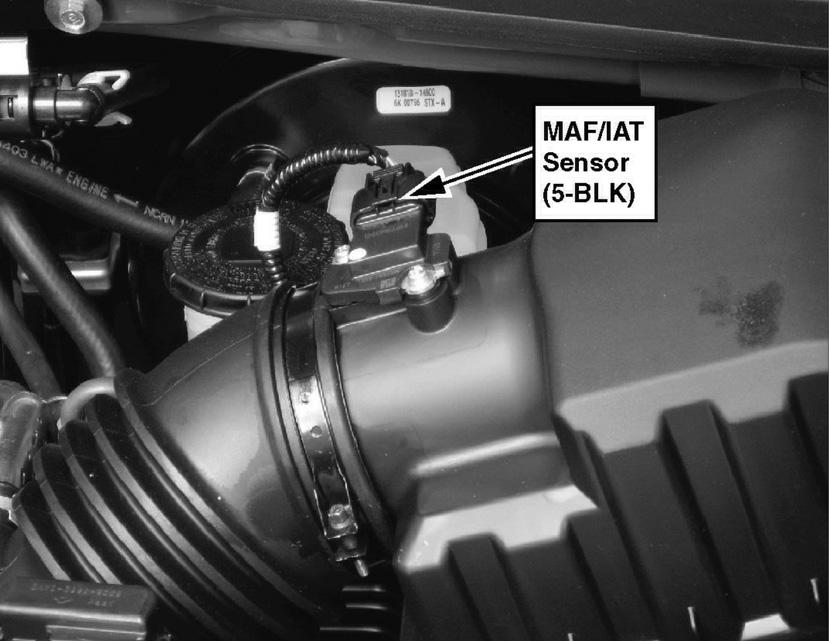

Fig 77: Left Side Of Engine Compartment

G00454003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

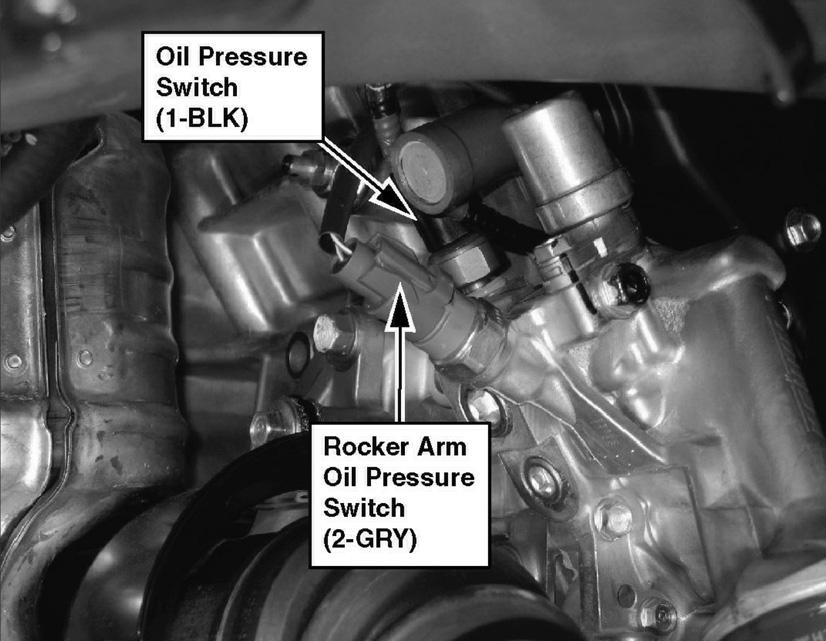

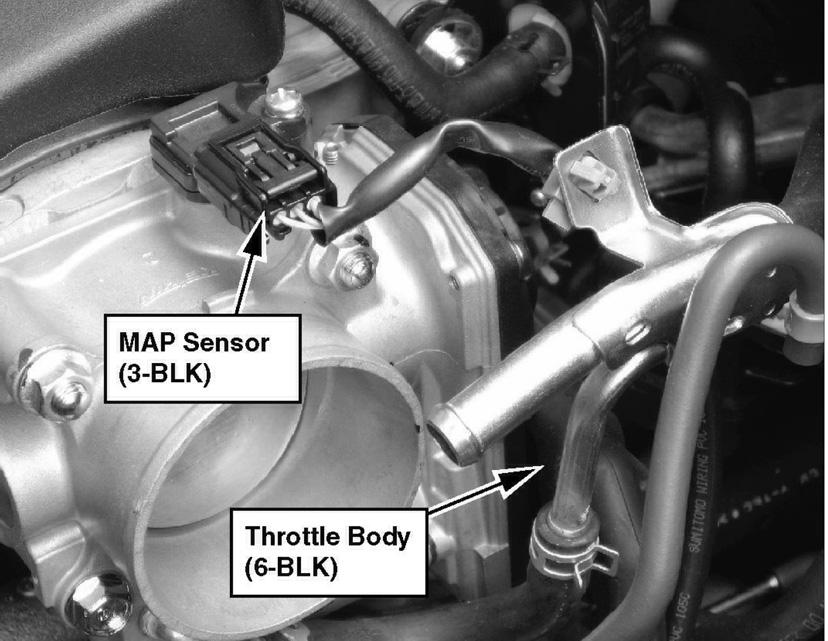

Fig 78: Right Side Of Engine

G00454004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 79: Left Side Of Engine Compartment

G00454005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

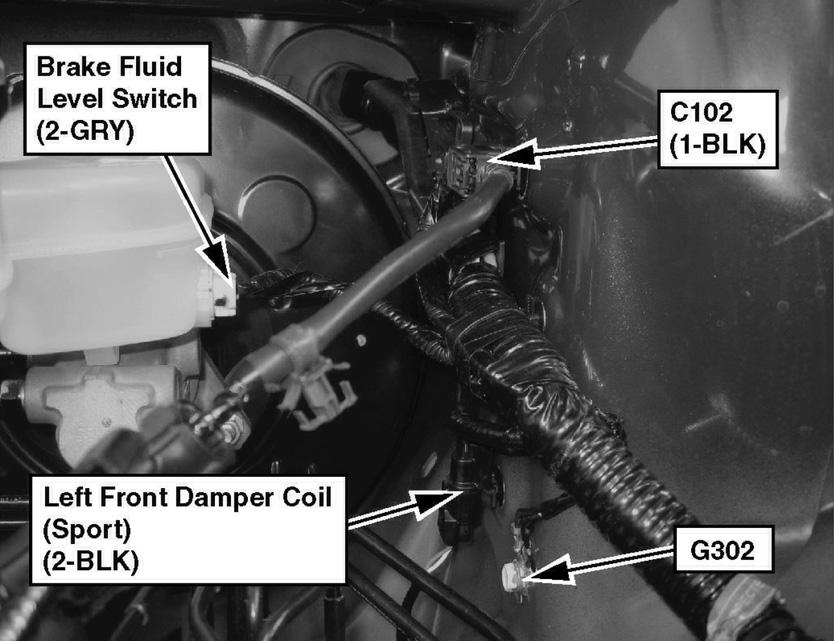

Fig 80: Left Rear Of Engine Compartment

G00454006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

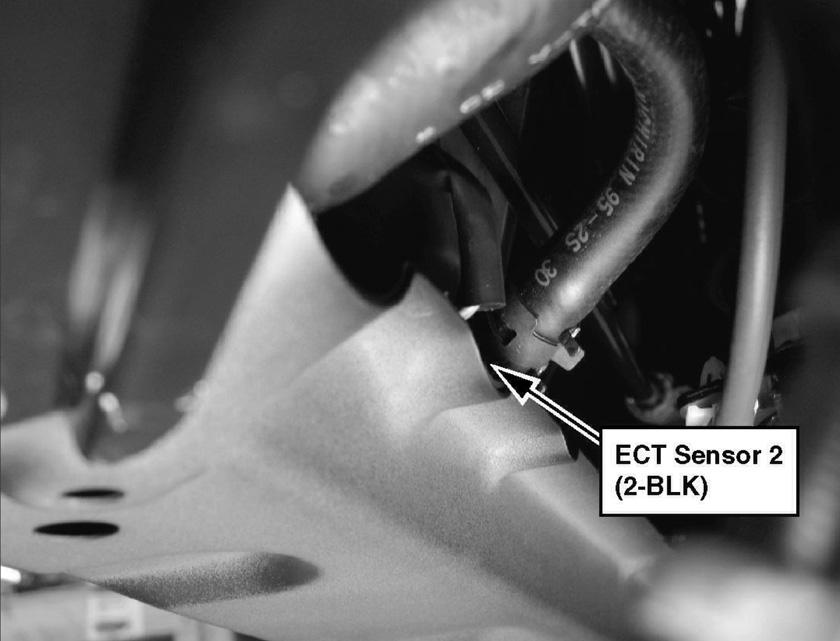

Fig 81: Left Side Of Engine Compartment

G00454007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

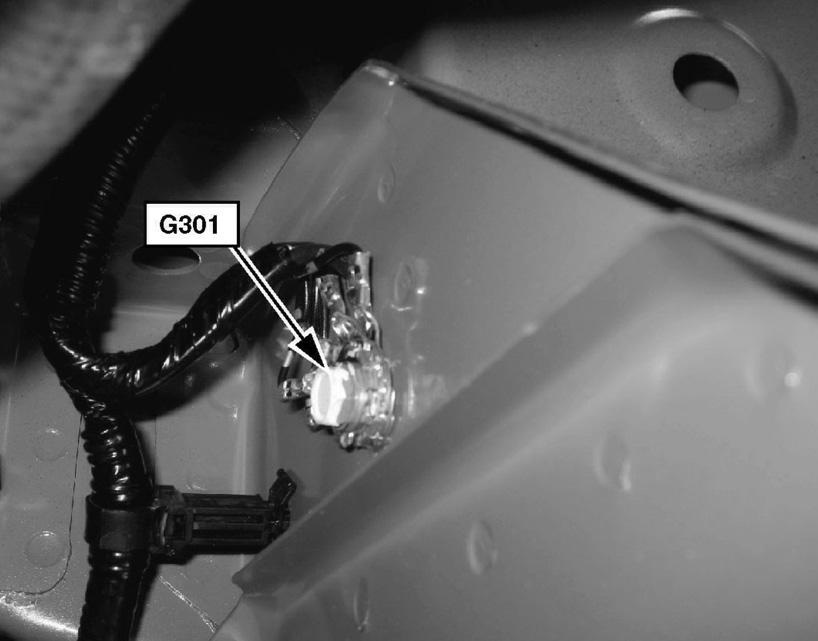

Fig 82: Left Side Of Engine Compartment

G00454008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Rear Of Vehicle

G00454009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

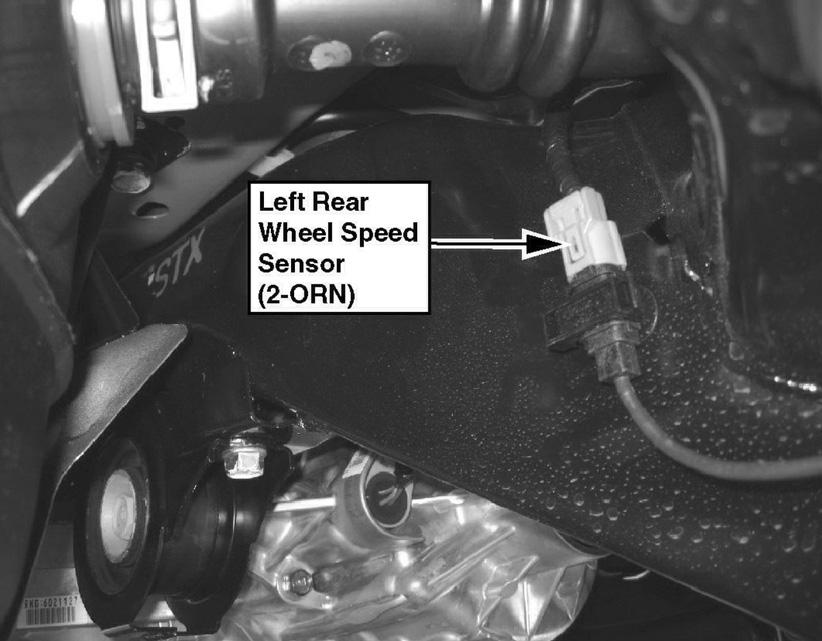

Fig 84: Left Side Of Rear Subframe

G00454010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

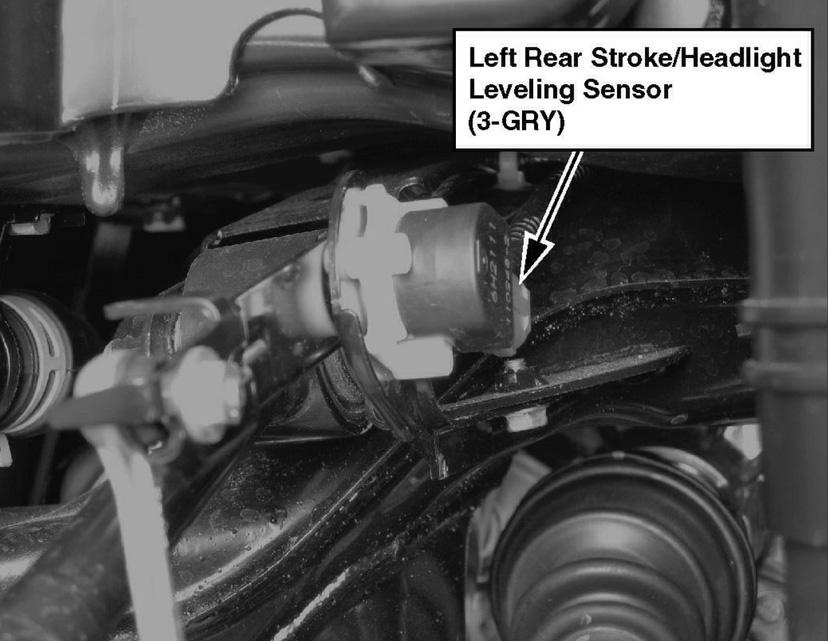

Fig 85: Left Side Of Rear Subframe (Sport)

G00454011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

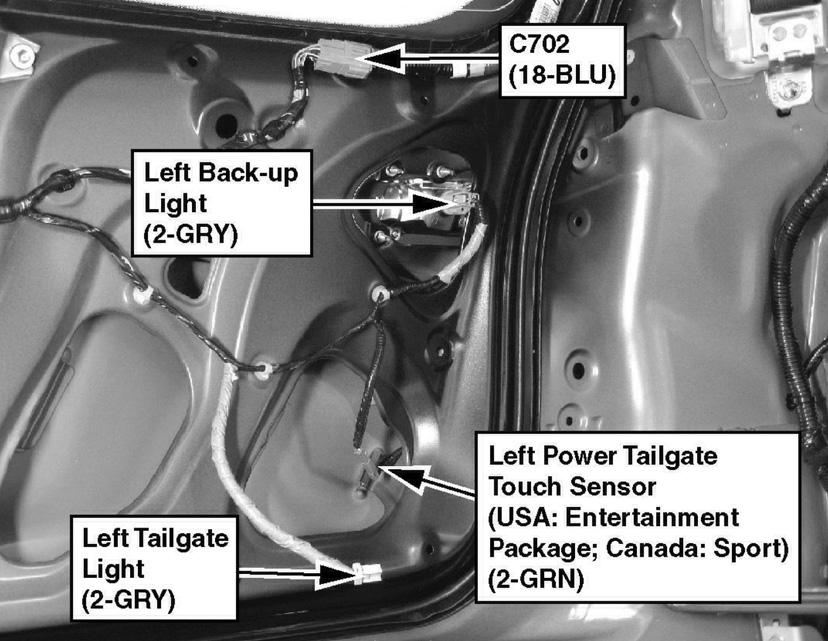

Fig 86: Left Side Of Tailgate

G00454012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

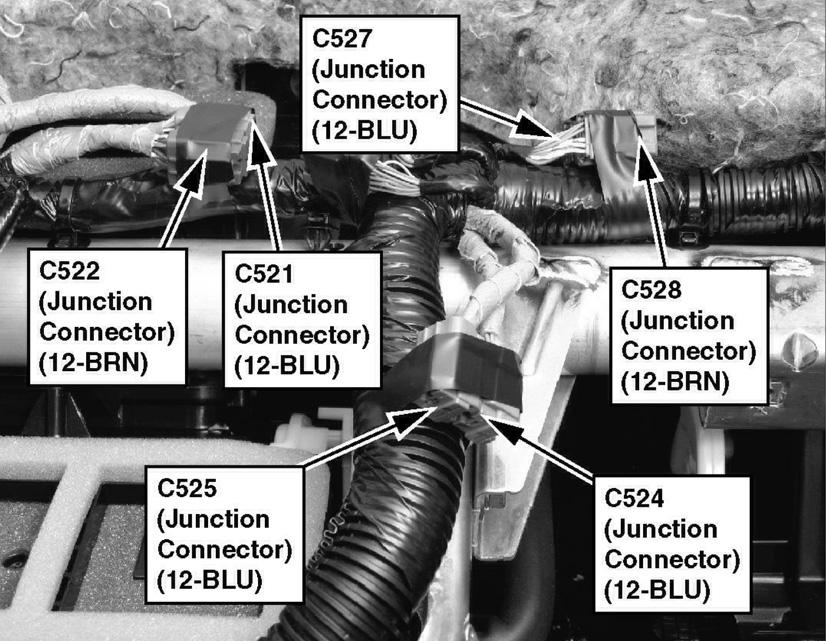

Fig 87: Middle Of Dash

G00454013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

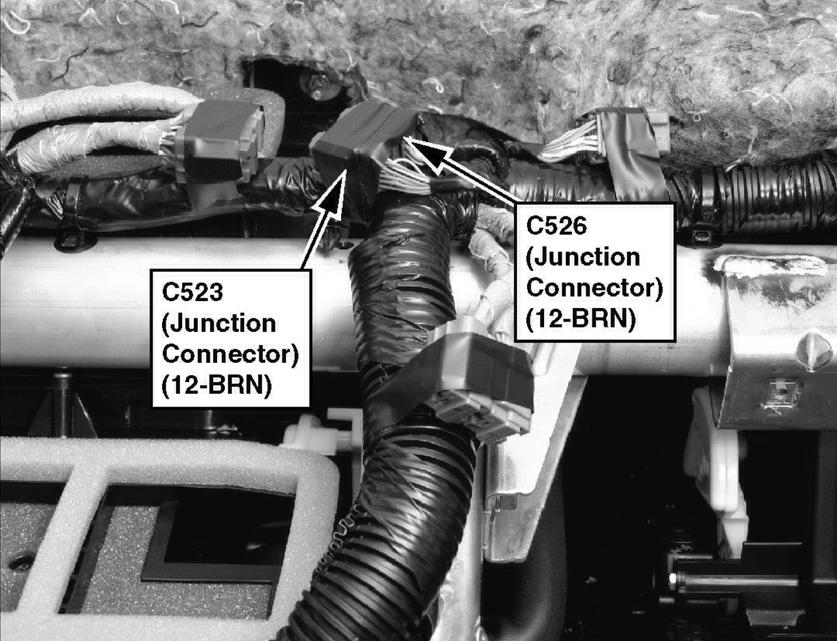

Fig 88: Middle Of Dash

G00454014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

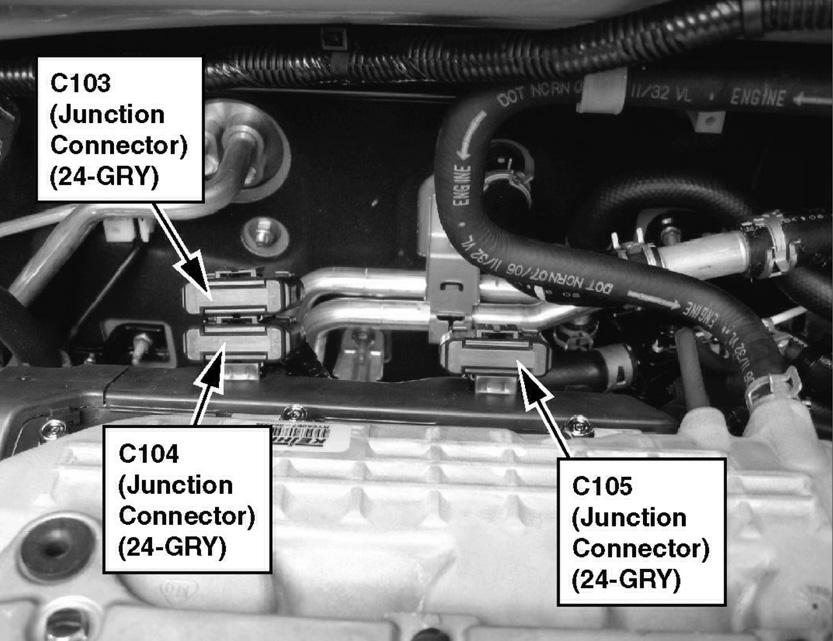

Fig 89: Right Side Of Engine

G00454015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

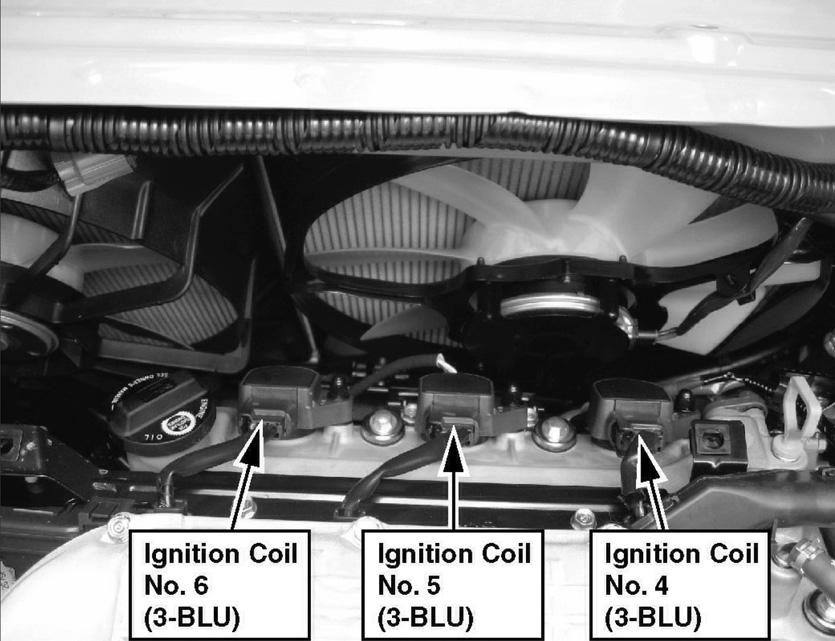

Fig 90: Top Left Side Of Engine

G00454016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

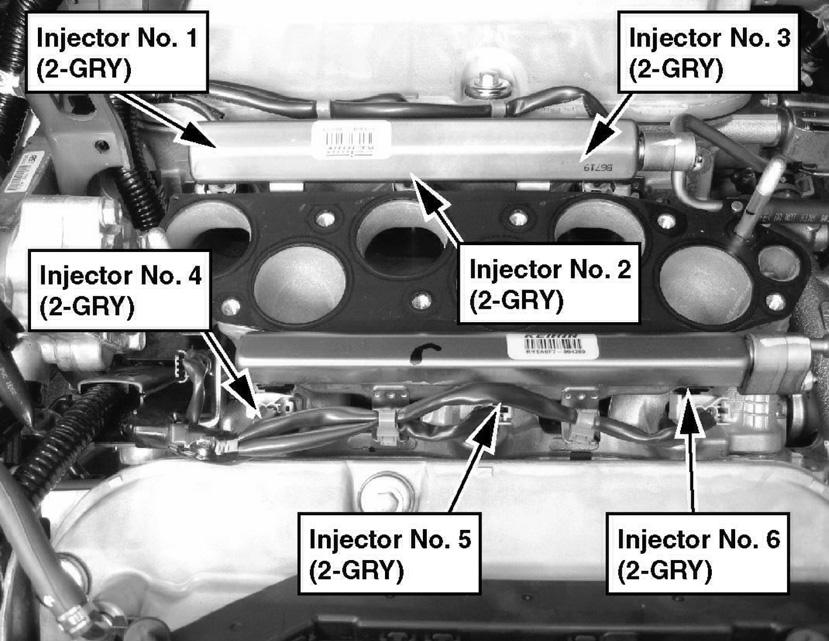

Fig 91: Top Of Engine

G00454017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

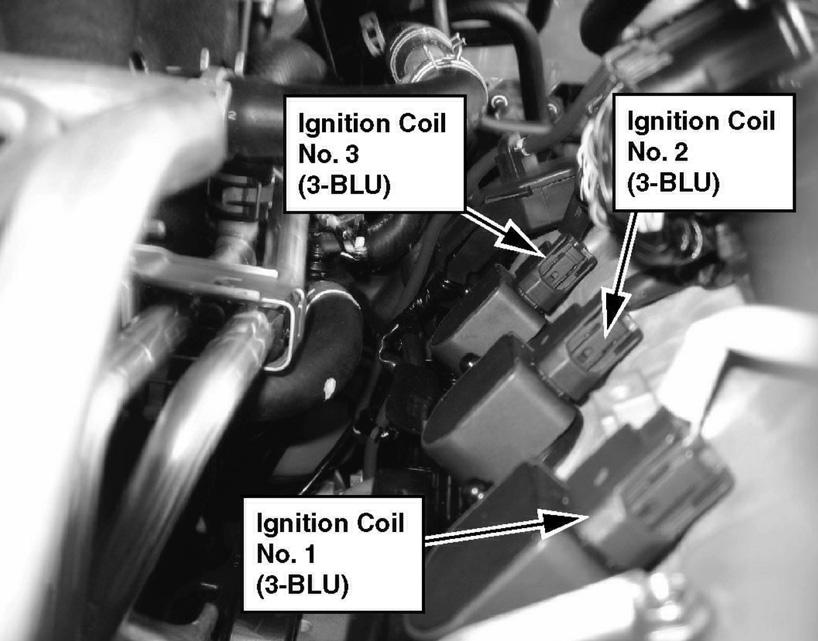

Fig 92: Top Right Side Of Engine

G00454018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

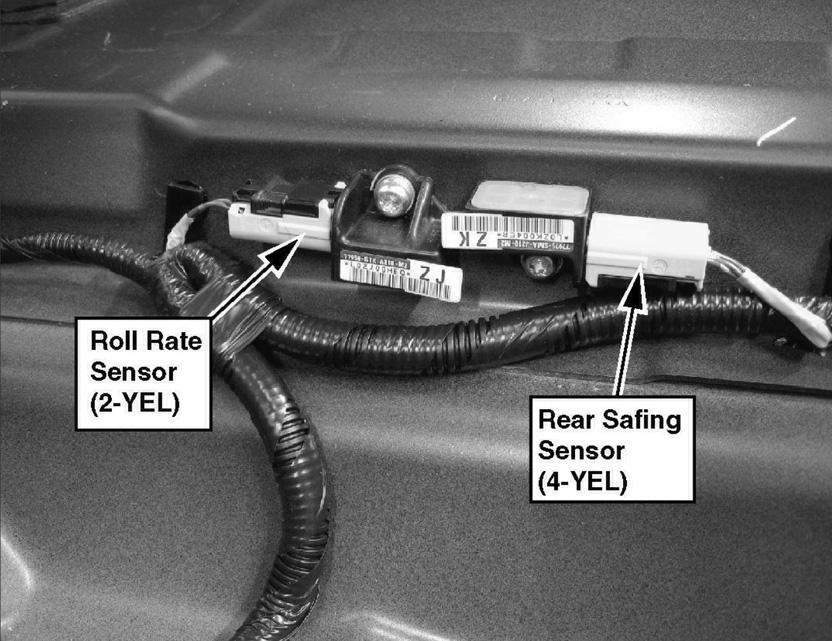

Fig 93: Middle Of Floor

G00454019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

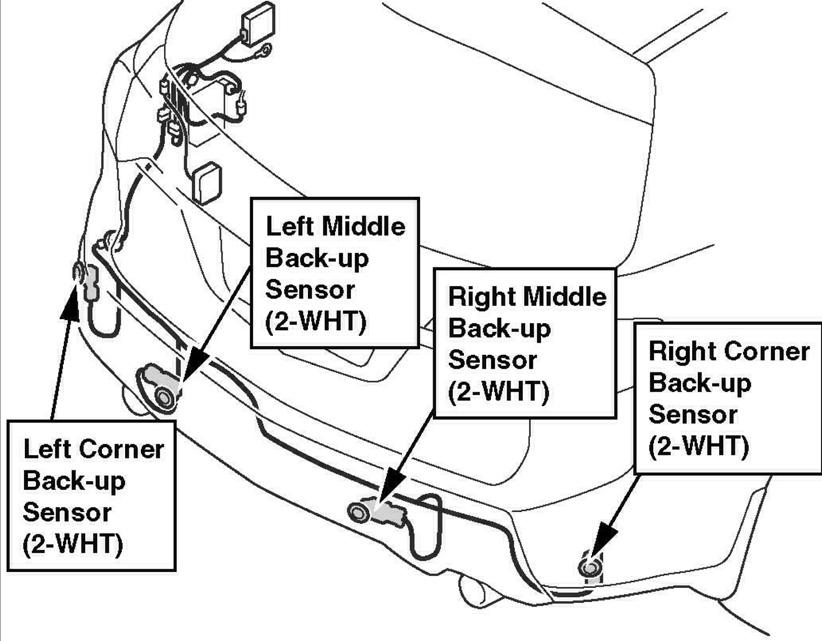

Fig 94: Rear Bumper

G00454020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

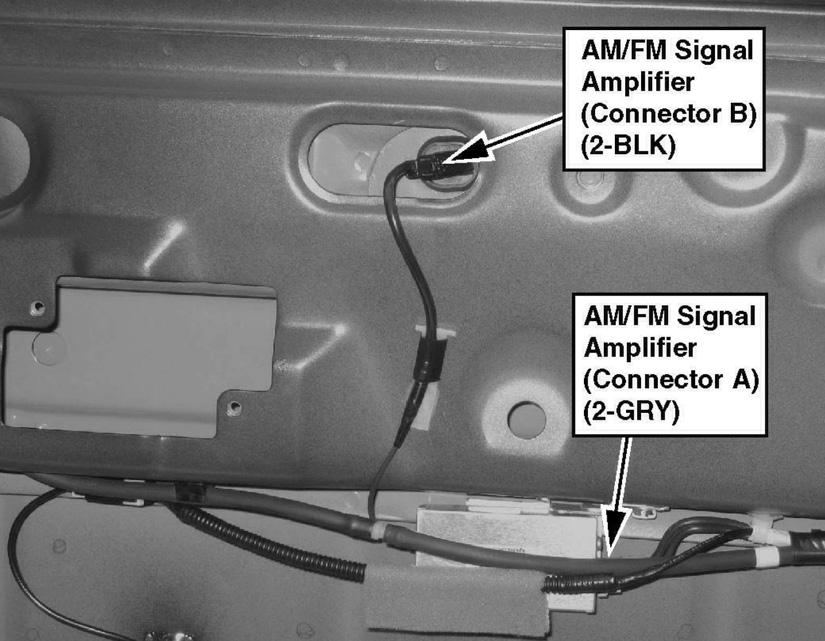

Fig 95: Rear Of Roof

G00454021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

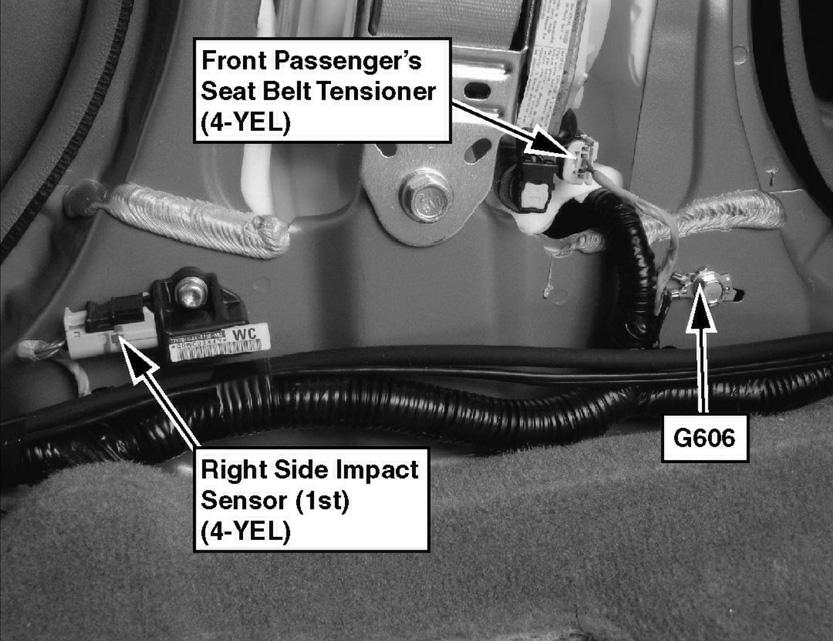

Fig 96: Right "B" Pillar

G00454022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 97: Right "B" Pillar

G00454023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 98: Right "C" Pillar

G00454024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

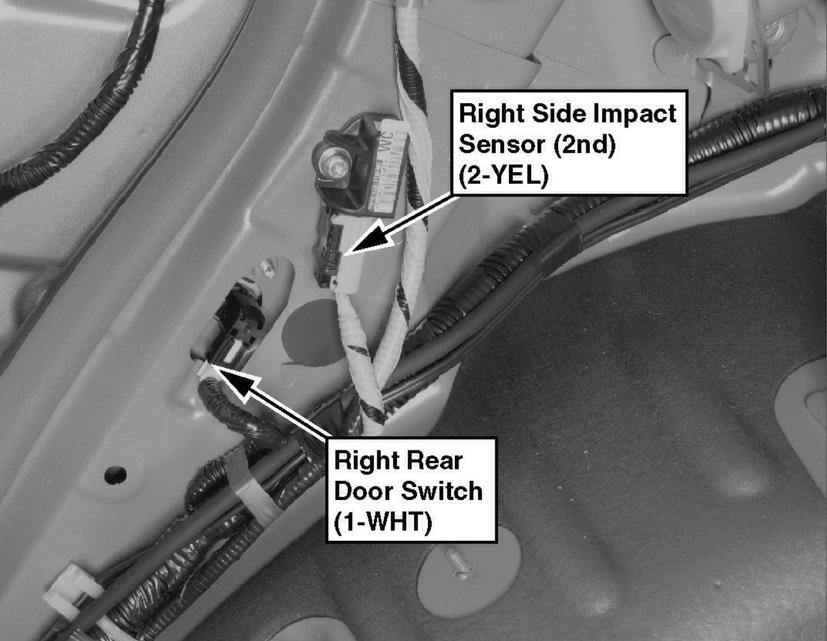

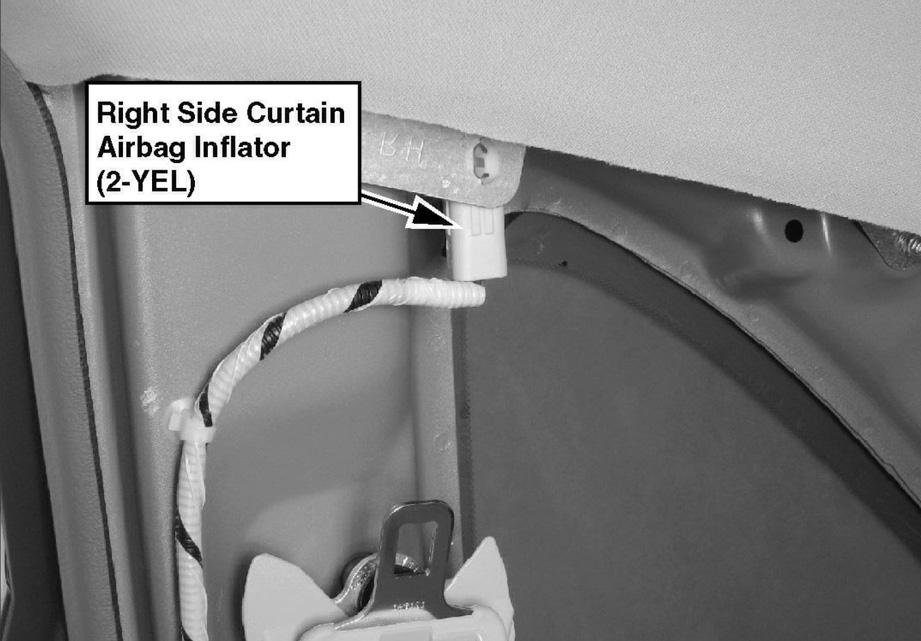

Fig 99: Right "C" Pillar

G00454025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

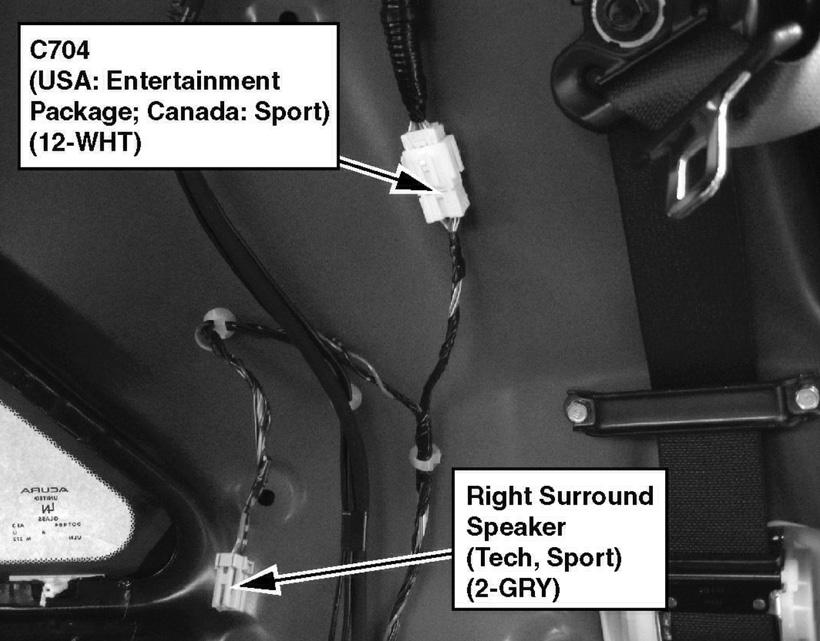

Fig 100: Right "D" Pillar

G00454026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Right Front Of Engine Compartment

G00454027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

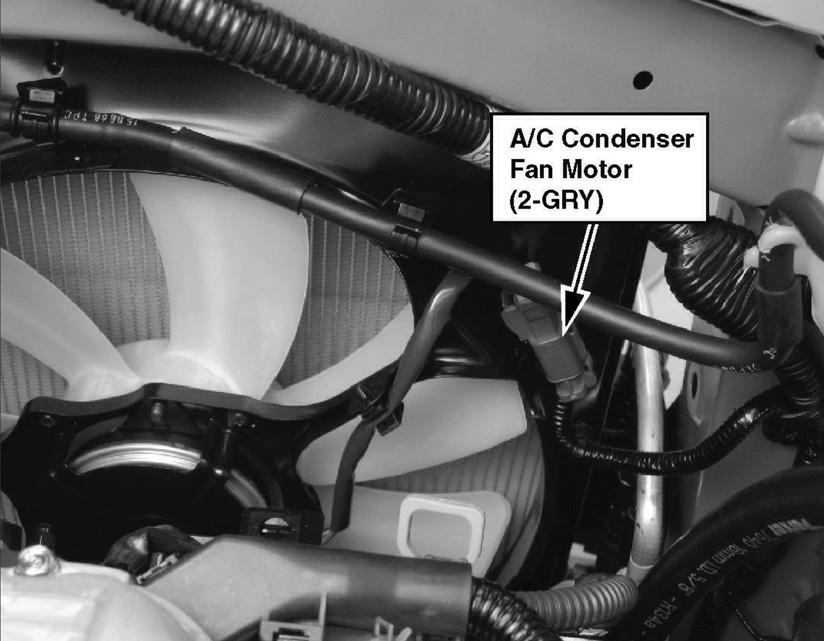

Fig 102: Right Front Of Engine Compartment

G00454028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

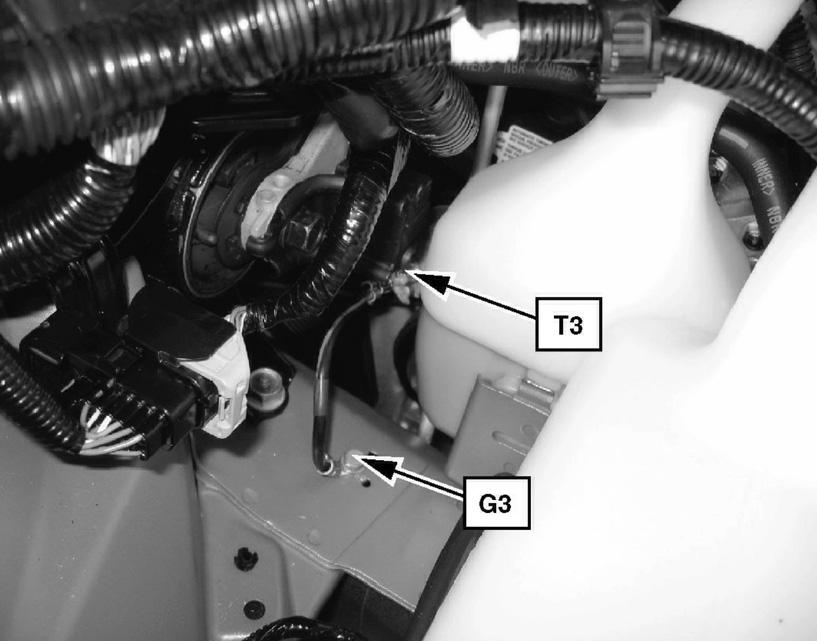

Fig 103: Right Front Of Engine Compartment

G00454029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

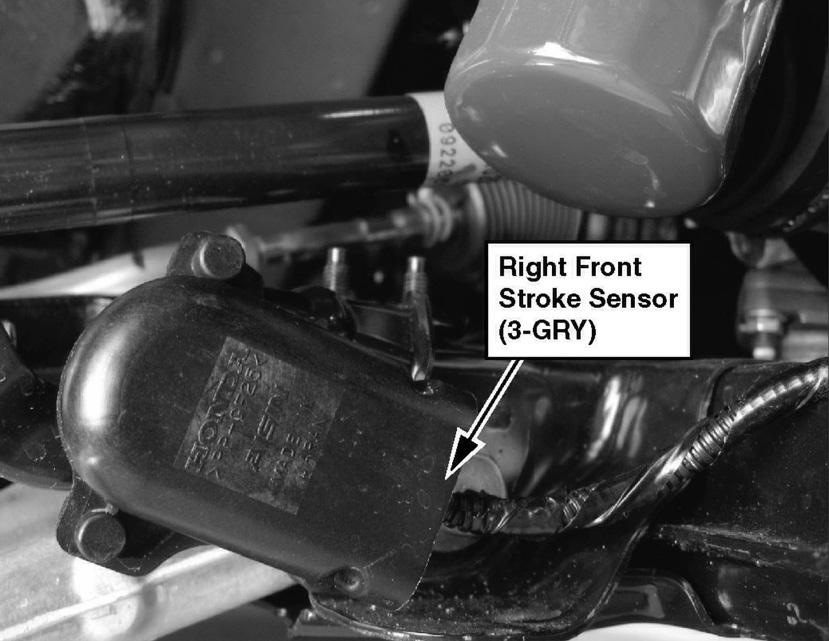

Fig 104: Right Front Suspension (Sport)

G00454030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

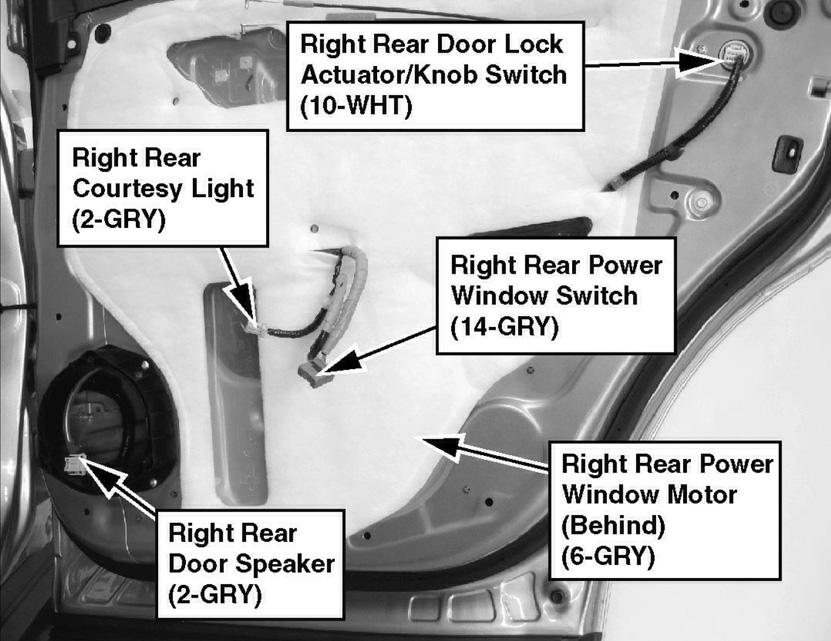

Fig 105: Right Rear Door

G00454031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

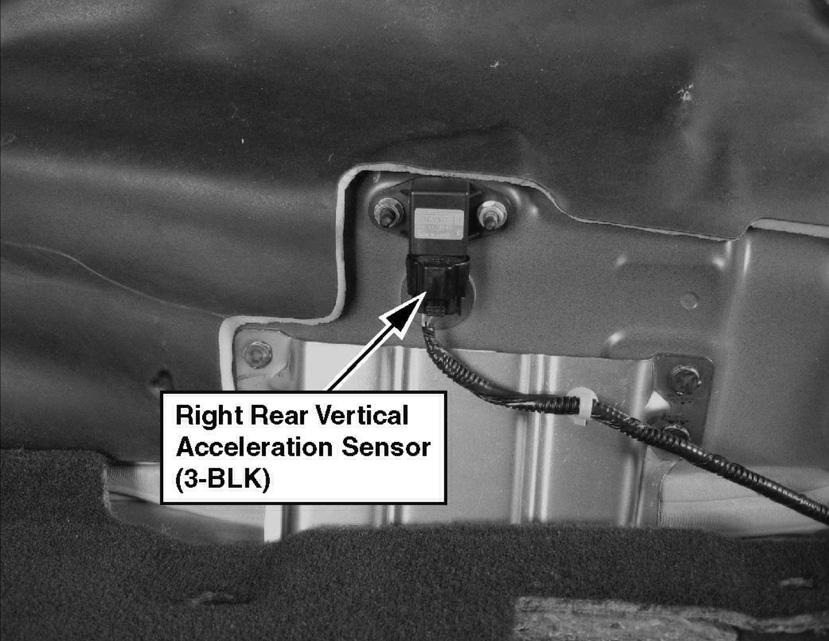

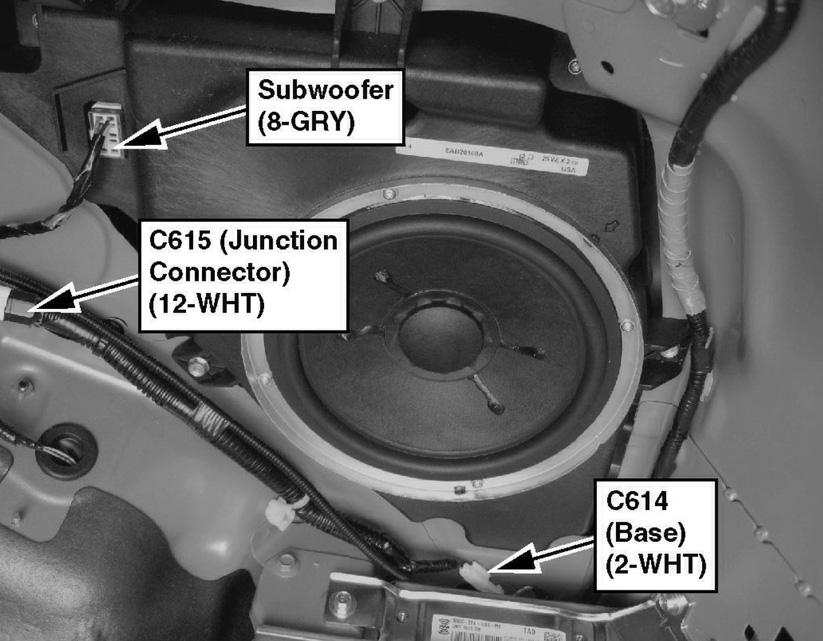

Fig 106: Right Side Of Cargo Area

G00454032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Right Side Of Cargo Area

G00454033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 108: Right Side Of Cargo Area (Sport)

G00454034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

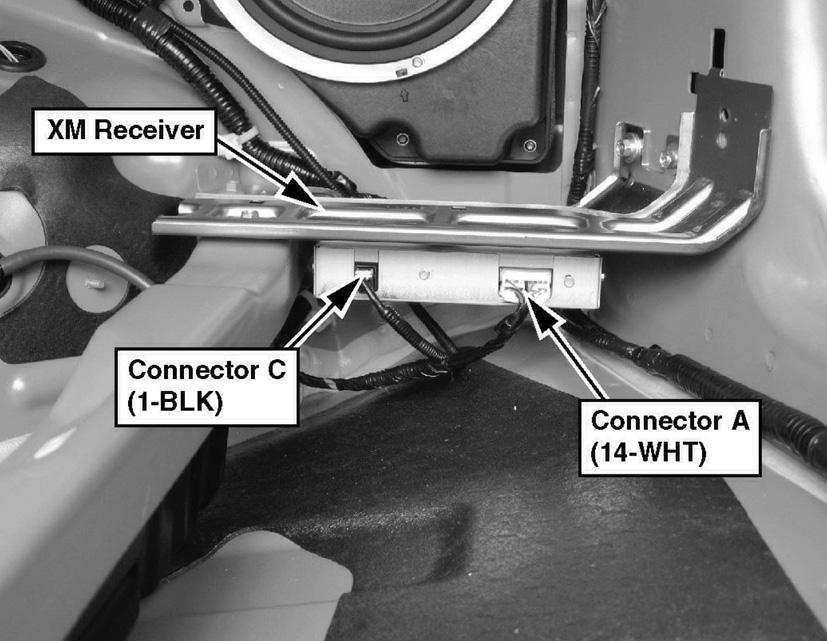

Fig 109: Right Side Of Cargo Area (USA: Base; Canada)

G00454035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

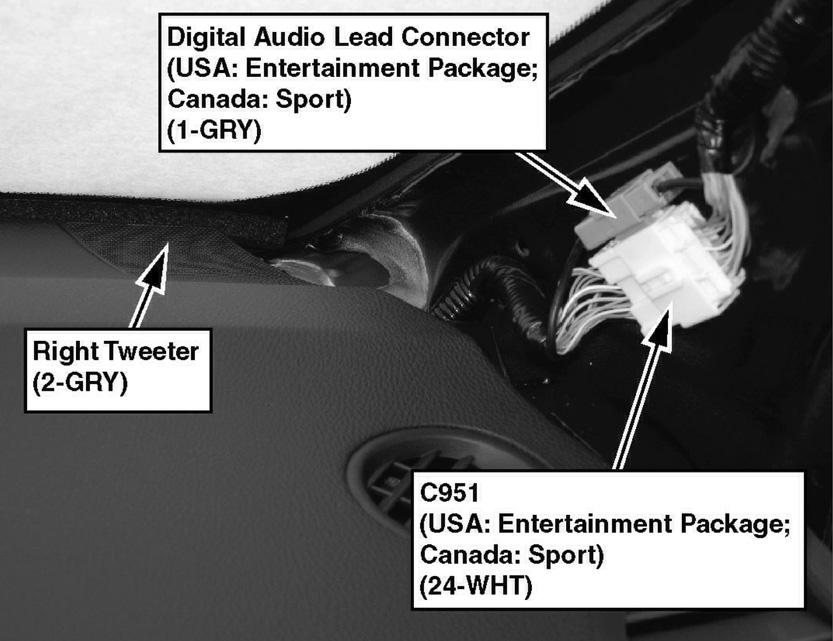

Fig 110: Right "A" Pillar

G00454036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

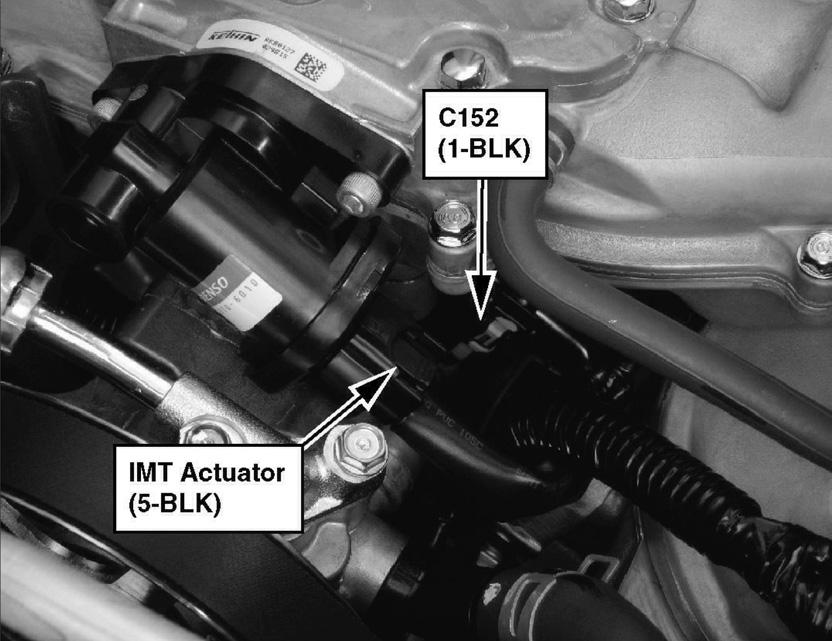

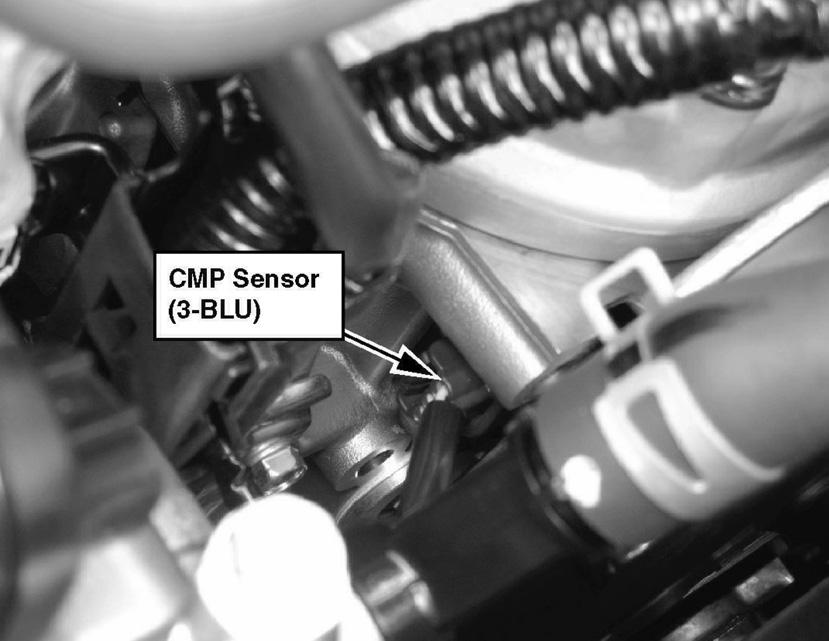

Fig 111: Front Of Engine

G00454037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 112: Front Of Engine

G00454038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

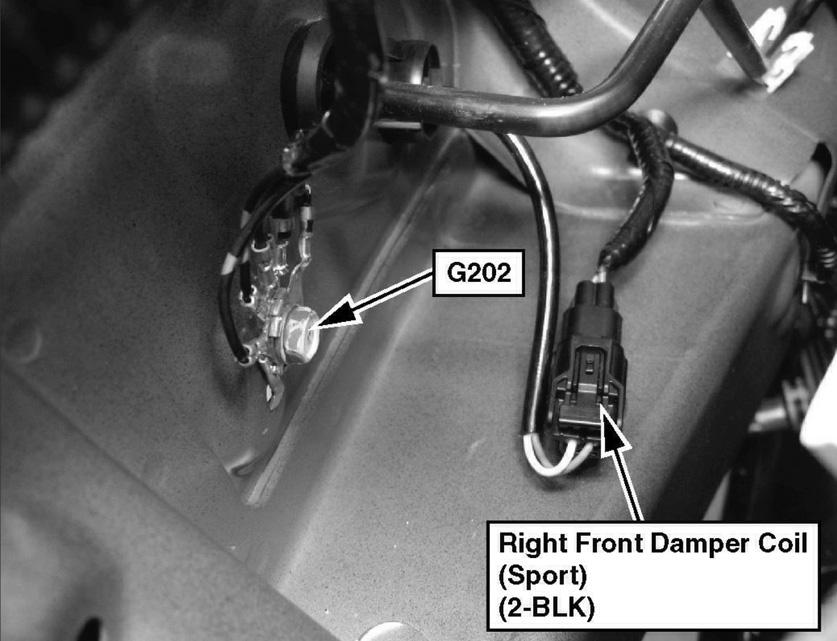

Fig 113: Right Side Of Engine Compartment

G00454039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

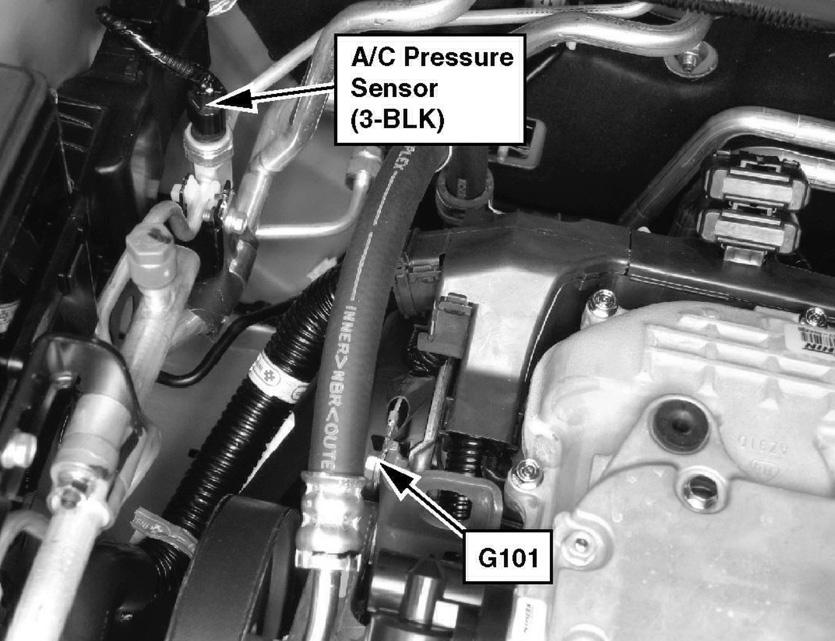

Fig 114: Right Side Of Engine Compartment

G00454040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

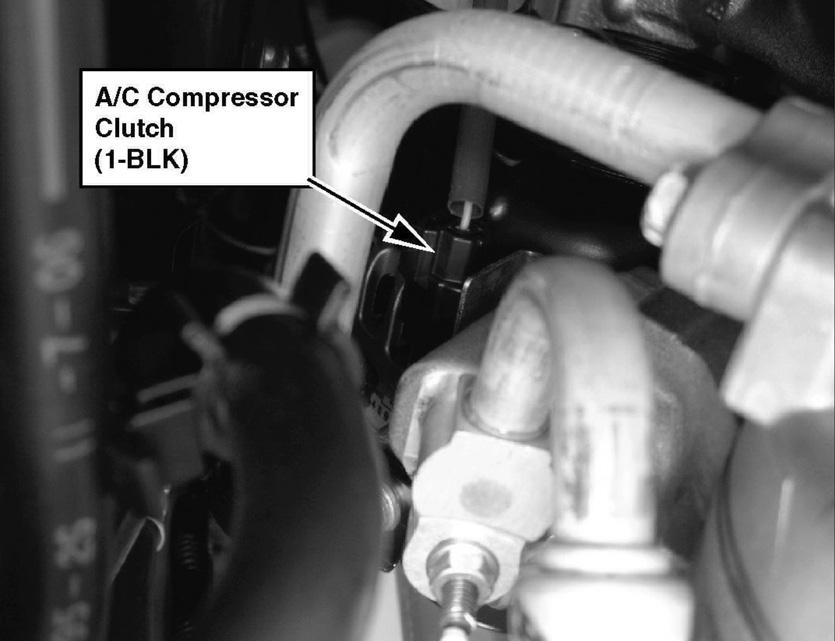

Fig 115: Front Of Engine

G00454041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Right Side Of Engine Compartment

G00454042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

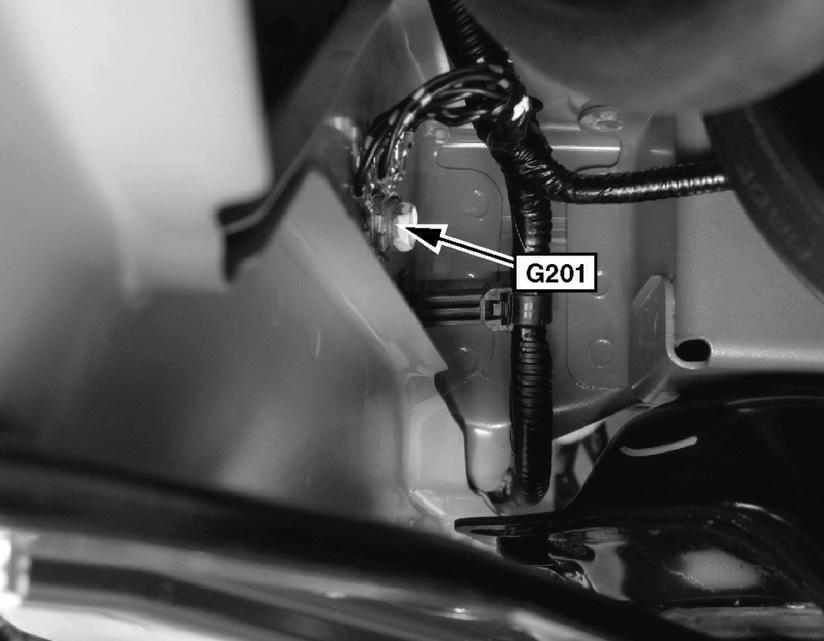

Fig 117: Right Side Of Engine Compartment

G00454043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

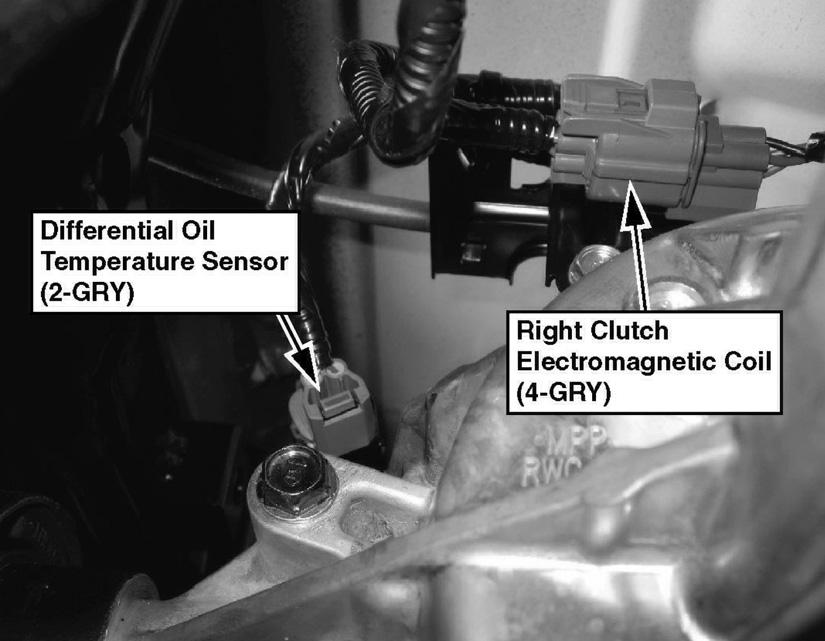

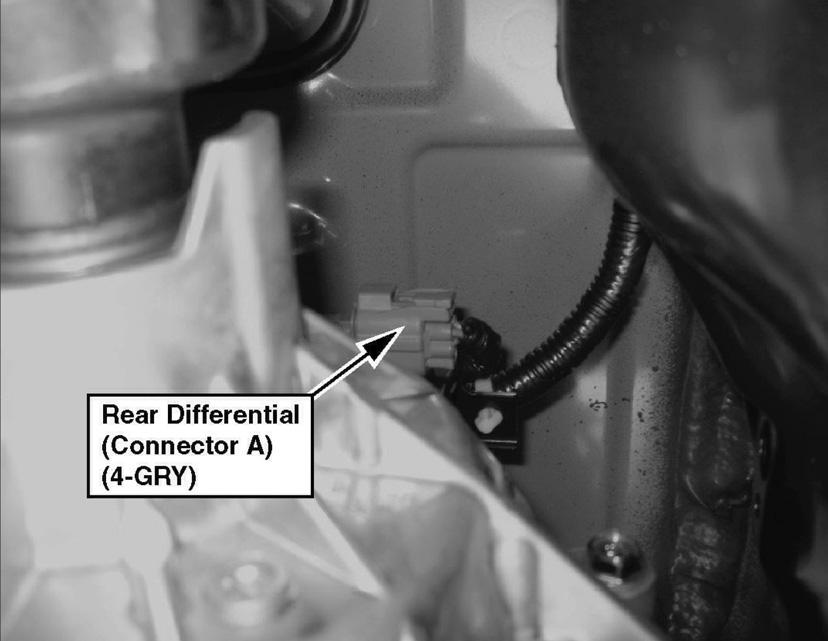

Fig 118: Rear Differential

G00454044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 119: Right Side Of Rear Subframe

G00454045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

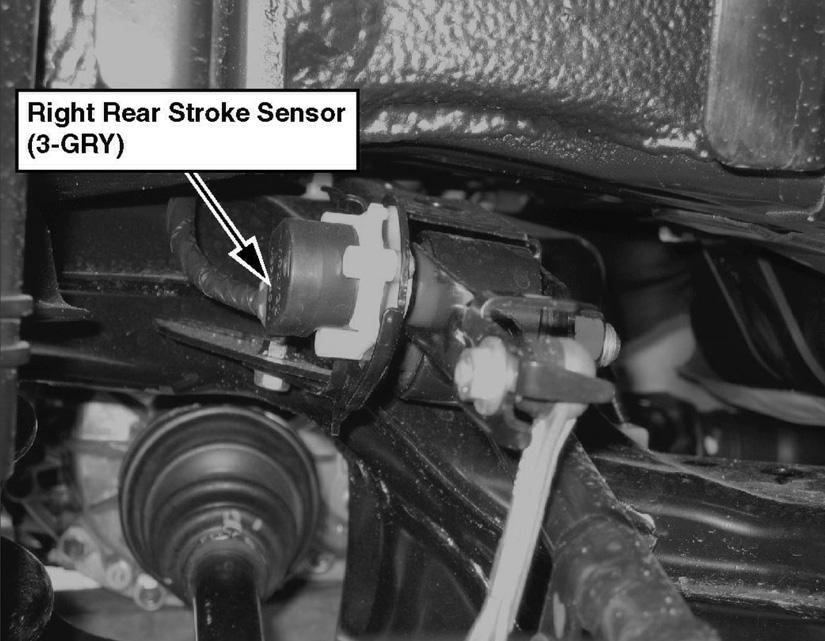

Fig 120: Right Rear Subframe (Sport)

G00454046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

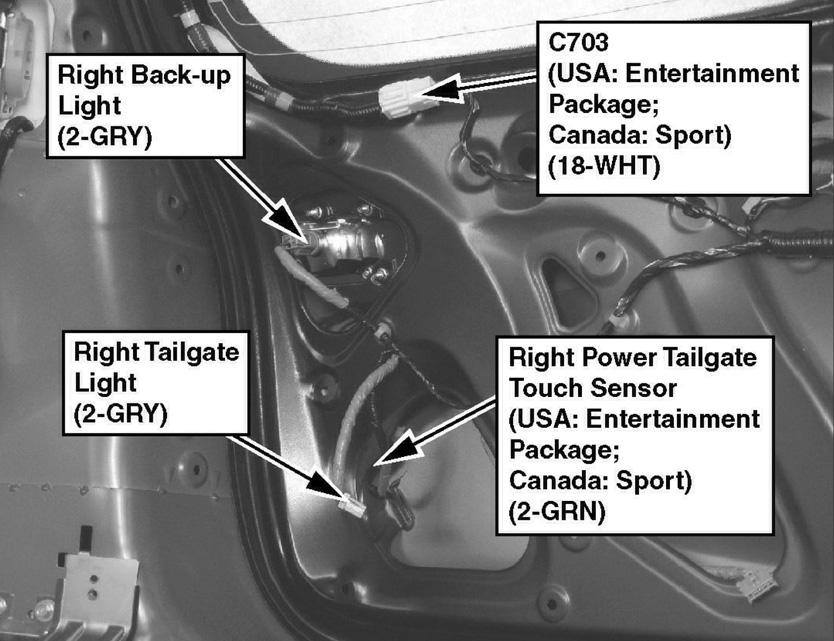

Fig 121: Right Side Of Tailgate

G00454047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

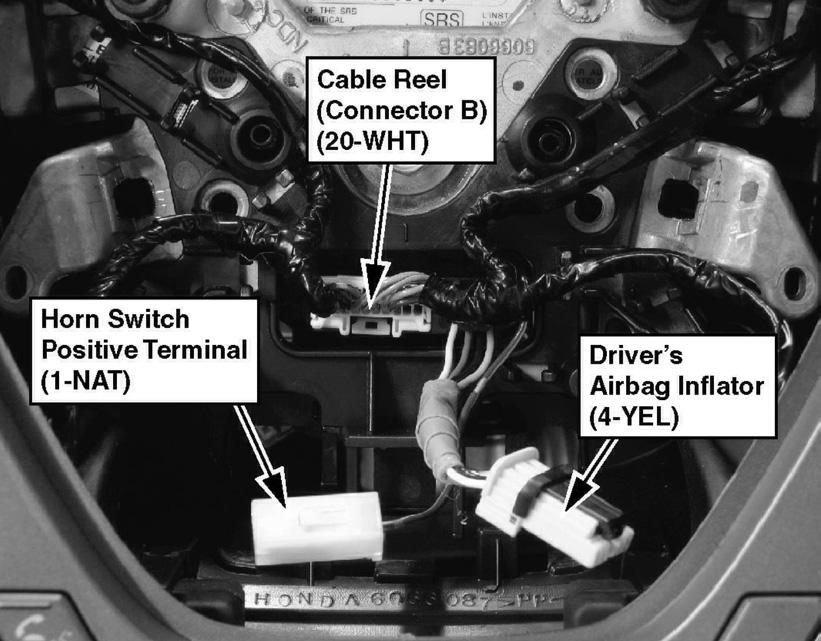

Fig 122: Steering Wheel

G00454048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

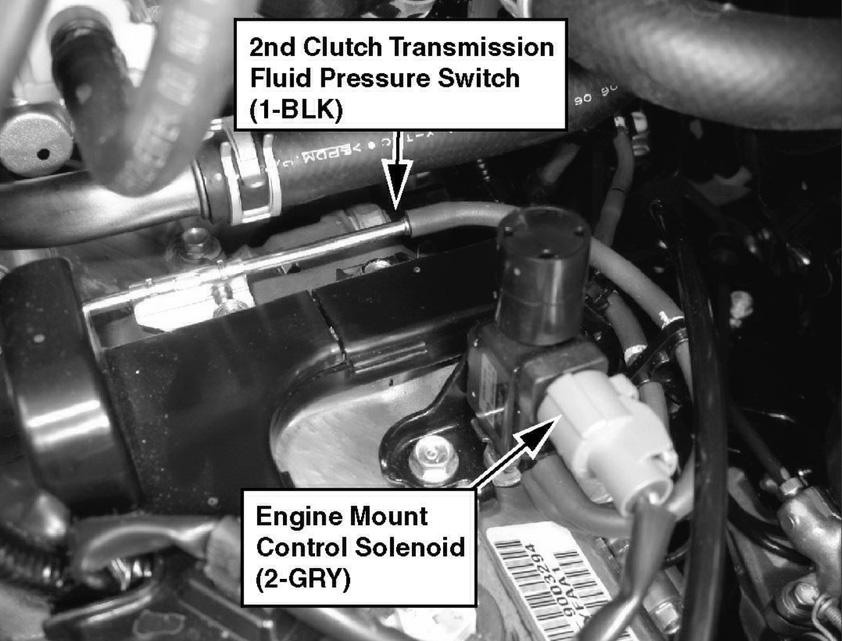

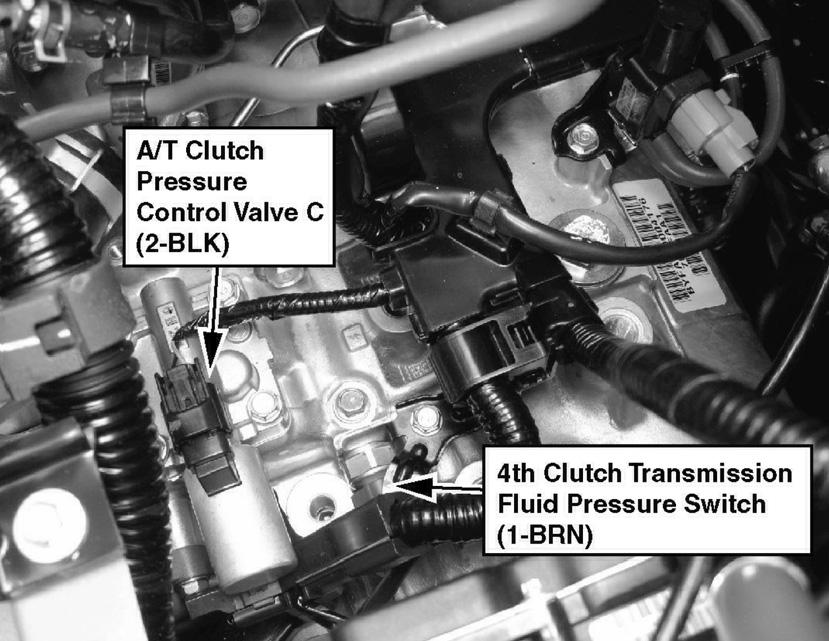

Fig 123: Transmission Housing

G00454049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

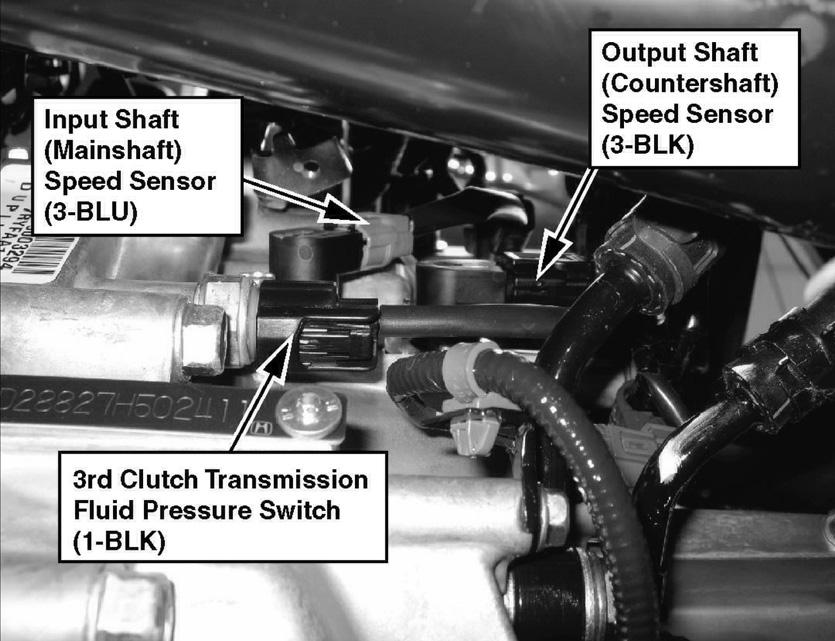

Fig 124: Transmission Housing

G00454050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 125: Transmission Housing

G00454051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

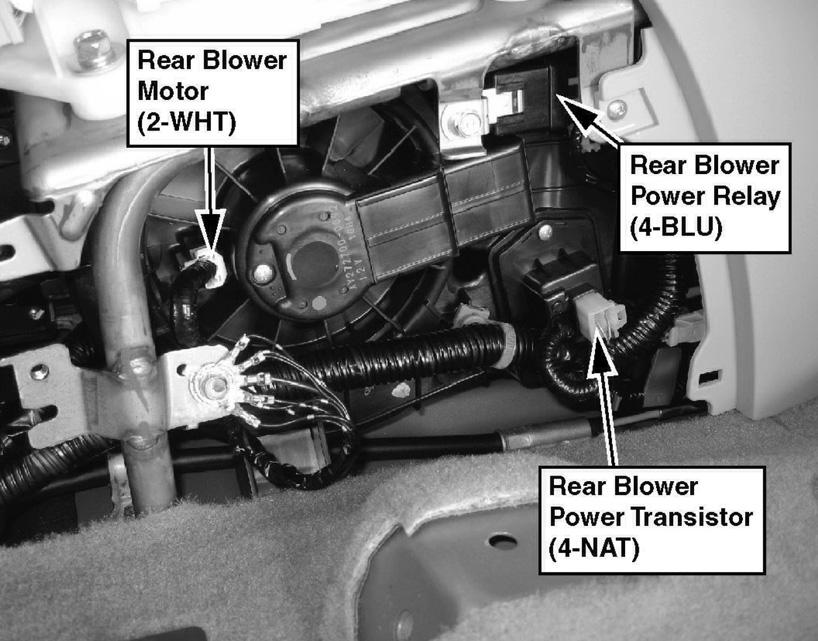

Fig 126: Under Center Console

G00454052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

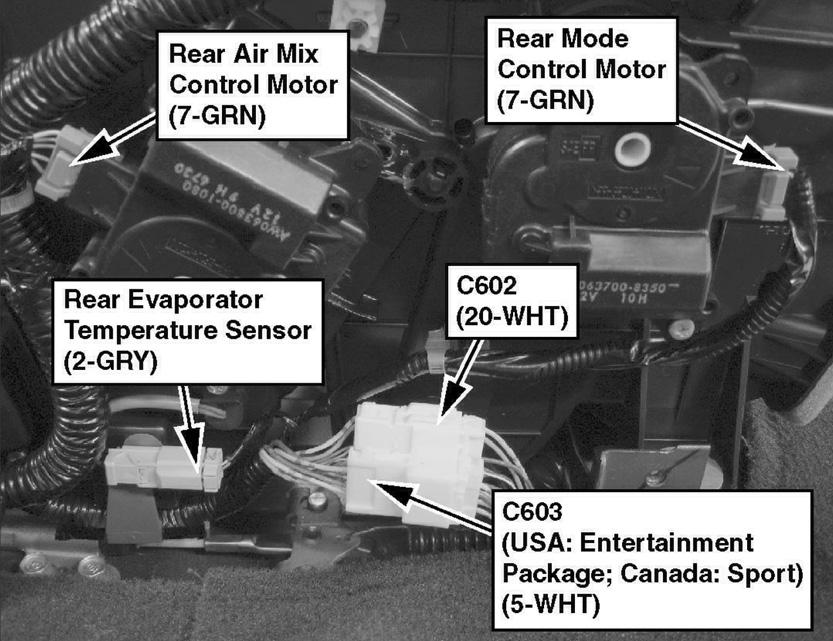

Fig 127: Under Center Console

G00454054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

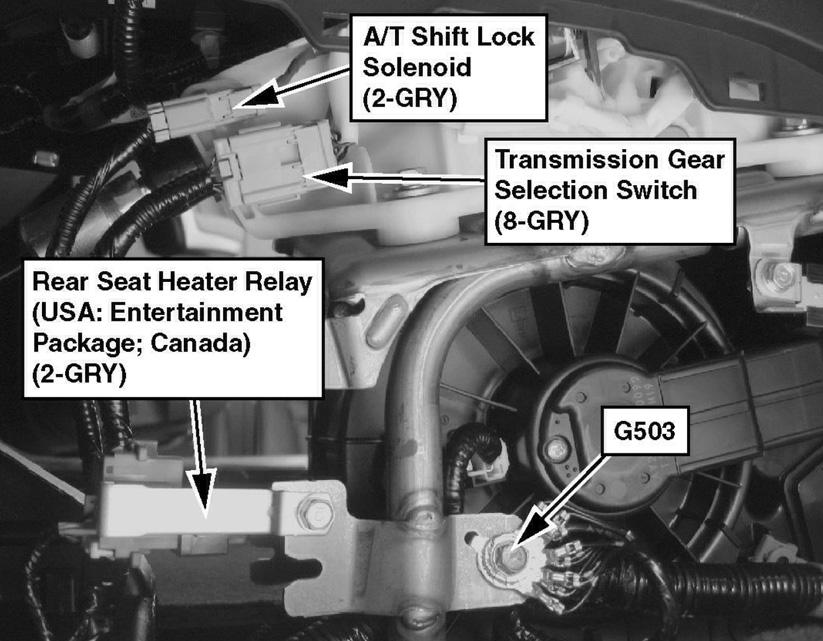

Fig 128: Under Center Console

G00454055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 129: Under Driver's Seat

G00454056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Under Driver's Seat

G00454057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 131: Under Driver's Seat

G00454058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 132: Under Driver's Seat (Tech, Sport)

G00454059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

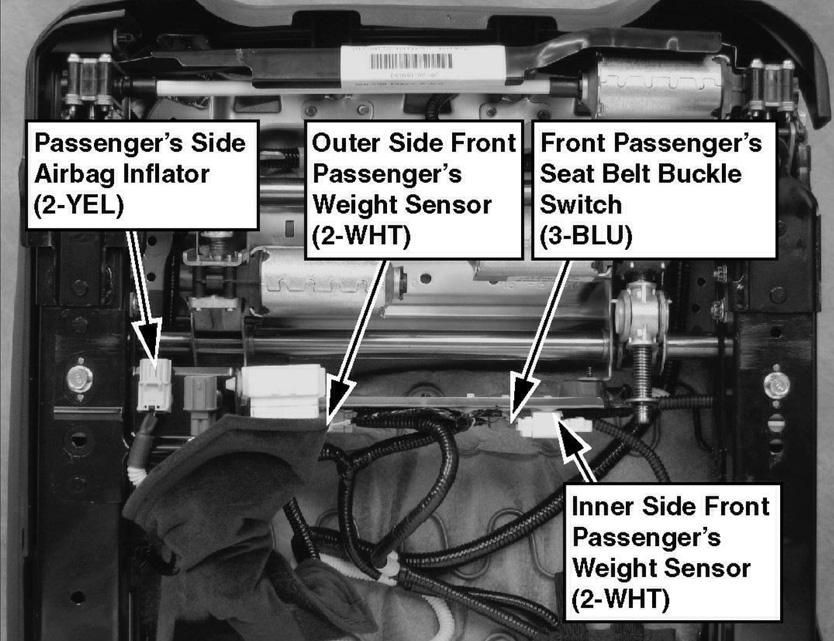

Fig 133: Under Front Passenger's Seat

G00454060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

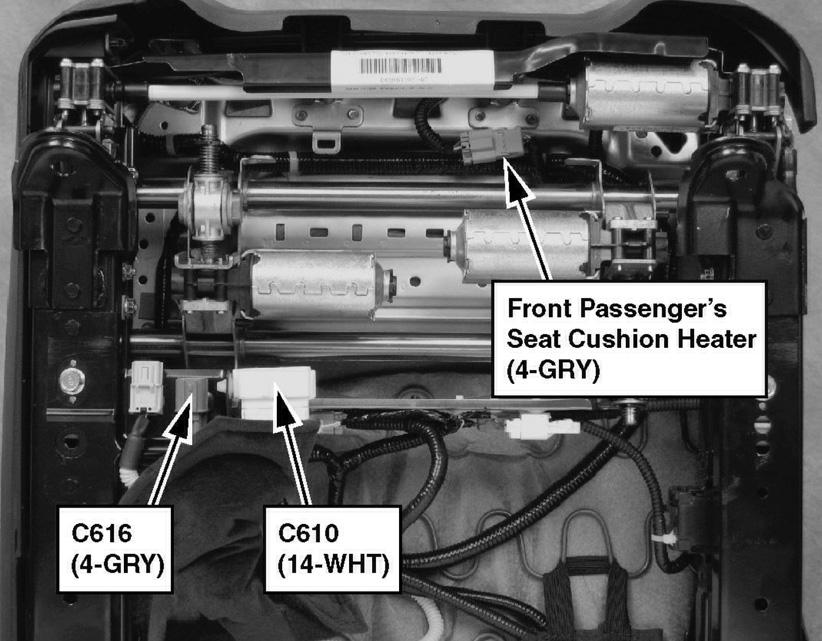

Fig 134: Under Front Passenger's Seat

G00454061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 135: Under Front Passenger's Seat

G00454062

Courtesy of AMERICAN HONDA MOTOR CO., INC.

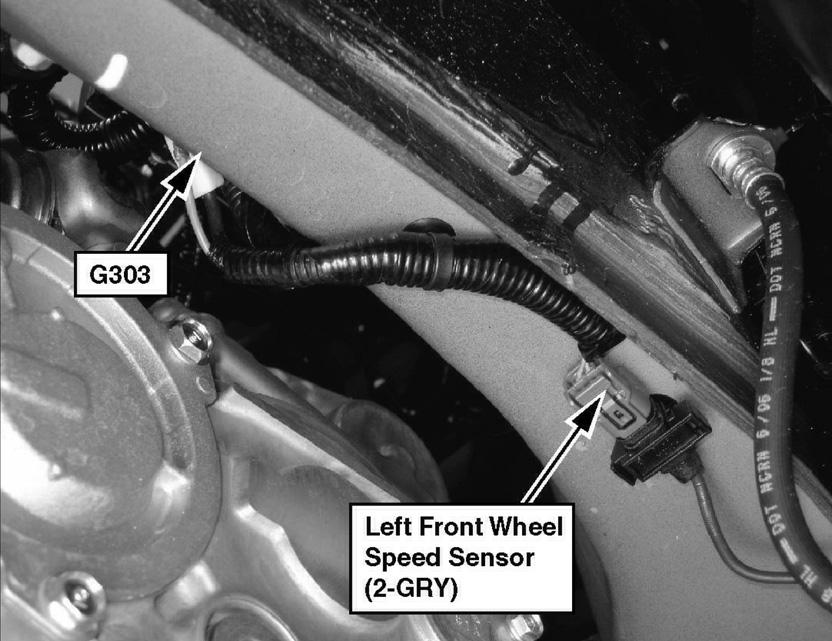

Fig 136: Lower Left Front Of Engine Compartment

G00454063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

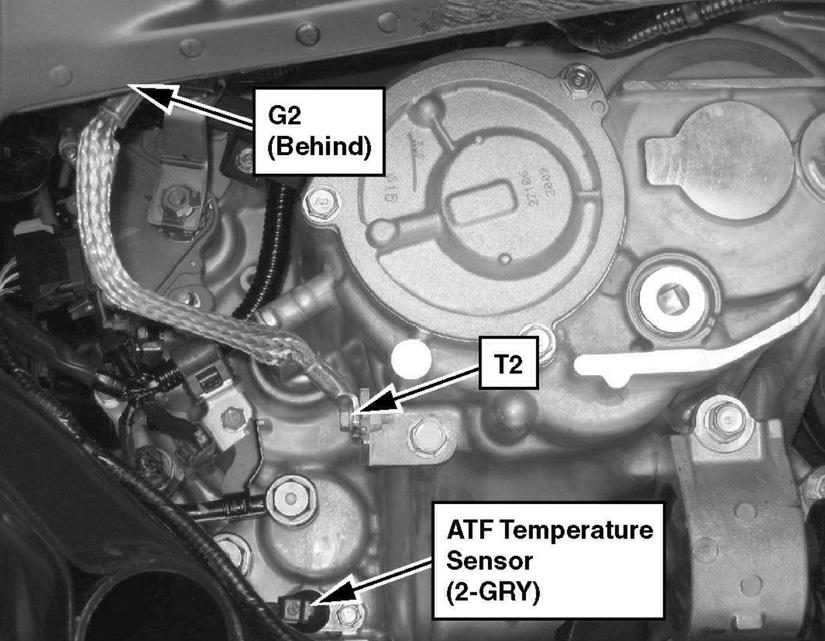

Fig 137: Lower Left Front Of Engine Compartment

G00454064

Courtesy of AMERICAN HONDA MOTOR CO., INC.

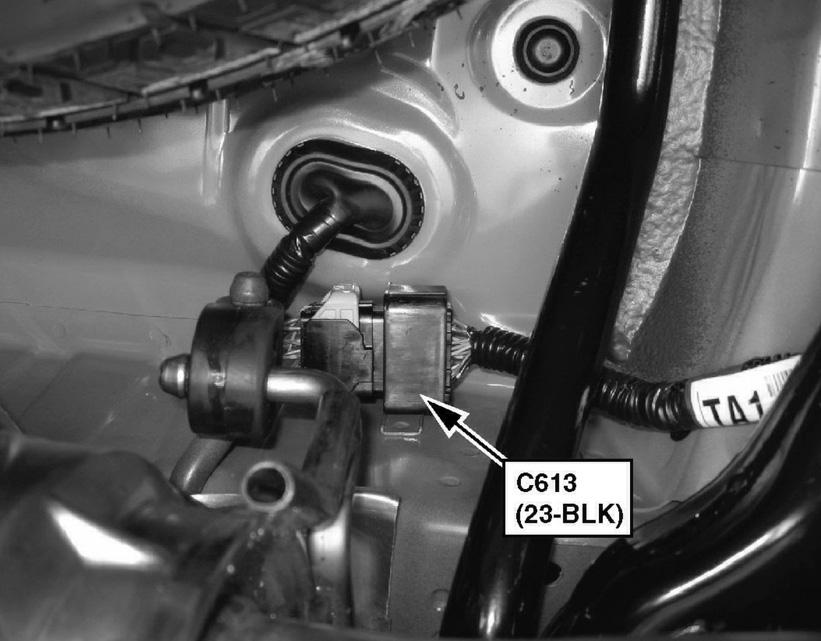

Fig 138: Under Left Rear Of Vehicle

G00454065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

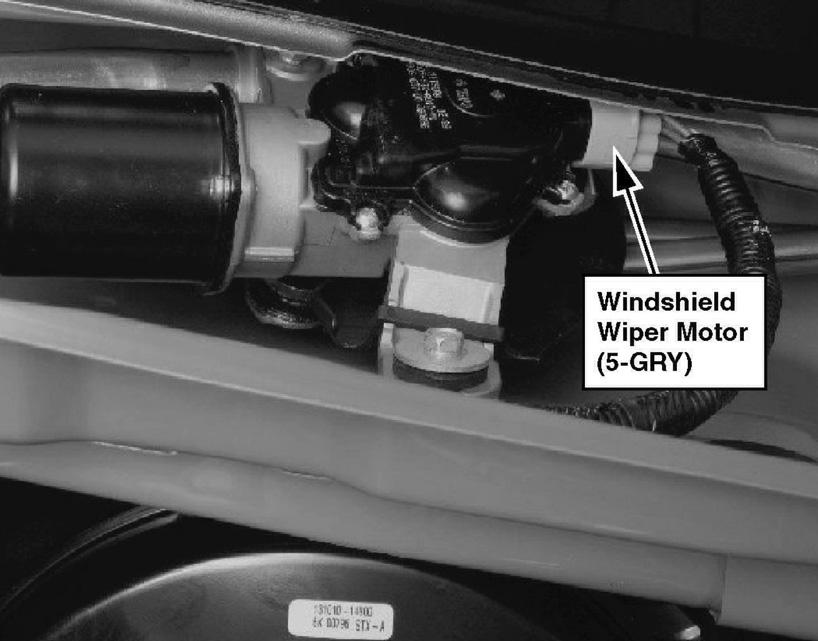

Fig 139: Left Rear Of Engine Compartment

G00454066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

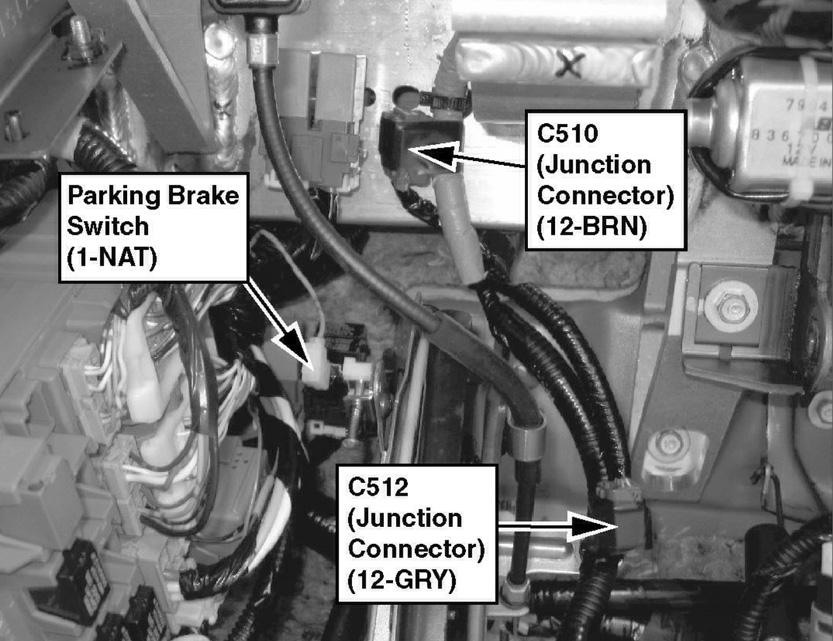

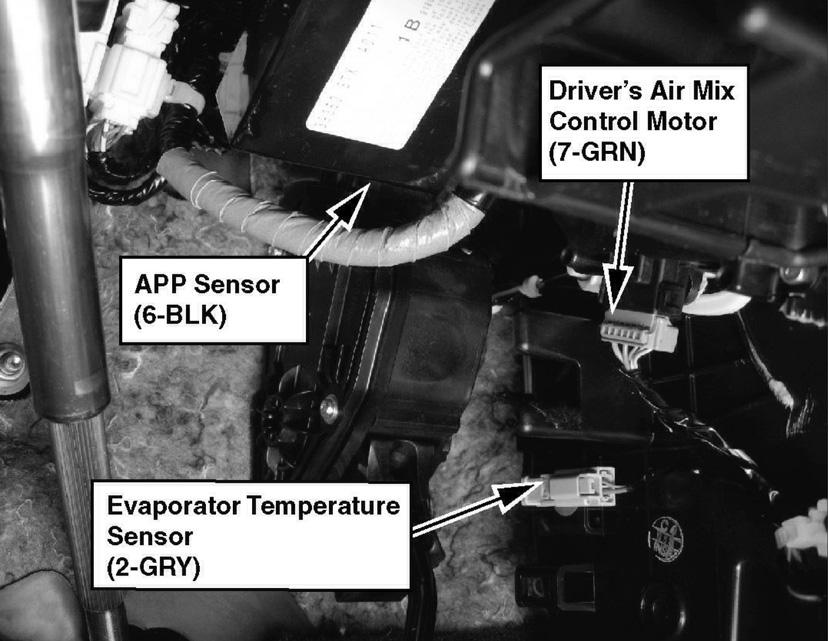

Fig 140: Left Side Of Dash

G00454067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 141: Left Side Of Dash

G00454068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

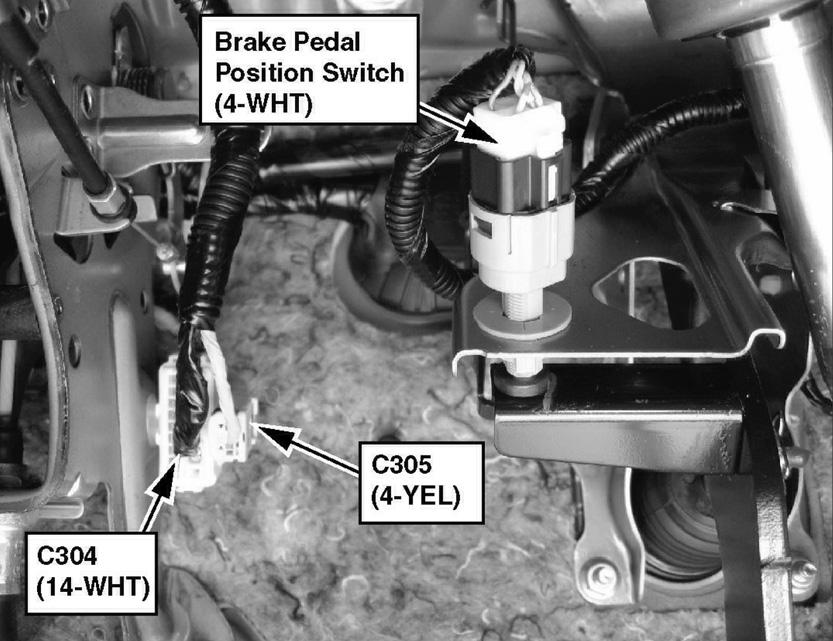

Fig 142: Left Side Of Dash

G00454069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 143: Left Side Of Dash

G00454070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

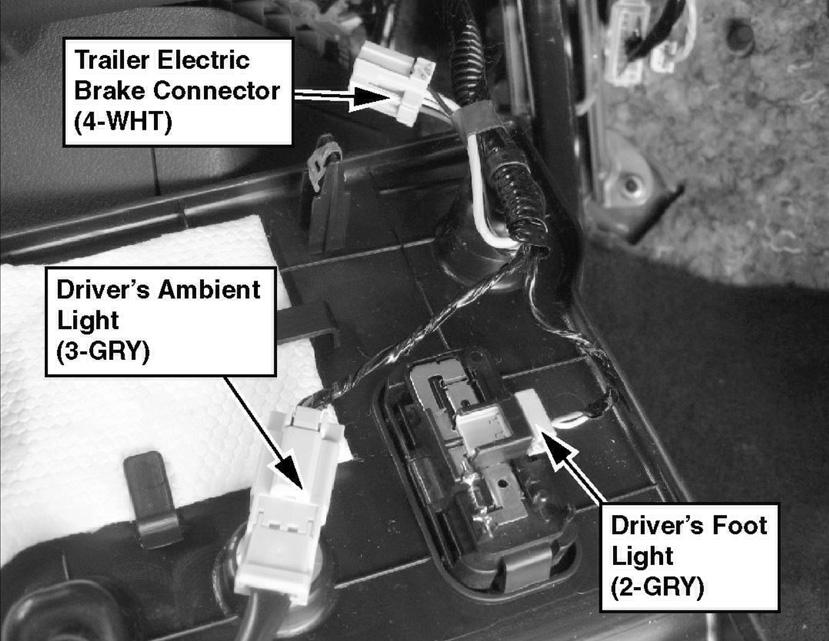

Fig 144: Left Side Of Dash

G00454071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

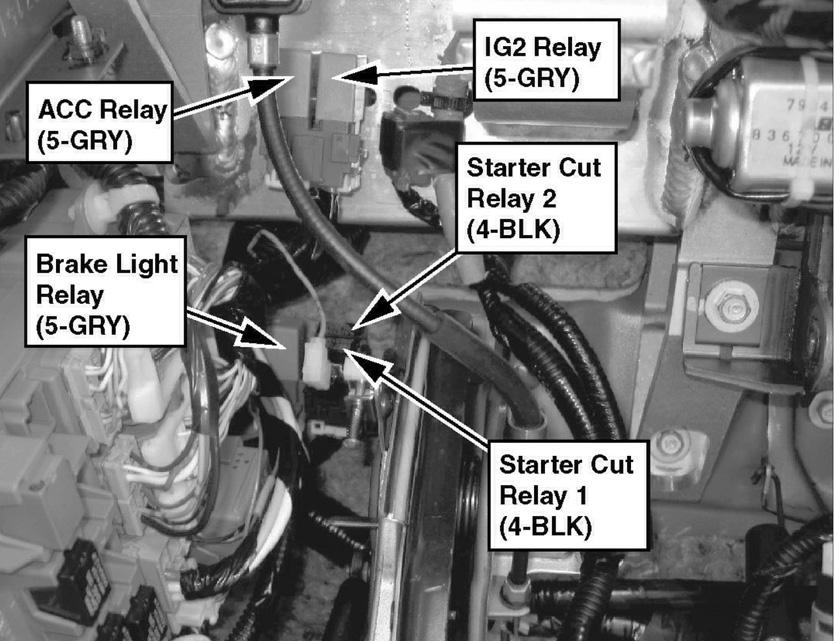

Fig 145: Left Side Of Dash

G00454072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 146: Left Side Of Dash

G00454073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

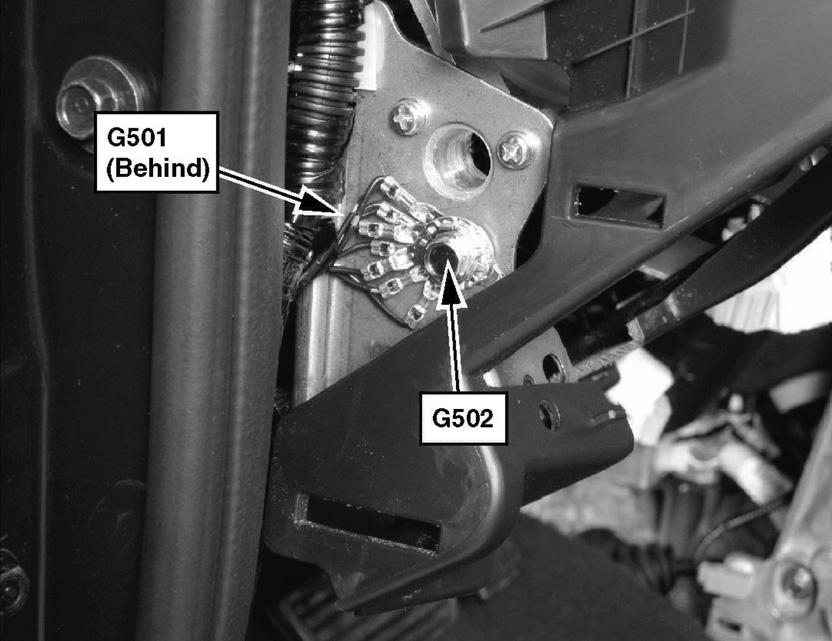

Fig 147: Left Side Of Dash

G00454074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Middle Of Dash

G00454075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

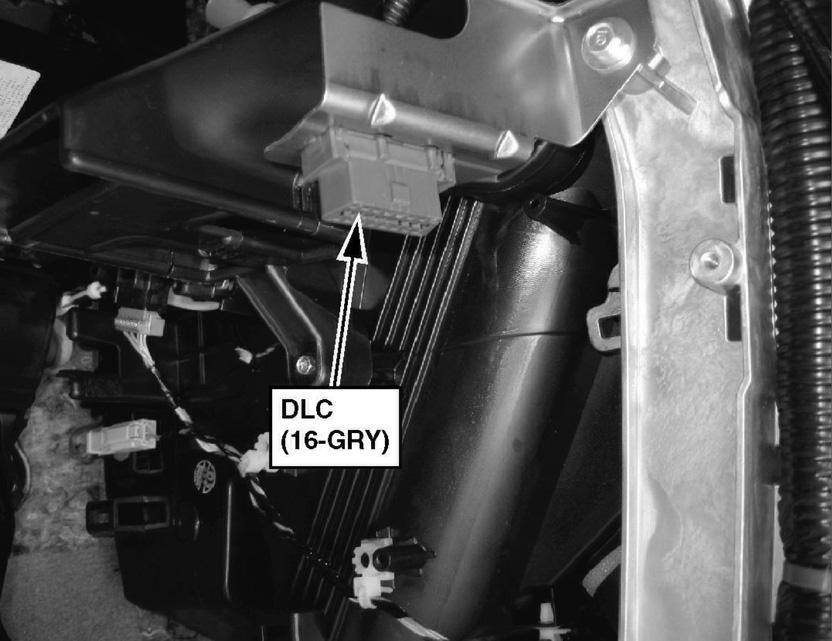

Fig 149: Middle Of Dash

G00454076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

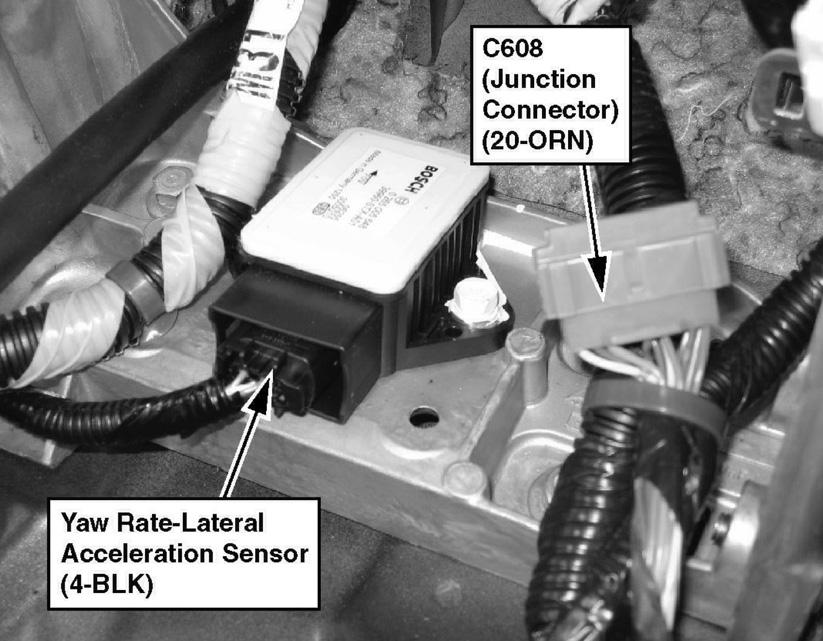

Fig 150: Middle Of Dash

G00454077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

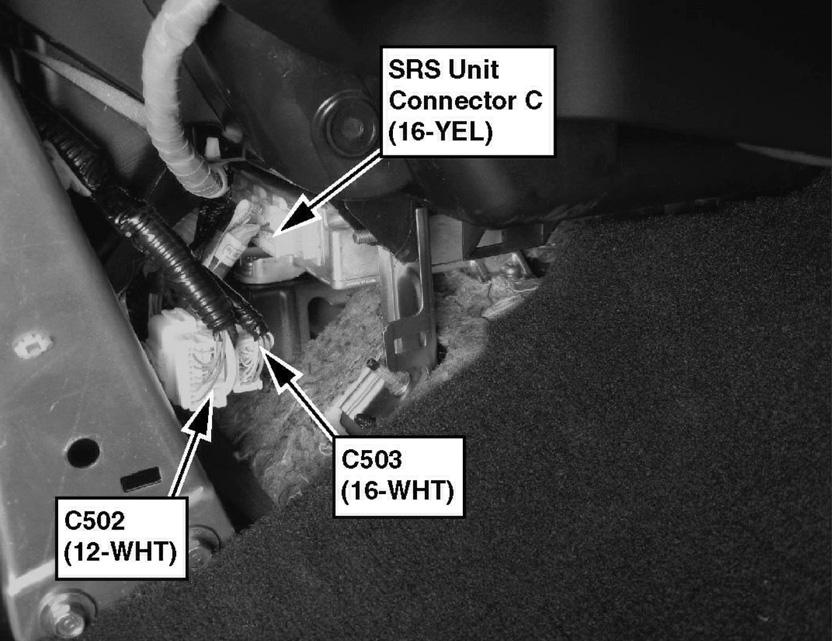

Fig 151: Middle Of Dash

G00454078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

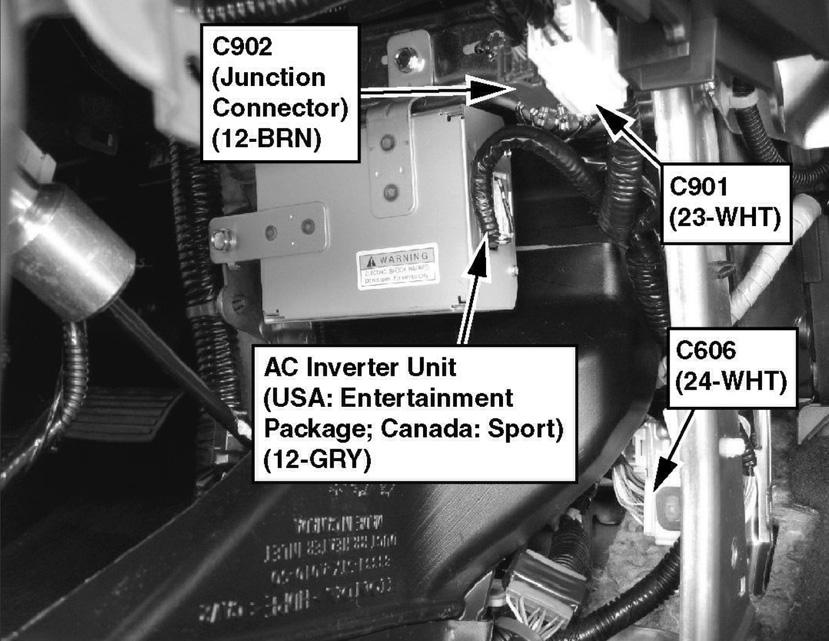

Fig 152: Middle Of Dash

G00454079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

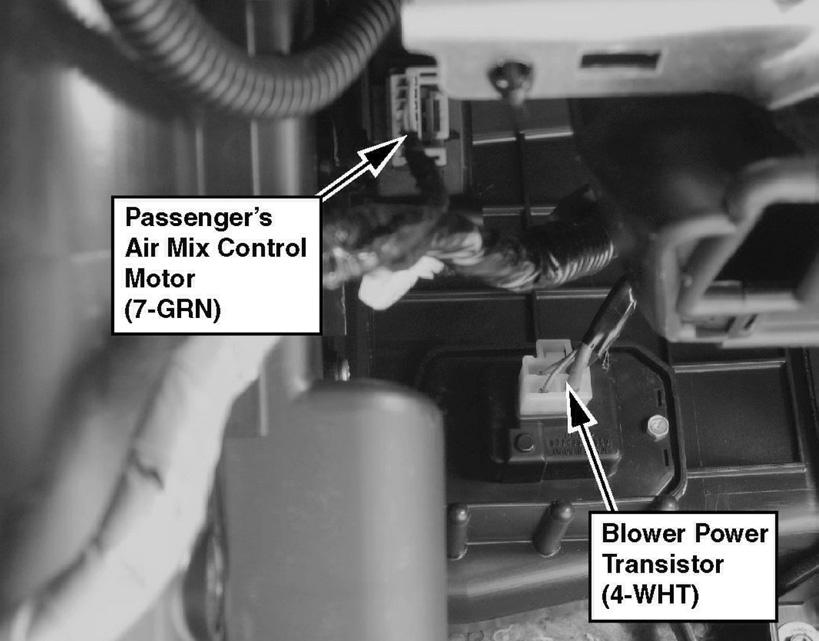

Fig 153: Middle Of Dash

G00454080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

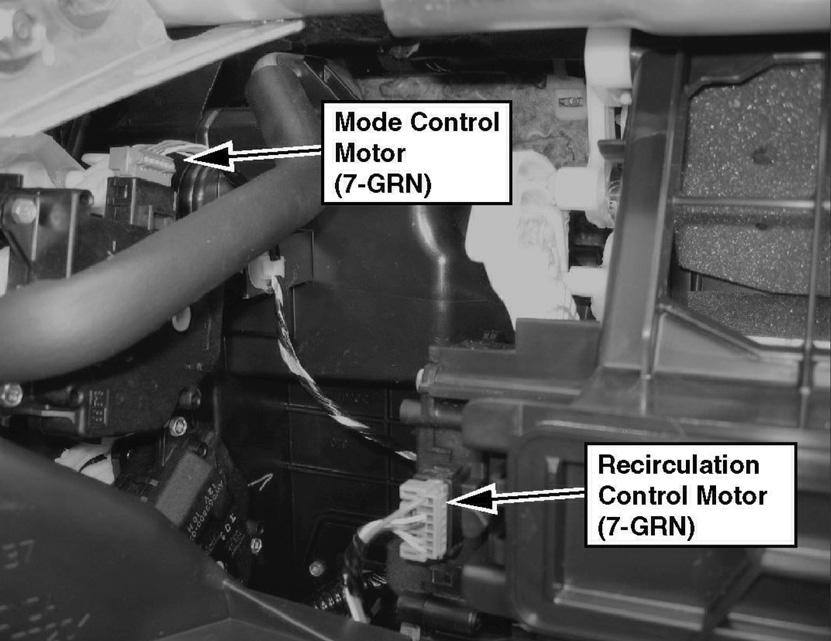

Fig 154: Middle Of Dash

G00454081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 155: Under Rear Of Center Console

G00454082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

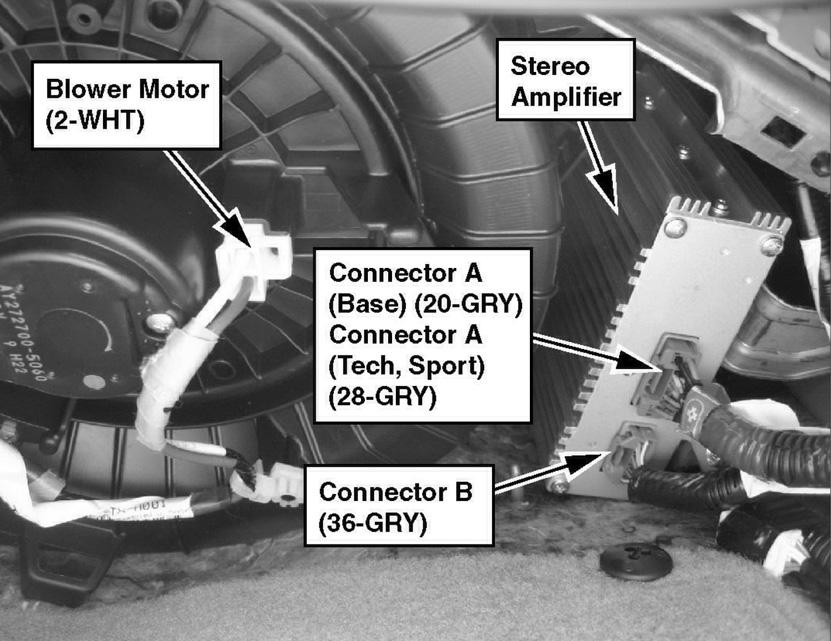

Fig 156: Right Side Of Dash

G00454083

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 157: Right Side Of Dash

G00454084

Courtesy of AMERICAN HONDA MOTOR CO., INC.

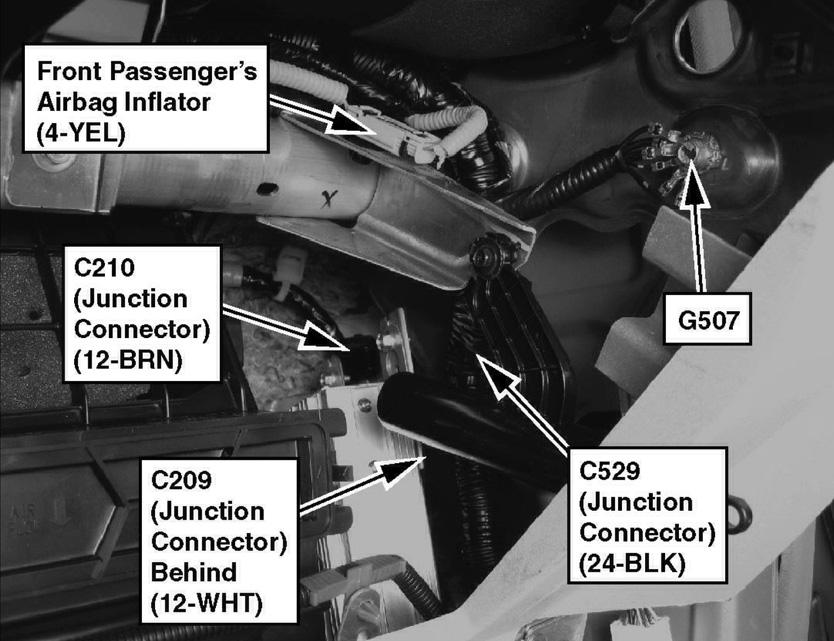

Fig 158: Right Side Of Dash

G00454085

Courtesy of AMERICAN HONDA MOTOR CO., INC.

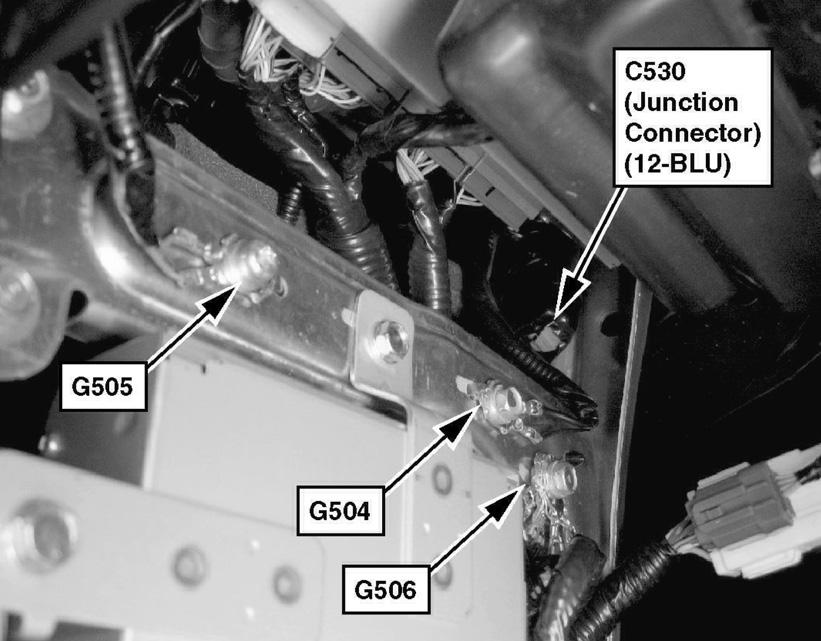

Fig 159: Right Side Of Dash (Sport)

G00454086

Courtesy of AMERICAN HONDA MOTOR CO., INC.

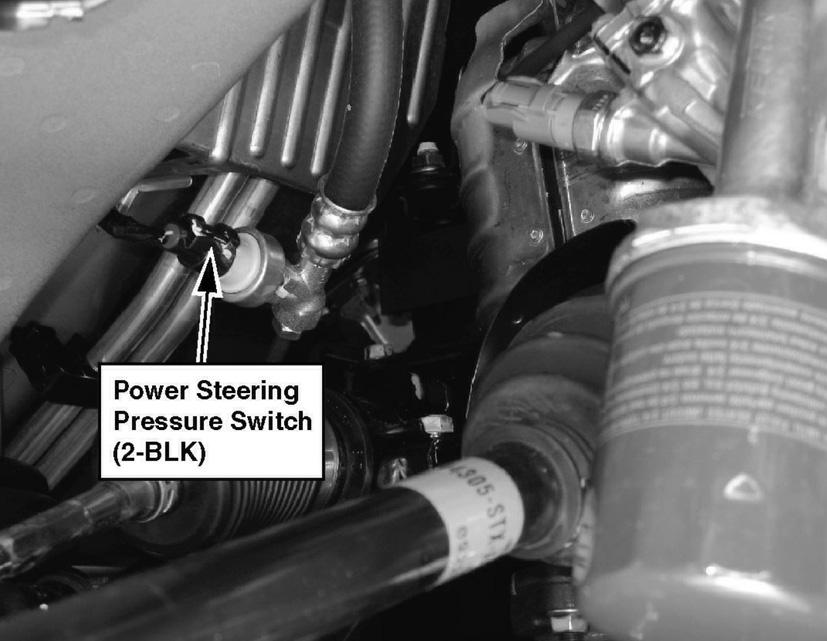

Fig 160: Lower Right Side Of Engine Compartment

G00454087

Courtesy of AMERICAN HONDA MOTOR CO., INC.

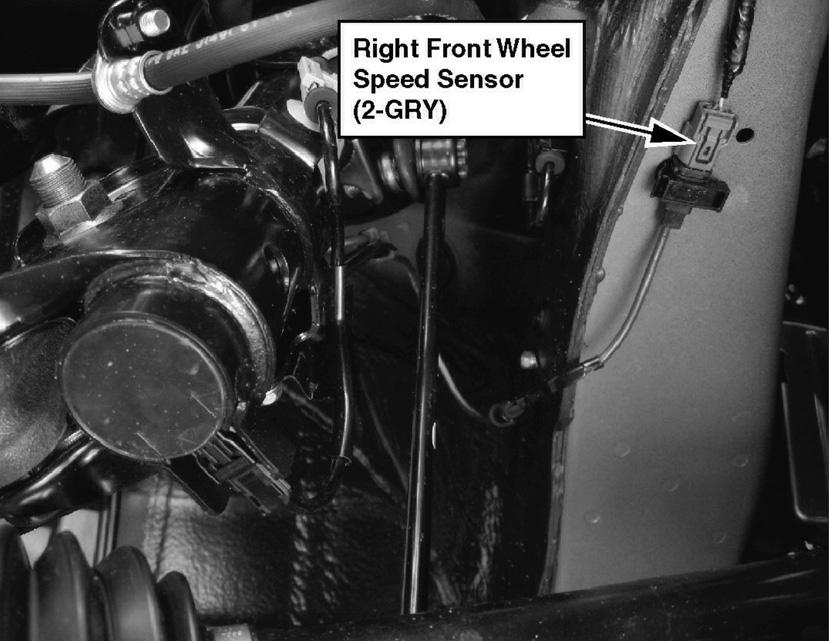

Fig 161: Lower Right Side Of Engine Compartment

G00454088

Courtesy of AMERICAN HONDA MOTOR CO., INC.

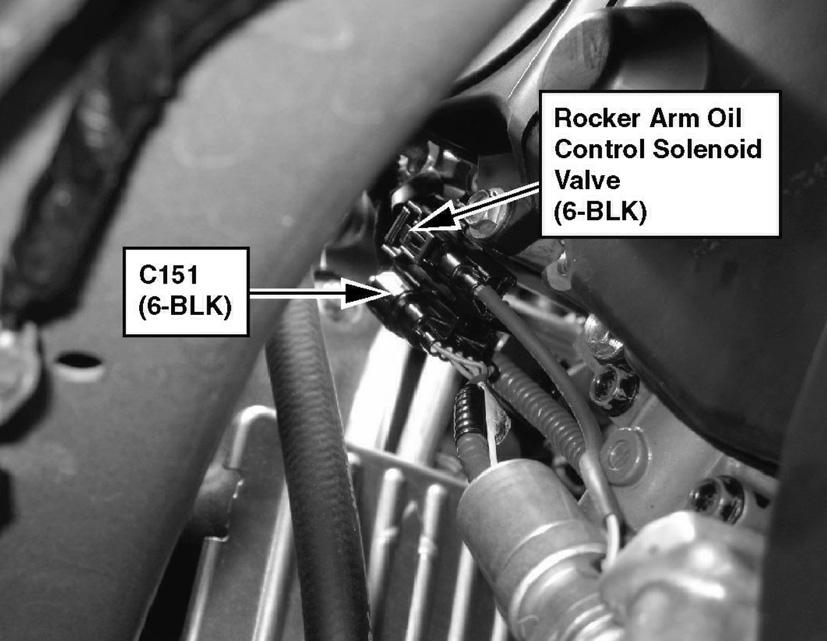

Fig 162: Lower Right Side Of Engine Compartment

G00454089

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 163: Lower Right Side Of Engine Compartment

G00454090

Courtesy of AMERICAN HONDA MOTOR CO., INC.
