Component Location Index

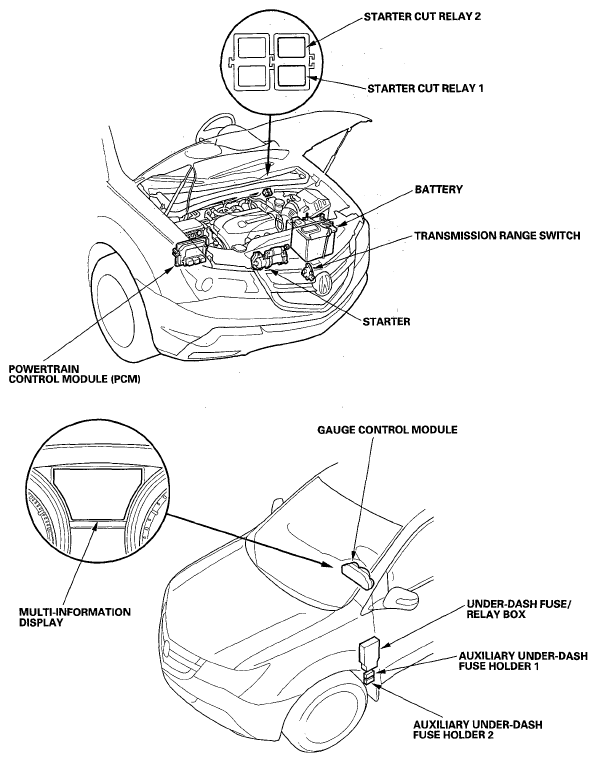

Fig 1: Identifying Starting System Component Location

G05484441

Courtesy of AMERICAN HONDA MOTOR CO., INC.
