Fuel Fill Pipe Removal/Installation

  1. Relieve the fuel pressure (see FUEL PRESSURE RELIEVING  ).
  2. Drain the fuel tank (see FUEL TANK DRAINING  ).
  3. Remove the fuel fill cap.
  4. Remove the rear fender cover (see REAR FENDER COVER REPLACEMENT ).
  5. Disconnect the fuel fill tube (A) and the quick-connector fittings (B).

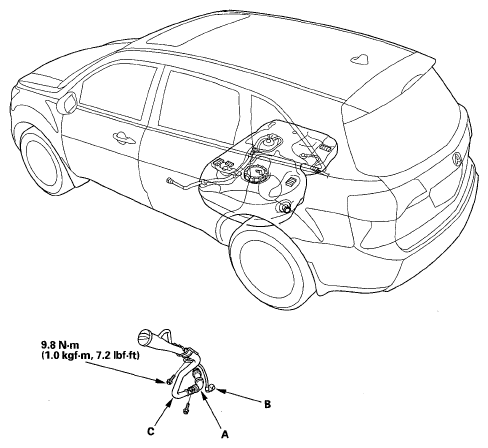

    Fig 1: Fuel Fill Tube And Quick-Connector Fittings With Torque Specification
    G05485287Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the fuel fill pipe (C).
  7. Install the parts in the reverse order of removal.
