Exploded View: Notes

Replace the pump as an assembly if any of the parts indicated with an asterisk (*) are worn or damaged.

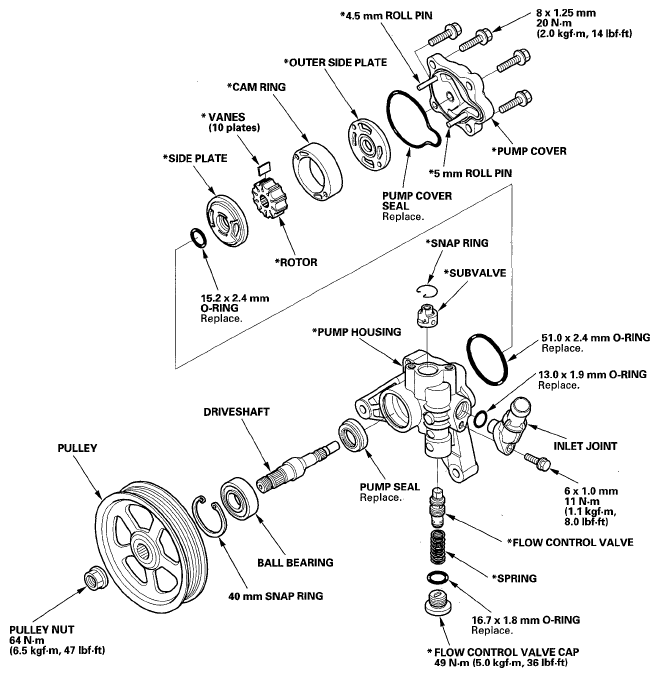

Fig 1: Exploded View Of Pump Overhaul With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Pulley holder 07ZAB-S5A0100
• Attachment, 28 x 30 mm 07946-1870100
• Driver 07749-0010000
