Transfer Assembly Removal

Raise the vehicle on a lift, and make sure it is supported securely.
Shift the transmission into N.
Remove the transmission undercover.

Fig 1: Identifying Transmission Undercover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

Fig 2: Drain Plug And Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Remove the front subframe stiffener.

Fig 3: Identifying Front Subframe Stiffener
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove exhaust pipe A.

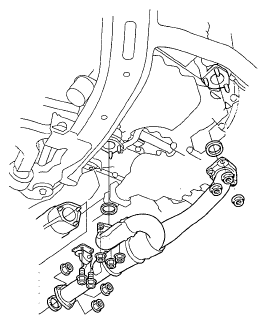

Fig 4: Identifying Exhaust Pipe A
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather hose bracket (A), and disconnect the breather hose (B) from the breather pipe (C) on the transfer assembly.

Fig 5: Identifying Transfer Breather Hose Bracket, Breather Hose And Breather Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

Fig 6: Identifying Reference Mark Across Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer companion flange.
Remove the transfer assembly from the transmission.

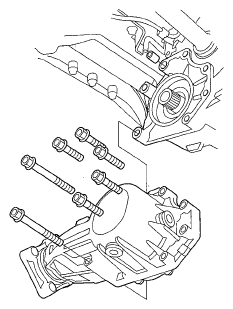

Fig 7: Identifying Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
