Transfer Assembly: Disassembly

Exploded View

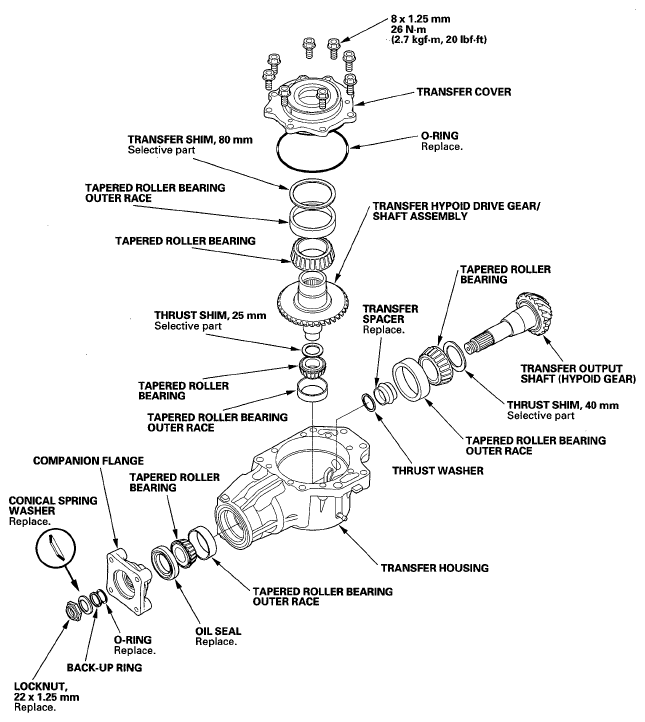

Fig 1: Exploded View Of Transfer Housing With Torque Specification

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Companion flange holder 07XAB-0010101

1. Remove the transfer cover (A) from the transfer housing (B).
   Fig 2: Identifying Transfer Cover Of Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the transfer hypoid drive gear/shaft assembly (C), 25 mm thrust shim (D), and tapered roller bearing (E).
3. Remove the O-ring (F) from the cover.
4. Drain the transfer fluid (hypoid gear oil) from the transfer housing.
5. Cut the lock tab on the locknut using a chisel.
   Fig 3: Identifying Lock Tab On Locknut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
   Fig 4: Identifying Transfer Housing In Bench Vise

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the companion flange holder on the companion flange, then loose the locknut.
8. Remove the companion flange holder.
9. Remove the locknut (A), conical spring washer (B), back-up ring (C), O-ring (D), and companion flange (E) from the transfer output shaft (hypoid gear) (F).
   Fig 5: Identifying Locknut , Conical Spring Washer, Back-Up Ring, O-Ring, And Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the thrust washer (C) and transfer spacer (D) from the transfer output shaft (hypoid gear).
    Fig 6: Identifying Transfer Output Shaft, Transfer Housing, Thrust Washer And Transfer Spacer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the oil seal (A) and tapered roller bearing (B) from the transfer housing (C).
    Fig 7: Identifying Oil Seal, Tapered Roller Bearing And Transfer Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
