Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

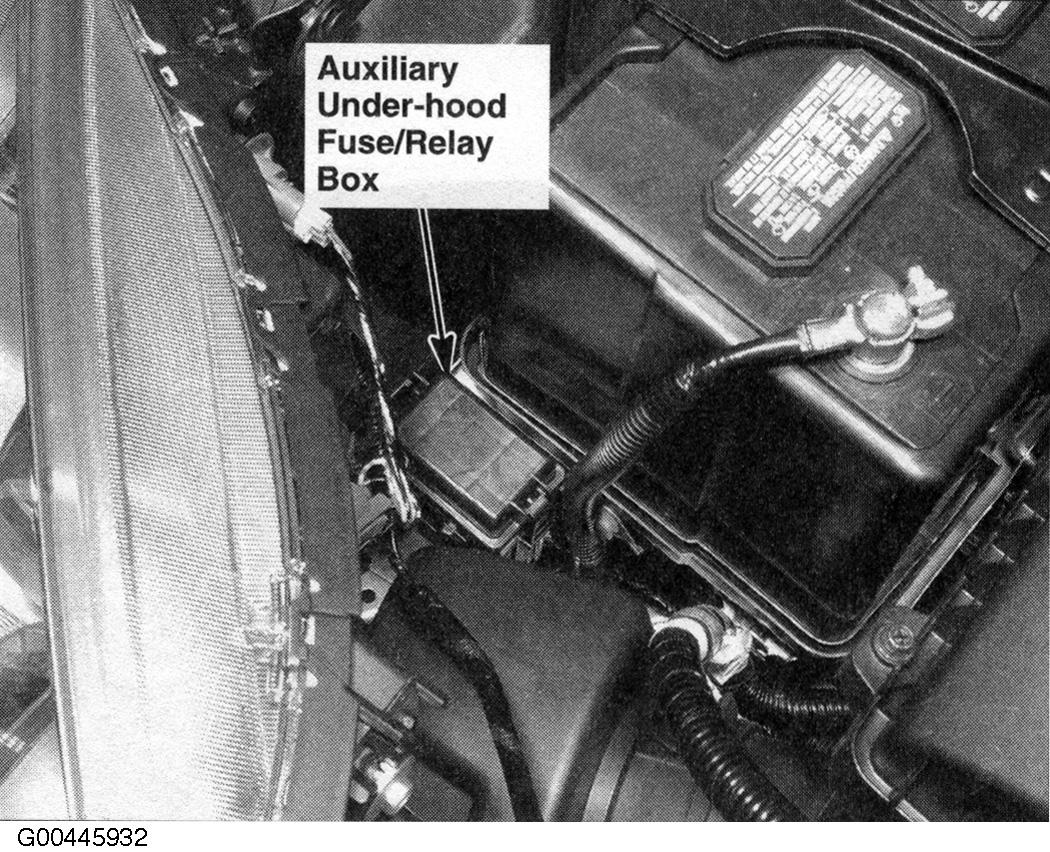

Auxiliary Under-Hood Fuse/Relay Box Left front of engine compartment. See Figure.

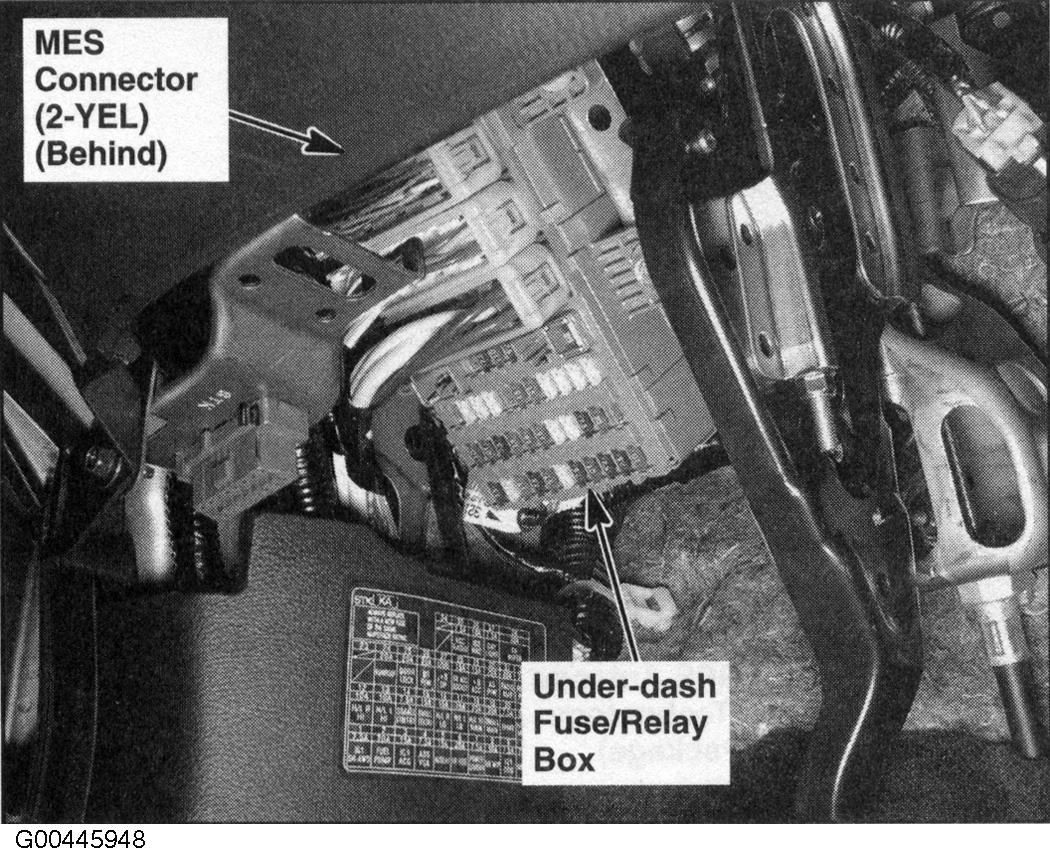

Under-Dash Fuse/Relay Box Under left end of dash. See Figure.

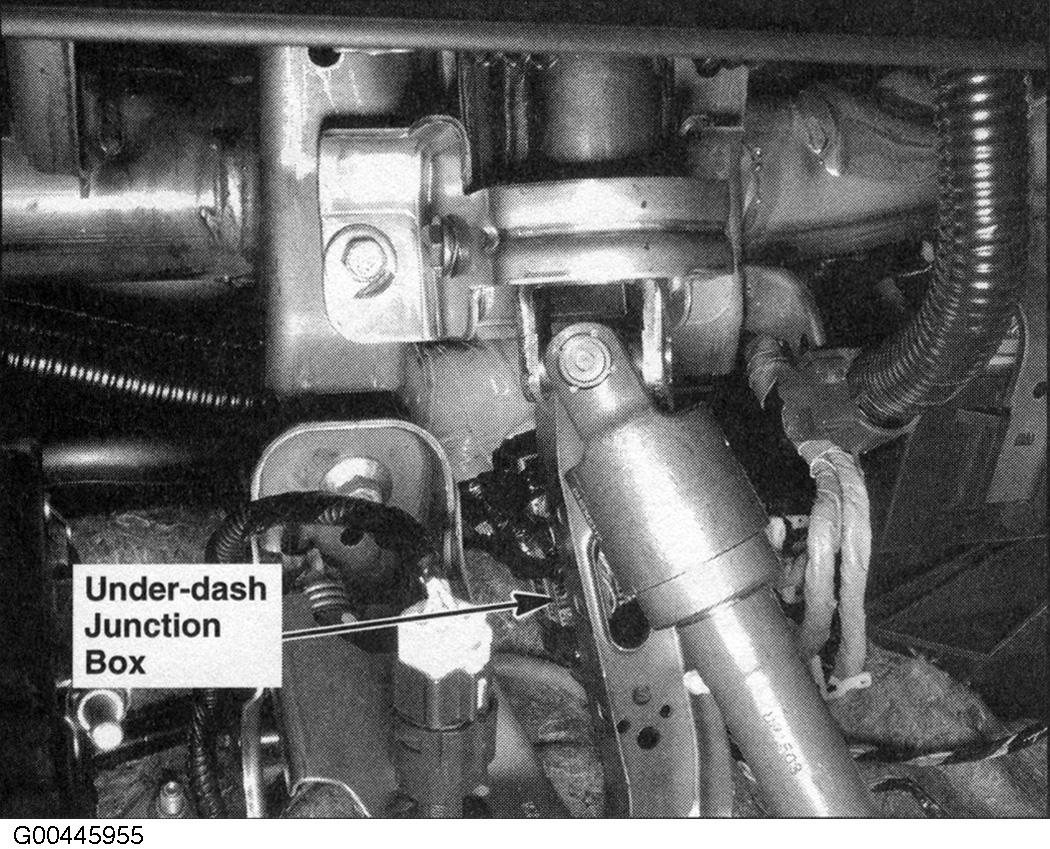

Under-Dash Junction Box Under left side of dash. See Figure.

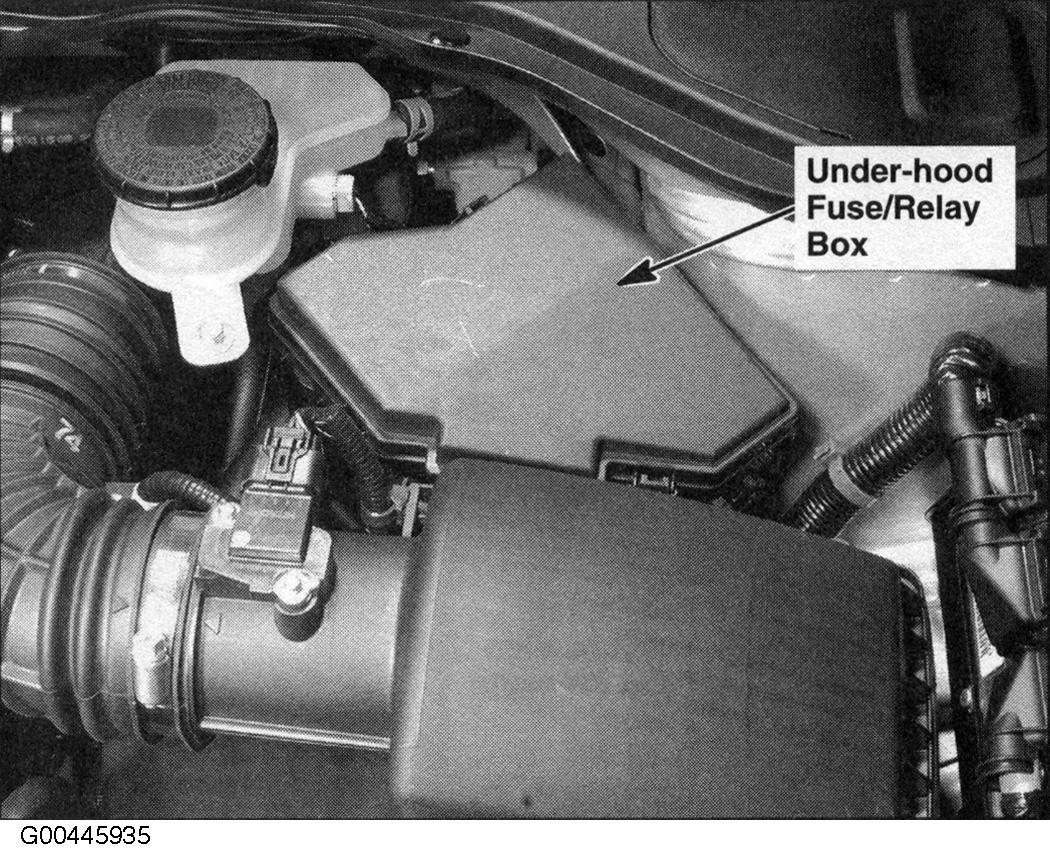

Under-Hood Fuse/Relay Box Left rear of engine compartment. See Figure.
