Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

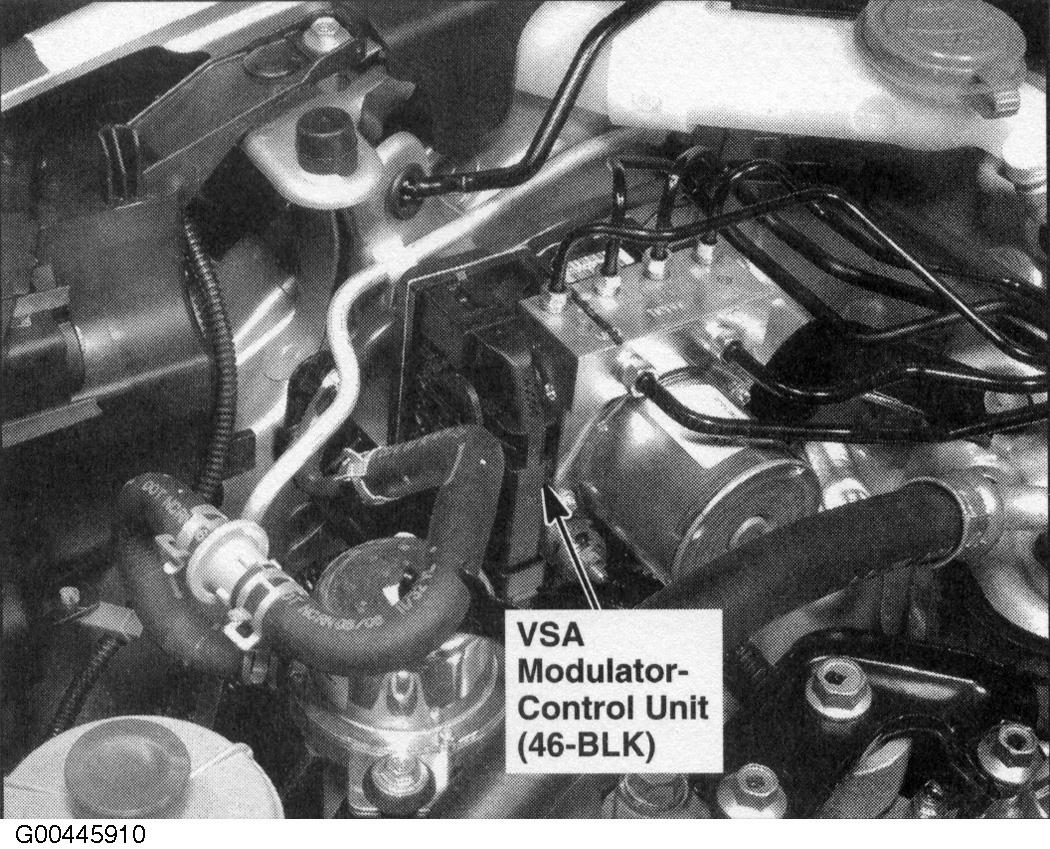

Fig 1: Right Side Of Engine Compartment

G00445910

Courtesy of AMERICAN HONDA MOTOR CO., INC.

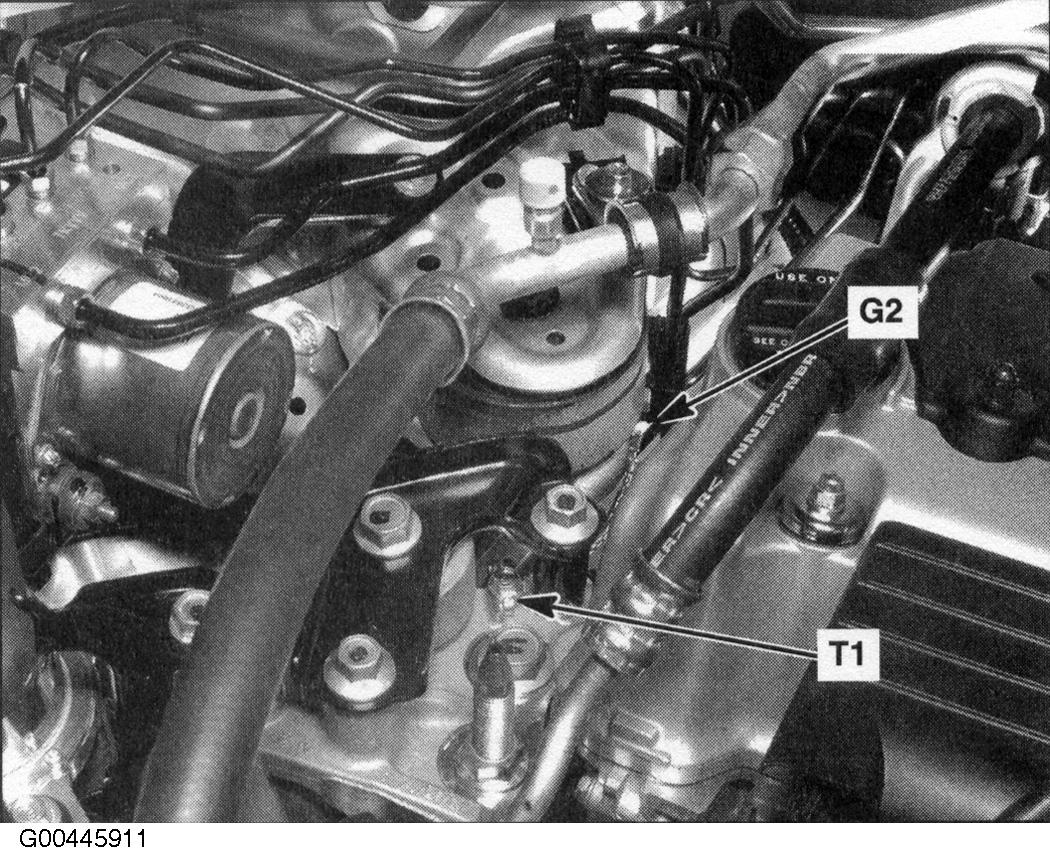

Fig 2: Right Side Of Engine Compartment

G00445911

Courtesy of AMERICAN HONDA MOTOR CO., INC.

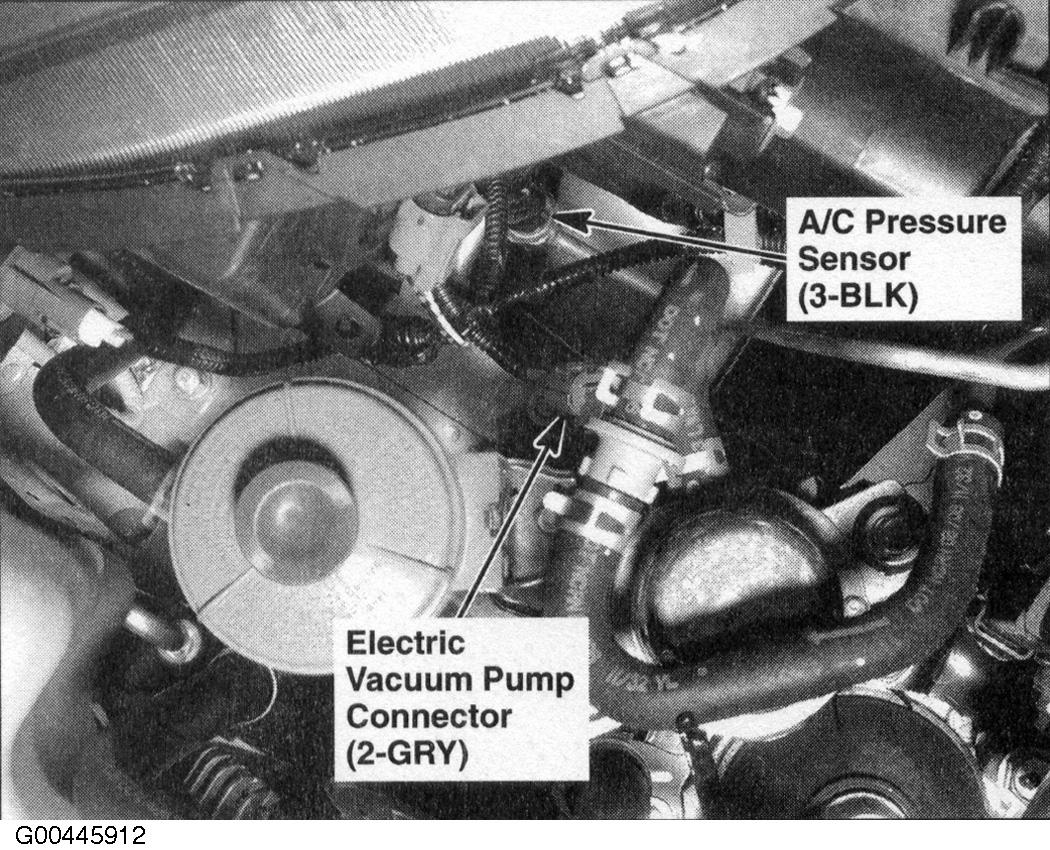

Fig 3: Right Side Of Engine Compartment

G00445912

Courtesy of AMERICAN HONDA MOTOR CO., INC.

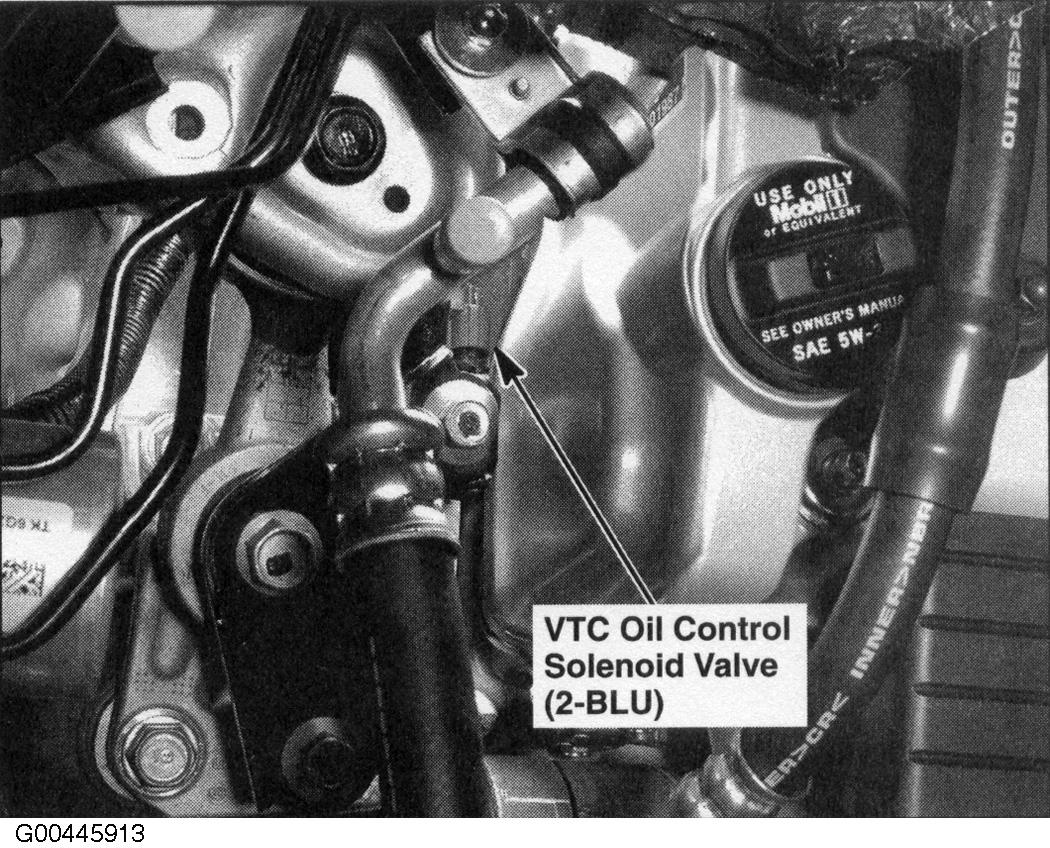

Fig 4: Right Side Of Engine

G00445913

Courtesy of AMERICAN HONDA MOTOR CO., INC.

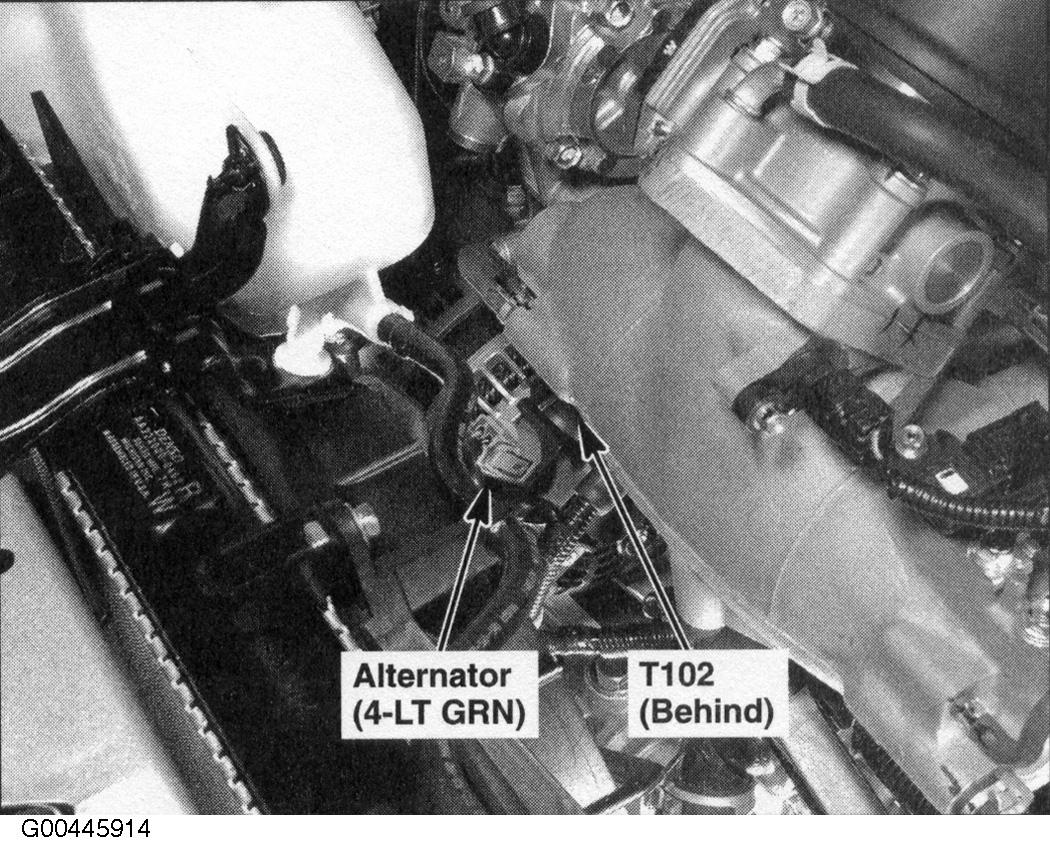

Fig 5: Left Side Of Engine

G00445914

Courtesy of AMERICAN HONDA MOTOR CO., INC.

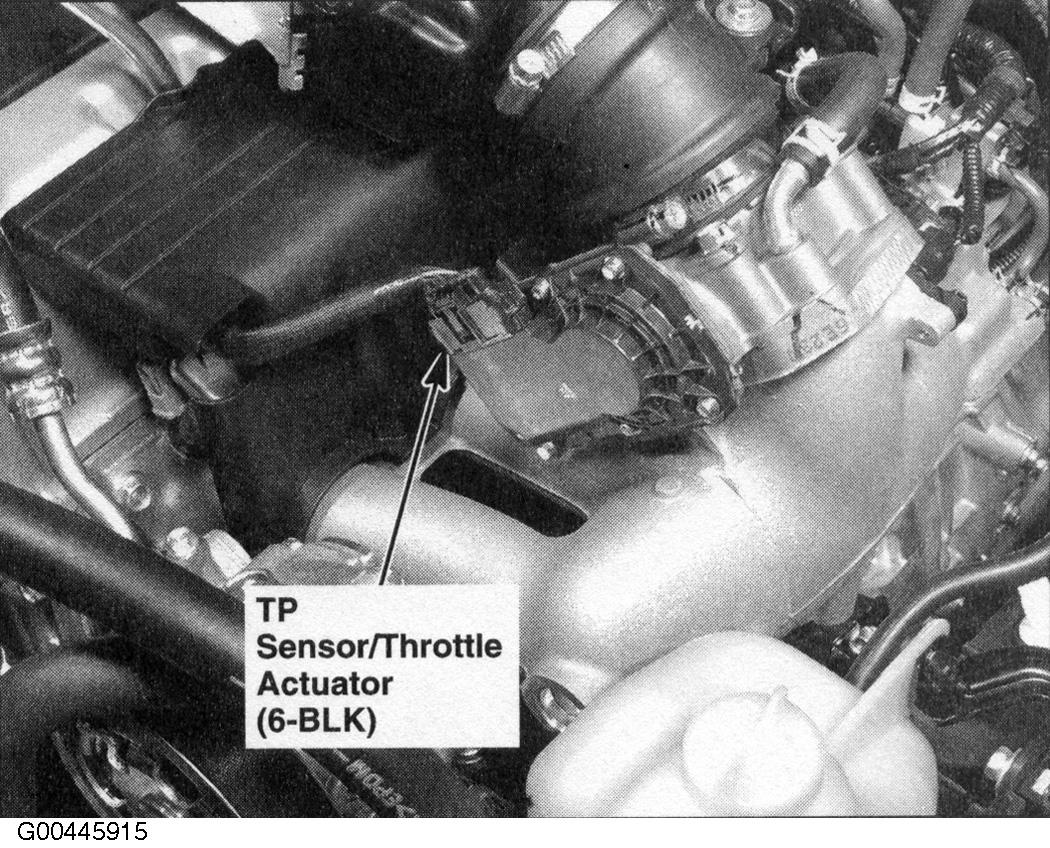

Fig 6: Top Center Of Engine

G00445915

Courtesy of AMERICAN HONDA MOTOR CO., INC.

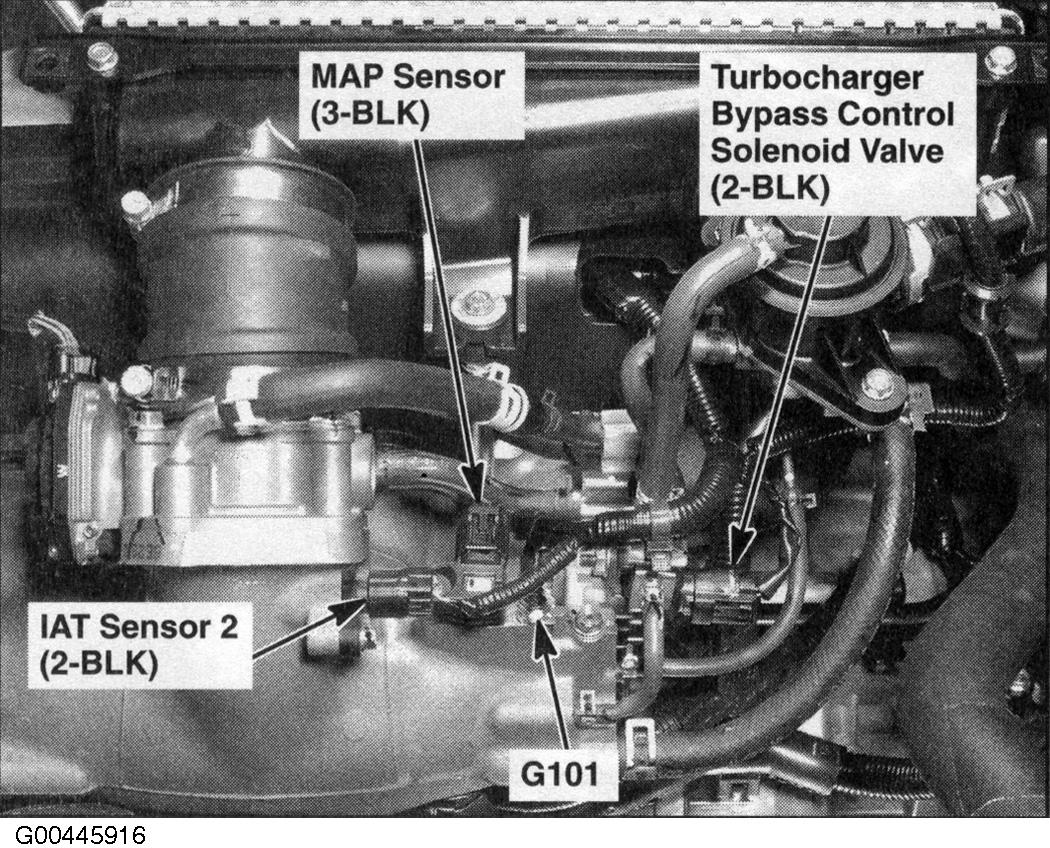

Fig 7: Left Side Of Engine

G00445916

Courtesy of AMERICAN HONDA MOTOR CO., INC.

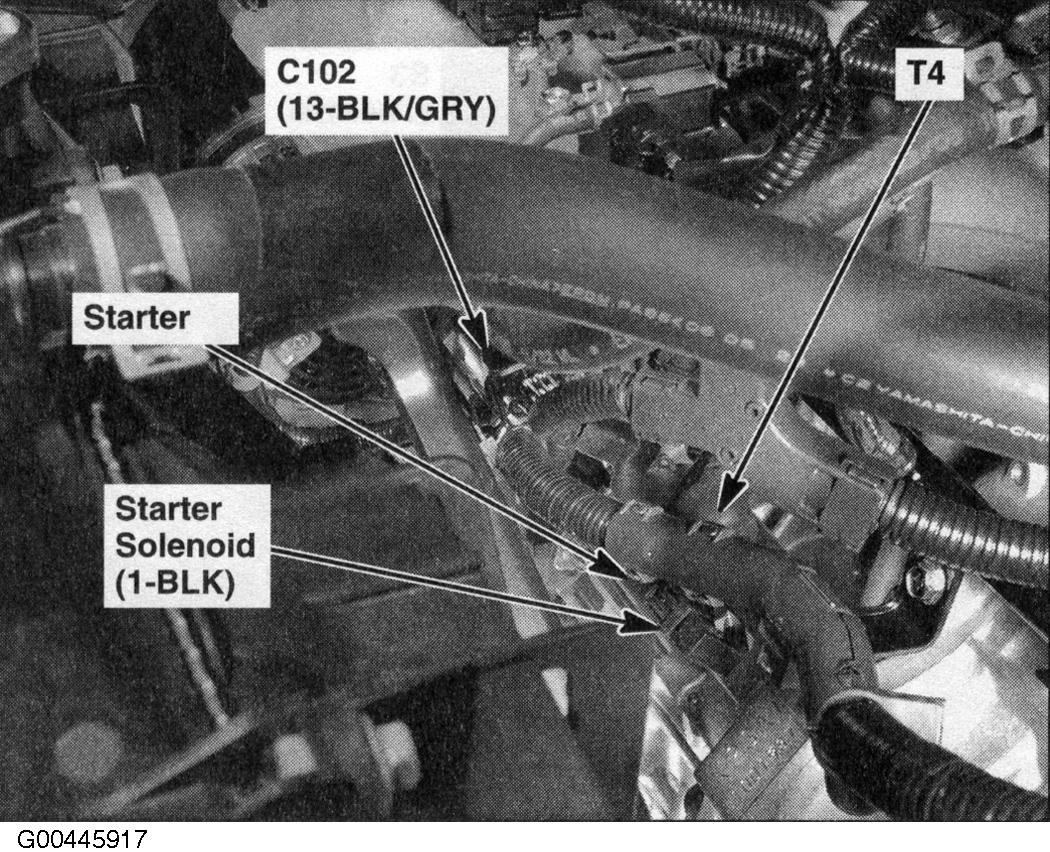

Fig 8: Left Rear Of Engine

G00445917

Courtesy of AMERICAN HONDA MOTOR CO., INC.

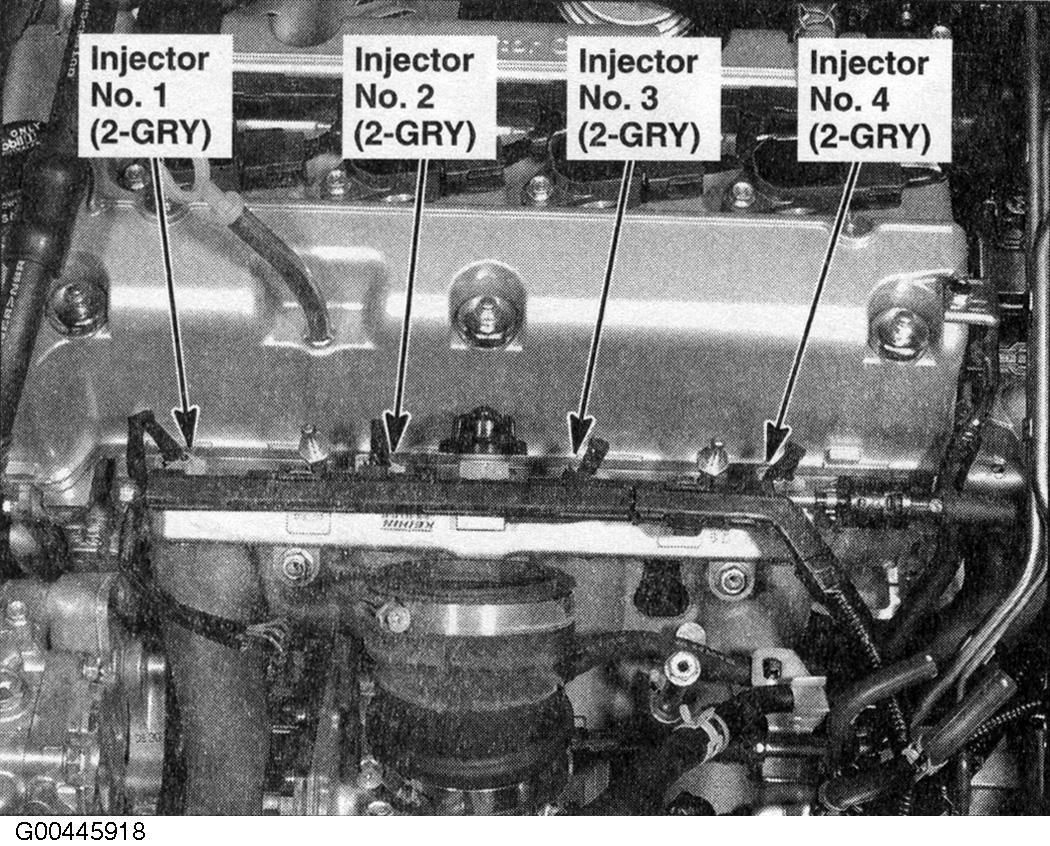

Fig 9: Top Left Side Of Engine

G00445918

Courtesy of AMERICAN HONDA MOTOR CO., INC.

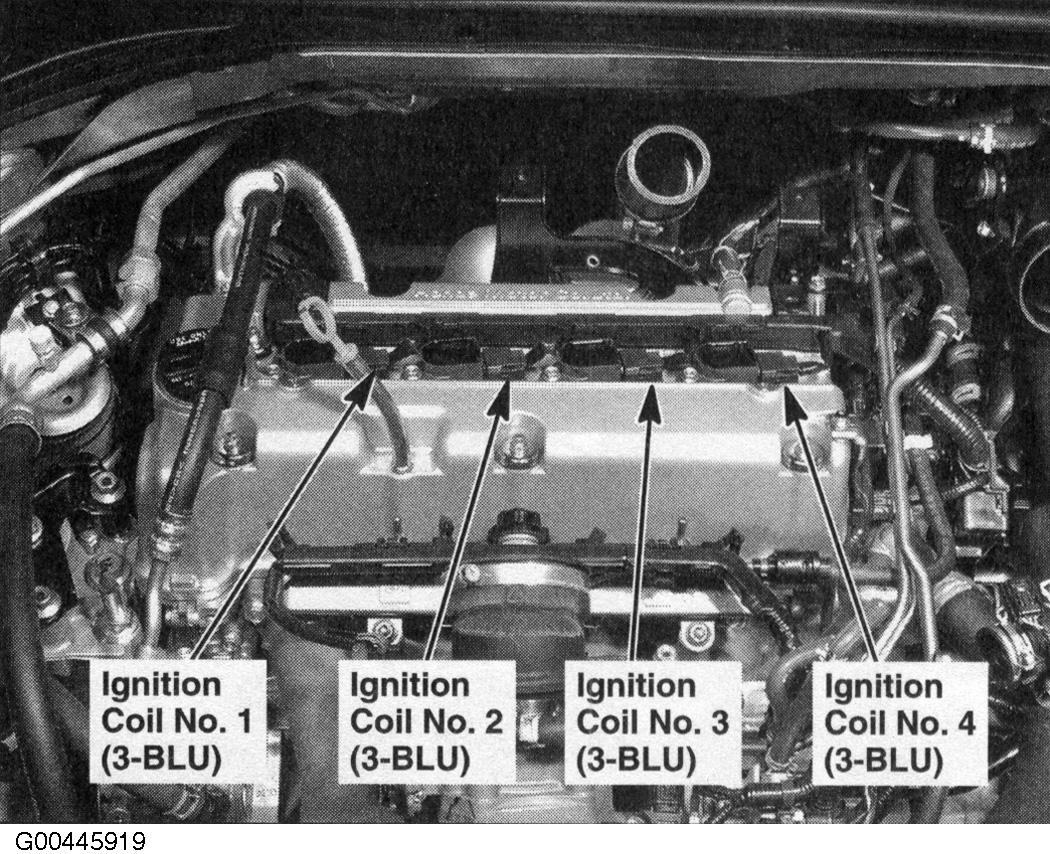

Fig 10: Top Of Engine

G00445919

Courtesy of AMERICAN HONDA MOTOR CO., INC.

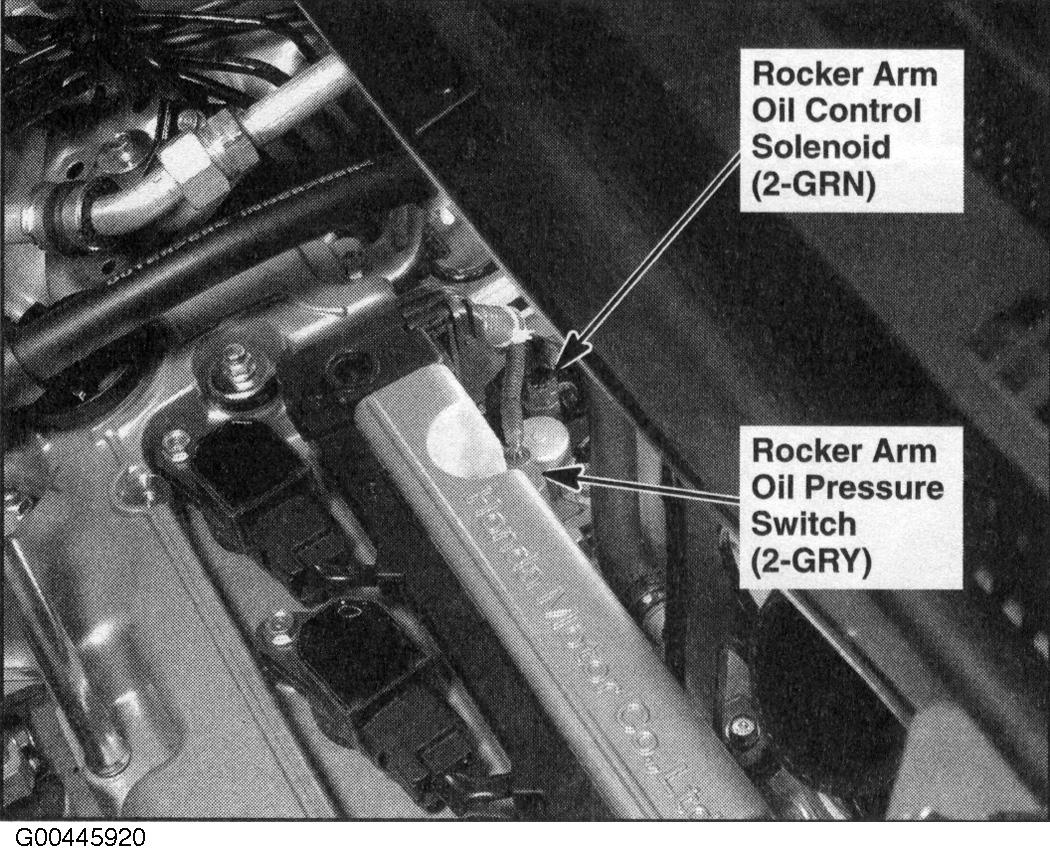

Fig 11: Top Front Of Engine

G00445920

Courtesy of AMERICAN HONDA MOTOR CO., INC.

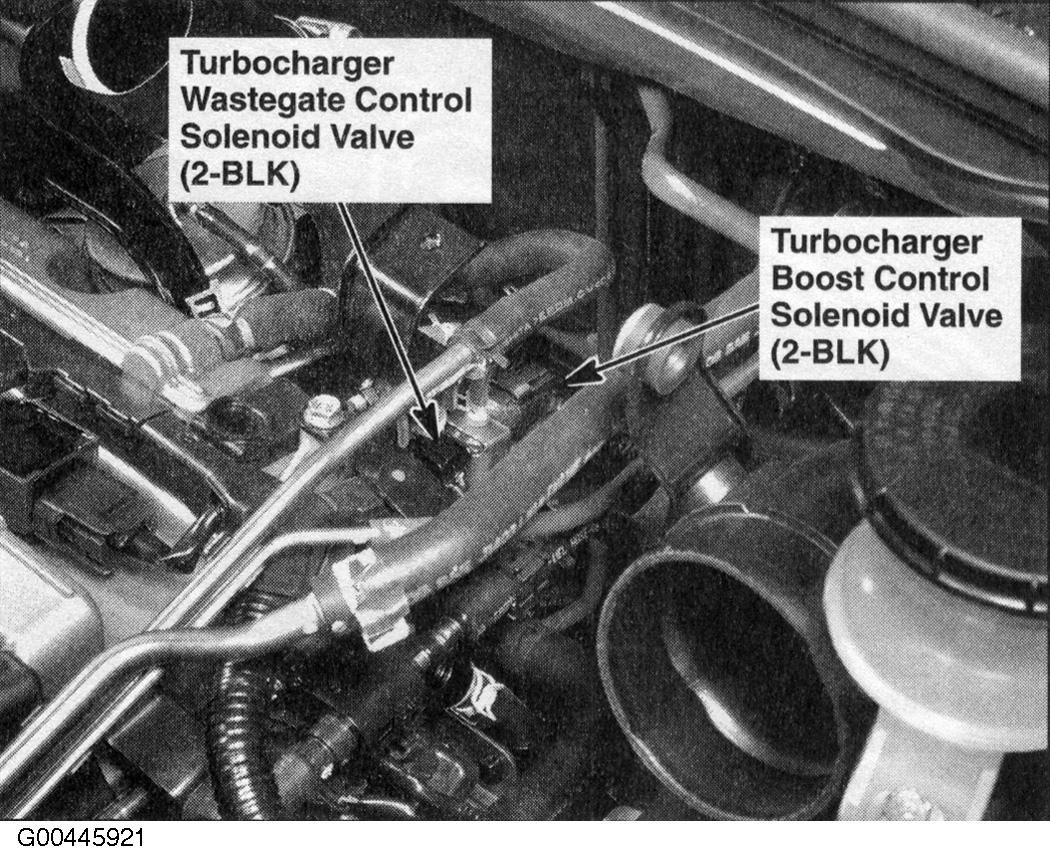

Fig 12: Top Right Rear Of Engine

G00445921

Courtesy of AMERICAN HONDA MOTOR CO., INC.

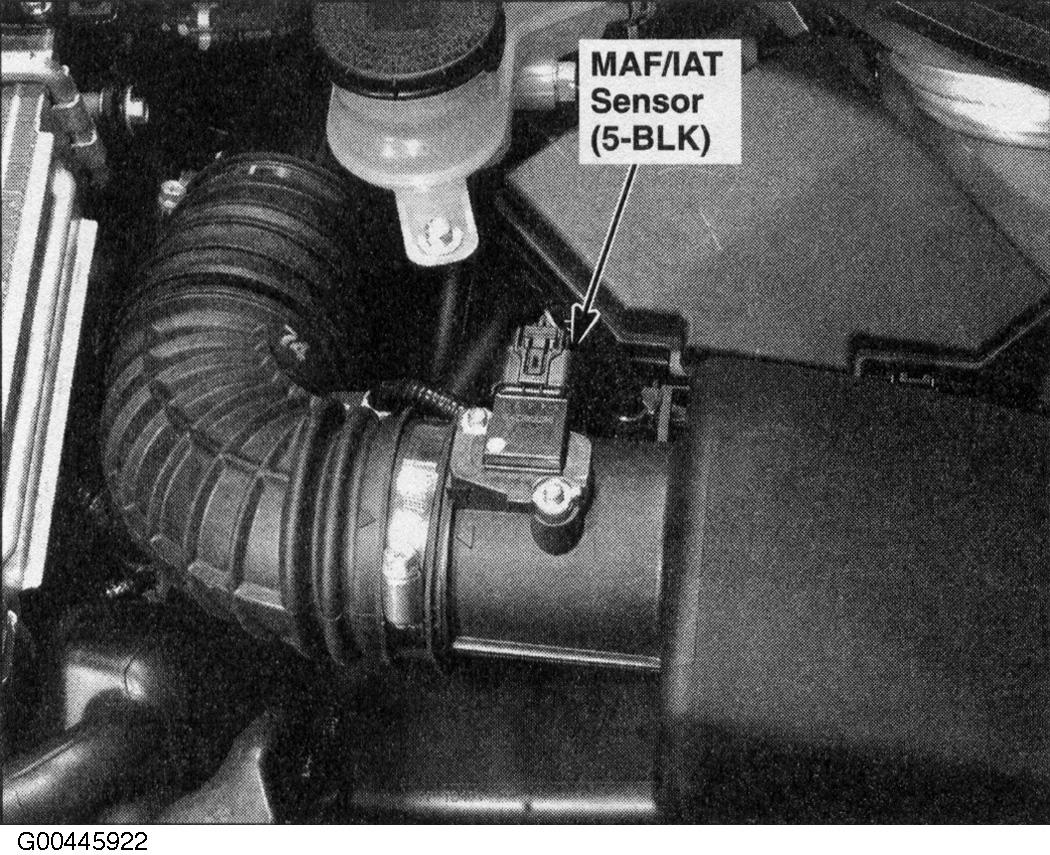

Fig 13: Left Side Of Engine Compartment

G00445922

Courtesy of AMERICAN HONDA MOTOR CO., INC.

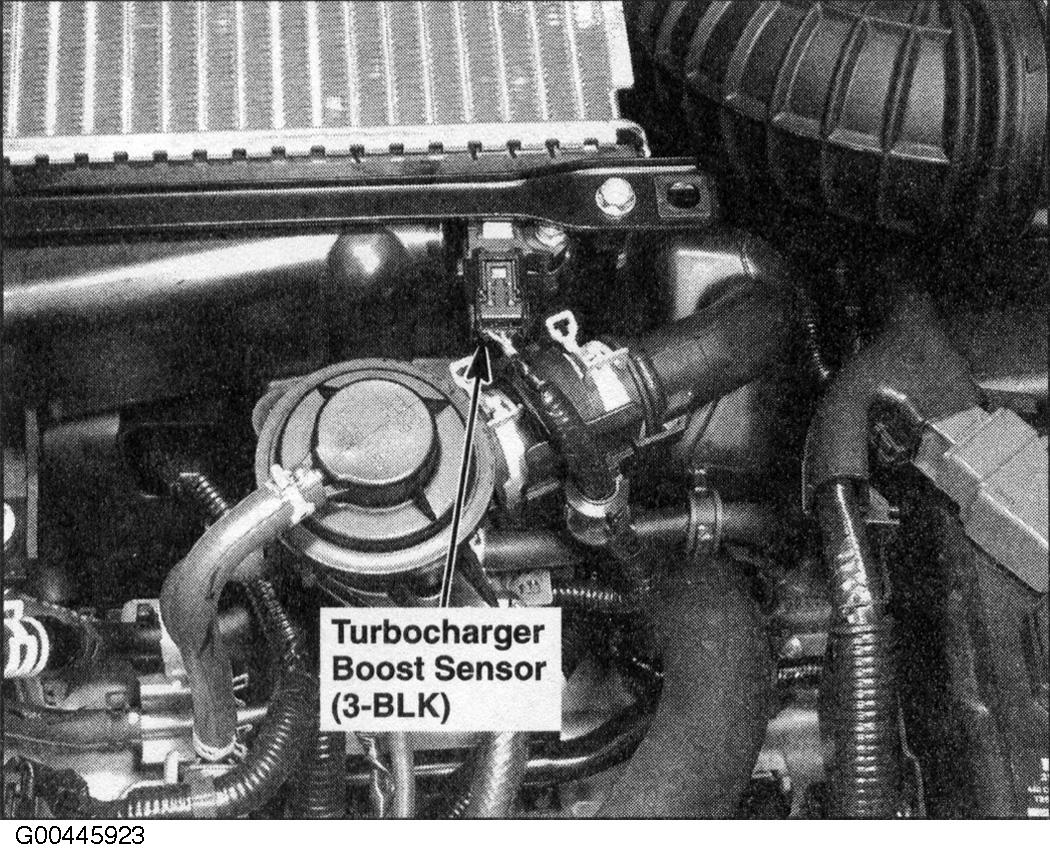

Fig 14: Top Left Rear Of Engine

G00445923

Courtesy of AMERICAN HONDA MOTOR CO., INC.

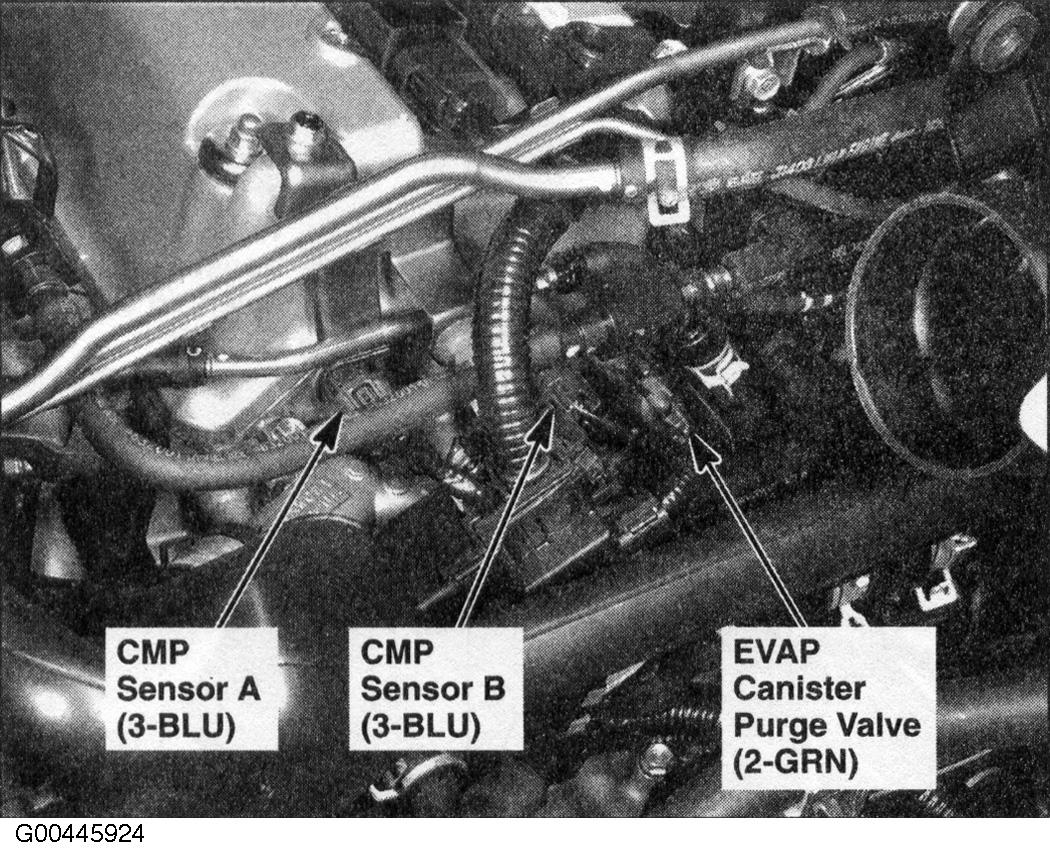

Fig 15: Rear Of Engine

G00445924

Courtesy of AMERICAN HONDA MOTOR CO., INC.

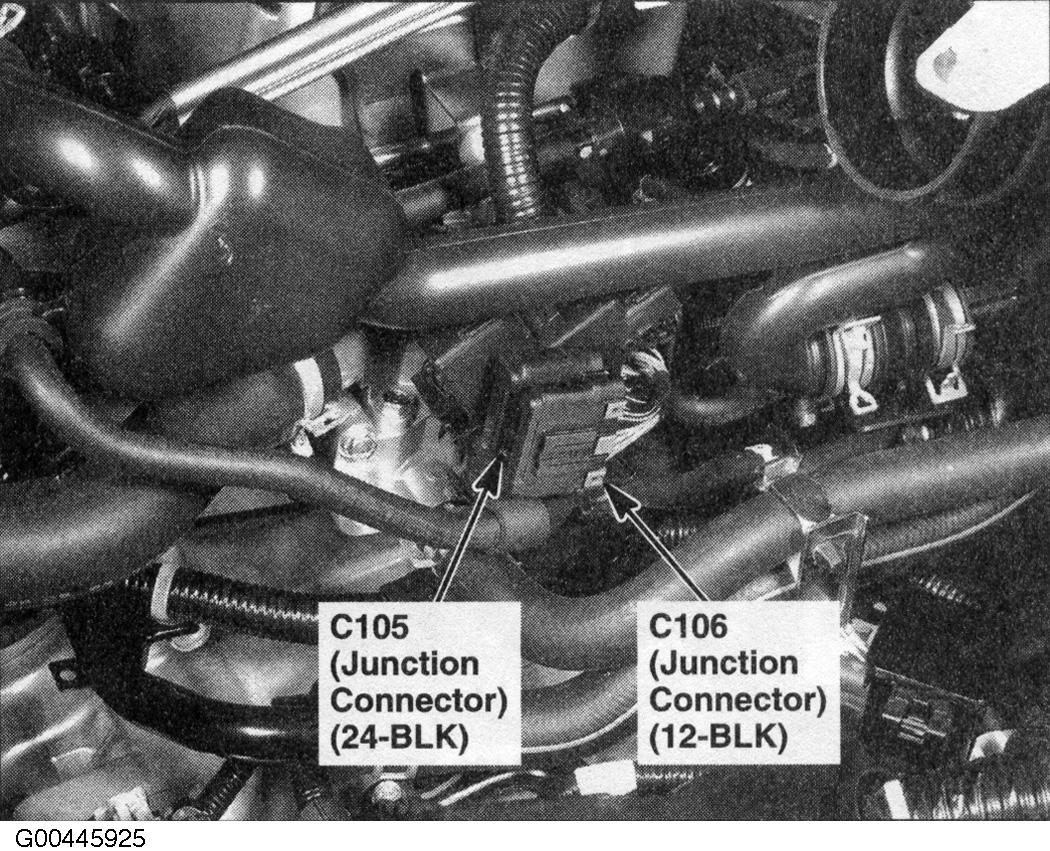

Fig 16: Rear Of Engine

G00445925

Courtesy of AMERICAN HONDA MOTOR CO., INC.

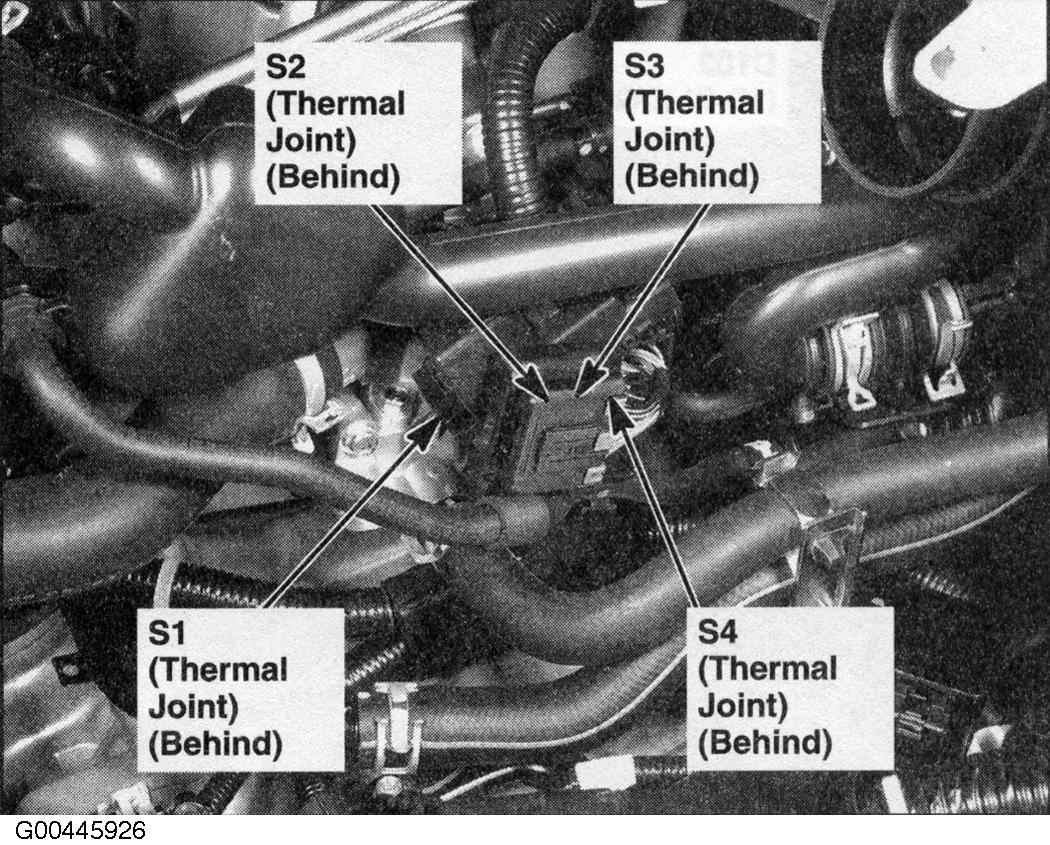

Fig 17: Rear Of Engine

G00445926

Courtesy of AMERICAN HONDA MOTOR CO., INC.

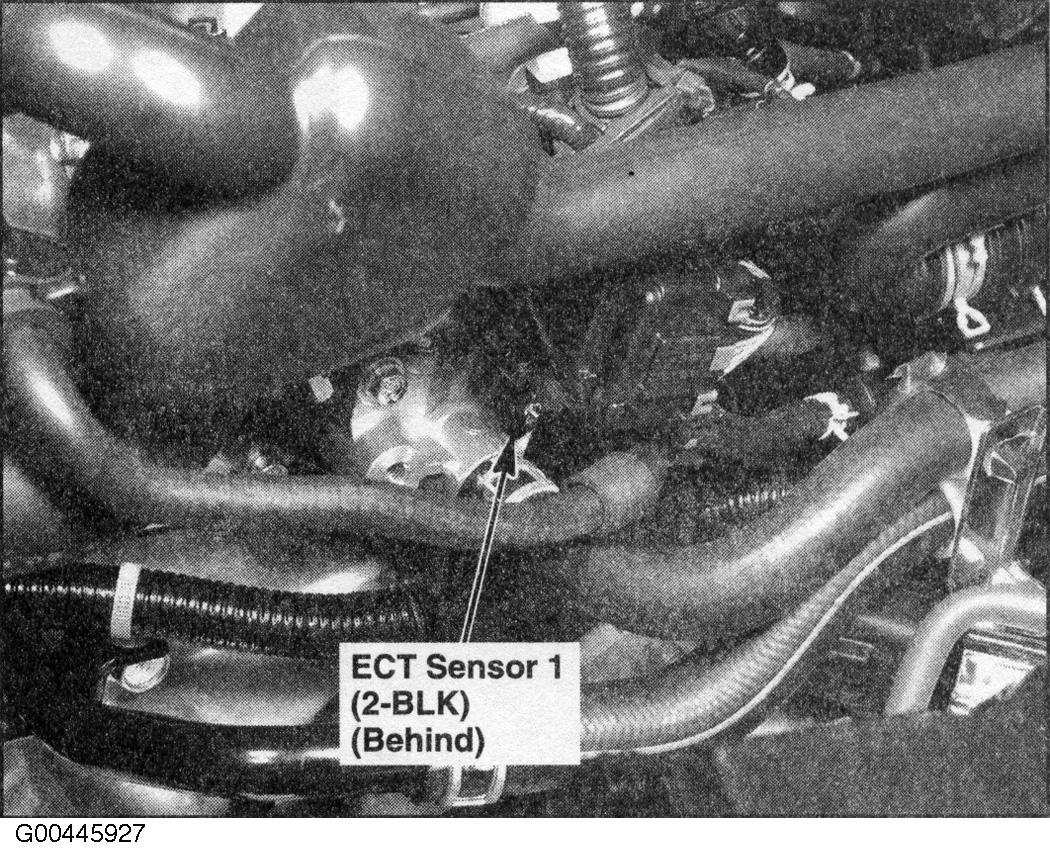

Fig 18: Rear Of Engine

G00445927

Courtesy of AMERICAN HONDA MOTOR CO., INC.

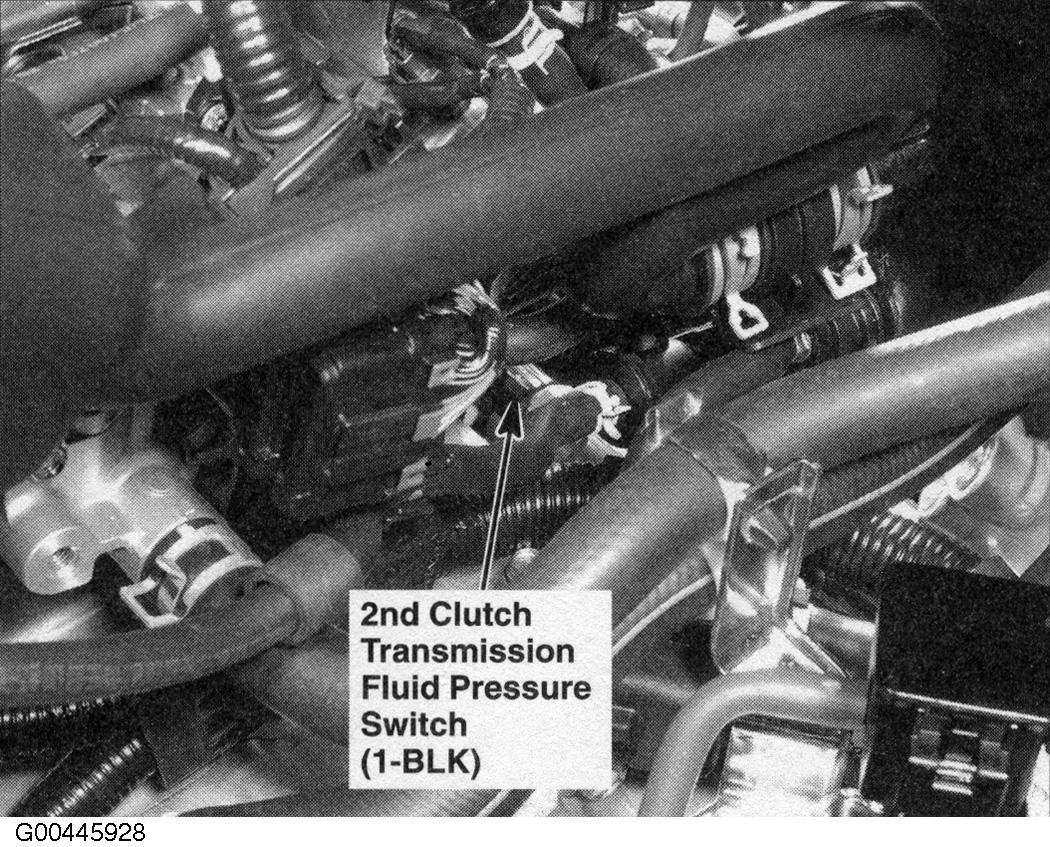

Fig 19: On Transmission Housing

G00445928

Courtesy of AMERICAN HONDA MOTOR CO., INC.

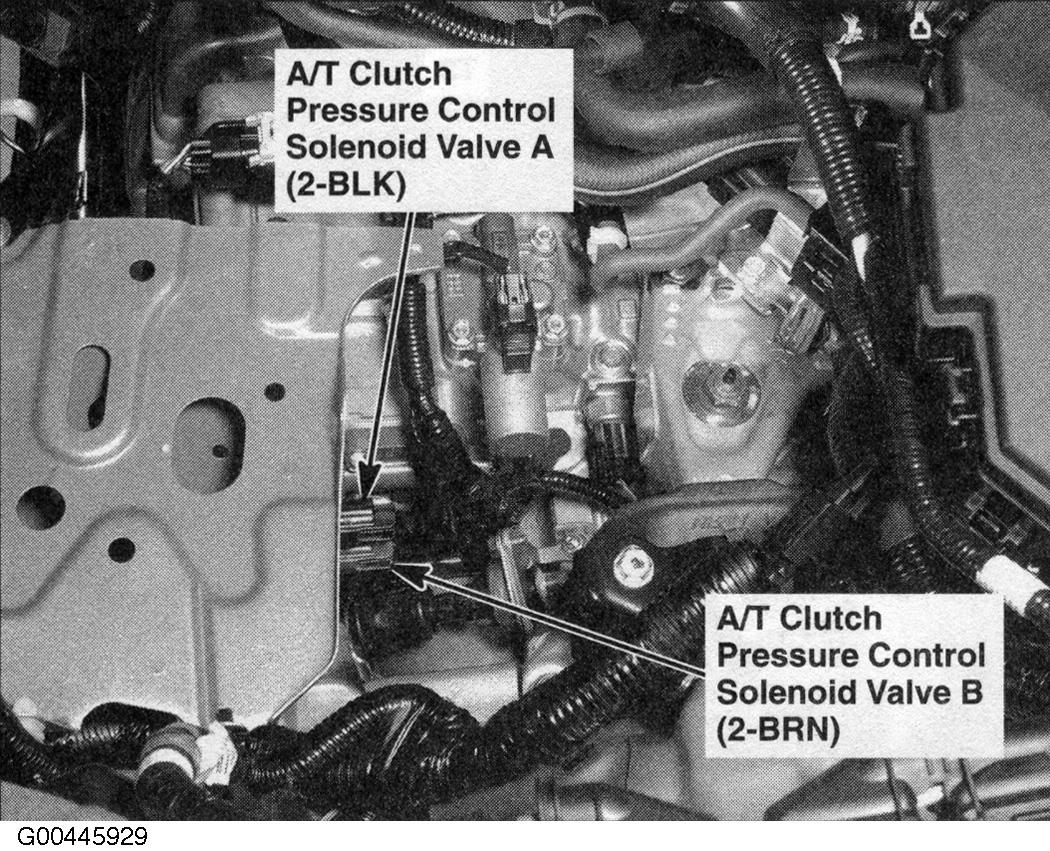

Fig 20: On Transmission Housing

G00445929

Courtesy of AMERICAN HONDA MOTOR CO., INC.

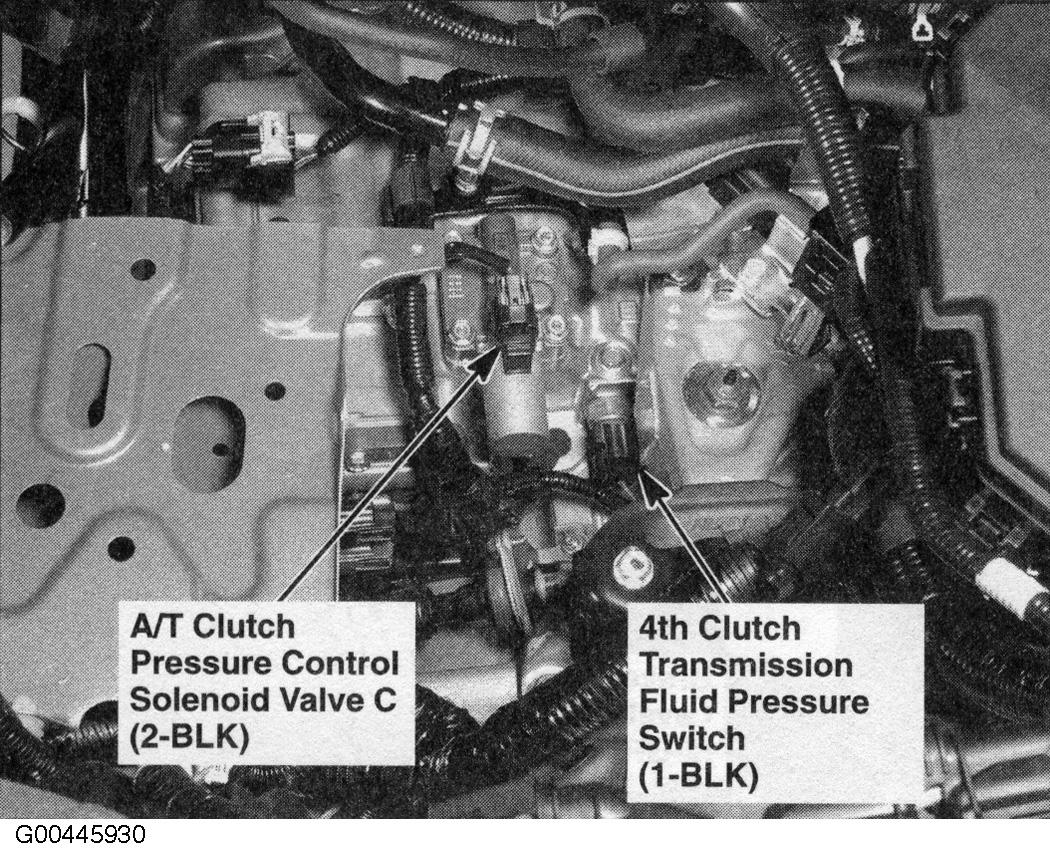

Fig 21: On Transmission Housing

G00445930

Courtesy of AMERICAN HONDA MOTOR CO., INC.

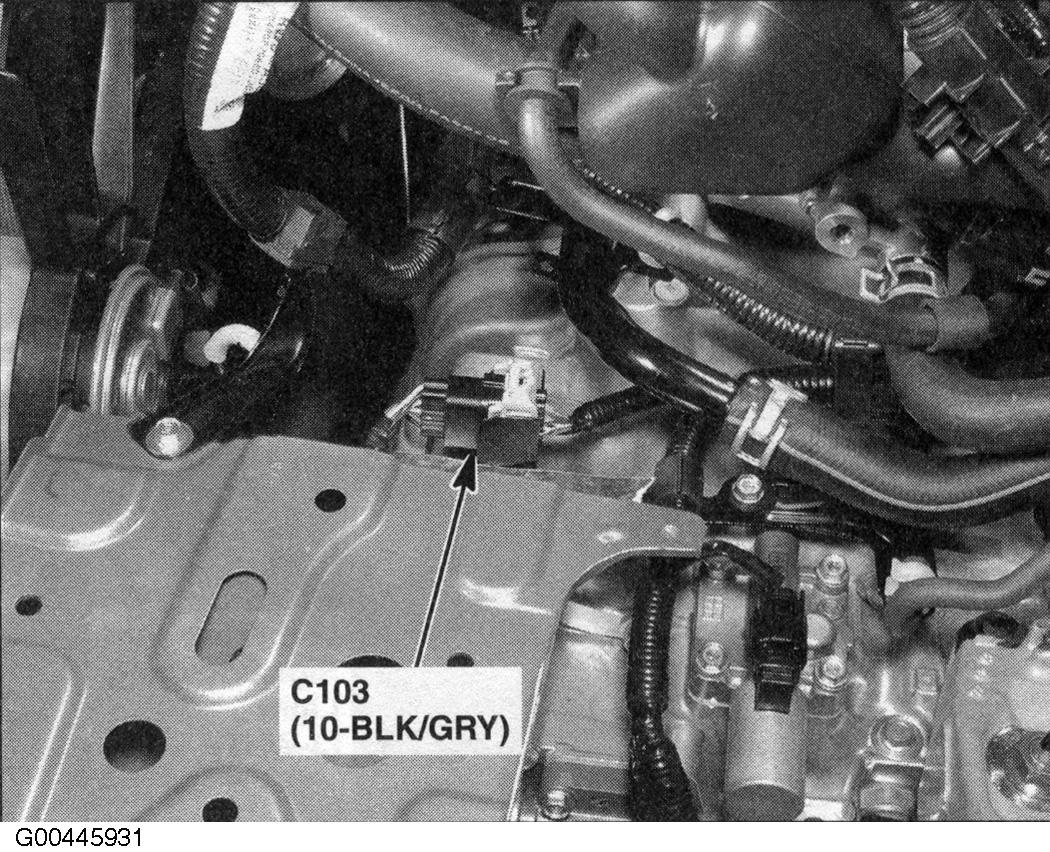

Fig 22: On Transmission Housing

G00445931

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Left Front Of Engine Compartment

G00445932

Courtesy of AMERICAN HONDA MOTOR CO., INC.

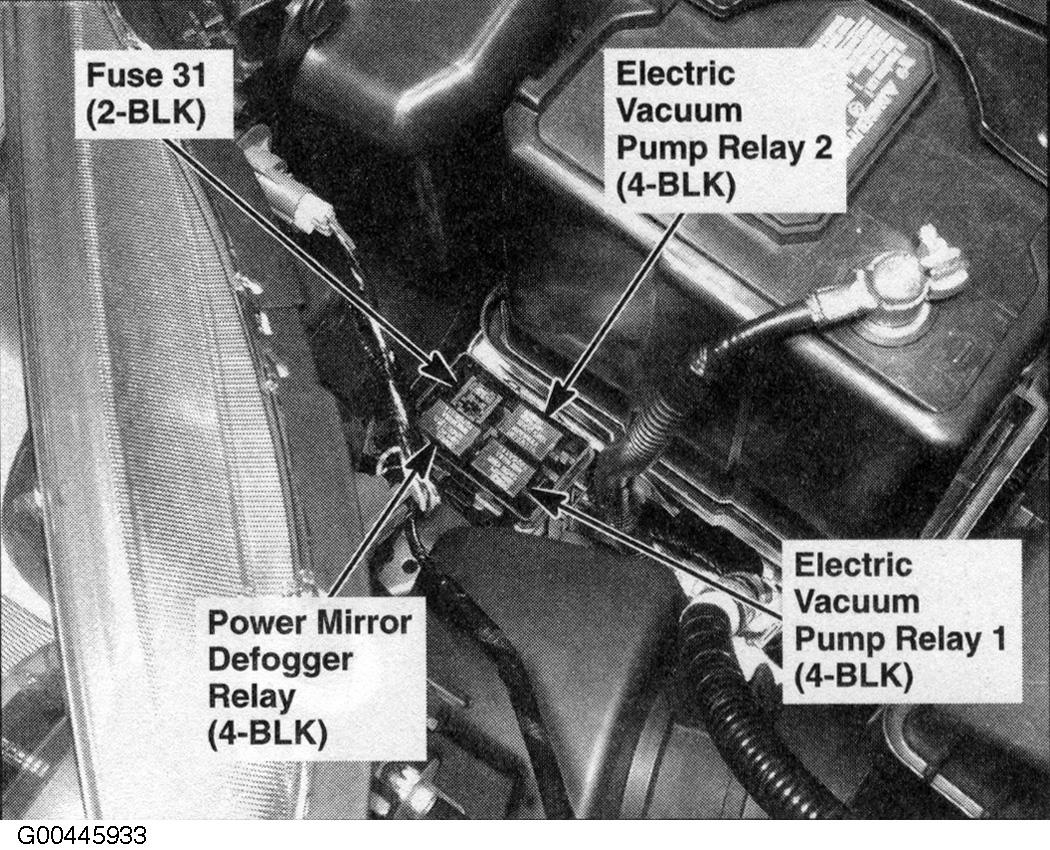

Fig 24: Left Front Of Engine Compartment

G00445933

Courtesy of AMERICAN HONDA MOTOR CO., INC.

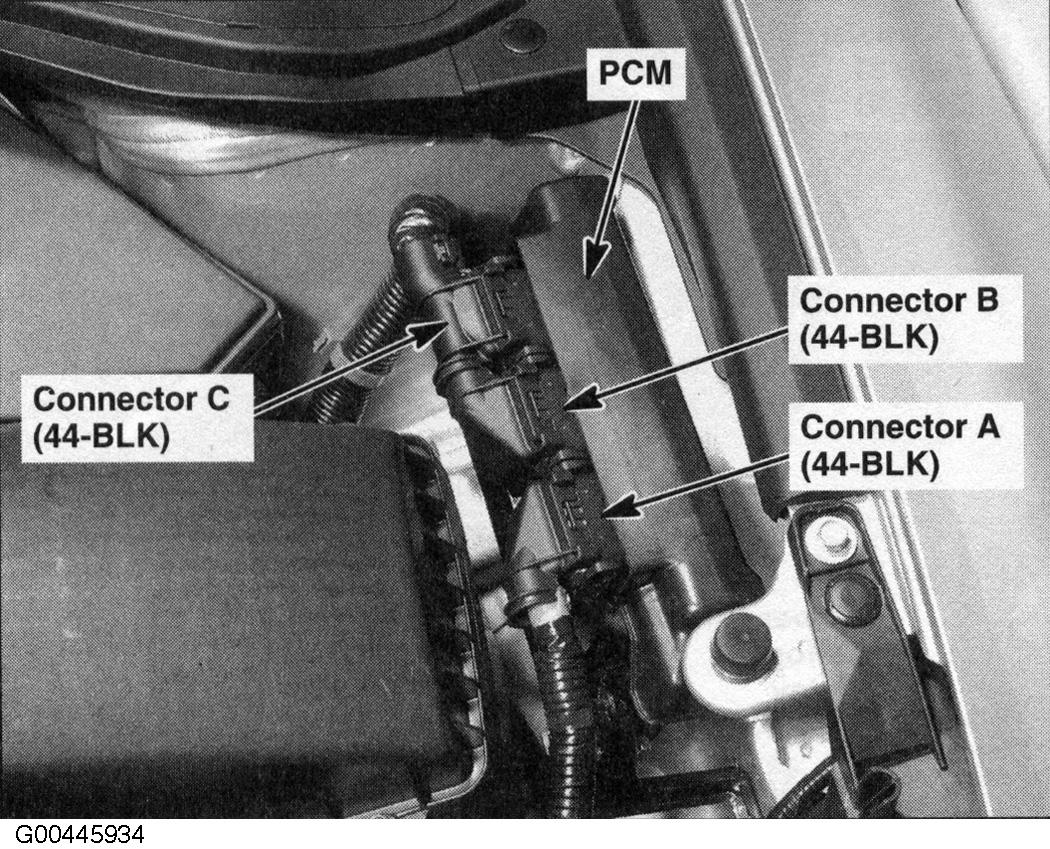

Fig 25: Left Front Of Engine Compartment

G00445934

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Left Rear Of Engine Compartment

G00445935

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Left Rear Of Engine Compartment

G00445936

Courtesy of AMERICAN HONDA MOTOR CO., INC.

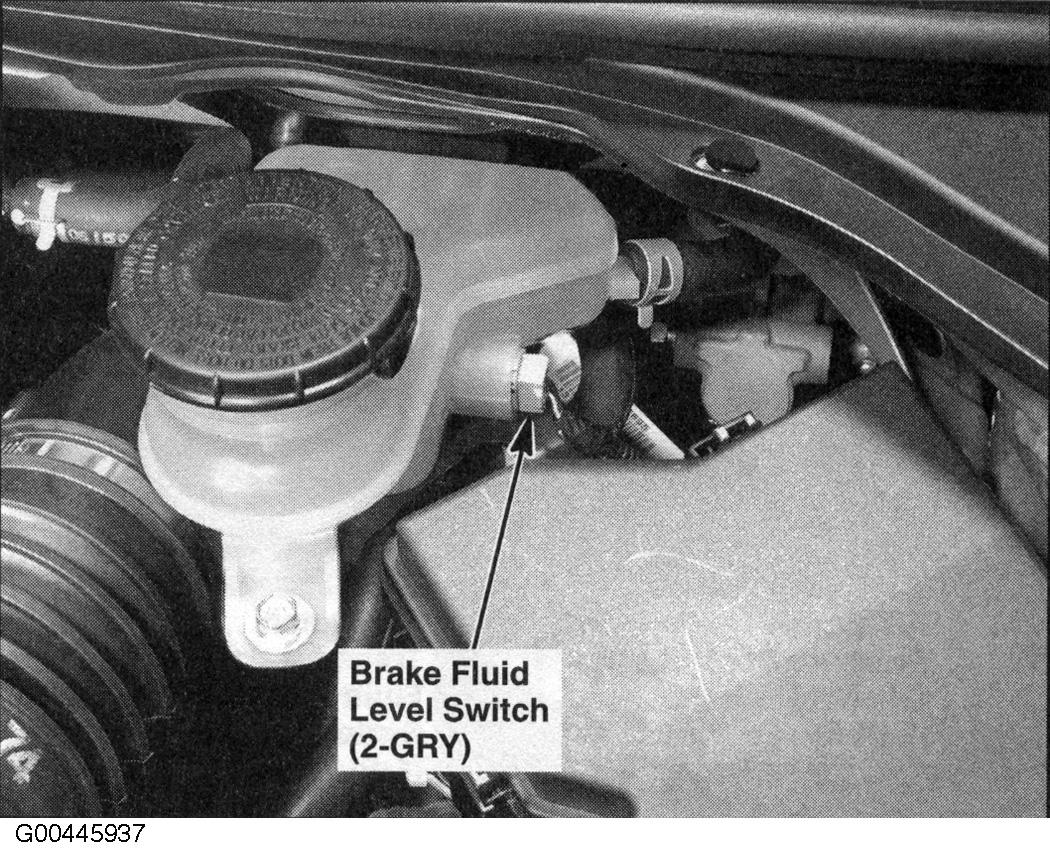

Fig 28: Left Rear Of Engine Compartment

G00445937

Courtesy of AMERICAN HONDA MOTOR CO., INC.

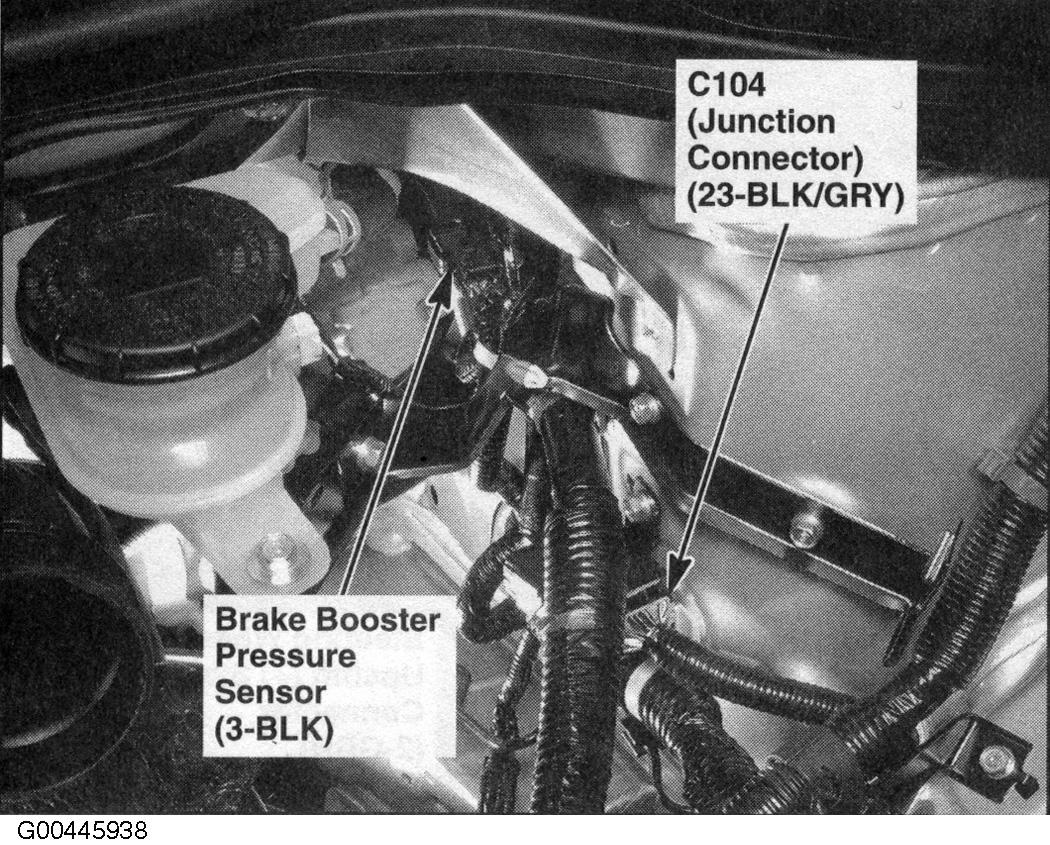

Fig 29: Left Rear Of Engine Compartment

G00445938

Courtesy of AMERICAN HONDA MOTOR CO., INC.

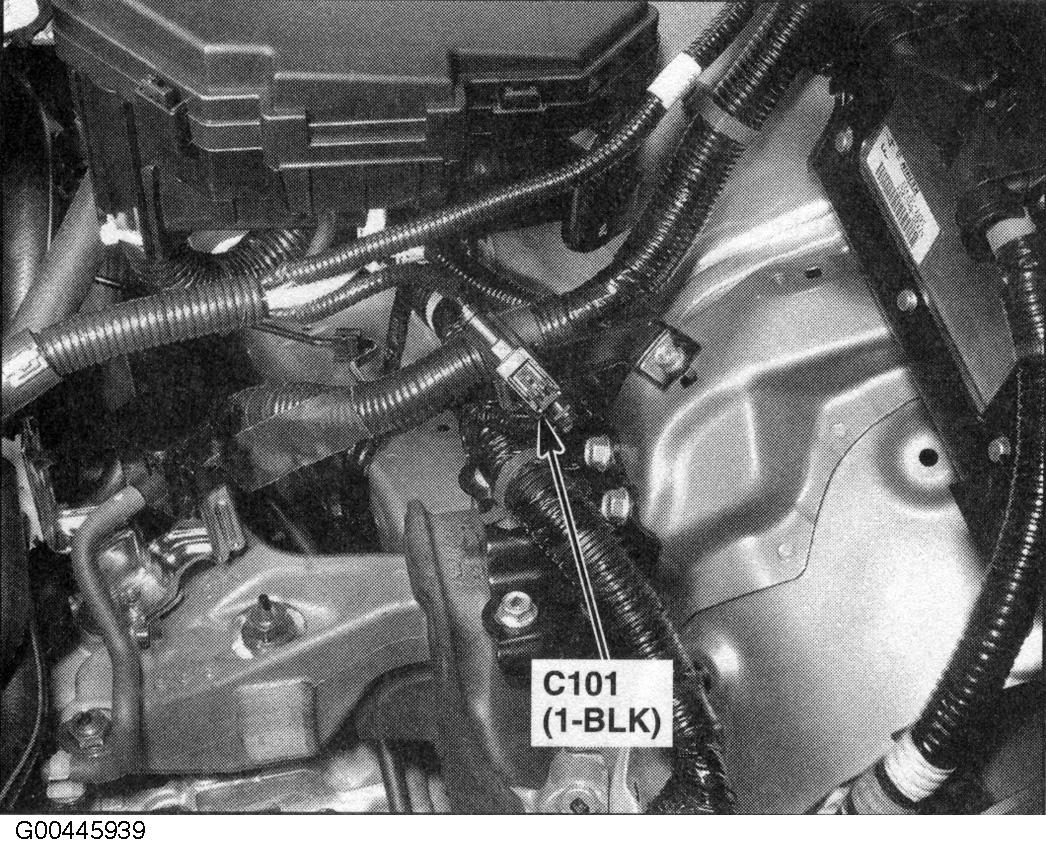

Fig 30: Left Rear Of Engine Compartment

G00445939

Courtesy of AMERICAN HONDA MOTOR CO., INC.

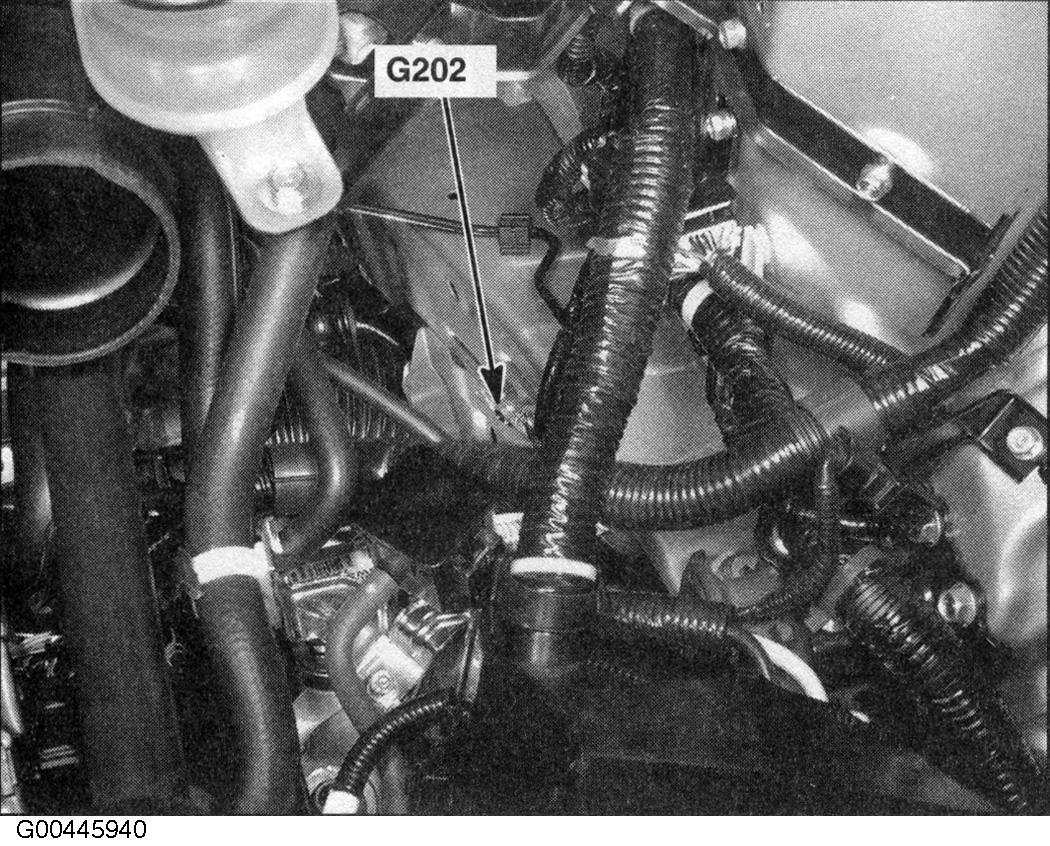

Fig 31: Left Rear Of Engine Compartment.

G00445940

Courtesy of AMERICAN HONDA MOTOR CO., INC.

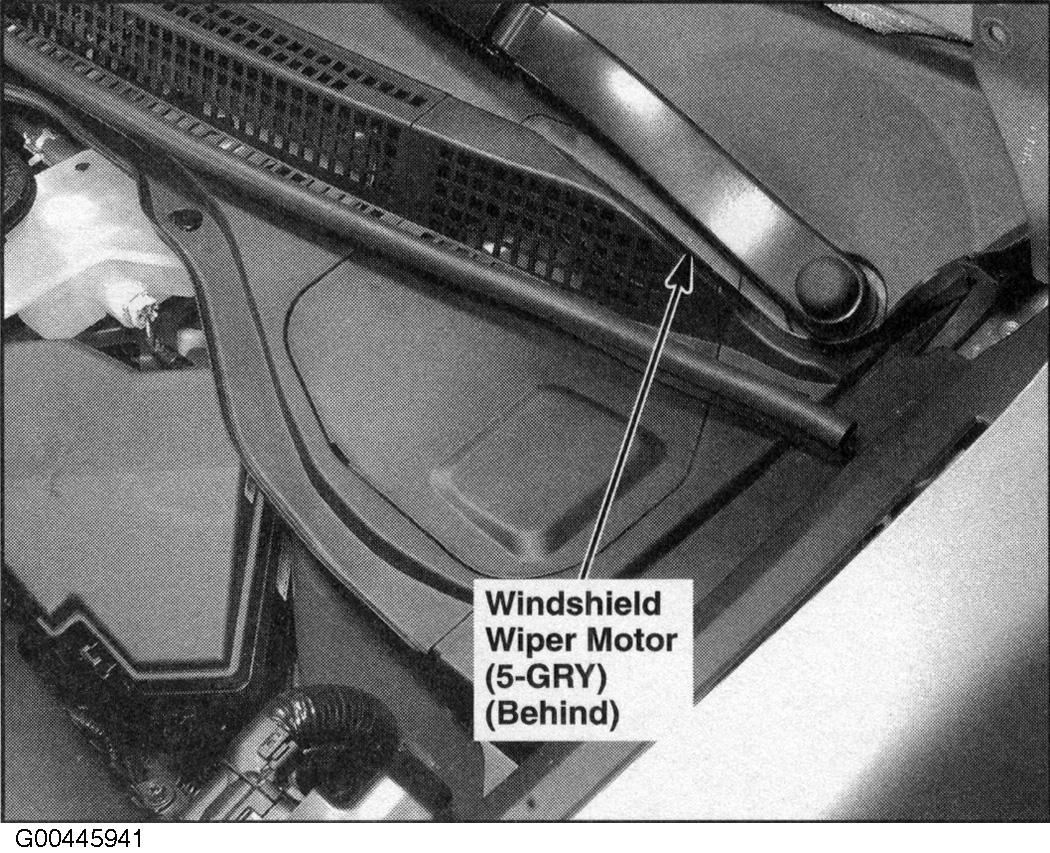

Fig 32: Under Left Side Of Cowl Cover

G00445941

Courtesy of AMERICAN HONDA MOTOR CO., INC.

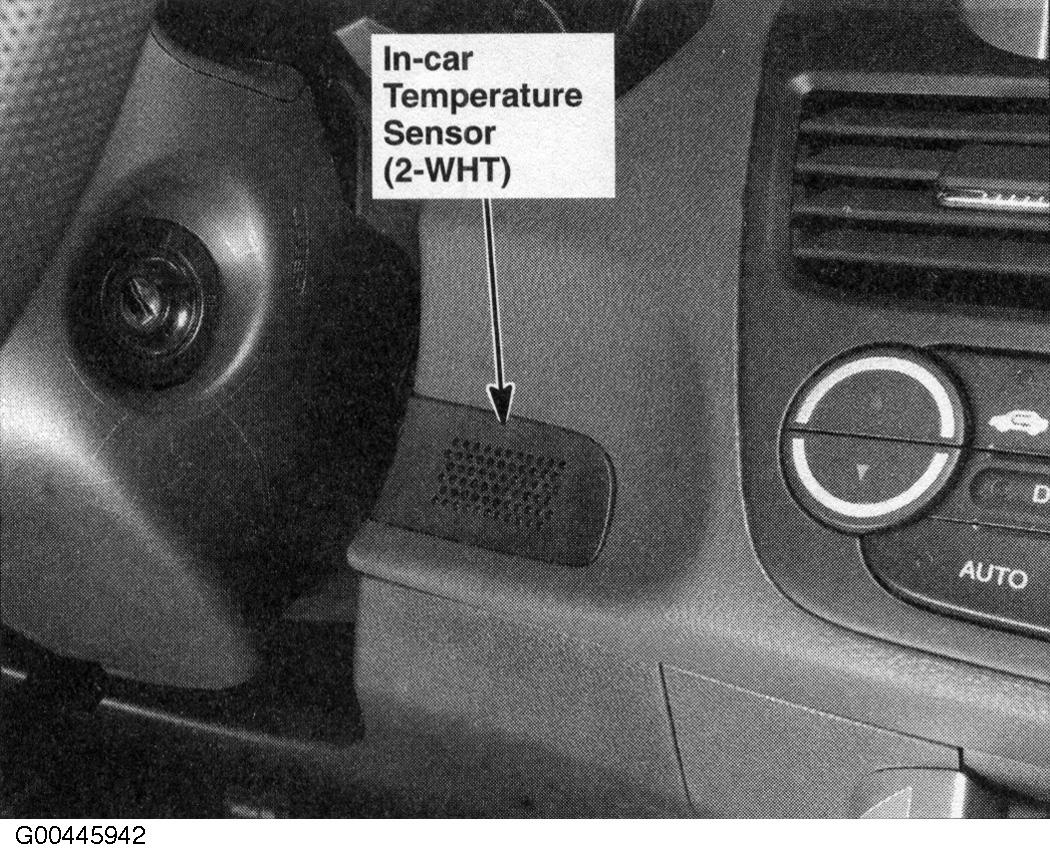

Fig 33: Left Side Of Dash

G00445942

Courtesy of AMERICAN HONDA MOTOR CO., INC.

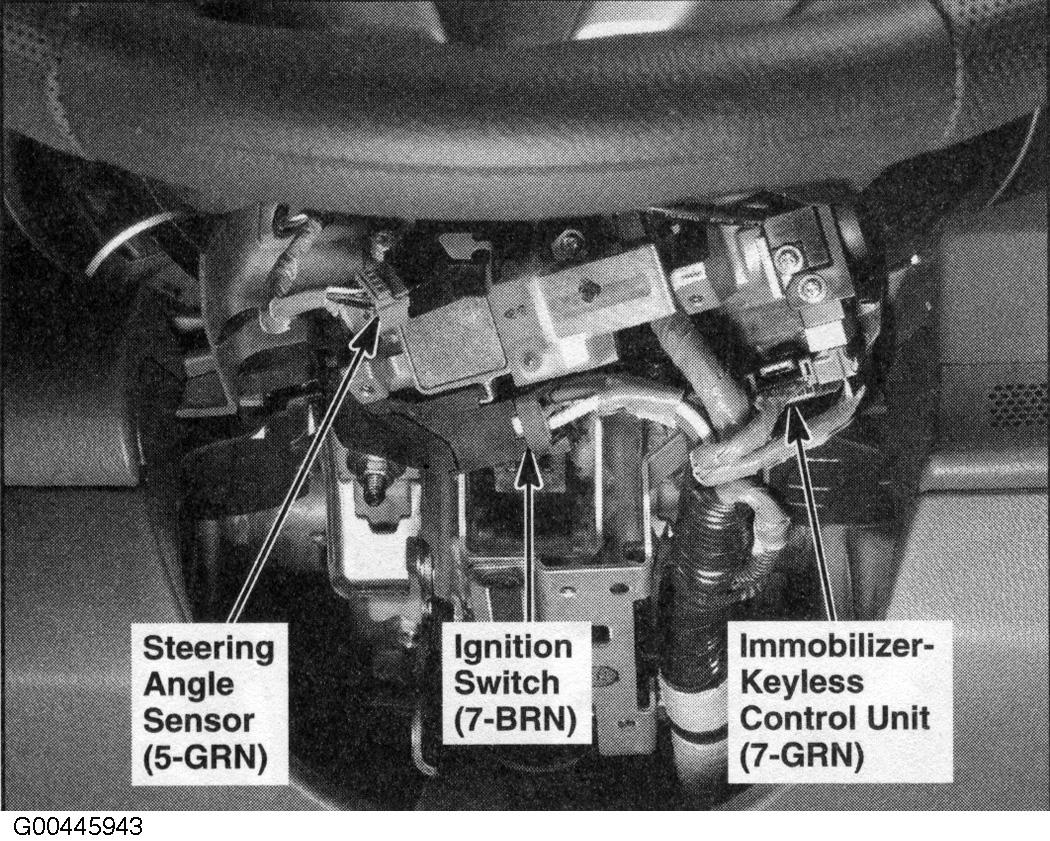

Fig 34: In Steering Column Cover

G00445943

Courtesy of AMERICAN HONDA MOTOR CO., INC.

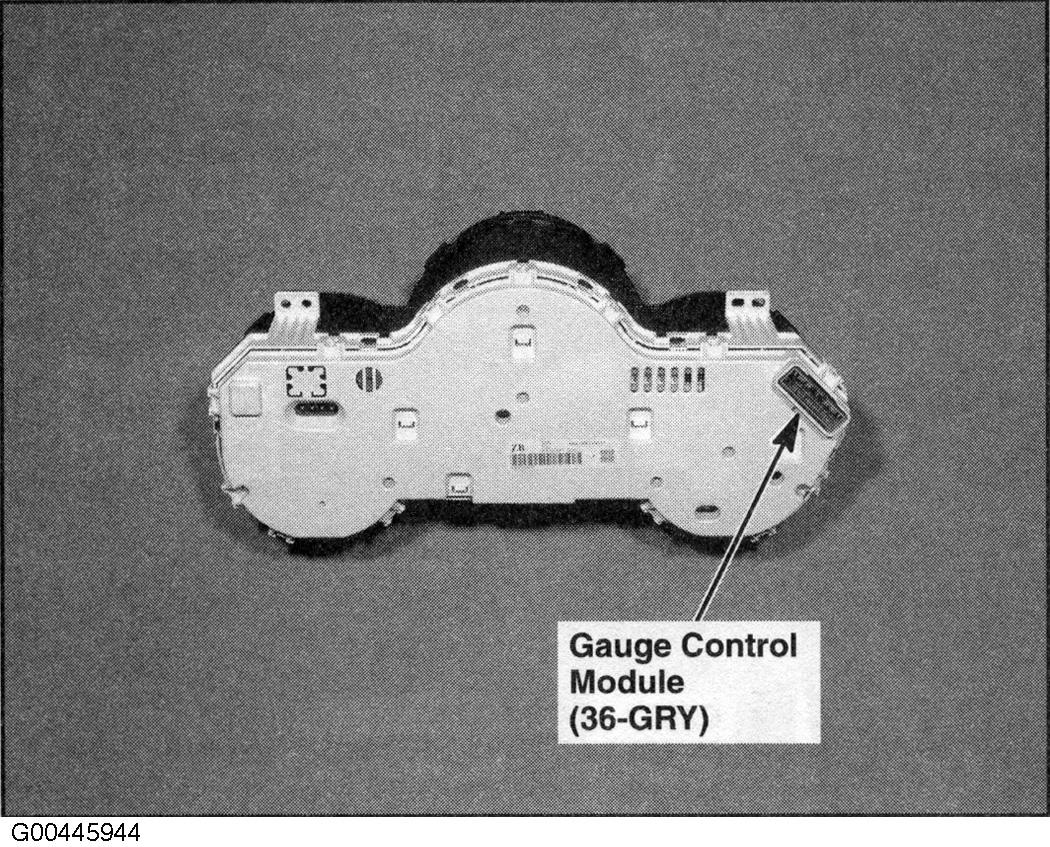

Fig 35: Behind Instrument Cluster

G00445944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

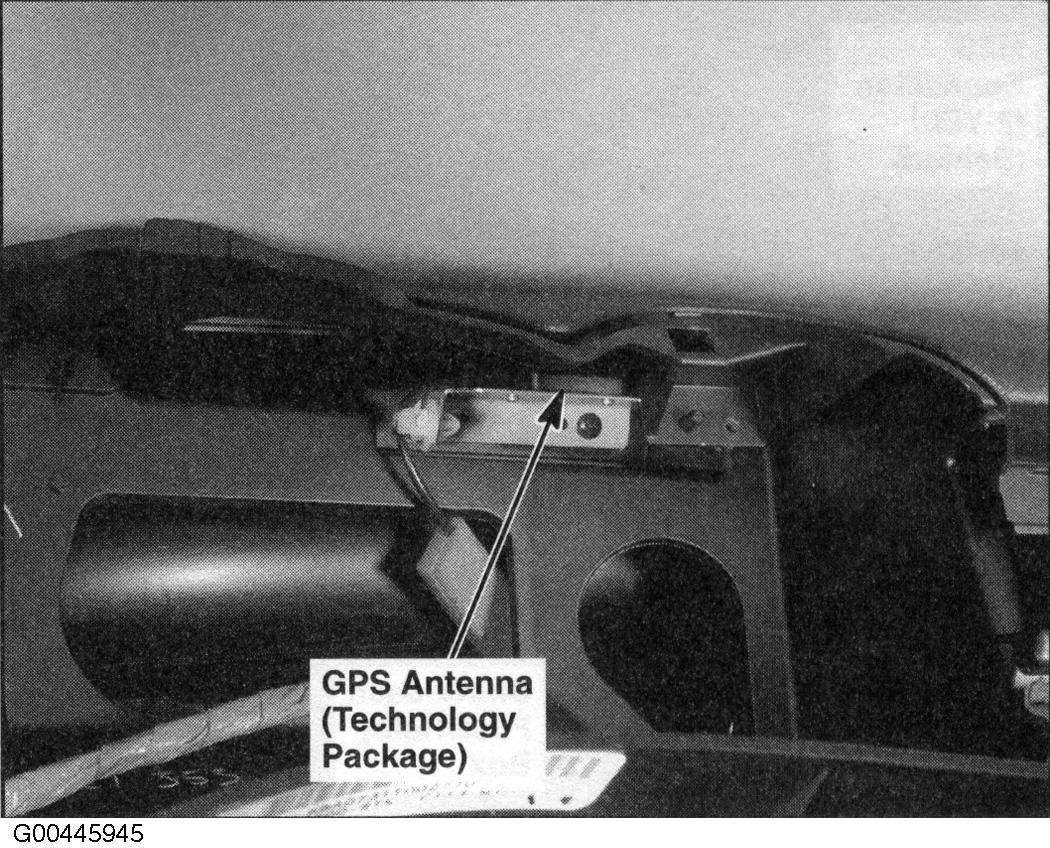

Fig 36: Behind Left Side Of Dash

G00445945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

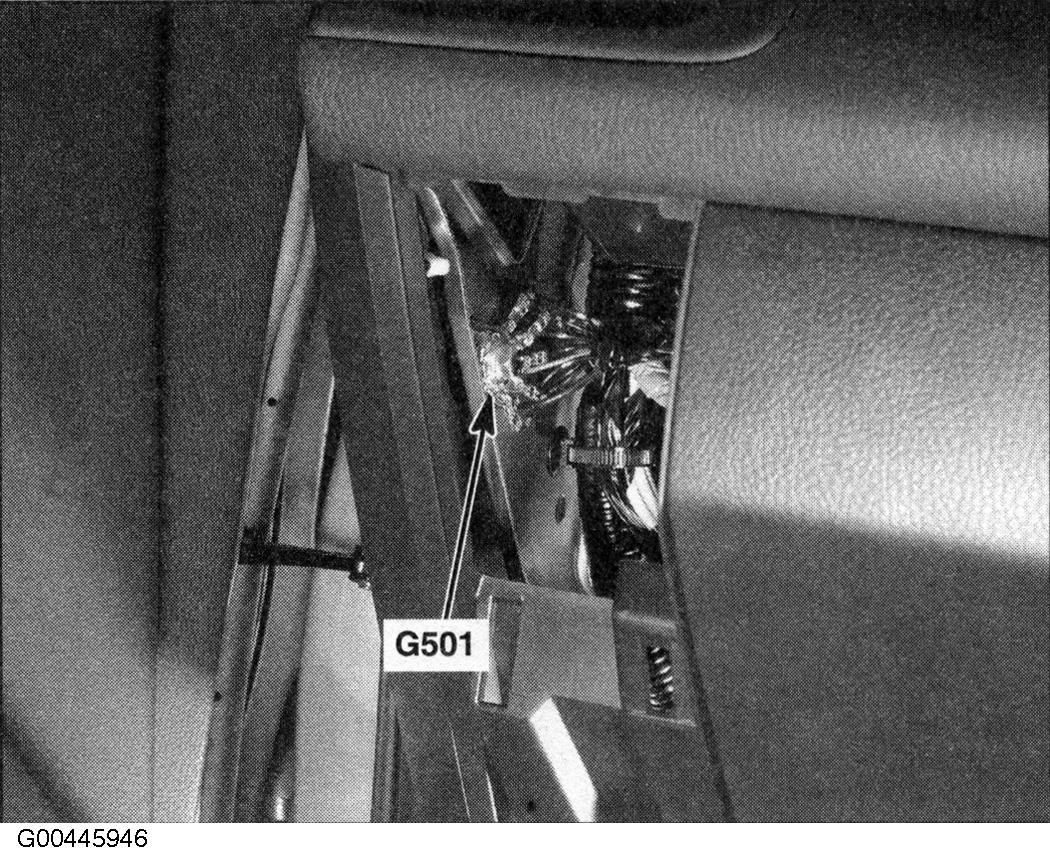

Fig 37: Behind Left Side Of Dash

G00445946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

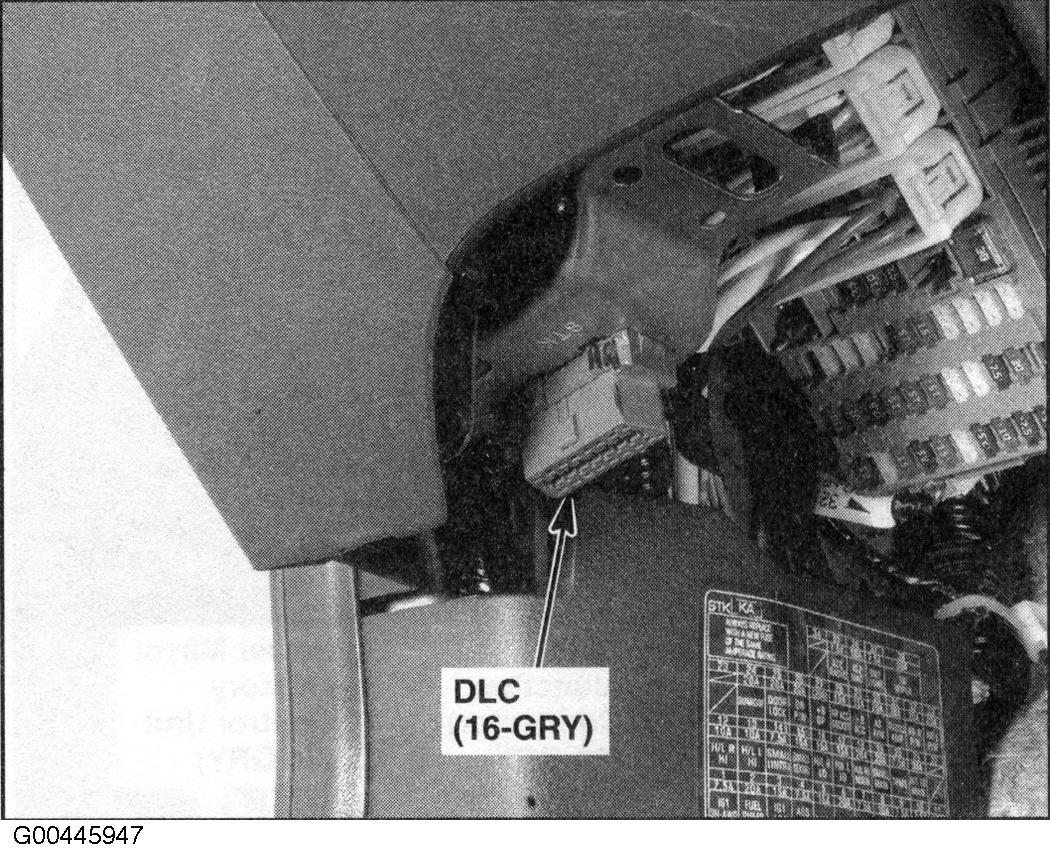

Fig 38: Under Left Side Of Dash

G00445947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 39: Under Left Side Of Dash

G00445948

Courtesy of AMERICAN HONDA MOTOR CO., INC.

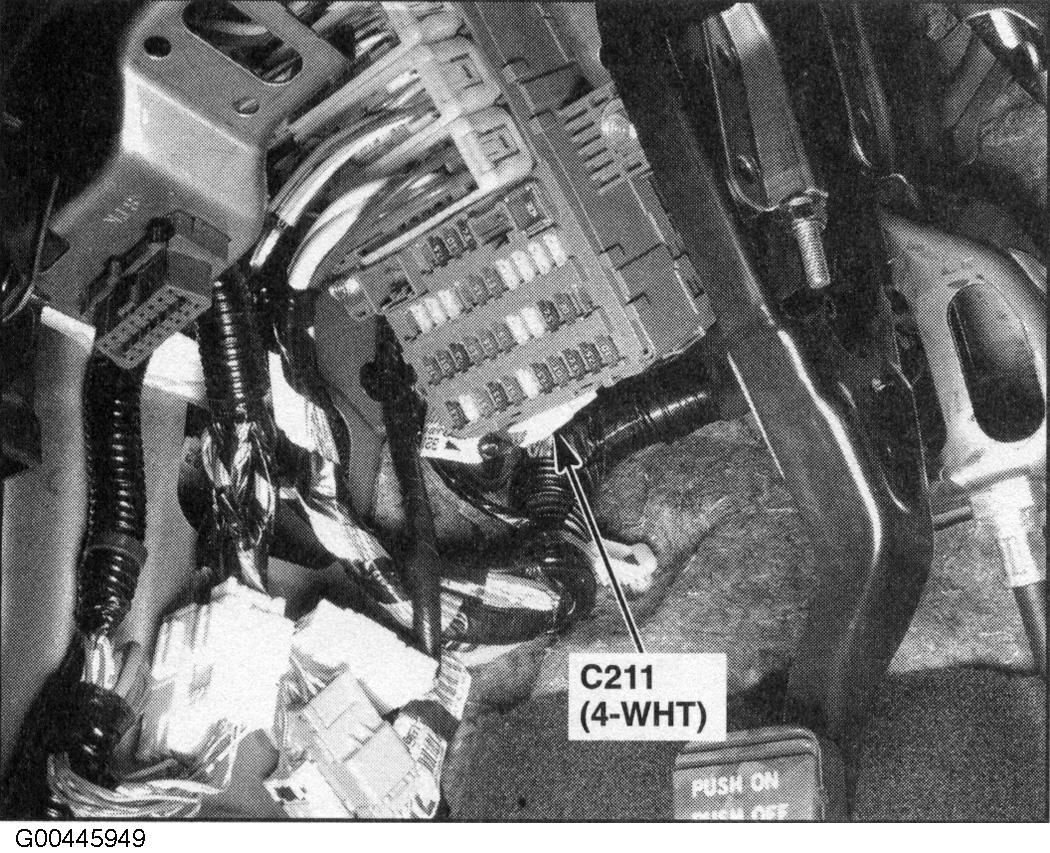

Fig 40: Under Left Side Of Dash

G00445949

Courtesy of AMERICAN HONDA MOTOR CO., INC.

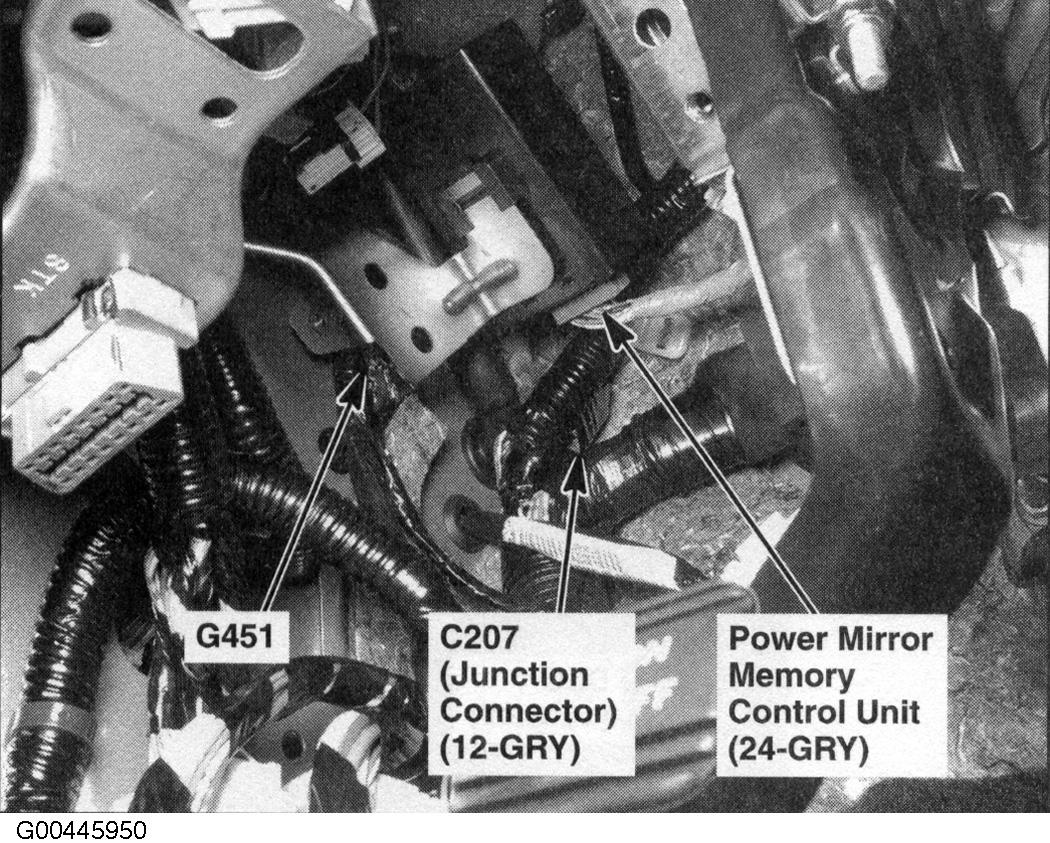

Fig 41: Under Left Side Of Dash

G00445950

Courtesy of AMERICAN HONDA MOTOR CO., INC.

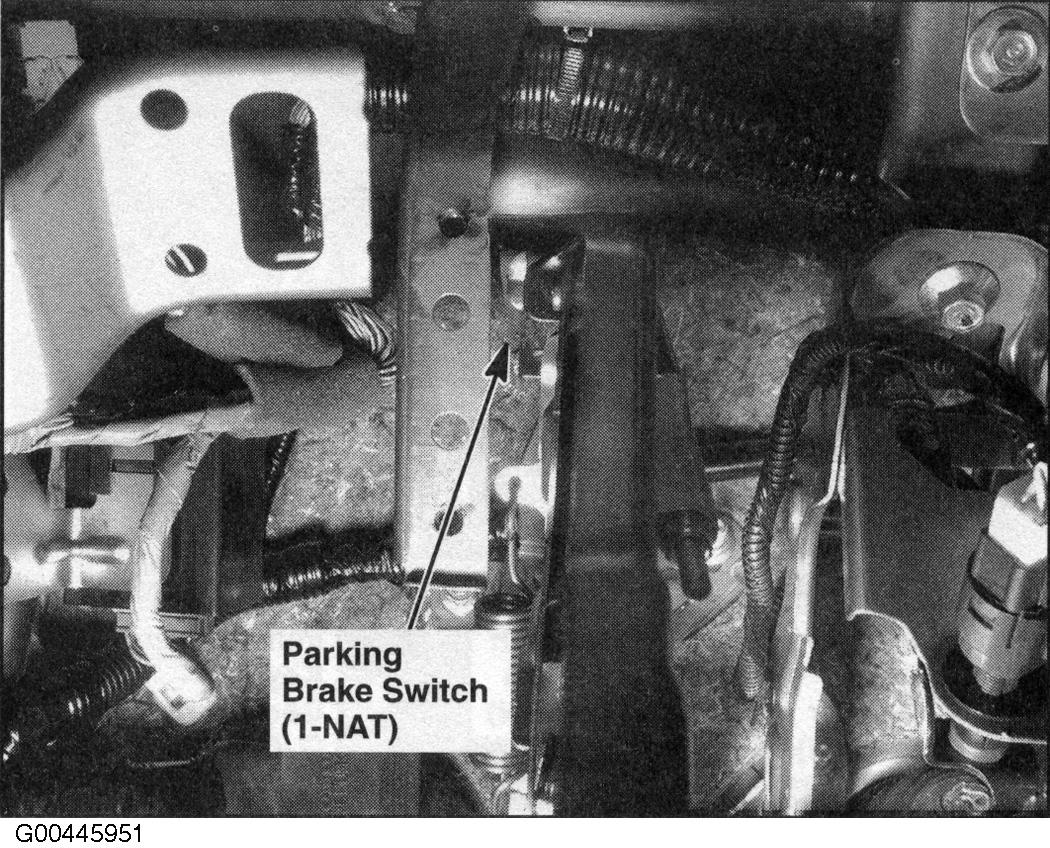

Fig 42: Under Left Side Of Dash

G00445951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

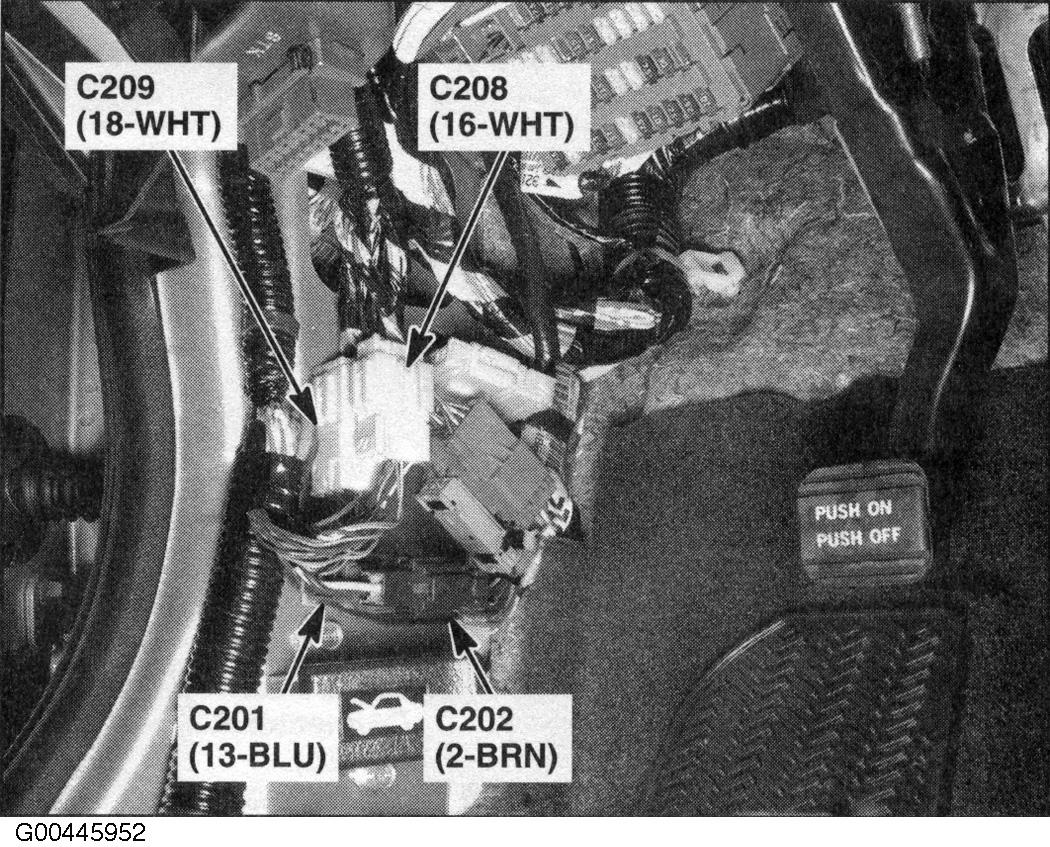

Fig 43: Behind Left Kick Panel

G00445952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

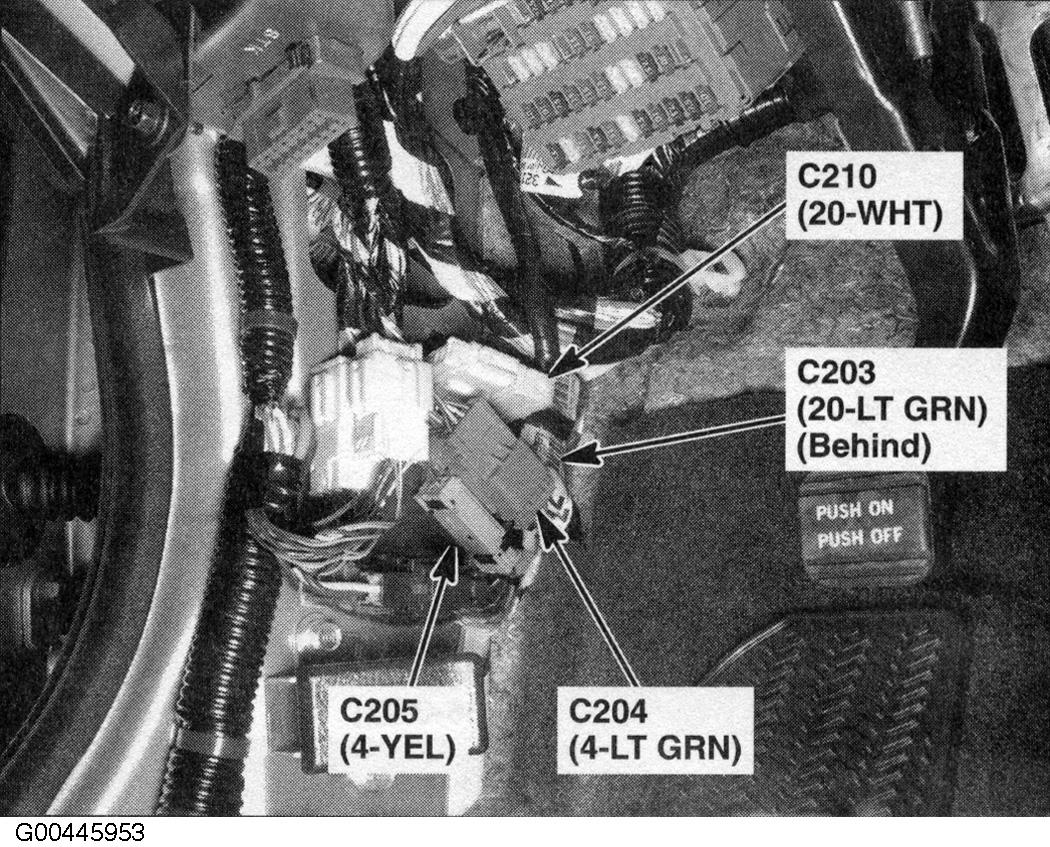

Fig 44: Behind Left Kick Panel

G00445953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

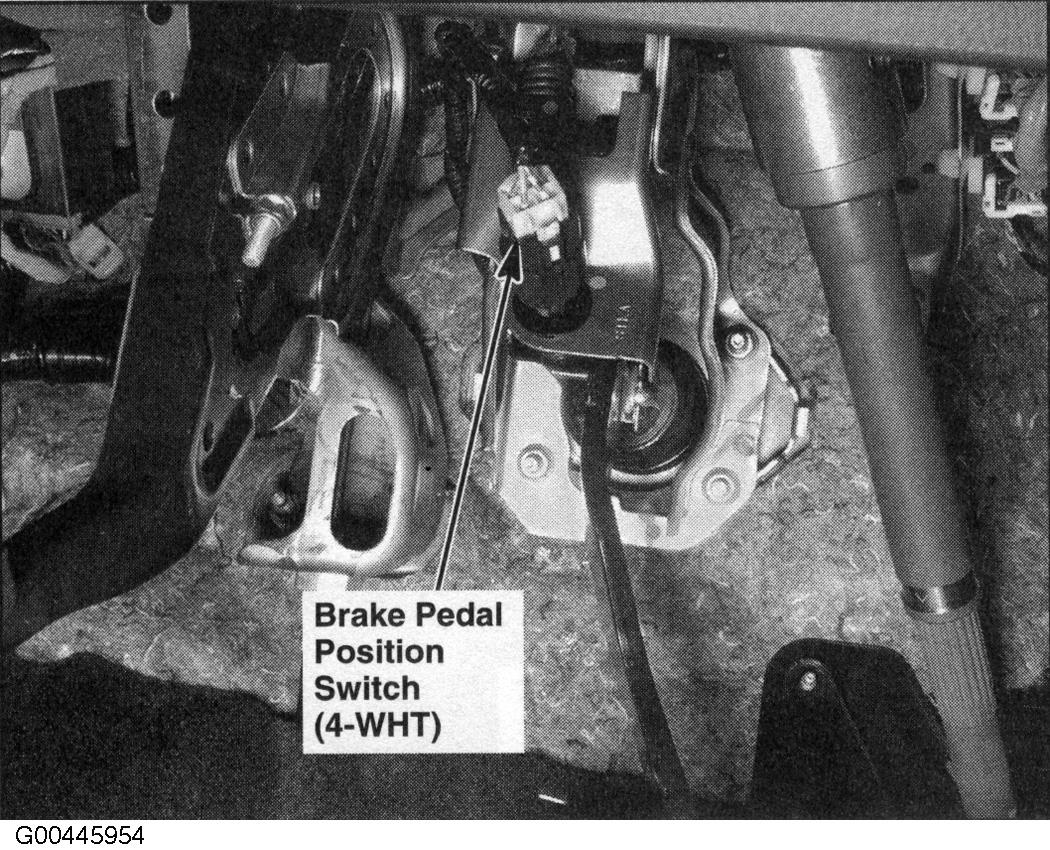

Fig 45: Under Left Side Of Dash

G00445954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Left Side Of Dash

G00445955

Courtesy of AMERICAN HONDA MOTOR CO., INC.

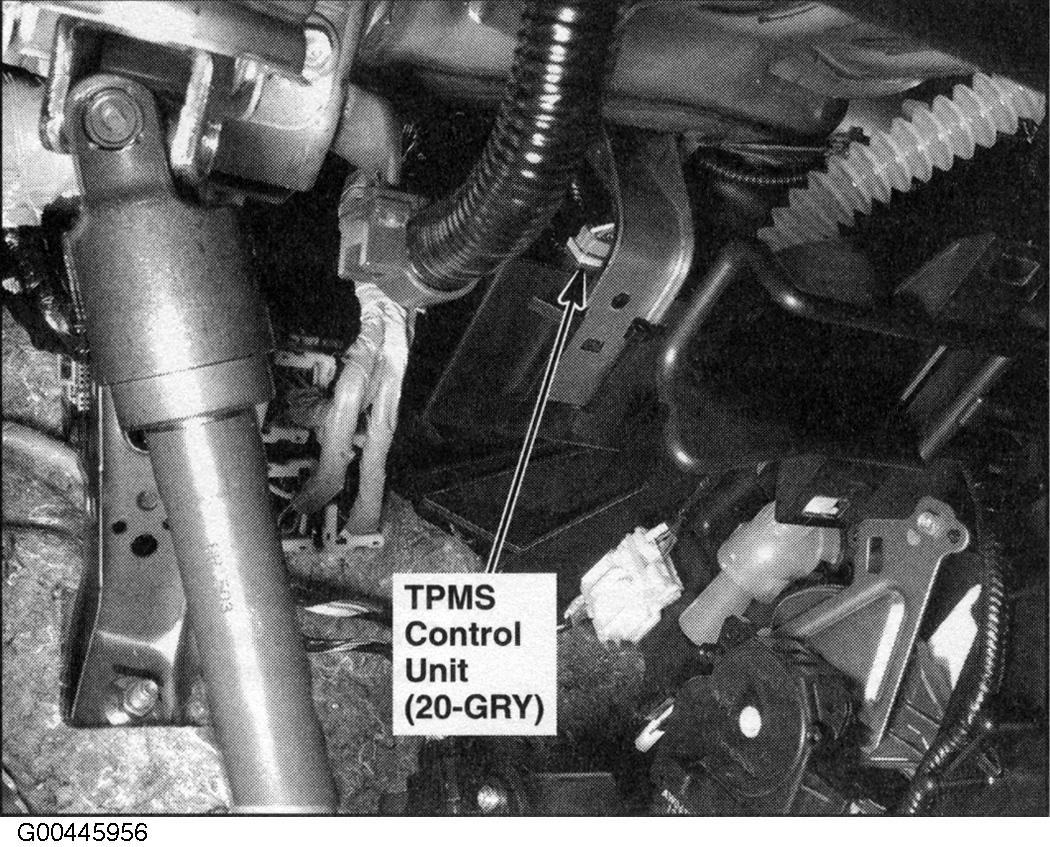

Fig 47: Under Left Side Of Dash

G00445956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

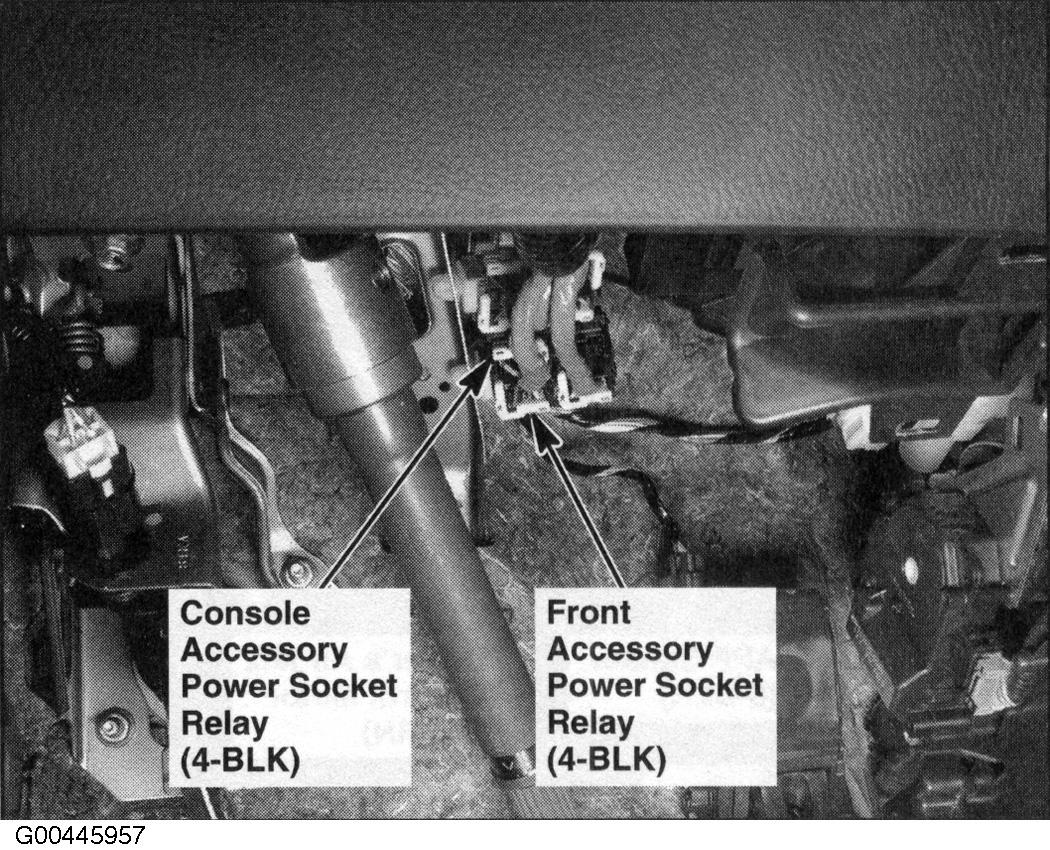

Fig 48: Under Left Side Of Dash

G00445957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

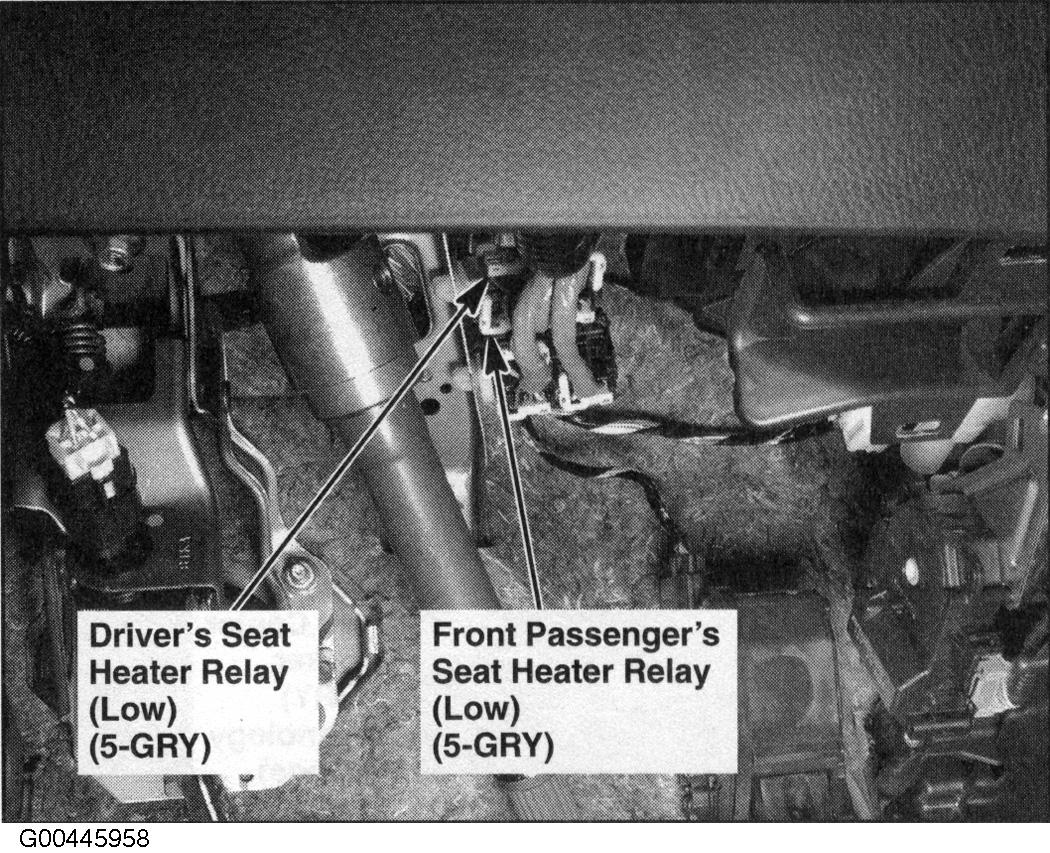

Fig 49: Under Left Side Of Dash

G00445958

Courtesy of AMERICAN HONDA MOTOR CO., INC.

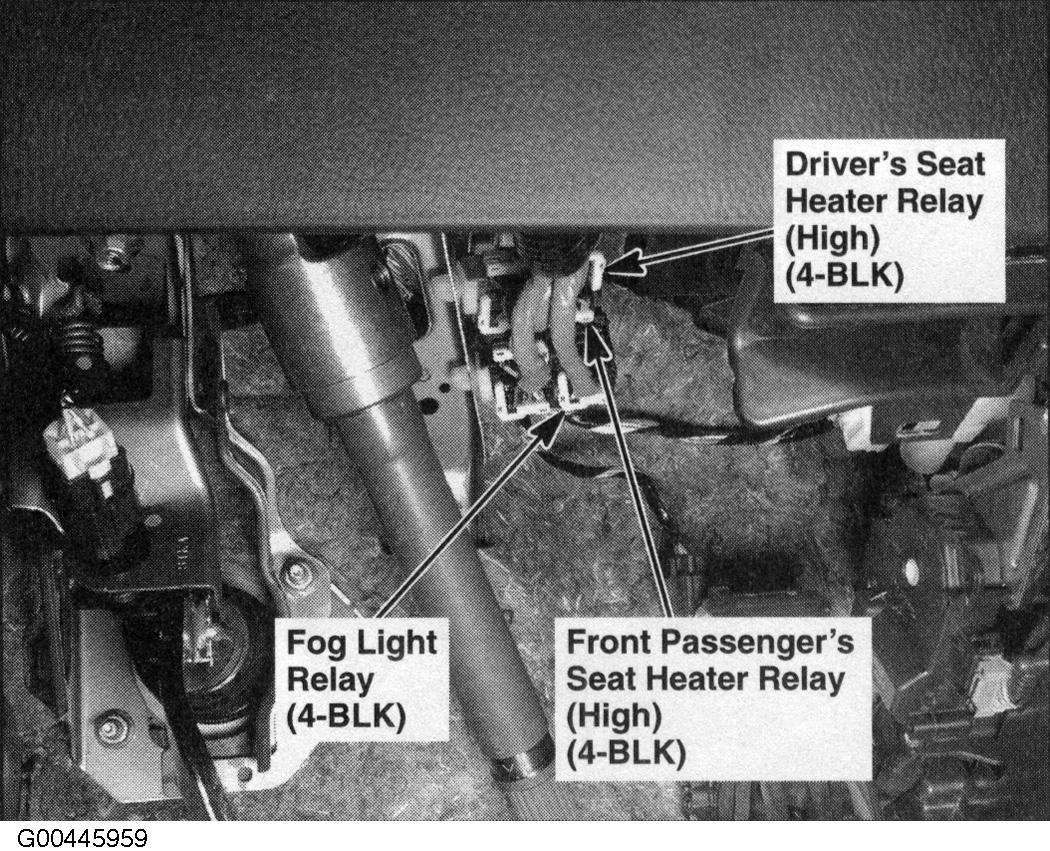

Fig 50: Under Left Side Of Dash

G00445959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

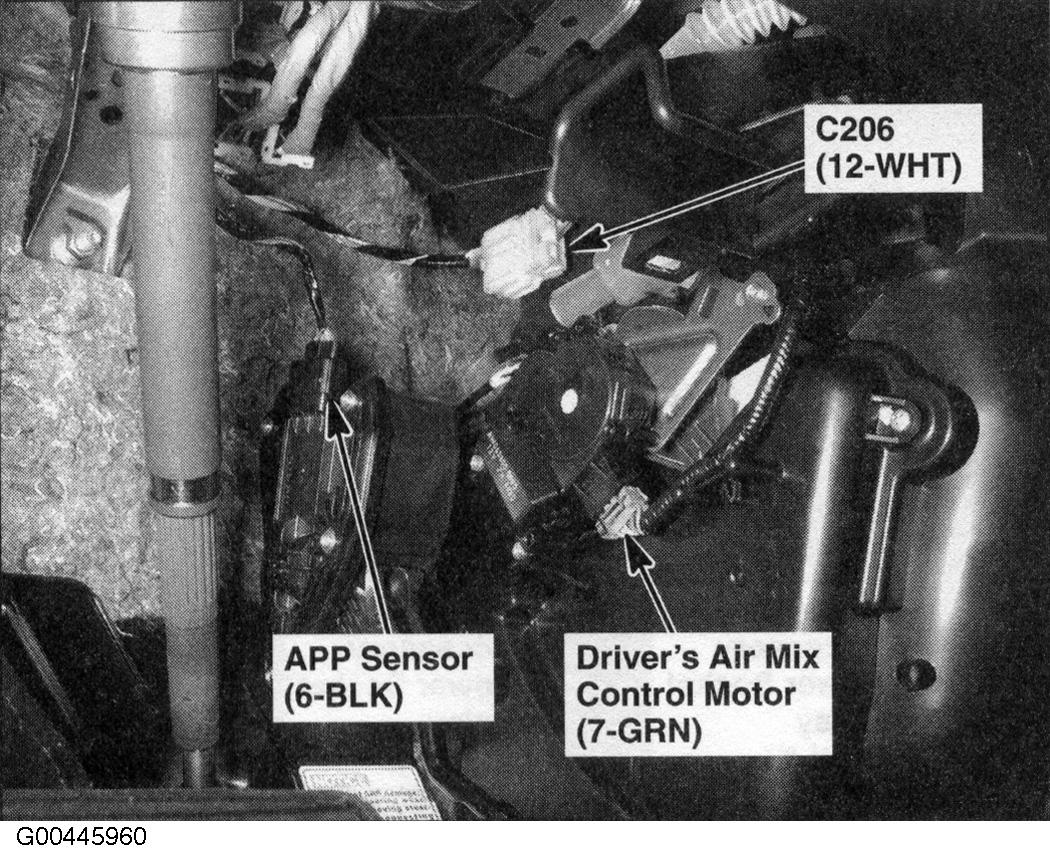

Fig 51: Under Left Side Of Dash

G00445960

Courtesy of AMERICAN HONDA MOTOR CO., INC.

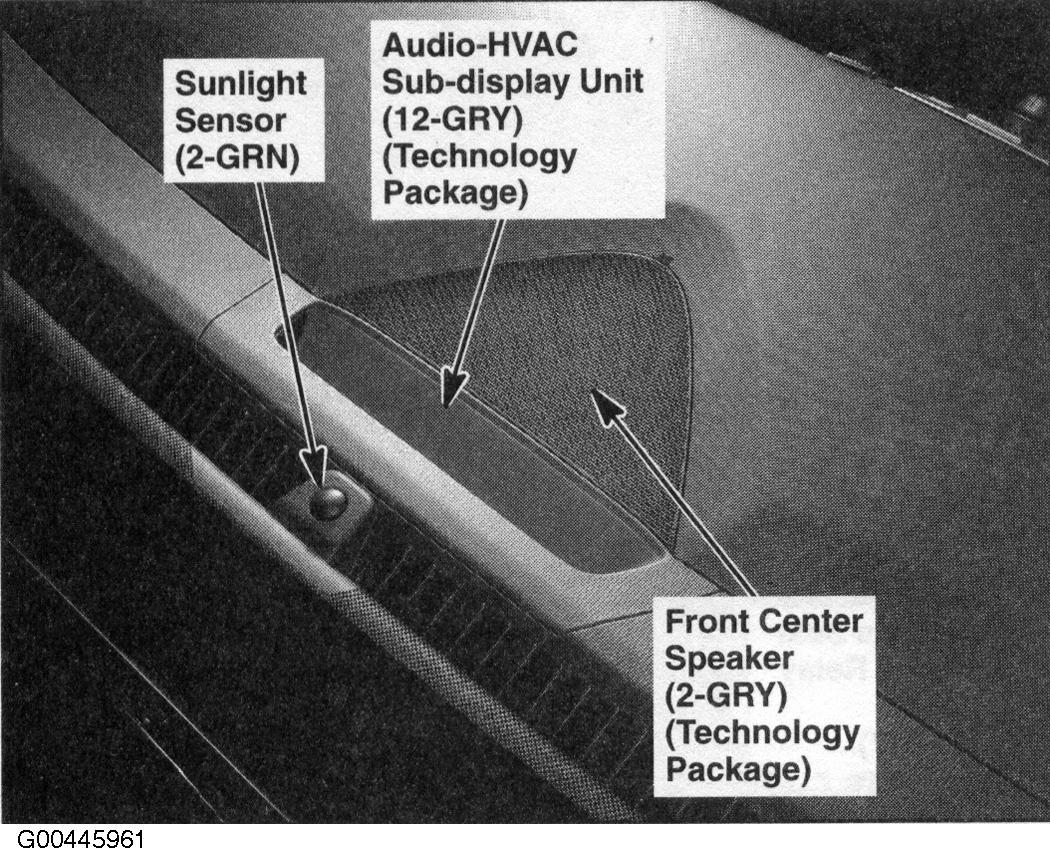

Fig 52: Middle Of Dash

G00445961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

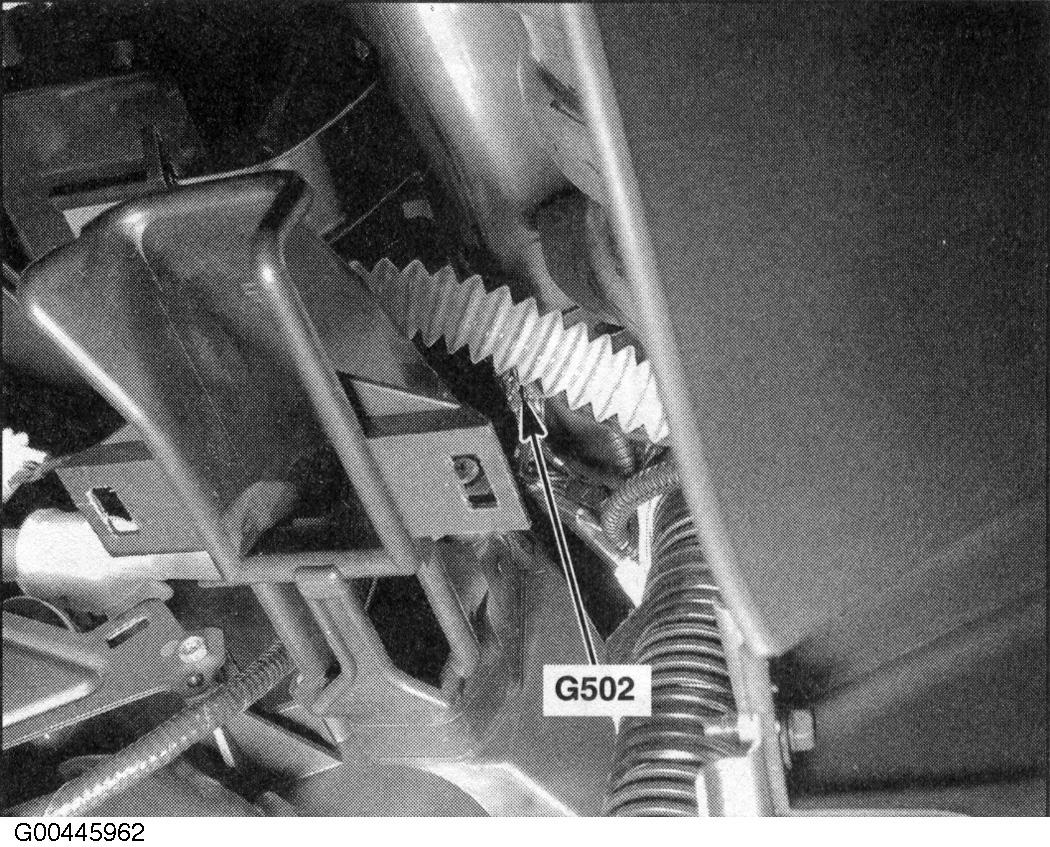

Fig 53: Under Middle Of Dash

G00445962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

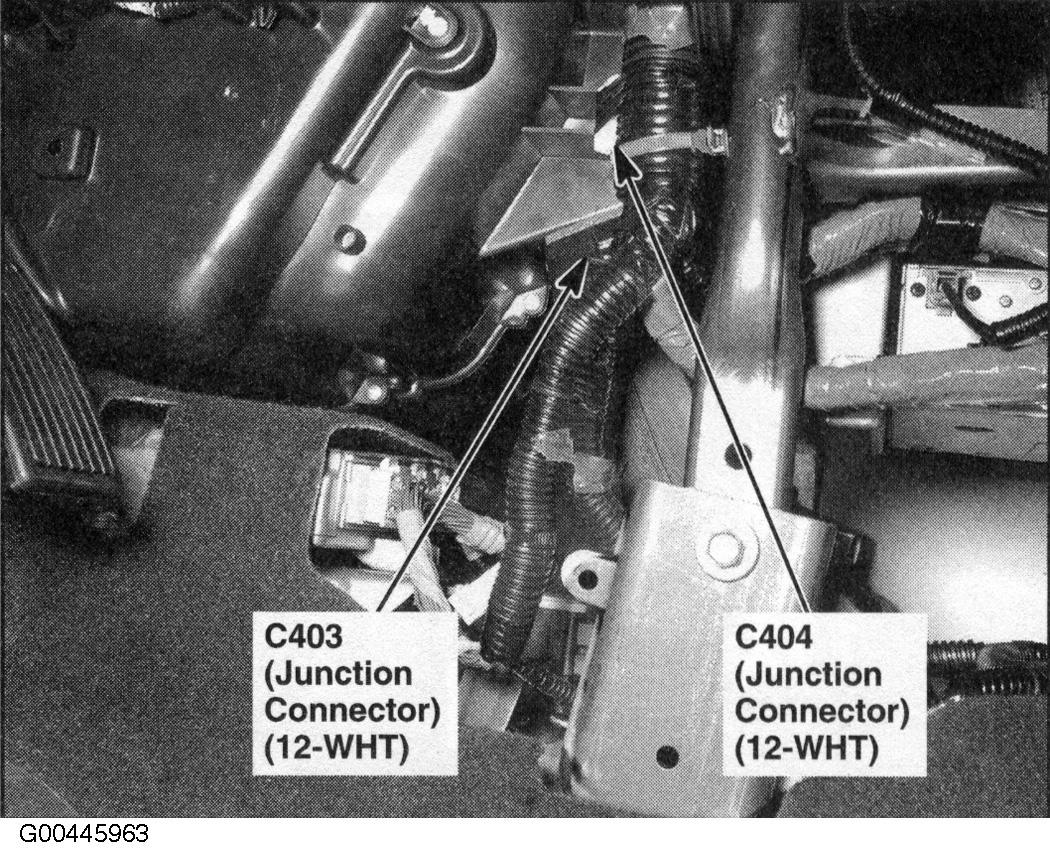

Fig 54: Under Middle Of Dash (USA: Technology Package)

G00445963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

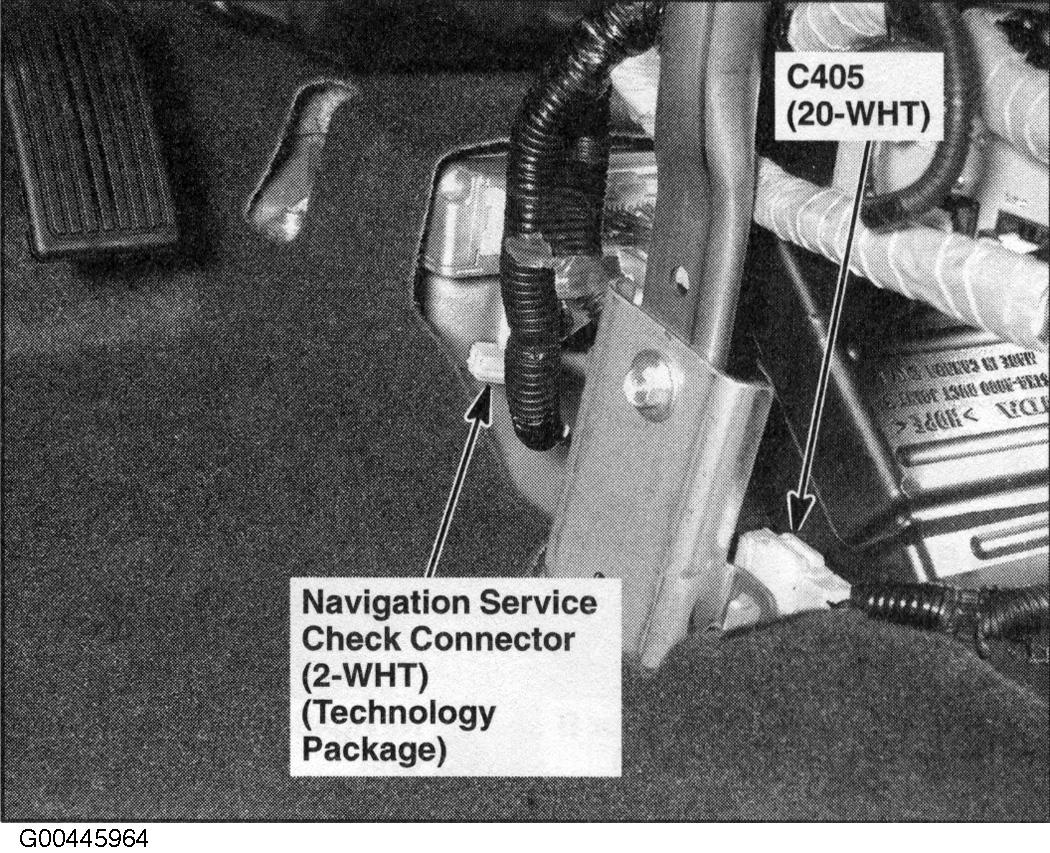

Fig 55: Under Middle Of Dash

G00445964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

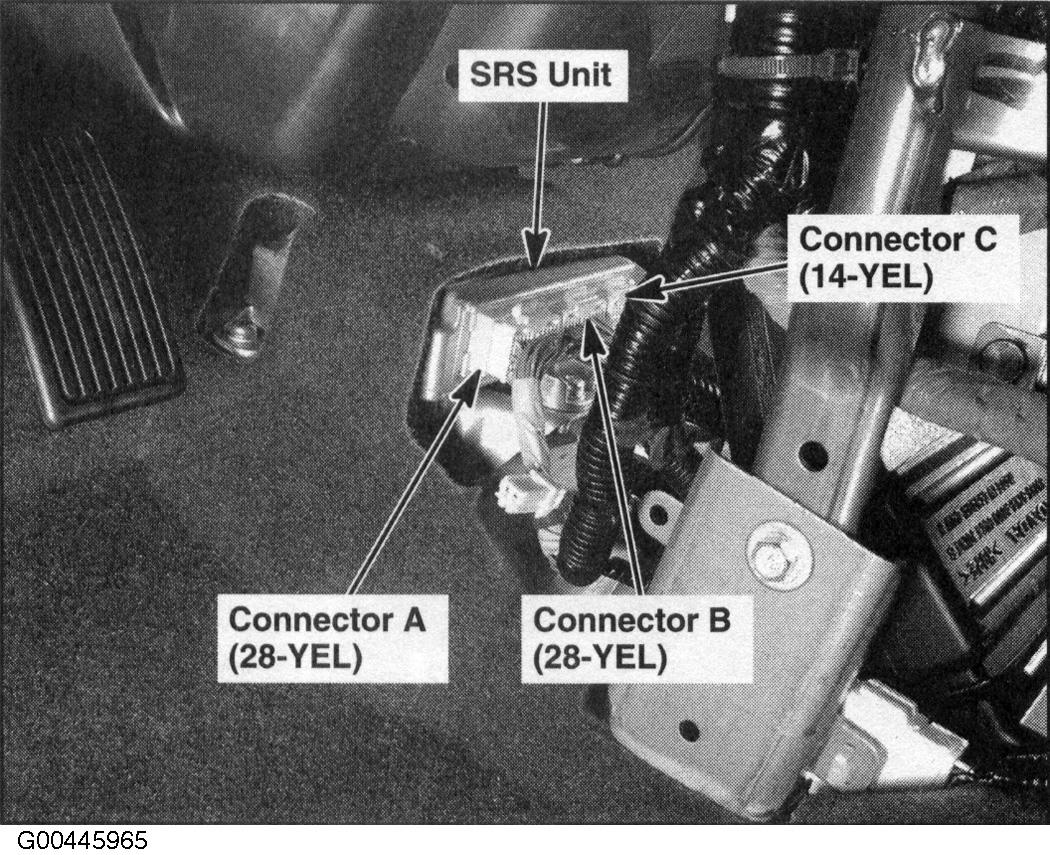

Fig 56: Under Middle Of Dash

G00445965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

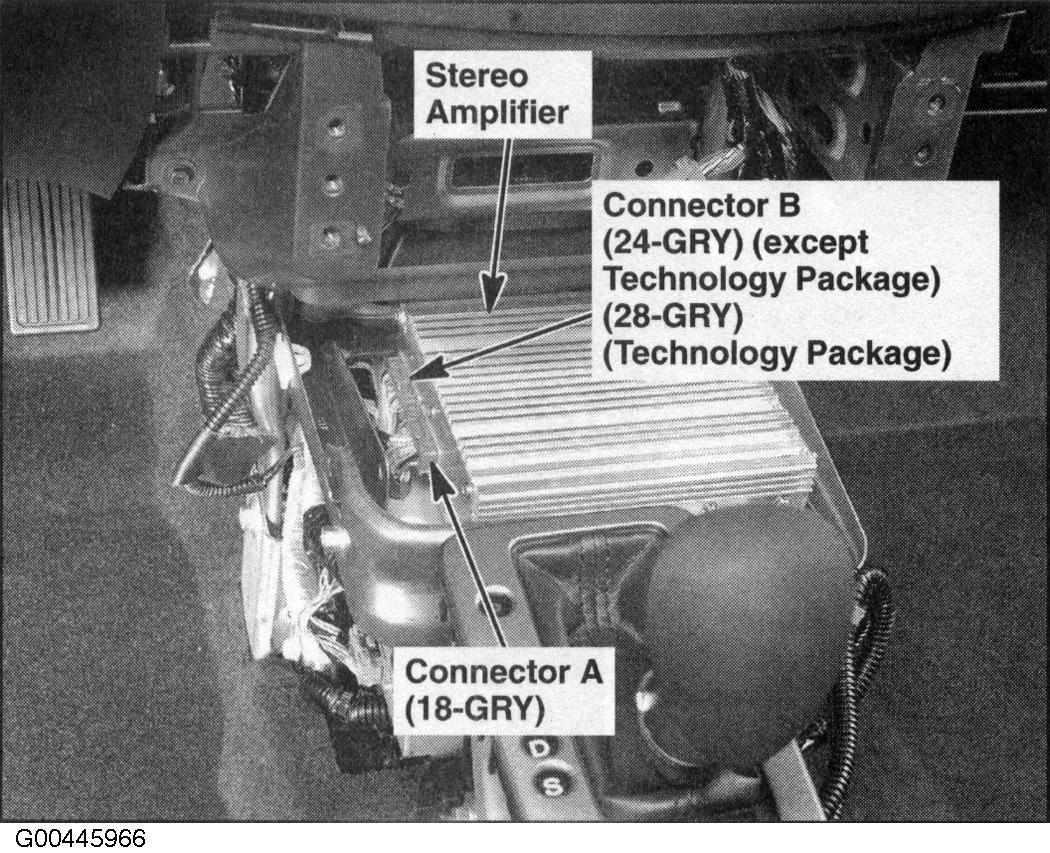

Fig 57: Under Middle Of Dash

G00445966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

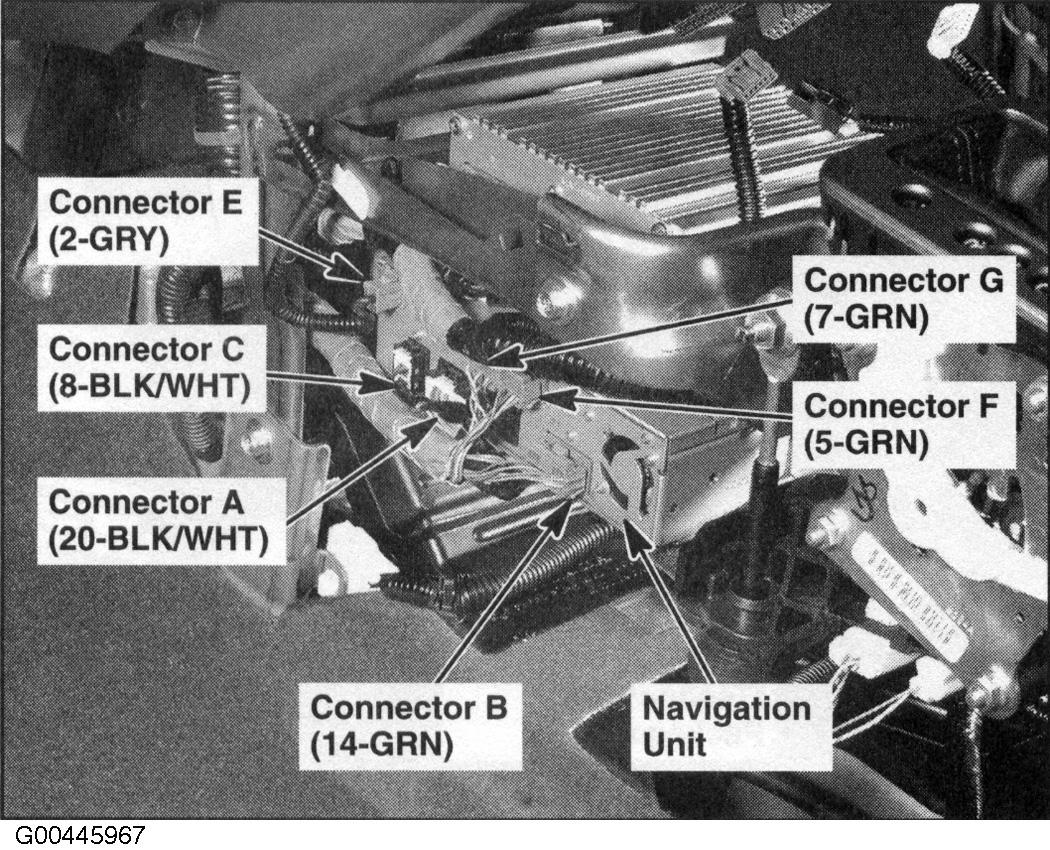

Fig 58: Under Middle Of Dash

G00445967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

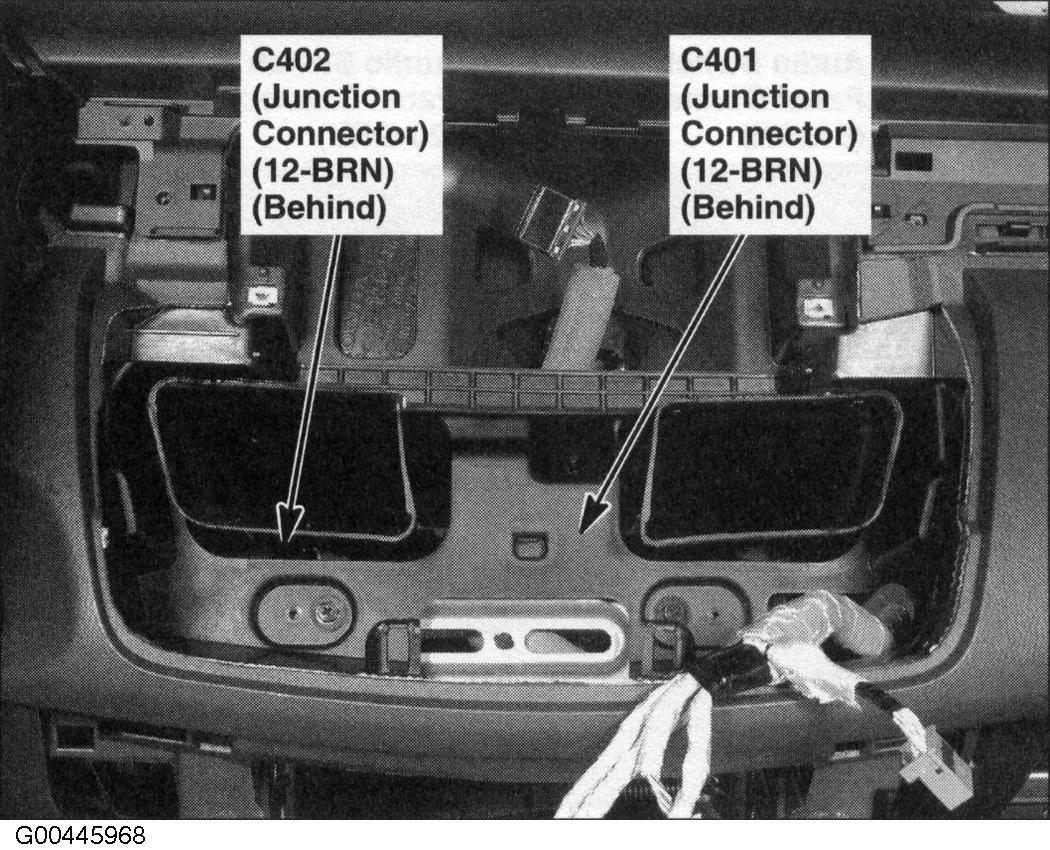

Fig 59: Behind Middle Of Dash

G00445968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

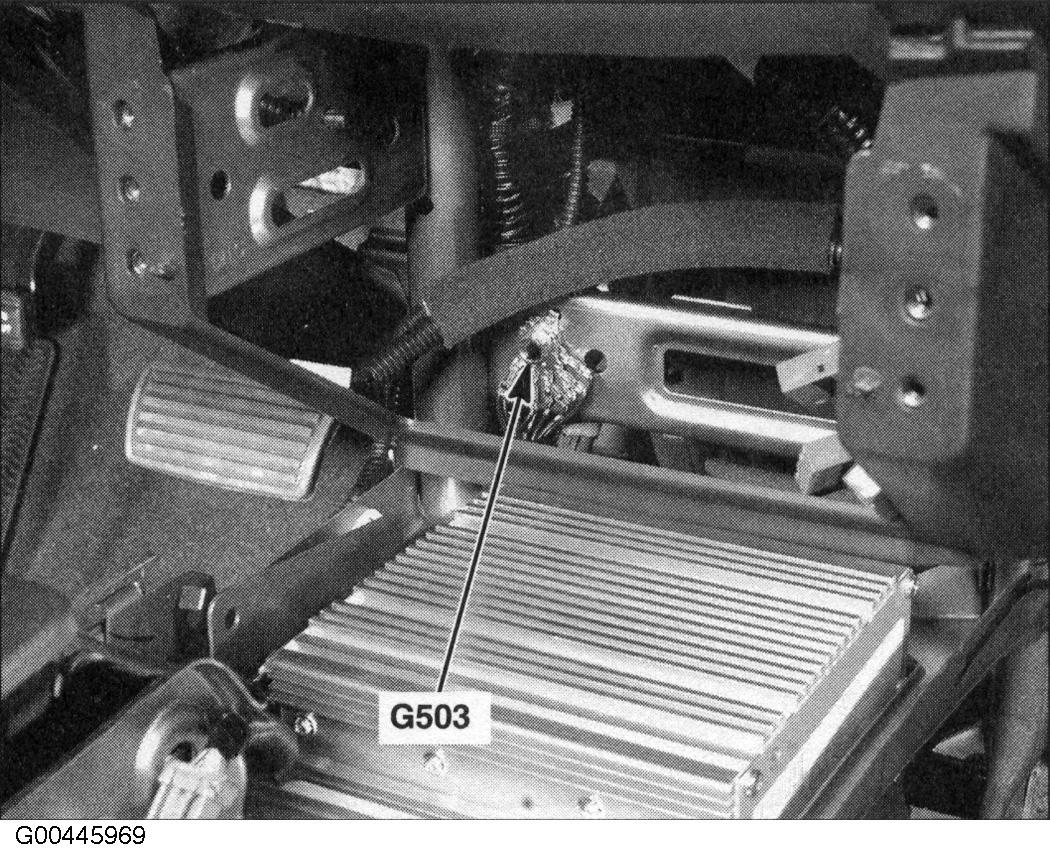

Fig 60: Under Middle Of Dash

G00445969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

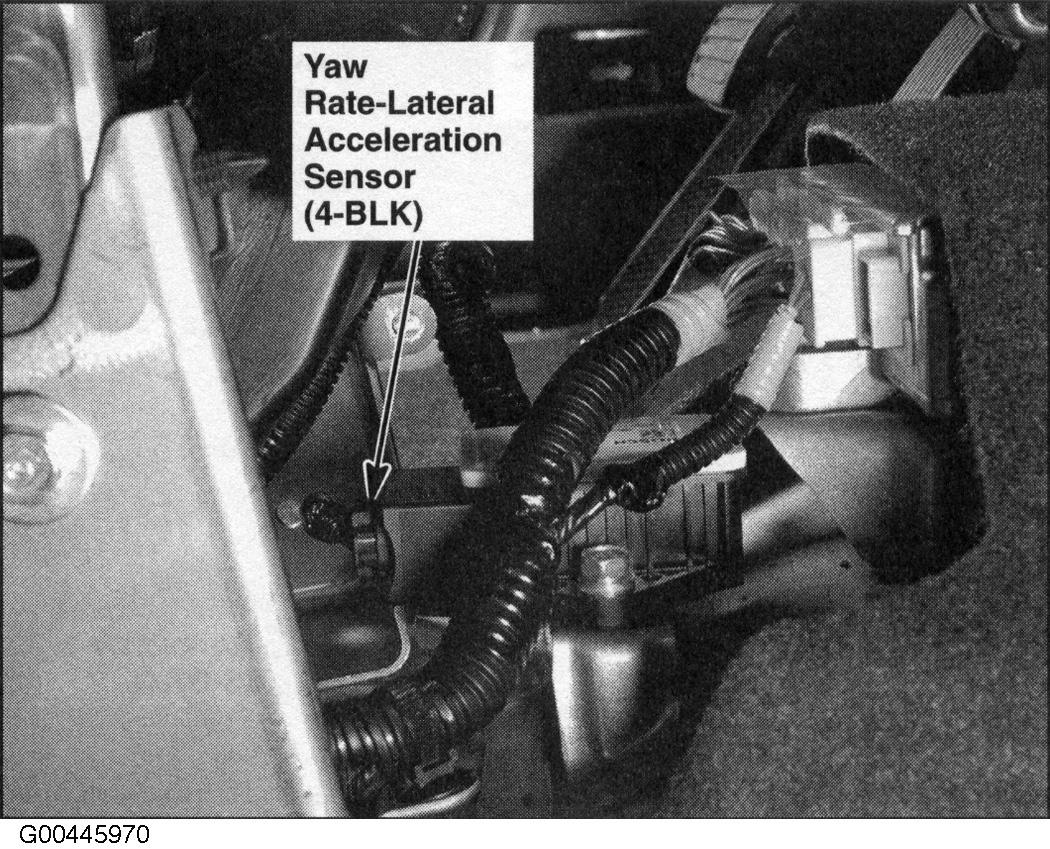

Fig 61: Under Middle Of Dash

G00445970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

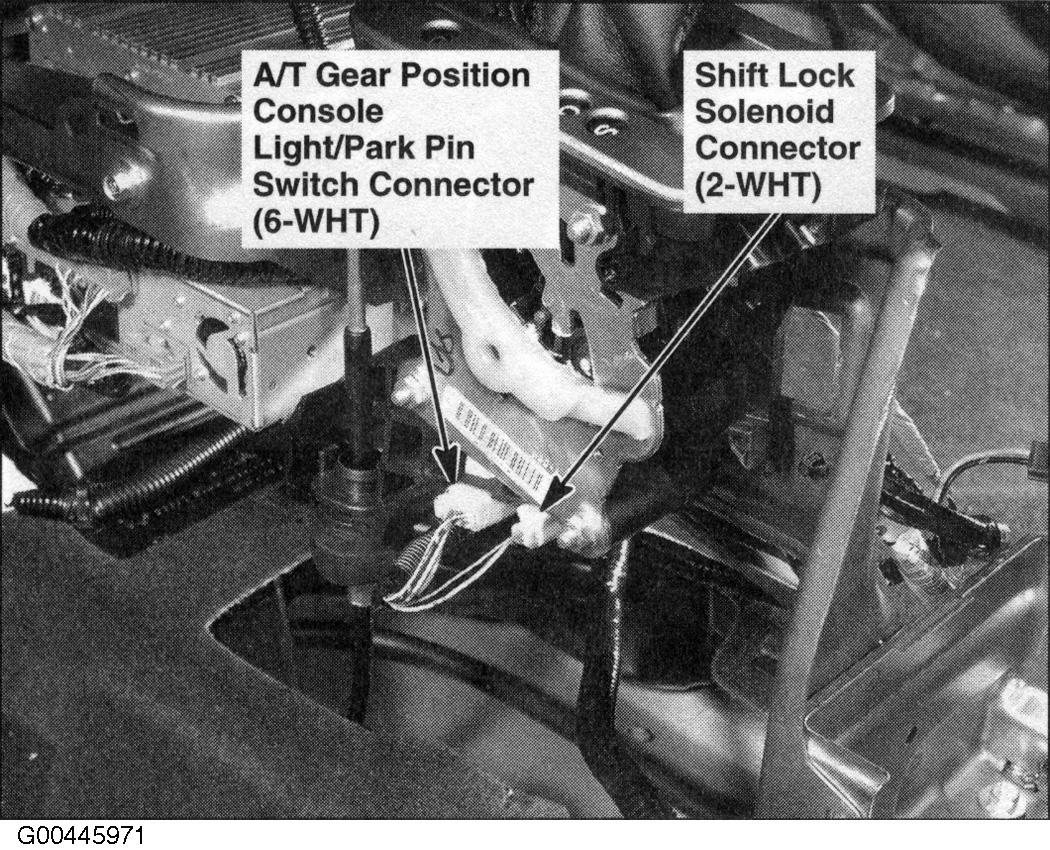

Fig 62: Under Center Console

G00445971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

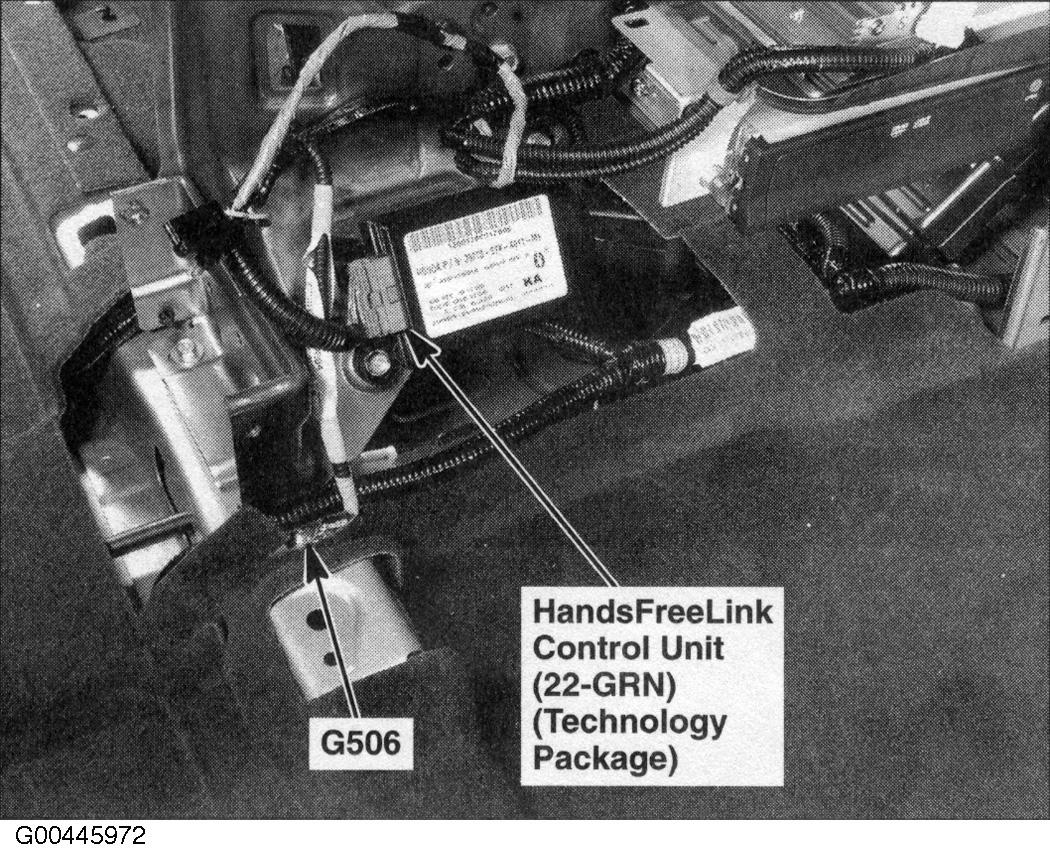

Fig 63: Under Center Console

G00445972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

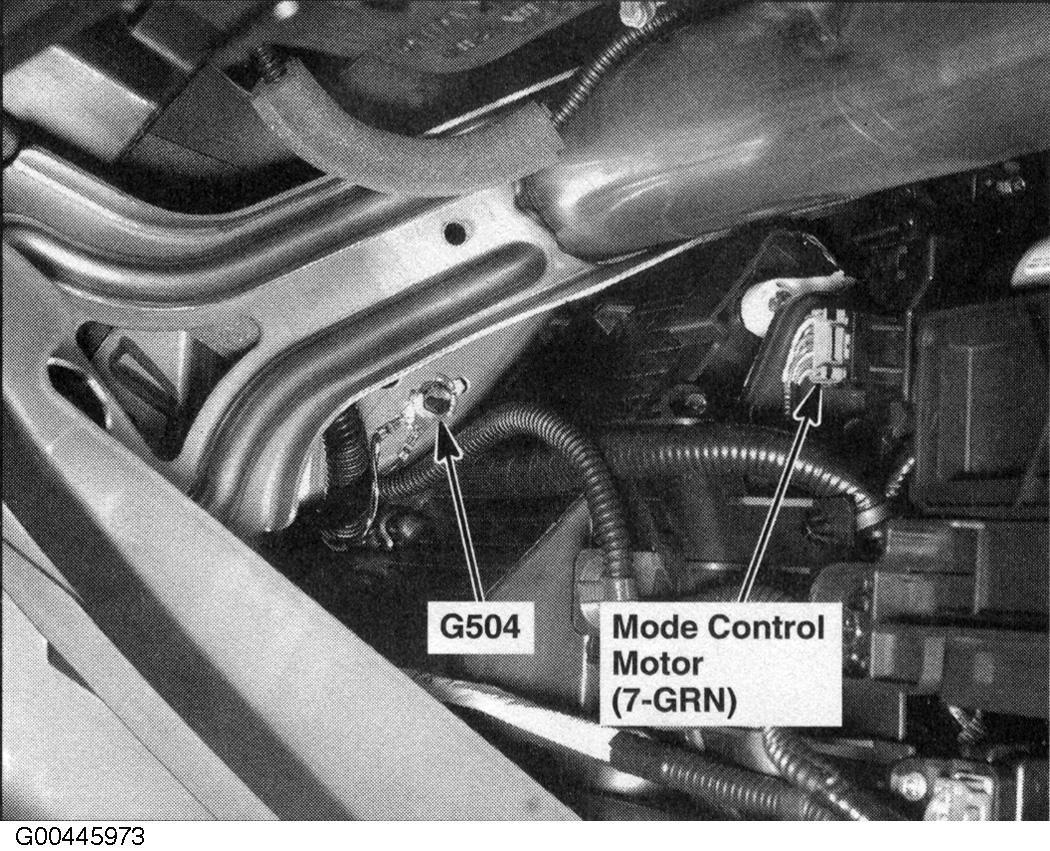

Fig 64: Behind Glove Box

G00445973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

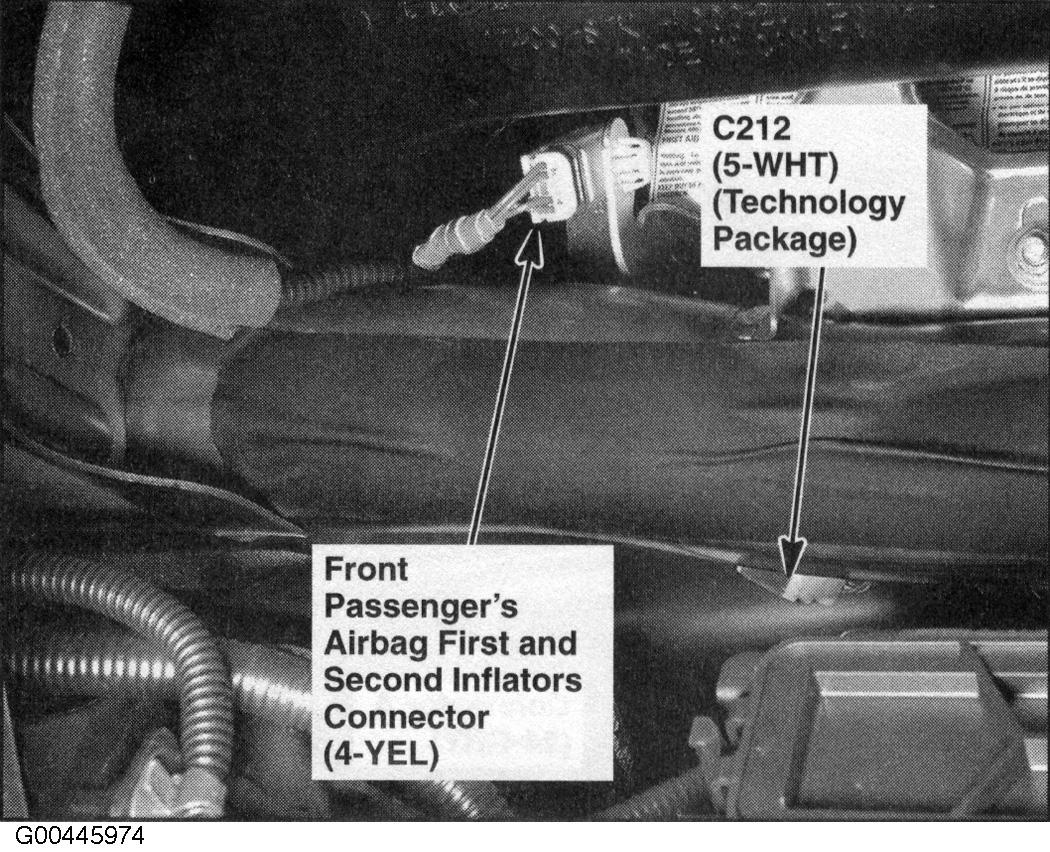

Fig 65: Behind Glove Box

G00445974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

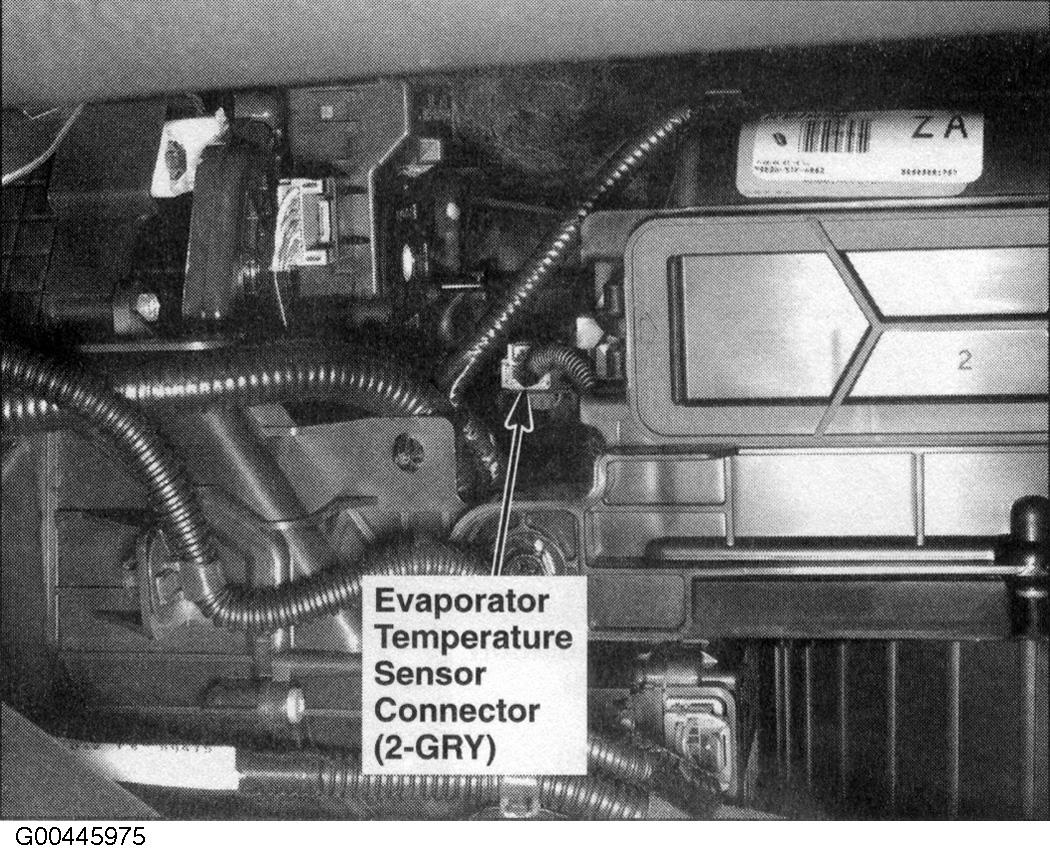

Fig 66: Behind Glove Box

G00445975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

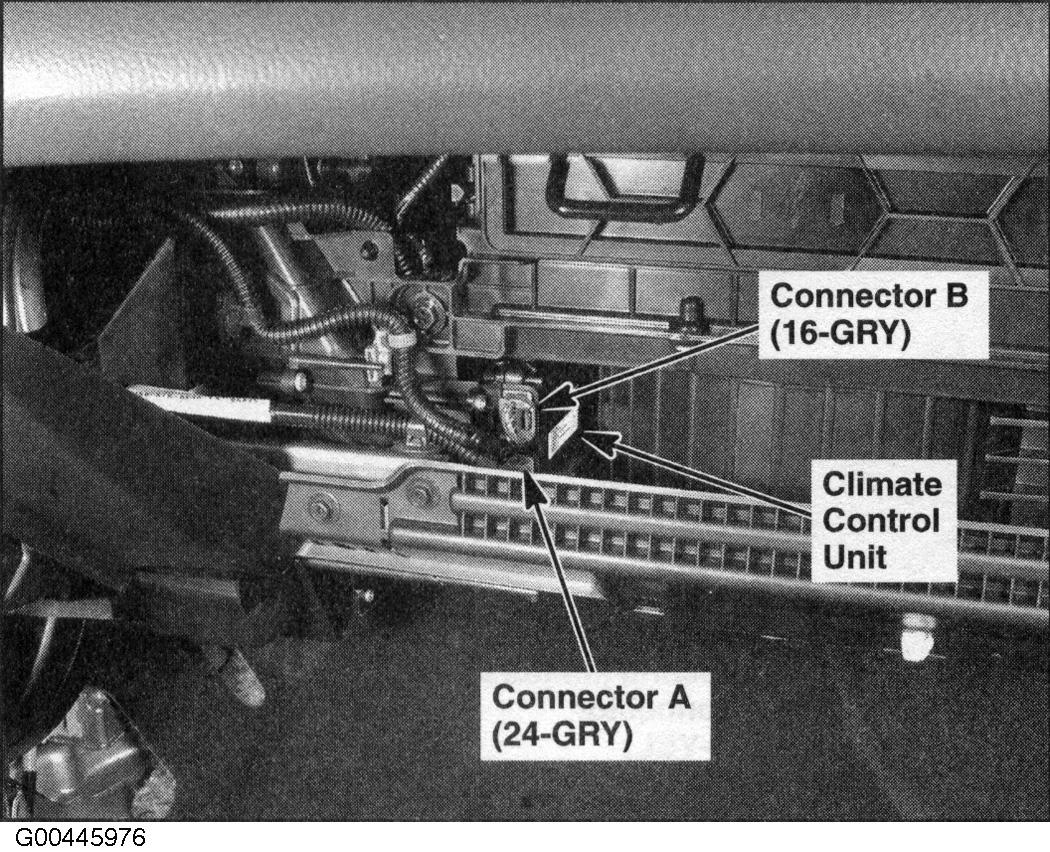

Fig 67: Behind Glove Box

G00445976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

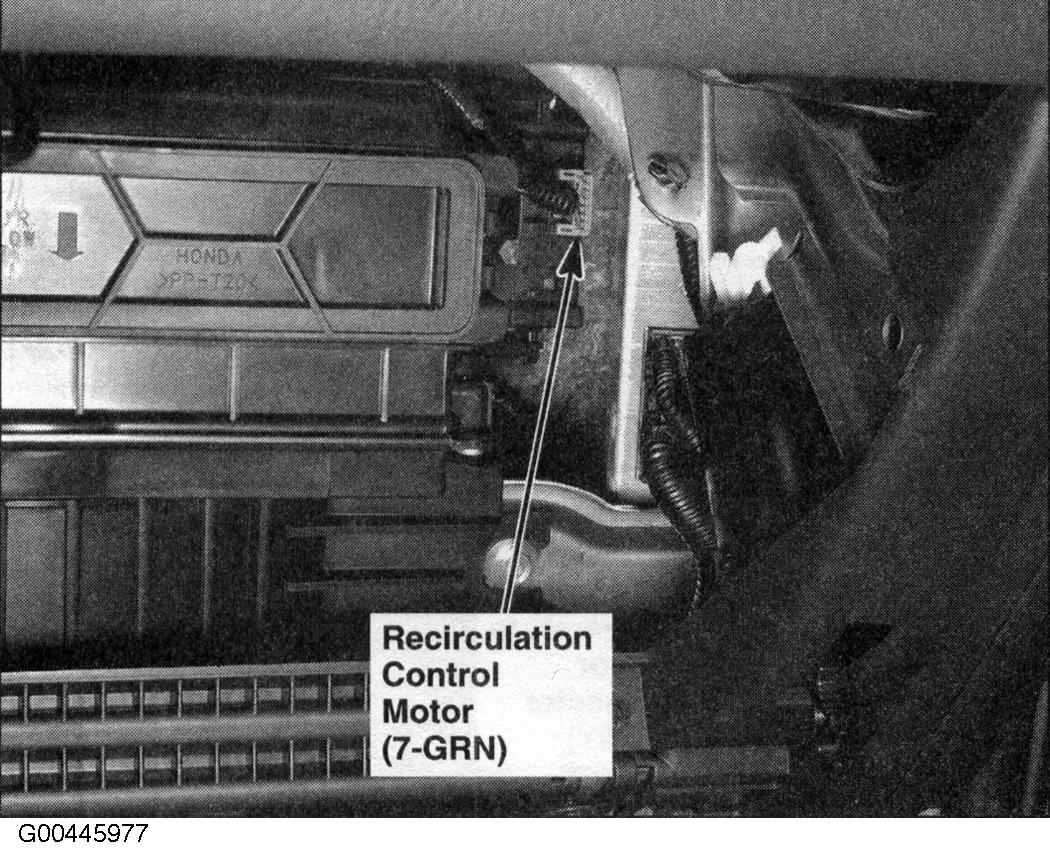

Fig 68: Behind Glove Box

G00445977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

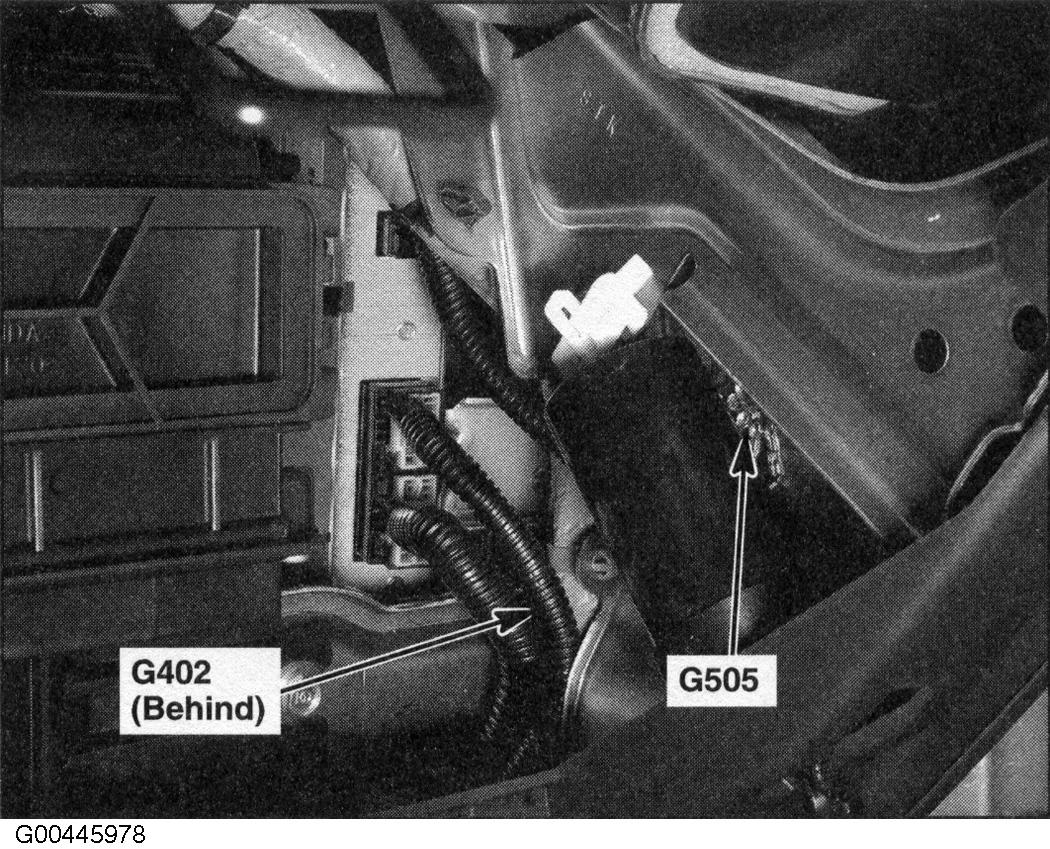

Fig 69: Behind Glove Box

G00445978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

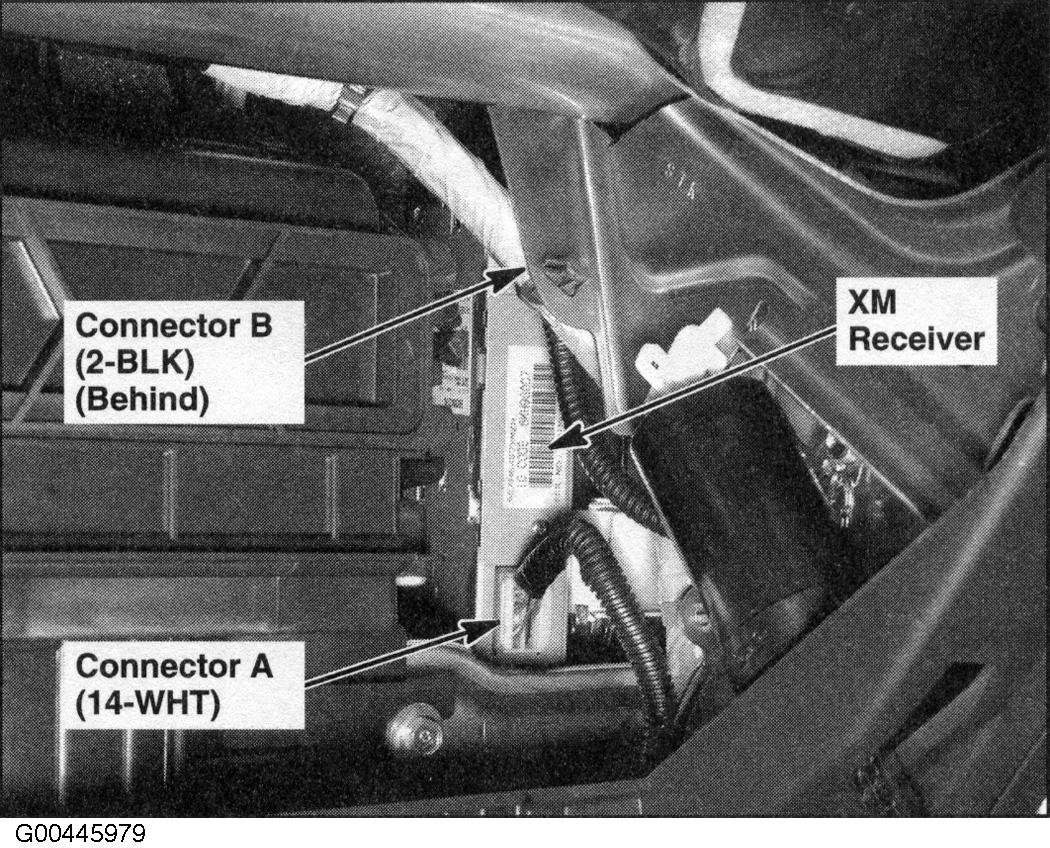

Fig 70: Behind Glove Box

G00445979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

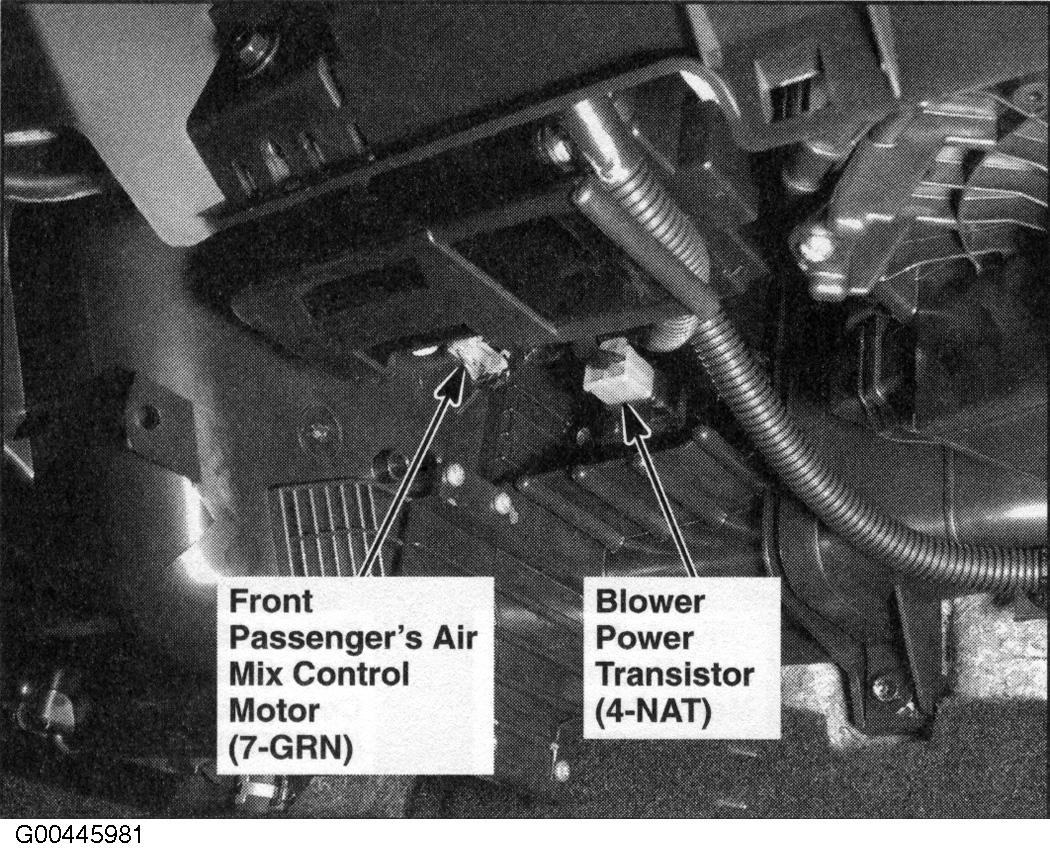

Fig 71: Under Right Side Of Dash

G00445981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

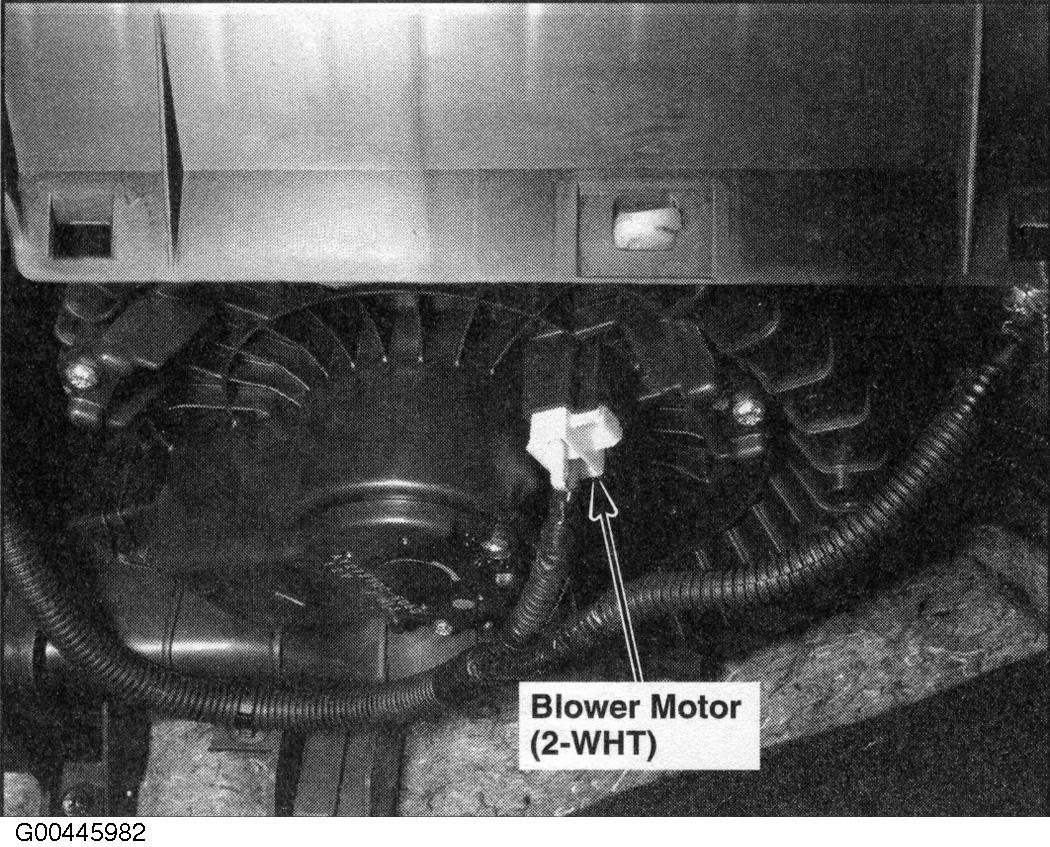

Fig 72: Under Right Side Of Dash

G00445982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

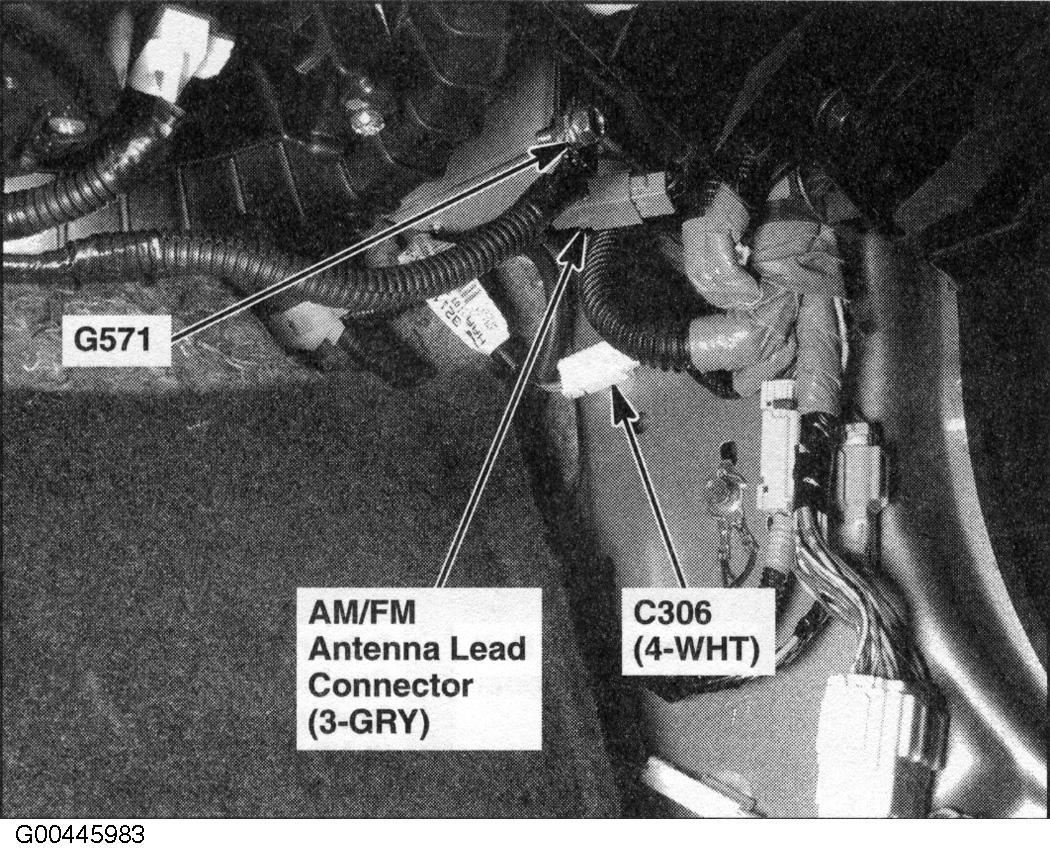

Fig 73: Under Right Side Of Dash

G00445983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

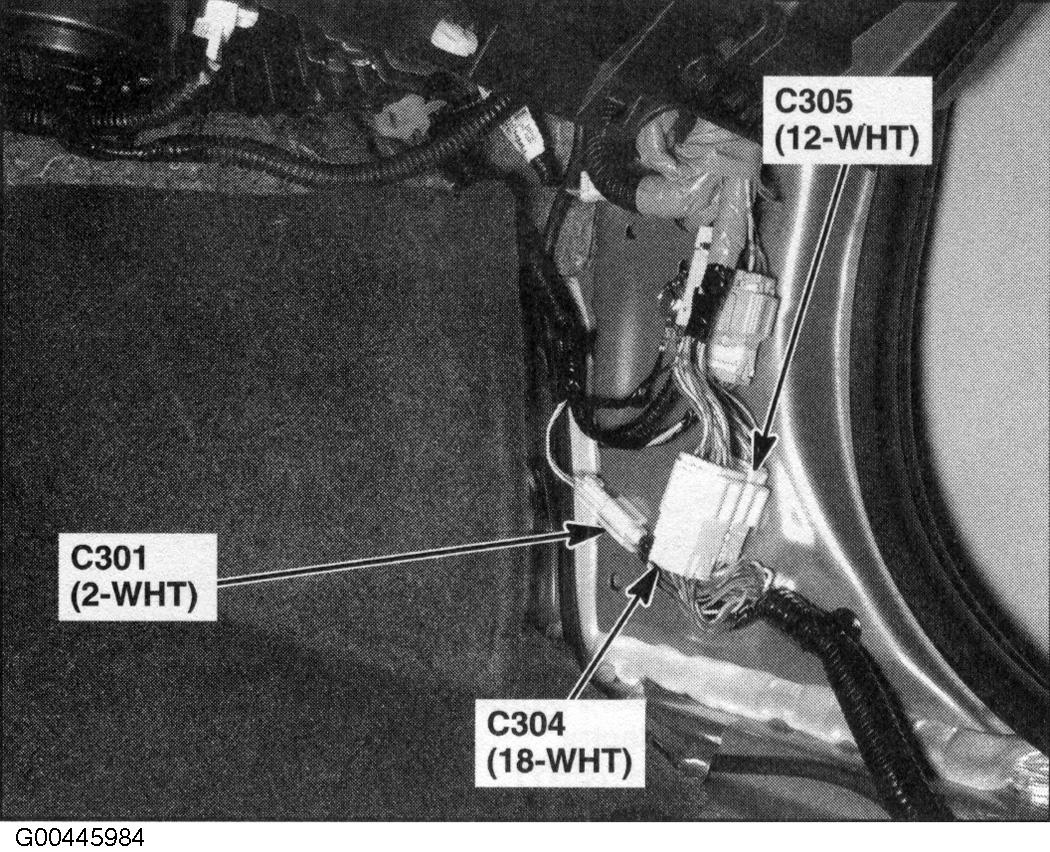

Fig 74: Behind Right Kick Panel

G00445984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

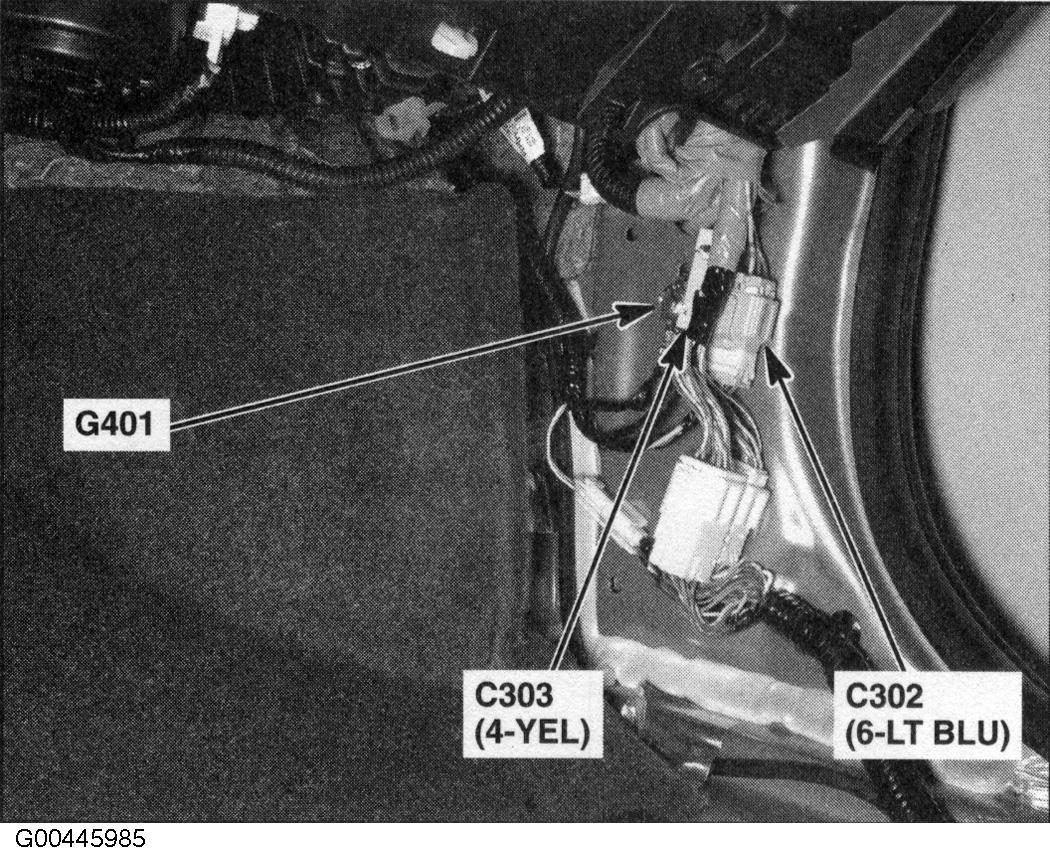

Fig 75: Behind Right Kick Panel

G00445985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

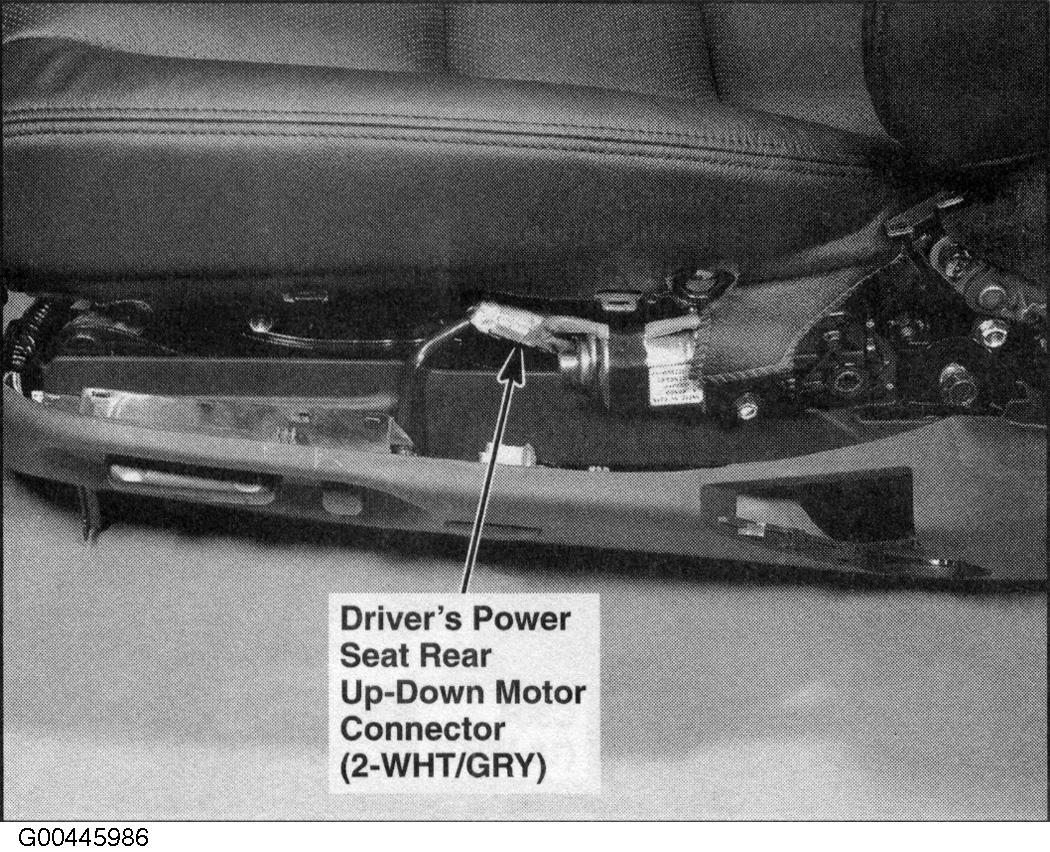

Fig 76: Left Side Of Driver's Seat

G00445986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

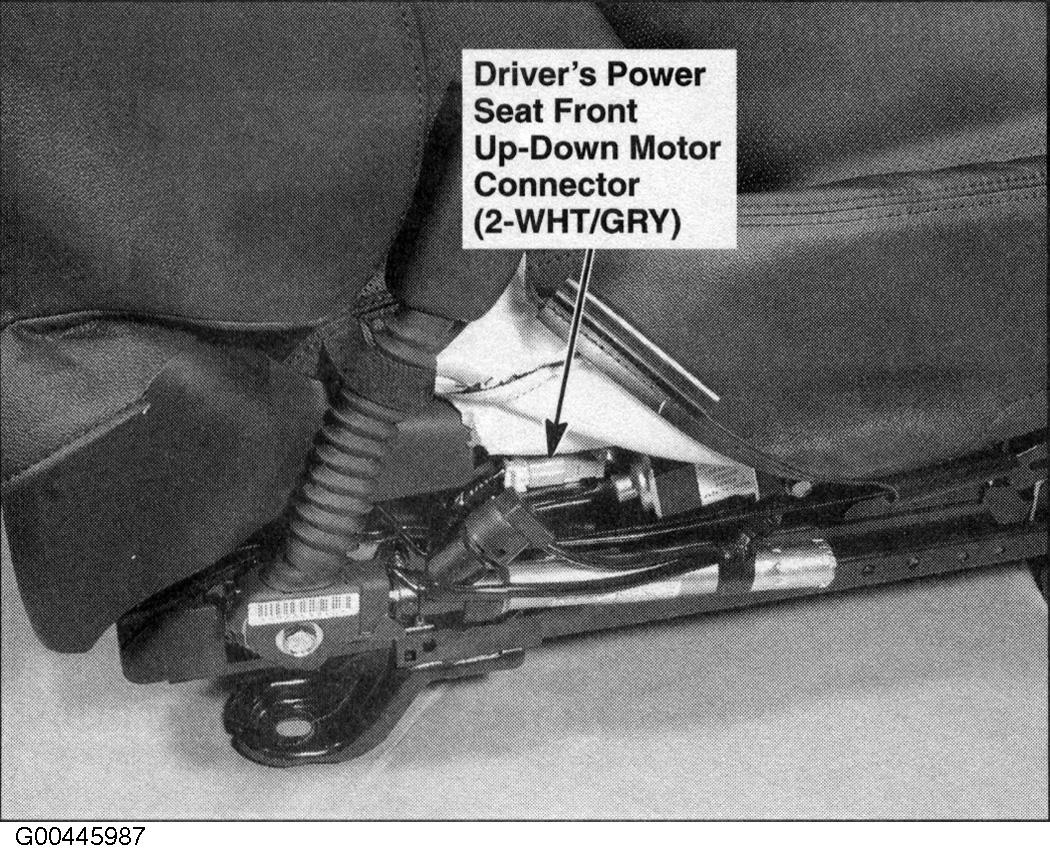

Fig 77: Right Side Of Driver's Seat

G00445987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

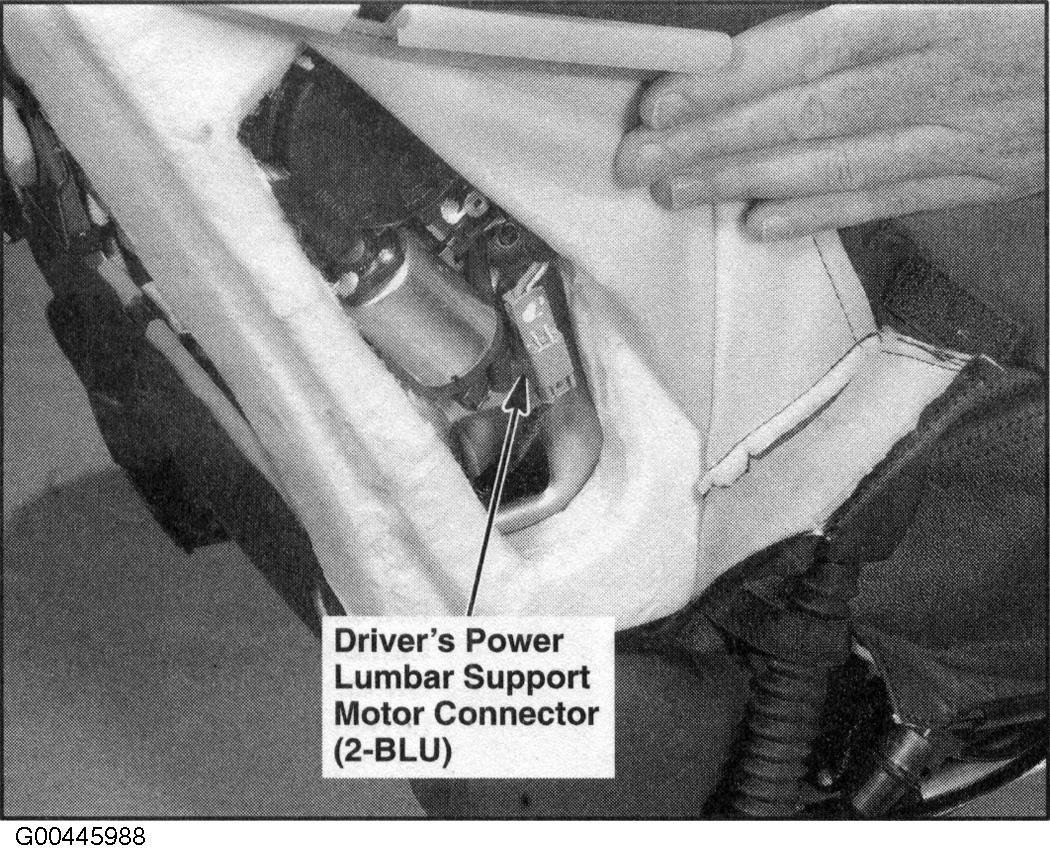

Fig 78: Right Side Of Driver's Seat Back

G00445988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

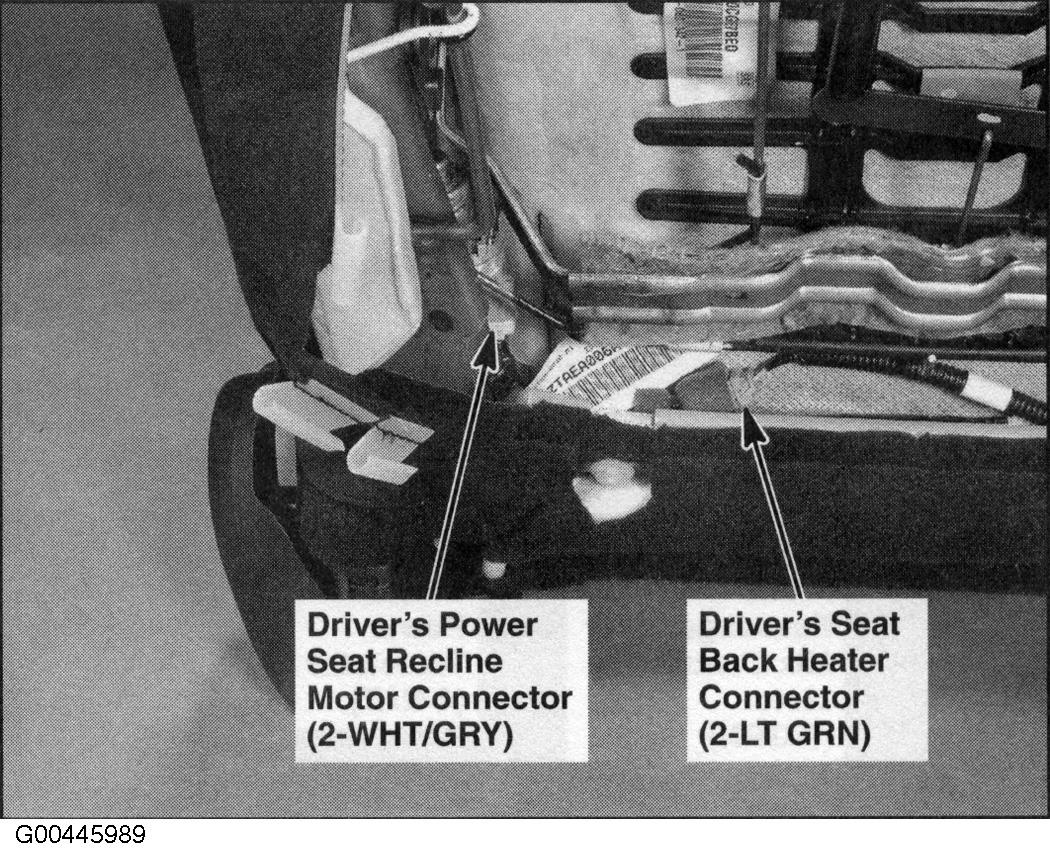

Fig 79: In Driver's Seat

G00445989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

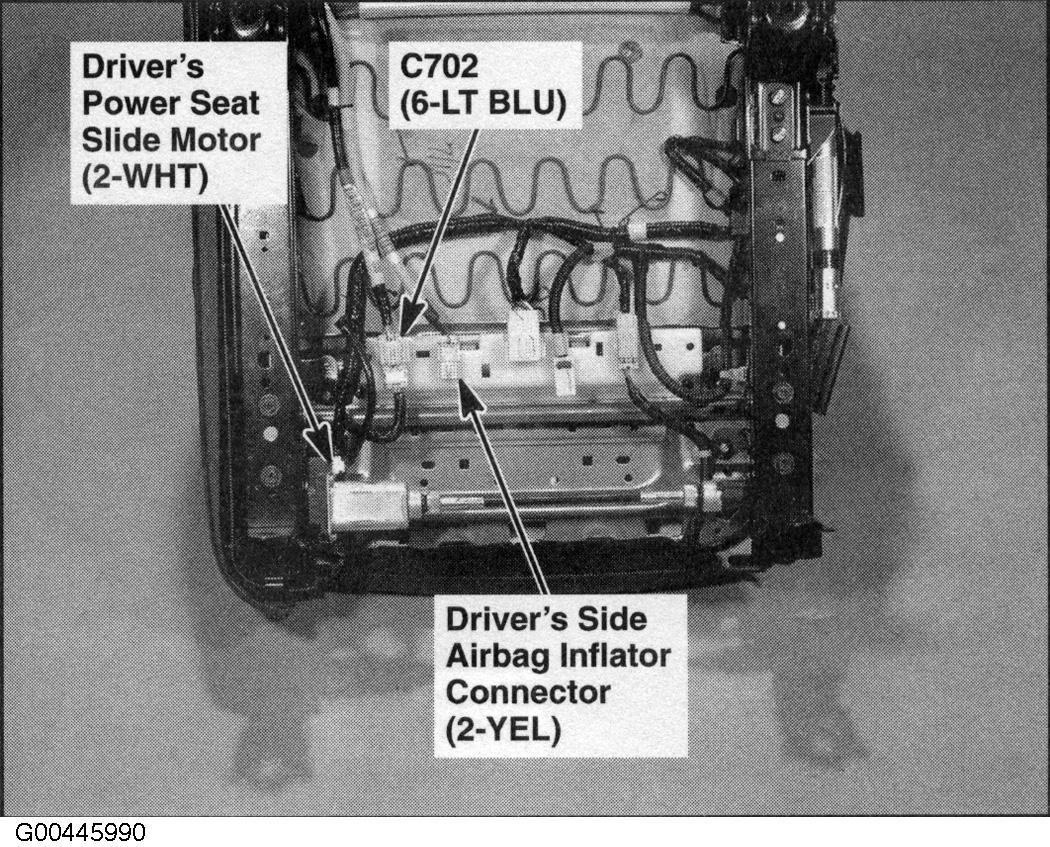

Fig 80: Under Drivers Seat

G00445990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

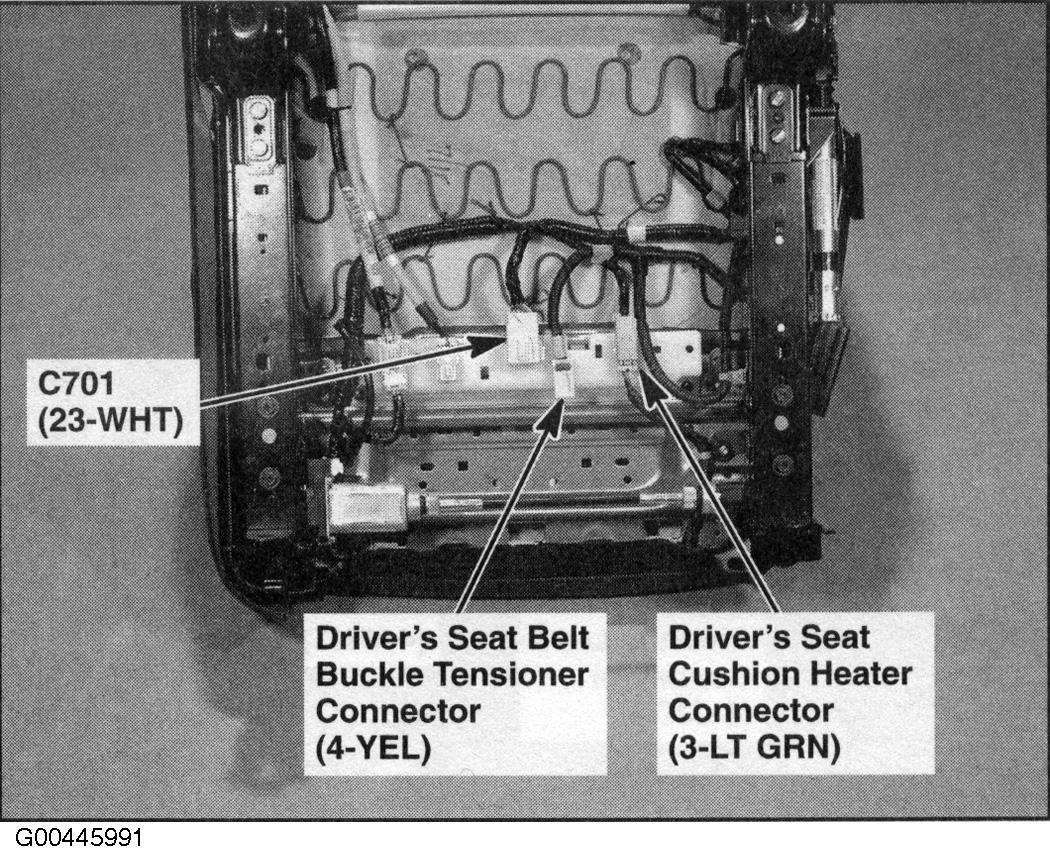

Fig 81: Under Driver's Seat

G00445991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

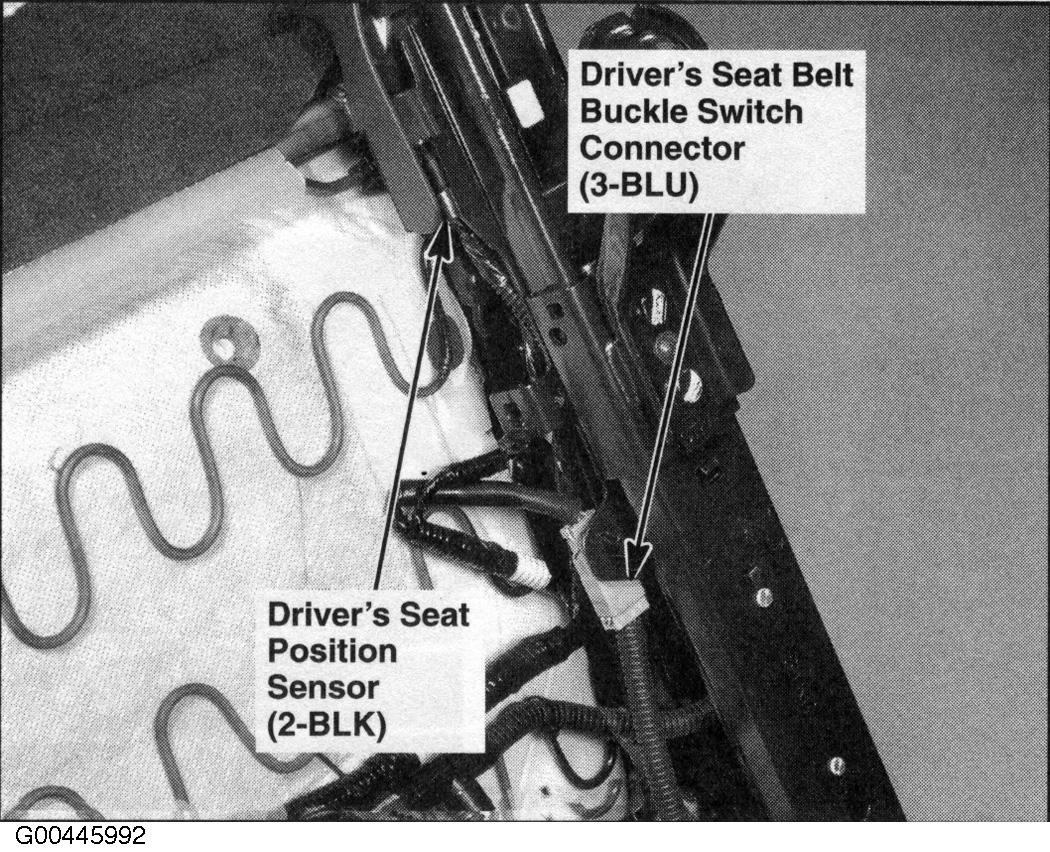

Fig 82: Under Driver's Seat

G00445992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

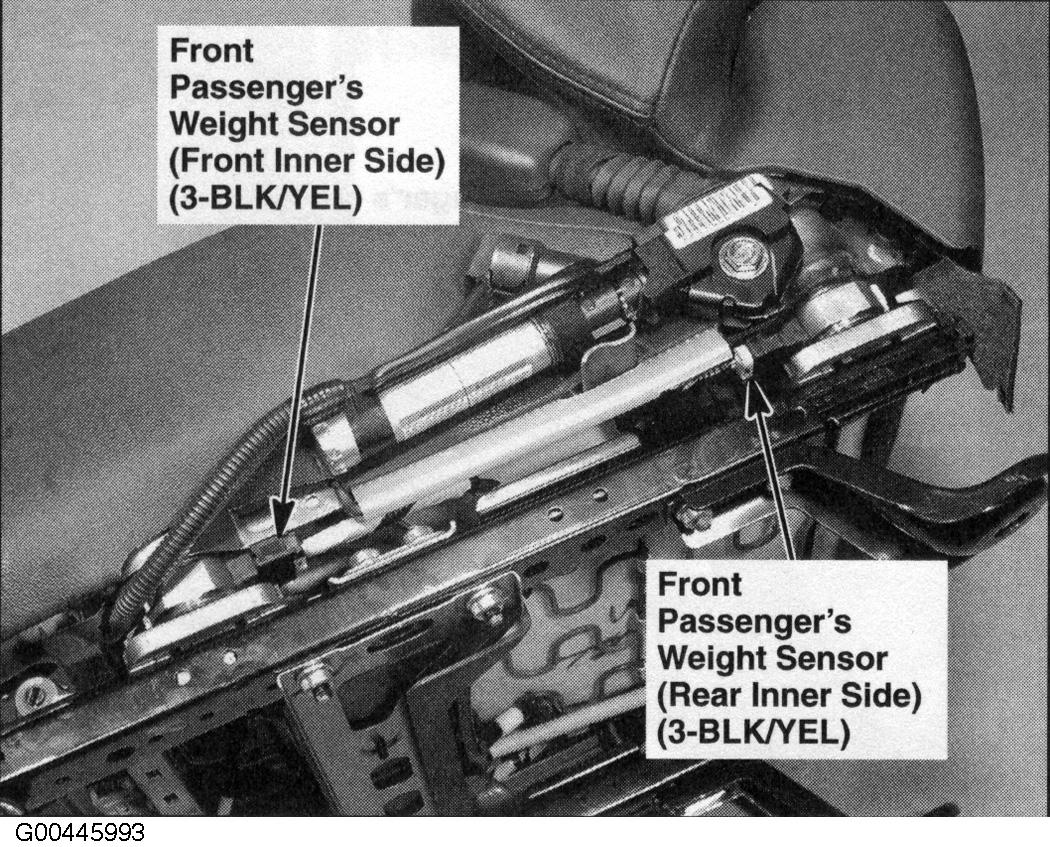

Fig 83: Left Side Of Front Passenger's Seat

G00445993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

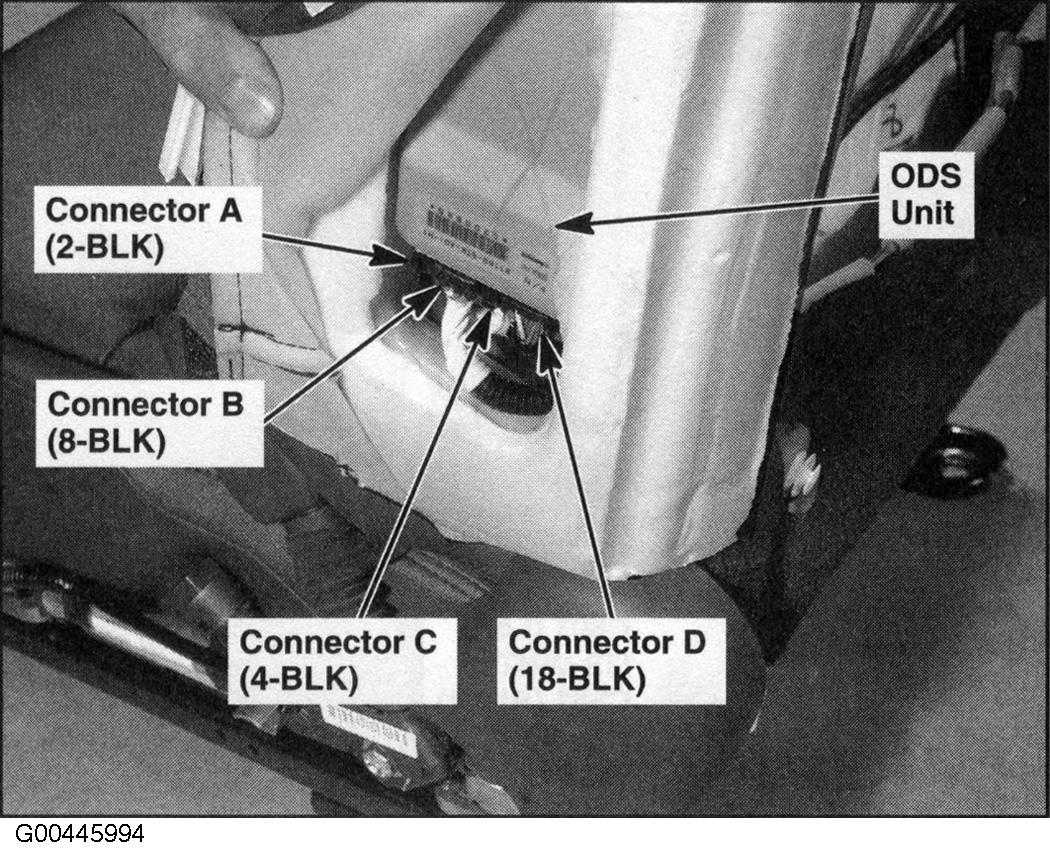

Fig 84: Left Side Of Front Passenger's Seat Back

G00445994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

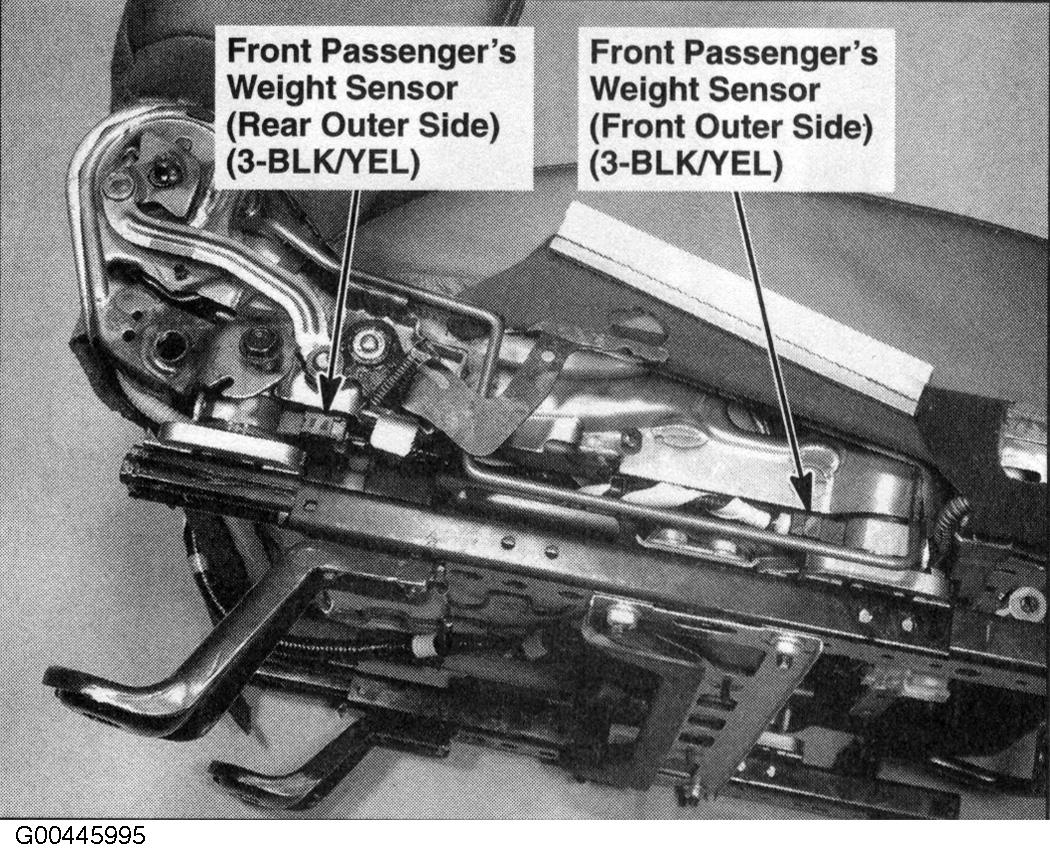

Fig 85: Right Side Of Front Passenger's Seat

G00445995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 86: Under Front Passenger's Seat

G00445996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

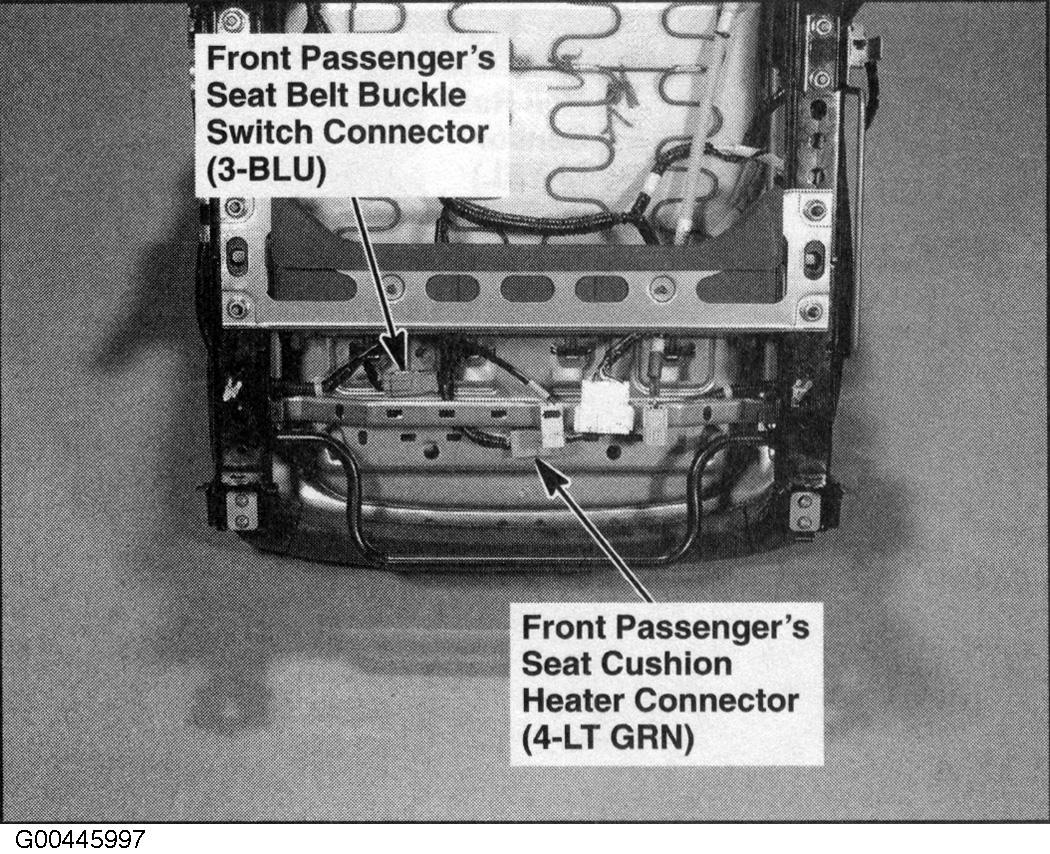

Fig 87: Under Front Passenger's Seat

G00445997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

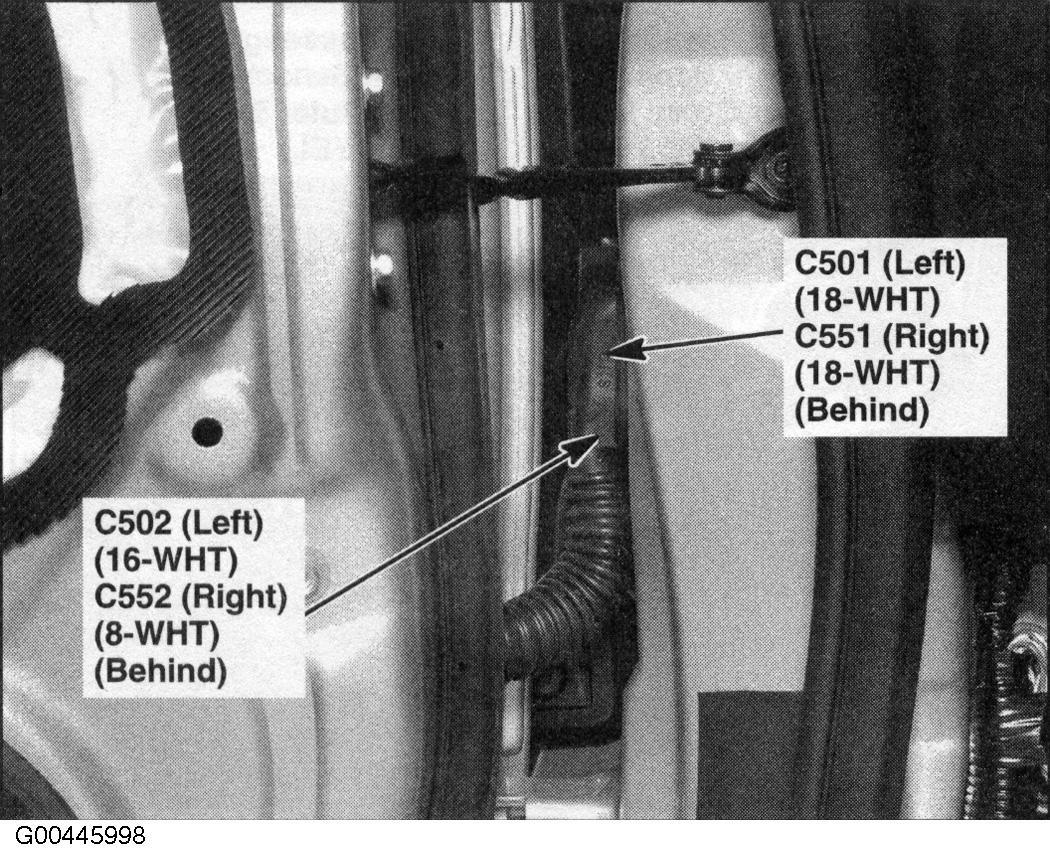

Fig 88: Left "A" Pillar

G00445998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

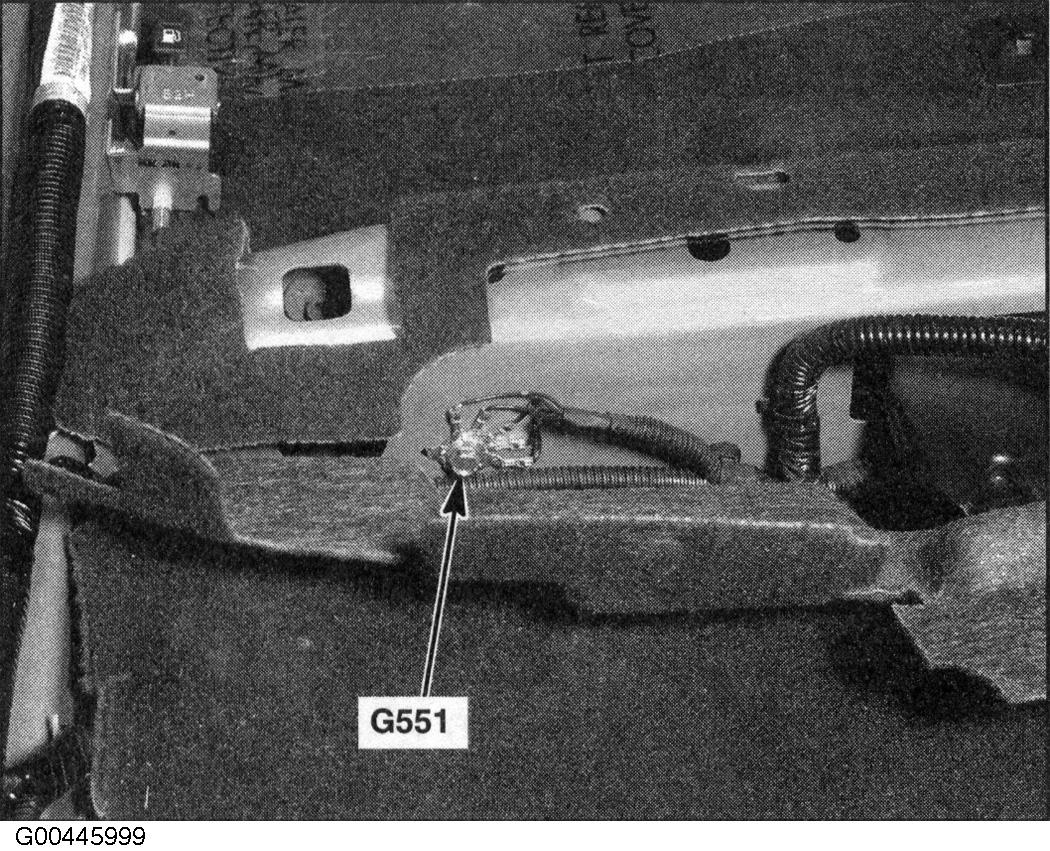

Fig 89: Left Side Of Floor

G00445999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

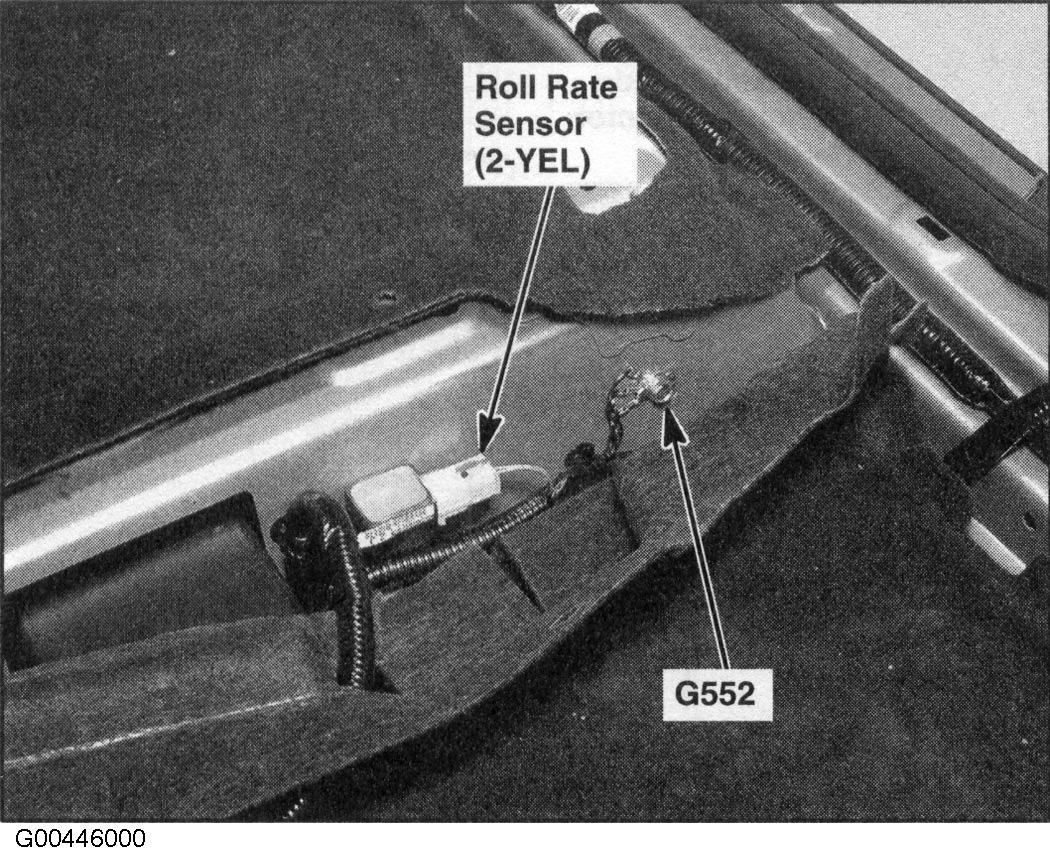

Fig 90: Right Side Of Floor

G00446000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

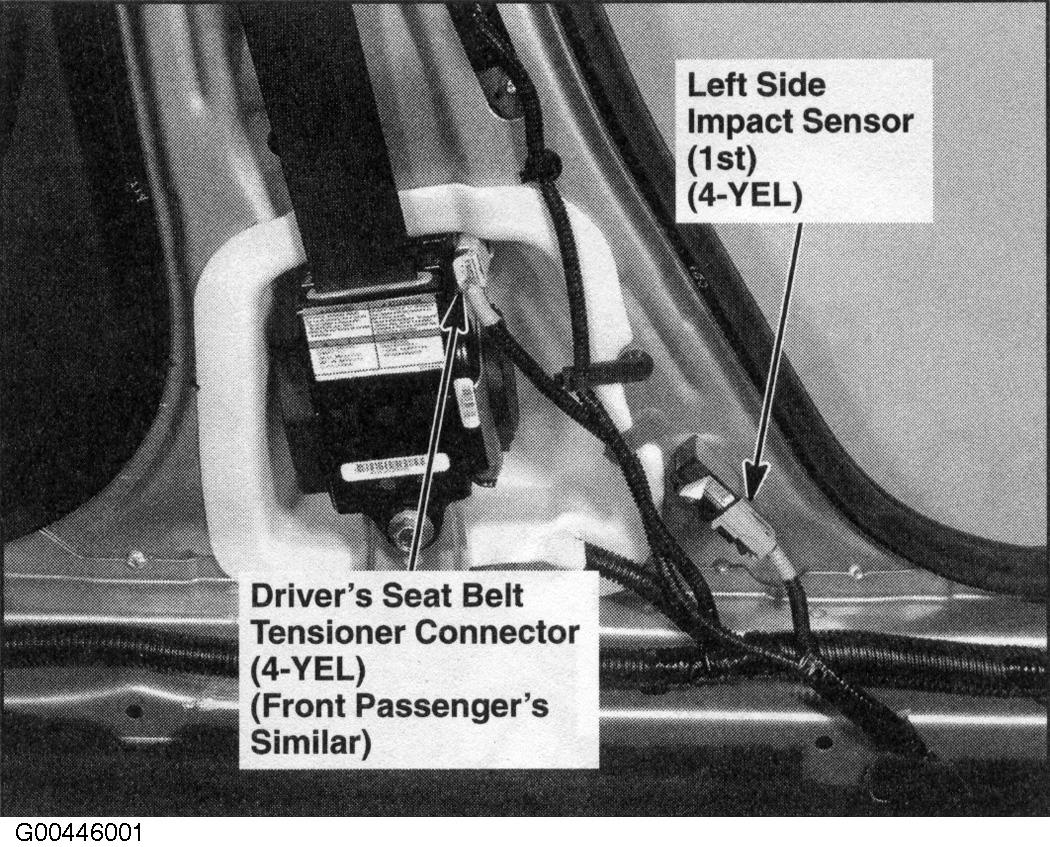

Fig 91: Left "B" Pillar (Right Similar)

G00446001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

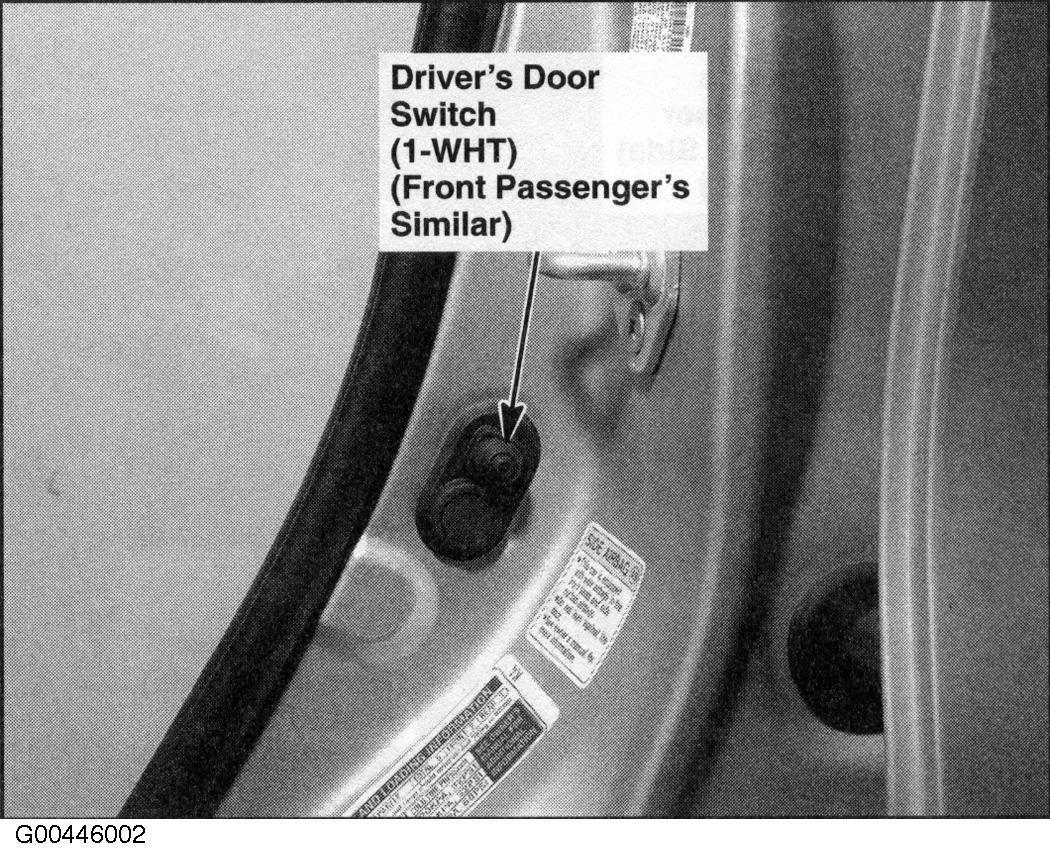

Fig 92: Left "B" Pillar (Right Similar)

G00446002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

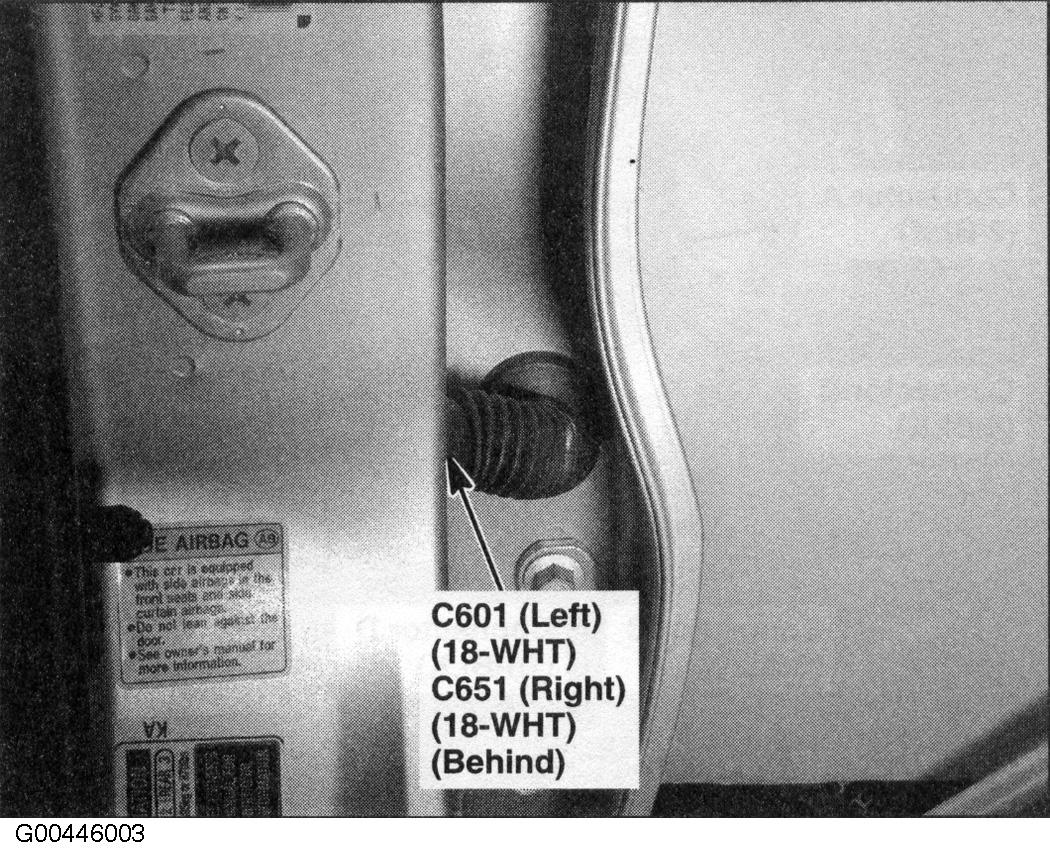

Fig 93: Left "B" Pillar

G00446003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

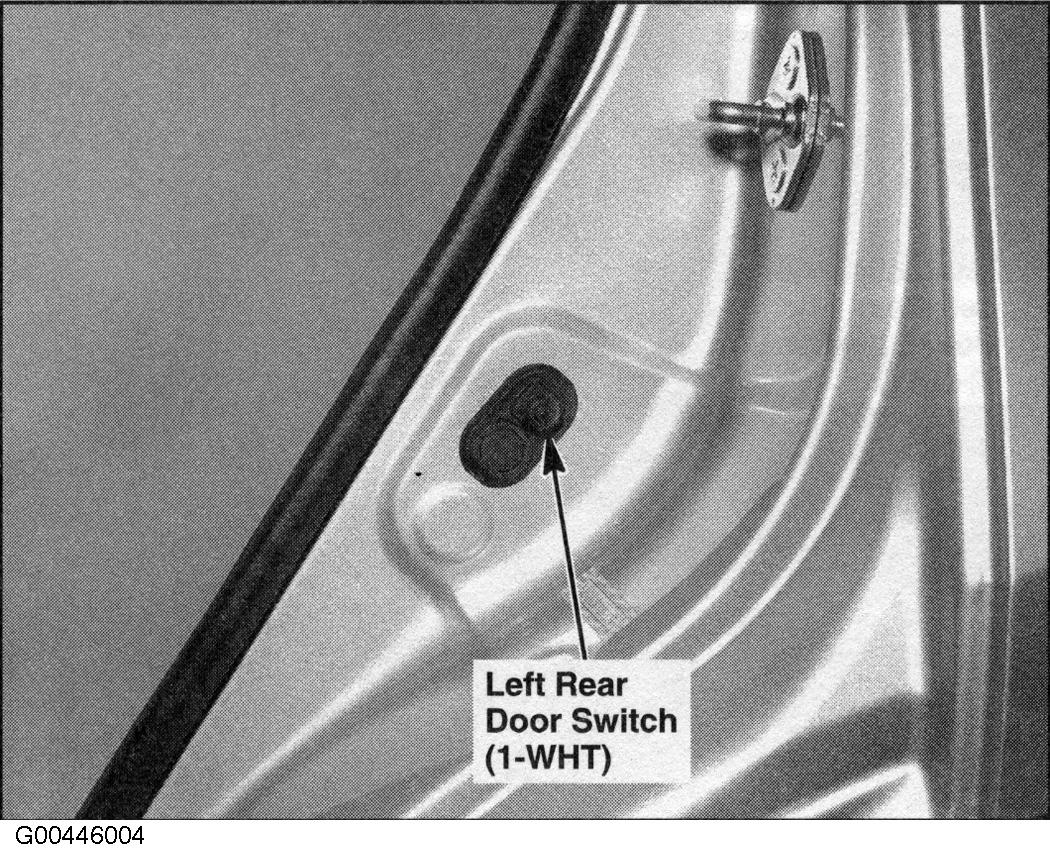

Fig 94: Left "C" Pillar

G00446004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

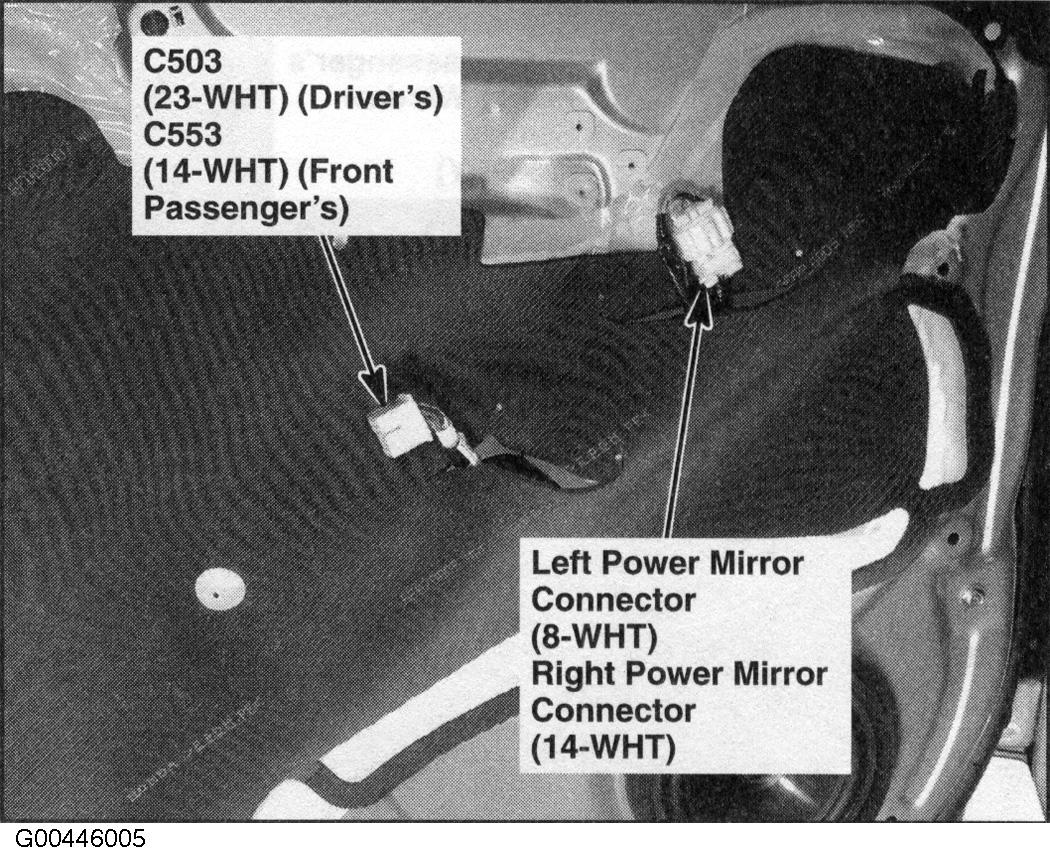

Fig 95: Driver's Door

G00446005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

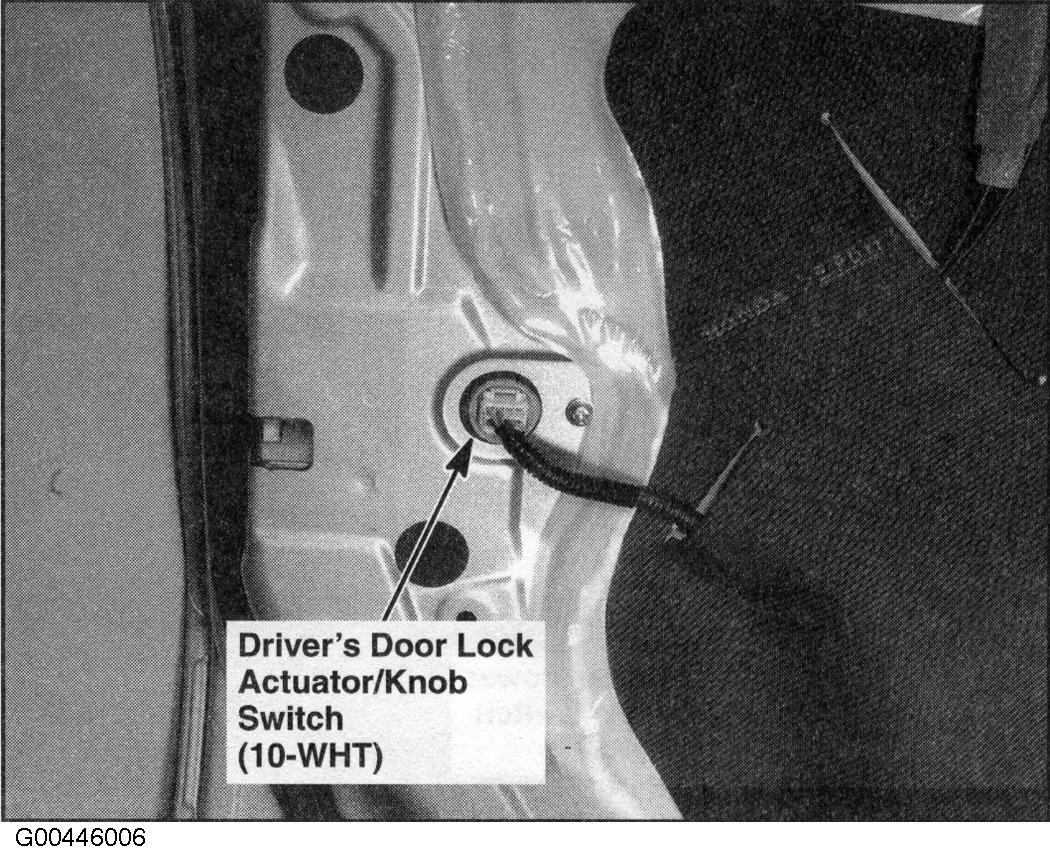

Fig 96: Driver's Door

G00446006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

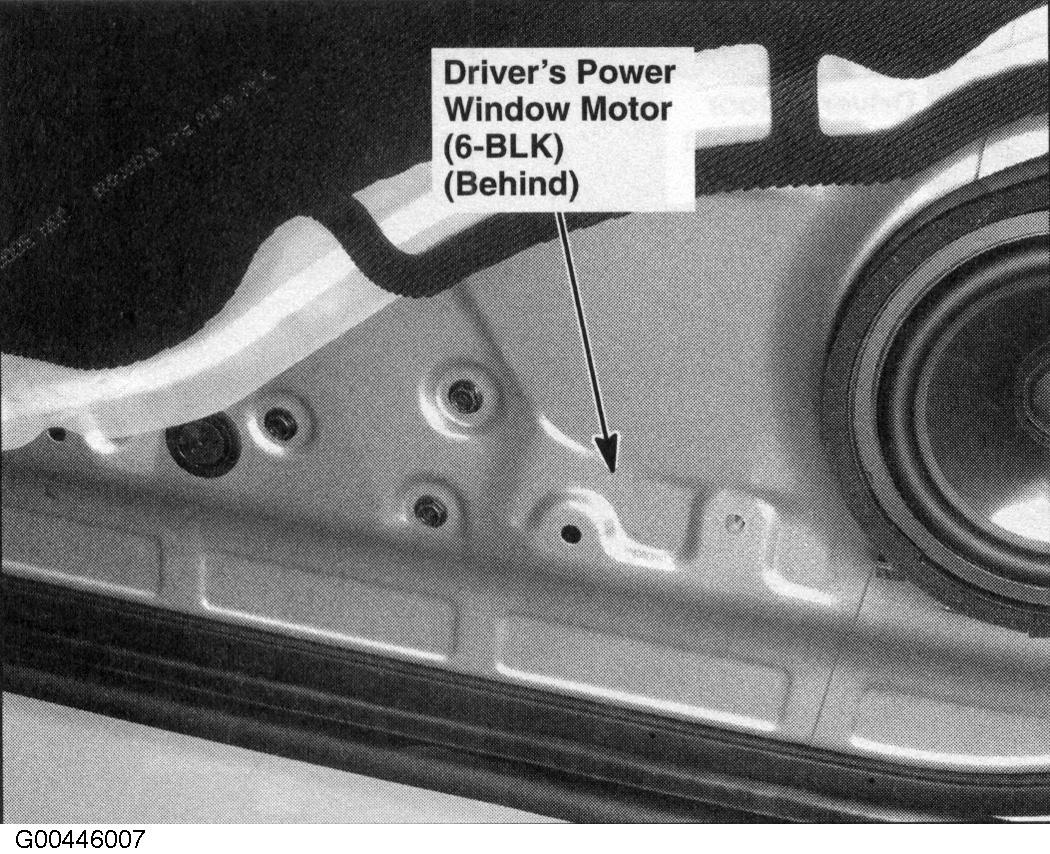

Fig 97: Driver's Door

G00446007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

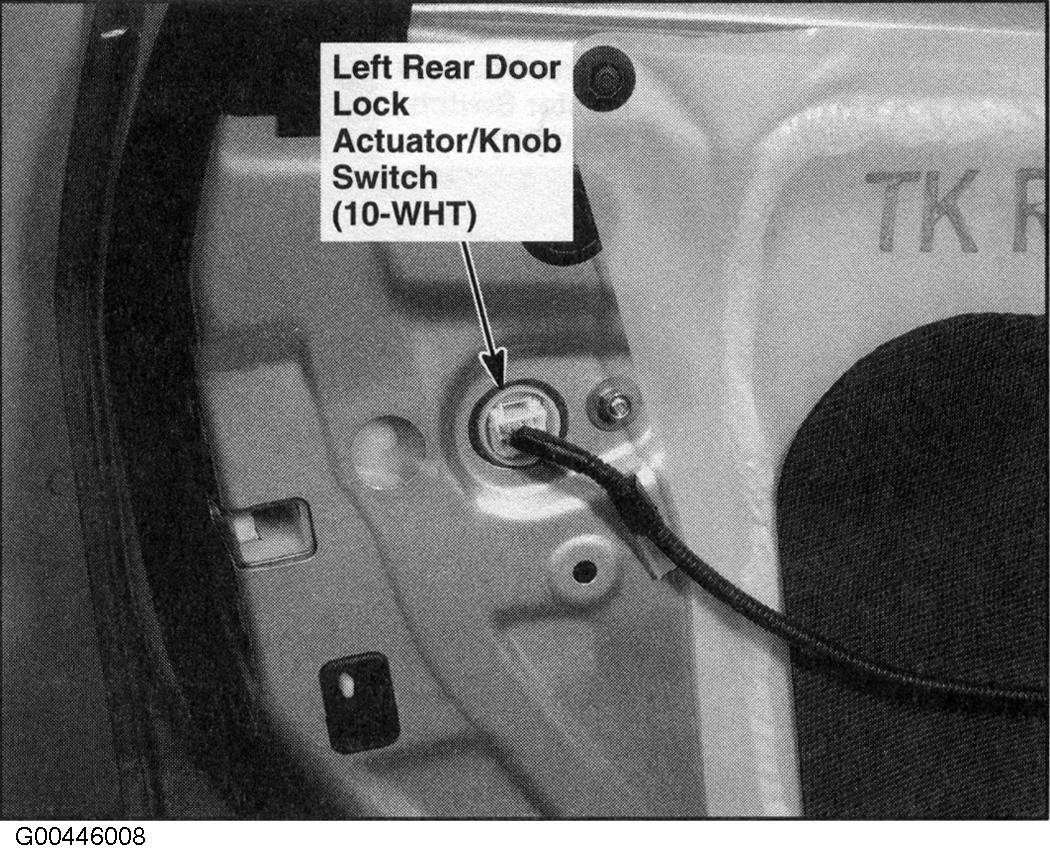

Fig 98: Left Rear Door

G00446008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

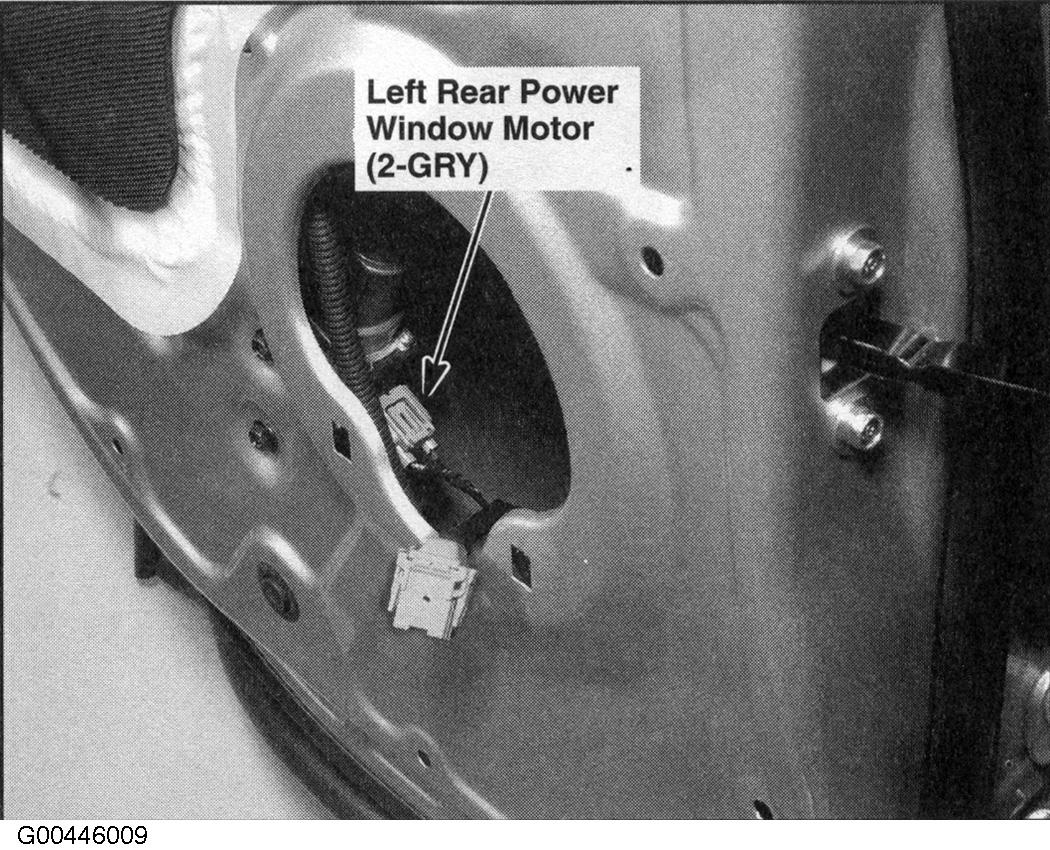

Fig 99: Left Rear Door

G00446009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

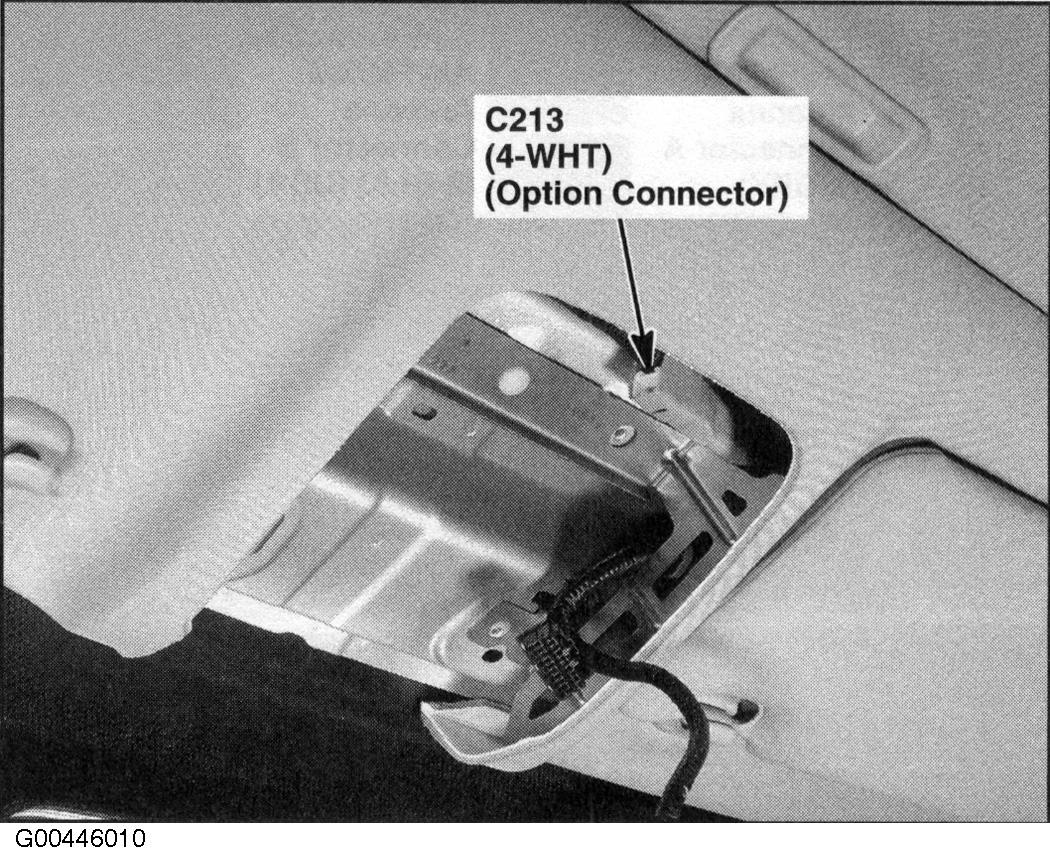

Fig 100: Front Of Roof

G00446010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

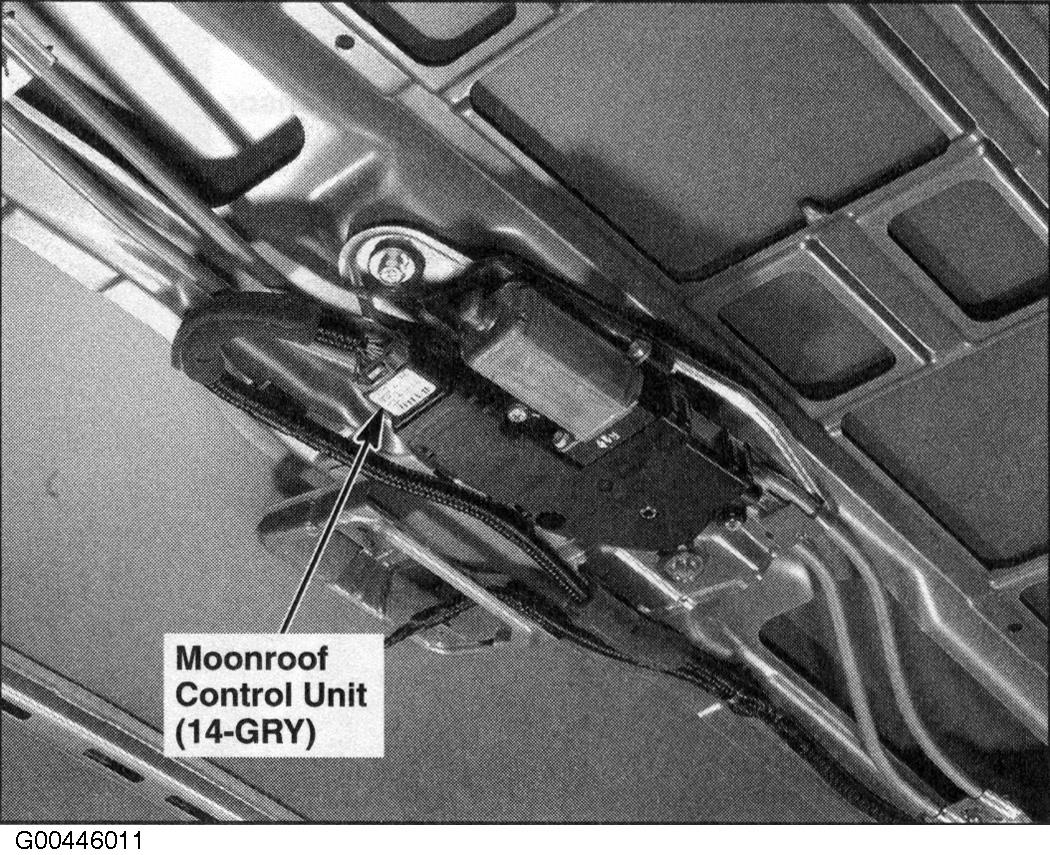

Fig 101: Middle Of Roof

G00446011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

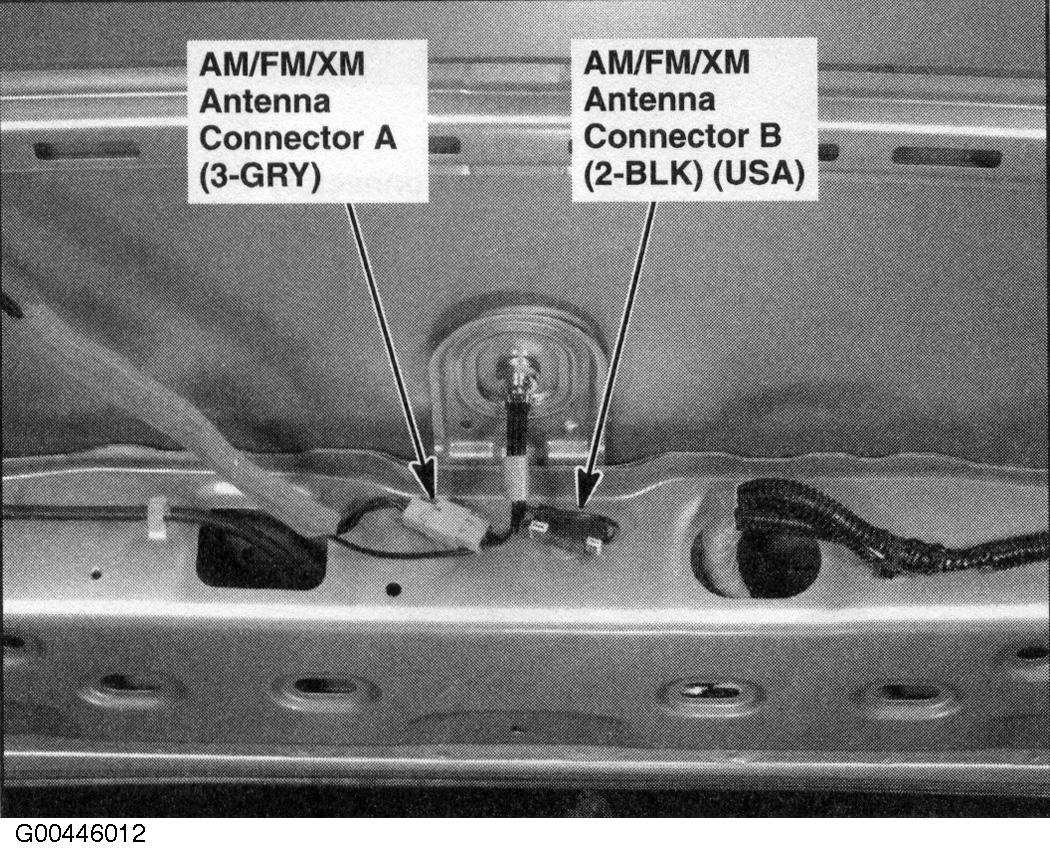

Fig 102: Rear Of Roof

G00446012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

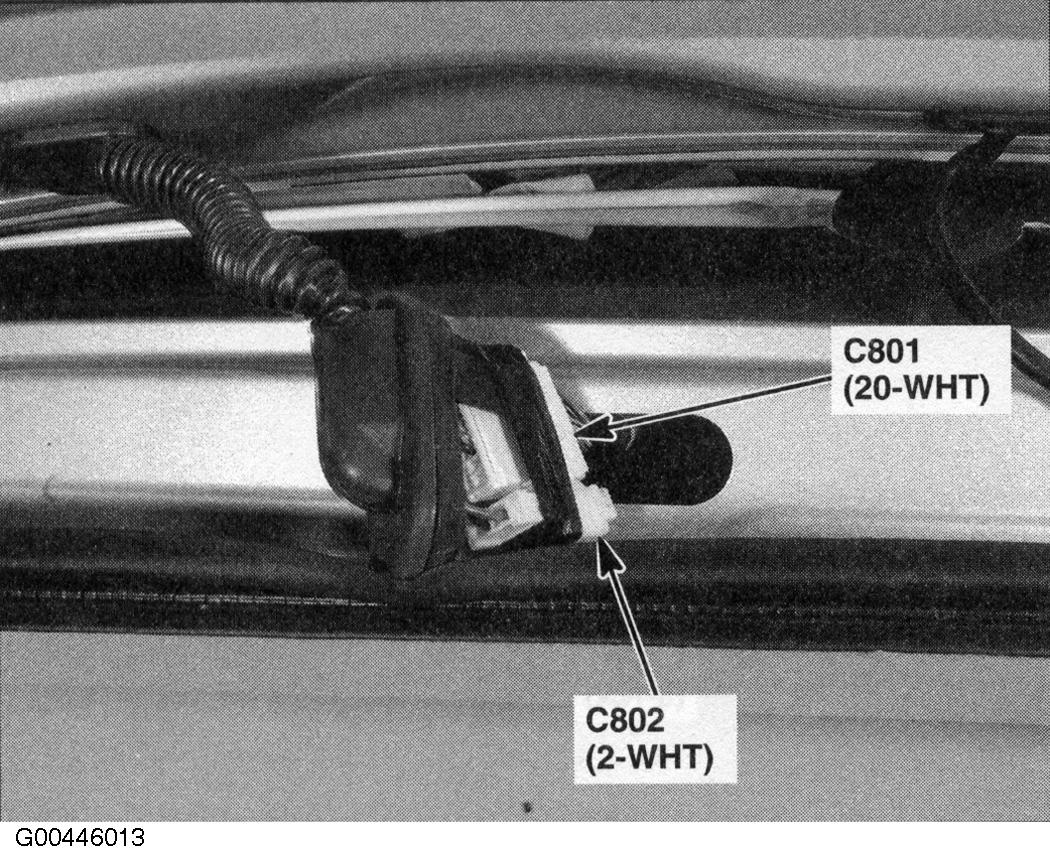

Fig 103: Rear Of Roof

G00446013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

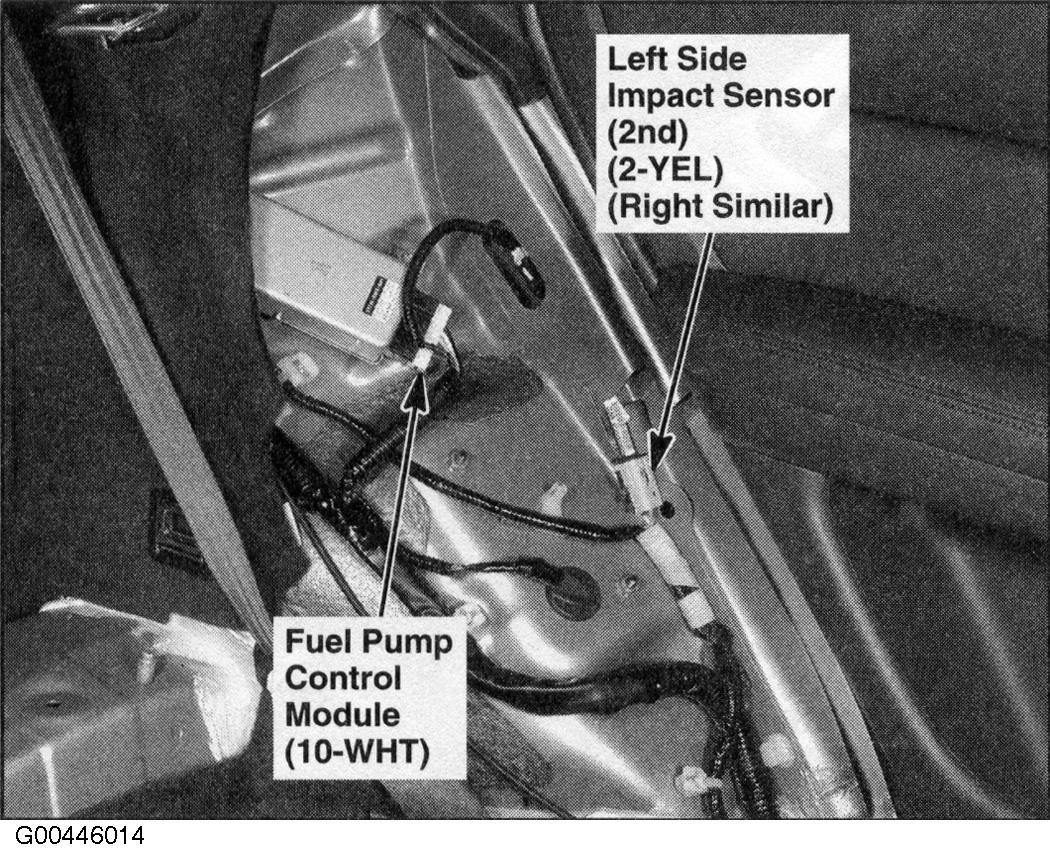

Fig 104: Rear Of Roof

G00446014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

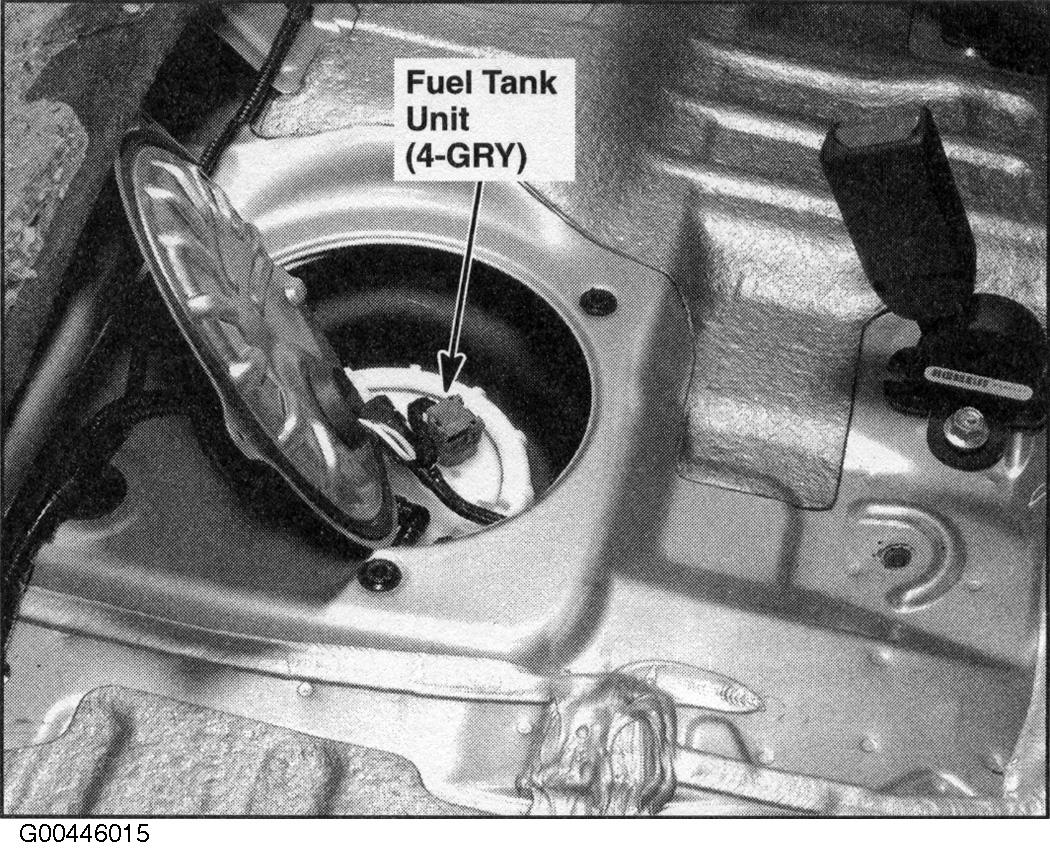

Fig 105: Left Rear Of Floor

G00446015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

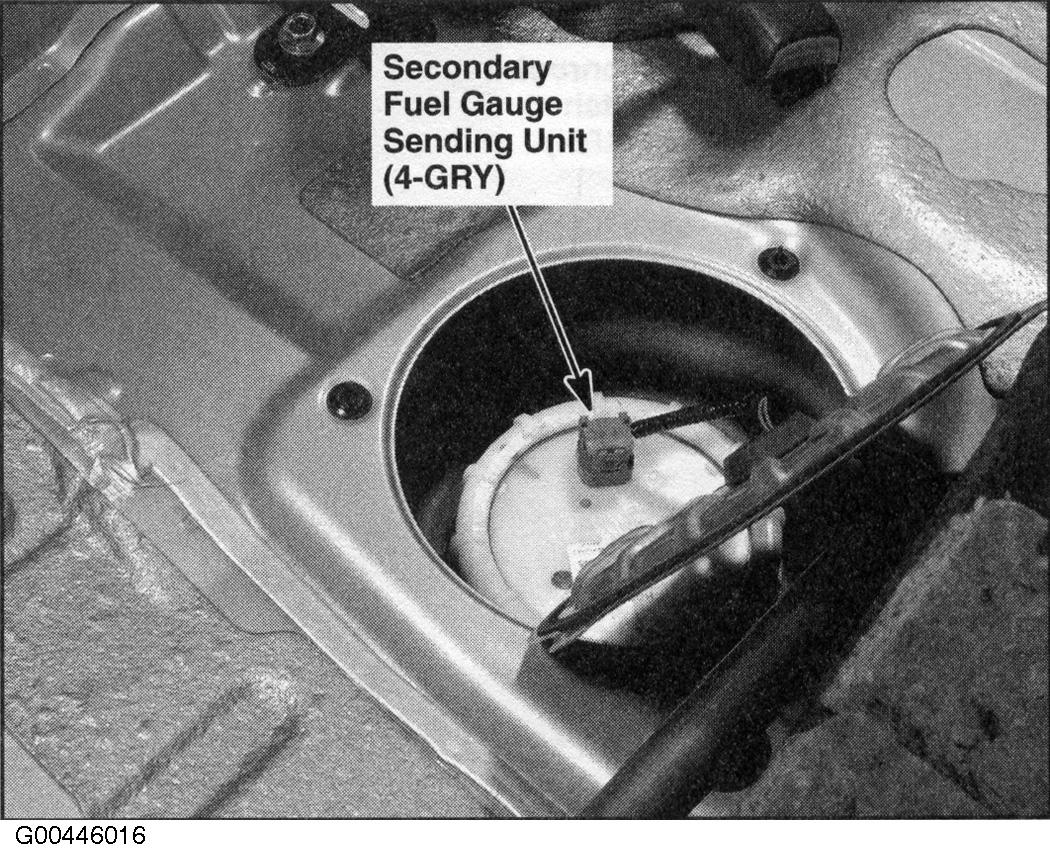

Fig 106: Right Rear Of Floor

G00446016

Courtesy of AMERICAN HONDA MOTOR CO., INC.

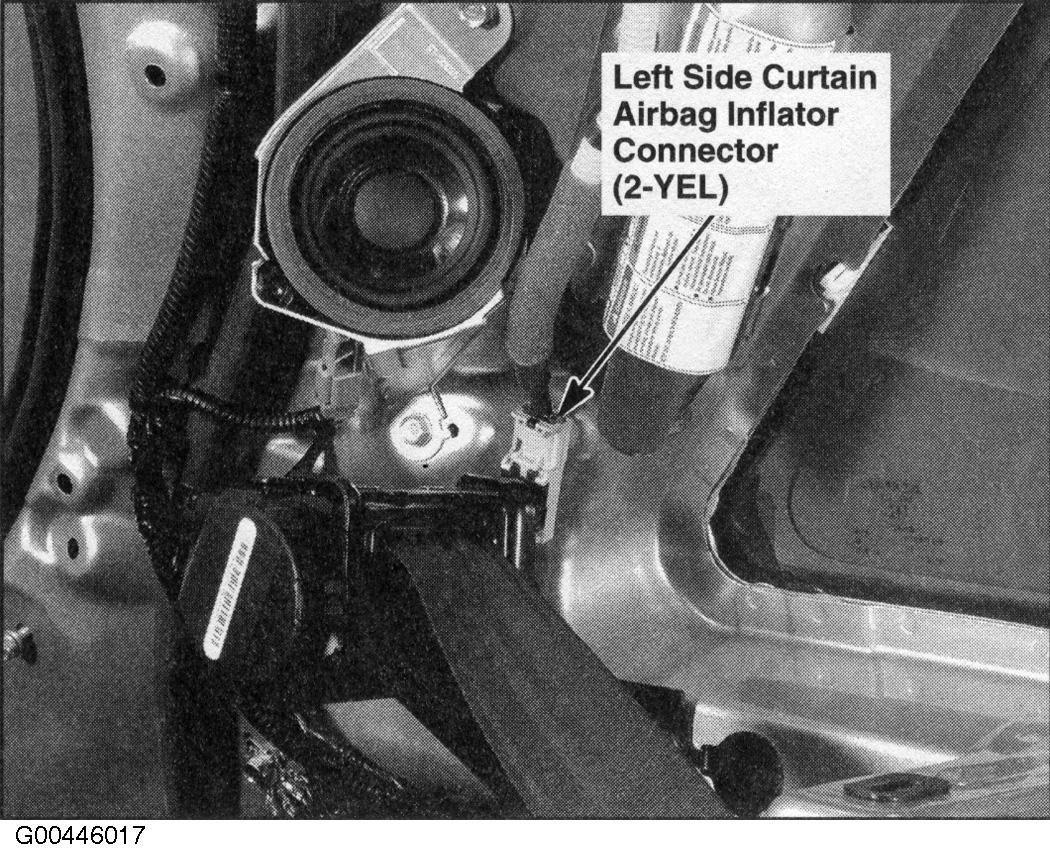

Fig 107: Left "D" Pillar

G00446017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

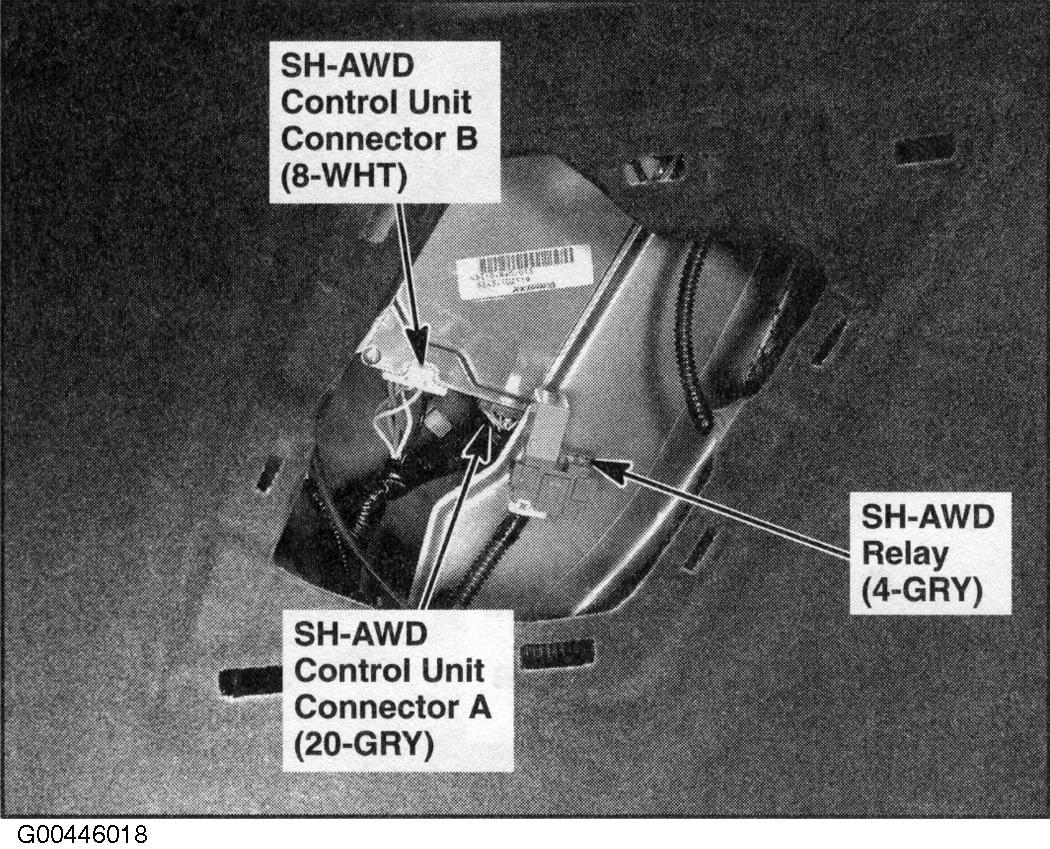

Fig 108: Behind Left Rear Side Trim Panel

G00446018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

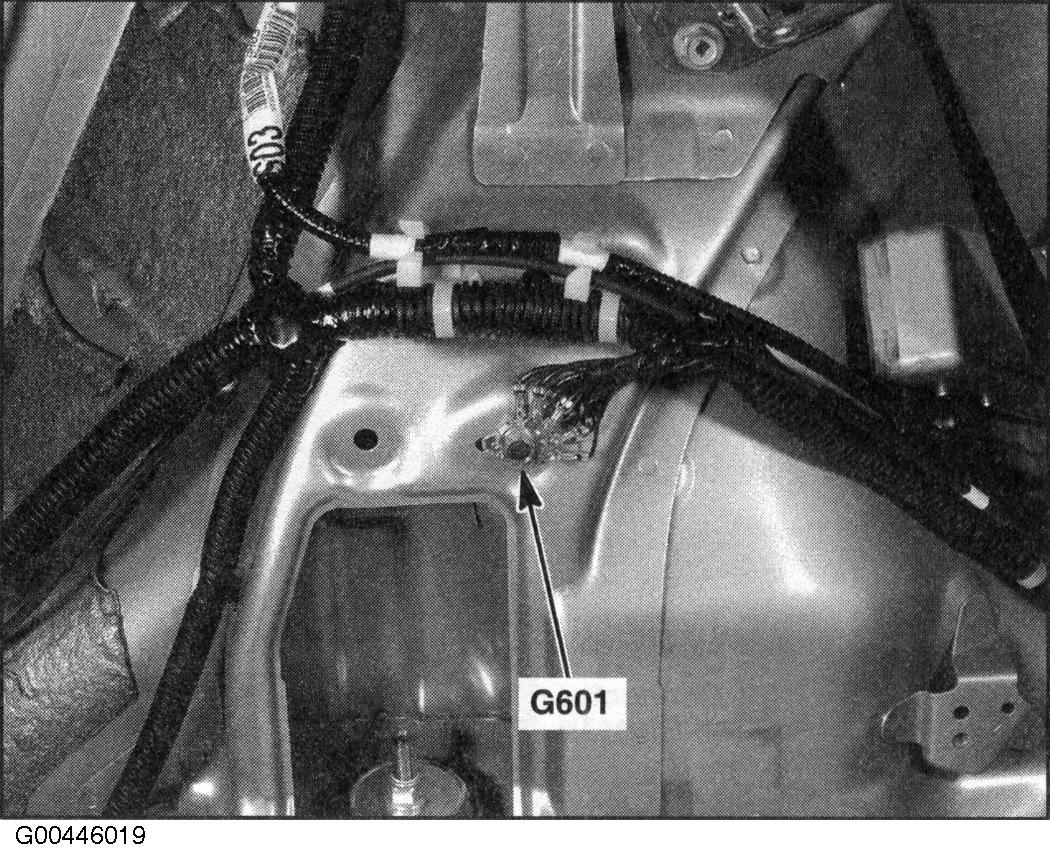

Fig 109: Behind Left Rear Side Trim Panel

G00446019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

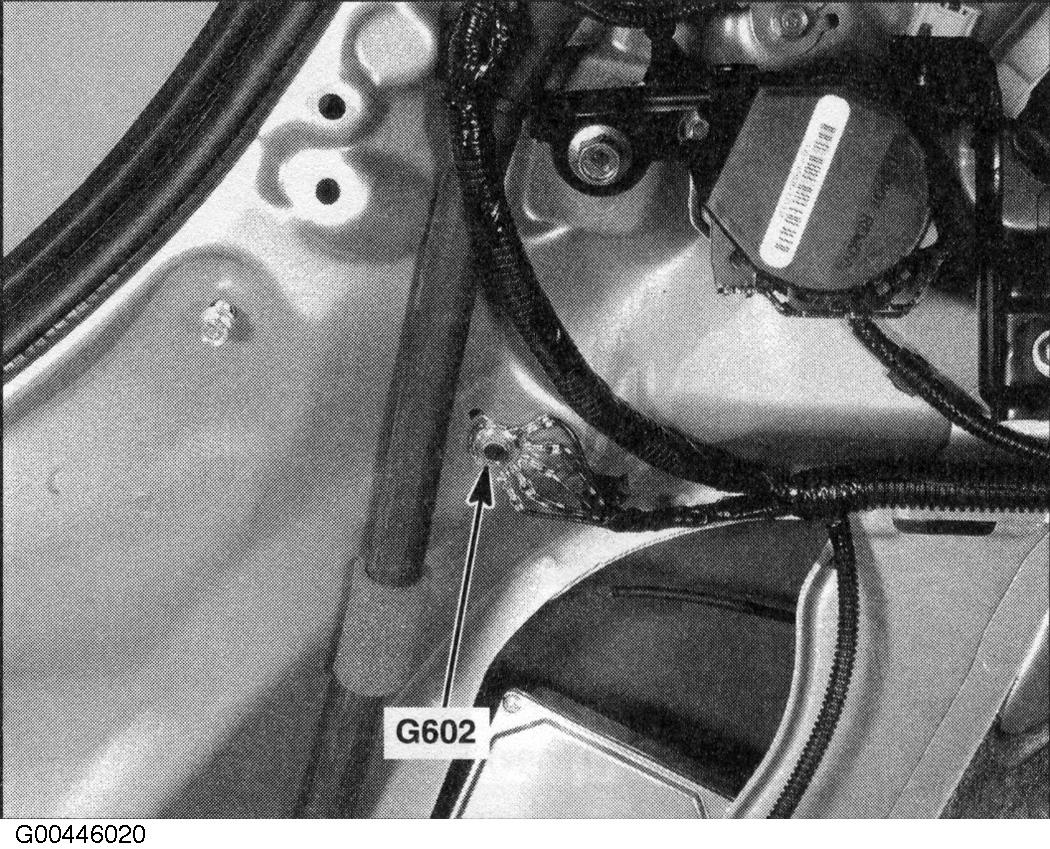

Fig 110: Behind Left Rear Side Trim Panel

G00446020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

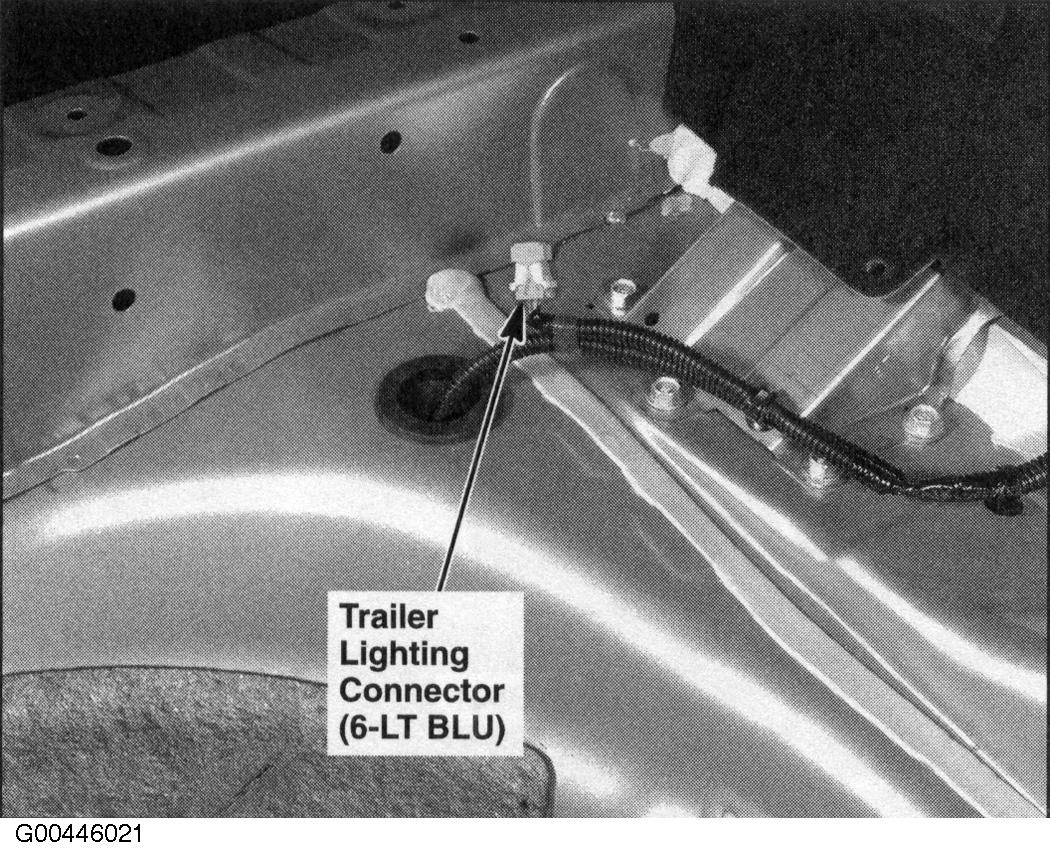

Fig 111: Under Right Side Of Cargo Area

G00446021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

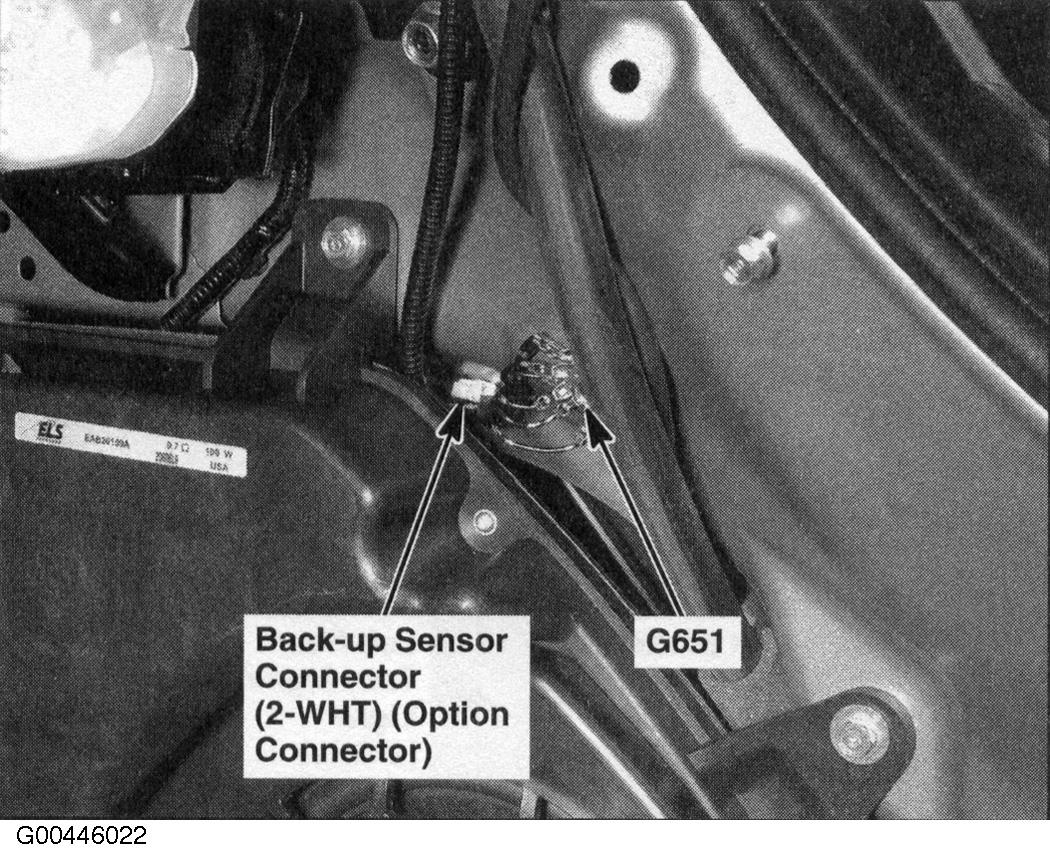

Fig 112: Behind Right Rear Side Trim Panel

G00446022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

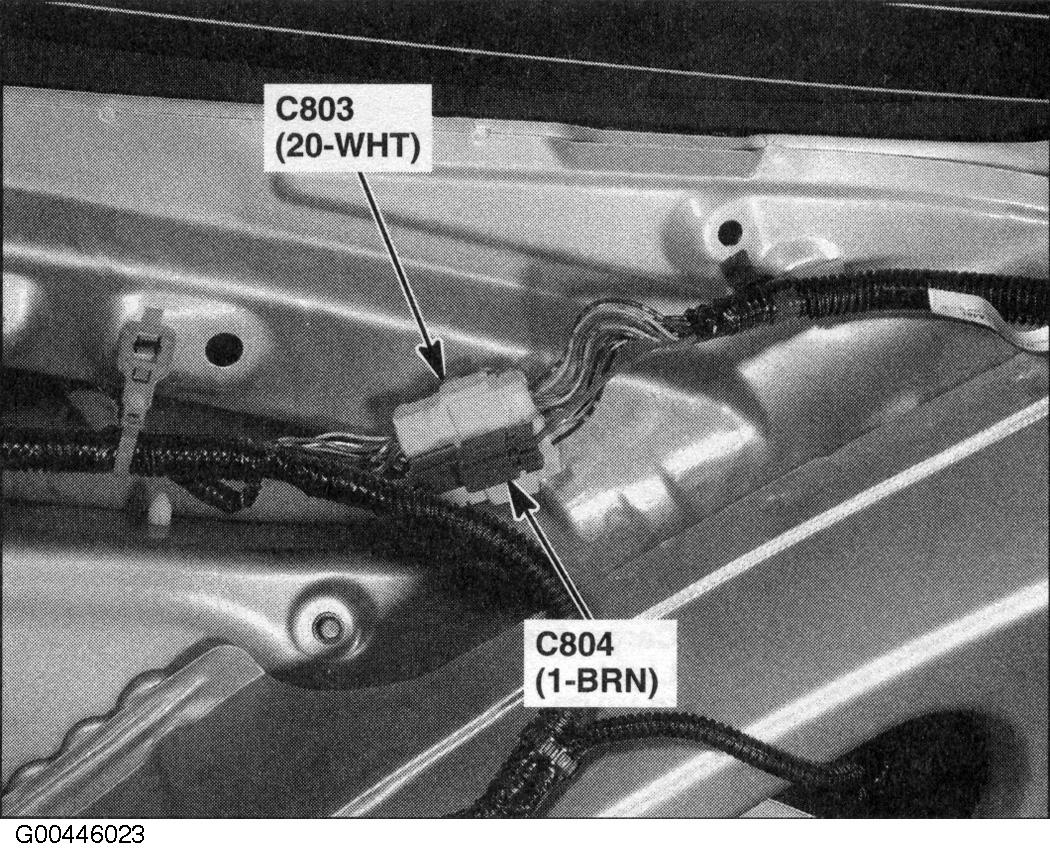

Fig 113: Left Side Of Tailgate

G00446023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

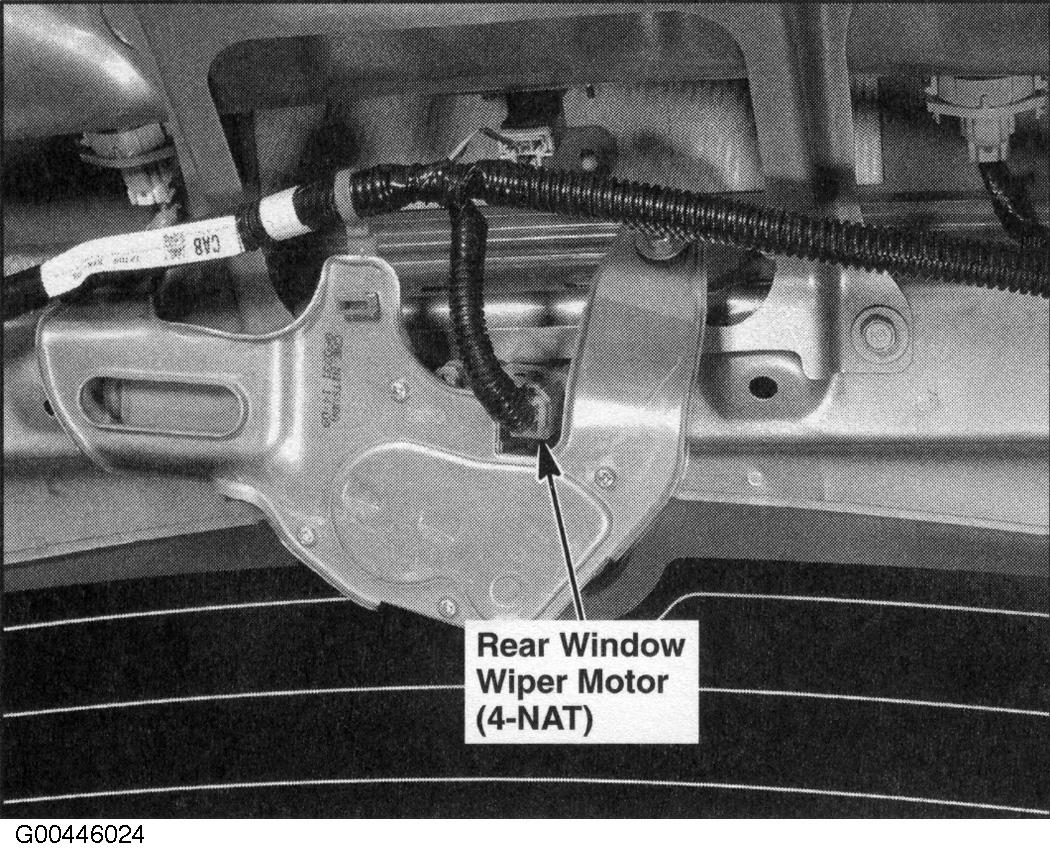

Fig 114: Middle Of Tailgate

G00446024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

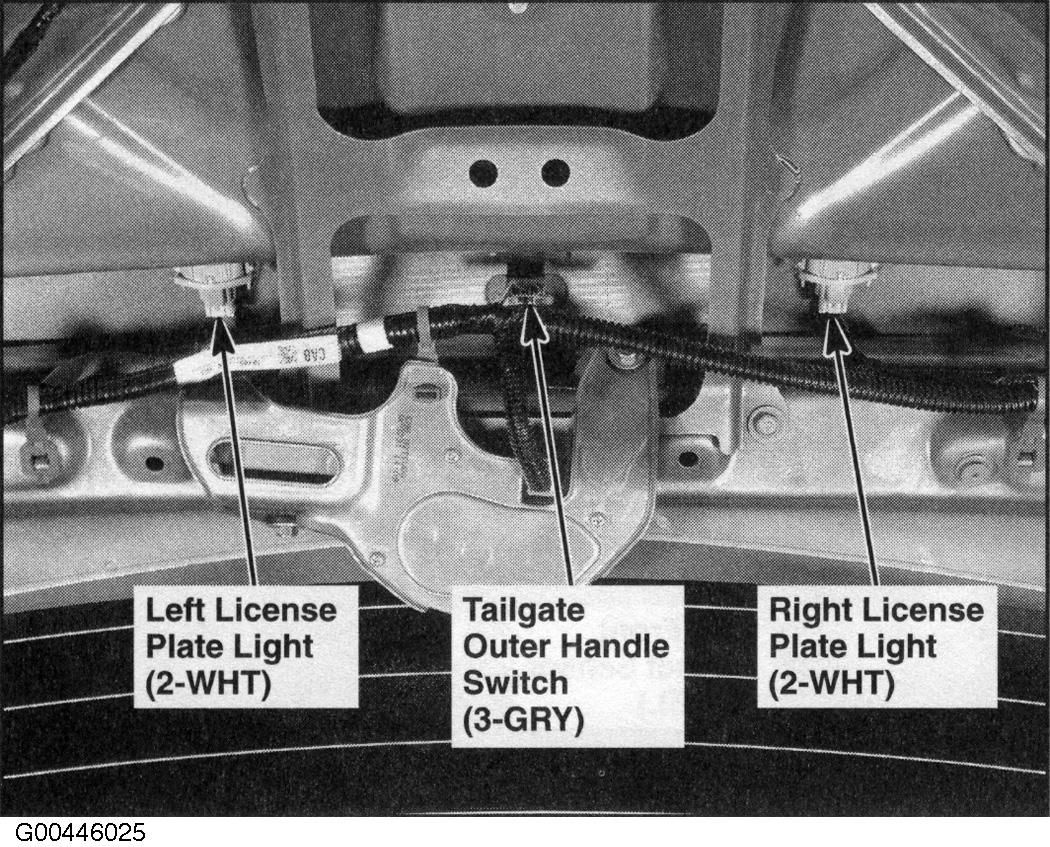

Fig 115: Middle Of Tailgate

G00446025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

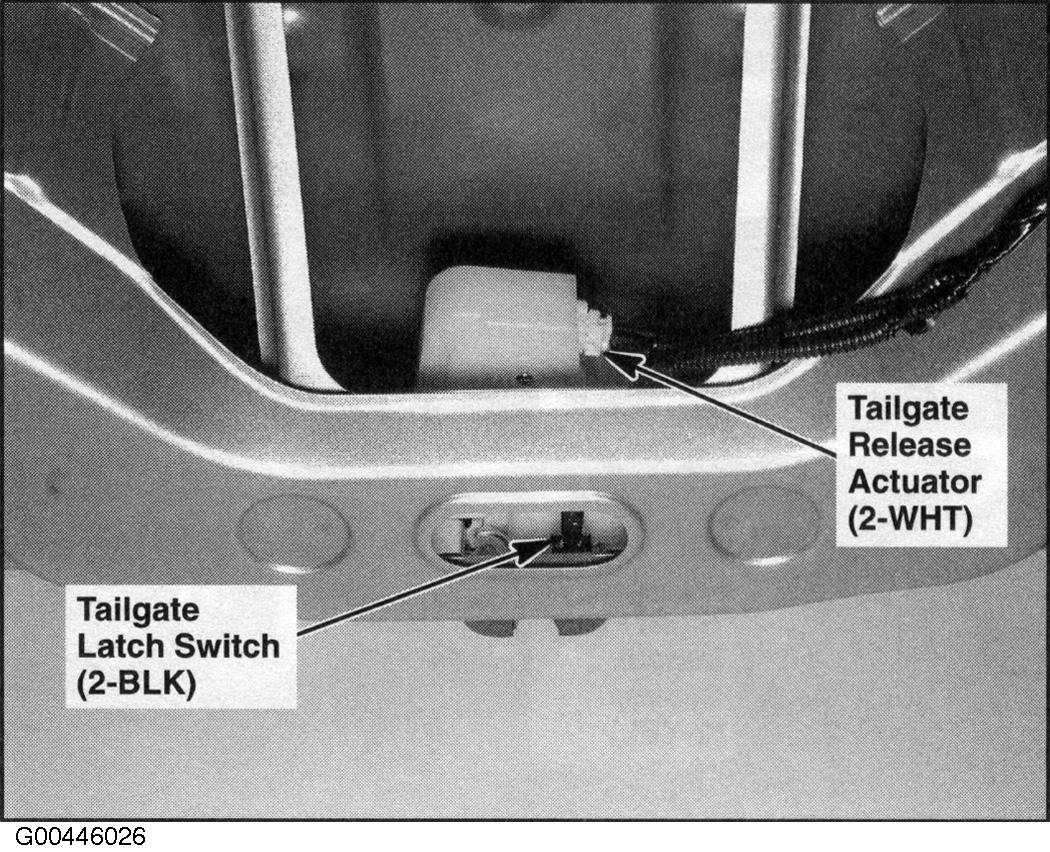

Fig 116: Middle Of Tailgate

G00446026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

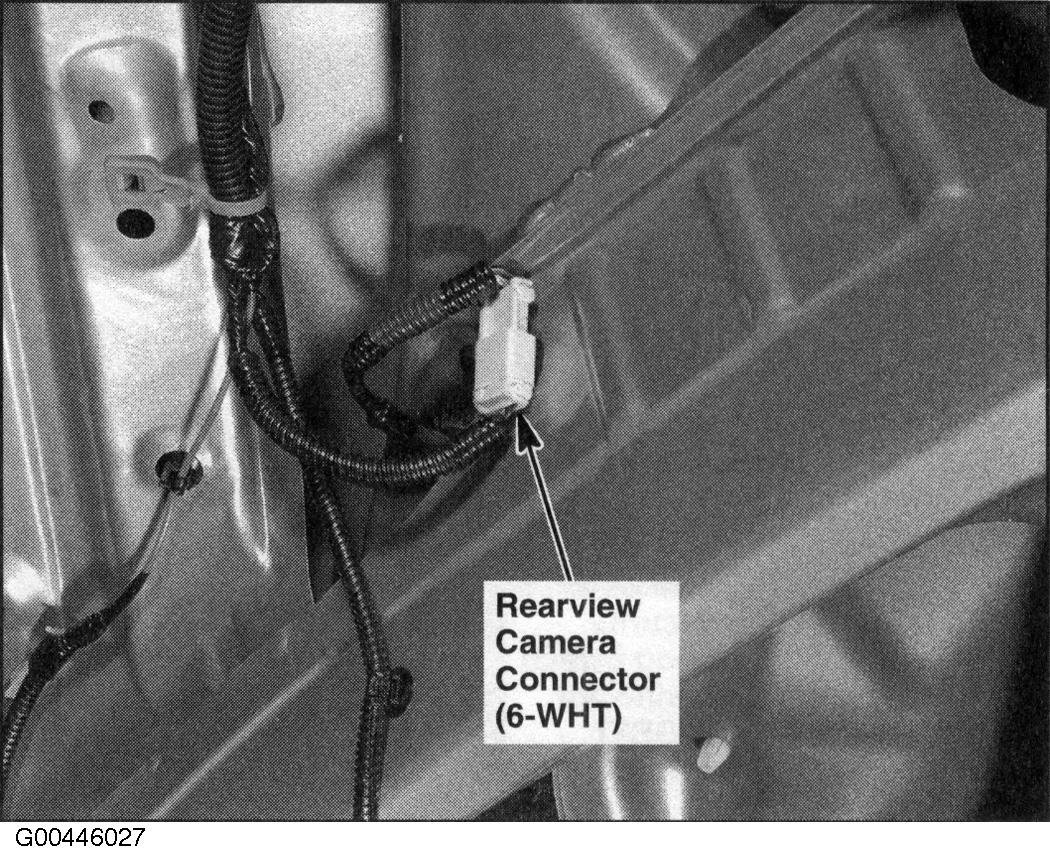

Fig 117: Right Side Of Tailgate

G00446027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

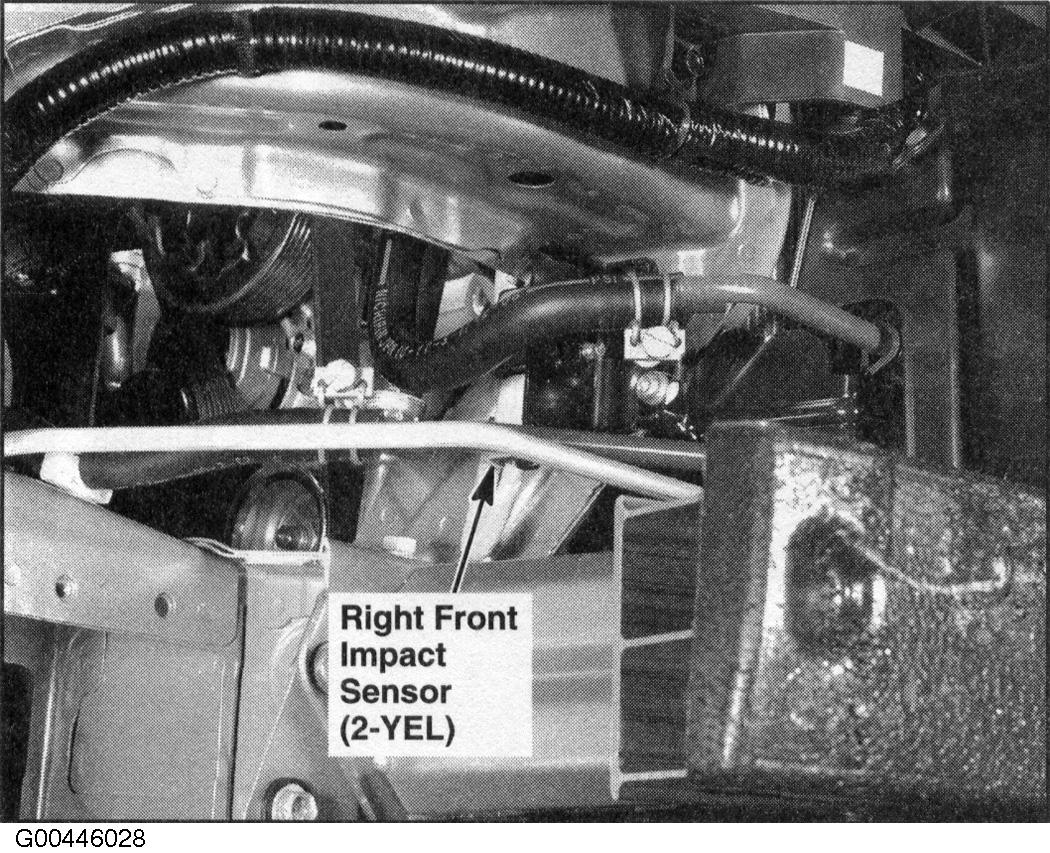

Fig 118: Behind Right Side Of Front Bumper

G00446028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

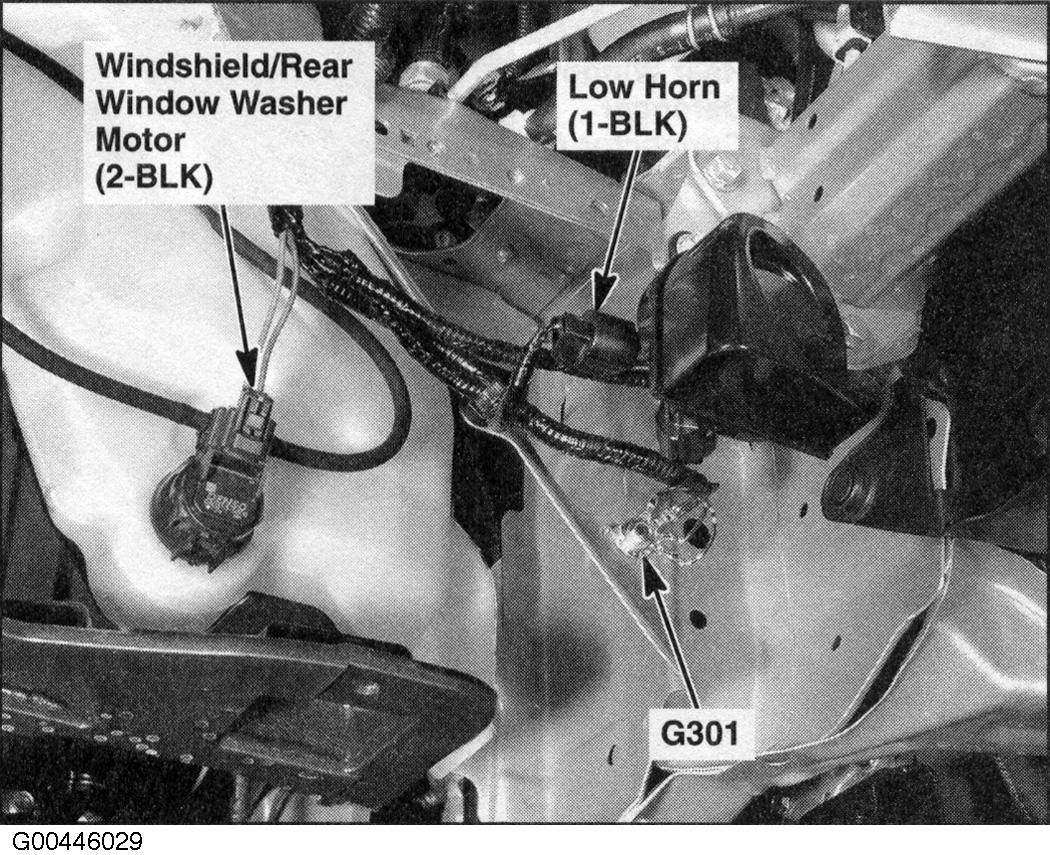

Fig 119: Behind Right Side Of Front Bumper

G00446029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

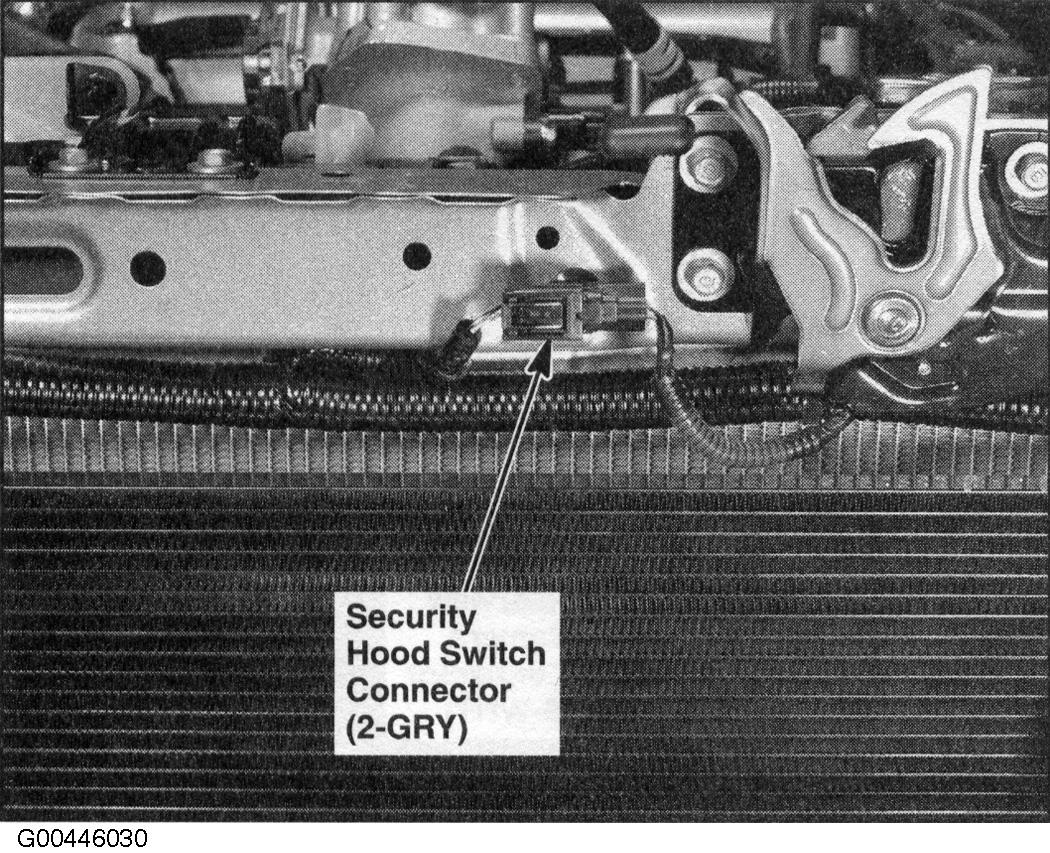

Fig 120: Behind Middle Of Front Bumper

G00446030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

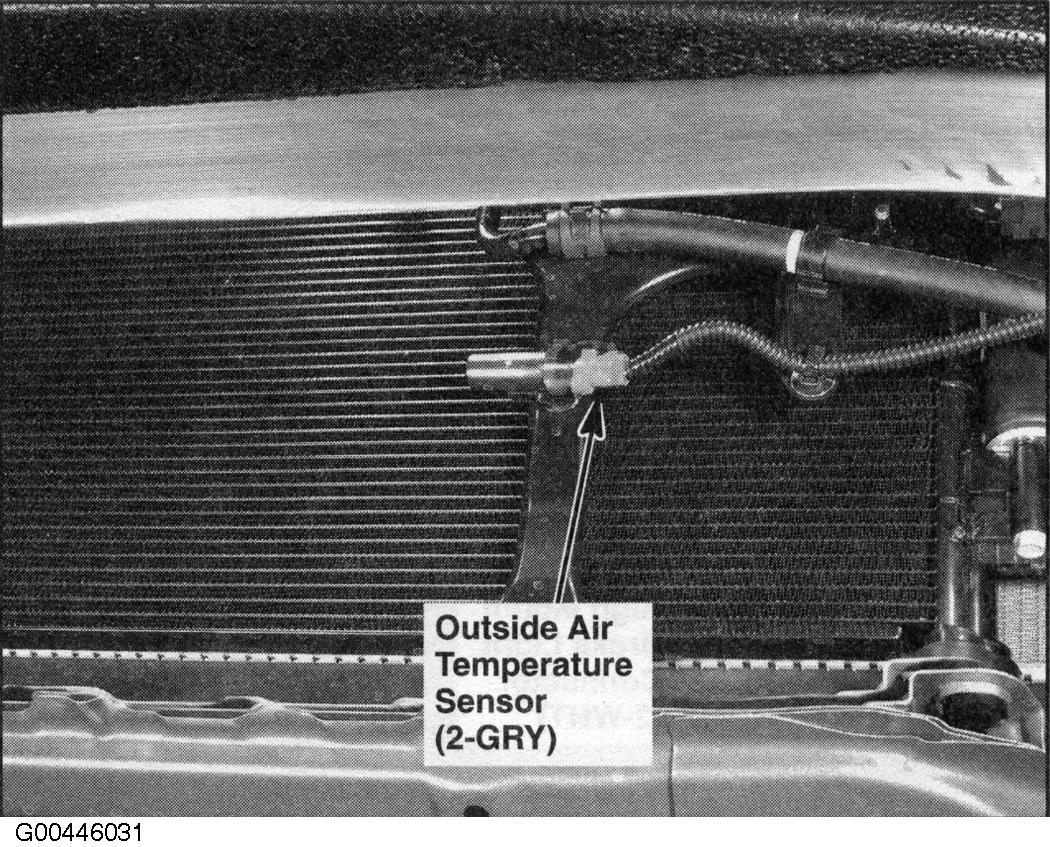

Fig 121: Behind Middle Of Front Bumper

G00446031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

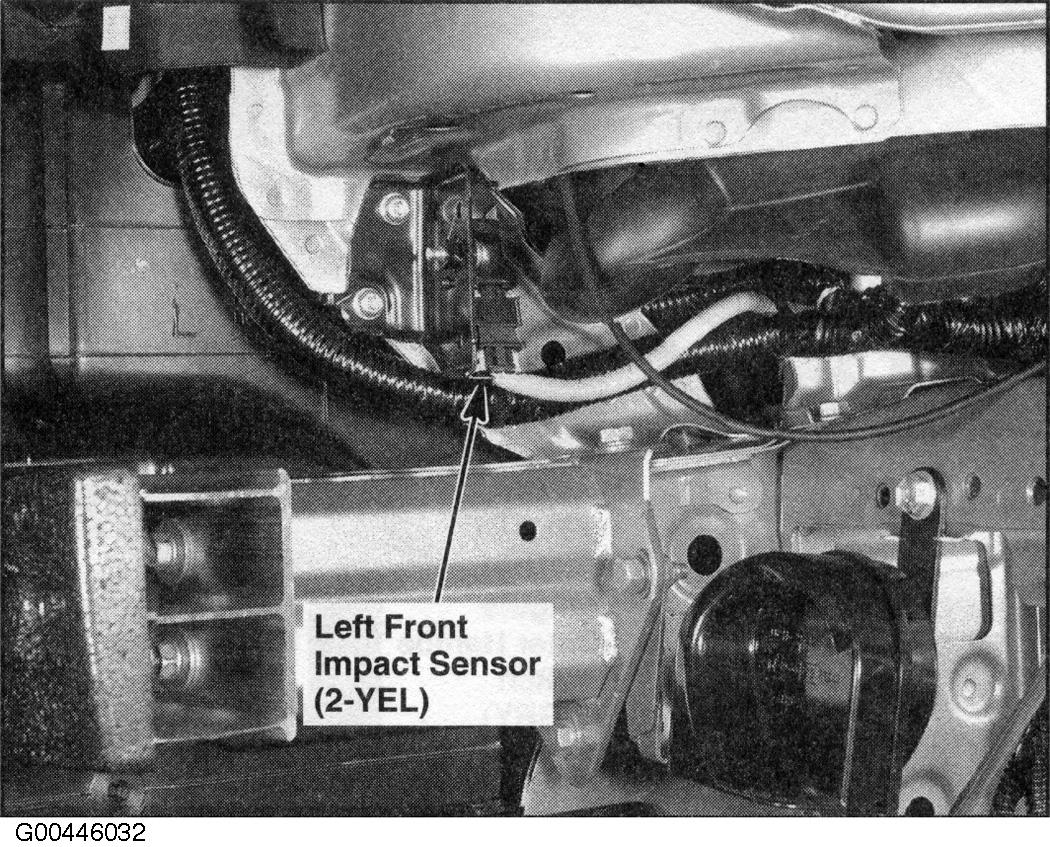

Fig 122: Behind Left Side Of Front Bumper

G00446032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

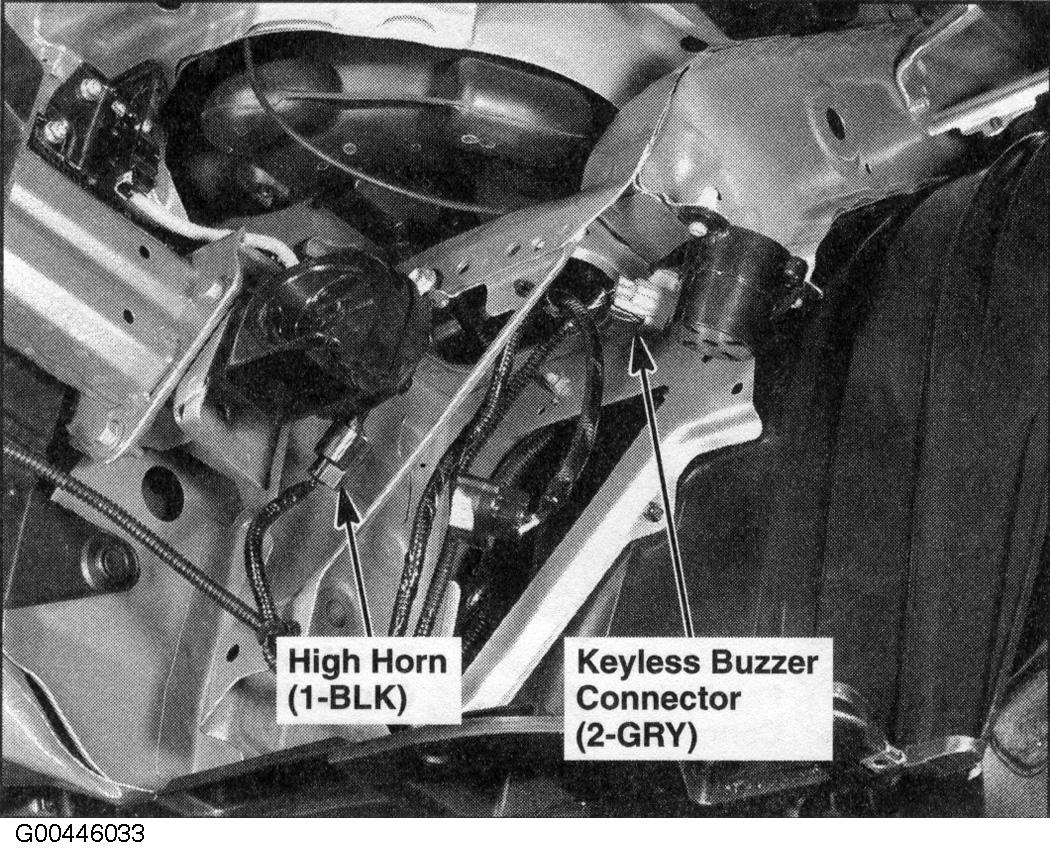

Fig 123: Behind Left Side Of Front Bumper

G00446033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

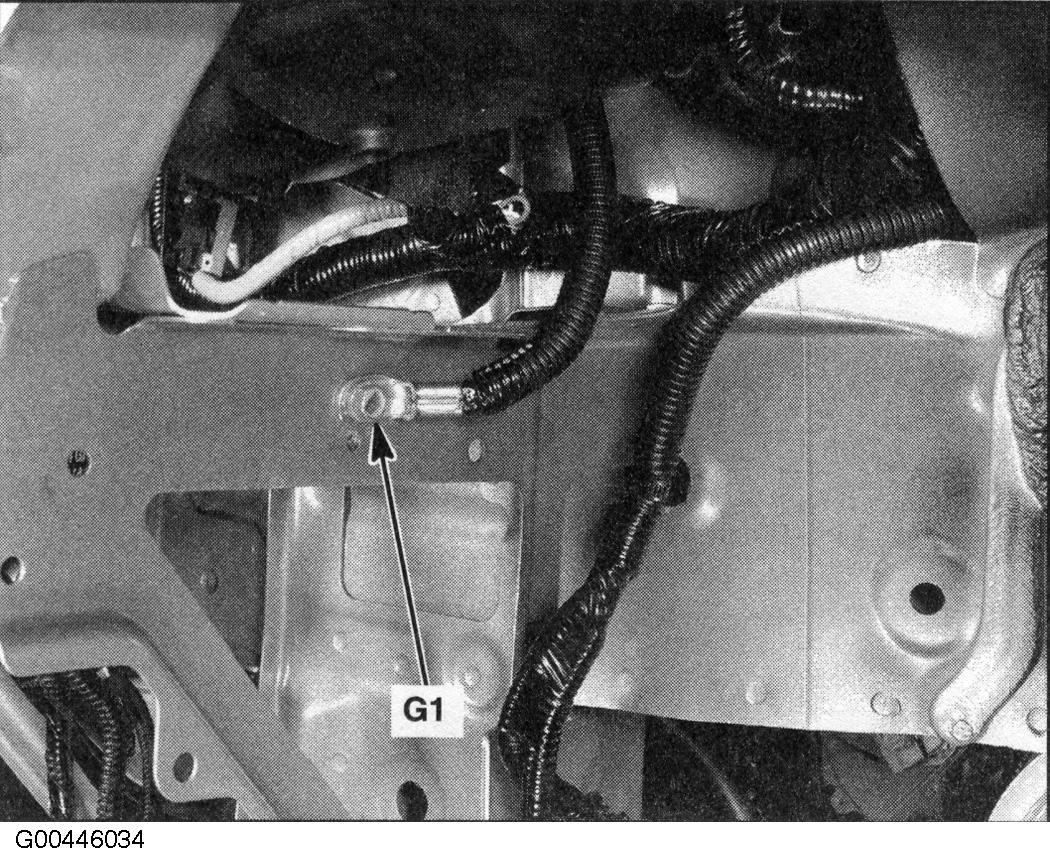

Fig 124: Behind Left Front Fender

G00446034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

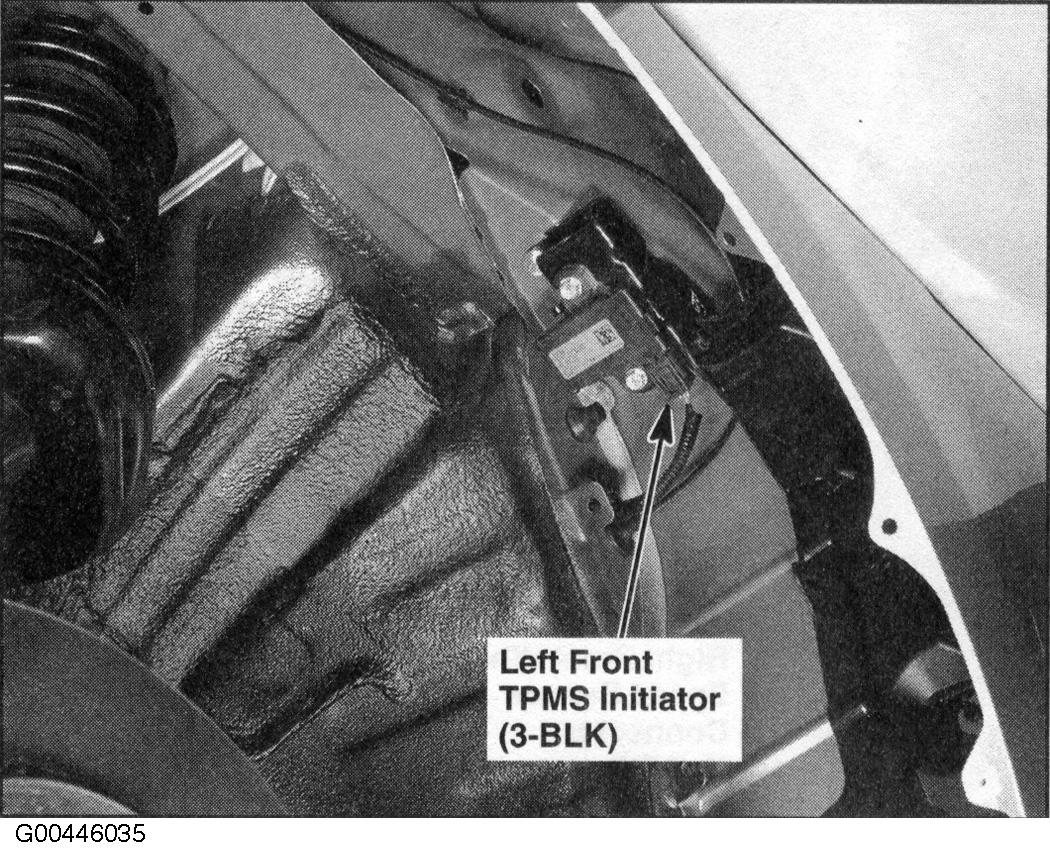

Fig 125: Behind Left Front Fender

G00446035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

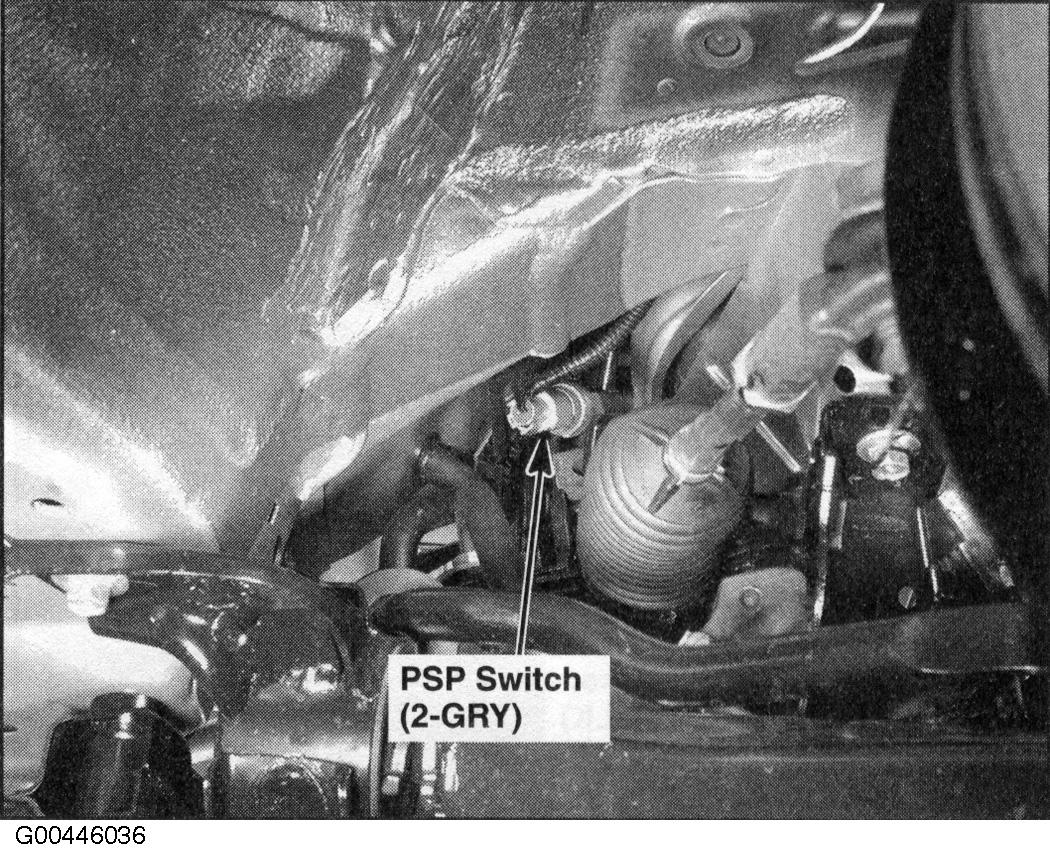

Fig 126: Right Rear Of Engine Compartment

G00446036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

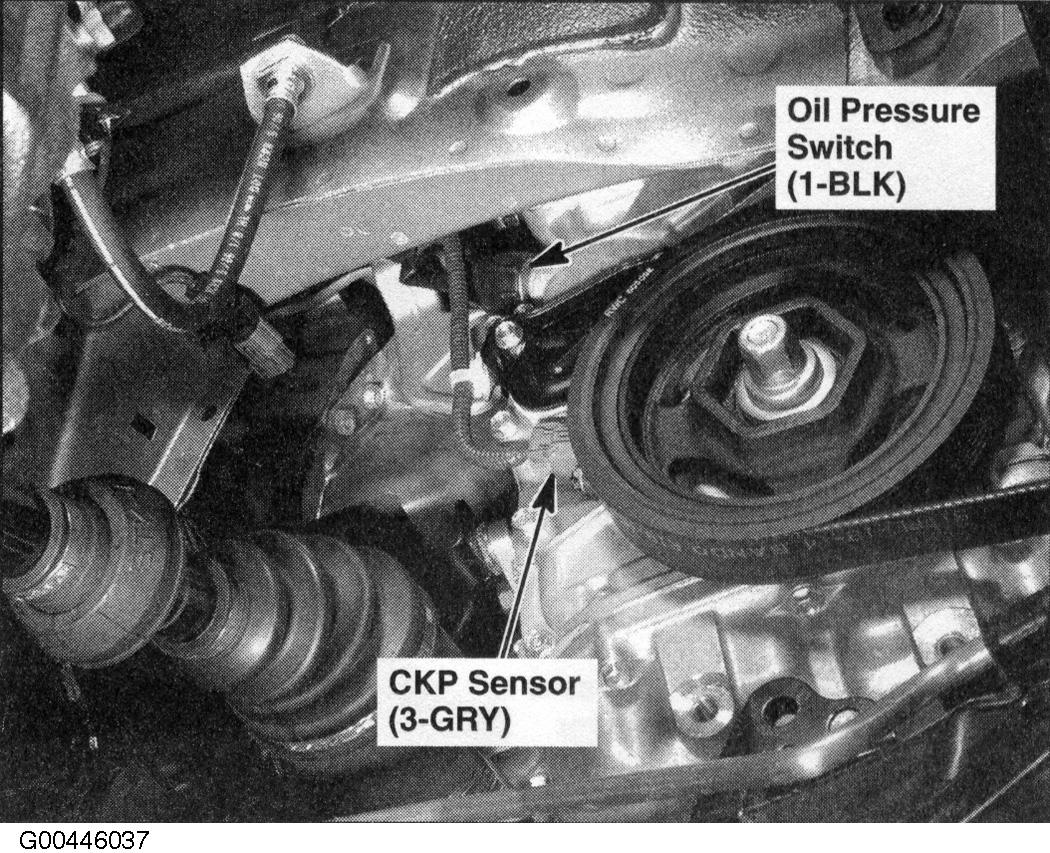

Fig 127: Right Side Of Engine Compartment

G00446037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

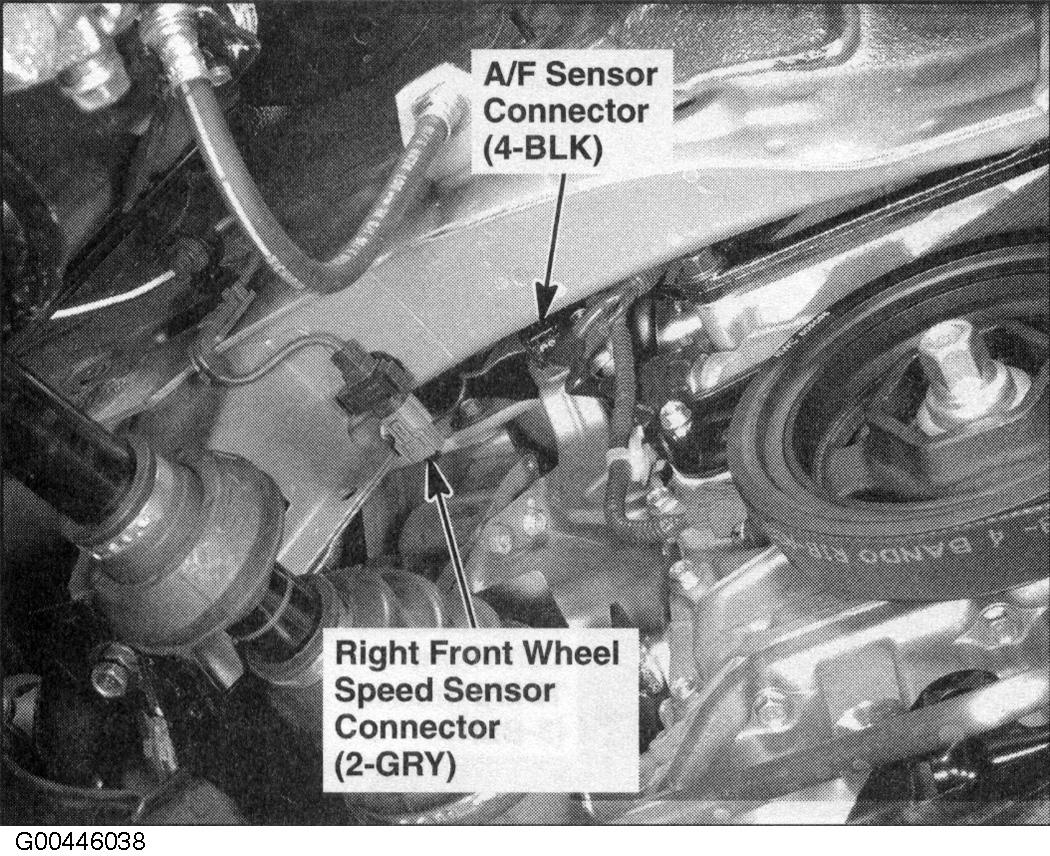

Fig 128: Right Side Of Engine Compartment

G00446038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

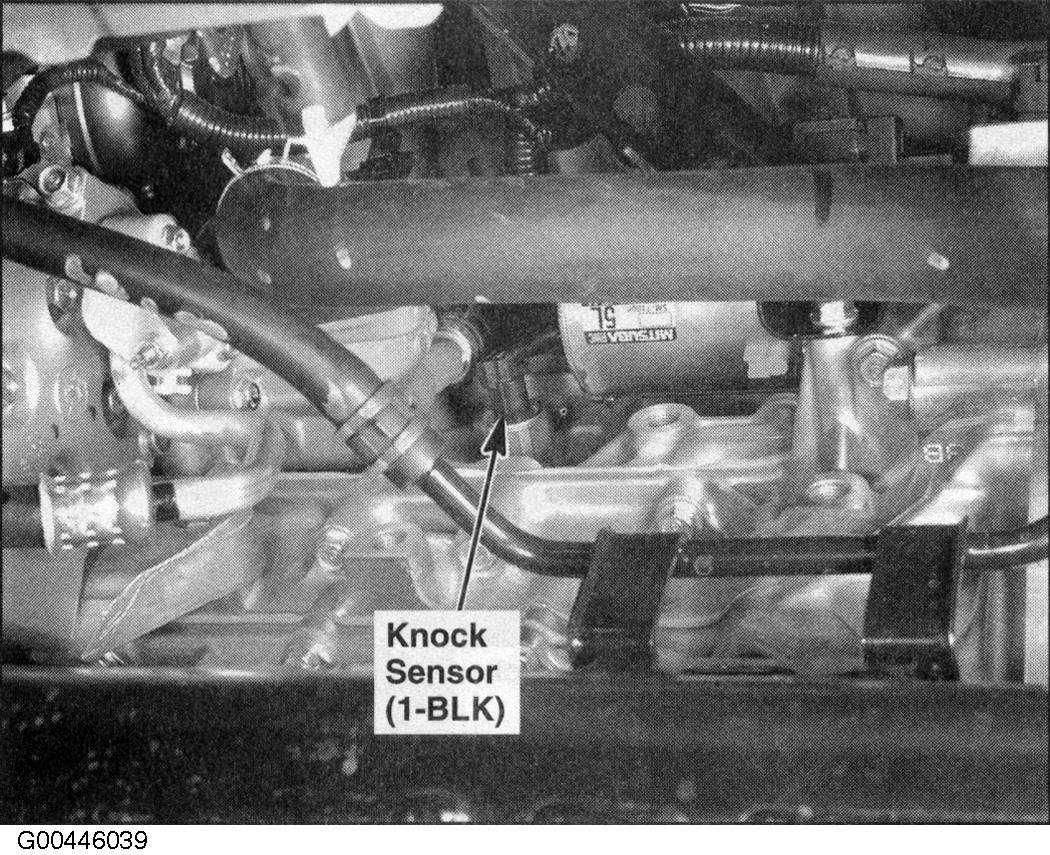

Fig 129: Front Of Engine

G00446039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

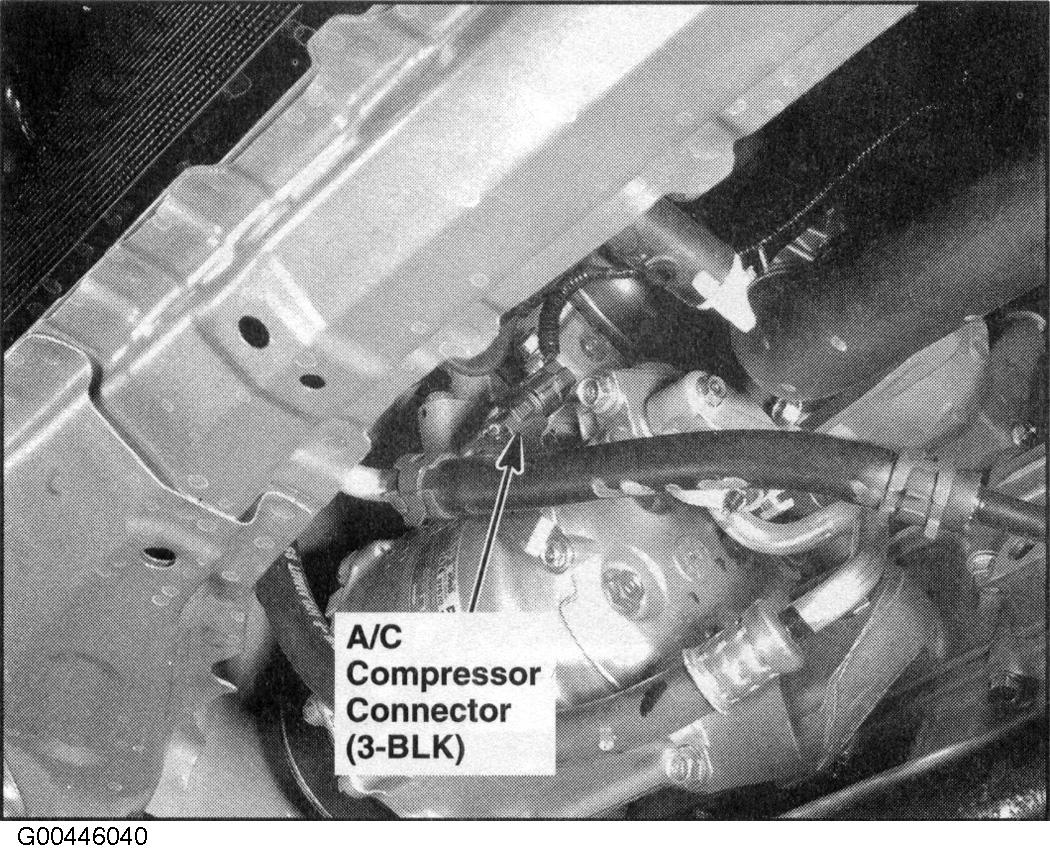

Fig 130: Front Of Engine Compartment

G00446040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

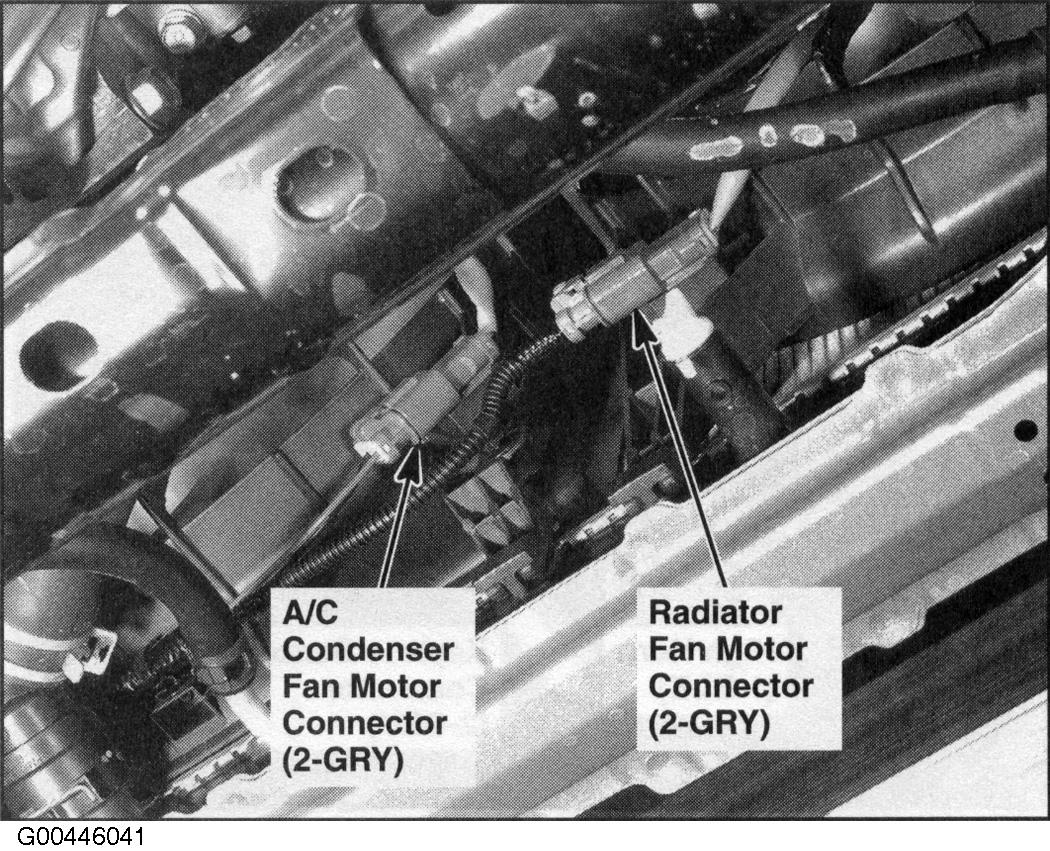

Fig 131: Front Of Engine Compartment

G00446041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

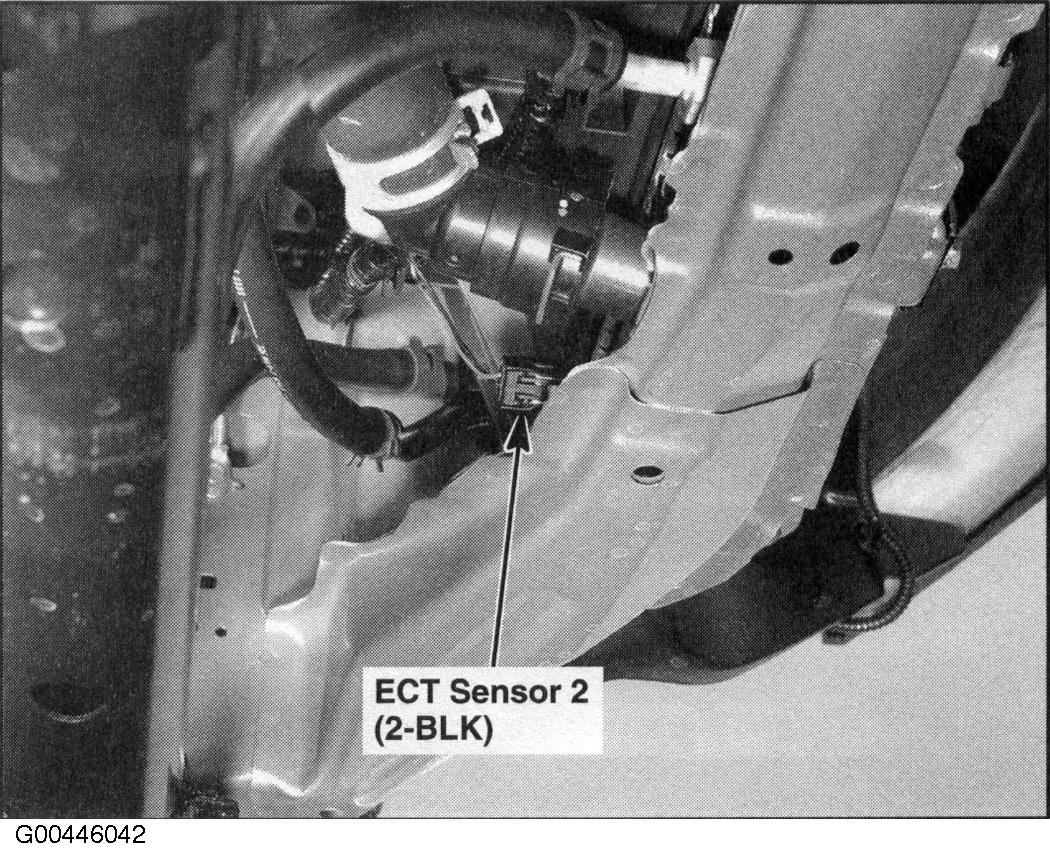

Fig 132: Front Of Engine Compartment

G00446042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

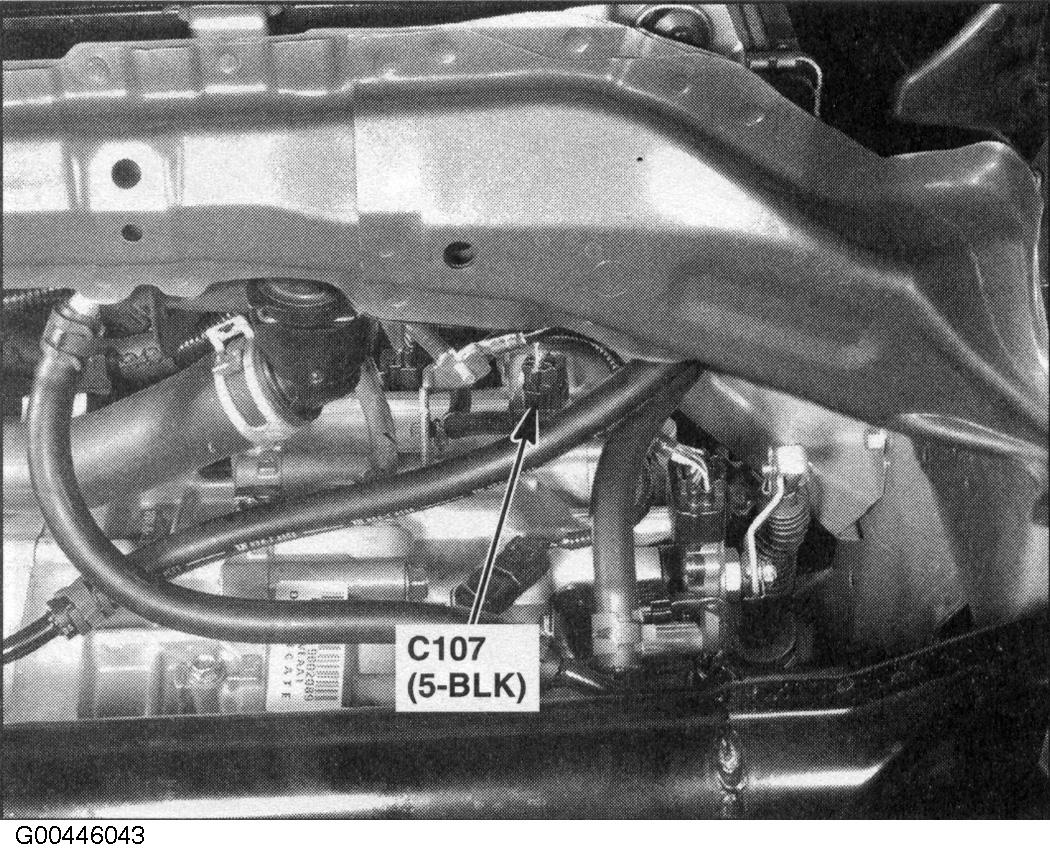

Fig 133: Transmission Housing

G00446043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

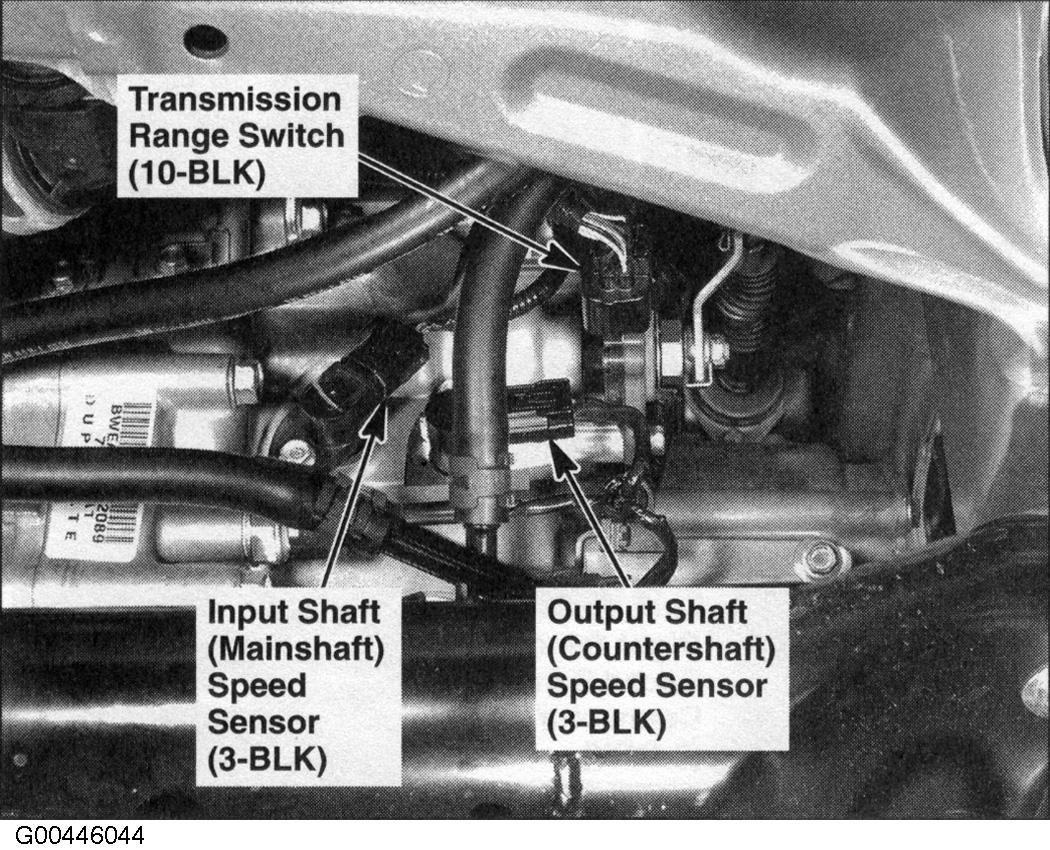

Fig 134: Transmission Housing

G00446044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

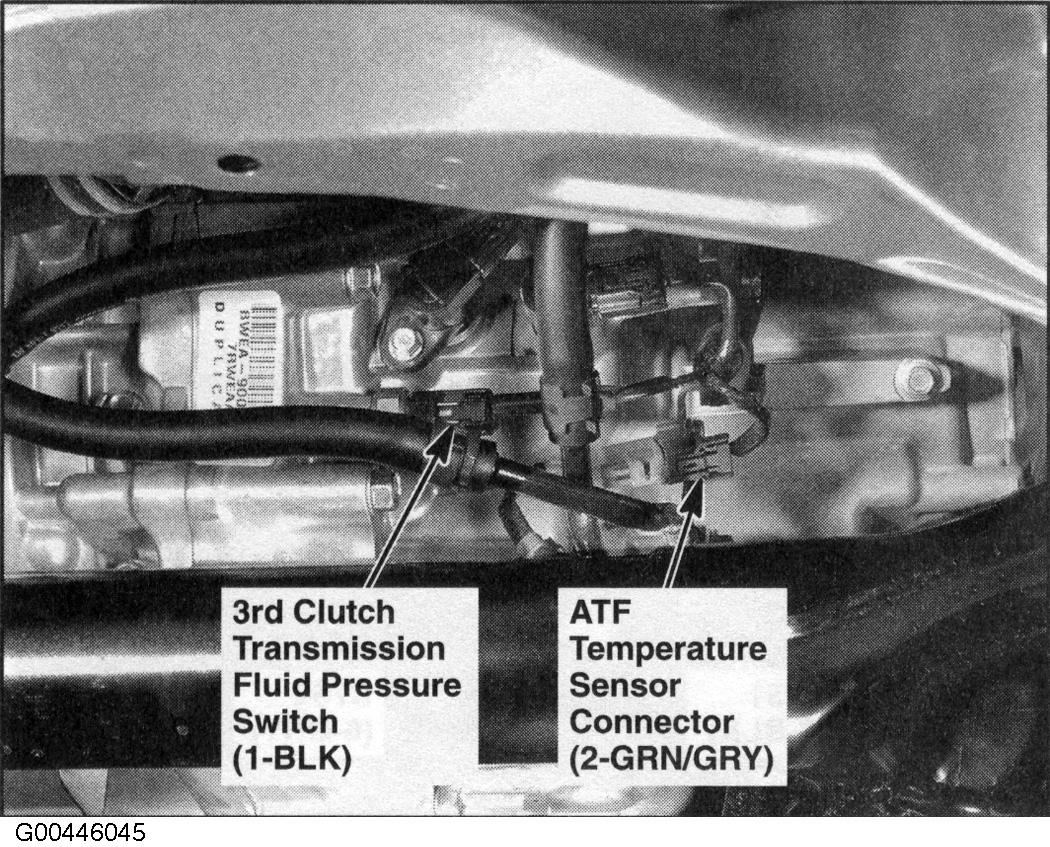

Fig 135: Transmission Housing

G00446045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

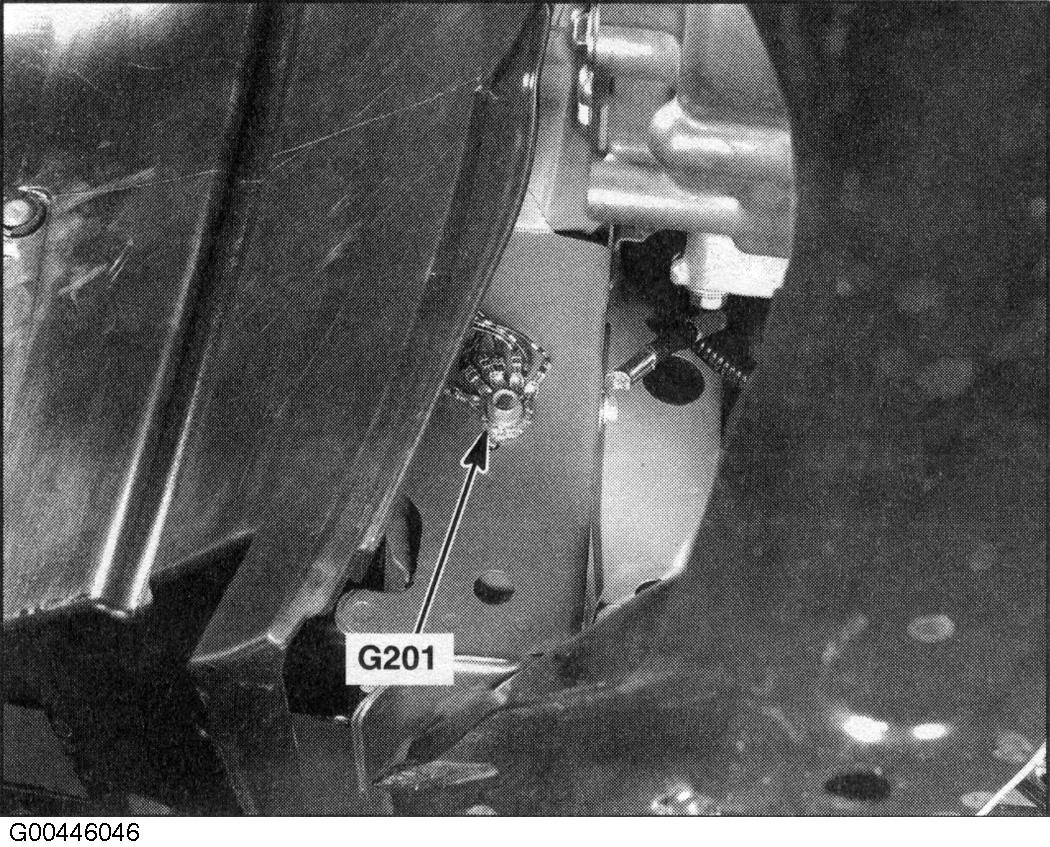

Fig 136: Transmission Housing

G00446046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

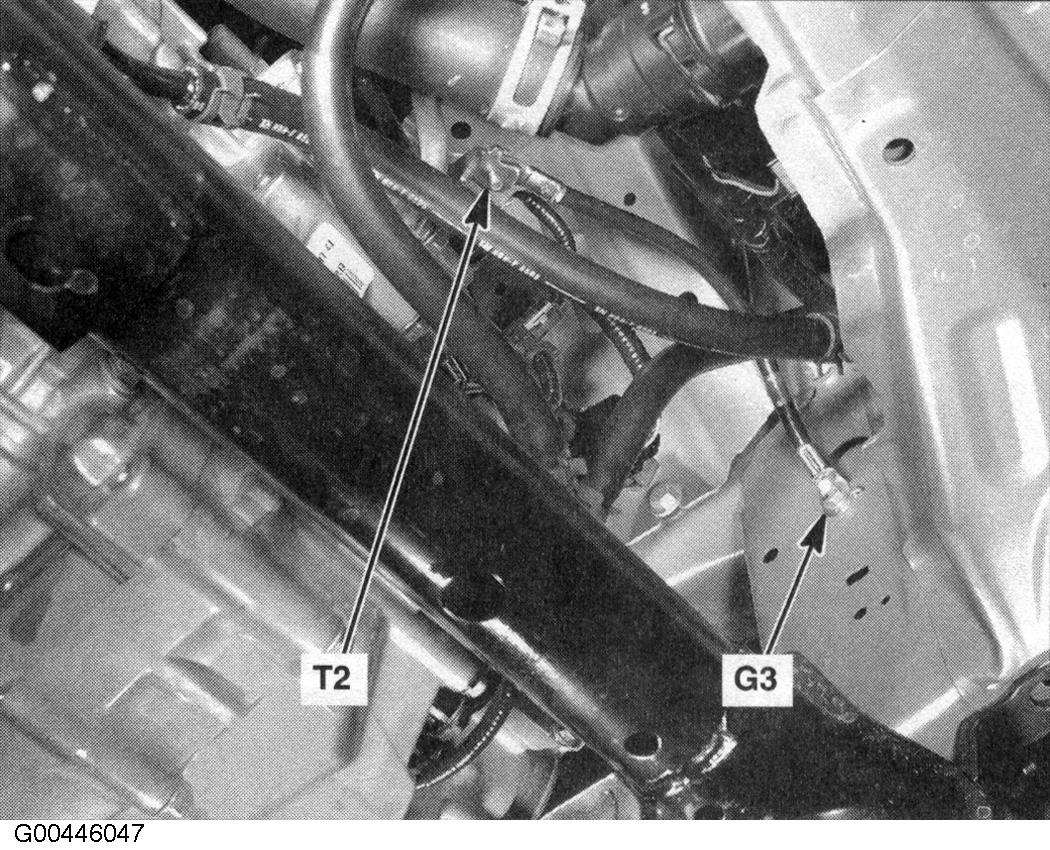

Fig 137: Left Front Of Engine Compartment

G00446047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

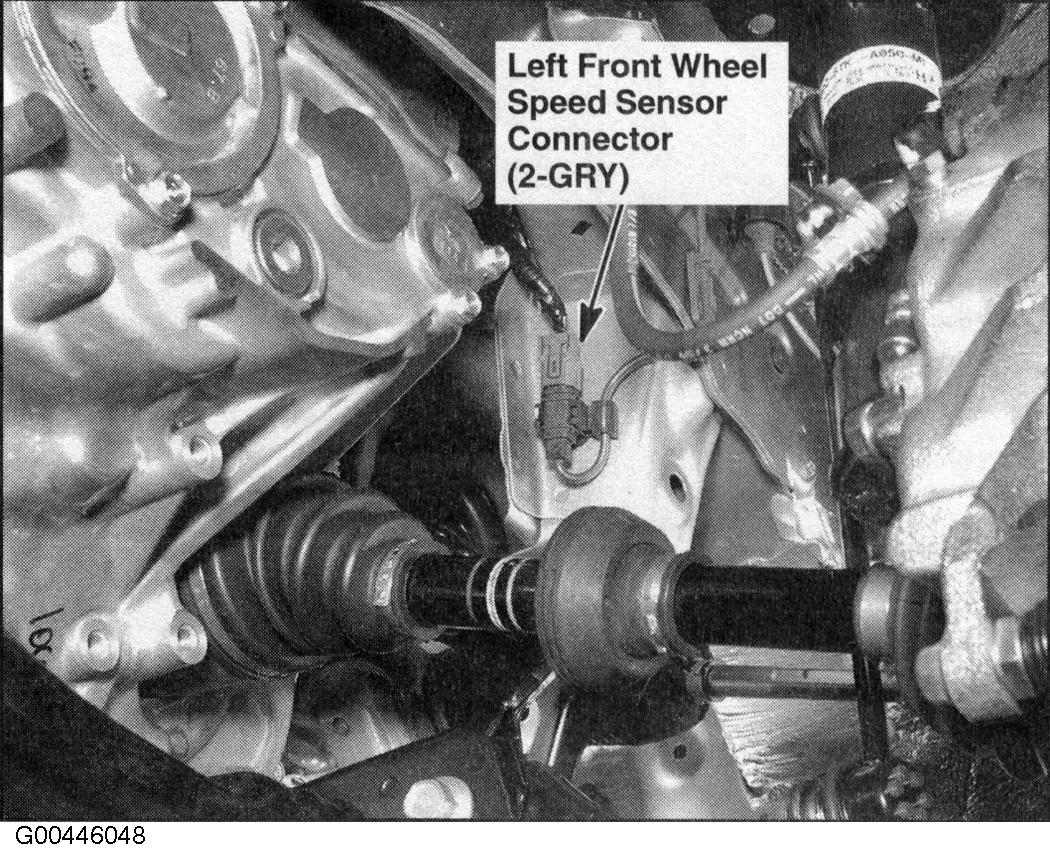

Fig 138: Left Side Of Engine Compartment

G00446048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

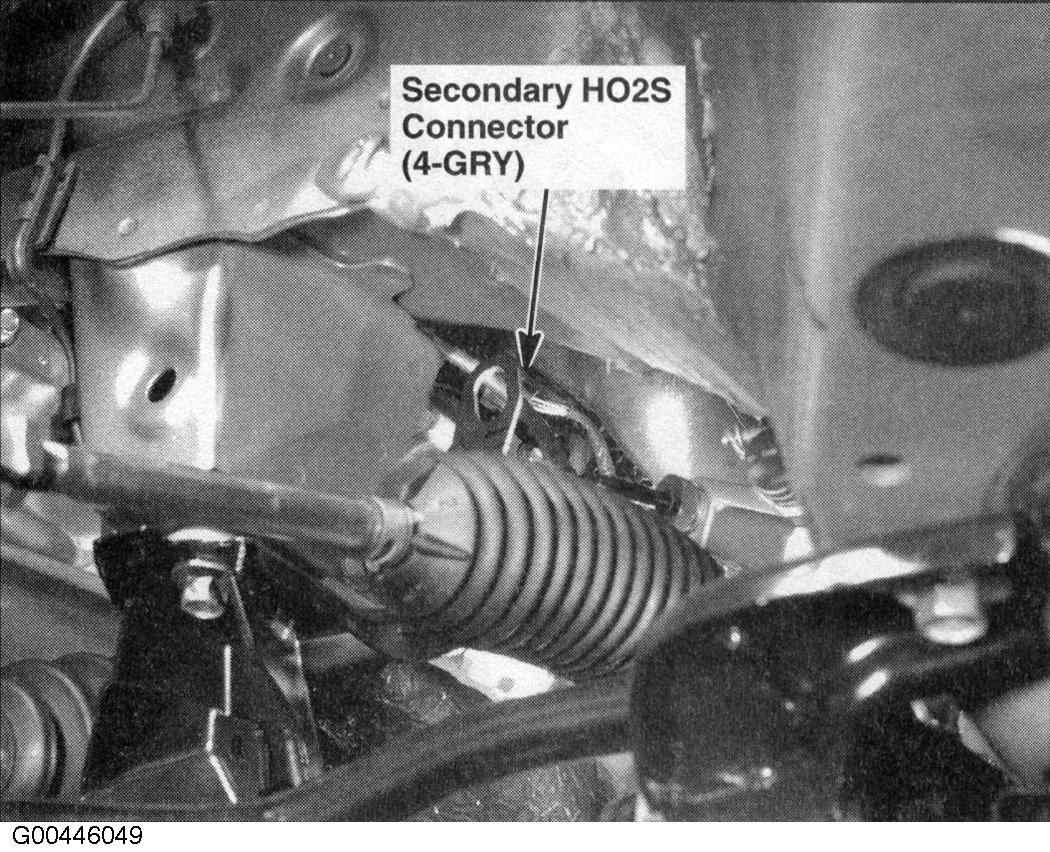

Fig 139: Left Rear Of Engine Compartment

G00446049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

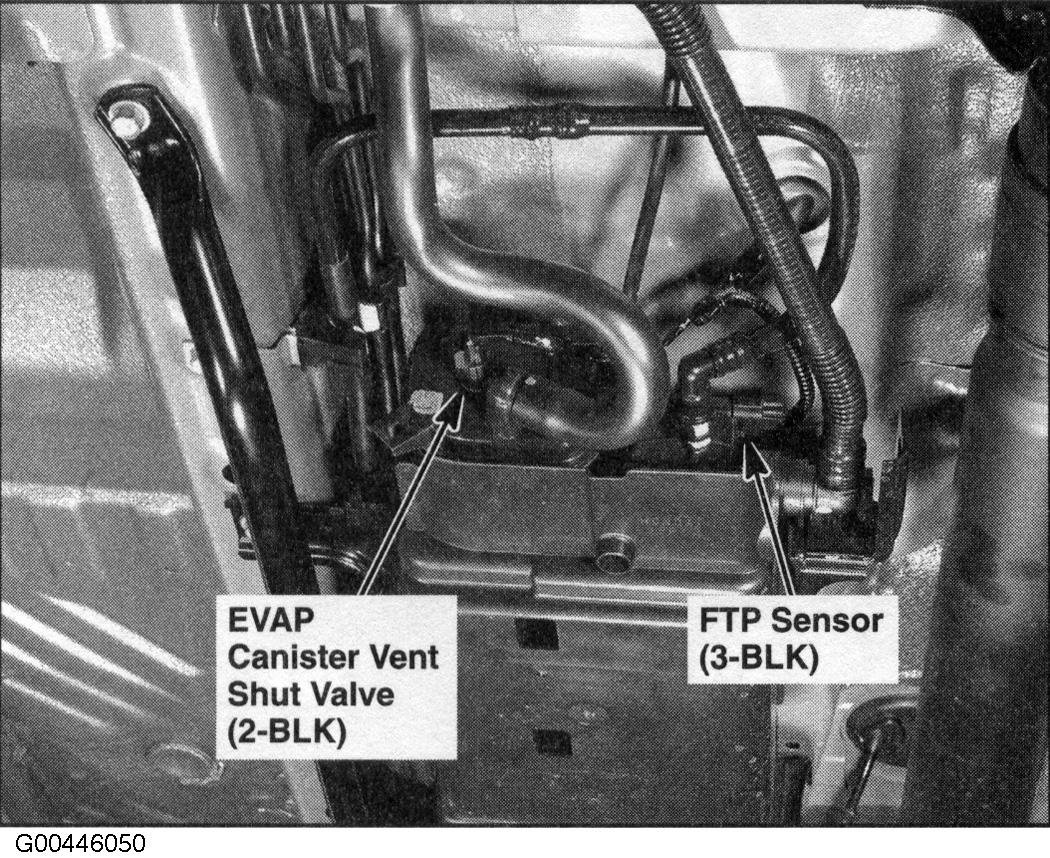

Fig 140: Under Middle Of Vehicle

G00446050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

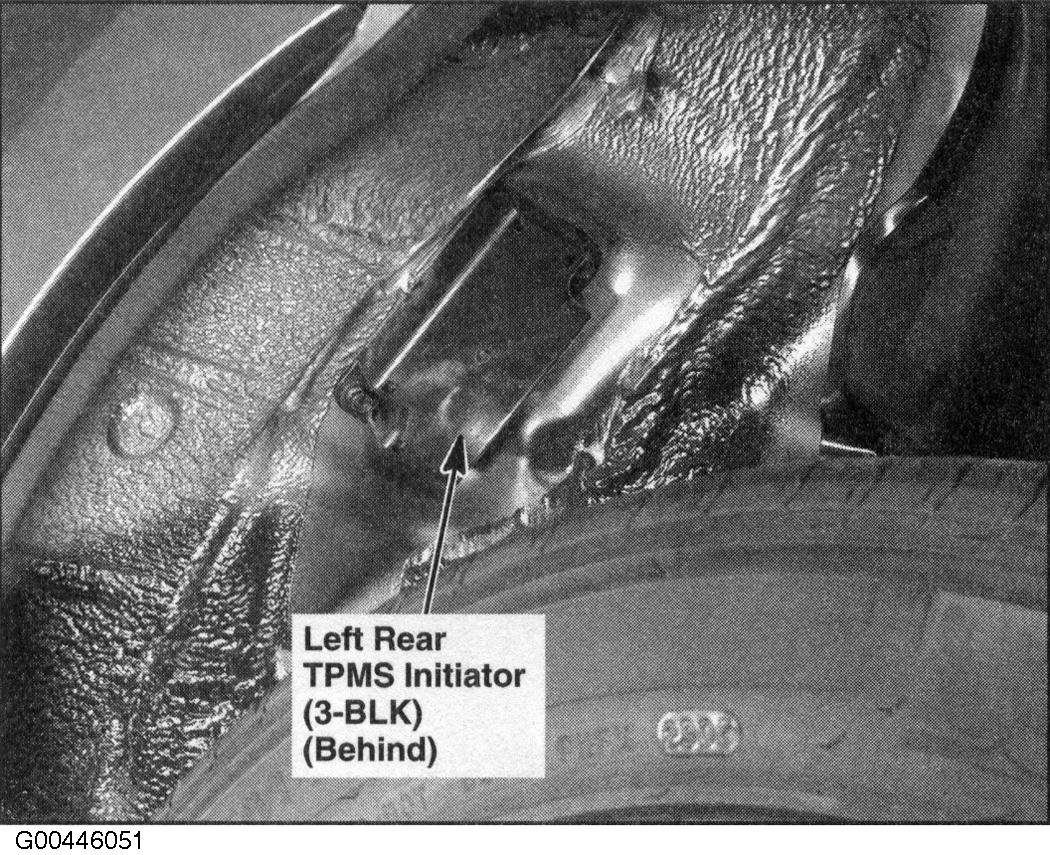

Fig 141: Left Rear Wheel Well

G00446051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

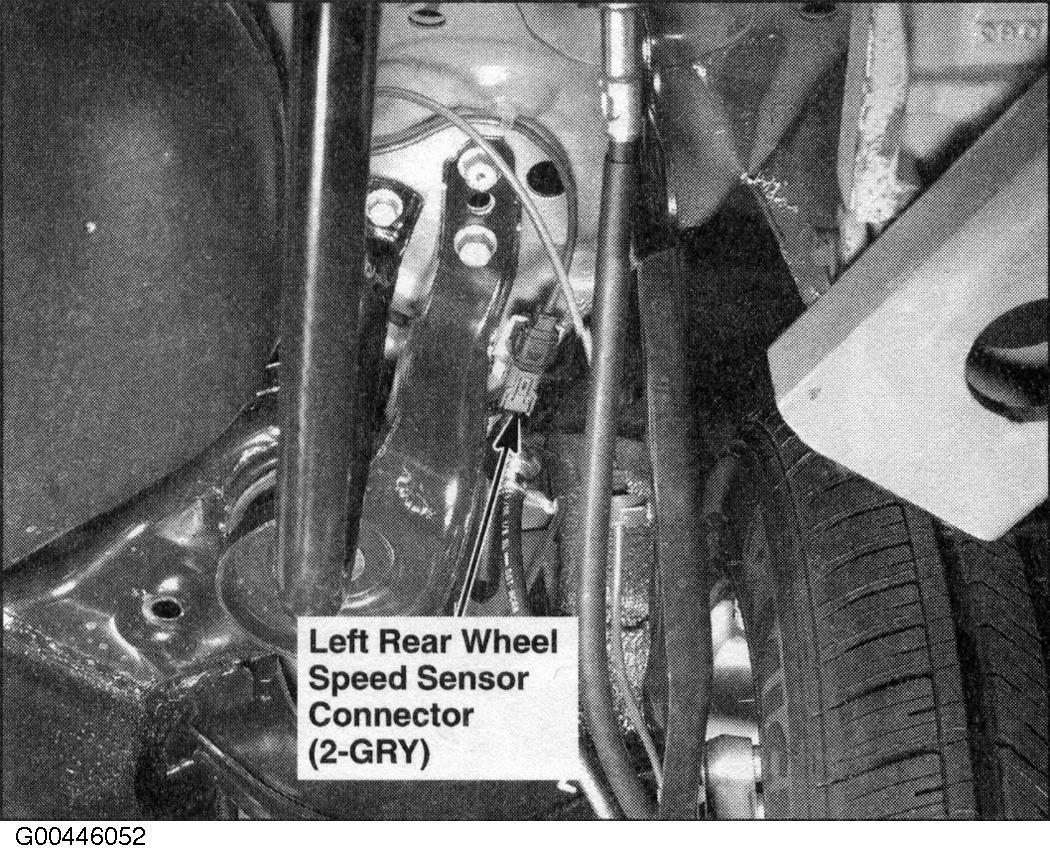

Fig 142: Under Left Rear Of Vehicle

G00446052

Courtesy of AMERICAN HONDA MOTOR CO., INC.

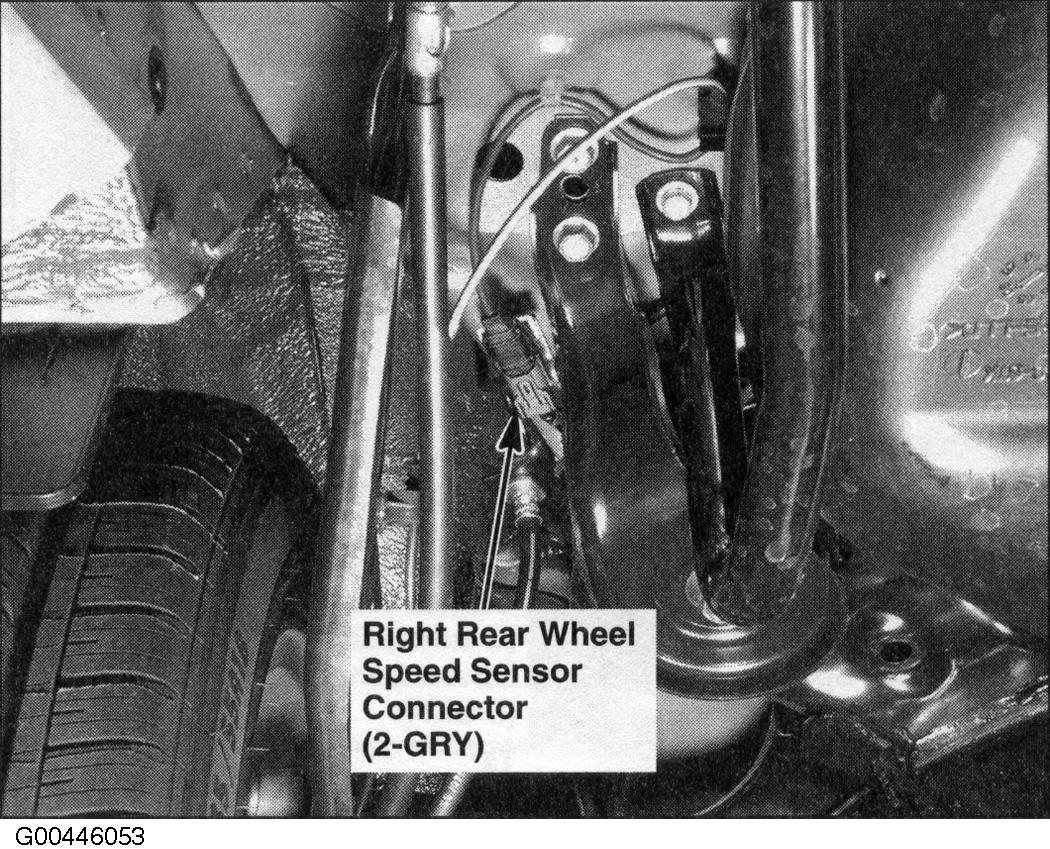

Fig 143: Under Right Rear Of Vehicle

G00446053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

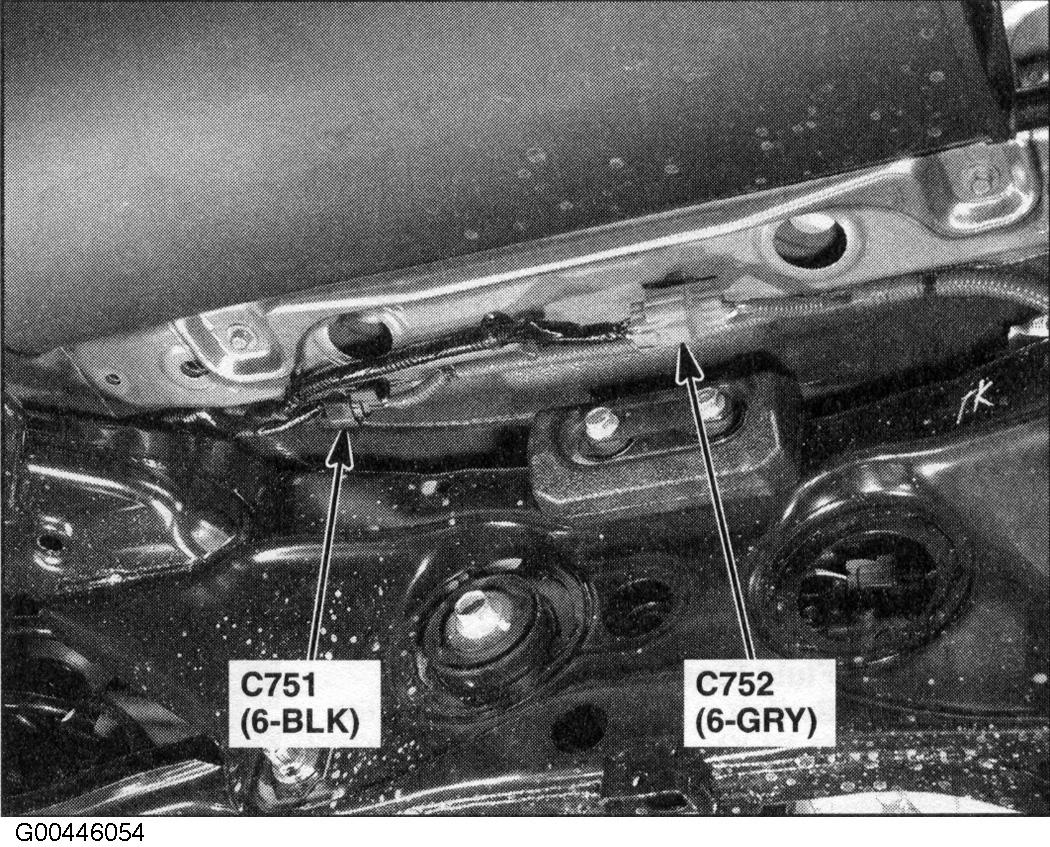

Fig 144: Under Rear Of Vehicle

G00446054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

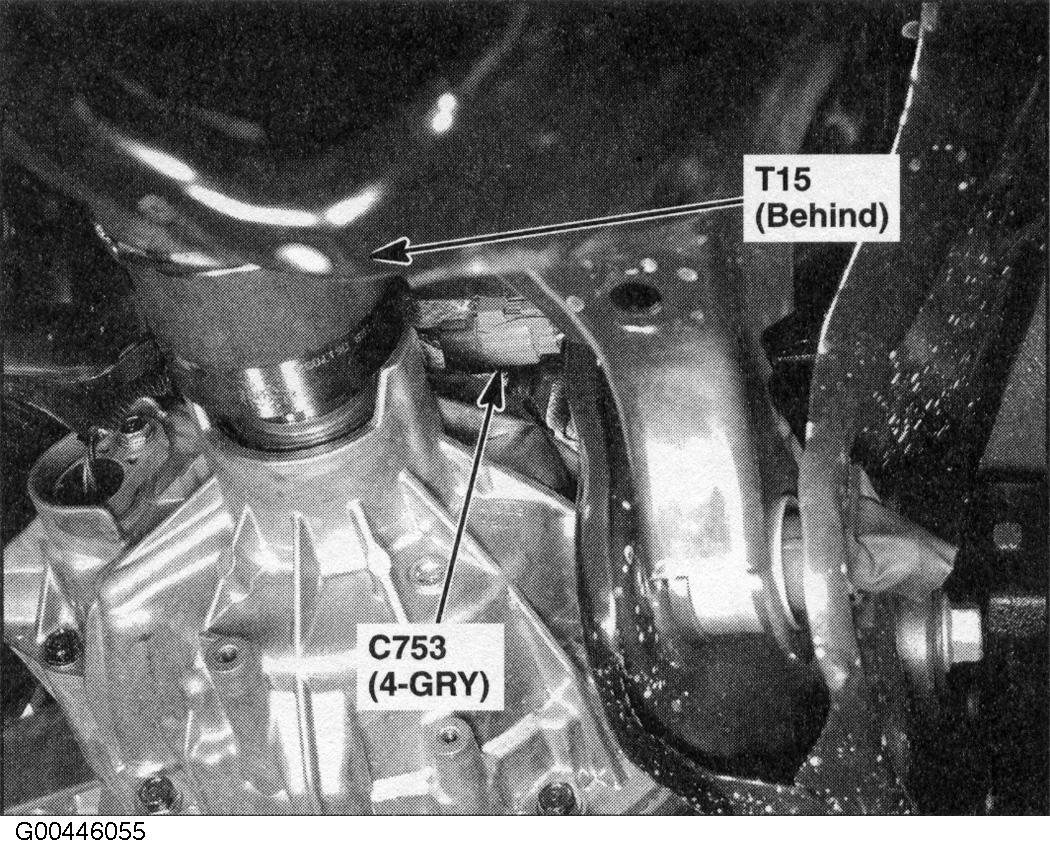

Fig 145: Rear Differential

G00446055

Courtesy of AMERICAN HONDA MOTOR CO., INC.

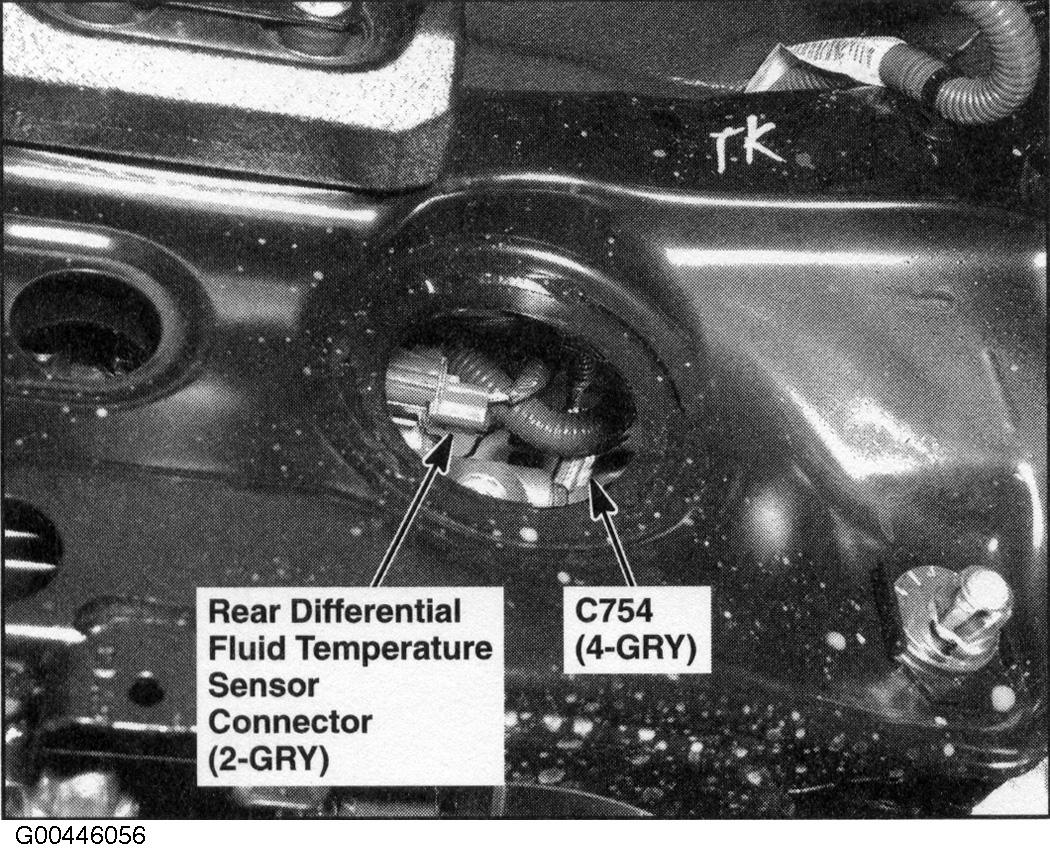

Fig 146: Rear Differential

G00446056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

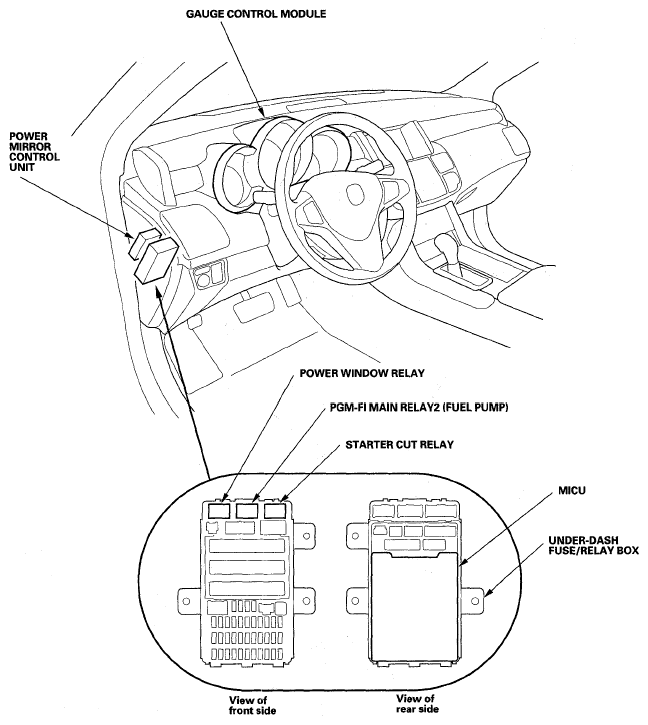

Fig 147: Under-Dash Fuse/Relay Box

G05446349

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 148: Under-Hood Fuse/Relay Box

G05446348

Courtesy of AMERICAN HONDA MOTOR CO., INC.
