Component Location Index

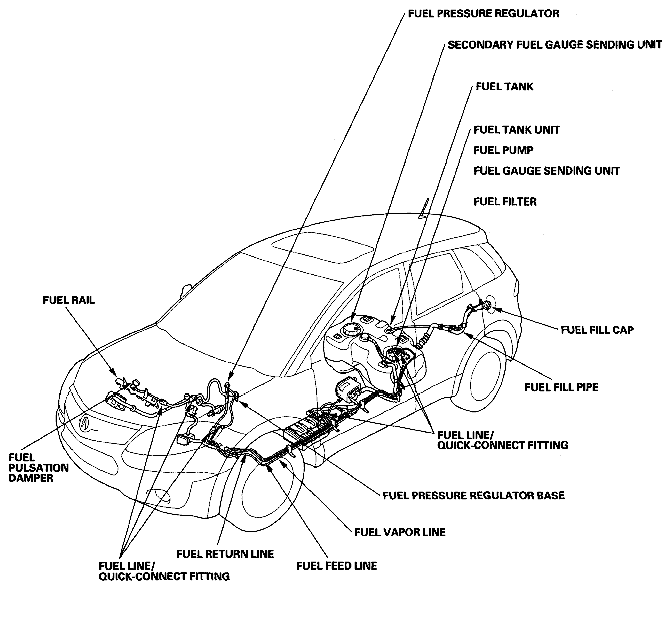

Fig 1: Identifying Fuel Supply System Components Location (1 Of 2)
G05444681Courtesy of AMERICAN HONDA MOTOR CO., INC.

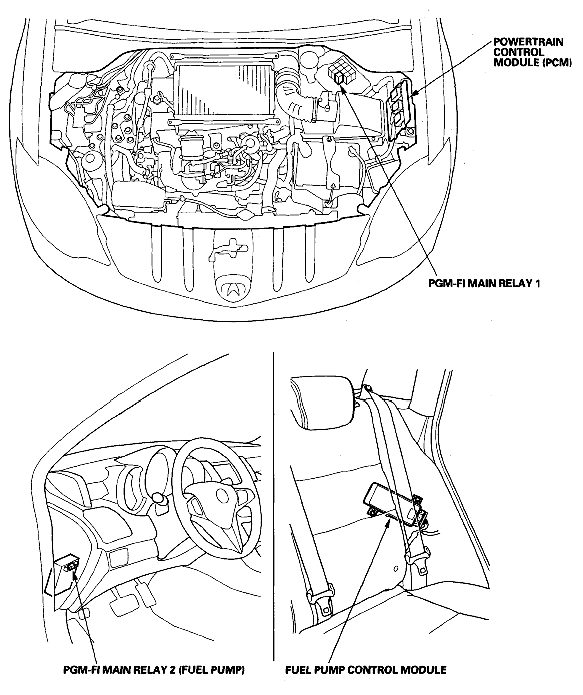

Fig 2: Identifying Fuel Supply System Components Location (2 Of 2)
G05444682Courtesy of AMERICAN HONDA MOTOR CO., INC.
