MAF Sensor/I AT Sensor 1: Replacement

  1. Disconnect the MAF sensor/IAT sensor 1 connector (A).

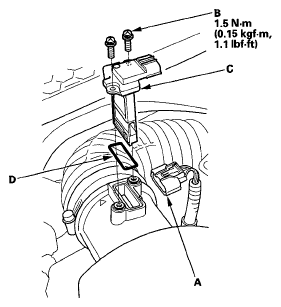

    Fig 1: Identifying MAF Sensor/IAT Sensor 1 Connector
    G05444649Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the screws (B).
  3. Remove the MAF sensor/IAT sensor 1 (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D).
