Home >> Acura >> 2007 >> RDX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Shift Lever Disassembly/Reassembly

Shift Lever Disassembly/Reassembly

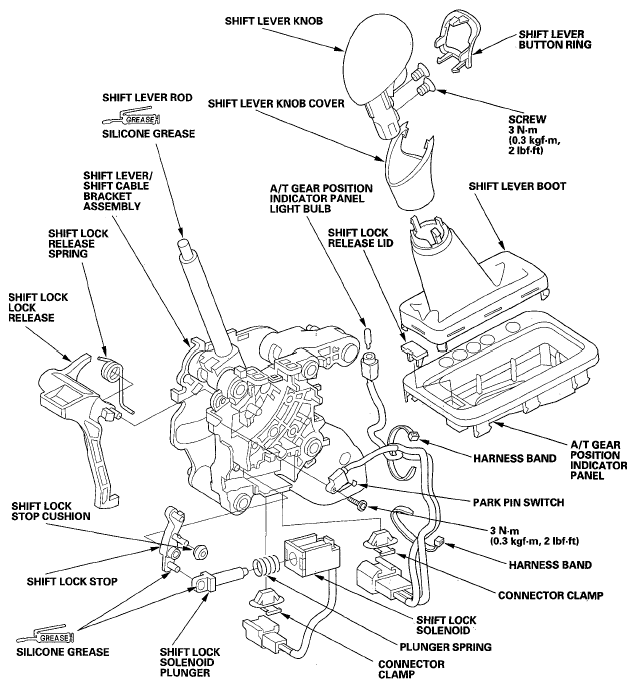

Fig 1: Shift Lever Replacement Components With Torque Specifications

G05445227

Courtesy of AMERICAN HONDA MOTOR CO., INC.
