PCM A/T Control System Electrical Connections: Notes

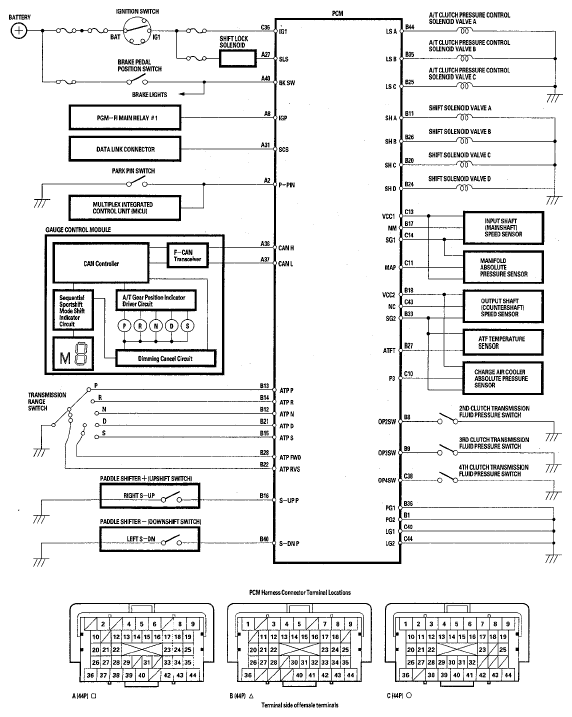

Fig 1: PCM A/T Control System Electrical Connections - Circuit Diagram

G05444937

Courtesy of AMERICAN HONDA MOTOR CO., INC.
