Transfer Assembly: Reassembly

Special Tools Required

Driver, 40 mm I.D. 07746-0030100
Driver 07749-0010000
Attachment, 65 mm 07JAD-SH30100
Companion flange holder 07XAB-0010101
Attachment, 78 x 80 mm 07NAD-PX40100

NOTE:

While reassembling the transfer assembly:
- Check and adjust the transfer gear tooth contact.
- Measure and adjust the transfer gear backlash.
- Check and adjust the tapered roller bearing starting torque.
Coat all parts with transfer fluid (hypoid gear oil) during reassembly.
Replace the tapered roller bearing and the bearing outer race as a set if either part is replaced.
Replace the transfer hypoid drive gear and the transfer output shaft (hypoid gear) as a set if either part is replaced.

Select the 40 mm thrust shim if the transfer output shaft (hypoid gear) is replaced. Calculate the thickness of the 40 mm thrust shim using the following formula, and select the shim from the following table.

FORMULA: A/100-B/100+C = X

A: Number on the existing transfer output shaft (hypoid gear)

B: Number on the replacement transfer output shaft (hypoid gear)

C: Thickness of the existing 40 mm thrust shim

X: Thickness needed for the replacement 40 mm thrust shim

NOTE: The number on the transfer output shaft (hypoid gear) is shown in 1/100 mm.

EXAMPLE

A: Existing transfer output shaft (hypoid gear)

Number = +2

B: Replacement transfer output shaft (hypoid gear)

Number = -1

C: Existing 40 mm thrust shim

thickness = 1.05 mm

X: Replacement 40 mm thrust shim thickness

X = A/100-B/100+C

= 2/100-(-1)/100+1.05

= 0.02+0.01+1.05 = 1.08 (mm)

Select No. M 40 mm thrust shim of 1.08 mm (0.043 in.]

Fig 1: Identifying Thrust Shim

Courtesy of AMERICAN HONDA MOTOR CO., INC.

THRUST SHIM THICKNESS

Shim No.	Part Number	Thickness
A	29361-RDK-000	0.72 mm (0.028 in.)
B	29362-RDK-000	0.75 mm (0.030 in.)
C	29363-RDK-000	0.78 mm (0.031 in.)
D	29364-RDK-000	0.81 mm (0.032 in.)
E	29365-RDK-000	0.84 mm (0.033 in.)
F	29366-RDK-000	0.87 mm (0.034 in.)
G	29367-RDK-000	0.90 mm (0.035 in.)
H	29368-RDK-000	0.93 mm (0.037 in.)
I	29369-RDK-000	0.96 mm (0.038 in.)
J	29370-RDK-000	0.99 mm (0.039 in.)
K	29371-RDK-000	1.02 mm (0.040 in.)
L	29372-RDK-000	1.05 mm (0.041 in.)
M	29373-RDK-000	1.08 mm (0.043 in.)
N	29374-RDK-000	1.11 mm (0.044 in.)
O	29375-RDK-000	1.14 mm (0.045 in.)

Select the 40 mm thrust shim if the tapered roller bearing on the transfer output shaft (hypoid gear) is replaced. Measure the thickness of the replacement bearing and the existing bearing, and calculate the difference of the bearing thickness. Adjust the thickness of the existing 40 mm thrust shim by the amount of difference in bearing thickness, and select the replacement 40 mm thrust shim.
Install the 40 mm thrust shim (A) on the transfer output shaft (hypoid gear) (B), then install the tapered roller bearing (C) using the driver (40 mm I.D.) and a press.

Fig 2: Installing Tapered Roller Bearing Using Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the tapered roller bearing (A) on the bearing outer race of the companion flange side of the transfer housing, and install a new oil seal (B).

Fig 3: Placing Tapered Roller Bearing On Bearing Outer Race
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drive the oil seal securely in the transfer housing using the driver and the attachment (65 mm).

Fig 4: Driving Oil Seal Securely In Transfer Housing Using Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the transfer output shaft (hypoid gear) (A) in the transfer housing (B). Do not install the transfer spacer and thrust washer on the transfer output shaft (hypoid gear).

Fig 5: Installing Transfer Output Shaft (Hypoid Gear) In Transfer Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the companion flange (A), the conical spring washer (B) (in the direction shown), and the locknut (C) on the transfer output shaft (hypoid gear) (D). Do not install the O-ring and back-up ring.

Fig 6: Installing Companion Flange, Conical Spring Washer And Locknut On Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.

Fig 7: Securing Transfer Housing In Bench Vise With Soft Jaws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the companion flange holder on the companion flange.
Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the starting torque is within 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in.). Do not stake the locknut in this step.
Remove the companion flange holder.
Apply Prussian Blue to both sides of the transfer hypoid drive gear teeth lightly and evenly.

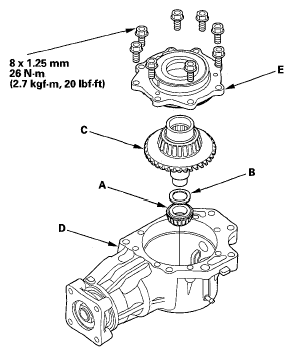

Install the tapered roller bearing (A), the 25 mm thrust shim (B), and the transfer drive gear/shaft assembly (C) in the transfer housing (D).

Fig 8: Installing Transfer Cover Onto Transfer Case With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the transfer cover (E), and secure it with the bolts. Do not install the O-ring on the transfer cover.
Rotate the companion flange in both directions until the transfer gears rotate one full turn in both directions.

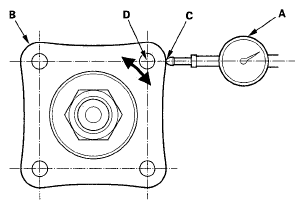

Seat dial indicator (A) on the transfer companion flange (B); position the dial indicator tip (C) on the direct extension of the bolt hole center (D).

Fig 9: Setting Dial Indicator On Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the transfer gear backlash.
Standard: 0.06-0.16 mm (0.02-0.06 in.)
Remove the transfer cover, the transfer hypoid drive gear/shaft assembly, and check the transfer hypoid drive gear tooth contact pattern.

Fig 10: Identifying Correct Tooth Contact Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.

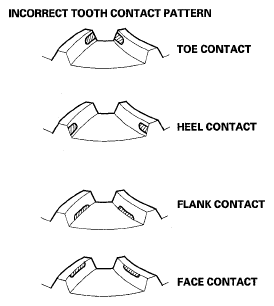

Fig 11: Identifying Incorrect Tooth Contact Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the backlash measurement is out of standard, adjust the backlash with the 40 mm thrust shim and recheck. Do not use more than two 40 mm thrust shims to adjust the backlash.

If the transfer gear tooth contact is incorrect, adjust the tooth contact with the 25 mm, 40 mm, or 80 mm thrust shim. Do not use more than two of each thrust shim to adjust the tooth contact.

Toe Contact
Use a thicker 40 mm thrust shim to move the transfer output shaft (hypoid gear) away from the transfer hypoid drive gear. Because this movement causes the transfer gear backlash to change, move the transfer hypoid drive gear toward the transfer output shaft (hypoid gear) to adjust the transfer gear backlash as follows:
- Reduce the thickness of the 25 mm thrust shim.
- Increase the thickness of the 80 mm thrust shim by the amount the 25 mm thrust shim was reduced.
Heel Contact
Use a thicker 40 mm thrust shim to move the transfer output shaft (hypoid gear) toward the transfer hypoid drive gear. Because this movement causes the transfer gear backlash to change, move the transfer hypoid drive gear away from the transfer output shaft (hypoid gear) to adjust the transfer gear backlash as follows:
- Increase the thickness of the 25 mm thrust shim.
- Reduce the thickness of the 80 mm thrust shim by the amount the 25 mm thrust shim was reduced.
Flank Contact
Use a thicker 25 mm thrust shim to move the transfer hypoid drive gear away from the transfer output shaft (hypoid gear). Flank contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Heel Contact.
Face Contact
Use a thinner 25 mm thrust shim to move the transfer hypoid drive gear toward the transfer output shaft (hypoid gear). Face contact must be adjusted within the limits of the transfer gear backlash. If the backlash exceeds the limits, adjust as described under Toe Contact.

THRUST SHIM THICKNESS

Shim No.	Part Number	Thickness
1.70	29411-P1C-000	1.70 mm (0.067 in.)
1.73	29412-P1C-000	1.73 mm (0.068 in.)
1.76	29413-P1C-000	1.76 mm (0.069 in.)
1.79	29414-P1C-000	1.79 mm (0.070 in.)
1.82	29415-P1C-000	1.82 mm (0.072 in.)
1.85	29416-P1C-000	1.85 mm (0.073 in.)
1.88	29417-P1C-000	1.88 mm (0.074 in.)
1.91	29418-P1C-000	1.91 mm (0.075 in.)
1.94	29419-P1C-000	1.94 mm (0.076 in.)
1.97	29420-P1C-000	1.97 mm (0.078 in.)
2.00	29421-P1C-000	2.00 mm (0.079 in.)
2.03	29422-P1C-000	2.03 mm (0.080 in.)
2.06	29423-P1C-000	2.06 mm (0.081 in.)
2.09	29424-P1C-000	2.09 mm (0.082 in.)
2.12	29425-P1C-000	2.12 mm (0.083 in.)
2.15	29426-P1C-000	2.15 mm (0.085 in.)
2.18	29427-P1C-000	2.18 mm (0.086 in.)
2.21	29428-P1C-000	2.21 mm (0.087 in.)
2.24	29429-P1C-000	2.24 mm (0.088 in.)

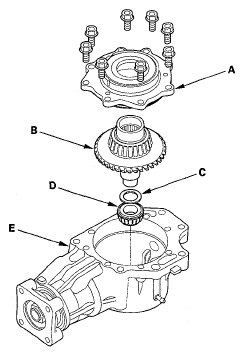

Remove the transfer cover (A), transfer hypoid drive gear/shaft assembly (B), 25 mm thrust shim (C), and tapered roller bearing (D) from the transfer housing (E) after adjusting the transfer gear backlash or transfer gear tooth contact.

Fig 12: Removing Transfer Cover, Transfer Hypoid Drive Gear/Shaft Assembly, 25 Mm Thrust Shim
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig 13: Securing Transfer Housing In Bench Vise With Soft Jaws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the companion flange holder on the companion flange, then loose the locknut.
Remove the companion flange holder.
Remove the locknut (A), the conical spring washer (B), and the companion flange (C) from the transfer output shaft (hypoid gear) (D).

Fig 14: Removing Locknut, Conical Spring Washer, And Companion Flange From Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transfer output shaft (hypoid gear) from the transfer housing.
Install the thrust washer (A) and a new transfer spacer (B) on the transfer output shaft (hypoid gear) (C) in the direction shown, and install them in the transfer housing (D).

Fig 15: Installing Thrust Washer And Transfer Spacer On Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Coat the threads of the locknut and transfer output shaft (hypoid gear) with transfer fluid (hypoid gear oil).
Install the companion flange (A), a new O-ring (B), back-up ring (C), a new conical spring washer (D), and a new locknut (E) on the transfer output shaft (hypoid gear) (F). Install the conical spring washer in the direction shown.

Fig 16: Installing Companion Flange, O-Ring, Back-Up Ring, Conical Spring Washer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the transfer housing (A) in a bench vise (B with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.

Fig 17: Securing Transfer Housing In Bench Vise With Soft Jaws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the companion flange holder on the companion flange.
Tighten the locknut while measuring the starting torque of the transfer output shaft (hypoid gear) so the starting torque is within 1.15-1.71 N.m (11.7-17.4 kgf.cm, 10.2-15.1 lbf.in.).
Tightening Torque:

108-294 N.m

(11.0-30.0 kgf.m, 79.6-217 lbf.ft)

Starting Torque:

1.15-1.71 N.m

(11.7-17.4 kgf.cm, 10.2-15.1 lbf.in.)
NOTE:
- Rotate the companion flange several turns to seat the tapered roller bearings, then measure the starting torque.
- If the starting torque exceeds 1.71 N.m (17.4 kgf.cm, 15.1 lbf.in.), replace the transfer spacer and reassemble the parts. Do not adjust the torque with the locknut loose.
- If the tightening torque exceeds 294 N.m (30.0 kgf.m, 217 lbf.ft), replace the transfer spacer and reassemble the parts.
Remove the companion flange holder.
Stake the locknut into the transfer output shaft (hypoid gear) to a depth of (A) of 0.7-1.2 mm (0.03-0.05 in.) using a 3.5 mm punch (B).

Fig 18: Staking Locknut Into Transfer Output Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

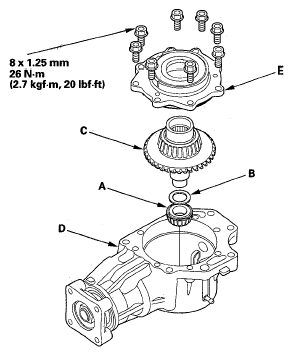

Install the tapered roller bearing (A), the 25 mm thrust shim (B), and the transfer hypoid drive gear/shaft assembly (C) in the transfer housing (D).

Fig 19: Installing Tapered Roller Bearing, 25 Mm Thrust Shim In Transfer Housing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Temporarily install the transfer cover (E) without the O-ring, and secure the cover with the bolts.
Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.

Fig 20: Installing Transfer Cover Without O-Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Rotate the companion flange several turns to seat the tapered roller bearings.
Measure the starting torque at the companion flange (G) with a torque wrench (D) and a socket (E).
Standard: 2.64-4.23 N.m

(26.9-43.1 kgf.cm, 23.3-37.4 lbf.in.)
Remove the transfer cover from the transfer housing.
If the starting torque is within the standard, go to step 47.
If the starting torque is out of the standard, remove the bearing outer race (A) and the 80 mm thrust shim (B) from the transfer cover (C). If the bearing outer race is press-fitted, remove the outer race by heating the cover to about 212°F (100°C) with a heat gun (D). Do not heat the cover more than 212°F (100°C).

Fig 21: Removing Bearing Outer Race And 80 Mm Thrust Shim From Transfer Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the thickness of the 80 mm thrust shim, and select a new 80 mm thrust shim.

THRUST SHIM THICKNESS

Shim No.	Part Number	Thickness
A	41401-RDK-000	1.52 mm (0.060 in.)
B	41402-RDK-000	1.55 mm (0.061 in.)
C	41403-RDK-000	1.58 mm (0.062 in.)
D	41404-RDK-000	1.61 mm (0.063 in.)
E	41405-RDK-000	1.64 mm (0.065 in.)
F	41406-RDK-000	1.67 mm (0.066 in.)
G	41407-RDK-000	1.70 mm (0.067 in.)
H	41408-RDK-000	1.73 mm (0.068 in.)
I	41409-RDK-000	1.76 mm (0.069 in.)
J	41410-RDK-000	1.79 mm (0.070 in.)
K	41411-RDK-000	1.82 mm (0.072 in.)
L	41412-RDK-000	1.85 mm (0.073 in.)
M	41413-RDK-000	1.88 mm (0.074 in.)
N	41414-RDK-000	1.91 mm (0.075 in.)
O	41415-RDK-000	1.94 mm (0.076 in.)
P	41416-RDK-000	1.97 mm (0.078 in.)
Q	41417-RDK-000	2.00 mm (0.079 in.)
R	41418-RDK-000	2.03 mm (0.080 in.)
S	41419-RDK-000	2.06 mm (0.081 in.)
T	41420-RDK-000	2.09 mm (0.082 in.)
U	41421-RDK-000	2.12 mm (0.083 in.)
V	41422-RDK-000	2.15 mm (0.085 in.)
W	41423-RDK-000	2.18 mm (0.086 in.)
X	41424-RDK-000	2.21 mm (0.087 in.)
Y	41425-RDK-000	2.24 mm (0.088 in.)
Z	41426-RDK-000	2.27 mm (0.089 in.)
AA	41427-RDK-000	2.30 mm (0.091 in.)
AB	41428-RDK-000	2.33 mm (0.092 in.)
AC	41429-RDK-000	2.36 mm (0.093 in.)
AD	41430-RDK-000	2.39 mm (0.094 in.)
AE	41431-RDK-000	2.42 mm (0.095 in.)
AF	41432-RDK-000	2.45 mm (0.096 in.)
AG	41433-RDK-000	2.48 mm (0.098 in.)
AH	41434-RDK-000	2.51 mm (0.099 in.)
AI	41435-RDK-000	2.54 mm (0.100 in.)
AJ	41436-RDK-000	2.57 mm (0.101 in.)
AK	41437-RDK-000	2.60 mm (0.102 in.)
AL	41438-RDK-000	2.63 mm (0.104 in.)
AM	41439-RDK-000	2.66 mm (0.105 in.)

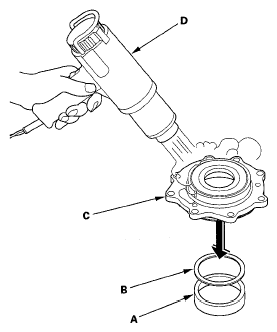

Install the 80 mm thrust shim (A) and bearing outer race (B) in the transfer cover (C). If you heated the cover, let it cool to room temperature before installing the thrust shim.

Fig 22: Installing 80 Mm Thrust Shim And Bearing Outer Race In Transfer Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Drive the outer race securely in the cover using the driver and the attachment (78 x 80 mm), so there is no clearance between the outer race, thrust shim, and cover.

Fig 23: Driving Outer Race Securely In Cover Using Driver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After replacing the 80 mm thrust shim, recheck and make sure that the total staring torque is within the specification.

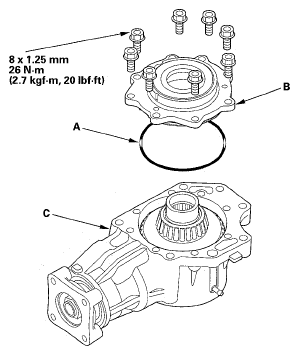

Install a new O-ring (A) on the transfer cover (B), then install the transfer cover on the transfer housing (C).

Fig 24: Installing Transfer Cover With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the filler plug (A), then refill the transfer assembly with transfer fluid (hypoid gear oil). Use a SAE 90 or SAE 80W-90 viscosity hypoid gear oil, API classified GL4 or GL5 only.
Viscosity:

SAE 90: Above 0°F (-18°C)

SAE 80W-90: Below 0°F (-18°C)

Hypoid Gear Oil Capacity: 0.45 L (0.48 US qt)

Fig 25: Filler Plug With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the filler plug with the new sealing washer (B).
