Front Accessory Power Socket Test/Replacement

Remove the console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the front accessory power socket (B).

Fig 1: Identifying Front Accessory Power Socket And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector terminals to be sure they are all making good contact.
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
Turn the ignition switch to ACC (I), and measure the voltage between the No. 1 terminal and body ground. There should be battery voltage.
- If there is battery voltage, go to step 5.
- If there is no battery voltage, check for:
  - Blown No. 9 (20A) or No. 32 (10A) fuse in the driver's under-dash fuse/relay box.
  - Faulty accessory power socket relay.
  - Poor ground (G503, G601)
  - An open in the wire.
Check for continuity between the No. 2 terminal and body ground. There should be continuity.
- If there is continuity, go to step 6.
- If there is no continuity, check for:
  - Poor ground (G503)
  - An open in the wire.

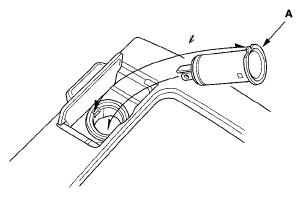

Remove the socket (A).

Fig 2: Identifying Power Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the ring (A).

Fig 3: Identifying Power Socket Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the power socket in the reverse order of removal.
