Home >> Acura >> 2007 >> RL >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component Location Index

Component Location Index

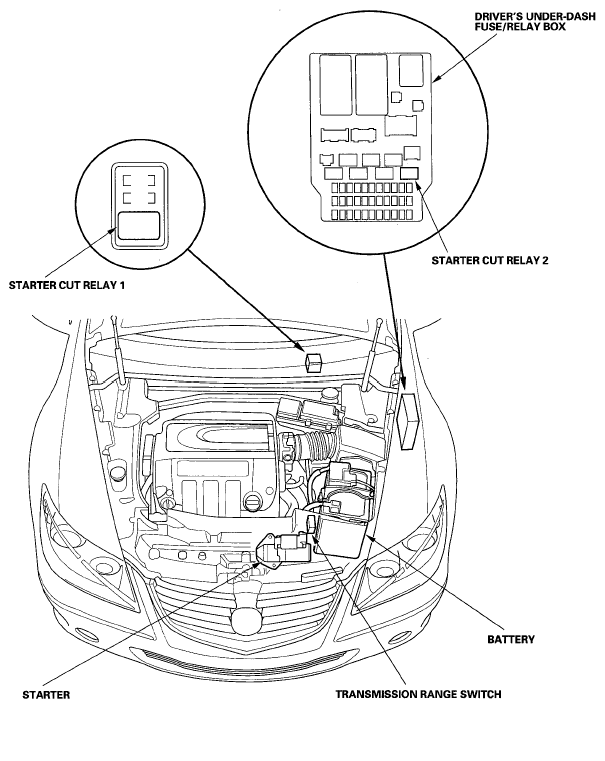

Fig 1: Identifying Starting System Components Location

G05493782

Courtesy of AMERICAN HONDA MOTOR CO., INC.
