Starter Overhaul: Disassembly/Reassembly

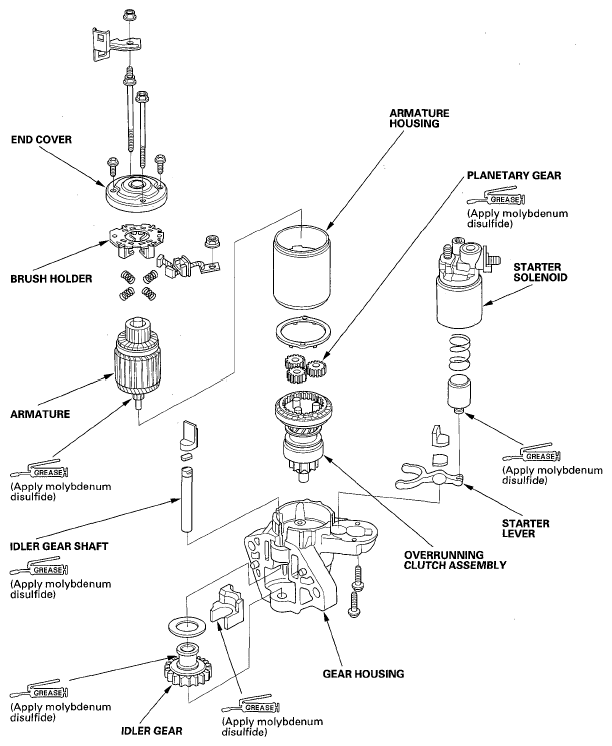

Fig 1: Exploded View Of Starter Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Brush Holder Removal

1. Remove the starter (see STARTER REMOVAL AND INSTALLATION  ).
2. Disconnect the wire from the M terminal, and remove the end cover.
3. Place a plastic pipe with an outside diameter of 29.4 mm (1.16 in.) on the armature.

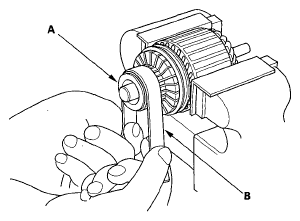

   Fig 2: Identifying Armature

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Move the brush holder (A) up to the pipe (B) while holding the pipe so the brushes do not pop out from the holder.
   Fig 3: Identifying Brush Holder And Pipe

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

   Armature Inspection and Test

5. Disassemble the starter as shown at the beginning of this procedure.
6. Inspect the armature for wear or damage from contact with the permanent magnet. If there is wear or damage, replace the armature.
   Fig 4: Identifying Armature

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Check the commutator (A) surface. If the surface is dirty or burnt, resurface it with an emery cloth or a lathe to the specifications in step 8, or recondition with #500 or #600 sandpaper (B).
   Fig 5: Cleaning Commutator Surface With Sandpaper

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Check the commutator diameter. If the diameter is out of the service limit, replace the armature.

   Commutator Diameter

   Standard (New): 29.3-29.5 mm (1.154-1.161 in.)

   Service Limit: 28.8 mm (1.134 in.)

   Fig 6: Checking Commutator Diameter

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Measure the commutator (A) runout.
   • If the commutator runout is within the service limit, check the commutator for carbon dust or brass chips between the segments.
   • If the commutator runout is not within the service limit, replace the armature.

     Commutator Runout

     Standard (New): 0.05 mm (0.002 in.) max.

     Service Limit: 0.1 mm (0.004 in.)

     Fig 7: Checking Commutator Runout

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Check the mica depth (A). If the mica is too high (B), undercut the mica with a hacksaw blade to the proper depth. Cut away all the mica (C) between the commutator segments. The undercut should not be too shallow, too narrow, or V-shaped (D).

    Commutator Mica Depth

    Standard (New): 0.40-0.50 mm (0.016-0.020 in.)

    Service Limit: 0.20 mm (0.008 in.)

    Fig 8: Identifying Mica Depth

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Check for continuity between the segments of the commutator. If there is an open circuit between any segments, replace the armature.
    Fig 9: Checking Continuity Between Segments Of Commutator

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Place the armature (A) on an armature tester (B). Hold a hacksaw blade (C) on the armature core. If the blade is attached to the core or vibrates while the core is turned, the armature is shorted. Replace the armature.

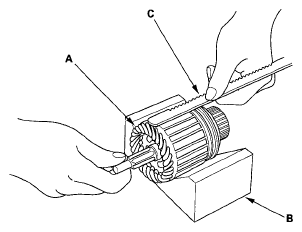

    Fig 10: Holding Hacksaw Blade On Armature Core

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Use an ohmmeter to check for continuity between the commutator (A) and the armature coil core (B), and between the commutator and the armature shaft (C). If there is continuity, replace the armature.
    Fig 11: Checking Continuity Between Commutator And Armature Coil Core

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Starter Brush Inspection

14. Measure the brush length (A). If it is shorter than the service limit, replace the brush holder assembly.

    Brush Length

    Standard (New): 7.7-8.0 mm (0.30-0.31 in.)

    Service Limit: 0.9 mm (0.04 in.)

    Fig 12: Identifying Starter Brush Length

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Starter Brush Holder Test

15. Check for continuity between the (+) brush (A) and (-) brush (B). If there is continuity, replace the brush holder assembly.
    Fig 13: Identifying Starter Brushes

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Planetary Gear Inspection

16. Check the planetary gears (A) and ring gear (B). Replace them if they are worn or damaged.
    Fig 14: Identifying Planetary Gears And Ring Gear

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Overrunning Clutch Inspection

17. Slide the overrunning clutch along the shaft. Replace it if it does not slide smoothly.
18. Rotate the overrunning clutch (A) in both directions. It should lock and move upward in one direction and rotate smoothly in the other direction. If it does not lock in either direction, or if it locks both directions, then replace it.
    Fig 15: Checking Overrunning Clutch

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
19. If the starter drive gear (B) is worn or damaged, replace the overrunning clutch assembly; the gear is not available separately. Check the condition of the idler gear and drive plate ring gear to see if the starter drive gear teeth are damaged.

    Starter Reassembly

20. Install the armature into the housing.
21. Place the brush holder assembly on the armature, then move the brush holder (A) down to the armature.
    Fig 16: Identifying Brush Holder

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
22. Install the end cover to retain the brush holder.
    Fig 17: Identifying End Cover

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
