ATF Cooler Replacement
- Disconnect the ATF cooler hose from the ATF cooler, and remove the ATF cooler and line.
- Install the new ATF cooler on (A) the body.

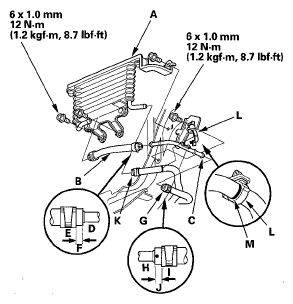

Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Connect the ATF cooler hose (B) to the ATF cooler line, and secure the hose with a clip. Slide the hose over the connector line (C) until the hose end contacts the bulge (D), and secure the hose with a clip (E) at 6-8 mm (0.2-0.3 in.) (F) from the hose end.
- Install the connector line on the body.
- Slide the hose (G) over the connector line until the hose end contacts the bulge (H), and secure the hose with a clip (I) at 6-8 mm (0.2-0.3 in.) (J) from the hose end.
- Connect the hose (K) to the ATF cooler line, and secure the hose with a clip. Install the hose on the clamp (L) at the mark (M).
