Circuit Diagram

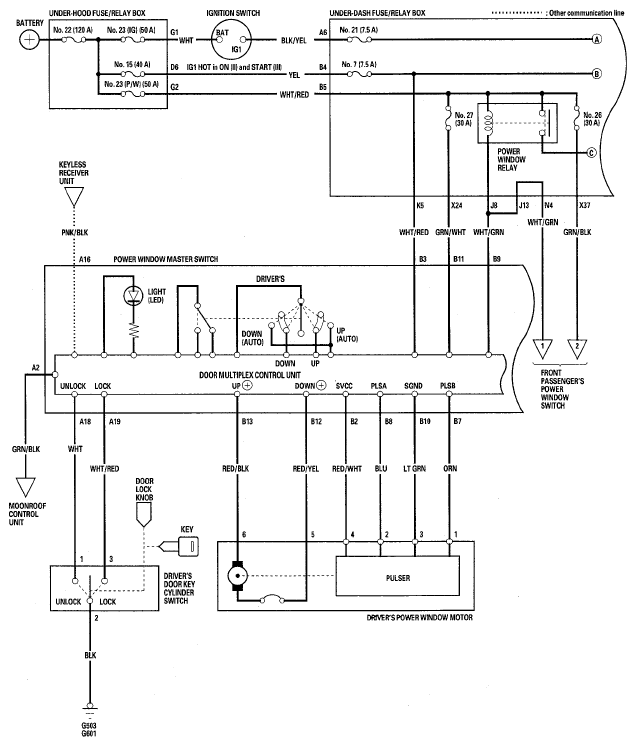

Fig 1: Power Windows - Circuit Diagram (1 Of 3)
G05462747Courtesy of AMERICAN HONDA MOTOR CO., INC.

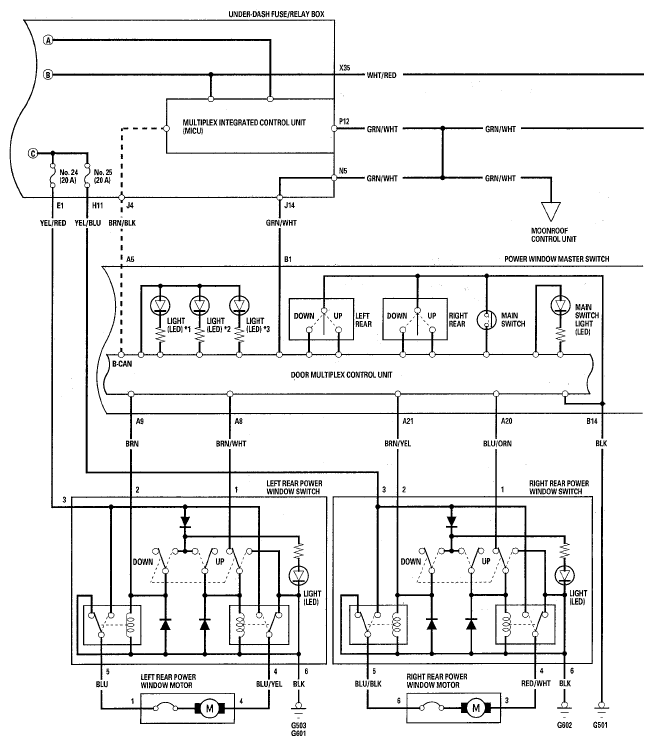

Fig 2: Power Windows - Circuit Diagram (2 Of 3)
G05462748Courtesy of AMERICAN HONDA MOTOR CO., INC.

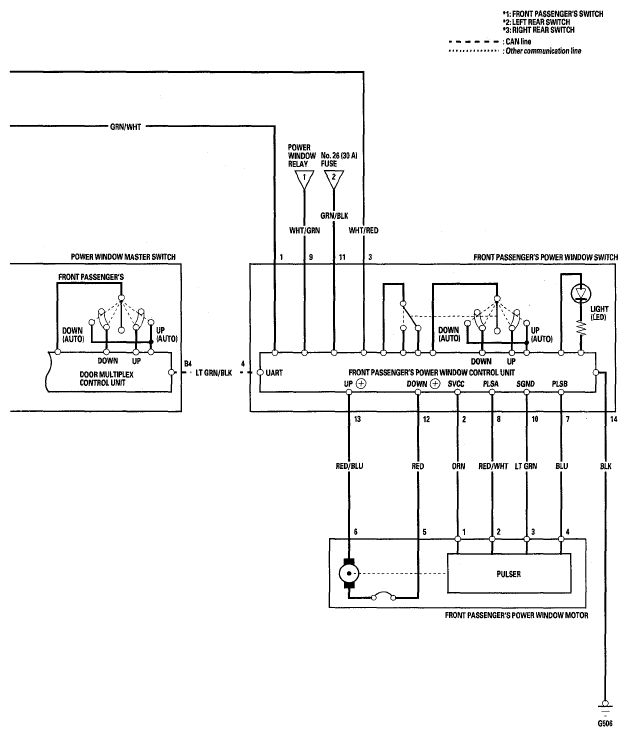

Fig 3: Power Windows - Circuit Diagram (3 Of 3)
G05462749Courtesy of AMERICAN HONDA MOTOR CO., INC.
