Component Location Index

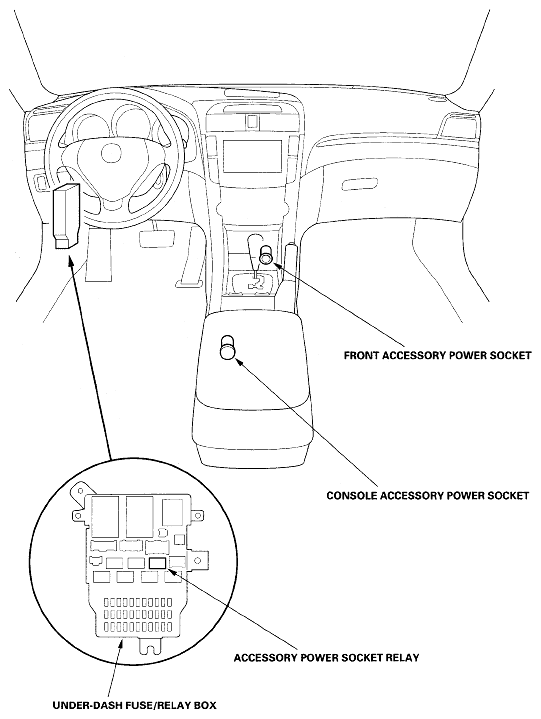

Fig 1: Identifying Accessory Power Sockets Component Location (1 Of 2)
G05462825Courtesy of AMERICAN HONDA MOTOR CO., INC.

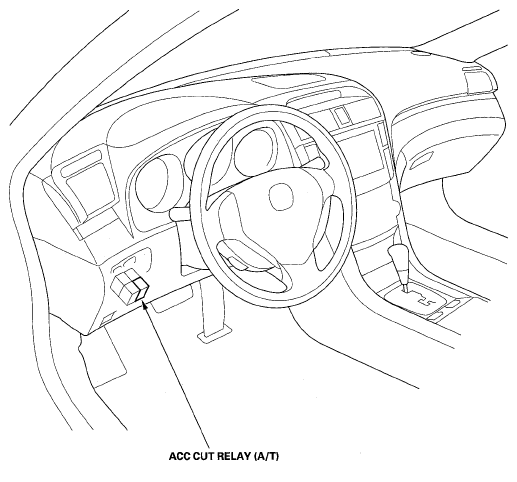

Fig 2: Identifying Accessory Power Sockets Component Location (2 Of 2)
G05462826Courtesy of AMERICAN HONDA MOTOR CO., INC.
