Relays And Control Unit Locations: Dashboard

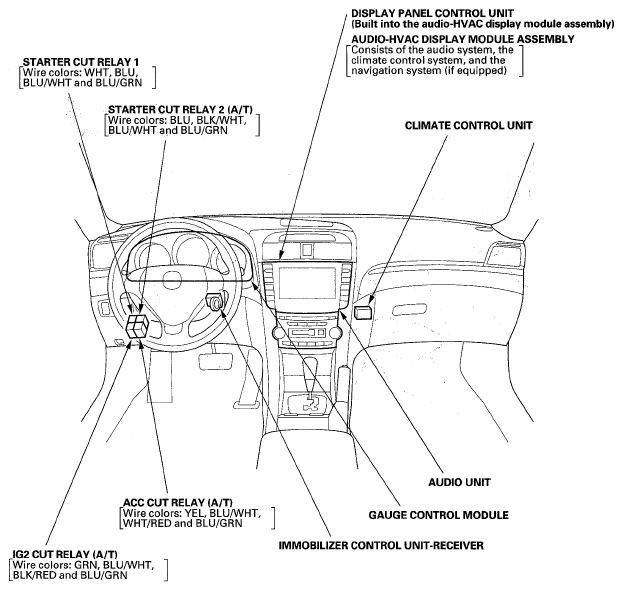

Fig 1: Identifying Dashboard Relay And Control Locations (1 Of 3)

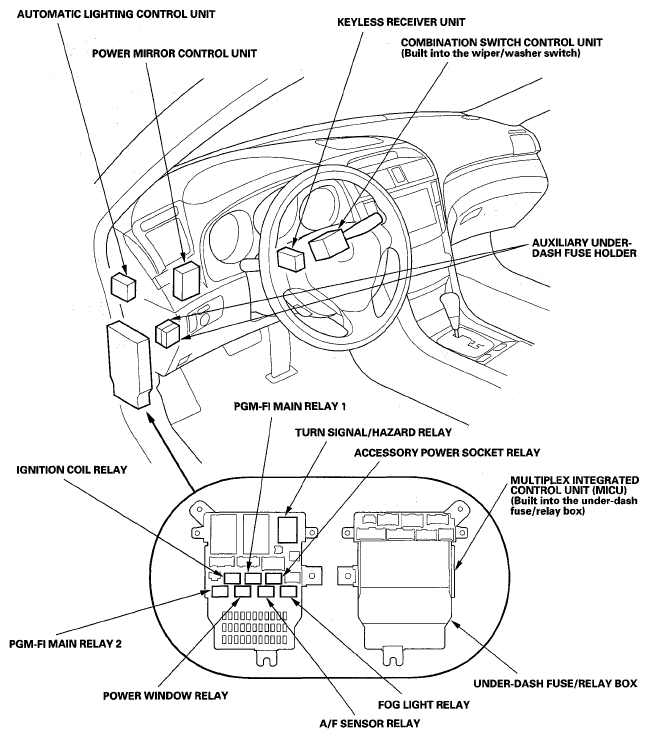

Fig 2: Identifying Dashboard Relay And Control Locations (2 Of 3)

Fig 3: Identifying Dashboard Relay And Control Locations (3 Of 3)
