Home >> Acura >> 2007 >> TL Base >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Block >> Drain Bolt Installation

Drain Bolt Installation

NOTE: When installing the drain bolts, always use new washers.

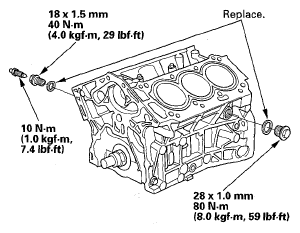

Fig 1: Drain Bolt With Torque Specifications

G05457801

Courtesy of AMERICAN HONDA MOTOR CO., INC.
