Component Location Index

Fig 1: PGM-FI System - Component Location Index (1 Of 3)
G05457923Courtesy of AMERICAN HONDA MOTOR CO., INC.

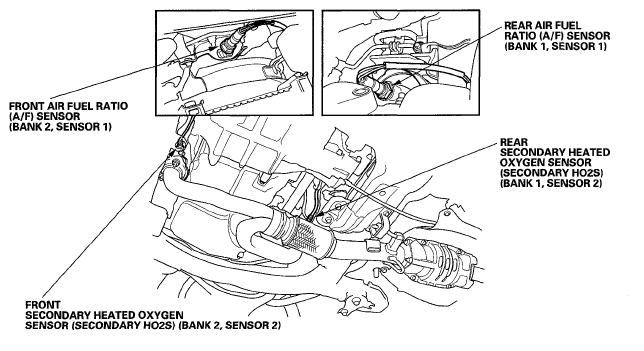

Fig 2: PGM-FI System - Component Location Index (2 Of 3)
G05457924Courtesy of AMERICAN HONDA MOTOR CO., INC.

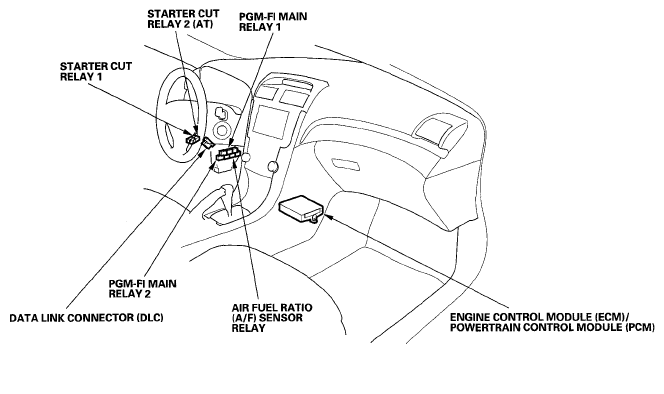

Fig 3: PGM-FI System - Component Location Index (3 Of 3)
G05457925Courtesy of AMERICAN HONDA MOTOR CO., INC.
