MAP Sensor Replacement

  1. Remove the engine cover (see step 1 on REMOVAL ).
  2. Disconnect the MAP sensor 3P connector (A).

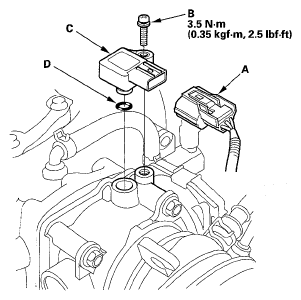

    Fig 1: MAP Sensor 3P Connector With Torque Specifications
    G05458130Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screw (B).
  4. Remove the MAP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
